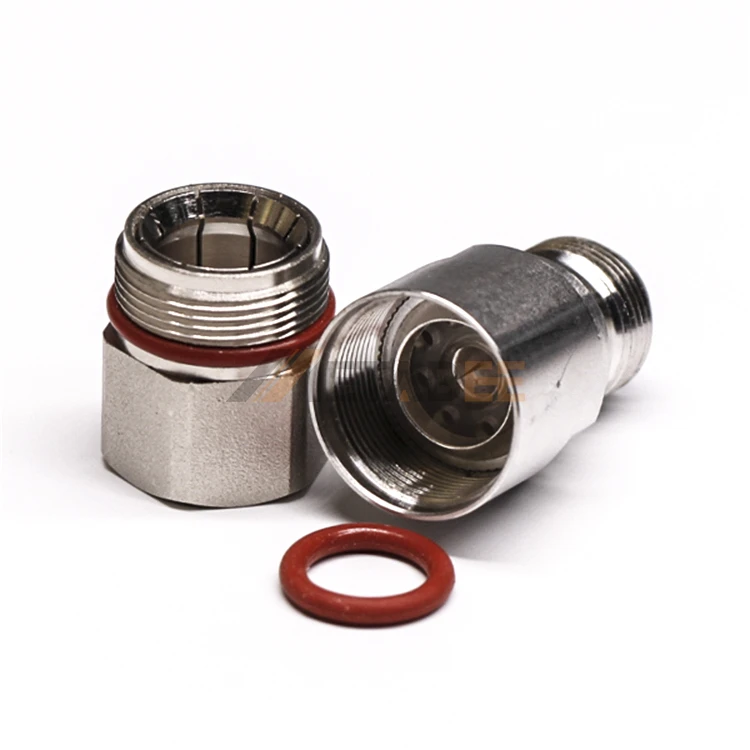

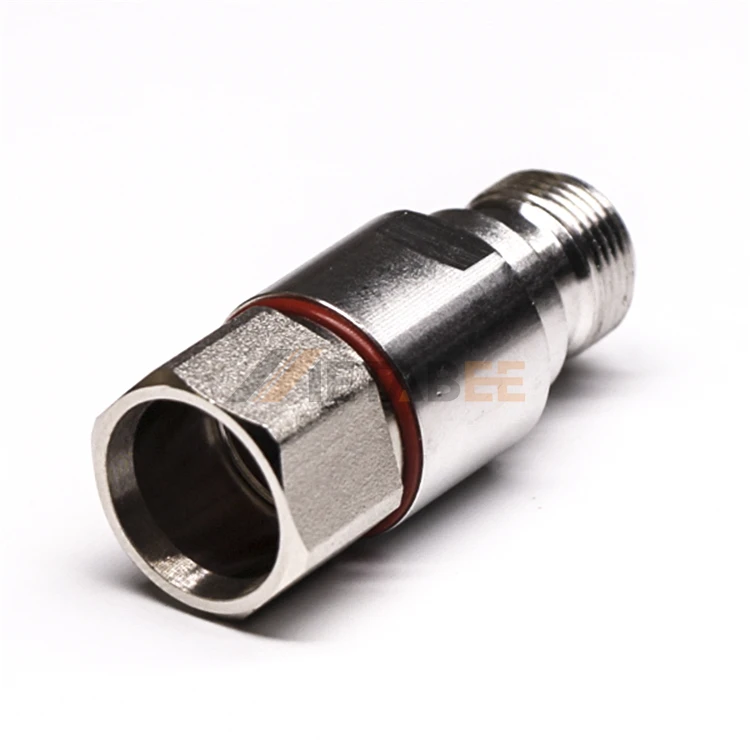

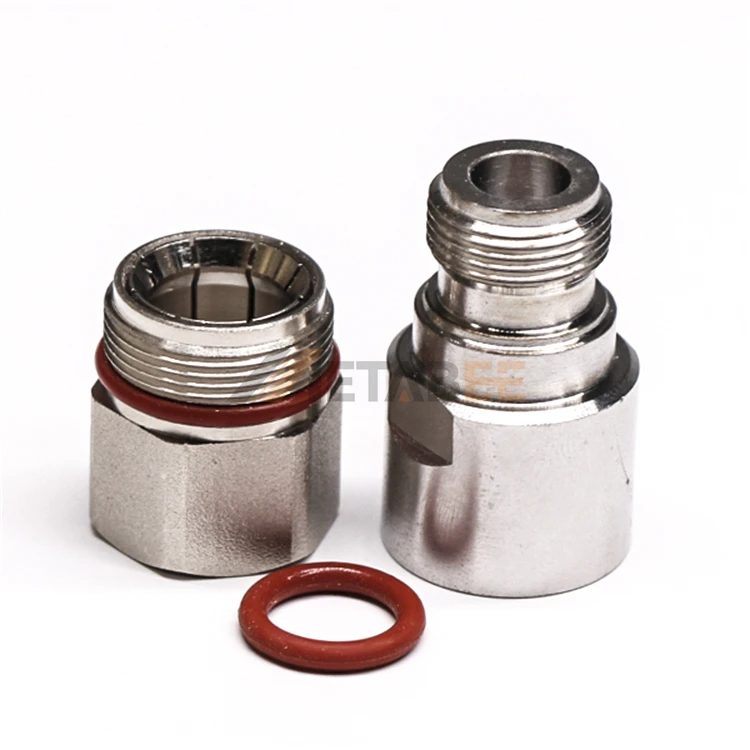

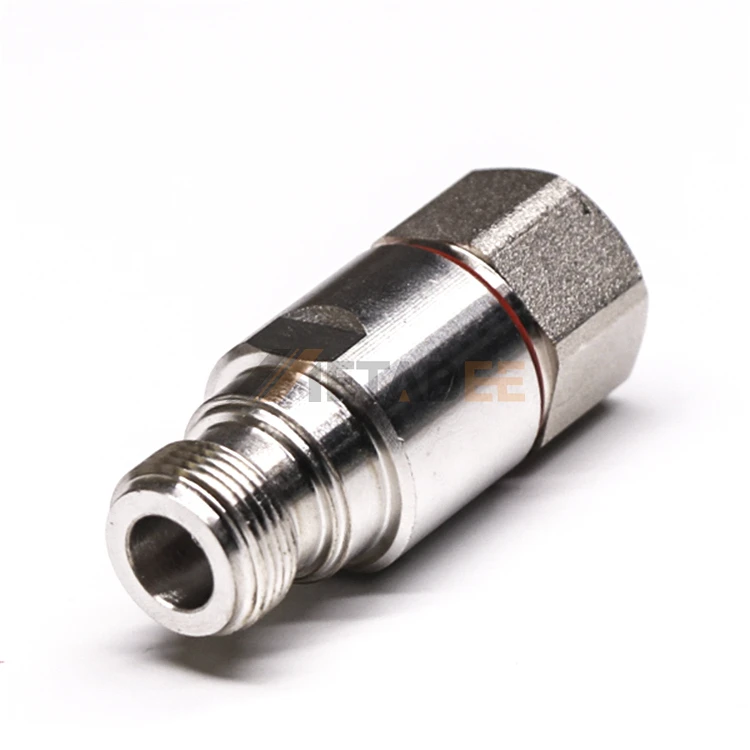

N Male Clamp Straight For LMR300 5D FB LMR400 RG8 RG11 RG213 RG214 7D FB RG217 Cable RF Coax Coaxial Connectors
- Category: >>>
- Supplier: Yuanchuang Shidai (chengdu) Technology Co. Ltd.
Share on (1601268775708):
Product Overview
Description
Products Description
Meticulously Manufactured and Focused on Details
Product real shot, the appearance size makes you clear at a glance
what is N-type connector ?
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
N-Type connector features a threaded coupling mechanism and is fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
N-Type connector features a threaded coupling mechanism and is fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.
Features and Benefits
* Broad line of military, industrial and commercial grade products available
* Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs
* Threaded coupling mechanism ideal for vibration resistance
* Accommodates a wide range of coaxial cables including low loss types
* Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs
* Threaded coupling mechanism ideal for vibration resistance
* Accommodates a wide range of coaxial cables including low loss types
Applications
* Antennas
* Base Stations
* Instrumentation
* Satellite Systems
* WLAN
* Radar Systems
* Broadcast
* Surge Protection
* Base Stations
* Instrumentation
* Satellite Systems
* WLAN
* Radar Systems
* Broadcast
* Surge Protection

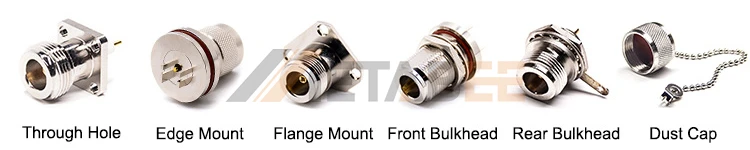

N Tpye PCB/Panel Connector

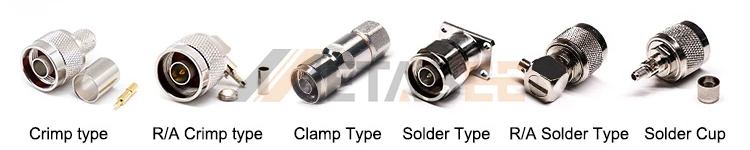

N Tpye Cable Connector
Impedance | 50 / 75 Ω |
Frequency Range | 0~11 GHz |
VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
Working Voltage | 1000 V rms |
Withstand Voltage | 1500V V RMS Max |
Dielectric Withstanding Voltage | 2500 V rms |
Center Contact Resistance | ≦ 1.0 MΩ (Milliohms Max.) |
Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
