MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine
MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine
MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine
MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine
MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine
MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine
MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine

MAX High power MFSC series laser source 6KW 12KW 20KW 30KW Continuous Laser Source For Metal Fiber Laser Cutting Machine

Share on (1601268779155):


Price:$10,890.00 - $11,014.00

Quantity:


Product Overview

Description



Product Introduction

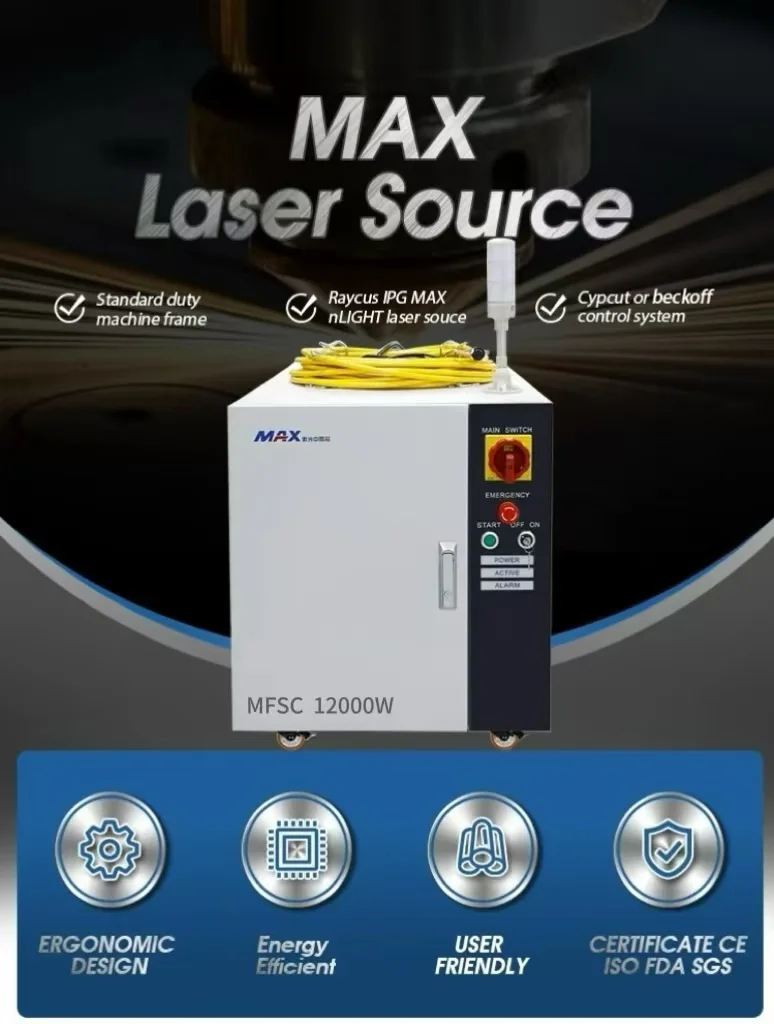

High Power Industry 12000W MAX MFSC-12000 Fiber Laser Source For Metal Laser Cutting Machine
MFSC 12000W single-module continuous fiber laser is a high-power fiber laser with high electro-optical conversion efficiency,compact size, good beam quality and maintenance-free. Welding and other process quality, widely used in laser cutting, laser welding, laser cladding, laser brazing, laser surface heat treatment, etc.


PRODUCT FEATURE


High Power with Great Beam Quality
High power density with flat-head distribution
High wall-plug efficiency

Even Energy Distribution
Less splash during cutting and welding

Excellent Material Processing Performance
High speed in thin sheet cutting
Strong capability in thick material processing

Compact Design, Maintenance Free
Highly integrated system with modular design
High stability and easy maintenance significantly reduce TCO

Best Choice for Cutting and Welding
Widely used in hardware processing, automobile, shipping, construction machinery, medical industries and more.

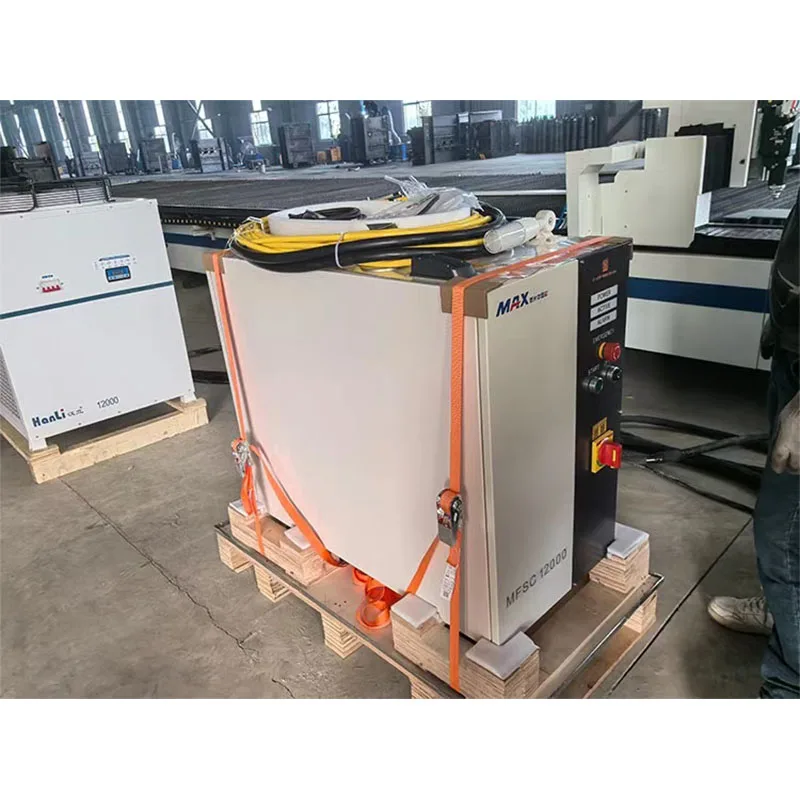

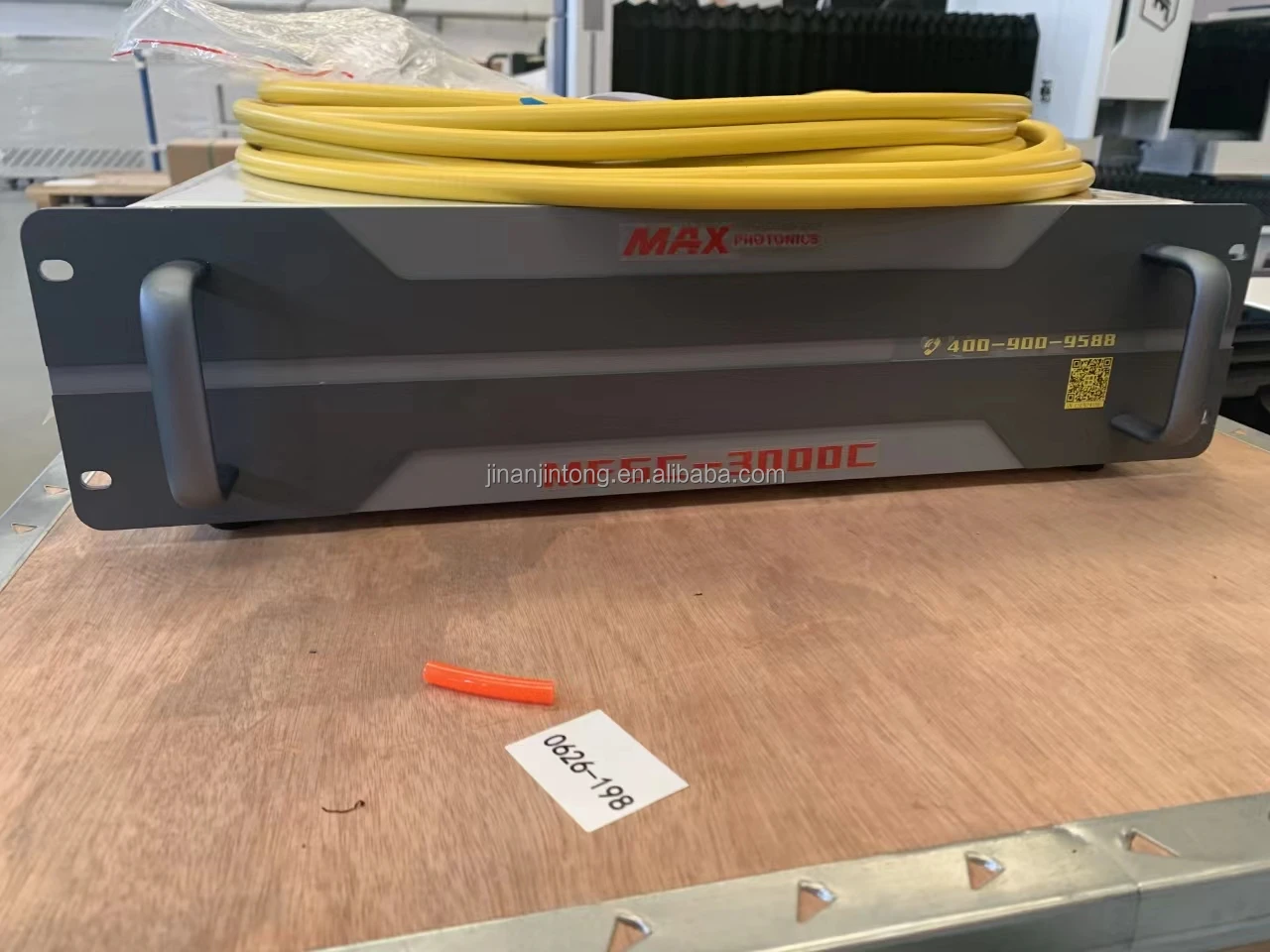

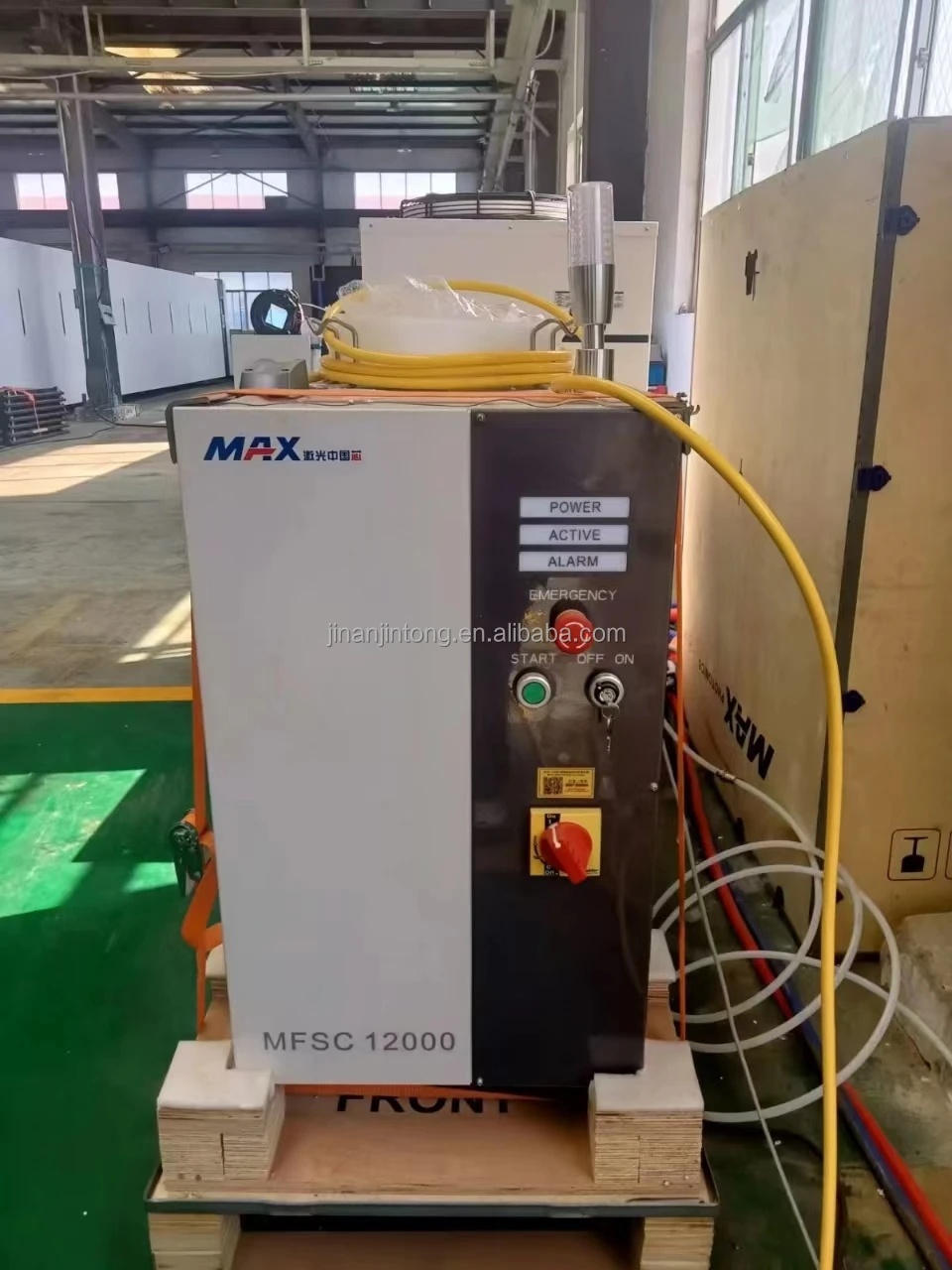

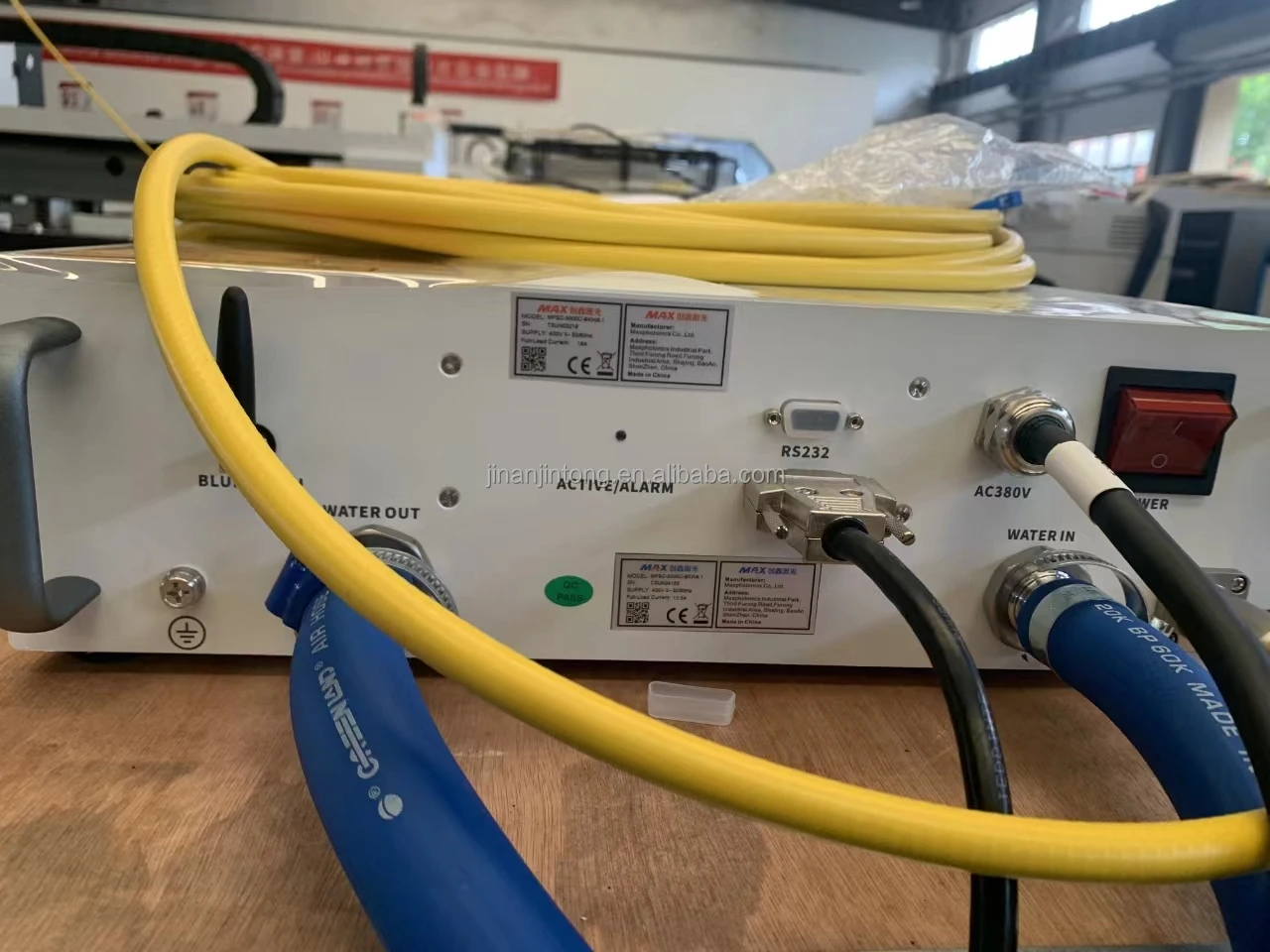

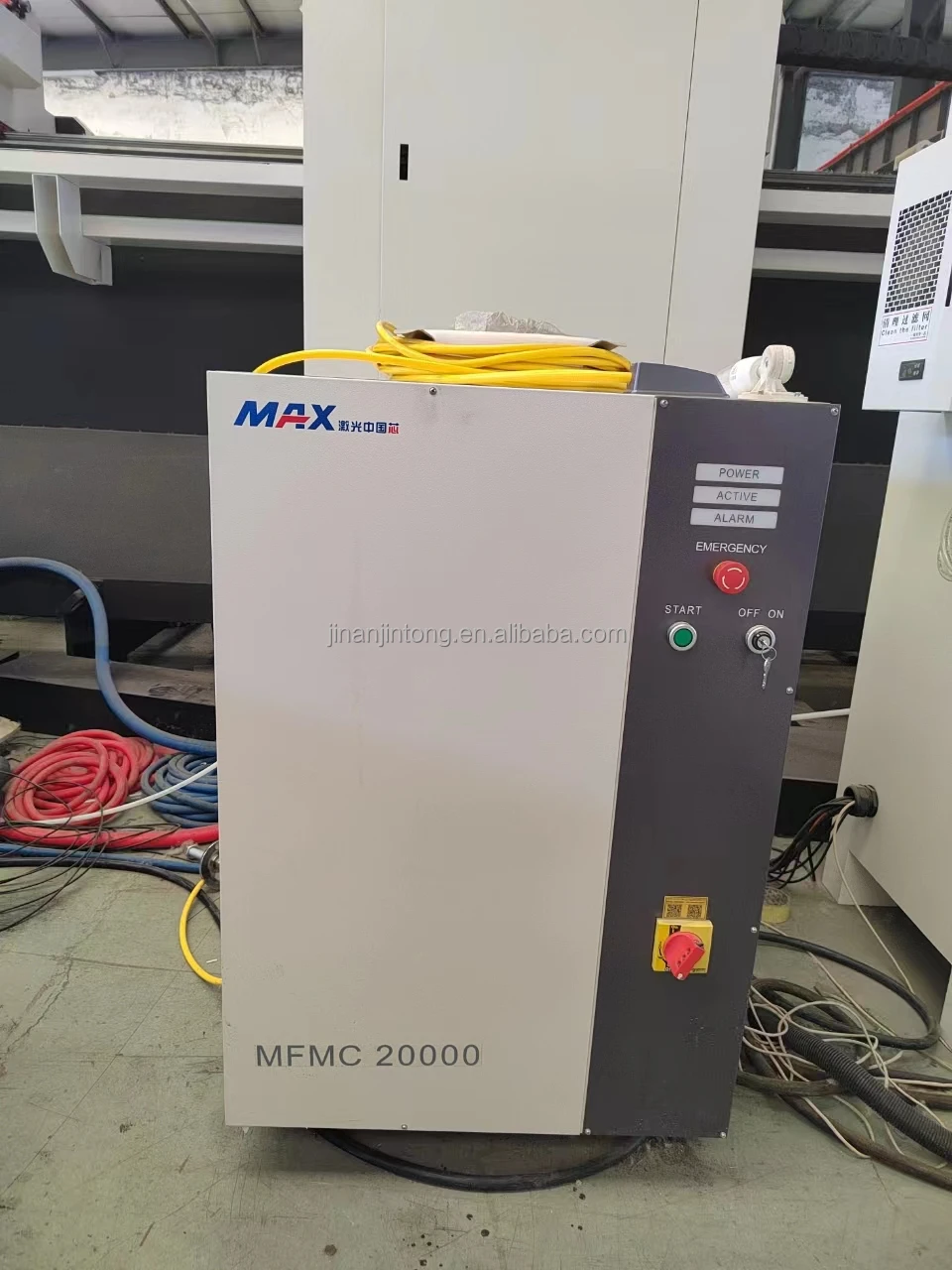

Product Display






Technical parameters


Models
MFMC-6000W
MFMC-12000W
MFMC-15000W
MFMC-20000W
OPTICAL SPECIFICATIONS
Nominal Power
6000W
12000W
15000W
20000W
Mode of Operation
CW/Modulated
Power Tunability
10 to 100%
Wavelength
1080± 5 nm
Power Stability
±1%
Laser Beam Quality, BPP
3.5 to 4.5 mm x mrad (100μmQBH)
5 to 6.5 mm x mrad (150umQBH)
6.5 to 9 mm x mrad (200umQBH)
Modulation Frequency
≤5kHz
Preview Red Light Power
200 μW
FIBER DELIVERY SYSTEM
Interface
QBH
LOE
Length
20m standard, other lengths optional
Diameter
100/150/200 μm
Bending Radius
200 mm
ELECTRICAL RATINGS
Supply Voltage
400 (-15% to +10%) VAC 3-phase
OTHER SPECIFICATIONS
Operating Temperature
+10 to+40℃
Storage Temperature
-10 to+60℃
Humidity
10 to 80%
Cooling Method
Water Cooling
Cooling Medium
Distilled water/ Glycol Antifreeze
Dimension
1050X1385x1658mm
Weight
534(±4) kg
646(±5) kg
726(±5)kg
815(±5) kg

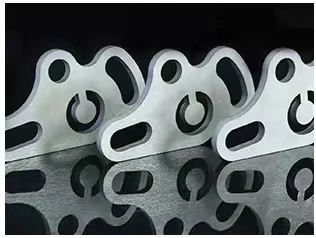

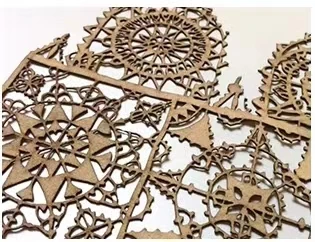

Sample Display




Company Profile



Jinan Jintong Import & Export Co., Ltd. is a manufacturer and supplier based in Jinan, Shandong Province. We specialize in voltage stabilizers, transformers, and special power supplies. Our comprehensive enterprise is dedicated to product development, production, sales, and after-sales service in the power supply field. We adhere to the ISO9001 quality system to ensure the stability and reliability of our equipment.
As a leading intelligent equipment manufacturer, we have established and maintained close cooperation with first-line accessory manufacturers such as IPG, Precede, Raycus, and Max for many years. Currently, Leading CNC Equipment Co., Ltd. has established long-term and stable relationships with intelligent equipment distributors in more than 20 countries around the world, such as Russia, Saudi Arabia, South Korean, Europe, Australia, South east Asia, Africa etc. with an annual export volume of more than 1,000 units.







AFTER-SALES SERVICE
1.The warranty of the machine is 2 years and the laser generator is 2 years.(Excluding wearing parts).The time is from machine finished date told by Party B.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.Specialized after-sales service group 24 hours online each day,to provide free technical support by Email,WhatsAPP,WeChat and soon.
5.Machine has been tested and adjusted before delivery,you can use the machine directly after receiving it.
6.Providing technical services door to the door:we have professional engineers to offer machine installation commissioning and maintenance if customers pay ticket and related charges(accommodation problem).
7.About installation,because we ship the machine by a full container we won't disassemble too much parts,the main parts that need to connect is laser source,water chiller and controller.We have detailed manual and videos,if you don't understand,our after-sales service man can guide you hand by hand,video call is available.

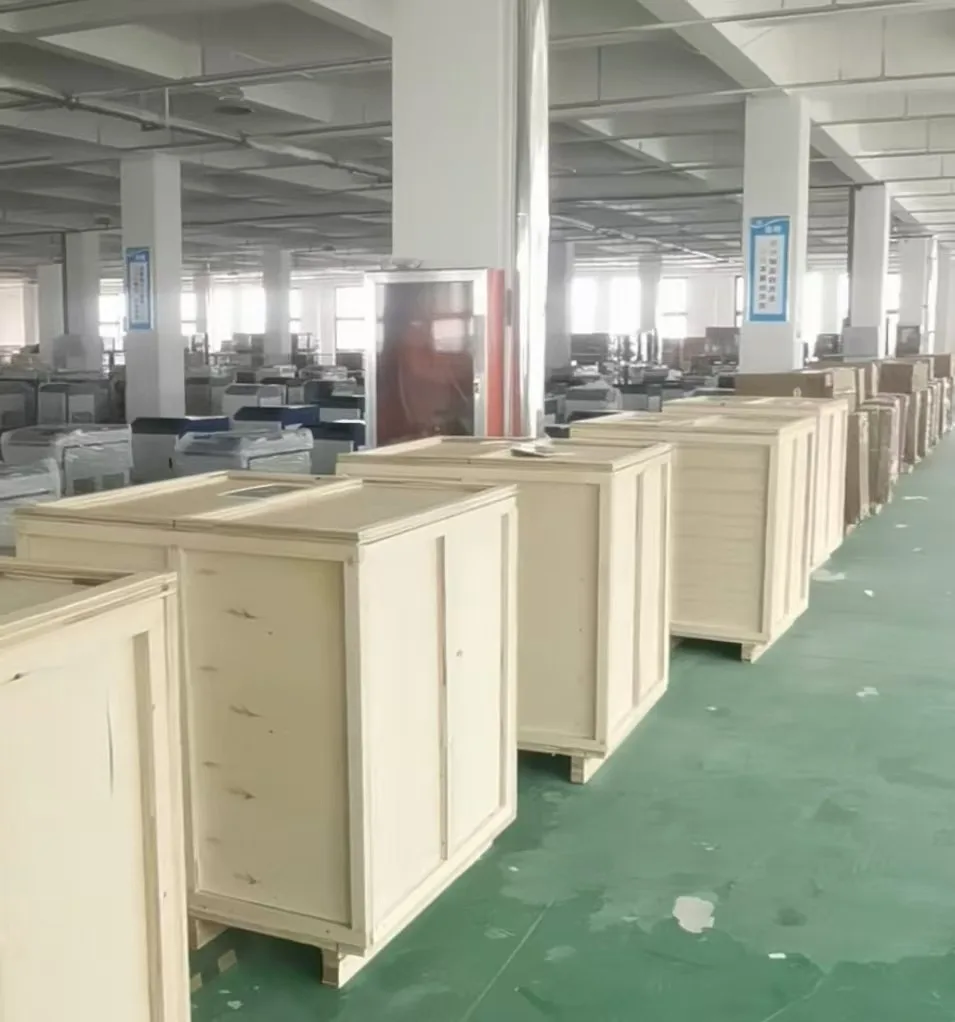

Transport And Payment
