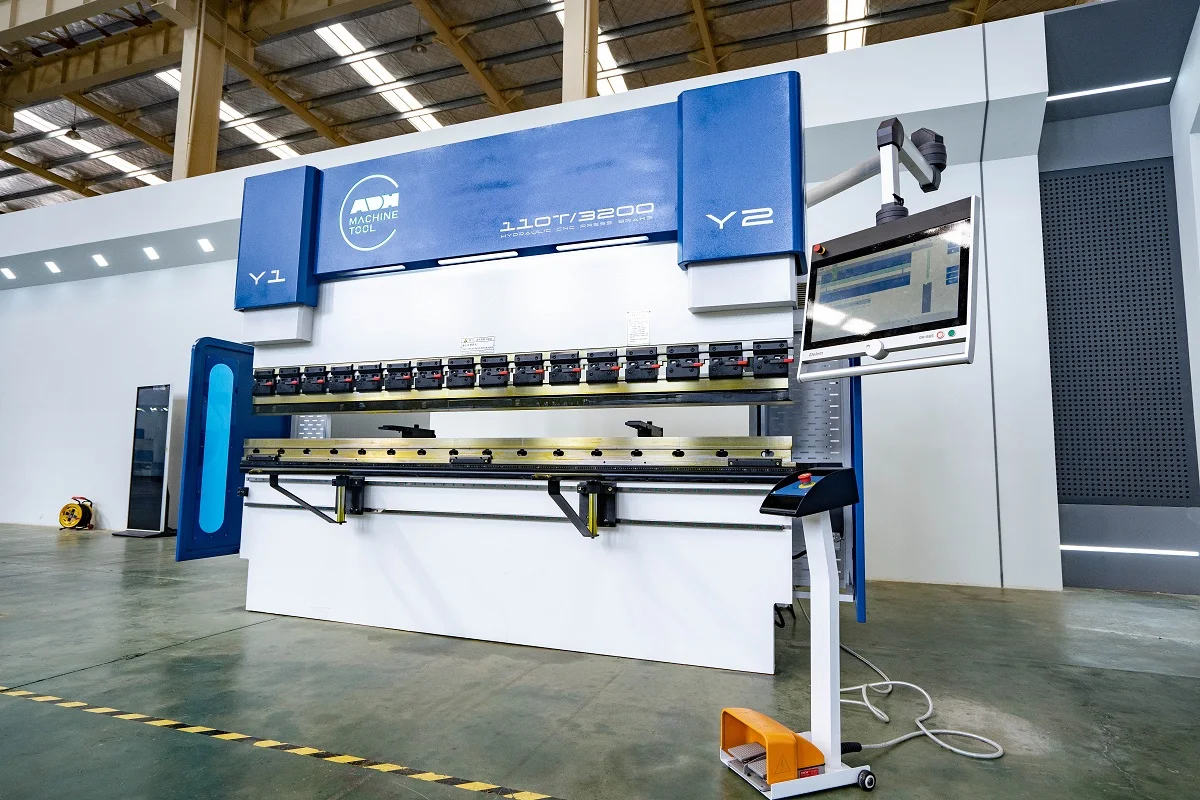

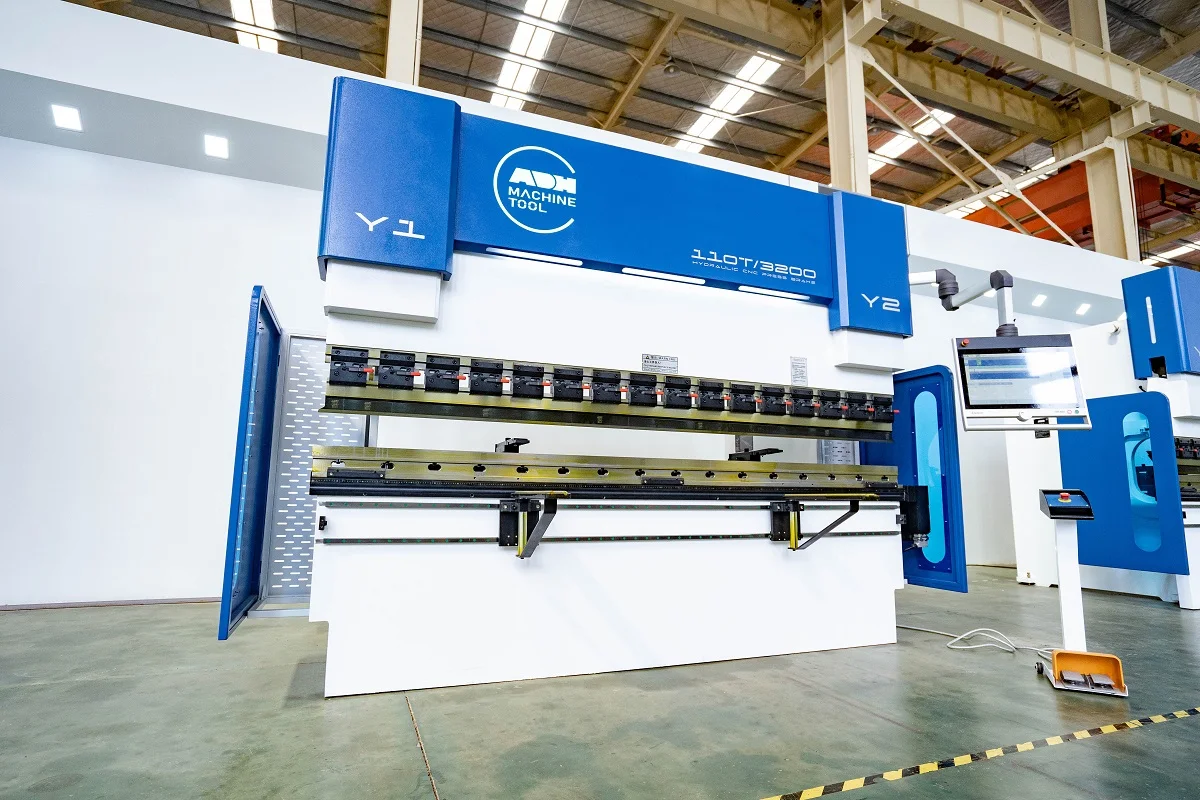

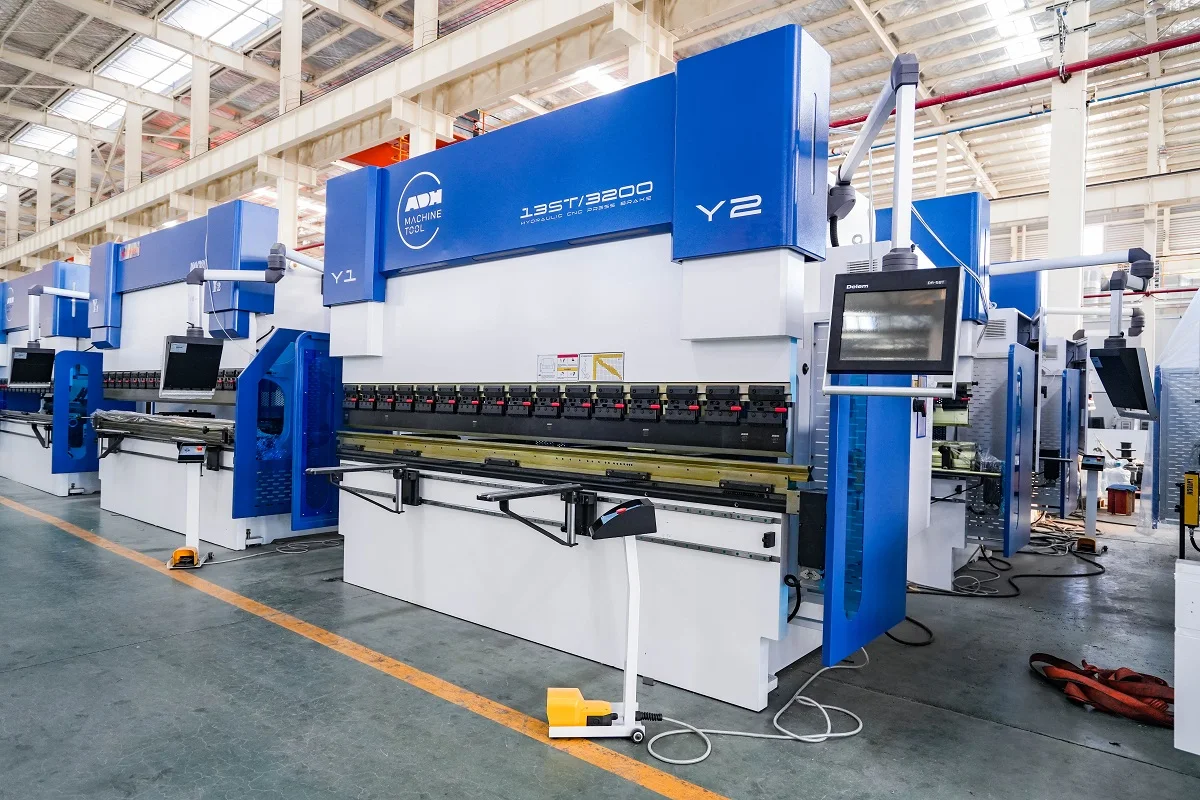

CNC 170T3200 Full electric hydraulic press brake sheet metal fabrication manufacturing bending folder machine
- Category: >>>
- Supplier: Anhui Donghai Yuxiang Import&export Co. Ltd.
Share on (1601268833731):
Product Overview
Description
PRODUCT DESCRIPTION
WAD SERIES CNC HYDRAULIC PRESS BRAKE
Controller Brand: DELEM, CYBELEC, ESA, etc
Capabilities: 50T - 800 ton, 1000 ton, 2000 ton 3000 ton
Capabilities: 50T - 800 ton, 1000 ton, 2000 ton 3000 ton
Optional Single / Tandem Type
· streamlined design, high speed, high precision, high rigidity
· electro hydraulic servo system
· mechanical compensation
· servo mo-tor back gauge
PRODUCT DETAILS
Mechanical Structure
The press brake's structure mainly includes a frame, column, ram, worktable, main cylinder, and backgauge, all optimized through finite element analysis and 3D software, strong and rigid. Structural components are exquisitely designed, durable and stable, enhancing the machine's performance and lifespan.

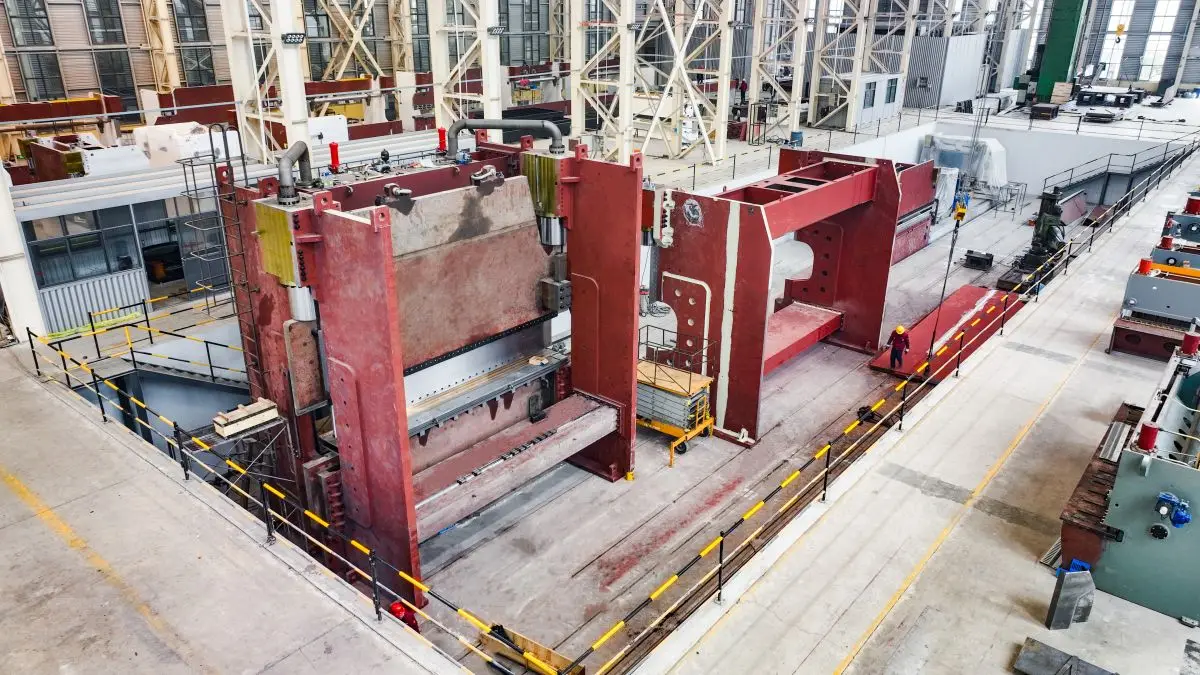

Long Service Life Machine Body Frame
ADH press brake frames are supported by a 15-year warranty, indicating a strong commitment to long-term customer satisfaction and reliability.

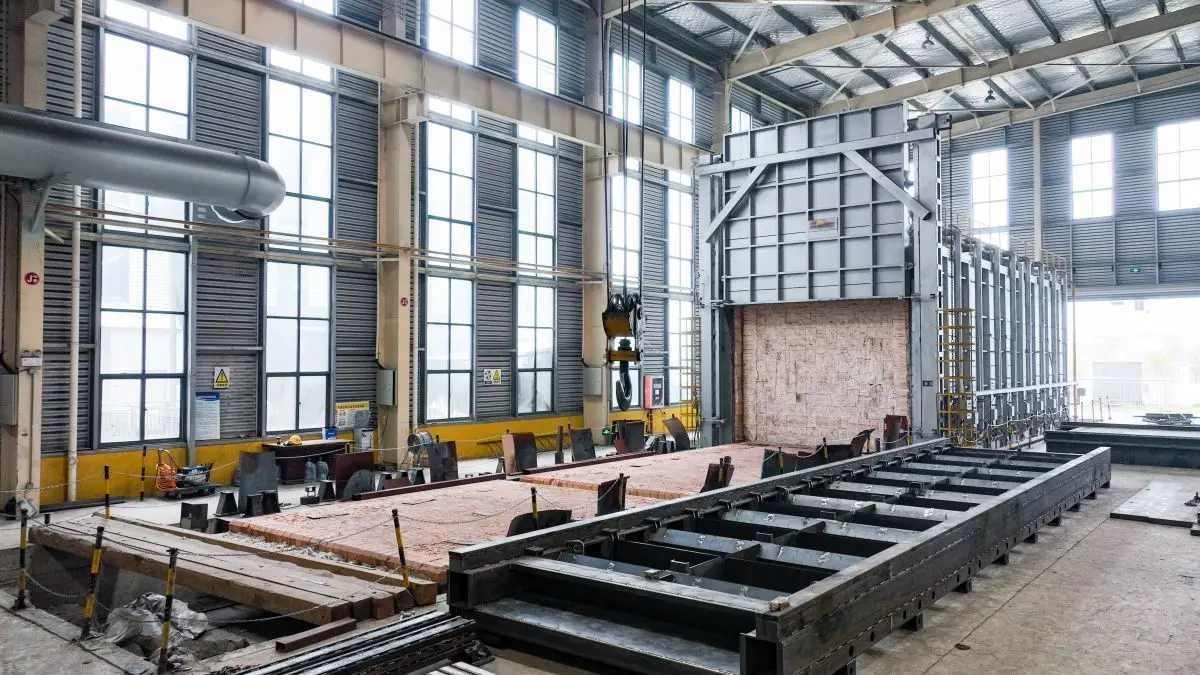

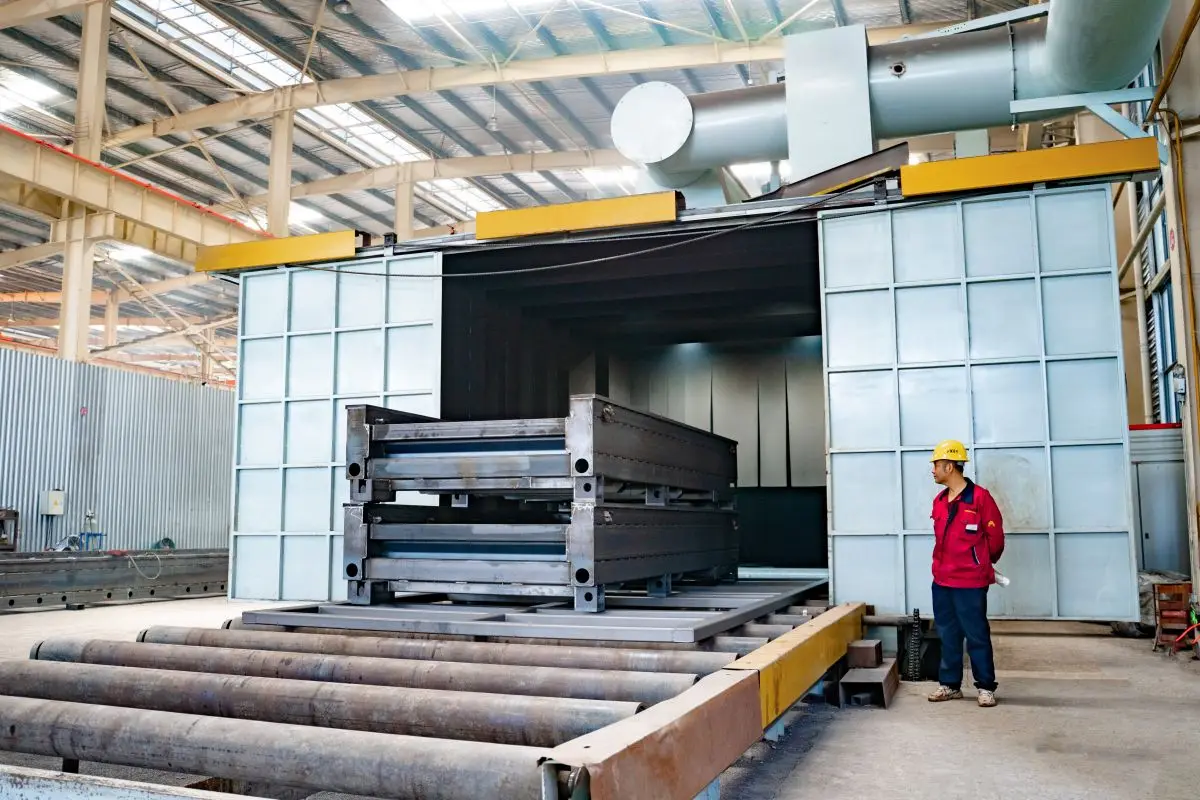

The frame undergoes post-welding heat treatment to relieve stress, ensuring it remains deformation-free.
The frame undergoes post-welding heat treatment to relieve stress, ensuring it remains deformation-free.
Servo Motor
The servo motor can save 40% energy, enhance ram efficiency by 7-20%, reduce oil temperature by 10-20℃, operates at a quiet 60 dB sound pressure level.

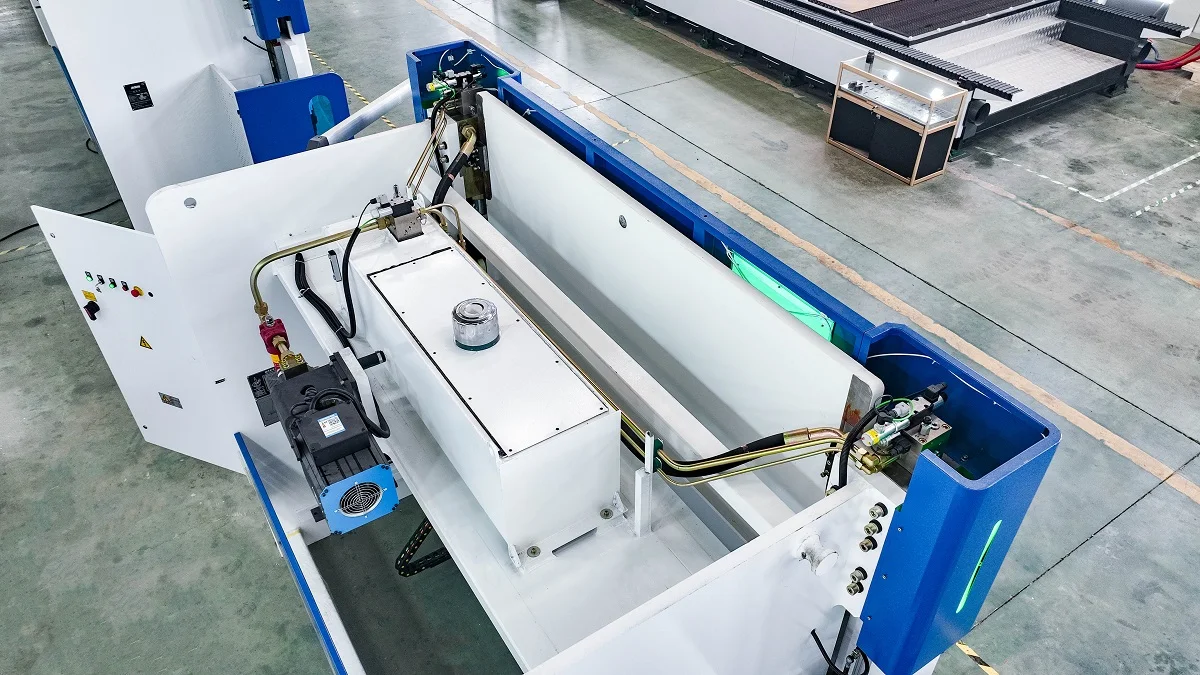

Hydraulic System
HAWE's German-engineered oil pump and hydraulic valve system, high reliability, energy efficiency, and eco-friendly performance, alongside easier maintenance and improved bending precision.
Various Optional Controllers

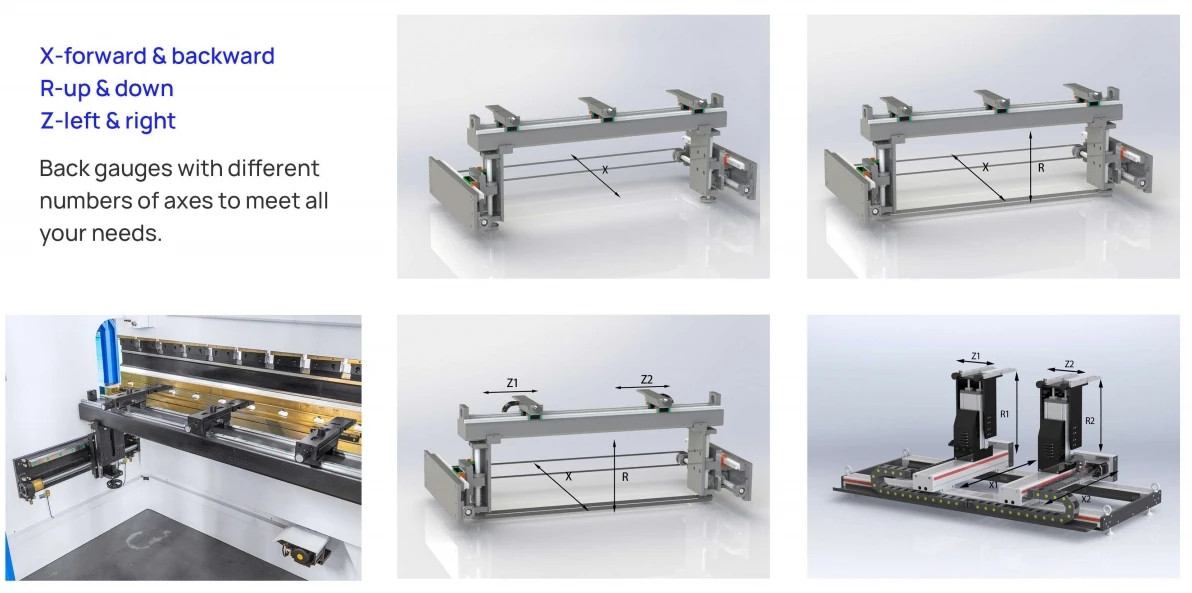

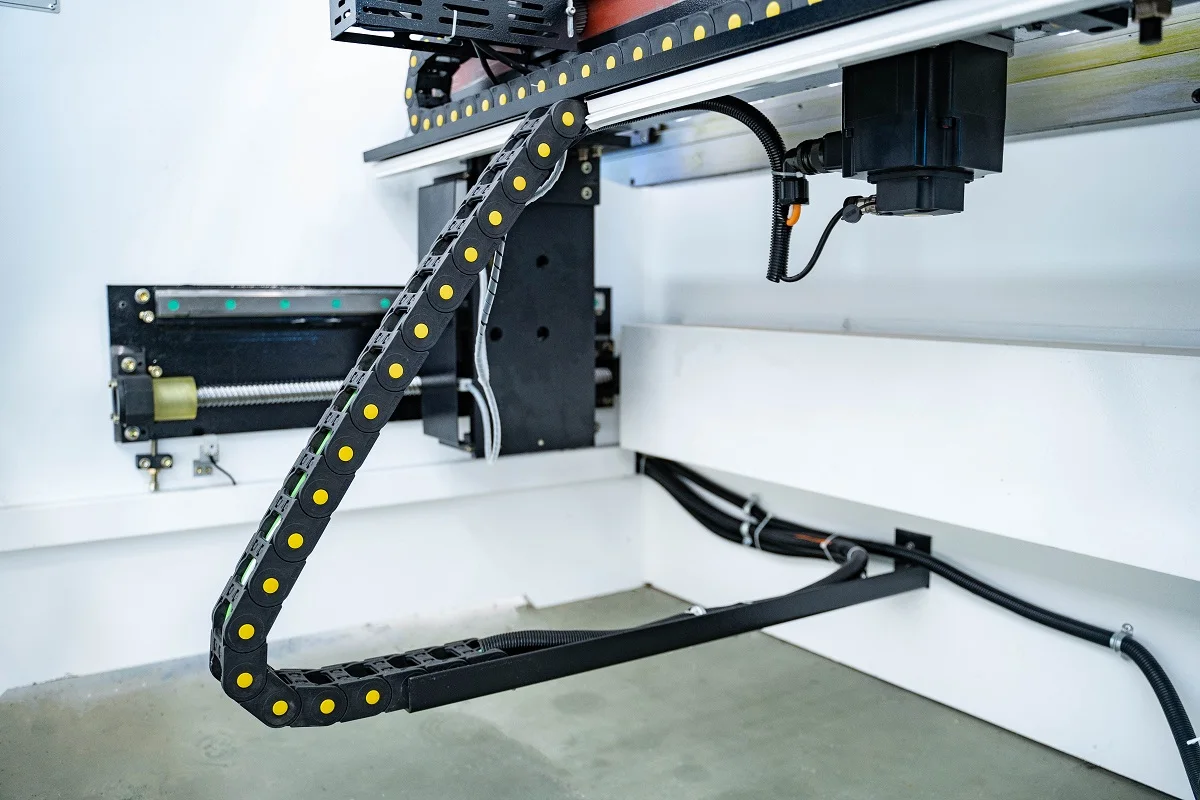

Optional Backgauge Axis
(1: X, 2: X+R , 4: X+R+Z1+Z2, 6: X1+X2+R1+R2+Z1+Z2)
OPTIONAL
Front Sheet Follower Supports System
Automatic Robot Arm
DSP Laser Protection
MCS+ DSP AP
Light Curtain
Double Sided Quick Clamp
ROL200 PN POWER Pneumatic Fast Clamping
Wila Hydraulic Clamping System
TECHNICAL SPECIFICATION
Model | Bending Force | Bending Length | Daylight distance | Throat Depth | Ram Stroke | Open Height | Main Motor |
Unit | KN | mm | mm | mm | mm | mm | KW |
WADE-50T/1300 | 500 | 1300 | 1120 | 250 | 150 | 460 | 5.5 |
WADE-50T/2000 | 500 | 2000 | 1600 | 250 | 150 | 460 | 5.5 |
WADE-70T/1600 | 700 | 1600 | 1300 | 300 | 150 | 460 | 5.5 |
WADE-70T/2500 | 700 | 2500 | 2050 | 300 | 150 | 460 | 5.5 |
WADE-70T/3200 | 700 | 3200 | 2700 | 300 | 150 | 460 | 5.5 |
WADE-80T/2500 | 800 | 2500 | 2050 | 300 | 150 | 460 | 7.5 |
WADE-110T/2500 | 1100 | 2500 | 2050 | 400 | 200 | 480 | 11 |
WADE-110T/3200 | 1100 | 3200 | 2700 | 400 | 200 | 480 | 11 |
WADE-110T/4000 | 1100 | 4000 | 3100 | 400 | 200 | 480 | 11 |
WADE-110T/4100 | 1100 | 4100 | 3600 | 400 | 200 | 480 | 11 |
WADE-135T/3200 | 1350 | 3200 | 2700 | 400 | 200 | 480 | 11 |
WADE-135T/4000 | 1350 | 4000 | 3100 | 400 | 200 | 480 | 11 |
WADE-135T/4100 | 1350 | 4100 | 3600 | 400 | 200 | 480 | 11 |
WADE-170T/2500 | 1700 | 2500 | 2050 | 450 | 200 | 480 | 15 |
WADE-170T/3200 | 1700 | 3200 | 2700 | 450 | 200 | 480 | 15 |
WADE-170T/4000 | 1700 | 4000 | 3100 | 450 | 200 | 480 | 15 |
WADE-170T/4100 | 1700 | 4100 | 3600 | 450 | 200 | 480 | 15 |
WADE-220T/2500 | 2200 | 2500 | 2050 | 450 | 200 | 480 | 18.5 |

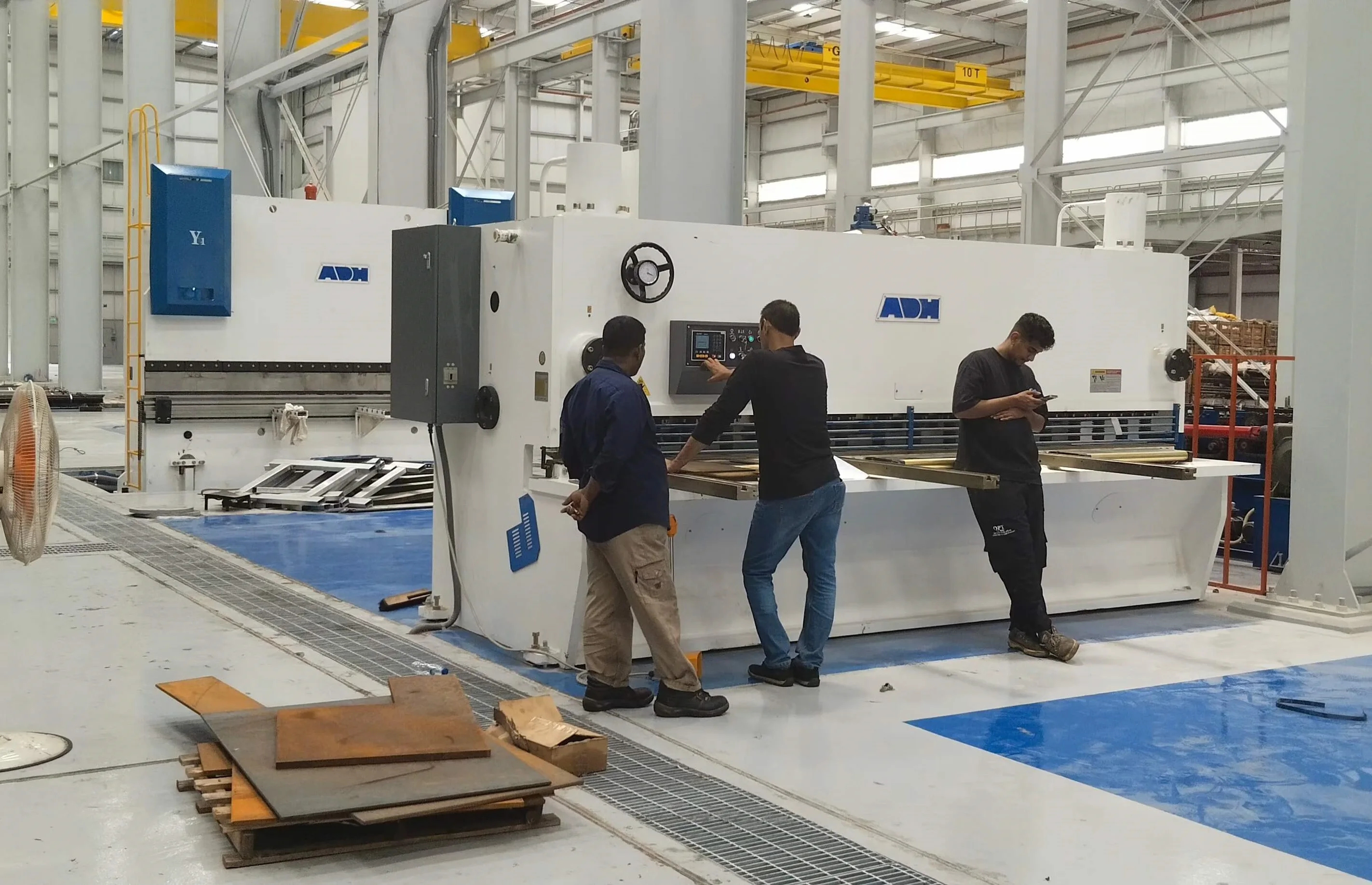

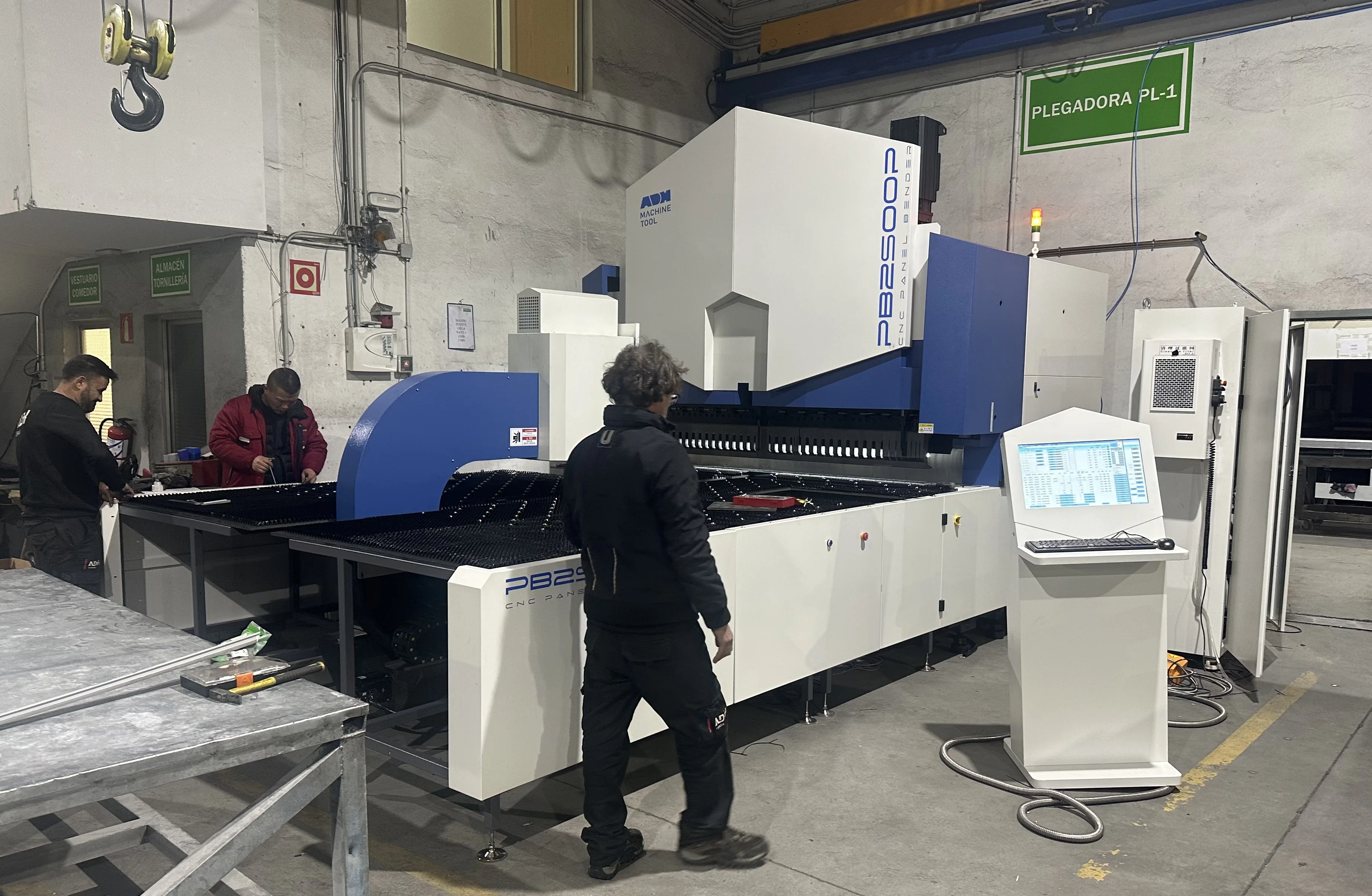

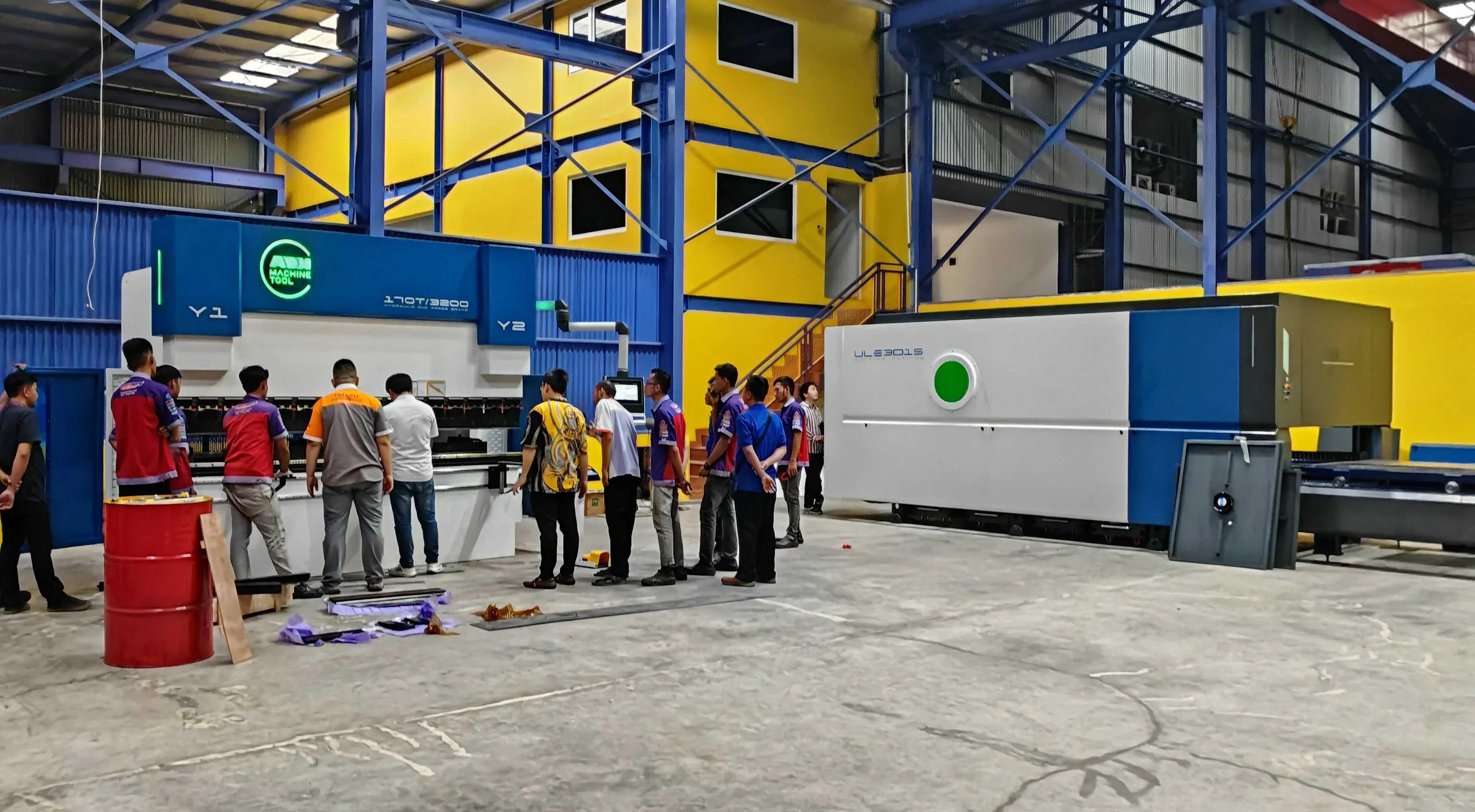

GLOBAL SERVICE
EXHIBITION

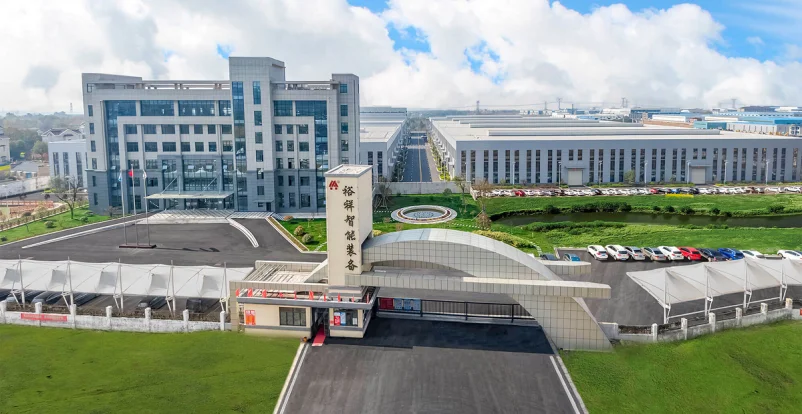

ABOUT ADH
EMPLOYEES: 617 SALES & SERVICES OFFICES: 67 R&D TECH: 43
Founded in March 2002, Anhui Donghai Machine Tool Co., Ltd. (Brand: ADH) is a comprehensive leading enterprise in the machine tool industry in China, which integrates automatic control system design, new product research and development, and equipment manufacturing innovation platform formation. Our factory is located in Bowang District, Ma'anshan City, Anhui Province, only 30 kilometers away from Nanjing Lukou International Airport and can be reached within 30 minutes by car.

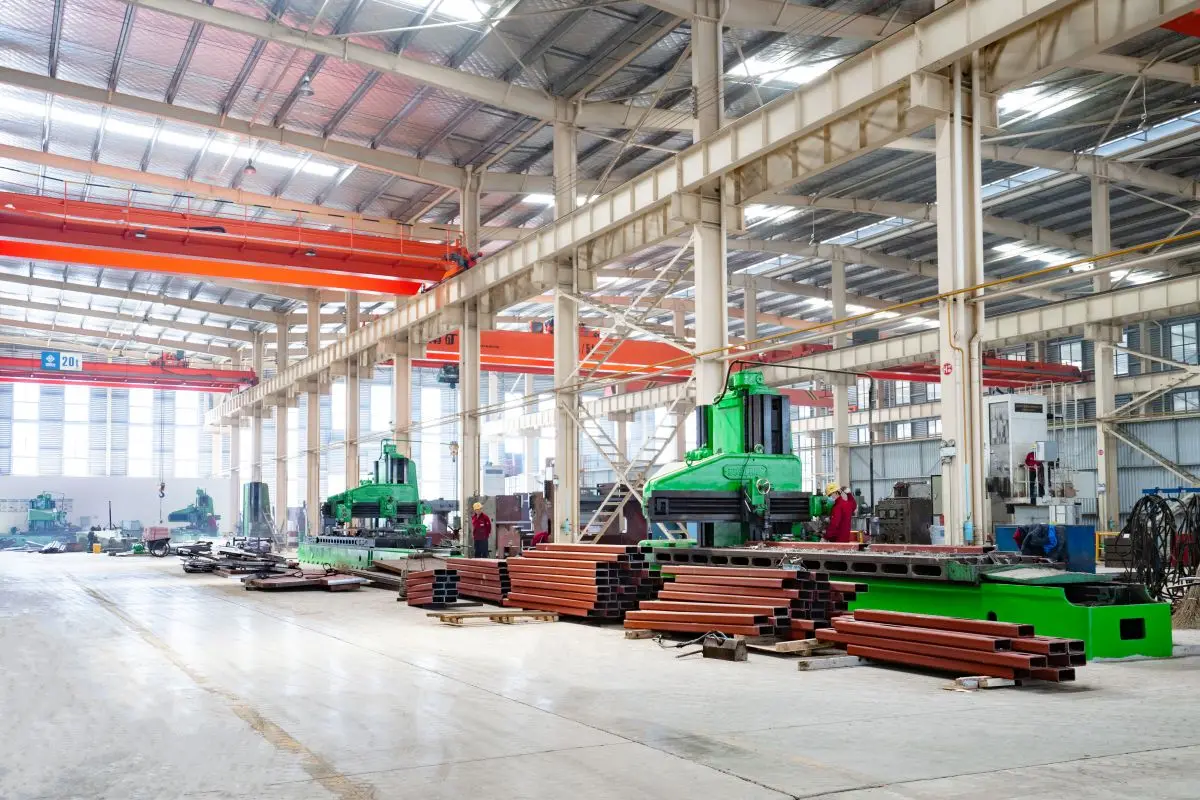

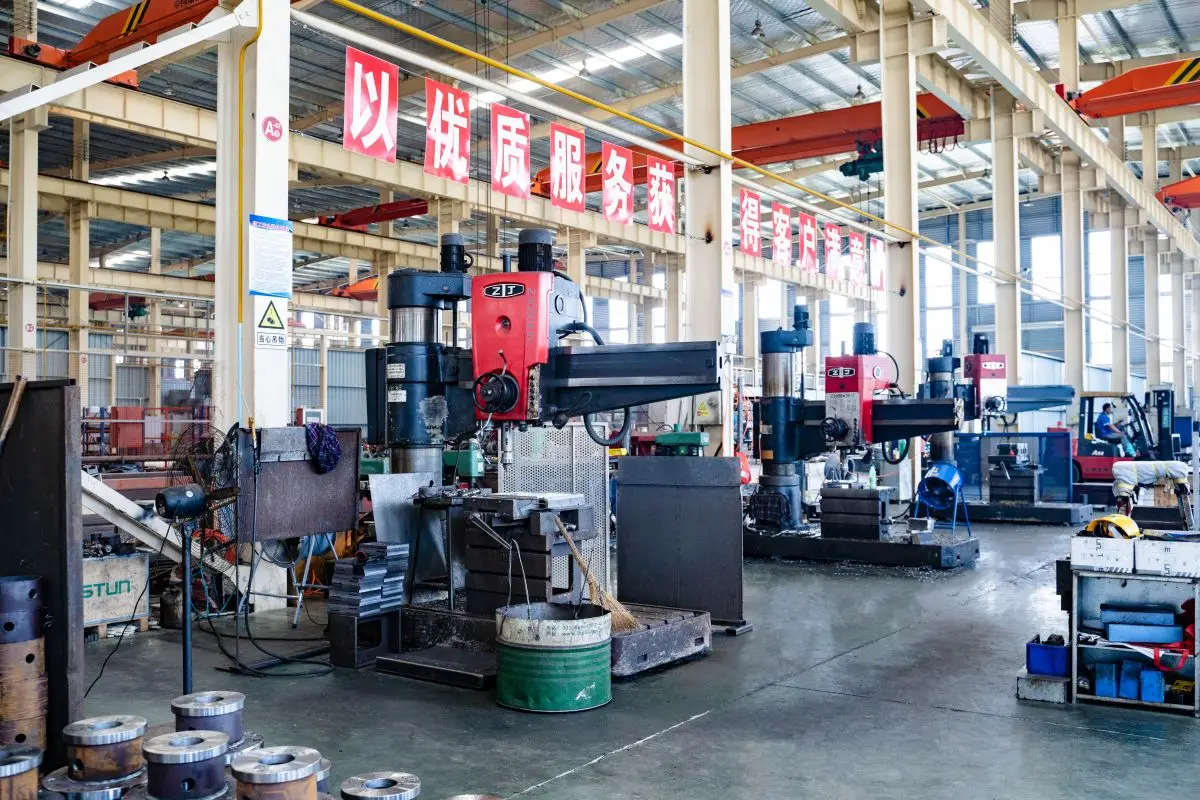

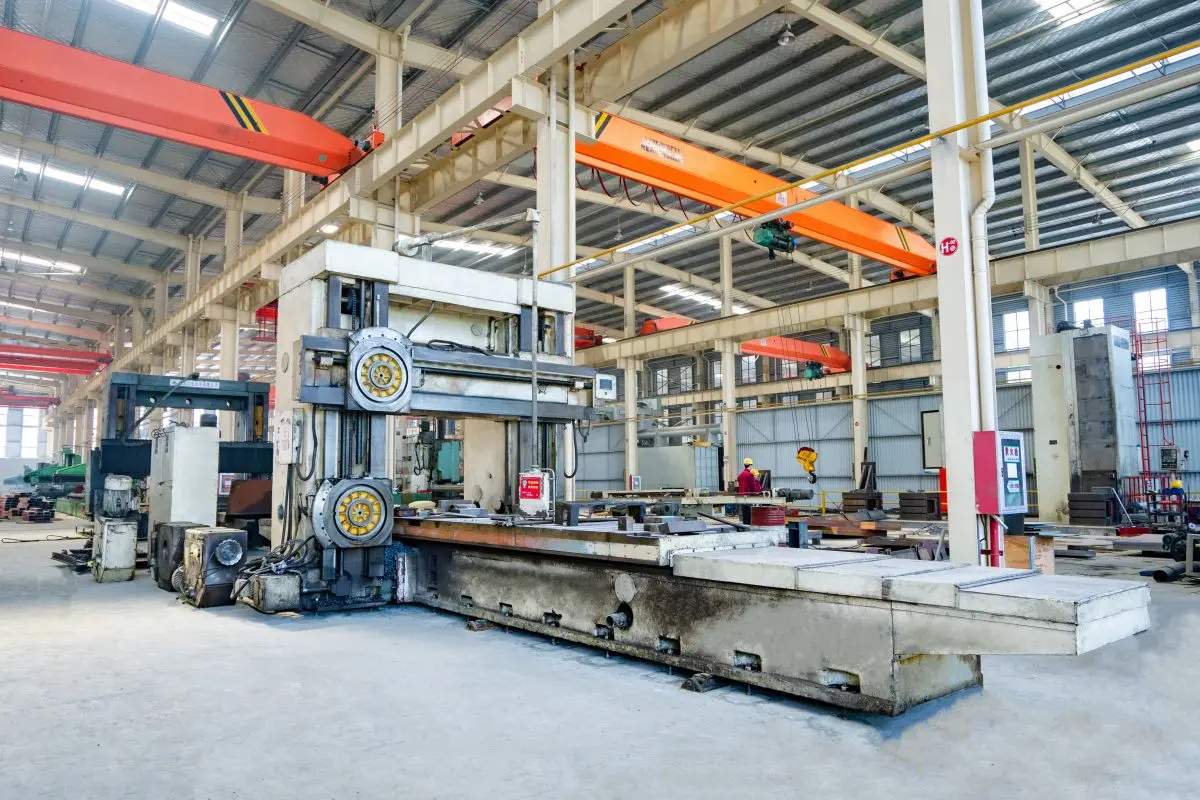

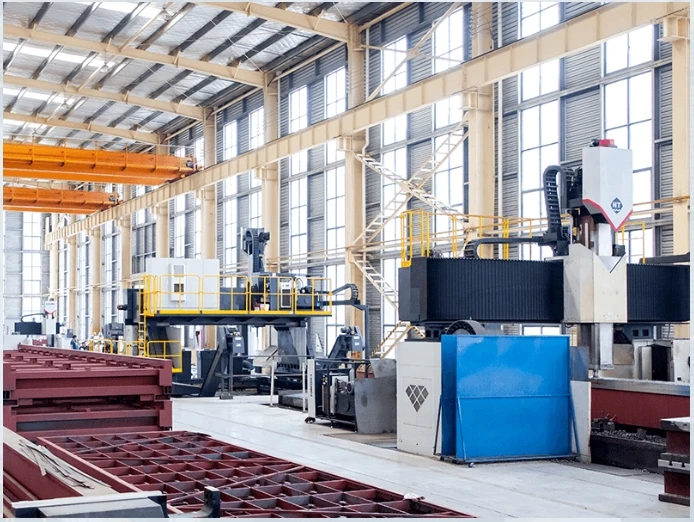

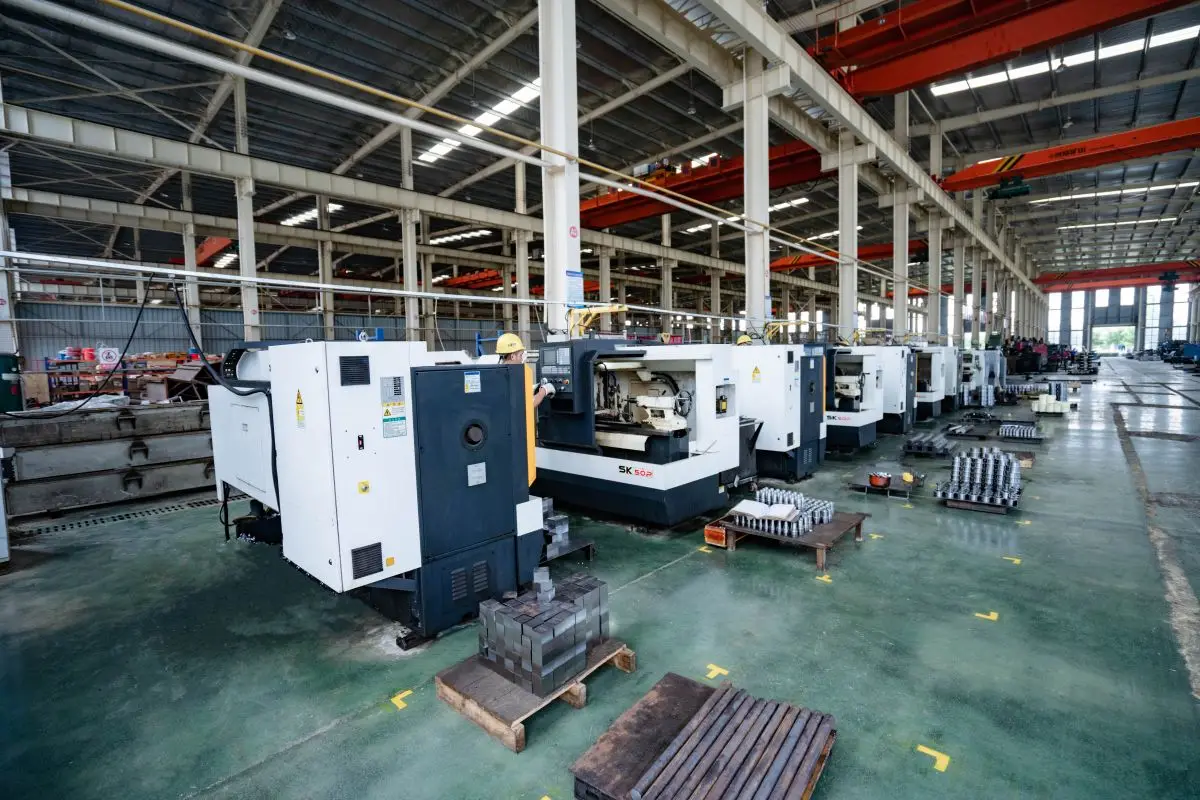

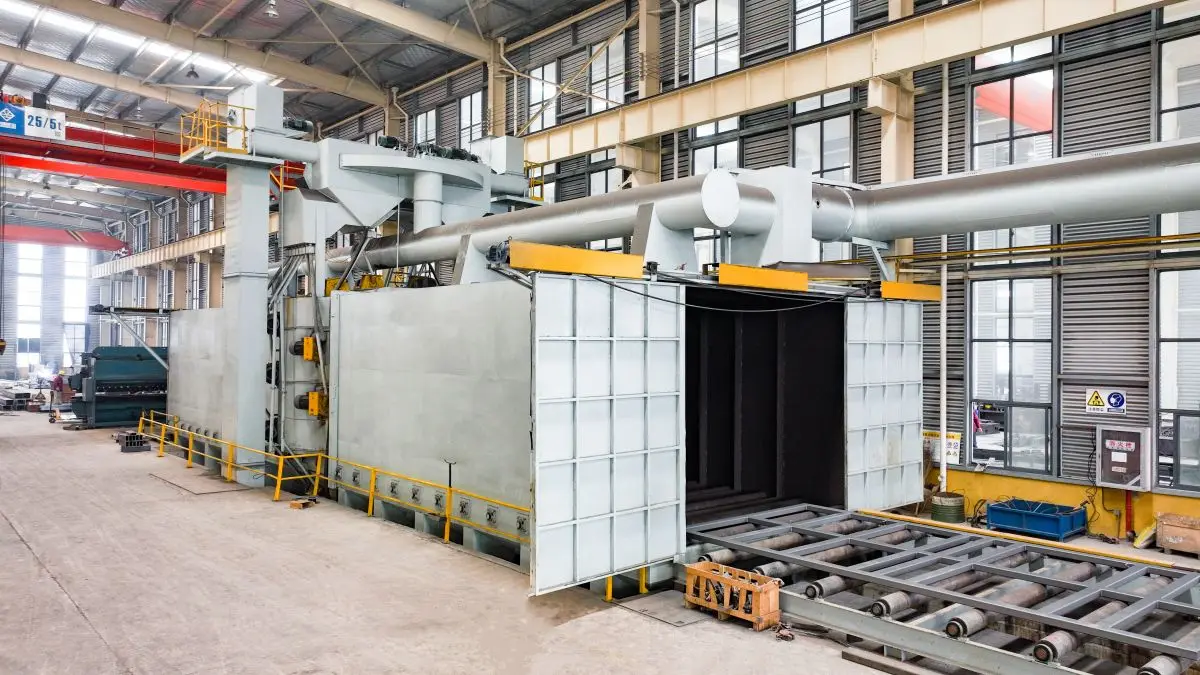

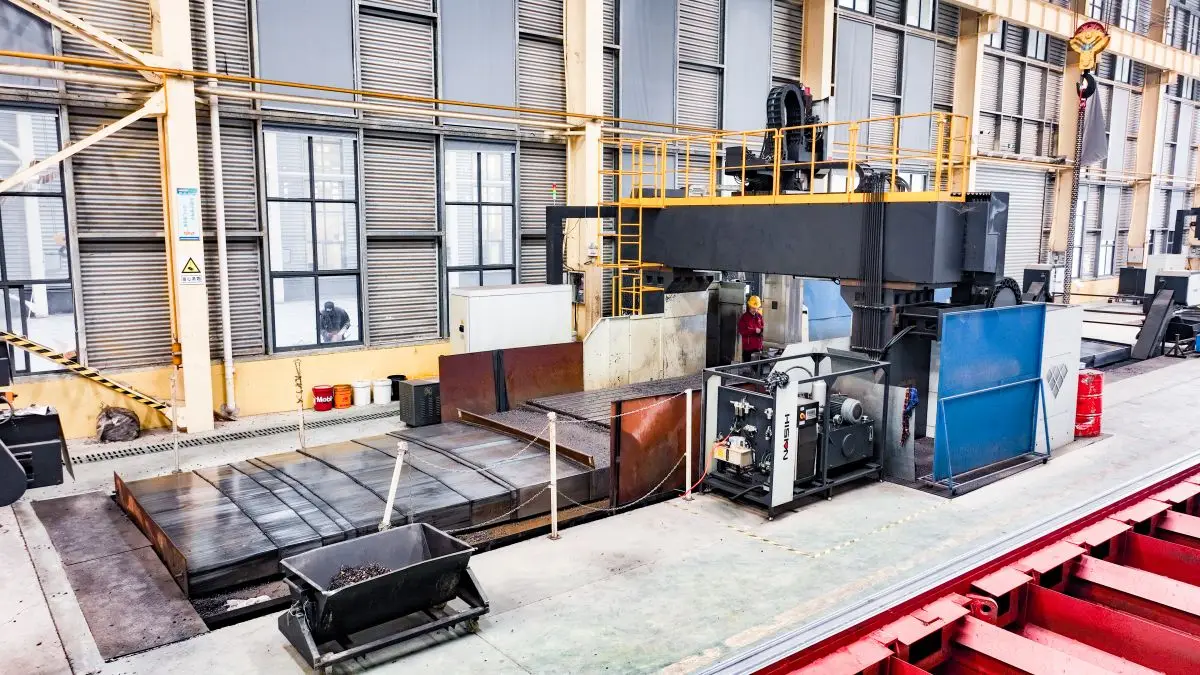

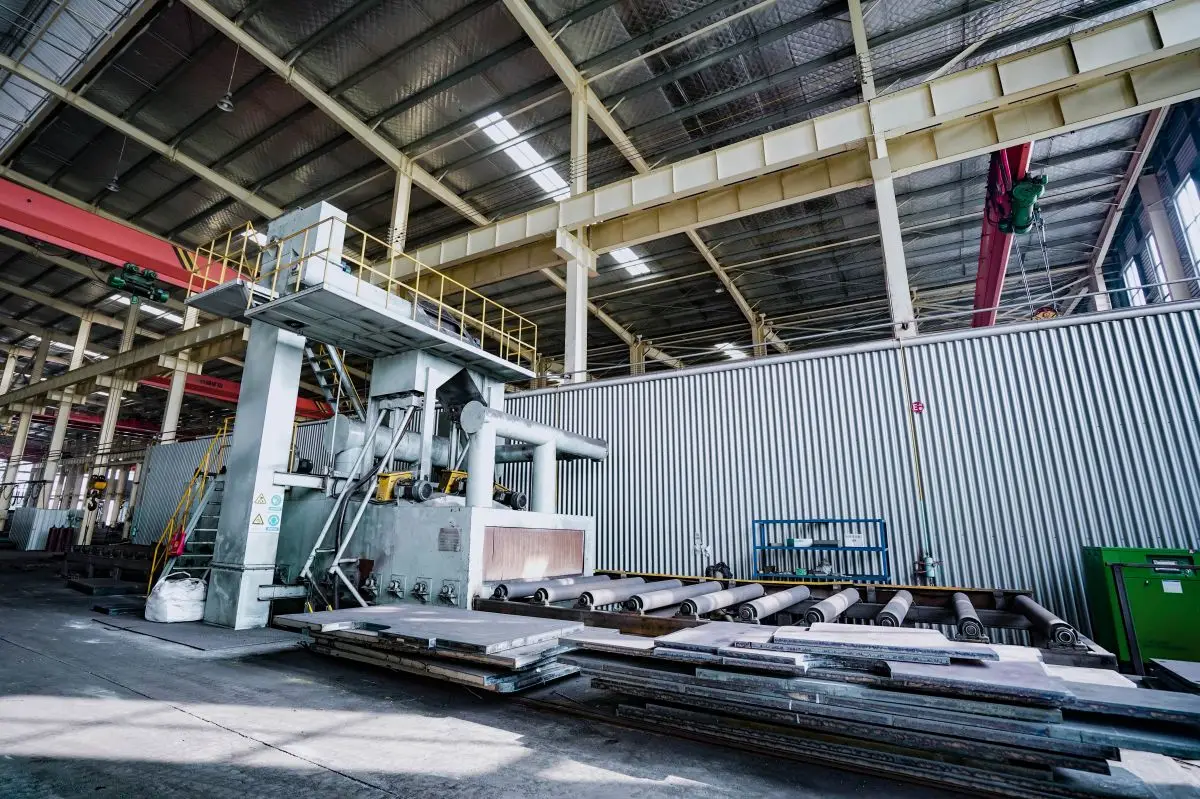

FABRICATION EQUIPMENT
CERTIFICATE
50+ Patent certificate 90+ Various awards and certifications
