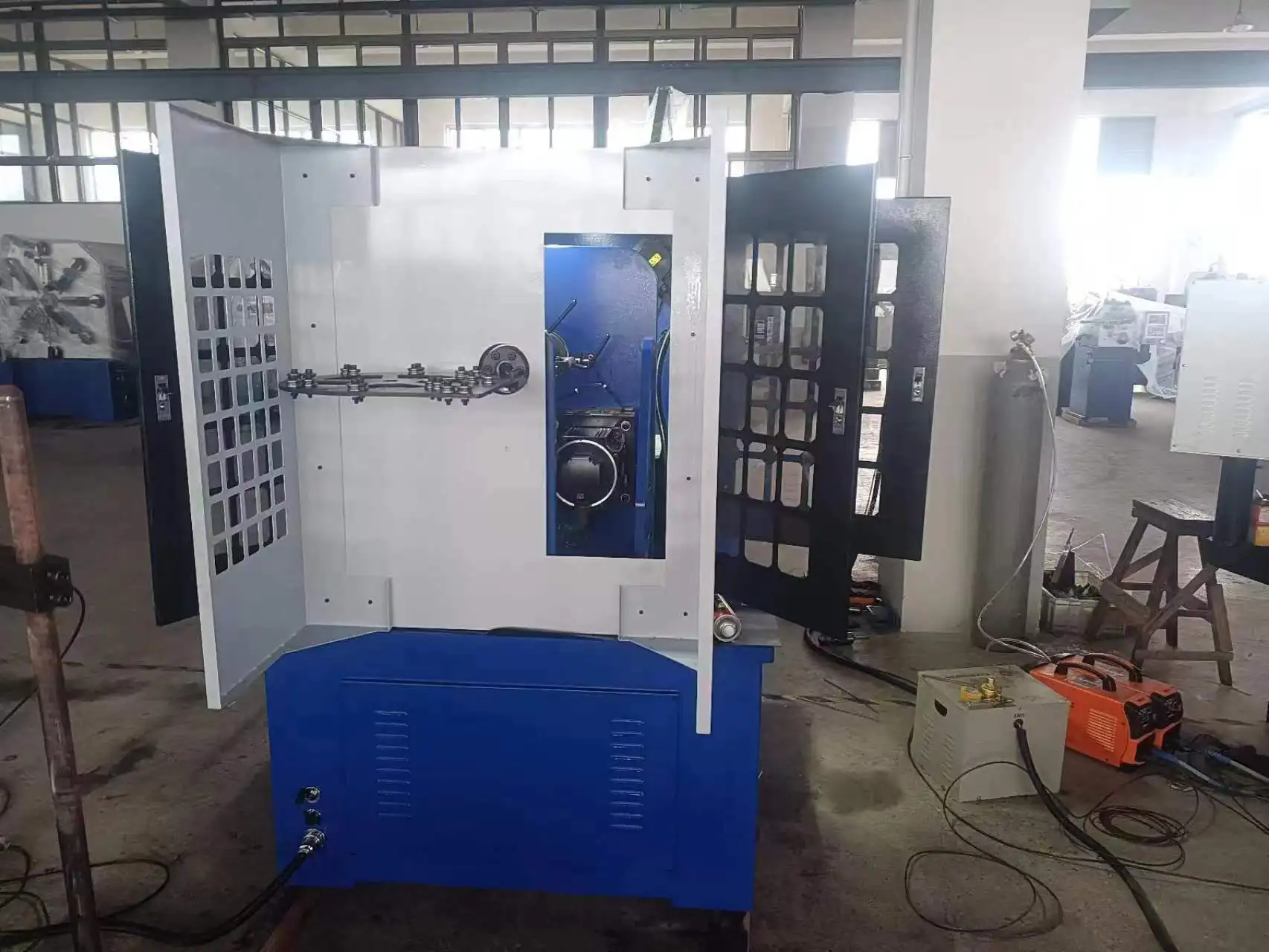

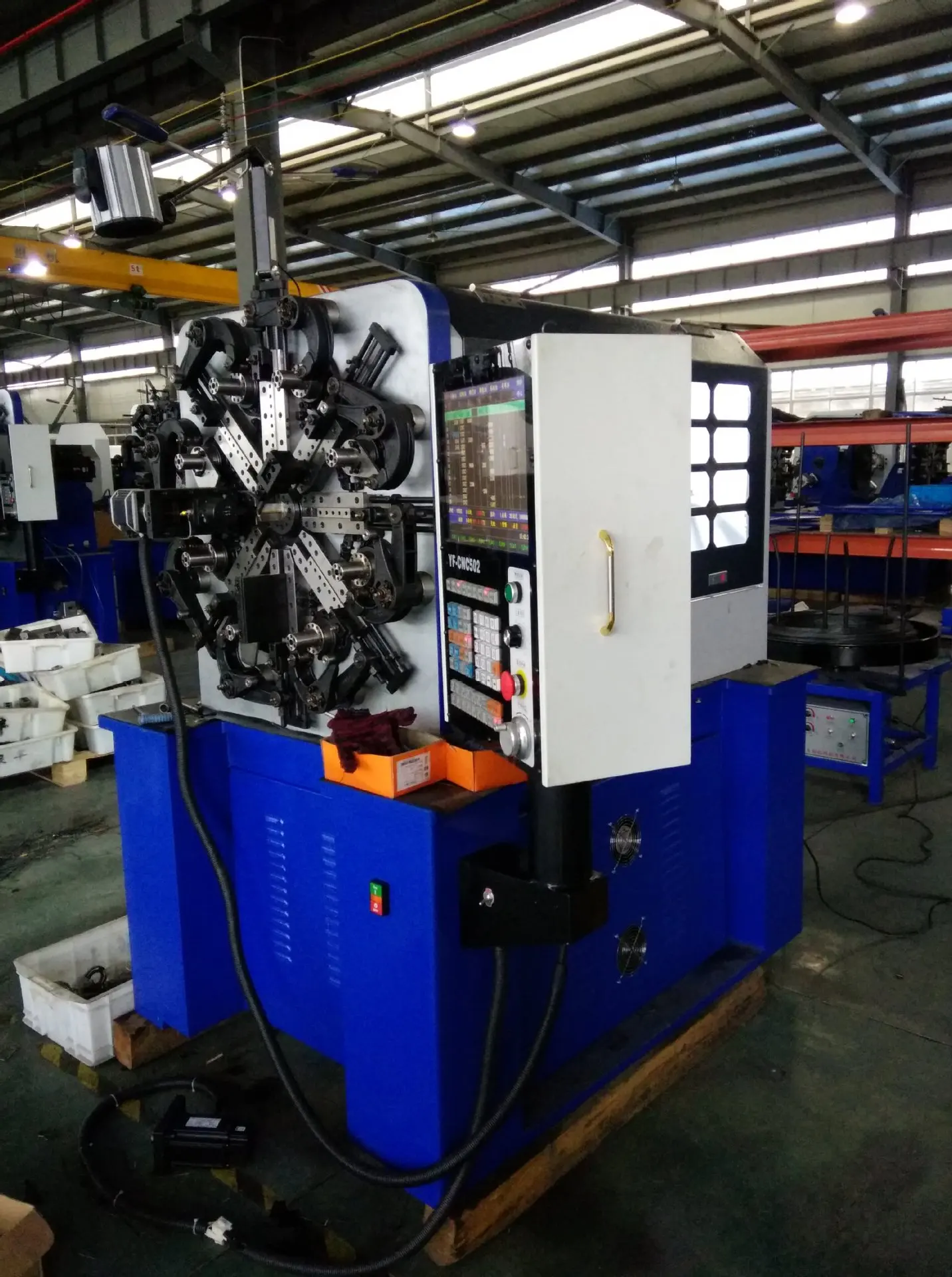

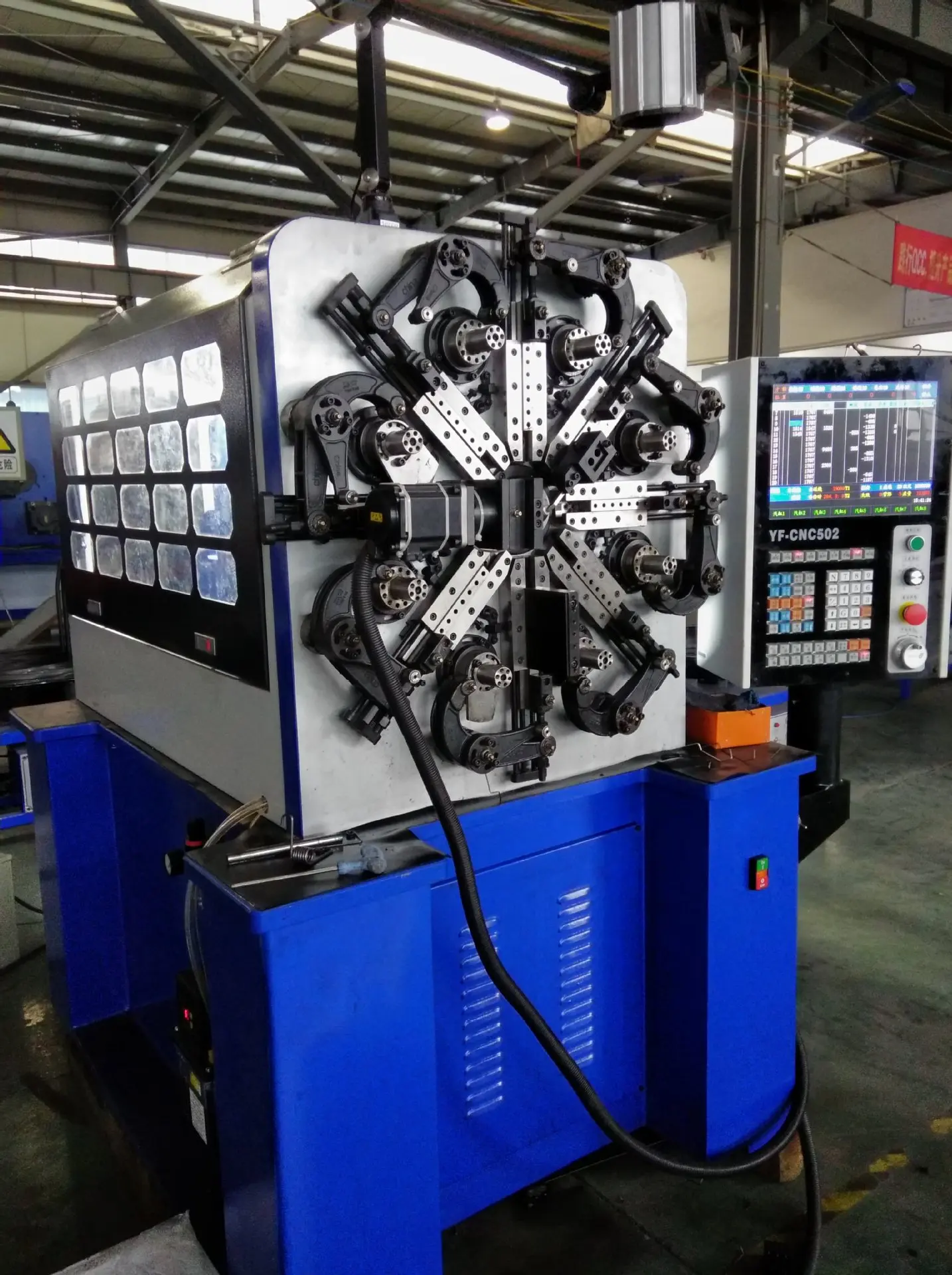

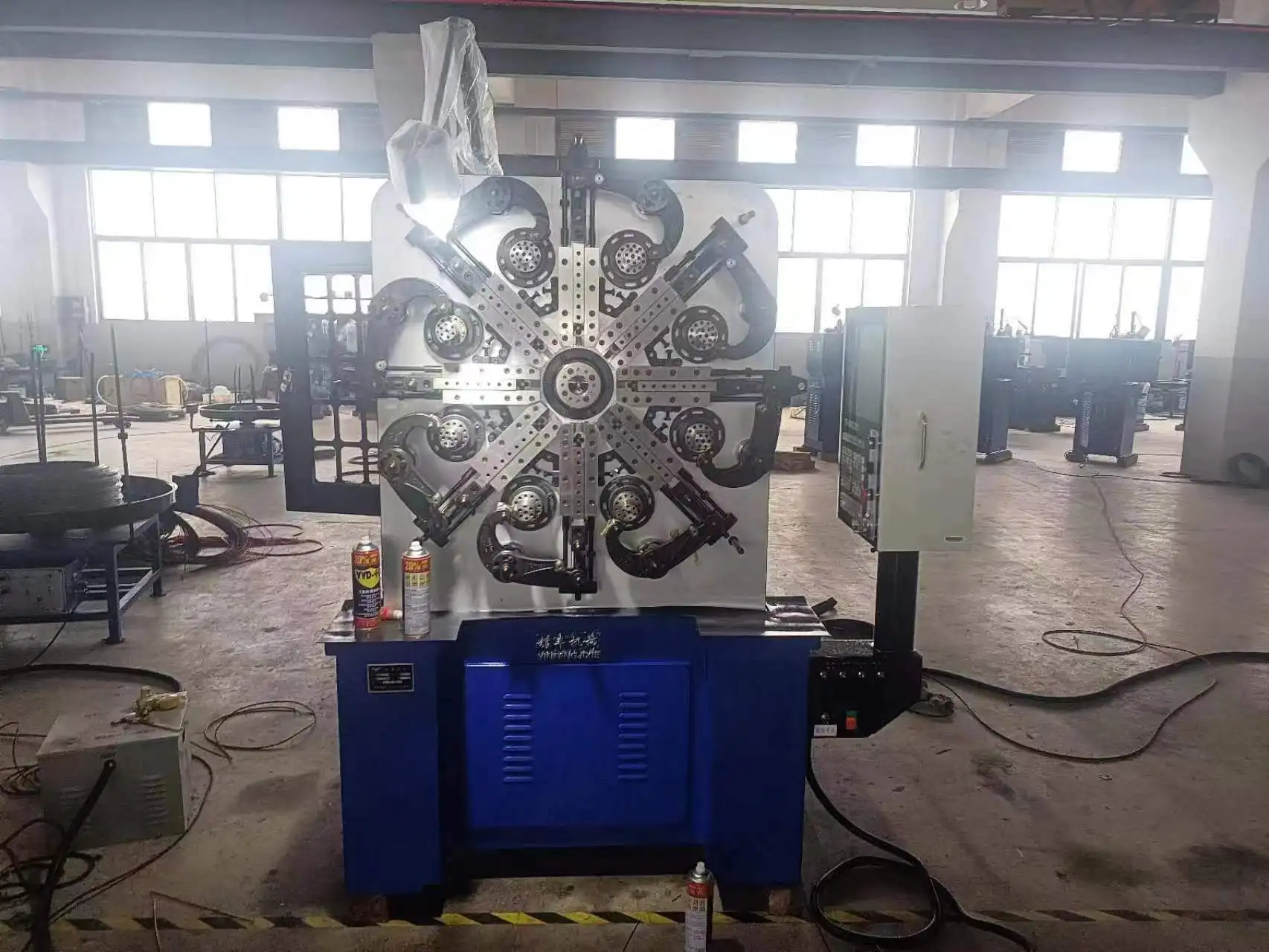

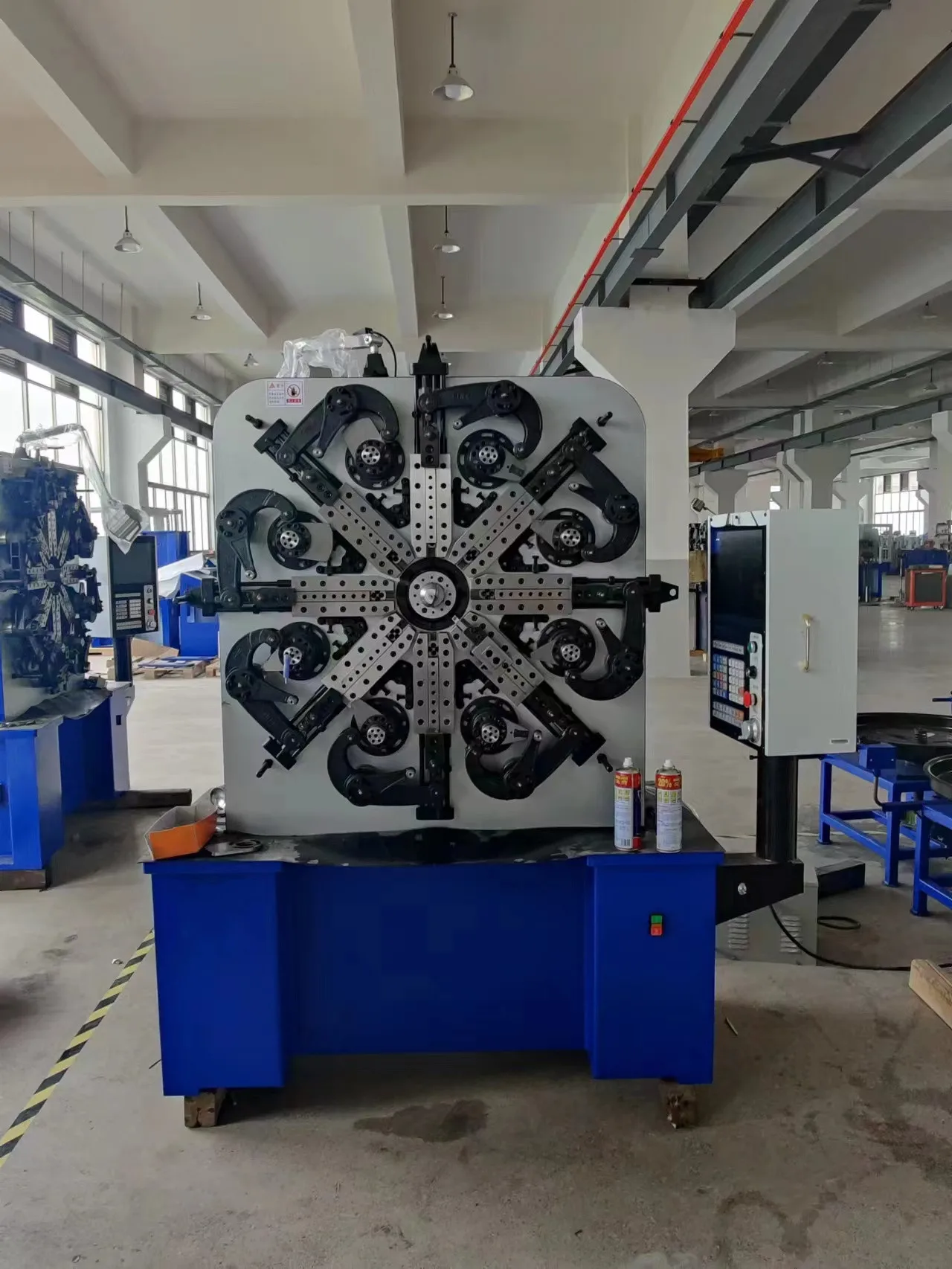

Cheap price multifunction automatic cnc spring coiling machine wire bending machine spring machine
- Category: >>>
- Supplier: Taizhou Chuang Yuan Machine Tool Co. Ltd.
Share on (1601268875844):
Product Overview
Description
Product Description
The HT series CNC spring machine computer has an English interface, which is easy to operate and accurate in positioning.The computer can control three to eight servo motors. All motors can operate synchronously or independently. It is equipped with precision detection and tracking equipment. If there are unqualified products, it can automatically stop. According to the working conditions on the evaluation screen, the external diameter angle of the products can be maintained at any time. The automatic mechanical parts are designed with automatic lubrication and oil supply to ensure the long-term operation of the equipment. The automatic stop design and automatic acceleration function of the wire rack make the production easier and more effective when wireless, broken or entangled. It is applicable to the production of double torsion springs, straight springs, pagoda springs, tension springs, rectangular springs, wire forming, steel sheet vortex springs, spring springs and various fancy springs, as well as miscellaneous and difficult special-shaped springs.
Specification
Spring Machine--Parameter | ||||||||||||||
Modle | HT-8208 | HT-8212 | HT-8320 | HT-8322 | HT-8335 | HT-8345 | HT-8350 | |||||||
Wire diameter of coiled material | ɸ0.15-ɸ0.8mm | ɸ0.2-ɸ1.2mm | ɸ0.4-ɸ2.0mm | ɸ0.2-ɸ2.5mm | ɸ0.5-ɸ3.5mm | ɸ1.0-ɸ4.5mm | ɸ1.0-ɸ5.0mm | |||||||
Number of Axles | 2 Axles | 2 Axles | 3 Axles | 3 Axles | 3 Axles | 3 Axles | 3 Axles | |||||||
Wire feed instruction value | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | ±0.01-±9999.99 | |||||||
Cam instruction value | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | ±0.10°-±359.9° | |||||||
Max outer diameter of coiled spring | Maxɸ20mm | Maxɸ20mm | Maxɸ60mm | Maxɸ60mm | Maxɸ80mm | Maxɸ80m | Maxɸ80m | |||||||
Wire feed servo power | 1.0KW | 1.2KW | 2.7KW | 2.7KW | 4.5KW | 5.5KW | 7.0KW | |||||||
Cam servo motor | 1.0KW | 1.0KW | 2.7KW | 2.7KW | 4.5KW | 5.5KW | 7.0KW | |||||||
Power supply | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | 380V±10%V50HZ | |||||||
Size | 1000*950*1600mm | 1000*1000*1600mm | 900*900*1300mm | 1500*900*1900mm | 1700*1300*2000mm | 1700*1300*2000mm | 1700*1300*2000mm | |||||||
Weight | 350kg | 400kg | 460kg | 880kg | 1500kg | 1800kg | 1950kg | |||||||
Features and Functions
1. Adopt Taiwan imported computer control system and imported servo motor.
2. The computer has an English interface, which is easyto operate and accurate in positioning. The computer can control three to eight servo motors, and all motors can run synchronouslyor independently.
3. It is equipped with precision detection and tracking system. If there are unqualified products, it canautomatically stop. 4.According to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be repaired at anytime.
5. The automatic lubrication and oil supply design of mechanical automatic parts ensures the long-term operation of the equipment.
6. When there is no wire, broken wire, tangled wire, machine automatic shutdown design and wire rack automatic acceleration function, make the production easier and more effective.
7. It is suitable for the production of straight springs, pagoda springs, tension springs, rectangular springs, wire forming,
steel scroll springs, springs and various fancy springs, complex and difficult special-shaped springs.
2. The computer has an English interface, which is easyto operate and accurate in positioning. The computer can control three to eight servo motors, and all motors can run synchronouslyor independently.
3. It is equipped with precision detection and tracking system. If there are unqualified products, it canautomatically stop. 4.According to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be repaired at anytime.
5. The automatic lubrication and oil supply design of mechanical automatic parts ensures the long-term operation of the equipment.
6. When there is no wire, broken wire, tangled wire, machine automatic shutdown design and wire rack automatic acceleration function, make the production easier and more effective.
7. It is suitable for the production of straight springs, pagoda springs, tension springs, rectangular springs, wire forming,
steel scroll springs, springs and various fancy springs, complex and difficult special-shaped springs.
Company Profile
Taizhou Chuang Yuan Machine Tool Co., Ltd. is located in Hi-tech Science and Technology Industry Zone of Taizhou City, Jiangsu Province, China, with a number of research and development and manufacturing bases. Our company specializes in researching,manufacturing and selling precision machines.Taizhou Chuang Yuan Machine Tool Co., Ltd. has built long term and close cooperation relationships with many foreign friends, covering more than 20 countries, and we are looking forward to more cooperations with friends from all over the world, and hope our products could help more friends in their local industry and business market development. Our company established in 2008, has 96 employs, and sold about 200 sets about the machines all of the world. We always keep our enterprise mission---“Quality changes the world” in mind. We start our work from each trivial matter, and do our best to complete each detail well, and offer solid technical service and good service to our machine customers.Quality guarantee, high efficiency, valuing friendship, observing credibility and sincerity-oriented” is our enterprise principle,which all staff should abide by. Quality and honesty are the keys of the enterprise future.
FAQ
Q:How can lget the price?
A:We usually quote within 24 hours after we get your inquiry (Except weekend and holi-days) lfyou are
very urgent to get the price,please email us or contact us in other ways sothat we canoffer you a quote.
very urgent to get the price,please email us or contact us in other ways sothat we canoffer you a quote.
Q:Are you a manufacture or trading company?
A:We have our own production factory, and also have close cooperation with othermanufacturers.We can provide
consignment services.
consignment services.
Q: What is your lead time?
A:lit depends on the order quantity and the season you place the order.Usually we can shipwithin7-15 days for small quantity.and about 30 days for large quantity.
Q:What are the acceptable payment methods?
A:At present, we accept TT and PayPal. if the order amount exceeds $1000, we accept a 30%deposit and pay the remaining balance before shipment.
A:At present, we accept TT and PayPal. if the order amount exceeds $1000, we accept a 30%deposit and pay the remaining balance before shipment.
Q:ls there a tracking number for my item?
A:Yes, of course. We usually ship your goods by EMS, DHL, Fedex, UPS,TNT with onlinetrack, you can view the ship status on website.
