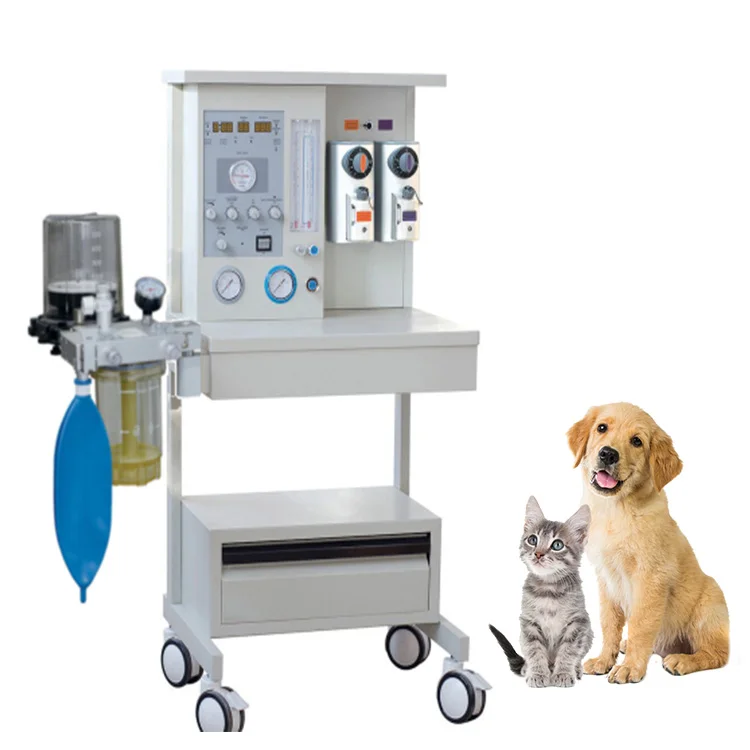

Medical Veterinary Anesthesia Device Animal Anesthesia Machine with Built in Ventilator

Product Overview

Description

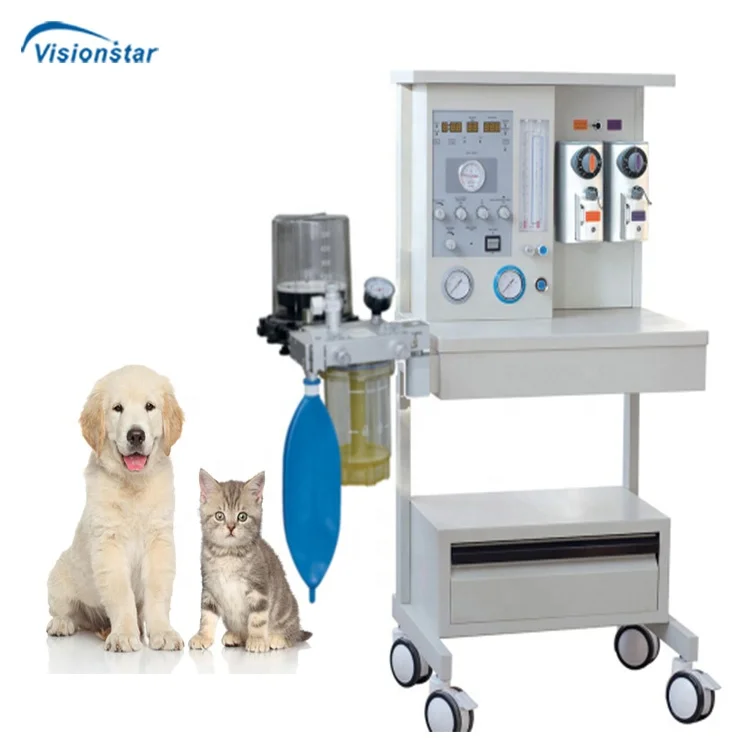

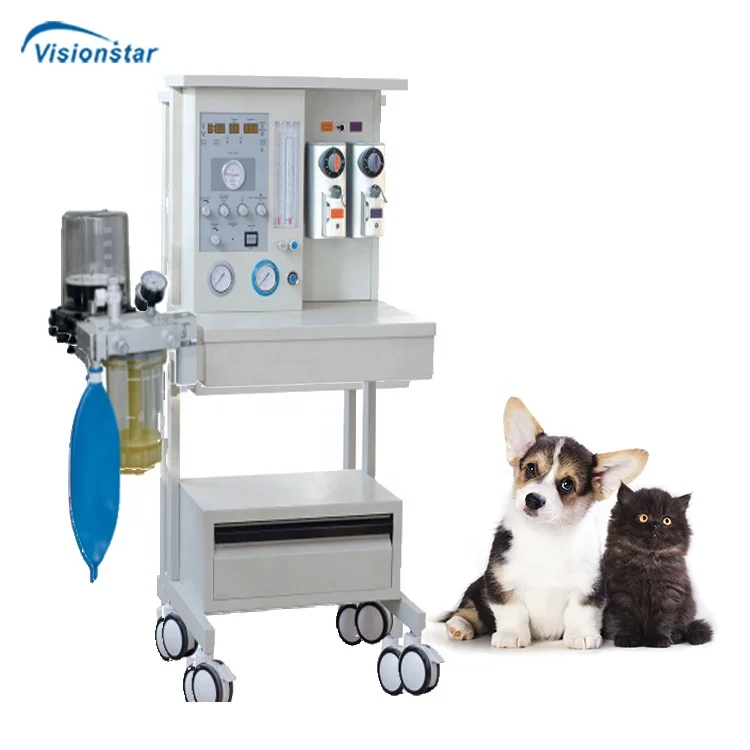

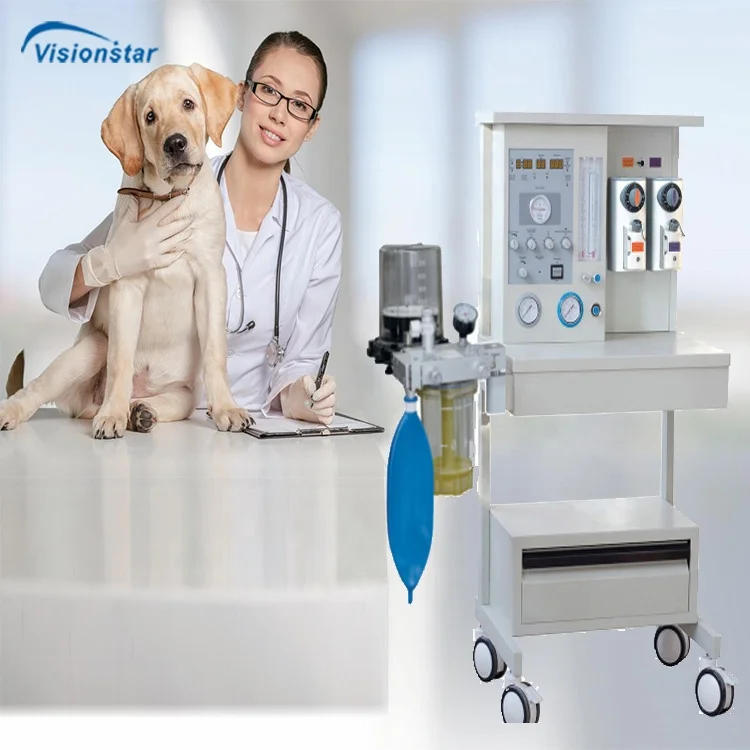

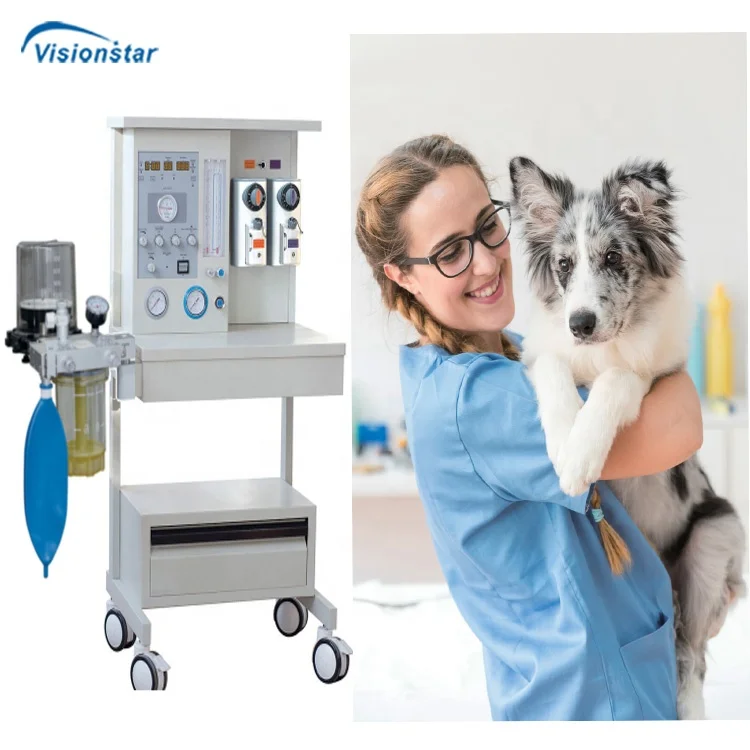

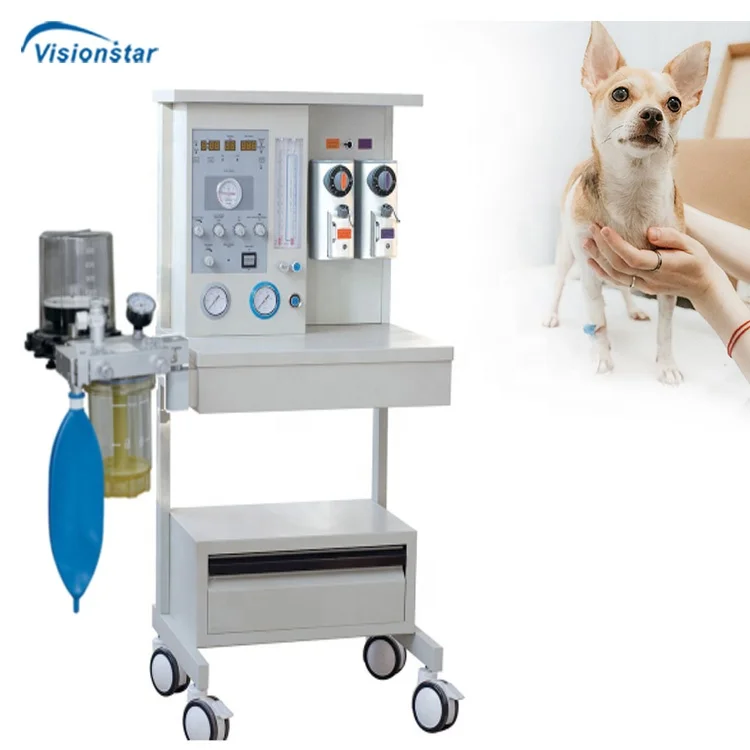

Medical Veterinary Anesthesia Device Animal Anesthesia Machine with Built-in Ventilator



Feature:

* This anesthesia machine adopts digital tube display screen, single slot evaporator direct knob to adjust parameters, integrated breathing circuit, quantitative pressure limit synchronous anesthesia ventilator, stop delay, it is a mid-range anesthesia machine.

* LED Screen; Built-in Ventilator

* 2-Tube Flowmeters; O2 & N2O

* 2 vaporizers: Enflurane/ Isoflurane/Sevoflurane (Optional: Halothane)

* Respiration Mode: A/C, IPPV, SIPPV, MANUAL



Technical Data
Driving mode	Pneumatically driven electronically controlled system
Oxygen Flush	25~75 L/Min
Respiration Mode	IPPV, SIPPV, SIMV, Manual
Tidal Volume	50~1500 mL
I:E	1:1.5, 1:2.0,1:2.5, 1:3, 1:4
Respiration Frequency	4~40 bpm
Ptr	-10~10 hPa
CO2 absorber capacity	1 kg
Alarm parameter	Upper/ lower limit of airway pressure, tidal volume exceed limitation, no tidal volume output, apnea, AC power malfunction, battery low power
Loop part	Integrated design, integrated breathing circuit
Evaporator	High-precision single evaporator configuration, enflurane or isoflurane or Sevflurane or Haloflurane Concentration adjustment range: 0.5 ~ 5%VOL Evaporator flow, pressure, and automatic temperature compensation function Self-locking feature
Configuration	Vaporizer: one vaporizer, Enflurane/ Isoflurane/ Sevoflurane(Option: Halothane ) Anesthesia gas concentration range: 0.5~5% Soda lime absorption system: resistant to high temperature of 176 degrees Celsius



For More Veterinary Product Please Contact Us



Packaging



Our Services

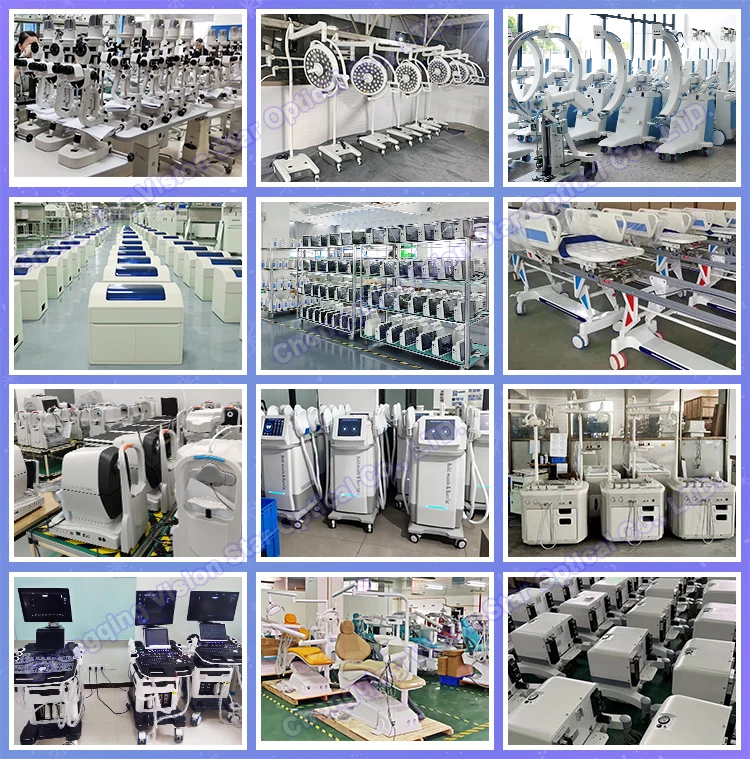

Our Factory
