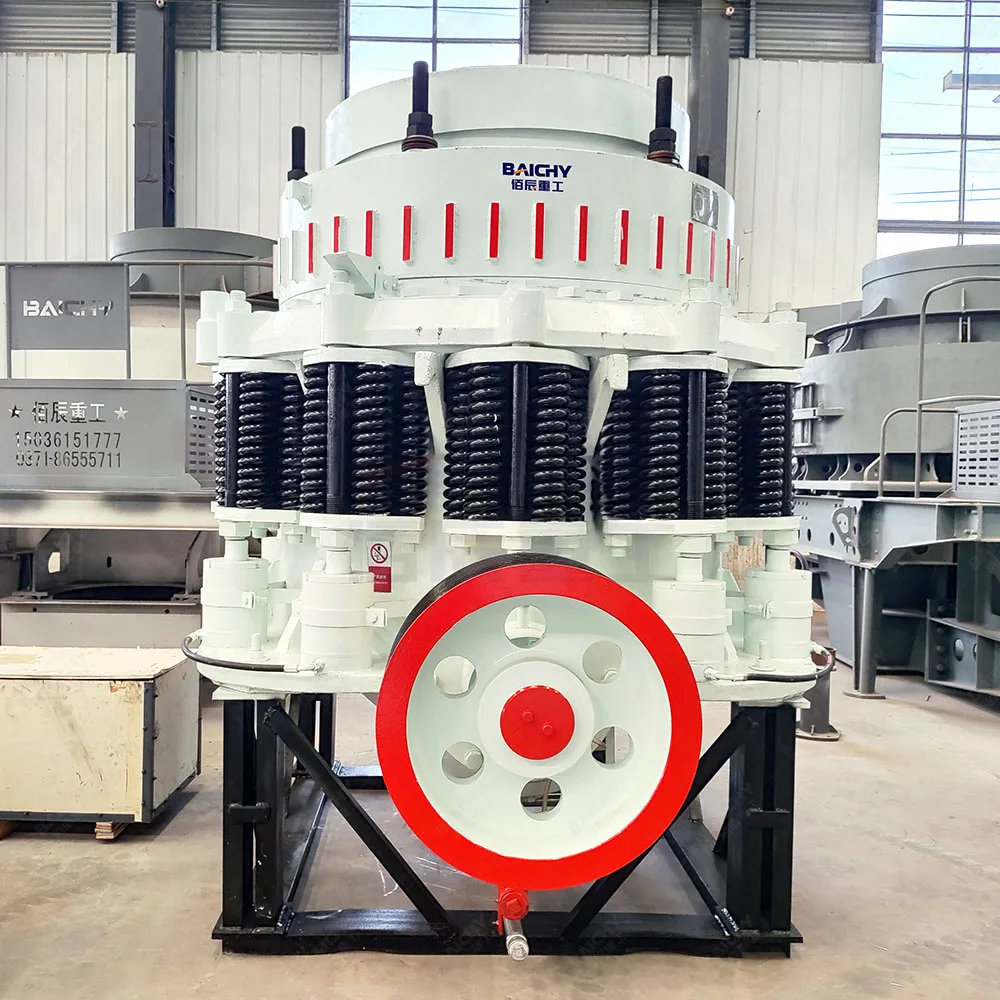

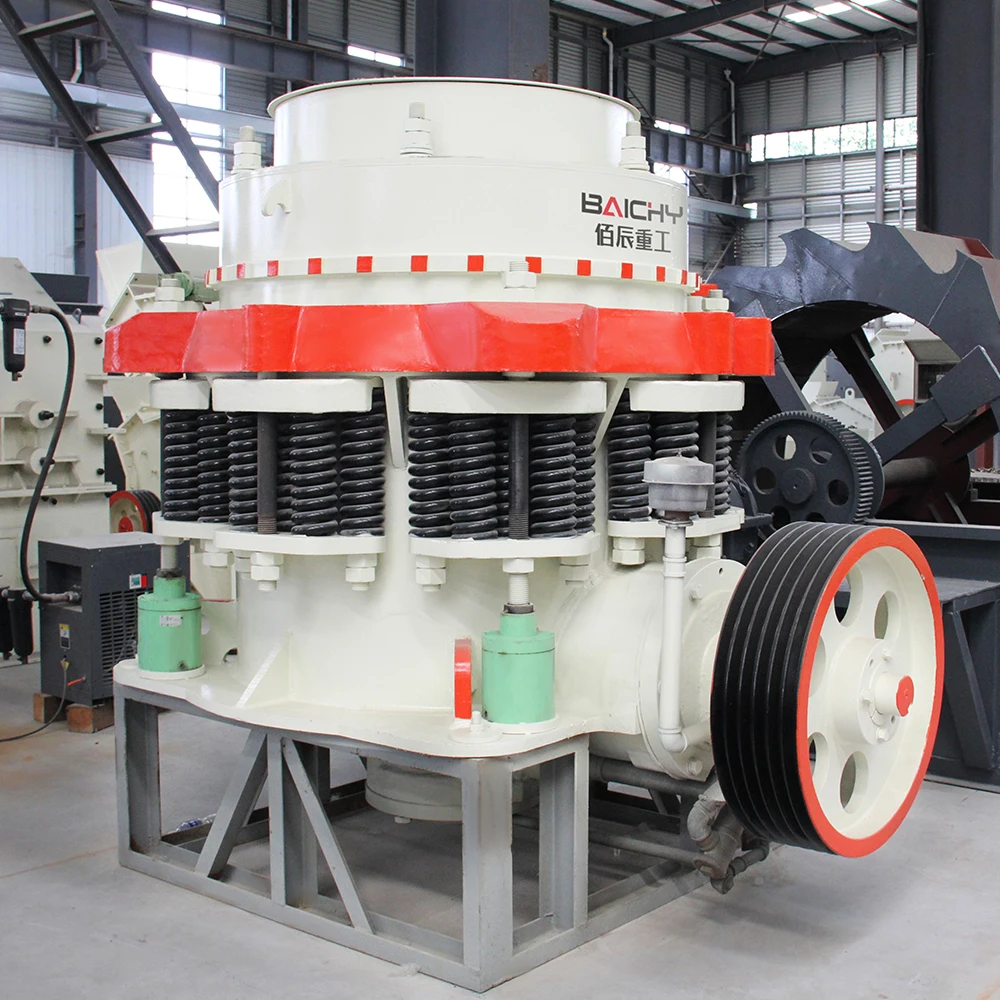

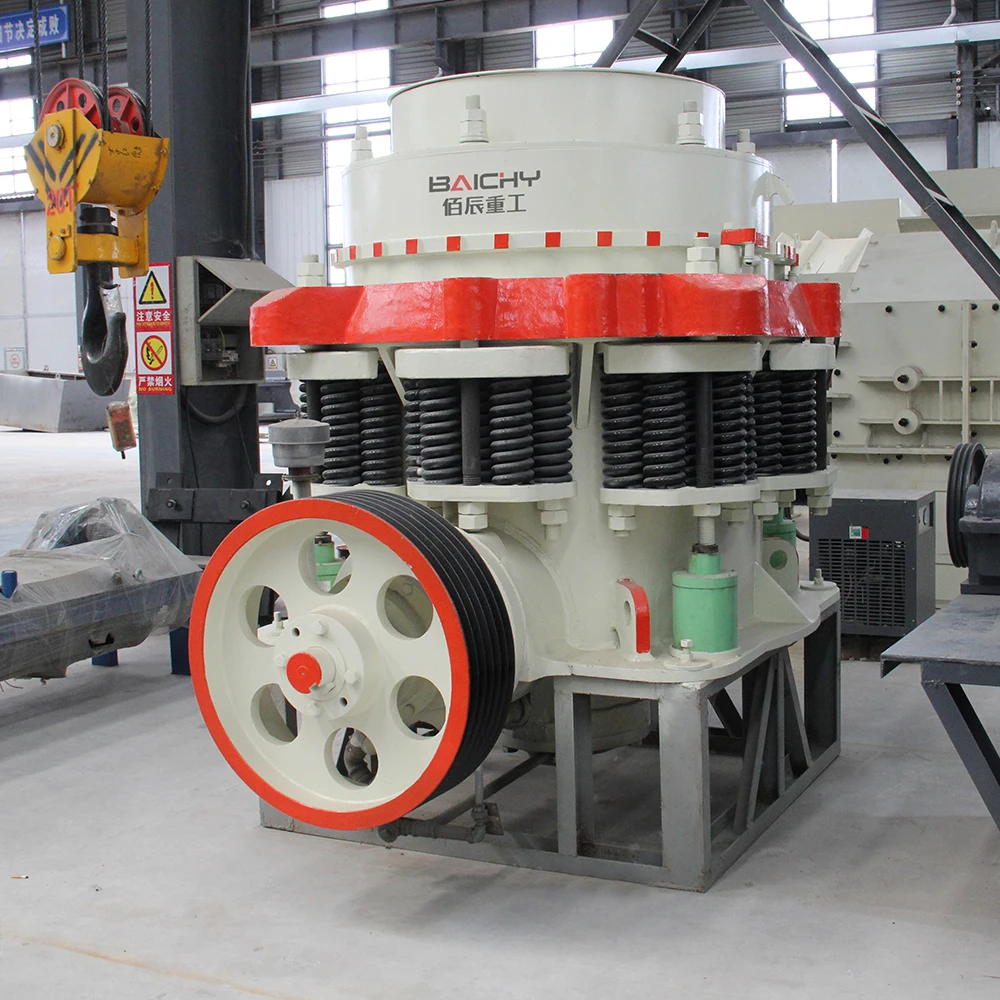

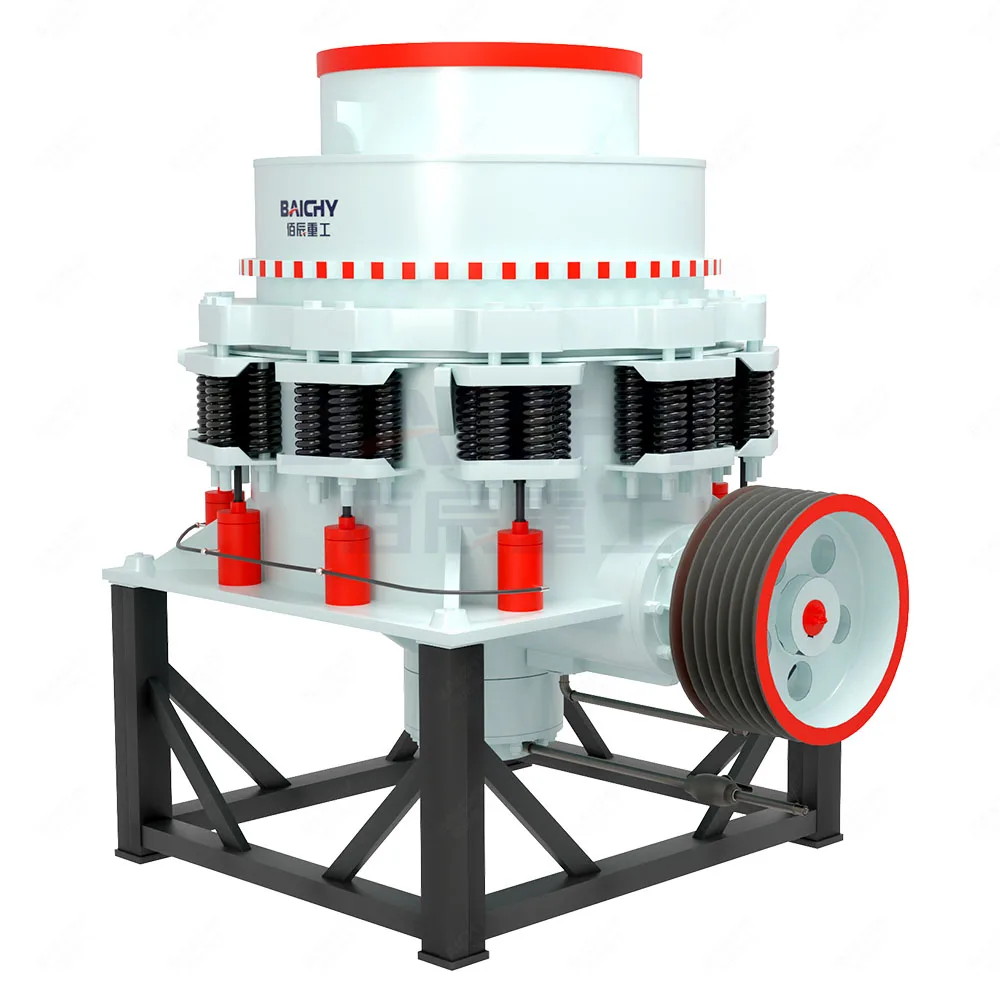

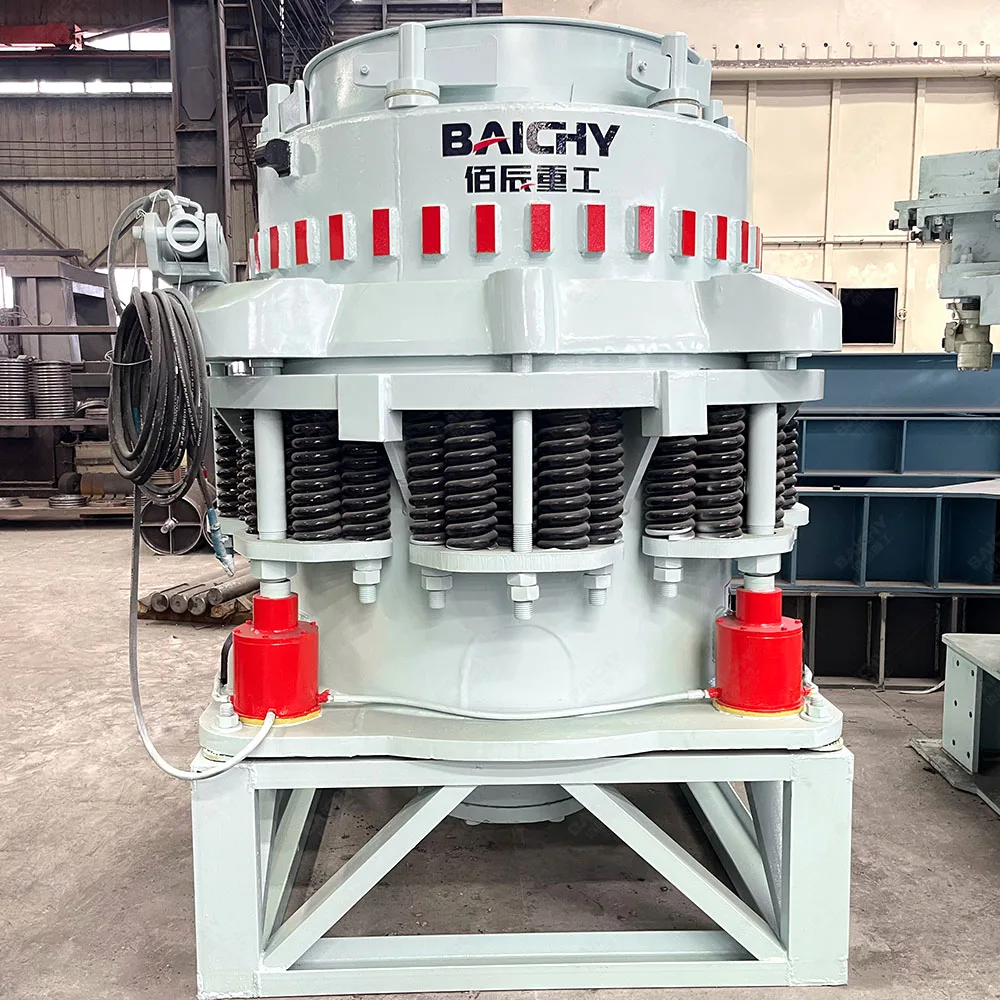

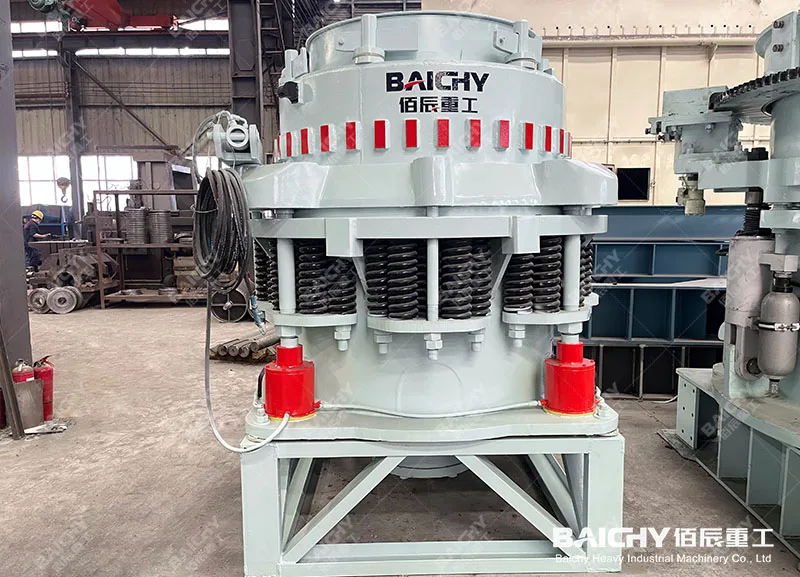

What is CS Symons cone crusher?

Symons cone crusher is a high-performance cone crushing equipment designed and developed based on the principle of laminated crushing and the concept of more crushing and less grinding, based on the introduction and absorption of foreign technology, according to customer needs.

Hot-selling models of CS Symons cone crusher

CS series standard cone crushers usually handle materials of various hardness; short-head cone crushers are suitable for medium and fine crushing operations. Its crushing chamber design makes it more efficient when handling finer materials and has better product particle size; specific models includeCS110, CS160, CS220, etc.

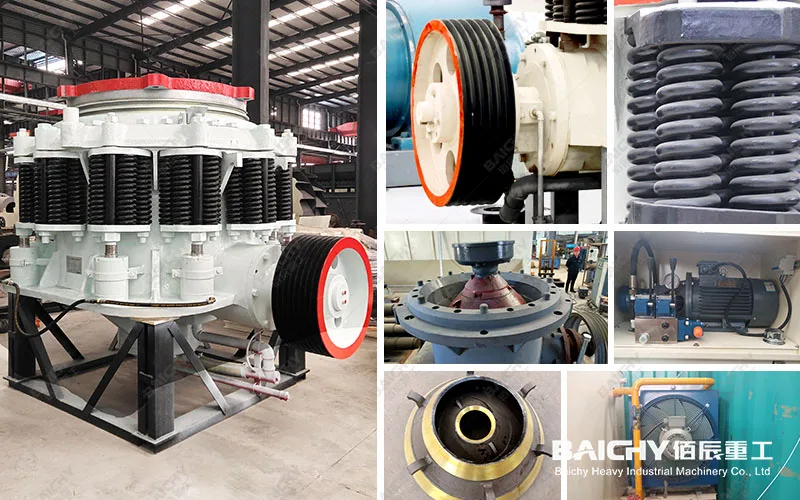

Accessories for Symons cone crusher

1. Mortar wall: As a key component of the cone crusher, the mortar wall and the crushing wall work together to squeeze and crush the material. It is usually made of wear-resistant materials, such as manganese steel.

2. Crushing wall: Corresponding to the mortar wall, the crushing wall is also a component in the cone crusher that directly participates in the crushing operation. It is fixed on the moving cone of the cone crusher and forms a crushing chamber with the mortar wall.

3. Fixed cone liner: The fixed cone liner is a fixed component in the cone crusher, which is used to support the mortar wall and protect the crusher body.

4. Moving cone liner: The moving cone liner is installed on the moving cone and rotates with the crushing wall to crush the material.

5. Bearing copper sleeve: The bearing copper sleeve in the cone crusher is used to support and fix key components such as the main shaft to ensure its normal operation.

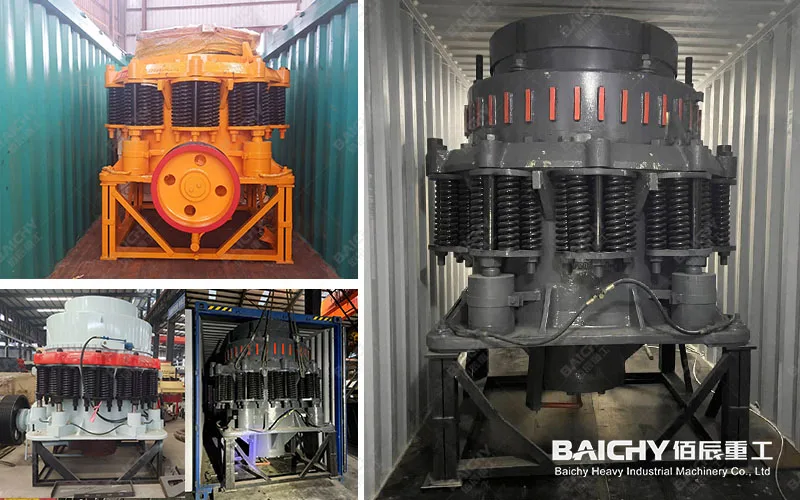

About the export packing of cone crusher

When packing cone crusher for export, the first thing to consider is the choice of packaging materials. Since the cone crusher is large in size and heavy in weight, and may face adverse factors such as vibration and impact during transportation, it is necessary to choose sturdy and durable packaging materials; we will choose wooden boxes or metal frame packaging, which can provide better protection and prevent the equipment from being damaged during transportation.

The export packing of cone crusher needs to consider many aspects, including the selection of packaging materials, internal fixation and protection, external identification and document preparation, transportation method and insurance, packing and reinforcement, tracking and communication, etc. Only by doing these things well can we ensure that the cone crusher is properly protected during the export process and arrives at the destination safely.

What Is The Working Principle Of The Symons Cone Crusher?

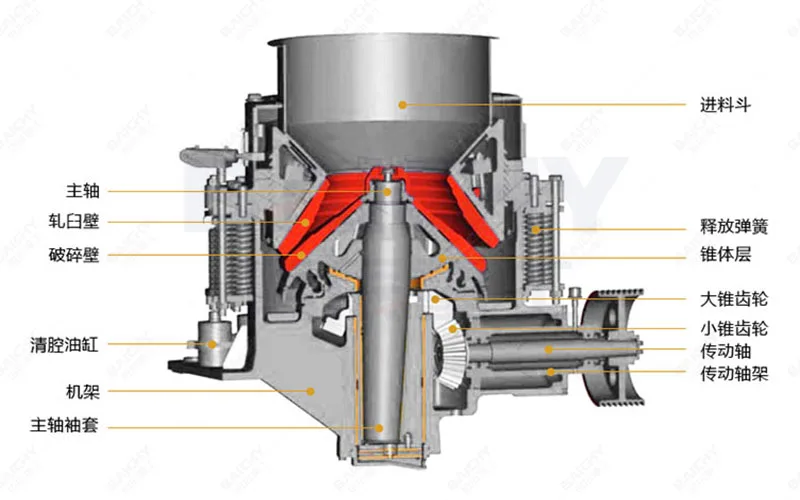

Core components: The CS cone crusher mainly comprises frame, cone (including dynamic cone and static cone), crushing wall, transmission device, crushing chamber, adjustment device, and other parts. Among them, the cone is the core part of the crusher, which is composed of a dynamic cone and a static cone.

Transmission mode: The motor transmits power to the cone part through a pulley or coupling, cone crusher transmission shaft and other devices. The cone part swings around a fixed point under the force of the eccentric sleeve.

Compression and crushing: The material is compressed by the cone and the wall in the cone-crushing chamber. The eccentric shaft of the cone makes the cone rotate in the crushing chamber, thereby generating pressure and impact force. The material is compressed, bent, and sheared between the dynamic cone and the static cone, thereby achieving the crushing effect. This lamination crushing method helps to form a more uniform particle size distribution.

About cone crusher types

1. As the most traditional cone crusher the spring cone crusher is the earliest model used in the market, with relatively low production capacity and high production cost.

2. Hydraulic cone crusher is further divided into three types: full hydraulic, single-bar hydraulic, and multi-cylinder hydraulic.

3. Single-bar hydraulic cone crusher integrates mechanical, hydraulic, and intelligent control in one crushing structure, with a relatively long service life, convenient replacement and maintenance, low failure rate, and high output.

4. Multi-cylinder hydraulic cone crusher increases the number of cylinders on the basis of a single-bar, which is more convenient to adjust and repair, with a relatively longer service life, better discharge quality, and lower cost.

5. A fully hydraulic cone crusher combines the advantages of a single-bar cone crusher and compound cone crusher, adopts specific crushing frequency and eccentricity, has a high content of medium fineness, high production efficiency, and low energy consumption.

6. Compound cone crusher is a type of cone crusher that combines multiple technical advantages.

7. Mobile cone crushers can be divided into spring cone crushers, single-cylinder cone crushers, multi-cylinder hydraulic cone crushers, full hydraulic cone crushers and other types according to the type of cone crusher carried. There are two types of mobile cone crushers: crawler type and head-pulled type, which are easy to move and transfer.

What are the advantages of cone crusher?

1. Uniform product size: By adjusting the working parameters of the crusher, the product size can be precisely controlled, the circulating load can be reduced, and the production efficiency can be improved.

2. Thin oil lubrication system:The unique thin oil lubrication system design not only improves the service life of the equipment but also reduces the consumption and emission of lubricating oil, which is beneficial to environmental protection.

3. Overload protection device: The spring insurance system, can automatically increase the discharge port when the unbreakable object passes through the crushing chamber, discharge foreign matter, and resume work to prevent damage to the machine.

4. Wear-resistant material: The surface of the crushing chamber is paved with wear-resistant high manganese steel lining, which improves the wear resistance and service life of the equipment.

5. Multiple models are available: According to the different crushing principles and application fields, cone crushers can be divided into multiple models, and users can choose the appropriate equipment according to their actual needs.

Perfect after-sales service

Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.

The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.

To prevent the rights and interests of customers from being infringed, Baichy Heavy Industry reminds customers: please contact our customer service staff through the official website of Baichy Heavy Industry , or add WhatsApp: 15093222637 ; or send an email to: , we will get in touch with you as soon as possible and provide you with the most professional service in the industry.

Henan Baichy Machinery Equipment Co., Ltd is a professional mining machinery manufacturer mainly engaged in producing stone crushers, powder grinding mills, mobile crushing plants, and mineral processing equipment. It covers a total area of 200,000 square meters, including a standardized workshop, modern office building, R&D center, and sales and aftersales center.

Our company has more than 100 middle and senior technicians. Over the years, based on professional technology, a complete scientific and quality management system(CE, ISO9001) , and high-quality products, Baichy Machinery has quickly grown into an important production and export base of China mining machinery. The products have been exported to over 150 countries and are widely used in the global mining and construction industry.

All our products are strictly manufactured according to ISO/CE standards, affordable, and of unmatched quality. We focus on product quality and will take responsibility for any defects. OEM/ODM services are available. We have rich experience in export and project management and can 100% ensure the safety of your order.

About Customer Visits

Baichy Machinery's equipment has been exported to more than 150 countries around the world. This global business layout requires Baichen Heavy Industry to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.

Baichy Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.

1. Are you manufacture or trading company?

We are factory, established in 2003.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at lowest cost.

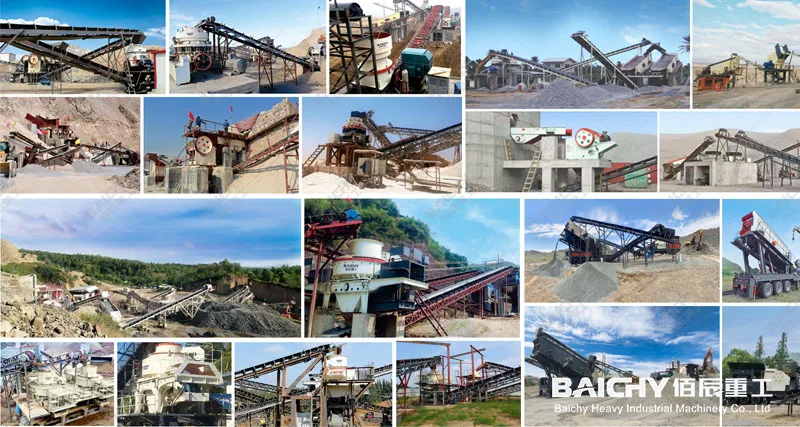

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
