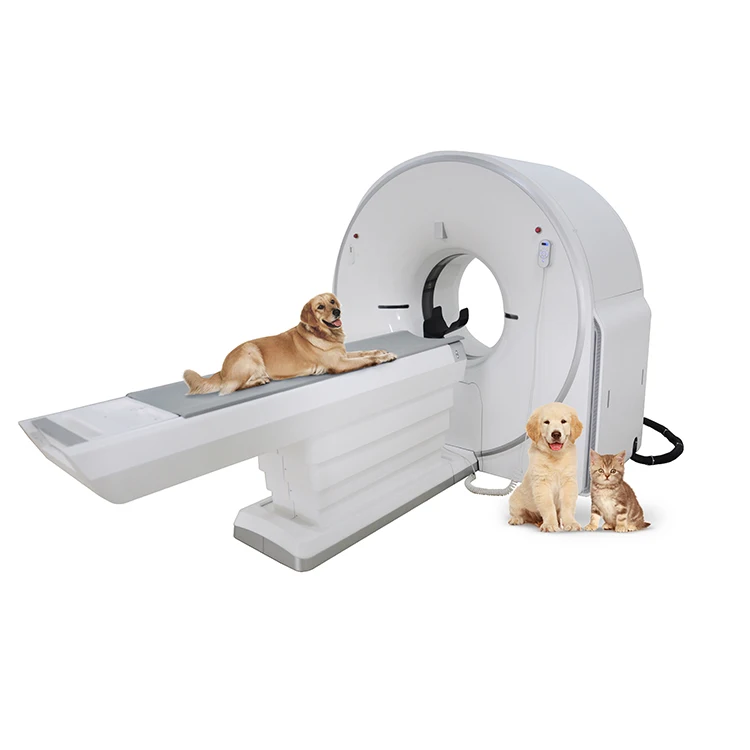

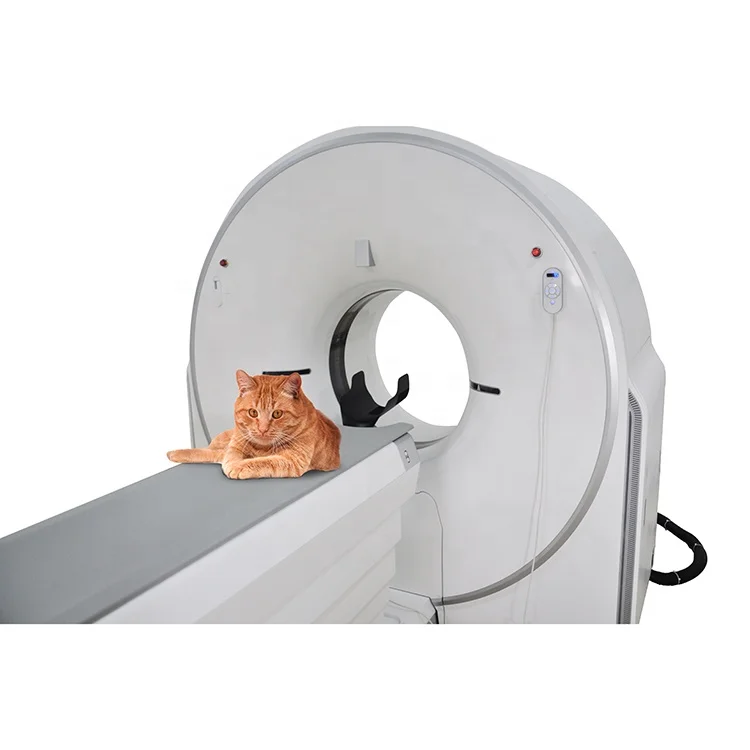

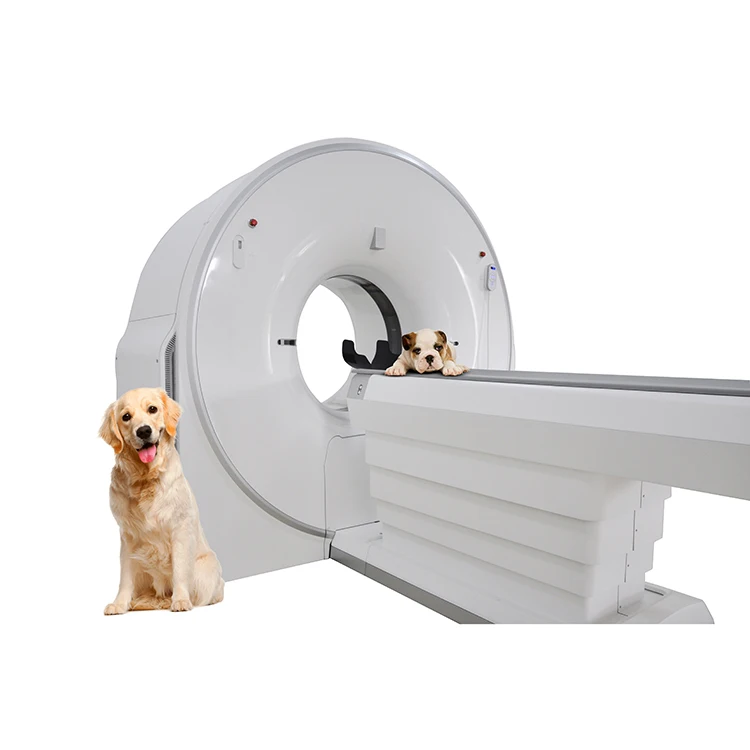

Ysenmed VET Radiology Equipment medical Animal ct scan machine Pet X Ray CT Scan Machine 16 32 Slice Veterinary ct scan medical

No.

Part name

Model

Specifications

Remarks

1

Scanning frame

SM100

Scanning frame aperture: 700mm±10mm
Scanning frame rotation speed: 0.75s, 1.0s, 1.5s, 2.0s
Scanning field of view: 430mm
Type of Slip ring: contact slip ring

2

High voltage generator

CT70PN32X5610

Tube voltage setting: 70~140kV
Tube current range: 10~300mA
Nominal output power: 32kW

3

Collimator

CMT-003

Half value layer：≥4.6mmAl
Equivalent aluminum equivalent thickness：2.3mmAl

4

X-ray tube sleeve

B-240H

Nominal tube voltage: 140kV
Nominal anode input power: 29kW/48kW
Maximum continuous heat dissipation of anode: 3.5kW
Focus size:
0.7mm ×0.8mm
1.2mm ×1.4mm
Anode rotation speed: 60Hz/180Hz
Diameter of anode target surface (mm): 140mm
Target angle: 7°
Anode type: rotating anode
Bearing type: mechanical bearing
Quantity (pcs): 1
Fly focus (x to z offset): none
The longest spiral scanning time: 100s
Anode heat capacity:2MHU

X-ray tube

GS-30722

5

Detector

DET-003

Scintillation crystal material: GOS crystal
Pixel matrix: 704×16
Number of detectors: 11
Coverage (projected to the center of rotation): 430mm
Pixel size (projected to the center of rotation) 1.25mm × 1.25mm
Scanning angle: 0°/90°
Scanning field of view: 430mm
Axial scanning layer thickness: 1.25 mm ± 0.625 mm, 2.50 mm ± 1.0 mm, 5.00 mm ± 1.0 mm, 10.0 mm ± 1.0 mm;
Spiral scanning layer thickness: 1.25 mm ± 0.625 mm, 2.50 mm ± 1.0 mm, 3.75 mm ± 1.0 mm, 5.00 mm ± 1.0 mm, 7.50 mm ± 1.0 mm, 10.0
mm ± 1.0 mm;
Collimation combination: 16×1.25, 4×1.25;

6

Diagnostic bed

ZC300

Z-axis positioning accuracy (mm): ≤±1mm
Speed: 0~150mm/s
Vertical lifting range: ≥440mm
Maximum load: 205kg

7

Laser

M63AXSAXX-XX

Category: 2 types
Positioning accuracy: ±1mm
Wavelength: 600~700nm
Maximum output power: <1mW

8

Console
CZ100

KH100

Control box:
Exposure control
Bed motion control
Intercom function

/

Computer
The minimum configuration requirements are as follows
CPU performance: the main frequency is not less than 2 GHz, the number of cores is not less than 2 cores
Memory size: no less than 8GB
Image storage capacity: no less than 850GB

Should have CCC certificate, should comply with GB4943.1,
GB9254, GB17625.1 standard

/

Monitor
The minimum configuration requirements are as follows
Screen resolution: 1920×1200 SXGA
Number of displays size: 1*24 inches
Type: LCD, color
Contrast ratio: 1000:1
Preview

9

Computer image processing software

ScintVue

Release version: 1.0

System parameters

The X-ray source assembly rotates 360°, and the maximum number of scan layers that can be obtained in a single axial scan is 32.
Maximum scanning range: 1200mm
Pitch coefficient: 0.25, 0.5, 0.75, 1, 1.25, 1.5, 1.75
Scan mode: positioning scan, tomographic scan, spiral scan, enhanced scan, perfusion scan

Software function

Patient file management
Patient registration
Scan function
reconstruction
2D image browsing and processing
3D image browsing and processing
Film printing
Data management function
