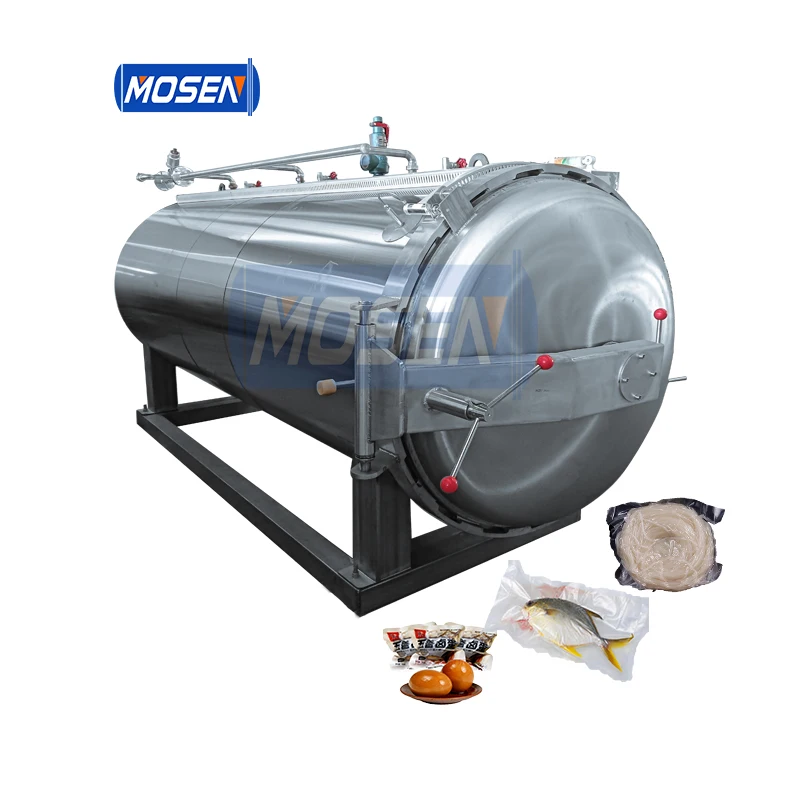

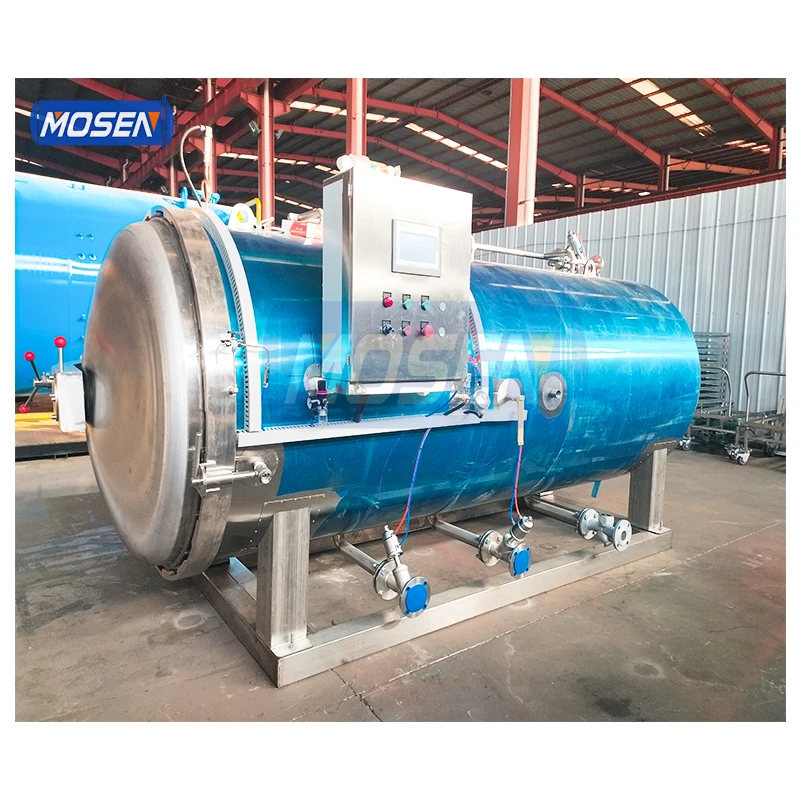

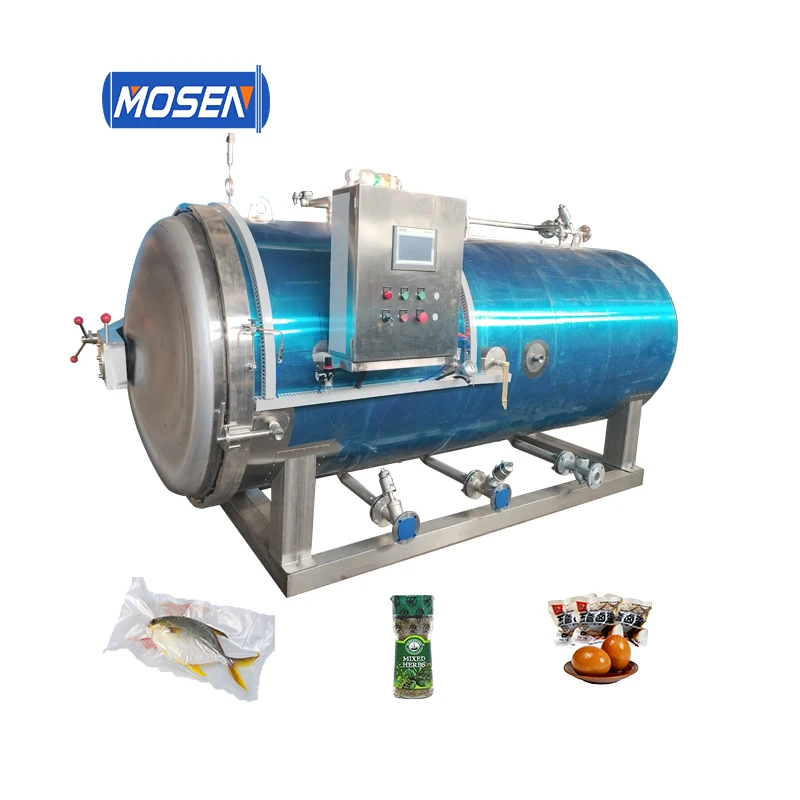

Palm Fruit Steam Retort Sterilizer Stainless Steel 304 Autoclave for Pouch Tin Cans Food Industry

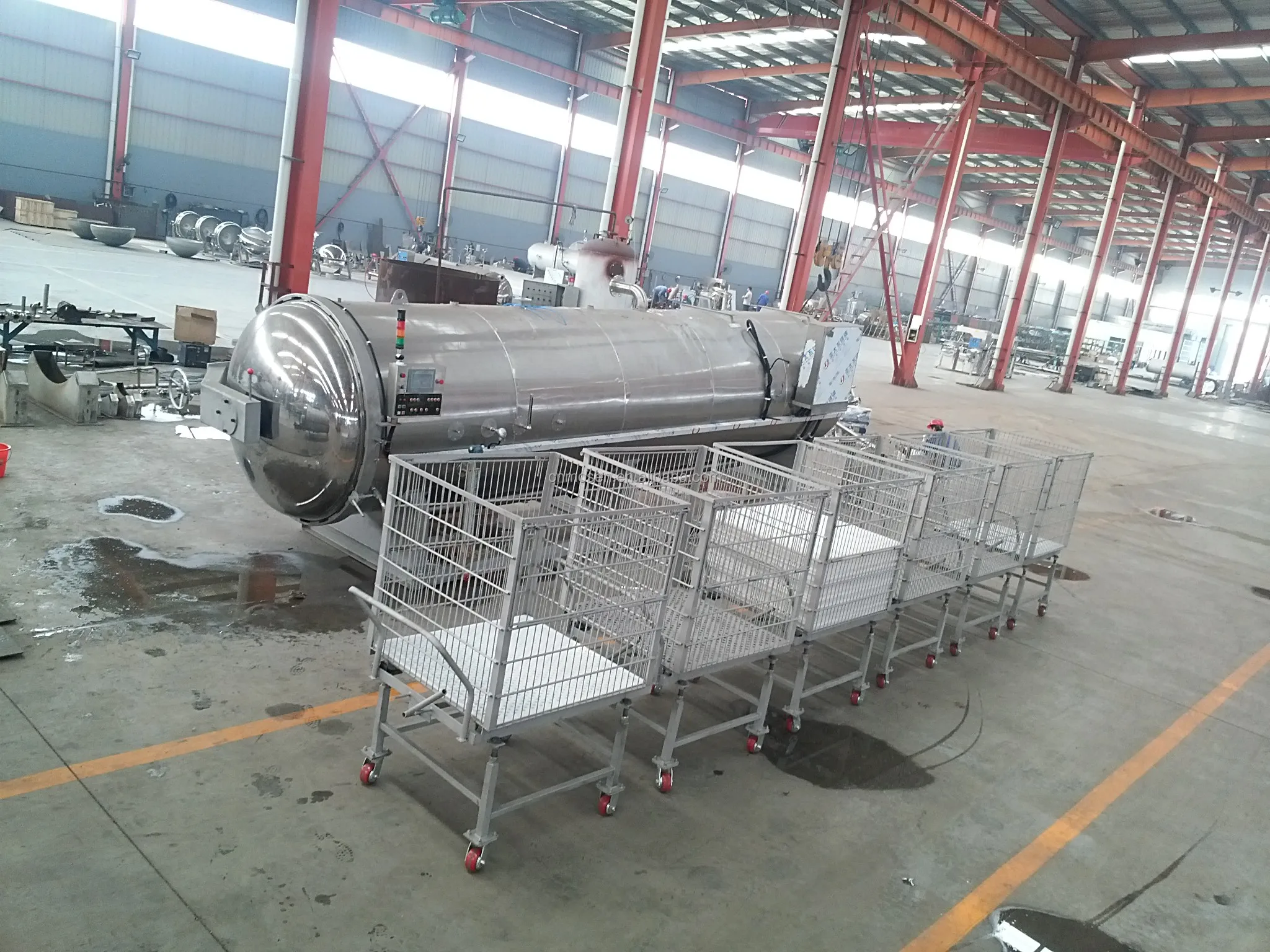

The sterilization retort is composed of pot body, pot cover, opening device, locking wedge, safety interlock device, track, sterilization basket, steam nozzle and several pipe orifices.
PRODUCT SPECIFICATIONS
Project | Specification | ||||
RETORT DIAMETER(mm) | 1200 | 1400 | 1500 | ||
BASKET NO. | 2 | 3 | 6 | ||
MAX PRESSURE(Mpa) | 0.35 | 0.35 | 0.35 | ||
MAX TEMPERATURE （℃） | 147 | 147 | 147 | ||
VAPOR PRESSURE(Mpa) | 0.6 | 0.6 | 0.6 | ||
VAPOR CONSUMPTION （kg/batch） | 300 | 400 | 500 | ||
OVERALL SIZE (mm) | 2400*1500*1800 | 4200*1800*2100 | 7800*2200*4400 | ||
Working Principle
After the food is put into the kettle, the steam is injected directly to heat up the contents, and the steam and air are mixed with the mechanical device and circulated in the sterilization kettle.
Application

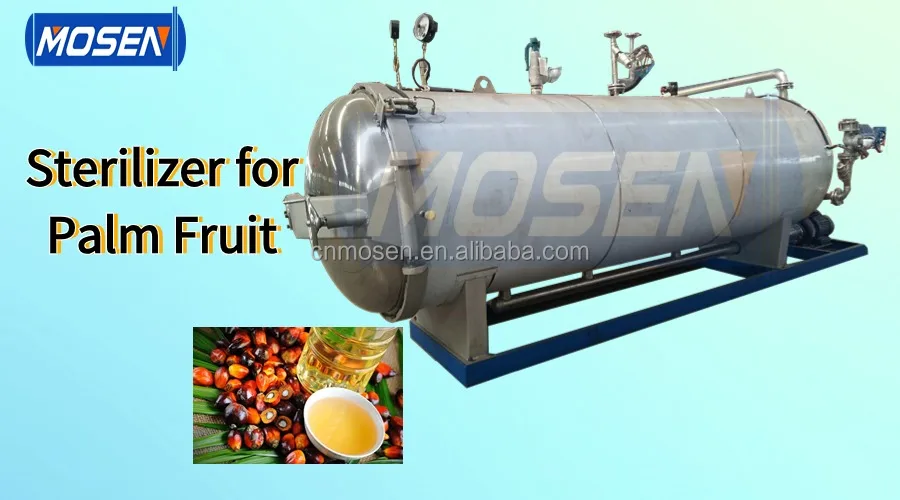

Load fresh palm fruit into a transport vehicle and push them into a cylindrical fermentation chamber. Close the door and spray direct steam for high-temperature short-term fermentation. Steam flows through the fruit clusters to heat up all the fruits and reduce the activity of bacteria and enzymes, avoiding an increase in free acids and improving the quality of the crude oil. Because once the outer skin of the fruit ruptures, bacteria and enzymes will soak into the oil, the duration of sterilization in the sterilization chamber is determined by the maturity and average size of the fruit. This process can be automatically achieved through a self-control system.

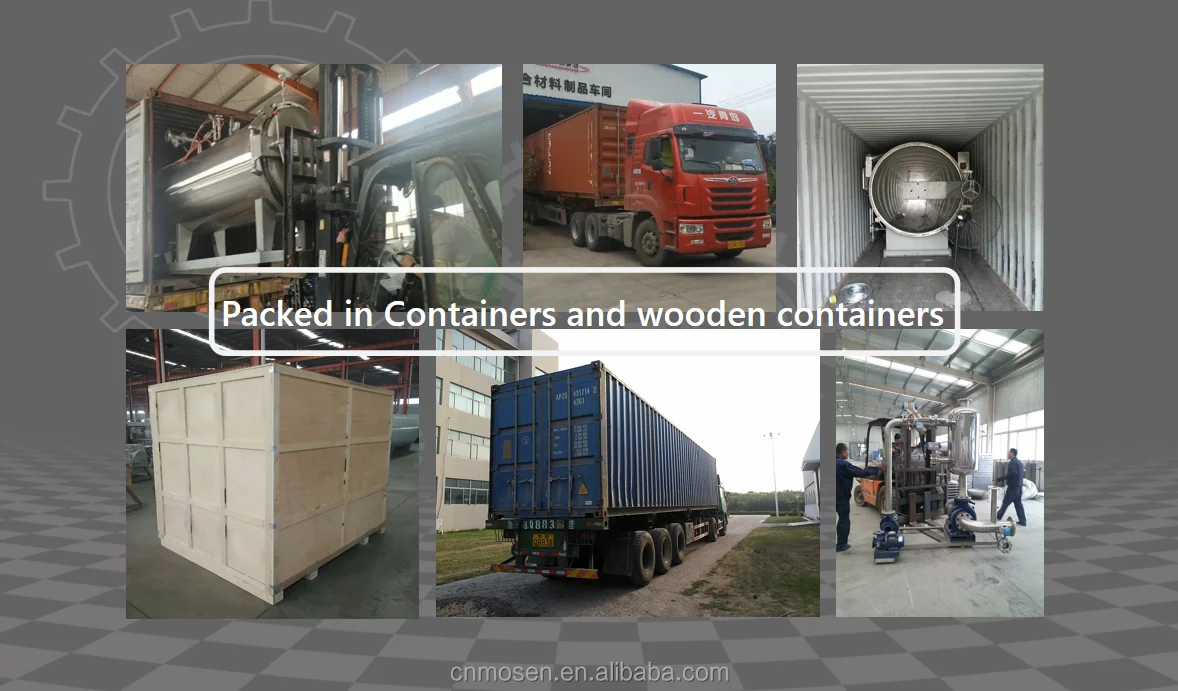

Packaging&Shipping
Our company usually pack our products by standard containers or wooden cases as master carton. We always choose the durable and safe packaging materials to make sure your objects won't be damaged during delivery.
Why Choose Us
Shandong Mosen Machinery Co.,Ltd. is a subsidiary of Mosen Industry. It is a manufacturer of pressure vessels for food sterilization retort, food jacketed cooker, vacuum cooker, etc.
Our company integrates scientific research, production, sales and service. Our company has been committed to the development trend of pressure vessels for many years, saving manpower, improving qualified production rate and reducing production cost through automation design and manufacturing.
Our company has various talents such as machinery manufacturing, food, rubber technology, engineering installation,etc., and has built a team of comprehensive services to strive to contribute perfect service.

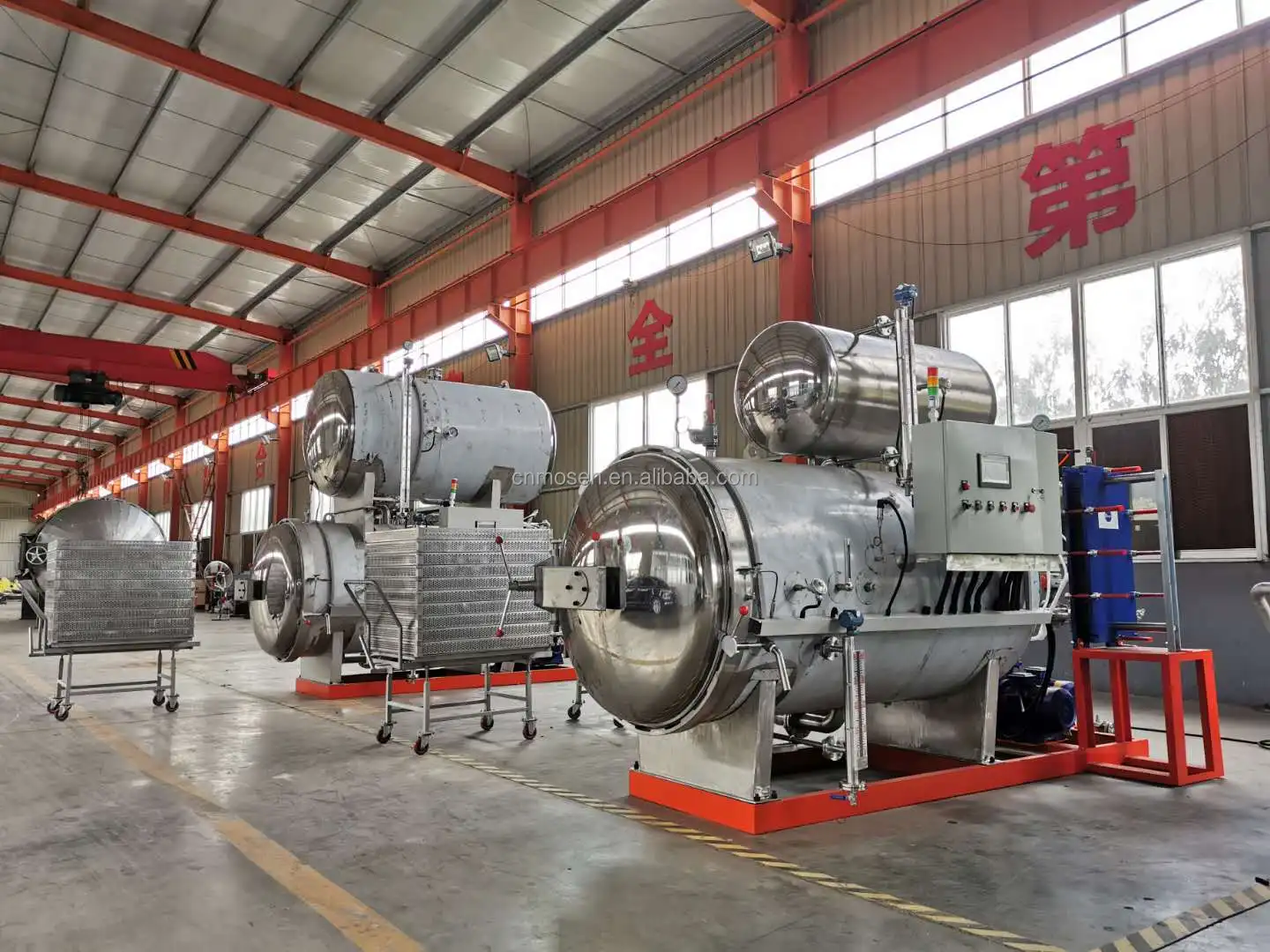

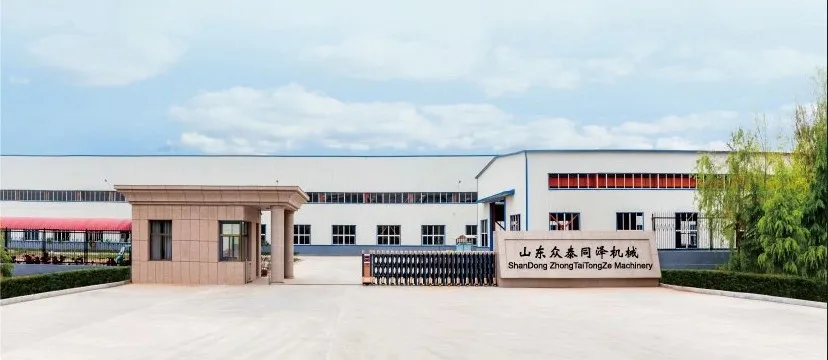

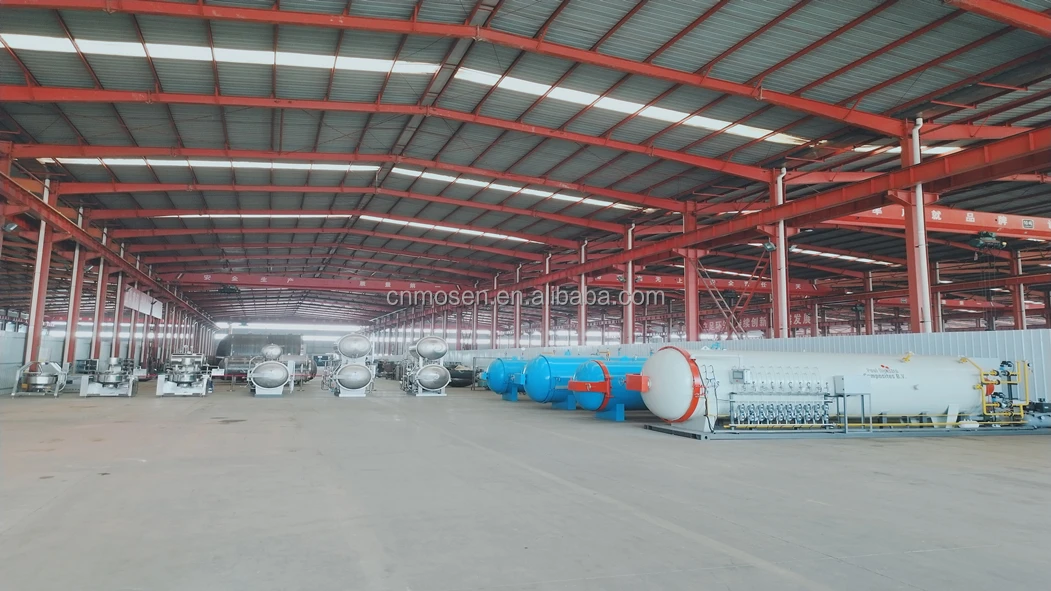

Our Factory
The factory has passed the GB150-2011 system certification and obtained the GB150-2011 certificate. Our quality management is carried out in strict accordance with this standard;
The factory has passed the review of Pressure Vessel Association, and the factory has passed the review of ASME joint inspection team and obtained ASME standard;
At the same time, we pay attention to the health and safety of employees in strict accordance with international practices.
The factory has passed the review of Pressure Vessel Association, and the factory has passed the review of ASME joint inspection team and obtained ASME standard;
At the same time, we pay attention to the health and safety of employees in strict accordance with international practices.
Certifications
After-sale Service
1. One-year Warranty
Our company implements a one-year warranty for the products.
2. About the equipment
If the device fails or encounters difficult problems during use, you can first solve it by reading the common troubleshooting
method in the product description.
3. About Delivery
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.

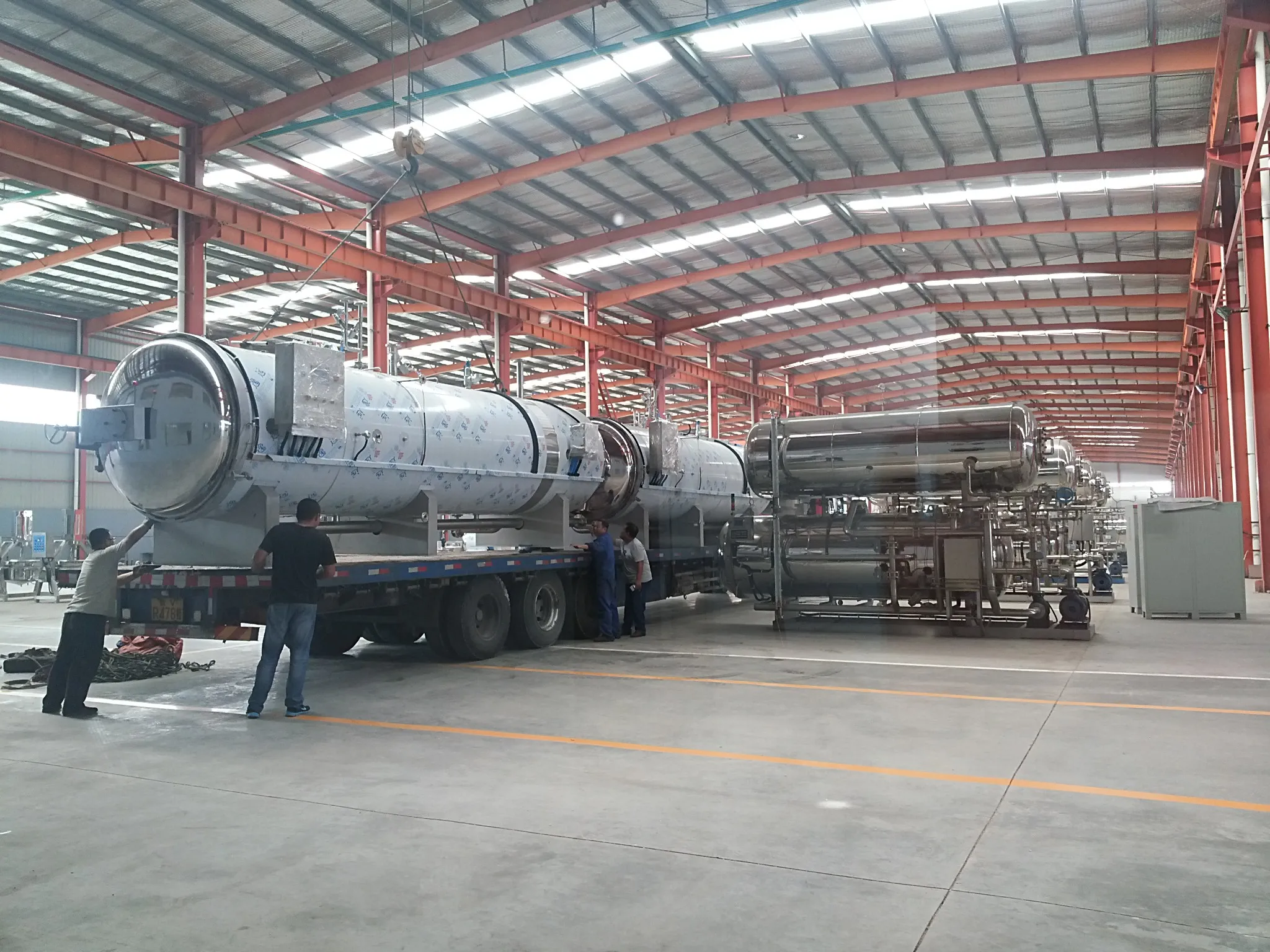

When loading, our engineers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
Our company implements a one-year warranty for the products.
2. About the equipment
If the device fails or encounters difficult problems during use, you can first solve it by reading the common troubleshooting
method in the product description.
3. About Delivery
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our engineers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
Our Customer
We have customers from all over the world, including Asian countries, North American countries, African countries and so on.
FAQ
1.How to pay?
We try to make all payment methods as much as feasible. TT and L/C are acceptable and TT will be more appreciated.
2.How to package the machine?
We try to make all payment methods as much as feasible. TT and L/C are acceptable and TT will be more appreciated.
2.How to package the machine?
The goods you have ordered will be packed in the containers or wooden cases.
3.How to install after the machines arriving destination?
Because of the COVID-19, we provide remote online guidance installation through the online video.
4.How can we guarantee quality?
3.How to install after the machines arriving destination?
Because of the COVID-19, we provide remote online guidance installation through the online video.
4.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us. When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us. When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
