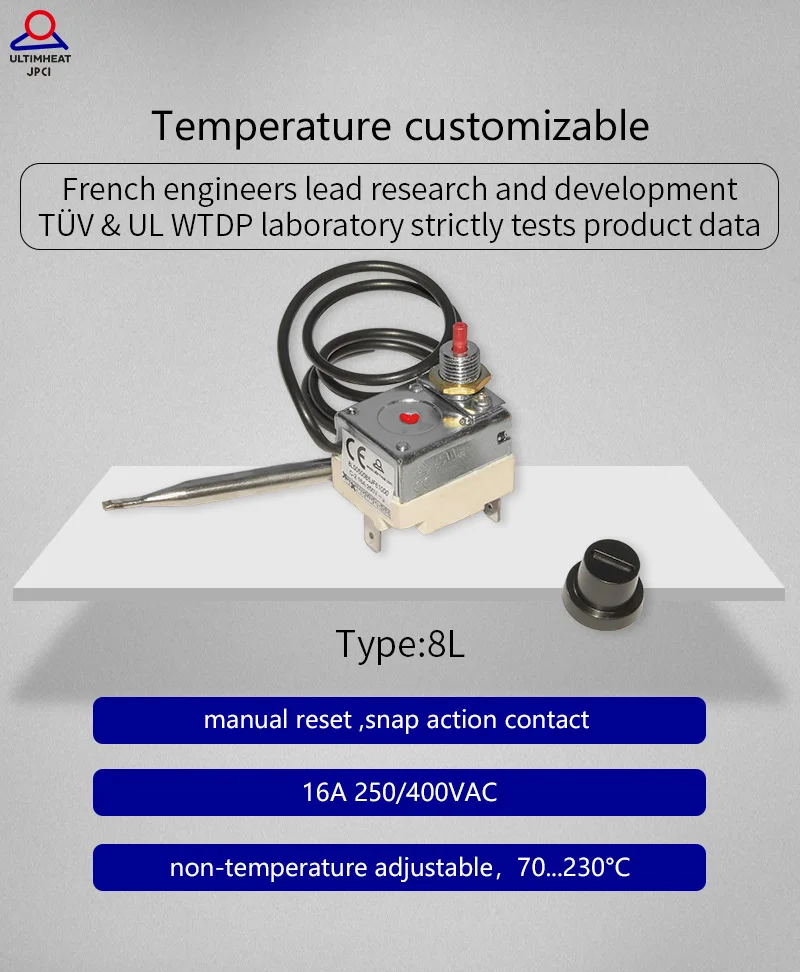

thermostat French technology 16A 230℃ Manual reset, failsafe, small temperature limiter, temperature protection 8L thermostat
- Category: >>>
- Supplier: Jpci Controls (foshan Gaoming) Co. Ltd.
Share on (1601268929910):
Product Overview
Description
Product Information

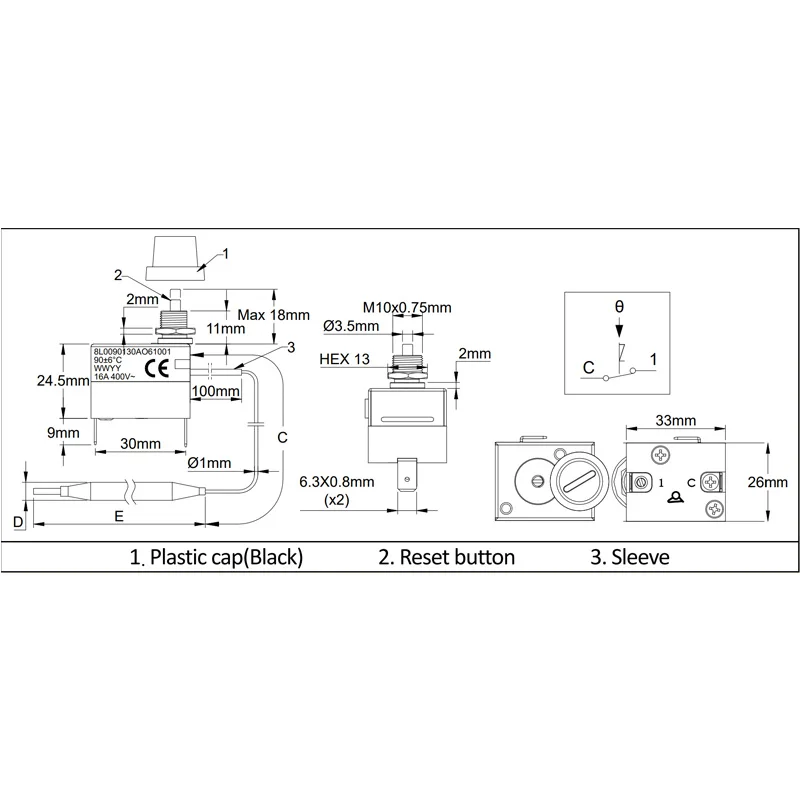

Housing dimensions: 34 × 26 × 25mm (without terminals and M10 bushing).
Bulb and capillary: Stainless steel, capillary length 250, 750, 1000mm or 1500mm, with 100mm long PVC sleeve on capillary.
Capillary minimum bending radius 5mm.
Temperature sensing element: Liquid filled bulb and capillary.
Terminals: 6.35 × 0.8 quick connect terminals (M4 screws also available on request).
Adjustment: Fixed setting, sealed.
Manual reset: Fail safe, fixed setting, front access reset button.
Fail safe contact action by low temperature: Temperatures under -10°C (14°F) will trigger the manual reset.
Mounting: Front bushing, M10 × 0.75 thread.
Rating: 16A 250/400VAC
Contacts: SPST, open on temperature rise (snap action contact).
Max ambient temperature on body: 150°C (302°F)
Bulb and capillary: Stainless steel, capillary length 250, 750, 1000mm or 1500mm, with 100mm long PVC sleeve on capillary.
Capillary minimum bending radius 5mm.
Temperature sensing element: Liquid filled bulb and capillary.
Terminals: 6.35 × 0.8 quick connect terminals (M4 screws also available on request).
Adjustment: Fixed setting, sealed.
Manual reset: Fail safe, fixed setting, front access reset button.
Fail safe contact action by low temperature: Temperatures under -10°C (14°F) will trigger the manual reset.
Mounting: Front bushing, M10 × 0.75 thread.
Rating: 16A 250/400VAC
Contacts: SPST, open on temperature rise (snap action contact).
Max ambient temperature on body: 150°C (302°F)
Calibration Temperature (°C/ °F)：80±6°C/176±10°F
Capillary length (C, mm)：250
Max temperature on bulb (°C/ °F)：105°C

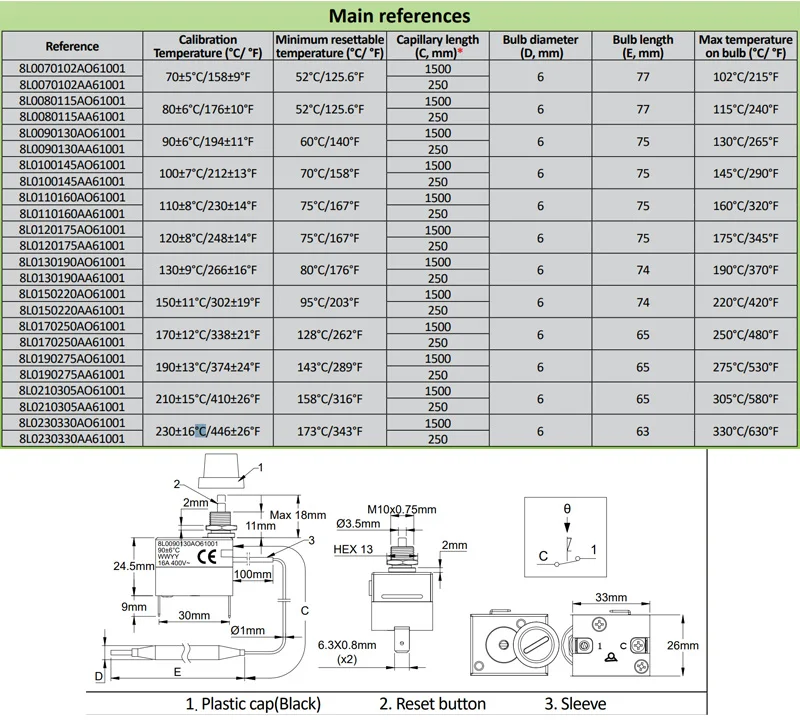

Calibration Temperature (°C/ °F) | Minimum resettable temperature (°C/ °F) | Capillary length (C, mm) | Bulb diameter (D, mm) | Max temperature on bulb (°C/ °F) |
230±16° C/446±26° F | 173° C/343° F | 250 | 6 | 330° C/630° F |

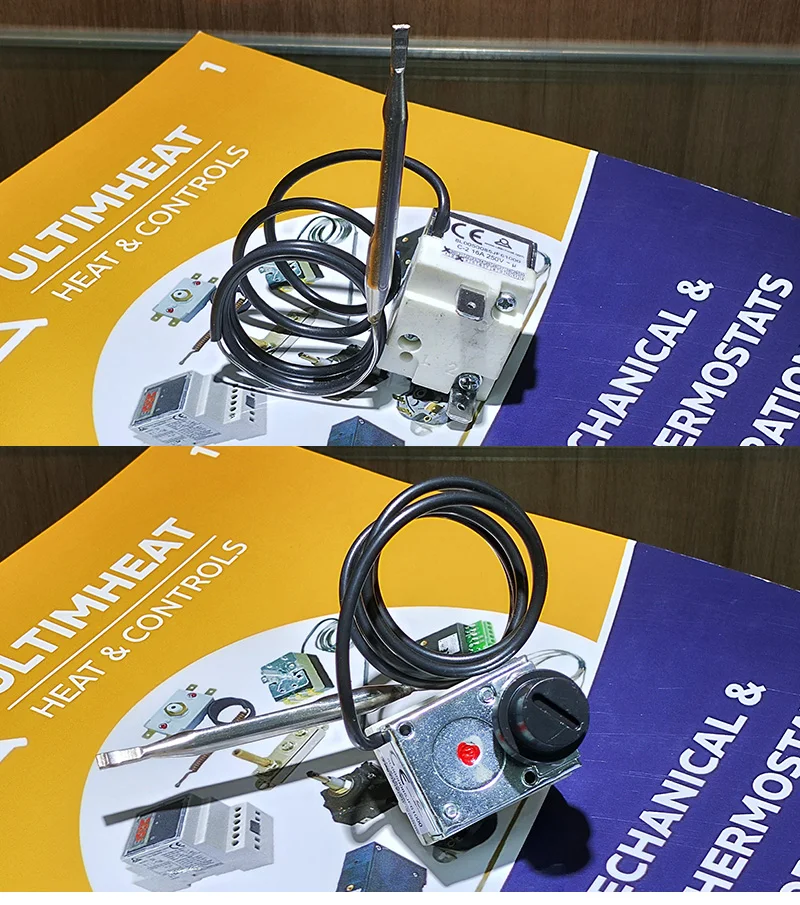

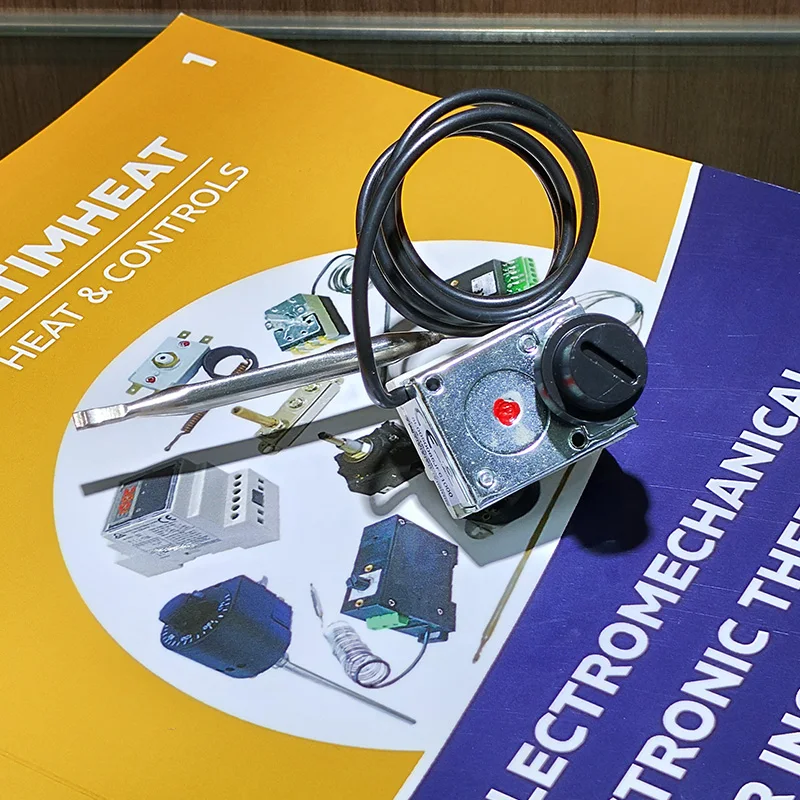

Product Display

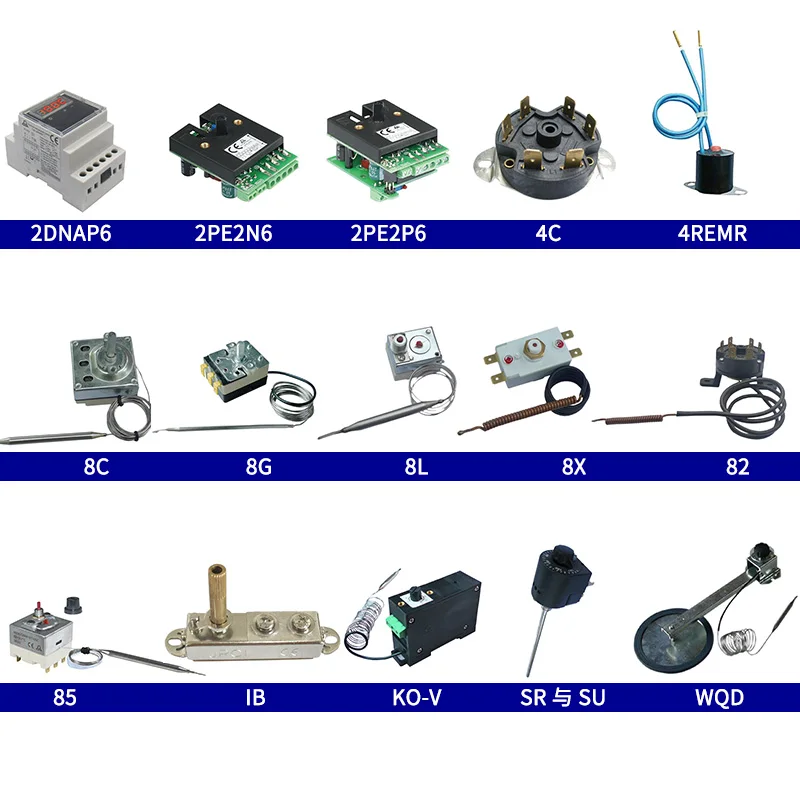

Recommend Products
Exhibitions

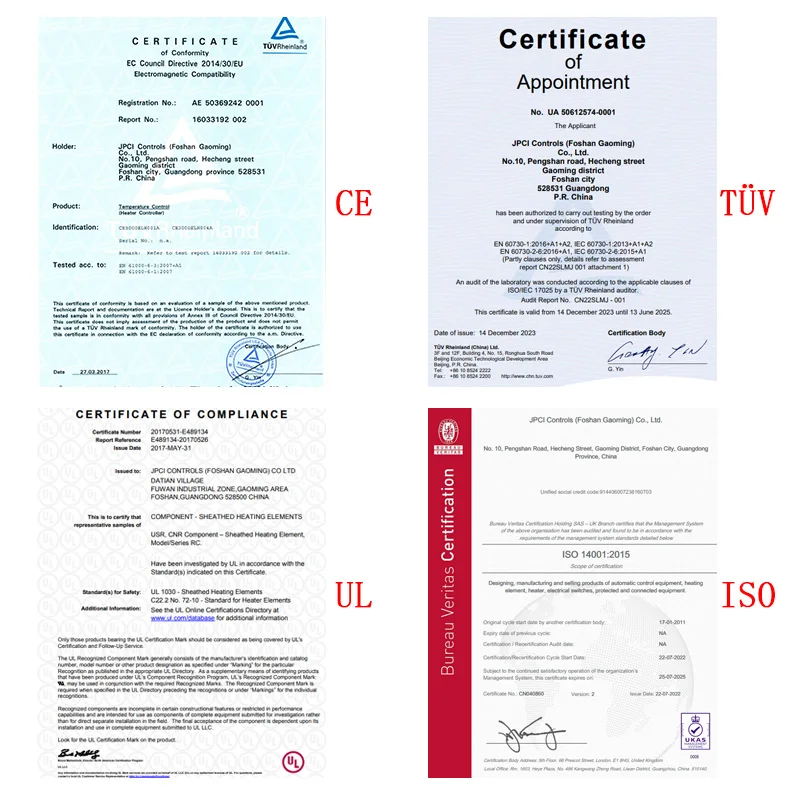

Certifications
