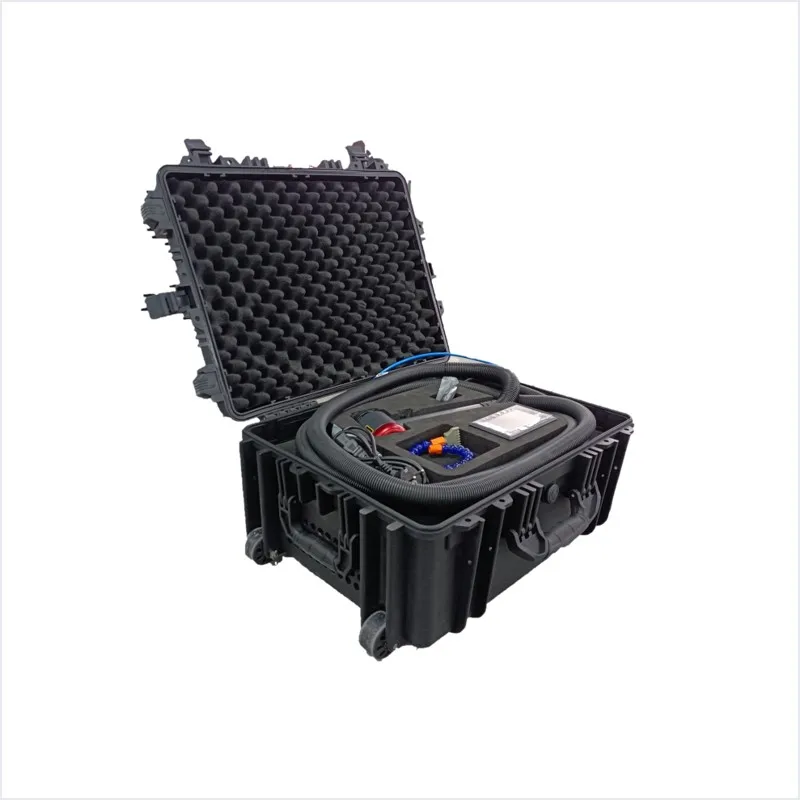

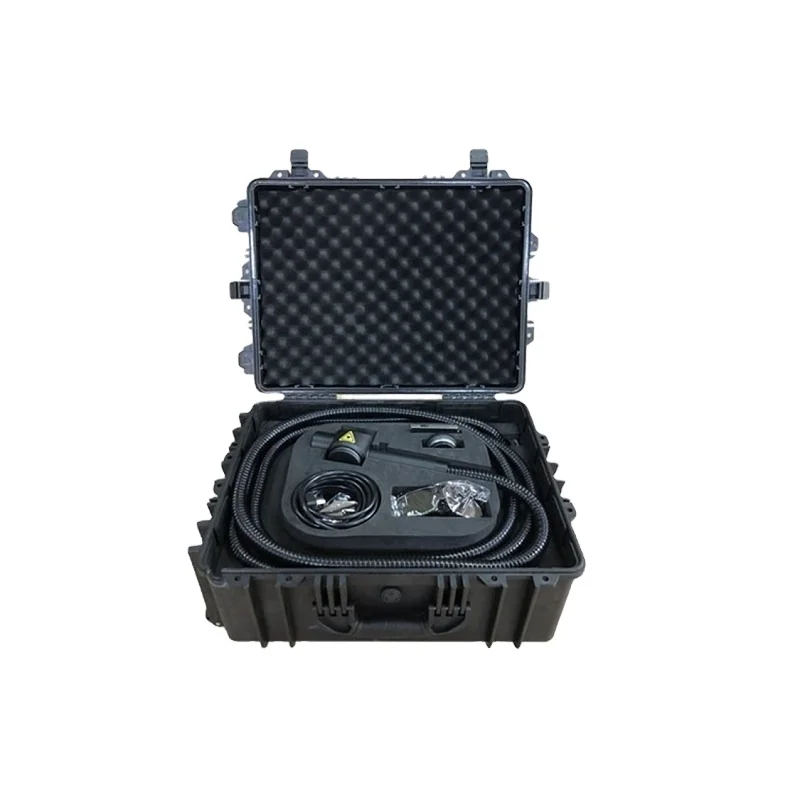

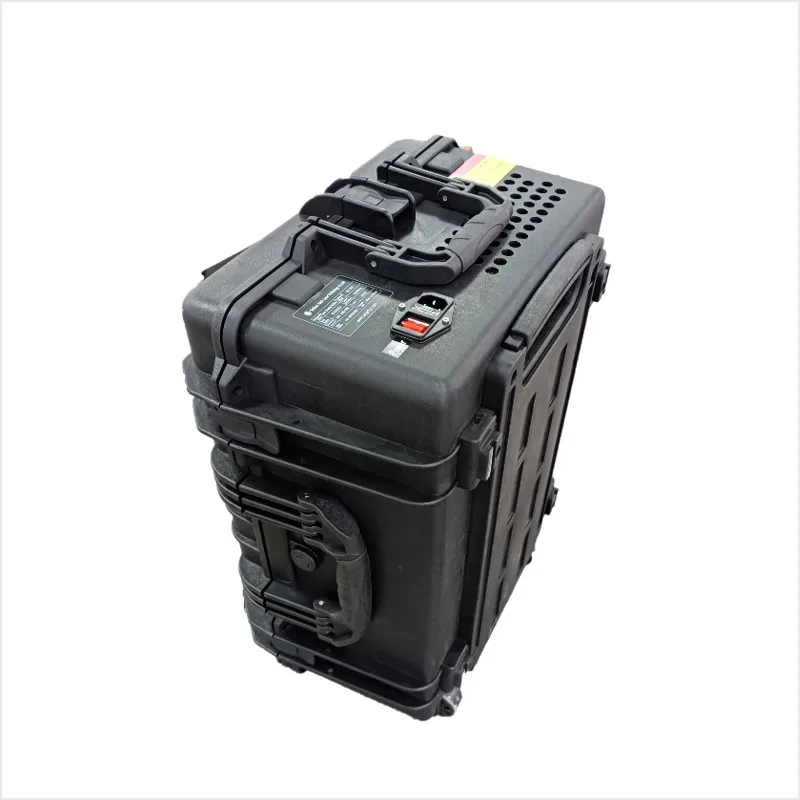

pulse laser cleaning machine Laser rust paint remover 100W portable laser cleaning equipment
- Category: >>>
- Supplier: Suzhou Hai Yi Laser Technology Co. Ltd.
Share on (1601268942901):
Product Overview
Description
PRODUCT
Laser Cleaning
Laser cleaning technology refers to the process of using high-power density laser beam to irradiate the surface of the workpiece, so that the dirt, rust spots or coatings on the surface evaporate or peel off instantly, so as to achieve cleaning and purification. Laser cleaning equipment is a new generation of high-tech products with green surface treatment solution, which is easy to install, easy to operate and can realize automation production. It can be cleaned without chemical reagent, medium, dust and water by connecting the power supply. It can remove the resin, paint, oil stain, stain, dirt, rust, coating, coating and oxide layer on the surface of the object.
APPLICATION
Widely used for metal rust removal, paint removal, oil grease dirt removal, etc.
It can be applied to industry rust removal with high efficiency, by using CW laser cleaning.
Industry Applications
1. For aerospace industry: cleaning before and after aluminum alloy welding; cleaning of titanium alloy before and after welding; Aircraft radar layer repair laser cleaning.
2. For shipbuilding industry: laser cleaning before and after welding in shipbuilding; Laser cleaning of surface before coating; Ship maintenance training.
3. For rail transit industry: stainless steel train manufacturing and cleaning; Aluminum alloy train manufacturing laser cleaning; Rail transit equipment maintenance and laser cleaning.
4. For automobile manufacturing industry: cleaning of galvanized sheet before welding; Cleaning of Al alloy before and after welding.
5. For steel manufacturing industry: derusting of steel surface; derusting of cold rolled sheet surface.
2. For shipbuilding industry: laser cleaning before and after welding in shipbuilding; Laser cleaning of surface before coating; Ship maintenance training.
3. For rail transit industry: stainless steel train manufacturing and cleaning; Aluminum alloy train manufacturing laser cleaning; Rail transit equipment maintenance and laser cleaning.
4. For automobile manufacturing industry: cleaning of galvanized sheet before welding; Cleaning of Al alloy before and after welding.
5. For steel manufacturing industry: derusting of steel surface; derusting of cold rolled sheet surface.
TECHNICAL PARAMETERS
Condition | New |
Power | 100W |
Applicable Material | Carbon Steel, Aluminum, Stone, Metal, Rubber |
Scan Speed | 6000mm/S |
Fiber length | 5m |
Cooling mode | Air cooling |
Warranty of core components | 2 years |
Core Components | laser source |
Laser Type | Pulse Laser |
Certification | ce |
Place of Origin | China |
Jiangsu | |
Brand Name | HaiYi laser |
Laser Source Brand | GZ |
Machine Weight (KG) | 26KG |
Machine Size | 620*469*292 mm |
Warranty | 2 years for laser source, 1 year for machine |
After-sales Service Provided | Online support, Video technical support,charged oversea service |
After Warranty Service | Video technical support, Online support |
Applicable Industries | Printing Shops, Manufacturing Plant, Food & Beverage Factory, farms, Hotels, HOME USE, Garment Shops, Construction works , restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Energy & Mining, Retail, Building Material Shops |
Product name | Laser Cleaning Machine |
Power Consumption | 450W |
Power Supply | AC220V±10%, 50/60Hz |
laser power percentage range | 0-100% |
pulse width | 1-500NS |
Drawing graphics selection | Line/rectangle, circle, etc 8 mode |
Focal length | Focal length of firld mirror(F160,254,330.) |
Wave length | F160=110mm/F254=175mm/F330=230mm....... |
FEATURES AND ADVANTAGES
1.Non contact cleaning will not damage the part matrix. No chemical cleaning solution, no consumables, safe and environmental protection.
2.The laser cleaning head is lightweight and can be held for a long time. The laser cleaning system is stable and almost maintenance free.
3.High cleaning efficiency and time saving. Red light assists in focusing, and the focusing position can be adjusted according to different field mirrors.
4.Precise cleaning, which can realize selective cleaning in precise position and size.
5.Easy to operate just powered on. Optional for hand-held and automatic cleaning.
2.The laser cleaning head is lightweight and can be held for a long time. The laser cleaning system is stable and almost maintenance free.
3.High cleaning efficiency and time saving. Red light assists in focusing, and the focusing position can be adjusted according to different field mirrors.
4.Precise cleaning, which can realize selective cleaning in precise position and size.
5.Easy to operate just powered on. Optional for hand-held and automatic cleaning.
Company Profile
RELATED PRODUCTS
FAQ
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
