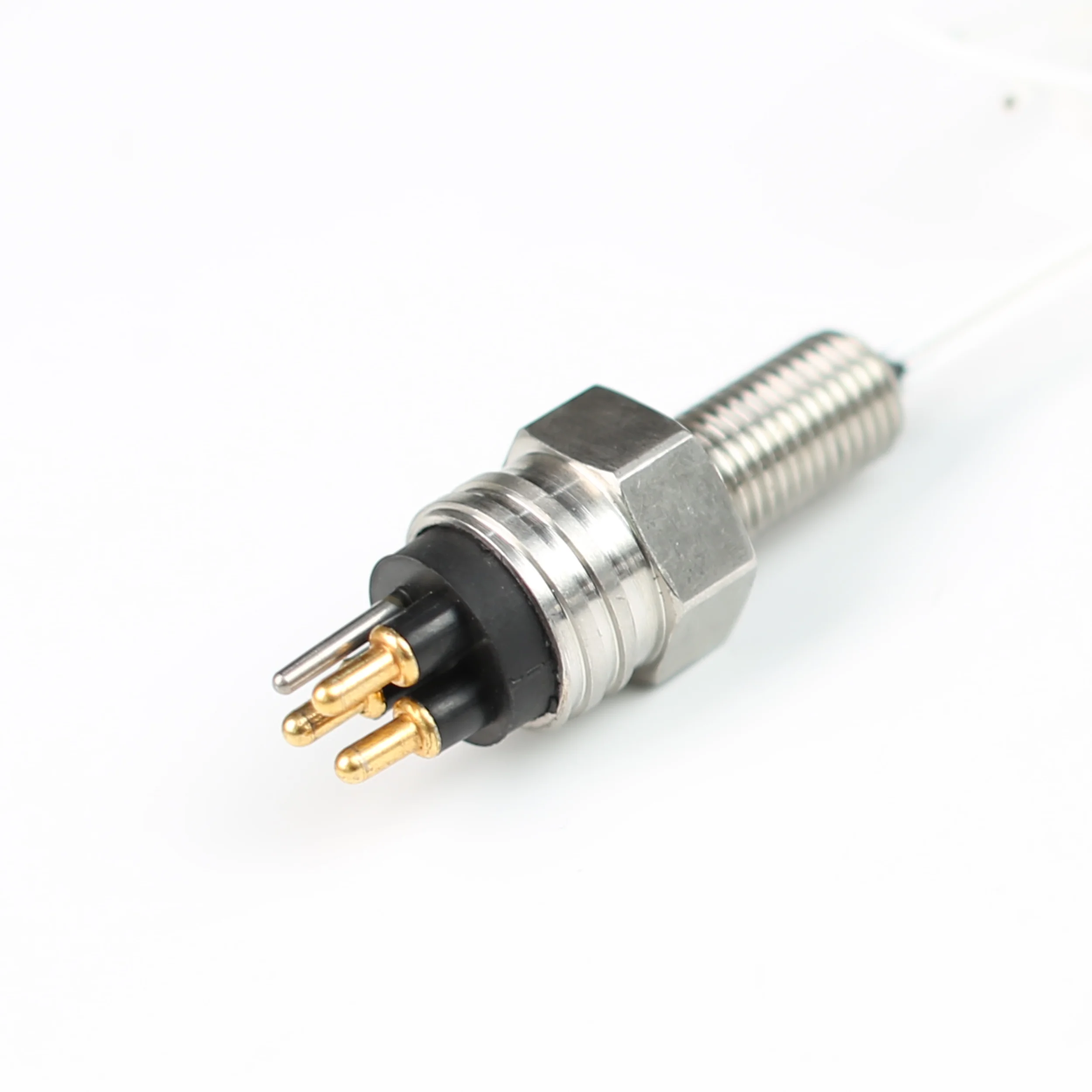

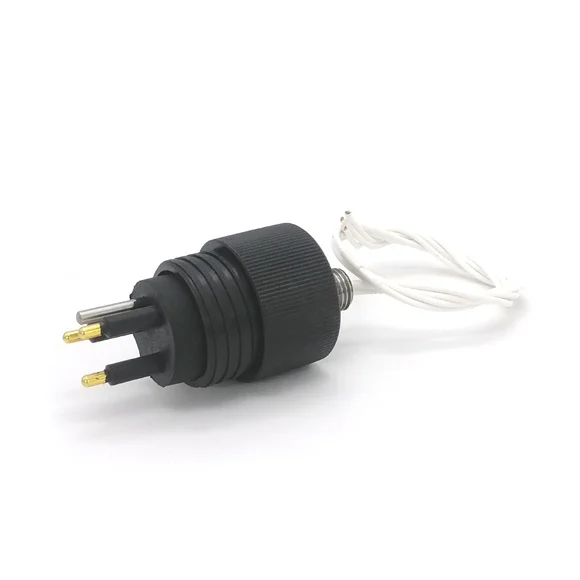

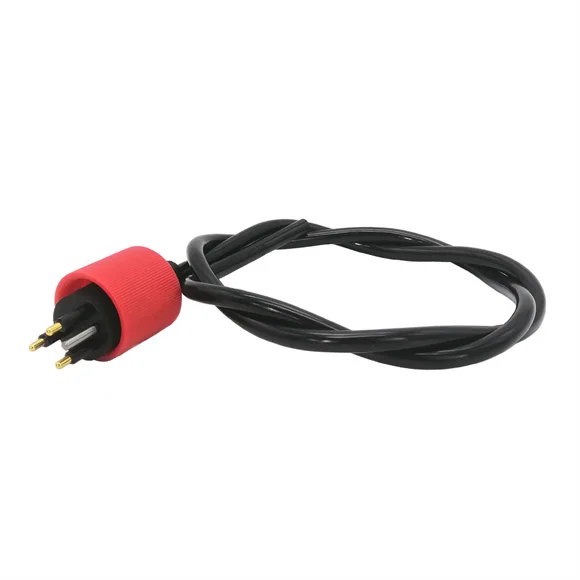

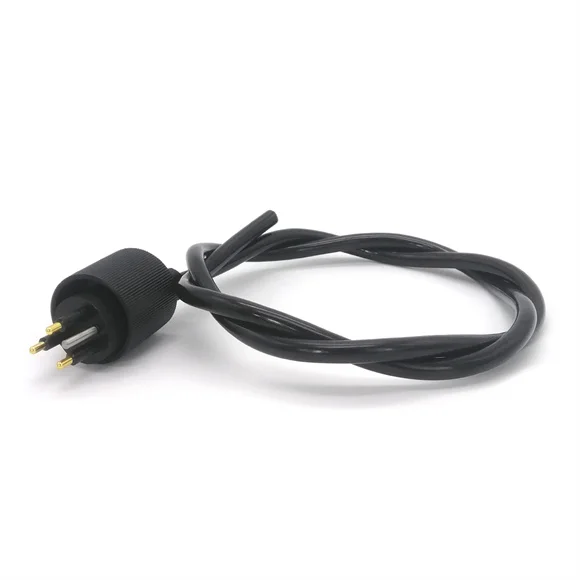

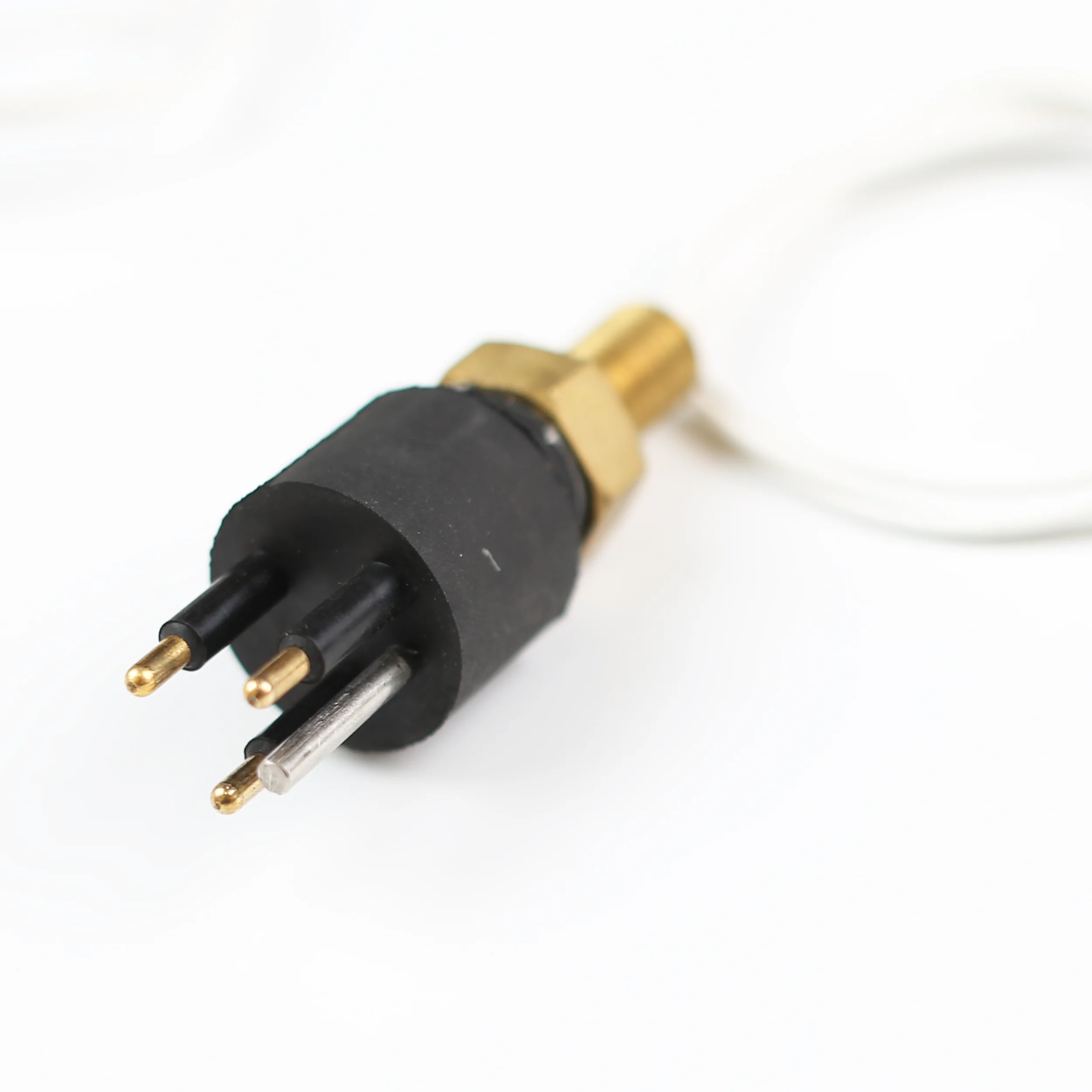

Custom Length Subconn Underwater MCBH MCIL 3 Pin Cable Connector Stainless Steel DC Power Brass UUV HOV ROV Seacon Subsea
- Category: >>>
- Supplier: Xiamen Leaka Electrical Equipment Co. Ltd.
Share on (1601268946176):
Product Overview
Description
Product Description
Threaded hole installation, the diameter around the screw hole is within 25mm, and the end face roughness is required to be within Ra1.6
- The optical hole lock nut is installed. The diameter of the over-control should be controlled within 11.2-11.4mm. The diameter of the surrounding area is within 25mm. The roughness of the end face should be within Ra1.6.
- Always apply a thin layer of silicone oil to the o-ring before installing the socket.
Remark:
1.Be sure to apply silicone oil before each plug
2.Please pull out when pulling out, do not twist left and right
3.Ensure that the joint is not tilted
- The optical hole lock nut is installed. The diameter of the over-control should be controlled within 11.2-11.4mm. The diameter of the surrounding area is within 25mm. The roughness of the end face should be within Ra1.6.
- Always apply a thin layer of silicone oil to the o-ring before installing the socket.
Remark:
1.Be sure to apply silicone oil before each plug
2.Please pull out when pulling out, do not twist left and right
3.Ensure that the joint is not tilted
4.All joints are delicately exposed to heat or direct sunlight

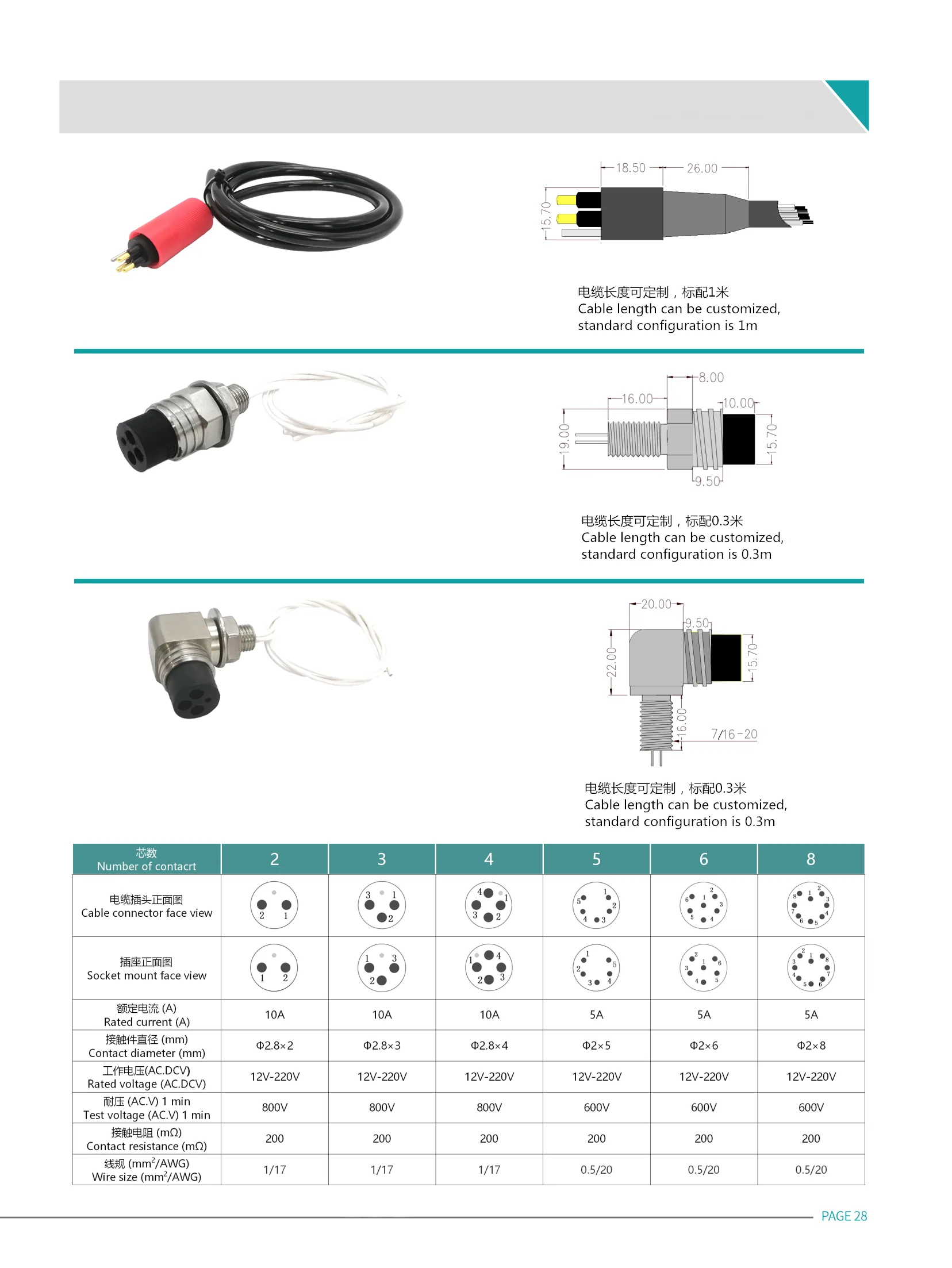

Product name | Subconn underwater stainless steel subsea UUV HOV rov connector seacon |
Depth | 7000 m |
Resistance | 200 m Ω - 199.9 |
Current | single core 10A |
Mounting thread | 7/16-20unf |
Ac withstand voltage | 800 AC |
Operating temperature | -4℃~60℃ |
Color | red/black |
