Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
6024 Fiber Laser Cutting Machine 1500W Metal Tube Raytools Brand Laser Head Cypcut Control System Servo Motor Drive Retail
- Category: >>>
- Supplier: Shandong Dadi Cnc Mechanical Equipment Co. Ltd.Shandong Ltd.
Share on (1601268961532):
Product Overview
Description
Product Description
6024 Fiber Laser Cutting Machine 1500W Metal Tube Raytools Brand Laser Head Cypcut Control System Servo Motor Drive Retail
metal cutting laser machine,fiber laser source cutting machine,laser source cutting machine,hiwin guiderail laser machine,
advertising company laser machine
advertising company laser machine

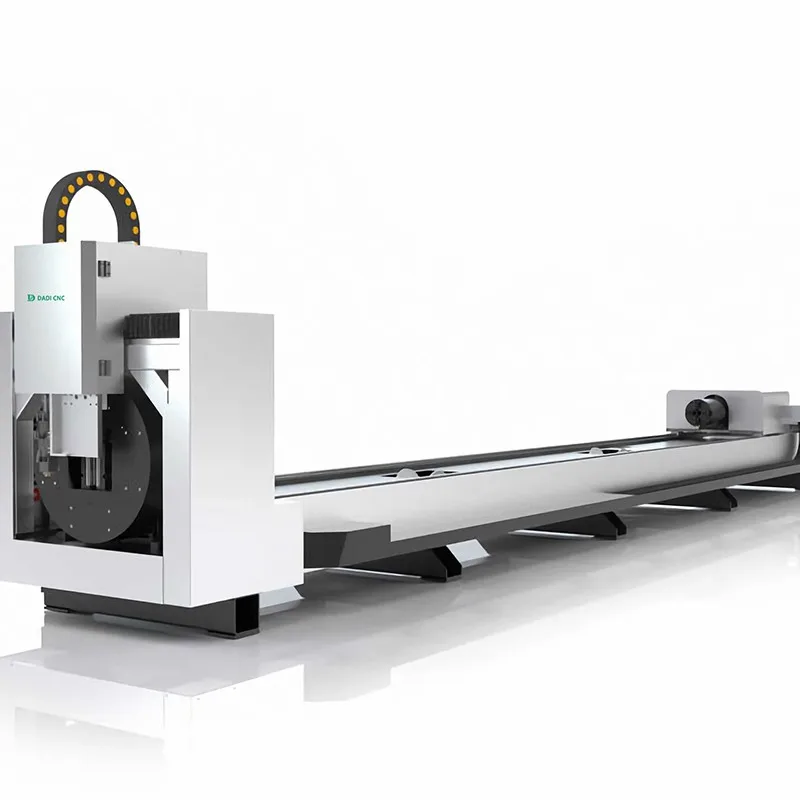

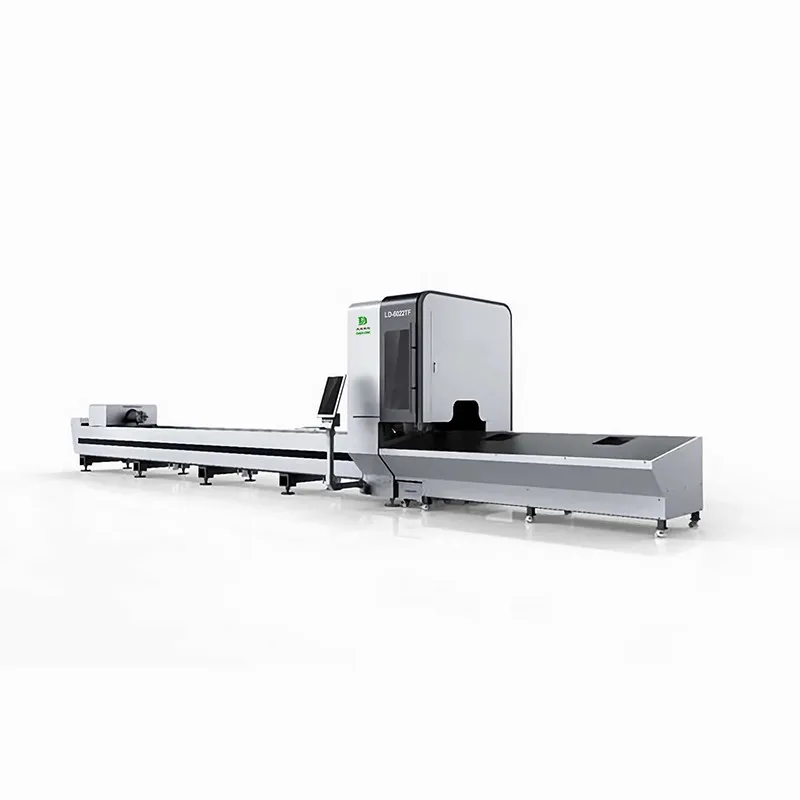

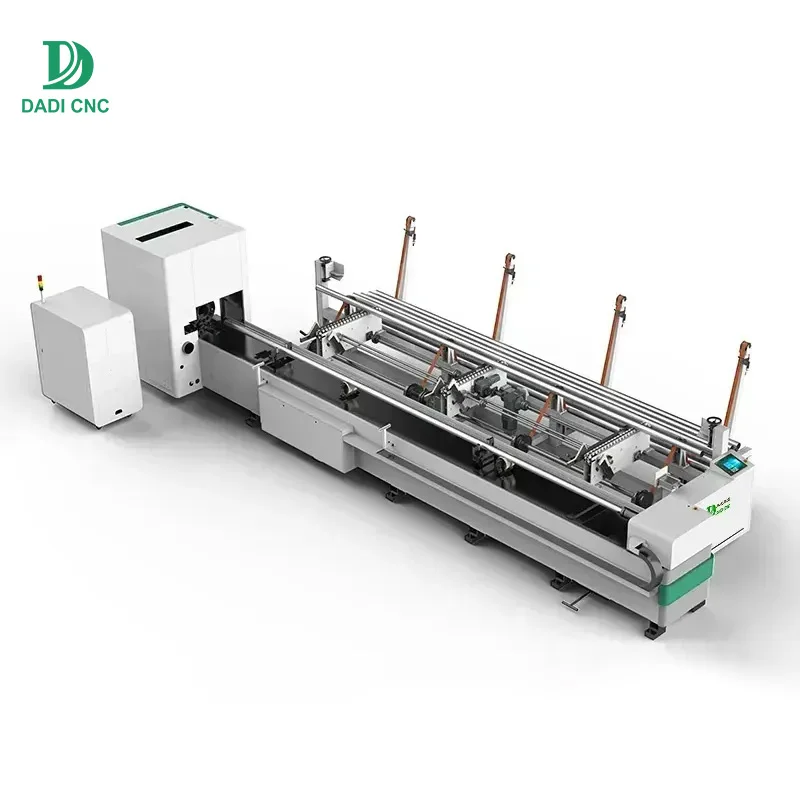

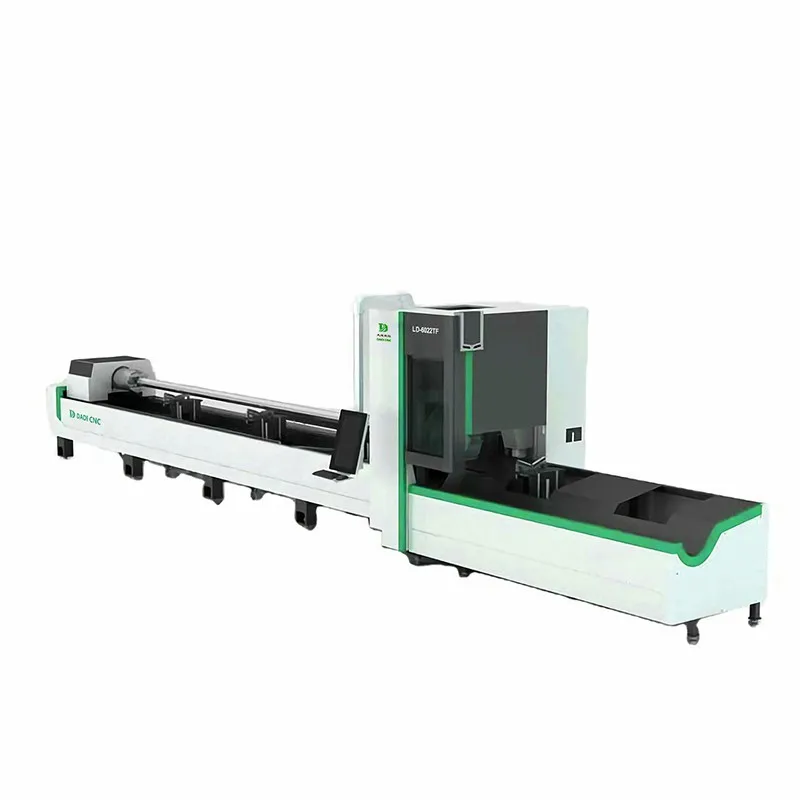

DA-6022T Fiber Laser Tube Cutting Machine is specially designed for small pipe cutting. For its high speed cutting, the chuck can support 110mm and 160mm. This laser cutter excels with a fully automatic pneumatic chuck and precise mechanics, engineered for swift and efficient cutting of small pipes. Its compactness guarantees cost savings and ease of setup, perfect for environments where space is premium. At the same time, machines can be equipped with automatic feeding to save time and human cost, easy to operate and suitable for large bulk production.
Products Name | DADI-6022 Tube Fiber Laser Tube Cutting Machine | ||||||
Laser Power | 1500W/2000W/3000W/5000W/6000W/20000W (Option: 1500w-20000w) | ||||||
Model | DA--6022T | DA--6022TF | |||||
Min Diameter | Ф10mm | Ф20mm | |||||
Tube Cutting Diameter | Ф110mm | Ф160mm | |||||
Tube Cutting Length | 6000mm | ||||||
Laser Source | MAX (Option: Raycus,IPG) | ||||||
Laser Cutting Head | WSA(Option:Raytools, WSX, BOCI) | ||||||
Control System | Raytools/Cypcut | ||||||
Support Languages | Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Korean, German, Spanish, Russian, French, Italian, Czech, Japanese, Portuguese, Hungarian, Finnish, Vietnamese and so on Customized language accepted | ||||||
Chuck Speed | 80r/min | ||||||
Maximum Acceleration | 1.0G | ||||||
Positioning Accuracy | ±0.03mm | ||||||
Auxiliary Gas | Compressed air,oxygen,nitrogen | ||||||
Voltage | 380V 3PH 50HZ/60HZ(0ption:440V) | ||||||
Machine Advantage
Shape Identification:
Automatically recognizes standard and special-shaped pipes, including round, oval, square, and more, eliminating manual
configuration.
configuration.
Non-Inductive Detection:
Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.
Exceptional Precision:
Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency and
quality in every cut.
quality in every cut.
Pneumatic Chuck
The fully automatic pneumatic chuck features a precise internal transmission structure that utilizes rack and pinion drive for enhanced accuracy.
Specifically designed for cutting small pipes, it offers flexible rotation capabilities and high rotate speed to meet the demands of fast and efficient cutting.
Machine frame
This machine adopts plate welding structure bed, the bed structure reaches the optimal stress point and support, the one-piece welding fixation can withstand greater load, and after aging treatment, greatly reducing the internal stress of the bed, to ensure the long-term stable operation of the equipment.
Automatic Support
DADI's Small Pipe Cutting Machine features an advanced automatic support system, ensuring stability and precision during the cutting process. This component plays a vital role in maintaining the alignment of the pipes, ensuring that the cuts are clean, accurate, and consistent regardless of the length or diameter of the material.
Front Chuck
The front chuck adopts a fully sealed appearance dust-proof structure to prevent dust from entering, and is beautiful and generous with aluminum alloy panel + stainless steel cover buckle. Full stroke clamping range without gripper transposition adjustment, clamping force and load bearing force is strong, stable performance, high efficiency and clamping accuracy.
Rear Chuck
The rear chuck with claw can clamp the special-shaped pipe, keep the pipe fitting does not slip, and has the function of dust extraction or blowing, the clamping stroke is large, the type of claw is small, easy to use, the clamping force is strong, can realize the heavy pipe fitting processing, and the integral support base structure, improve the support bearing stability.
Laser System
Laser Source
Professional cutting laser source, small in size, light in weight, and easy to move and operate. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect.
Servo Motor
Imported from Japan, using top brands Yaskawa, Fuji, etc. High-power motor system on X, Y, Z axis. High precision gives better cutting effect, high speed gives faster cutting speed.
Laser Head
3 pieces of protective lens, efficient protection of collimating focusing lens. 2-way optical water cooling, effectively extending continuous working time. Auto focus saves time for the operator and is easy to learn.
Servo Driver
The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. Keeping the distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality and the cutting speed.
HIWIN Rail
Hiwin linear guide, for the four-row single arc tooth contact linear guide, while integrating the optimised structure design of the heavy-duty precision linear guide, high speed, high load, high rigidity, high precision and stabilise the cutting process.
YYC Gear
YYC Gear adopts German standard precision manufacturing, rack tooth surface quenching hardness HRC58, can reach DIN6 level
precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.
precision requirements, suitable for precision CNC equipment, high precision, wide range of applications.
Control System
Control Software
We used a tube nesting software designed for Tube laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs. It can achieve
intelligent production.at the same time, the modular design provides users with a more concise and efficient operation.
intelligent production.at the same time, the modular design provides users with a more concise and efficient operation.
Control System
DADI use the most famous brand for high power in China, with great feedback from our customers and special functions such as flying cutting to help customers better use, improve production efficiency and save resources. Working with TubesT 3D nesting software, it will achieve most efficiency and minimum waste.
Independent Height Adjuster
The high-performance stand-alone capacitive height adjuster with its unique Ethernet communication interface can easily work with tube laser cutting software to achieve automatic height edge finding, frog jumping.
Control Panel
The intuitive control panel simplifies operation without sacrificing performance. With customizable settings and keyboard for easy
data recording, it offers unparalleled control for a wide range of cutting applications.
data recording, it offers unparalleled control for a wide range of cutting applications.
Wireless Controller
Wireless connection control handle to keep a safe distance to control the machine operation for operators, and the handle has iron absorber on the back to reduce the occurrence of loss and easy to place.
About Us
Us VS Peers

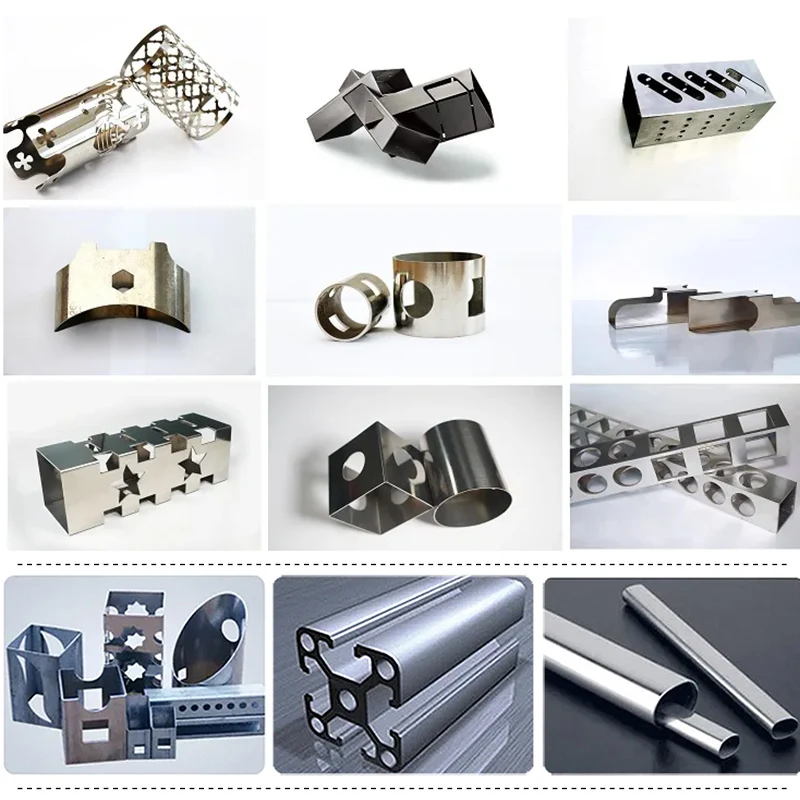

Application industries and samples
Fitness equipment industry
Furniture industry
Electrical appliance industry
Pipeline industry
Wide range of industry applications, advertising sheet metal processing, cabinet production industry, machinery and equipment manufacturing industry, kitchenware industry, automotive industry, aerospace, shipbuilding, lift production industry, etc.
Packaging and Delivery
FAQ
Q:How to get a accurate quotation from us?
A:Provide us the details of your needs such as metal thickness and size.
Q:What’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Laser machine is 84561100.
Q:Payment terms, MOQ, warranty, FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery.
minimum order quantity:1 set, FOB Qingdao.
warranty:12-36 months following delivery. We offer online service 24 hours all day long, Skype, WhatsApp Email etc .You can contact us any time,if urgently,please call us.
Q: What’s the package?
A:Fumigation-free plywood case or without package.
Q:How to operate this machine ?
A:Video link of our factory .......or we send you the movie directly.
Q:Do you offer teaching & training ?
A:Free training at our factory. we also can offer training services in the client's country, the buyer need to afford tickets and expenses for board and lodging.
Q: what’s policy for guarantee and broken parts?
A:Warranty period for different equipments last 1-3 years, during which the broken parts and spares caused by quality can be offered free.
A:Provide us the details of your needs such as metal thickness and size.
Q:What’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Laser machine is 84561100.
Q:Payment terms, MOQ, warranty, FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery.
minimum order quantity:1 set, FOB Qingdao.
warranty:12-36 months following delivery. We offer online service 24 hours all day long, Skype, WhatsApp Email etc .You can contact us any time,if urgently,please call us.
Q: What’s the package?
A:Fumigation-free plywood case or without package.
Q:How to operate this machine ?
A:Video link of our factory .......or we send you the movie directly.
Q:Do you offer teaching & training ?
A:Free training at our factory. we also can offer training services in the client's country, the buyer need to afford tickets and expenses for board and lodging.
Q: what’s policy for guarantee and broken parts?
A:Warranty period for different equipments last 1-3 years, during which the broken parts and spares caused by quality can be offered free.
