  • Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery

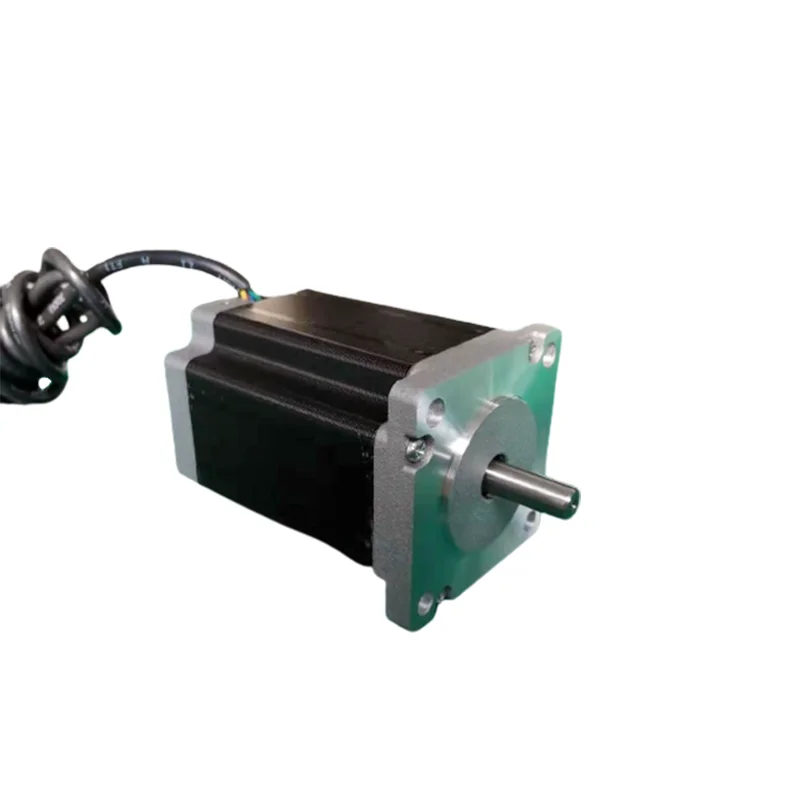

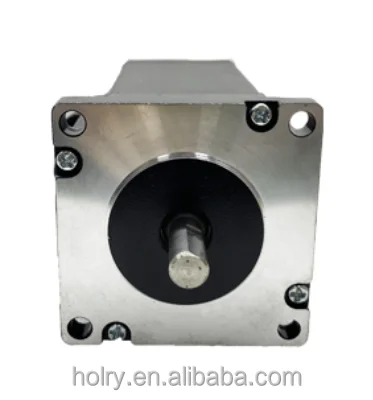

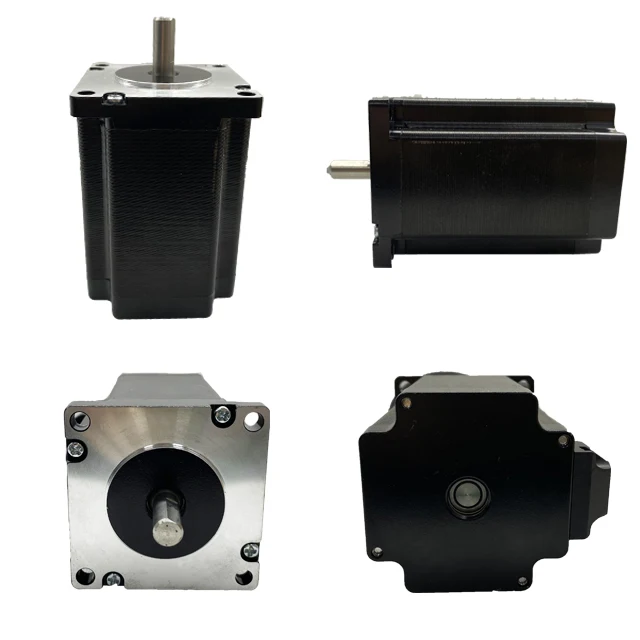

Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery
Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery
Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery
Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery
Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery
Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery
Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery

Big size 1.8 degree 2 phase DC hybrid stepper motor nema 24 60*60*56MM for machinery

Share on (1601268968871):


Price:$9.68 - $12.70

Quantity:


Product Overview

Description



Products Description






Product Paramenters




Item
Specifications
Step Angle
1.8°
Step Angle Accuracy
±5% (full Step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80℃ Max. (rated current, 2 phase on)
Ambient Temperature
-20℃~+20℃
Insulation Resistance
100MΩMin., 500VDC
Dielectric Strength
500VDC for one minute
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Insulation Class
B


Series Model
Moter Length L(MM)
Rated Voltage (V)
Rated Current (A)
Phase Resistance (Ω)
Phase Inductance (mH)
Holding Torque
(N.M)
Lead Wire (NO.)
Rotor Intertia (g.c㎡)
Motor Weight (Kg)
60HB56F3B
56
3.9
3.0
1.3
14
1.4
4
300
0.8
60HB56S107B
56
5.8
1.7
3.4
12
1.2
6
300
0.8
60HB56F3PJ
56
2.4
3.0
0.8
1.6
1.0
4
300
0.8
60HB56F1B
56
12
1.0
12
15
1.2
4
300
0.8
60HB87F3B
87
4.5
3.0
1.5
6.8
2.5
4
840
1.4
60HB87F2B
87
6.4
2.0
3.2
15
2.3
4
840
1.4
60HB87F5B
87
3.25
5.0
0.65
3.0
2.5
4
840
1.4
60HB87S3PJ
87
4.5
3.0
1.5
5.0
2.6
6
840
1.4
60HB87S4B
87
2.6
4.0
0.65
2.5
3.1
6
840
1.4

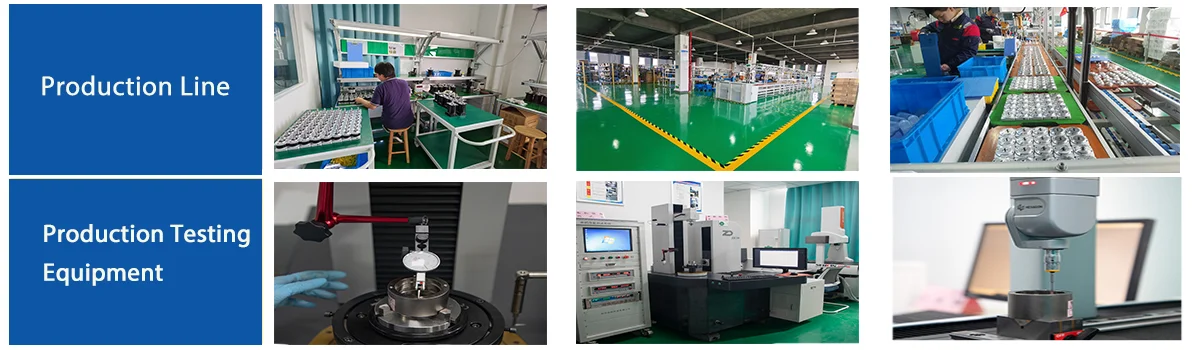

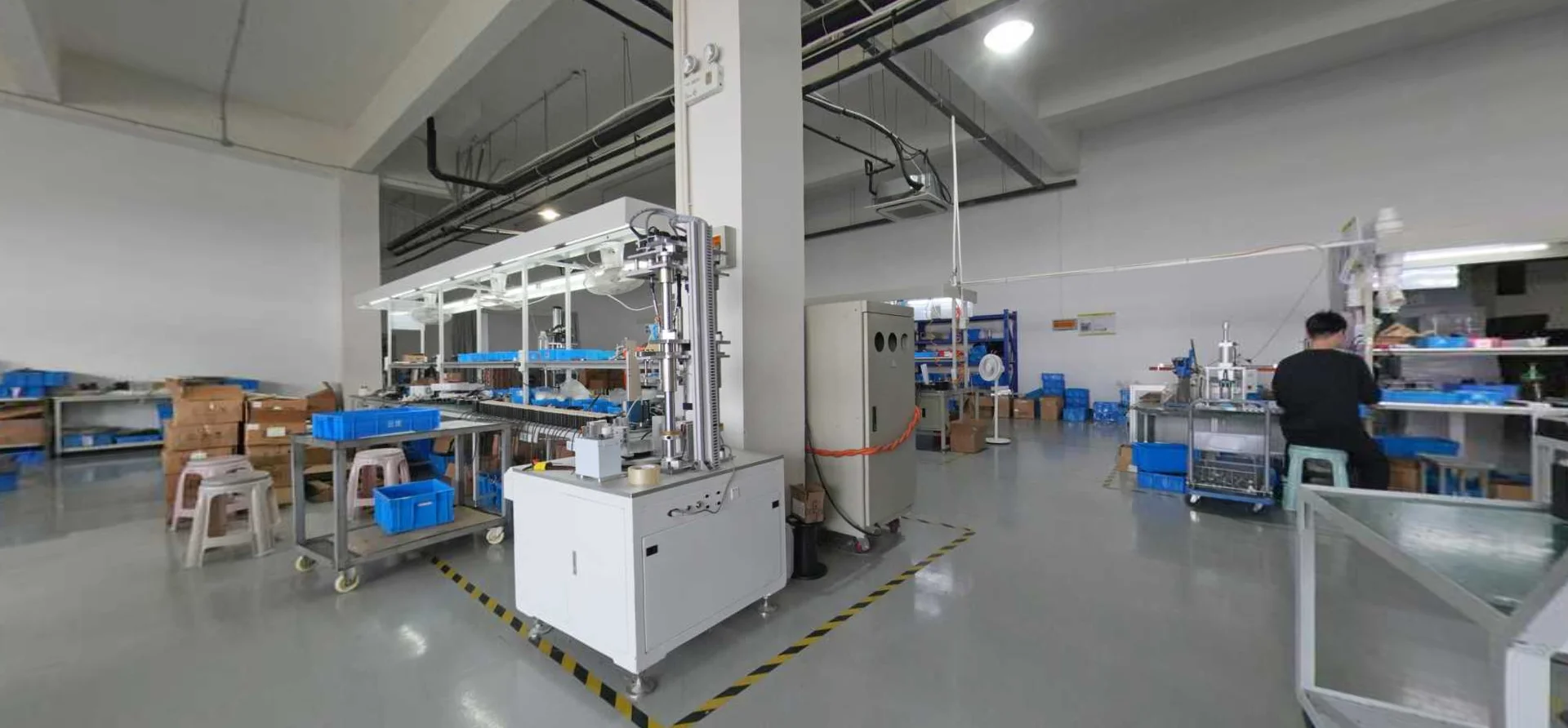

Company Profile






Certifications




Exhibition






FAQ




1. Do you have online contact info?
A1: Yes, Email is holry@holrymotor.com

2. How can we know the product quality?
A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.

3. Is this your final price? May i have the discount?
A3: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.

4.Is there cheap shipping cost to import to our country?
A4: Yes, we have our regular shipping company, they have very good price.

5. Can we visit your factory?
A5: Yes welcome warmly. No. 355, Longjin Road, Lucheng Street, Changzhou City, Jiangsu Province, China.

6.What is the Warranty for your products?
A6: All products product warranty for one year, free service for 14 years.
