RAYBO Outdoor Flexible display P6 P8 High Brightness HD Led Advertising Screen SMD Billboards Full Color Led Display Panel Price
- Category: >>>
- Supplier: Shenzhen RAYBO LED Display Manufactory Co. Ltd.
Share on (1601268972003):
Product Overview
Description

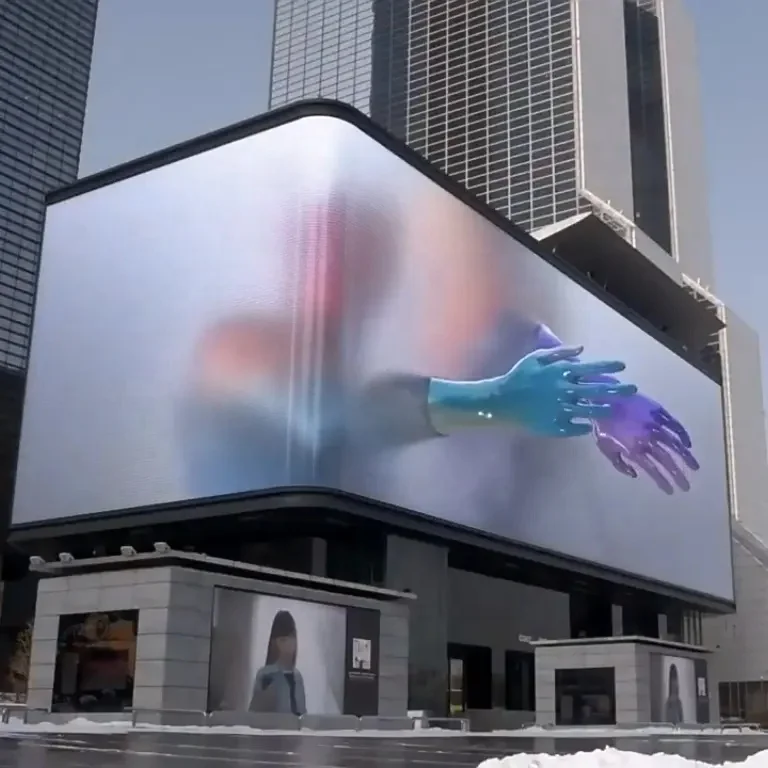

Project Cases

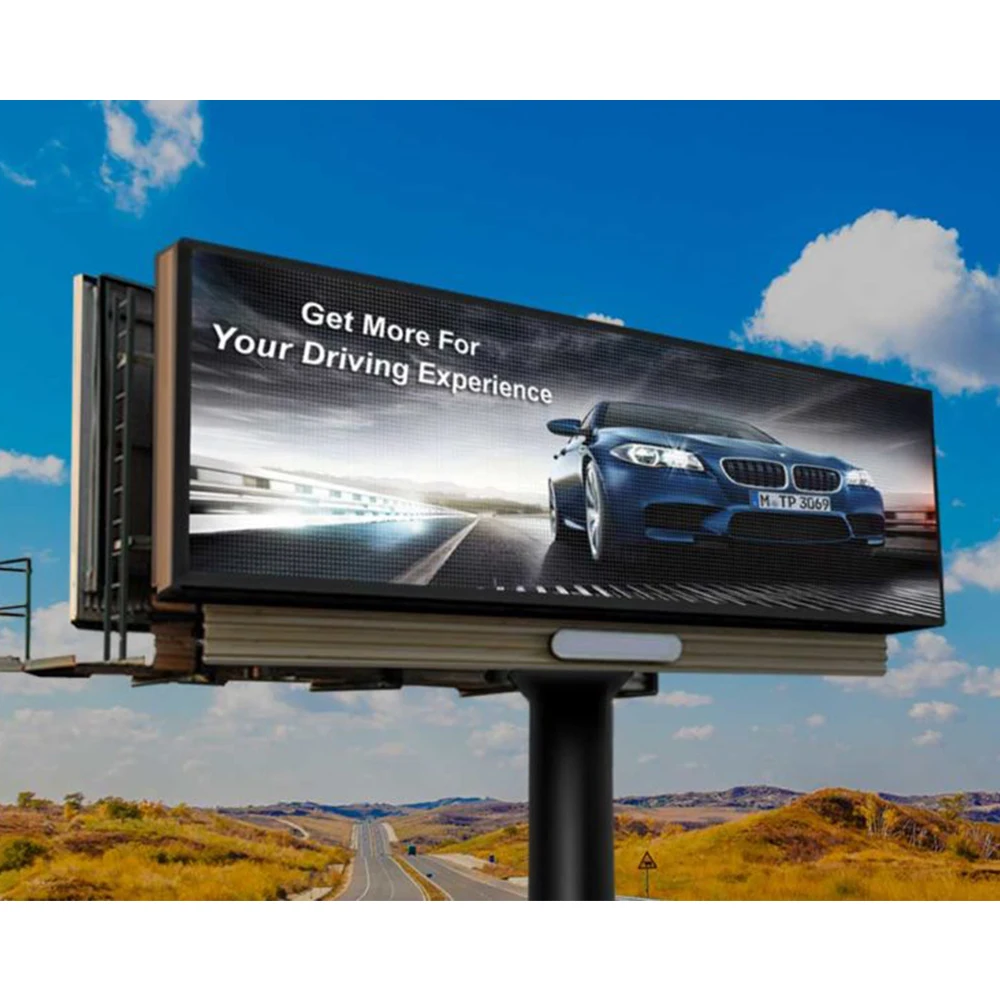

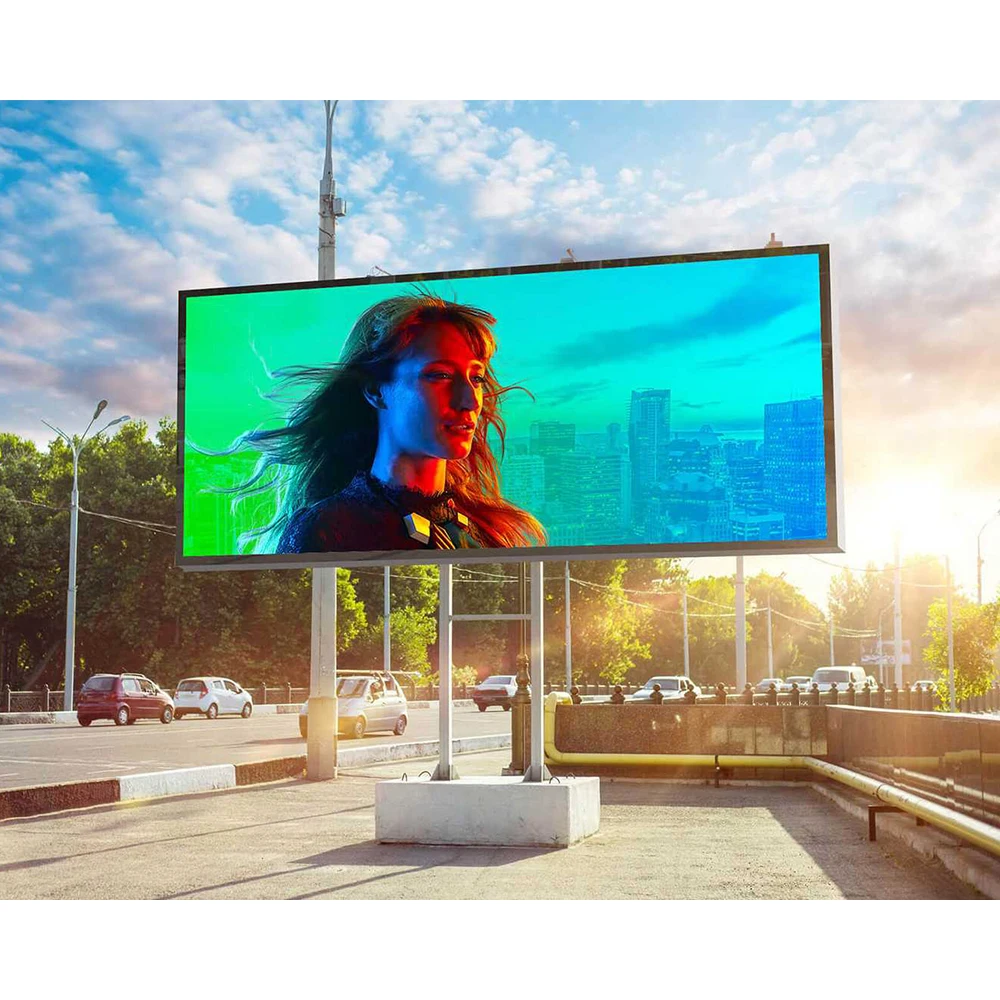

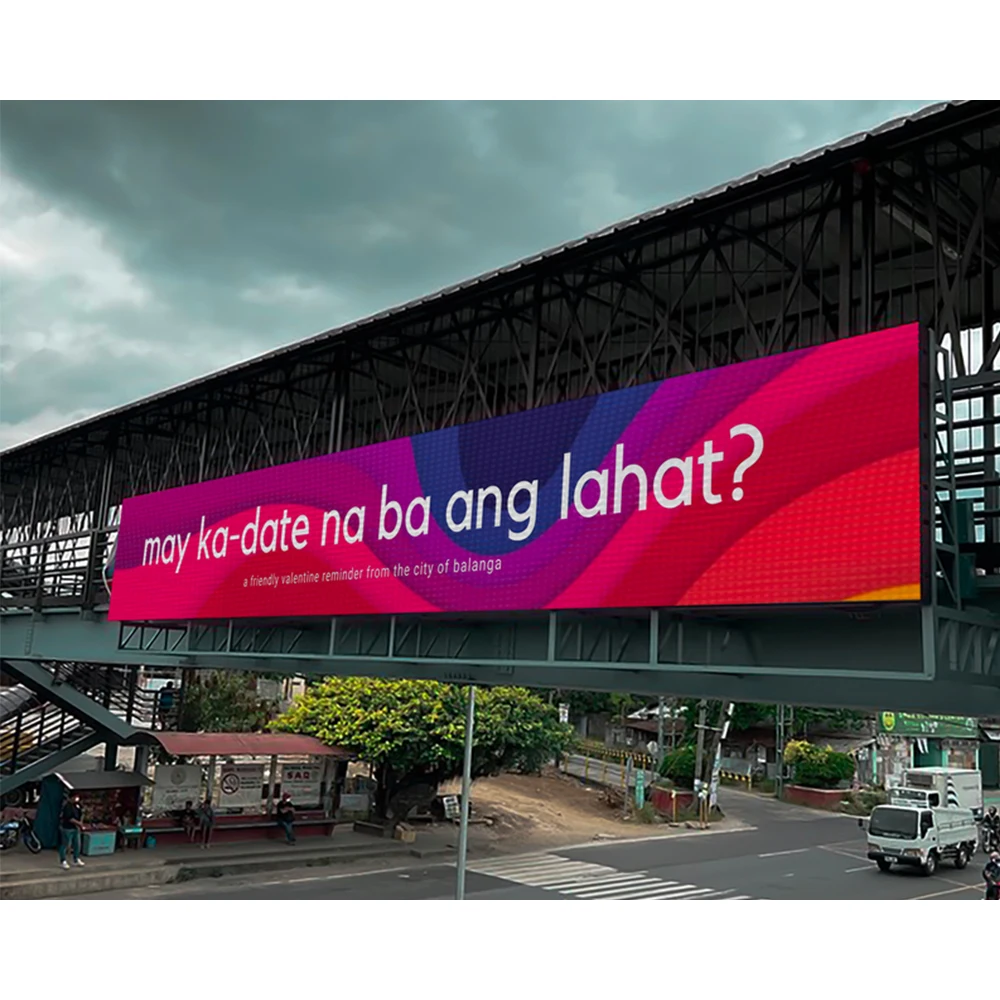

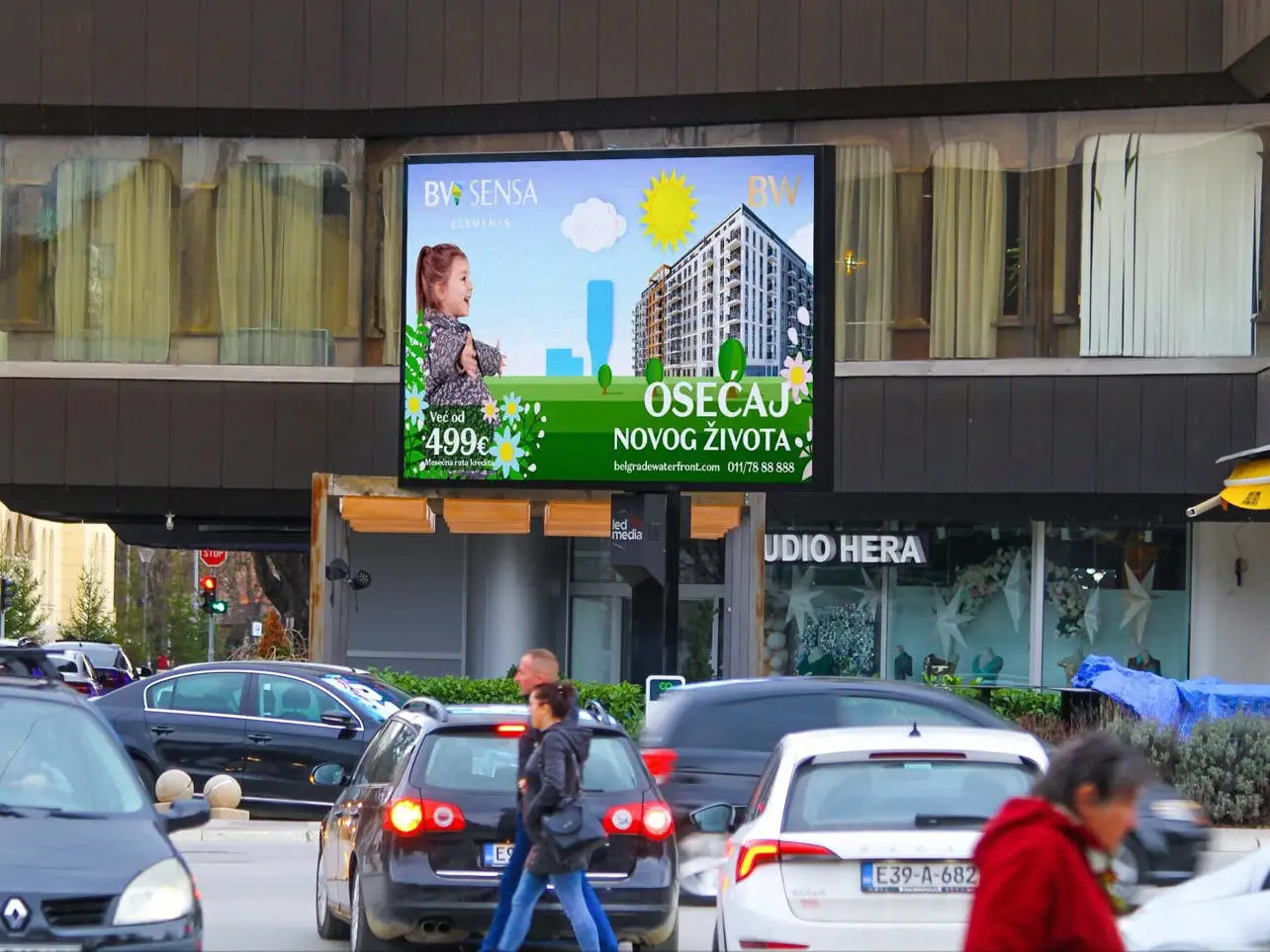

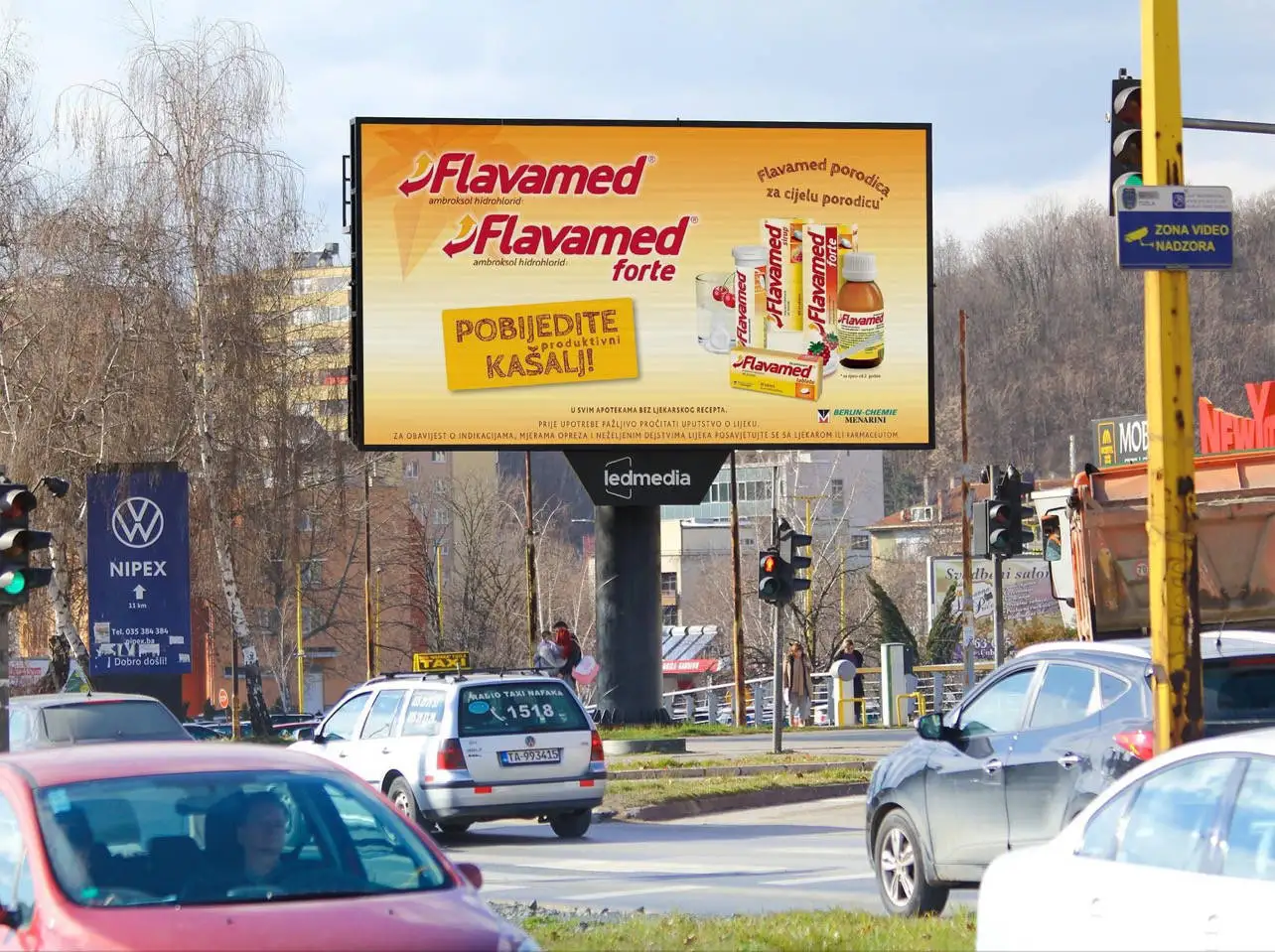

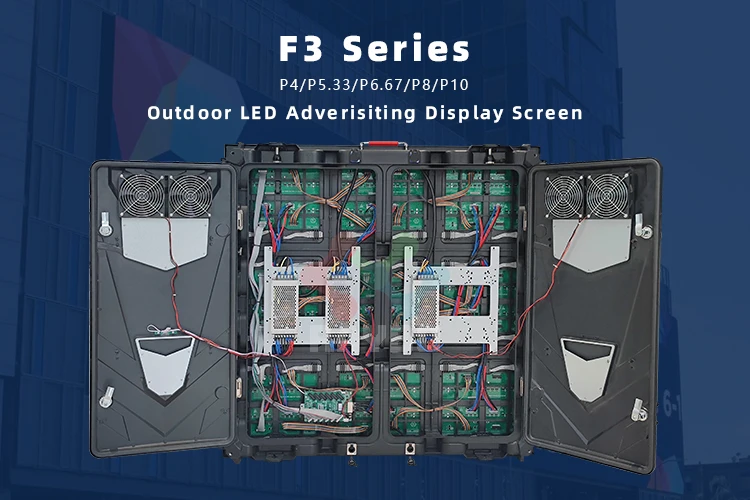

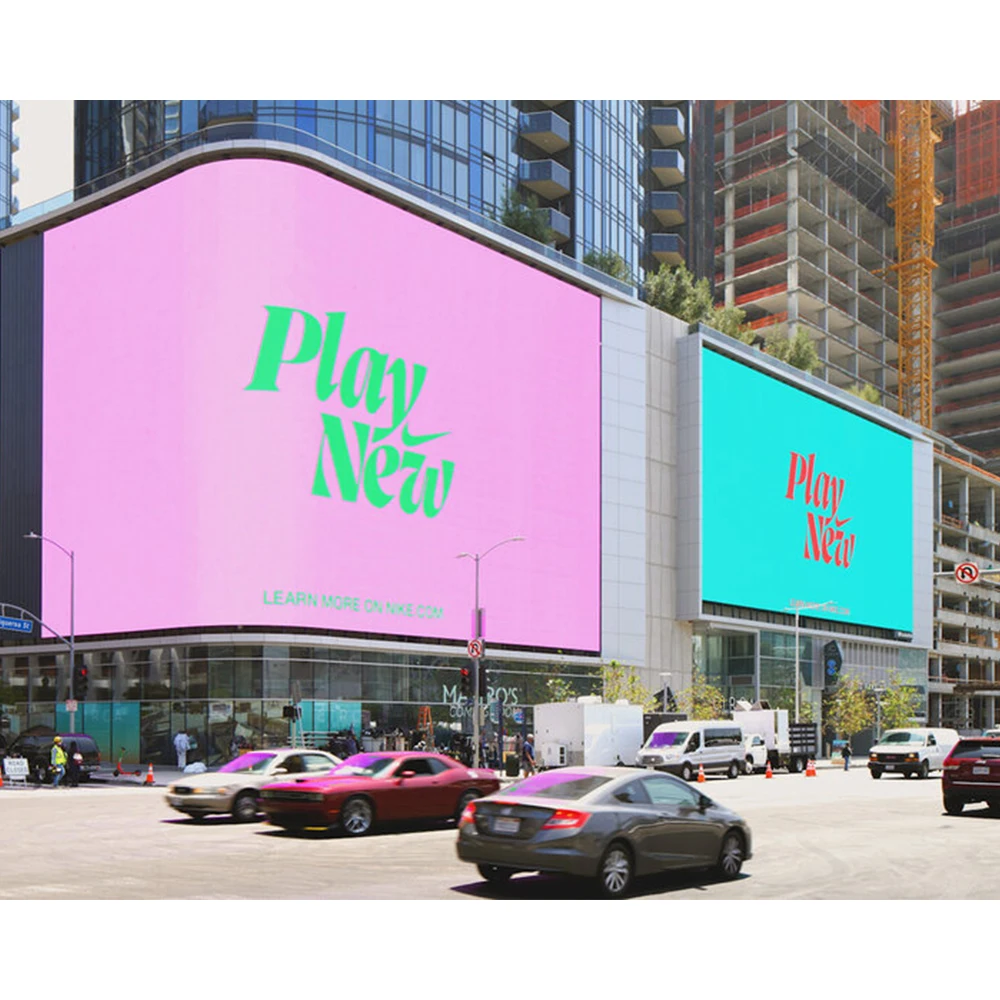

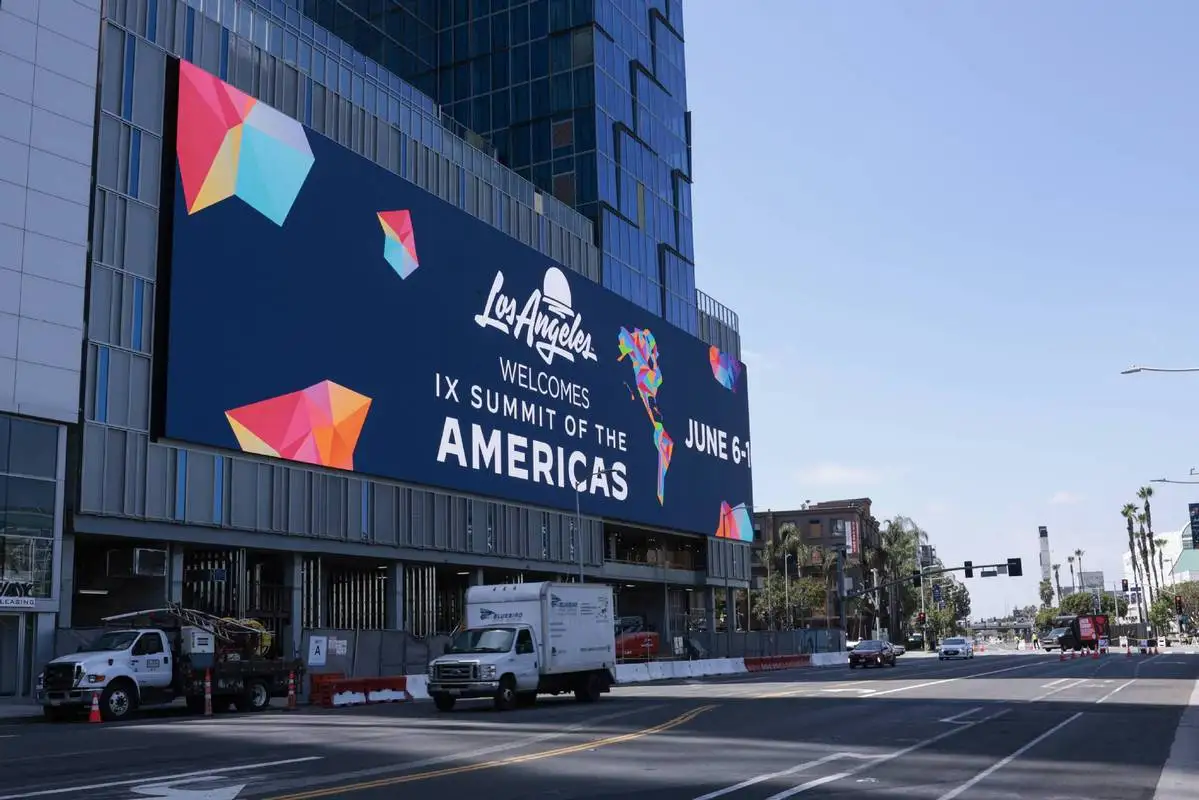

Outdoor LED Display Screen
Outdoor LED displays: large electronic screens that use LEDs for captivating visuals in outdoor environments. Ideal for
advertising, entertainment, public info, cityscape decor, sports venues, events, and transportation. High brightness,
weather-resistant, energy-efficient, remote management.
advertising, entertainment, public info, cityscape decor, sports venues, events, and transportation. High brightness,
weather-resistant, energy-efficient, remote management.
Products Description
Product Paramenters
Model | P4 | P5.33 | P6.67 | P8 | P10 |
Pixel Pitch(mm) | 4 | 5.33 | 6.67 | 8 | 10 |
Pixel Matrix Per Sq.m | 62500dots | 35200dots | 22500dots | 15625dots | 10000dots |
LEDs package | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
Brightness (cd/㎡) | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ |
Scan | 1/10 | 1/8 | 1/6 | 1/5 | 1/4 |
Module Dimension | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
Cabinet Dimension | 960*960*160mm | 960*960*160mm | 960*960*160mm | 960*960*160mm | 960*960*160mm |
Cabinet Resolution | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots |
Cabinet Material | Iron | Iron | Iron | Iron | Iron |
Cabinet Weight | 40KGs | 40KGs | 40KGs | 40KGs | 40KGs |
Max. Power Consumption | 800W | 800W | 800W | 800W | 800W |
Ave. Power Consumption | 200-300W | 200-300W | 200-300W | 200-300W | 200-300W |
Service Access | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
Refresh Rate (HZ) | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ |
Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 |
Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
Best Viewing Distance | 4-40m | 5-53m | 6-67m | 8-80m | 10-100m |
IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
Input Voltage (AC) | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ |
Work Process
Why Choose Us
Packing & Delivery
Mode of transportation | Advantage | Disadvantage | Advice | Time |
Sea freight | Large volume, low shipping costs, and well-connected waterways. | Slow, the sailing risk is high, and the sailing date is not easy to be accurate | Bulk cargo Bulky cargo Loose time | 25-40 days |
Air cargo | Safe, On Time, Shortened Delivery Times | Higher cost | Valuable cargo Urgent need | 4-8 days |
Land transportation | Fast delivery large capacity | Can only drive on fixed routes, poor flexibility | Select according to the delivery address | 15-30 days |
Express | Short transit time | Volume weight restricted | Small cargo Accessories | 3-7 days |
FAQ
Q: Who are we?
A: We are based in Guangdong, China, we have more than 20 years experience in LED display screen. Strong technical force to ensureexcellent quality.
Q: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How can we guarantee quality?
A: 5 years warranty. Always a pre-production sample before mass production and final Inspection before shipment.
