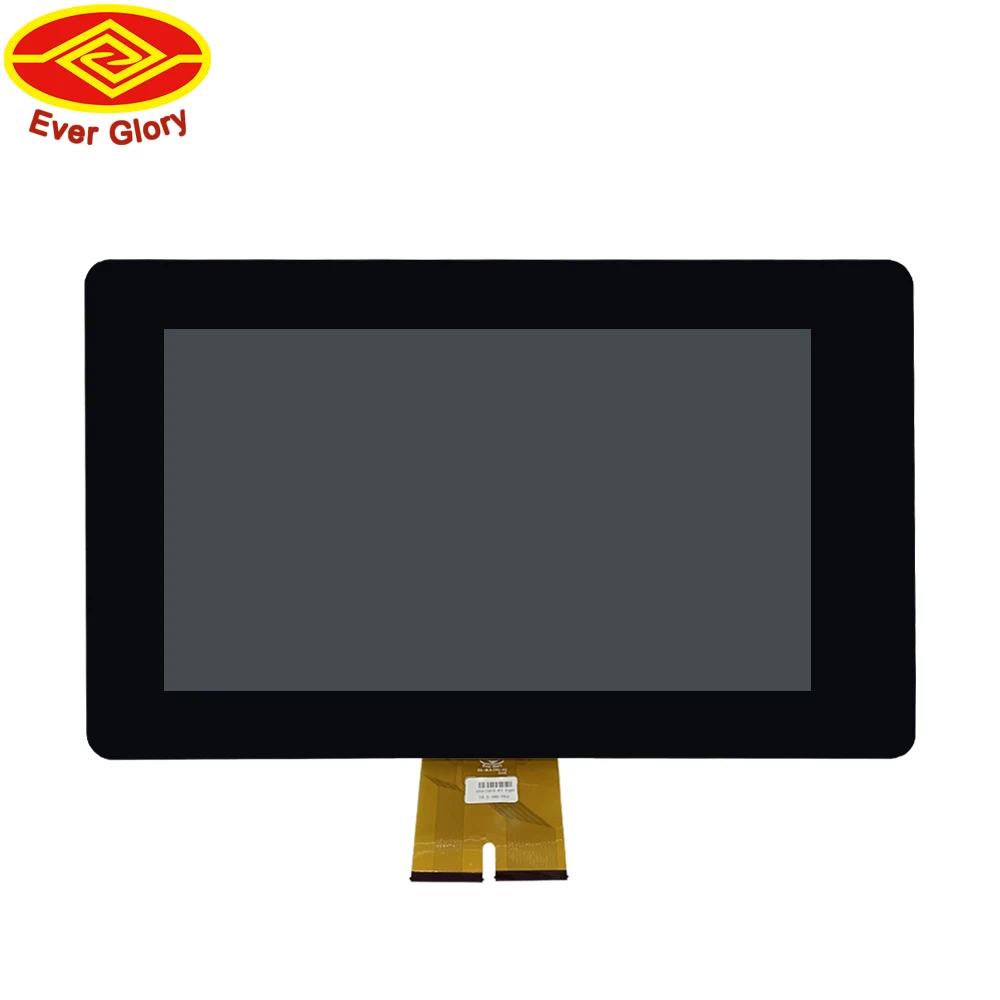

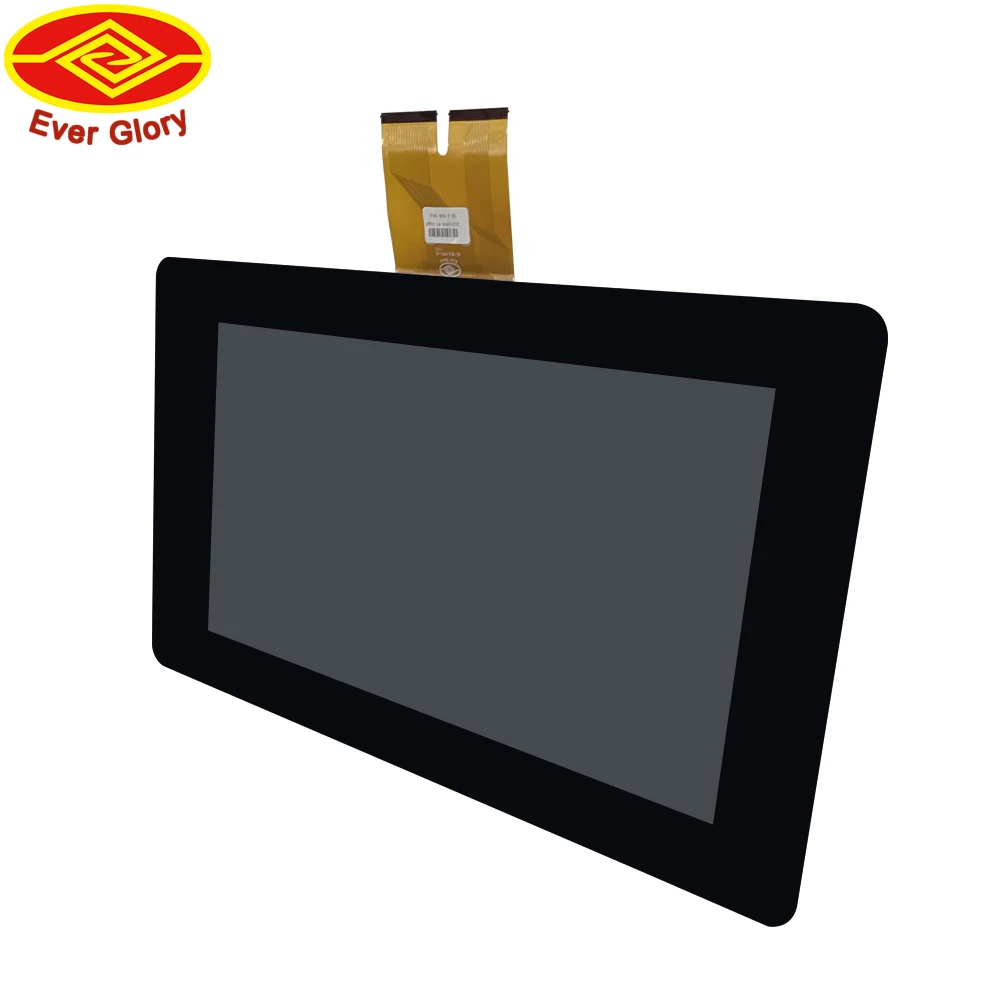

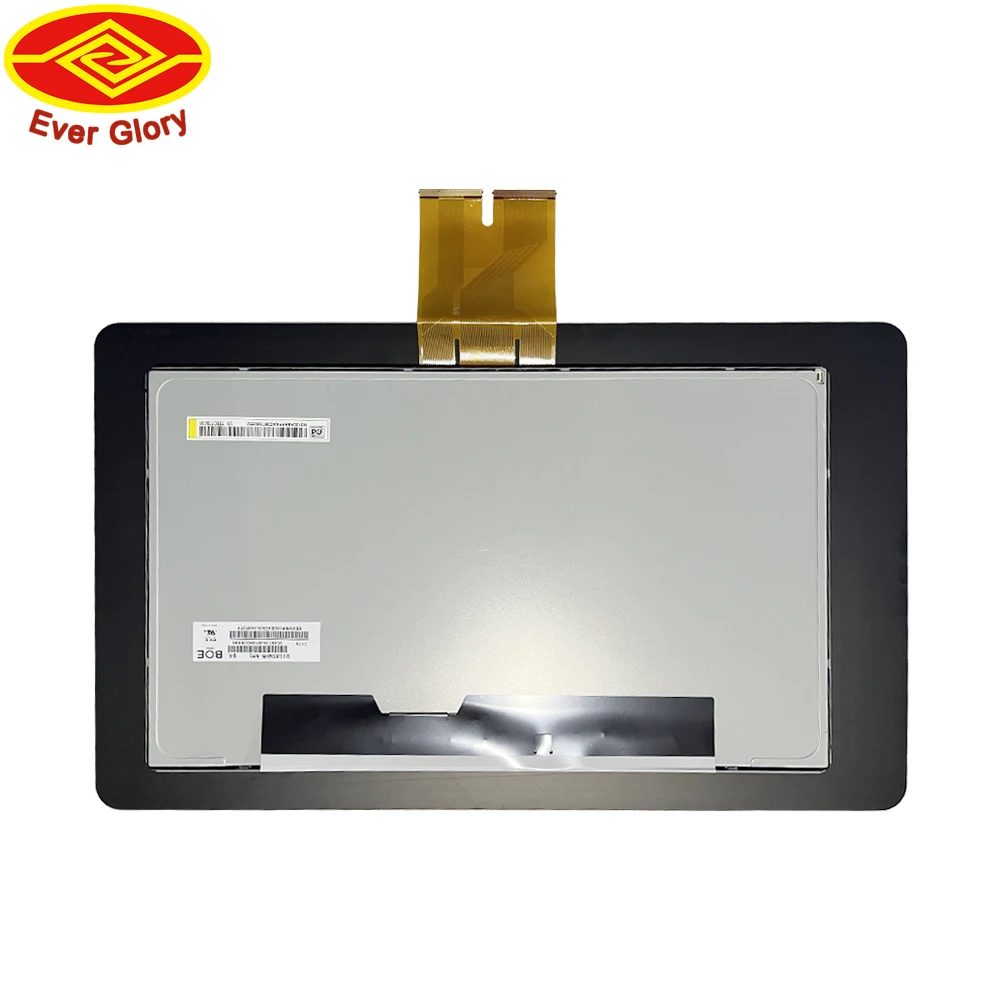

High Brightness 24 Inch LCD Display Panel Air Bonding Capacitive IP65 Waterproof Pcap Touch Screen LCD Module
- Category: >>>
- Supplier: Shenzhen Ever Glory Photoelectric Co. Ltd.
Share on (1601268980757):
Product Overview
Description
Product Name | Touch With Display | ||||||
Touch Panel P/N | EG-24-A-1609V1 | ||||||
Display P/N | G24HAN01.1 | ||||||
Screen Diagonal | 24/16:9 | ||||||
Cover Outline Dimension | 567.44*336.86mm | ||||||
Touch Panel View Area | 527.44*296.86mm | ||||||
Touch Panel Active Area | 528.44*297.86mm | ||||||
Touch Panel Thickness | 2.9mm | ||||||
Display Outline Dimension | 543*317.4mm | ||||||
Display Active Area | 527.04*296.46mm | ||||||
Display Thickness | 11.15mm | ||||||
Total Thickness | 15.05mm | ||||||
Cover surface hardness | ≥6H | ||||||
Ink adhesion | ≥4B | ||||||
Impact resistance | ≥IK07 | ||||||

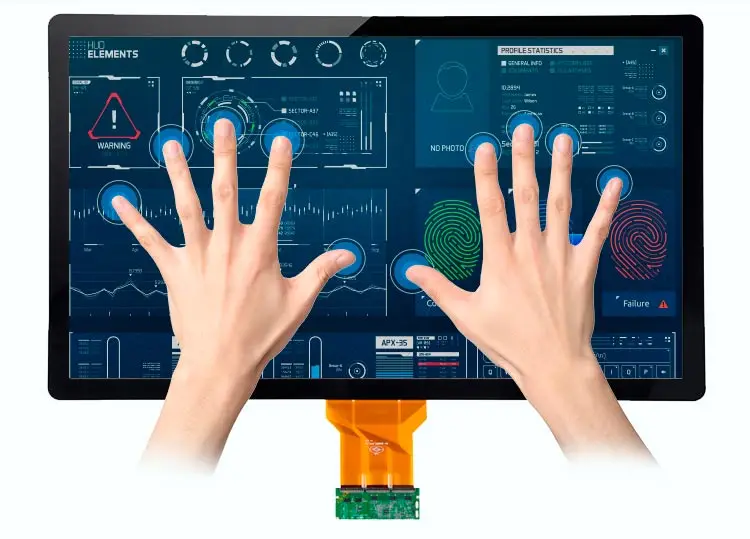

Support Touch Points | 10 points Typ. | ||||||
Controller Interface | USB Typ. | ||||||
Controller Supply Voltage | USB 5V Typ. | ||||||
Touch Report Rate | ≥100hz | ||||||
Touch Response Time | ≤25ms | ||||||
Transmittance | ＞85% | ||||||
Pixels H×V | 1280 x R.G.B. x 800 | ||||||
Support Color | 262k/16.7M | ||||||
Contrast Ratio | 1000 Typ. | ||||||
ShenZhen Ever Glory Photoelectric Co., Ltd is a national high-tech enterprise, founded in 2021, Our Parent company ShenZhen Ever Glory was found in 2011, with 20,000 m2 production facilities located in Dongguan city.
We are dedicated to producing top quality G+G,G+F,G+FF Projected Capacitive Touch Panel , Touch Display module and Touch Monitor & Panel Pc in house .
As a fast-growing and innovative company, We are the first professional manufacturer in China mainland which started the research and production of large size projected capacitive touch panel ,There are over 30 relevant patents of bonding Technology, equipment, and bonding glue obtained, As a professional and reliable Touch display Solution partner ,We have rich experience in Industrial/ Outdoor / Medical /Gaming/Self-Service Terminal/Vehicle for 12 years.
Cover Glass Customization
Thickness:1.119mm
Design:LOGO/Color/Dimension/Chamfer/Curved
Materials: Sodaline/Aluminosilicate glass/PMMA
Coating: AR+AF/AG/Mirror/Anti-bacteria
Materials: Sodaline/Aluminosilicate glass/PMMA
Coating: AR+AF/AG/Mirror/Anti-bacteria
Sensor Customization
Material: ITO Glass(G+G)/ITO Film(G+FF) /Metal Mess
FPC: Rolled anneal copper
IC: EETI/ILITEK/Goodix/Weida
Interface: USB/I2C/RS232
IC: EETI/ILITEK/Goodix/Weida
Interface: USB/I2C/RS232

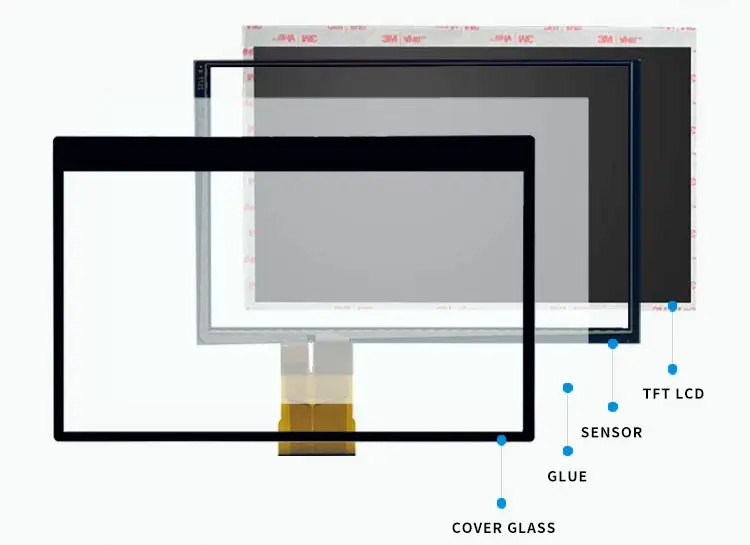

Display &Bonding
Bonding: Air bonding &optical bonding
Display: LCD/LED/OLED/E-ink

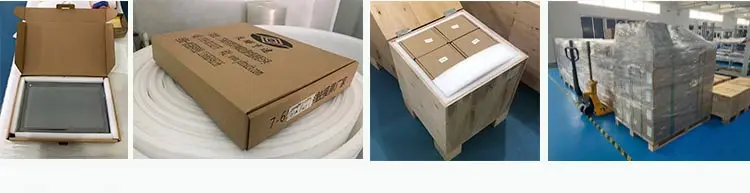

Standard packing with carton or wooden box
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2. Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
1.Our touch panel is safely sealed & packed with anti-static bag and foam wrapping.
2. Flexible packing options with carton or wooden box.
3. Shipping methods :DHL,UPS,FedEx,TNT,Air freight,LCL/FCL Sea freight.
1. How can we guarantee quality?
All products must pass 6 times Qc inspection with 100% appearance & Function test on each piece.
2. Which operating systems does it support?
Our products support Windows,Android,Mac,Linux and Chrome.
3. What are the advantages of our products?
High precision, response quickly,good quality control, excellent after-service.
4. What is included in your products?
Touch panel + LCD display+ Air bonding/Optical bonding+ Controller board + USB Cable.( AD board and display cables are optional
5. Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
All products must pass 6 times Qc inspection with 100% appearance & Function test on each piece.
2. Which operating systems does it support?
Our products support Windows,Android,Mac,Linux and Chrome.
3. What are the advantages of our products?
High precision, response quickly,good quality control, excellent after-service.
4. What is included in your products?
Touch panel + LCD display+ Air bonding/Optical bonding+ Controller board + USB Cable.( AD board and display cables are optional
5. Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
