China High Precision Surface Grinding machine High Accuracy vertical flat surface lapping grinder
- Category: >>>
- Supplier: Yuhuan Cnc Machine Tool Co. Ltd.
Share on (1601268986670):
Product Overview
Description

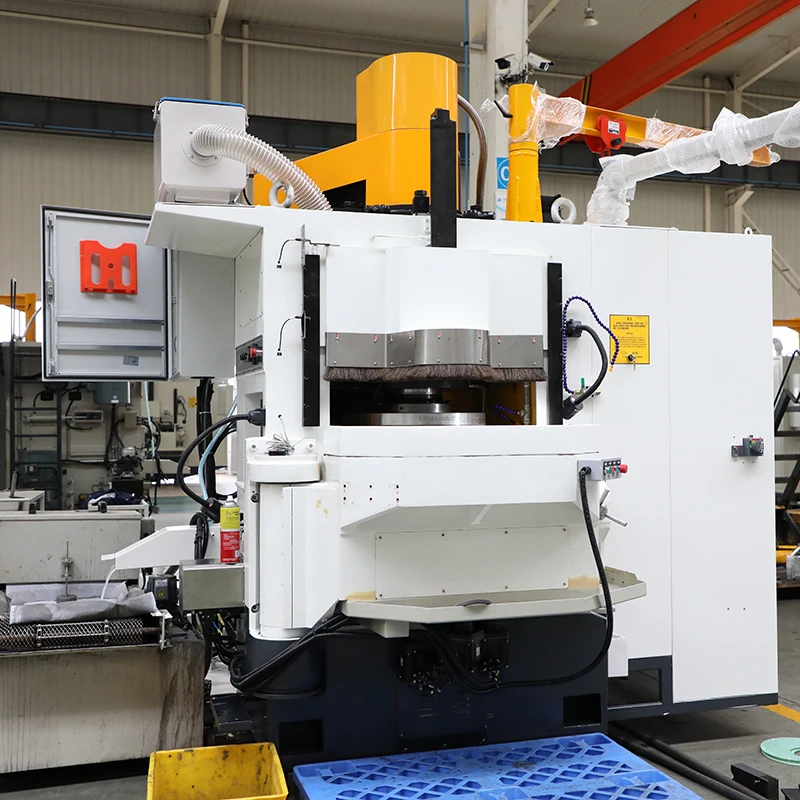

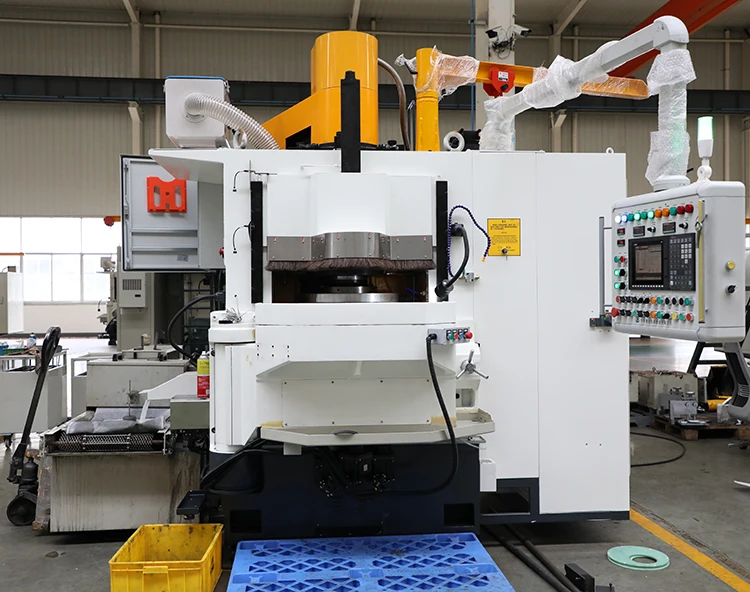

China High Precision Surface Grinding machine High Accuracy vertical flat surface lapping grinder
Product Description
Main purpose

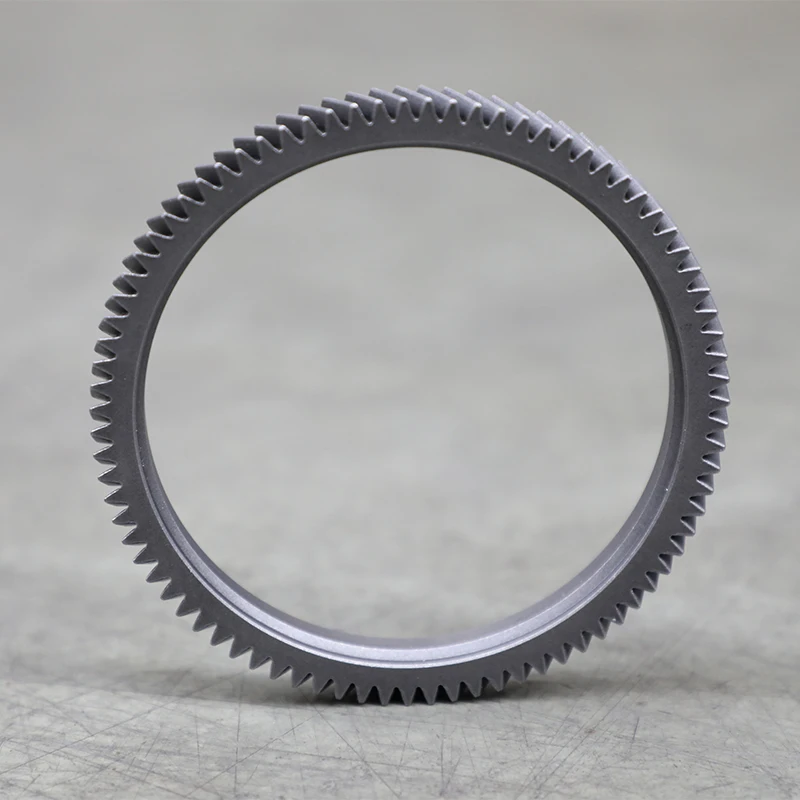

This machine grinding all kinds of metal and non-metal thin parts (Like bearings, valve plates, aluminum alloy plates, seals, oil pump blades, piston rings, etc.) with various shapes and rounds. High-efficiency precision grinding of the upper and lower parallel end faces.
Technical characters:
- The Machine adopts a casting box-shaped structure, which has good shock absorption, good rigidity and reliable thermal stability.
- The cooling liquid is magnetically separated, filtered with paper tape 2-stage filtration, and recycled after the temperature of the cooler is controlled.
- Adopting a hinged disc feeding mechanism, it can be opened flexibly, and it is convenient to replace and dress the grinding wheel.
- Equipped with automatic grinding wheel dressing device, which is convenient and quick to ensure the grinding wheel dressing quality.
- The feed axis is driven by servo motor, with stable movement, accurate positioning and convenient adjustment.

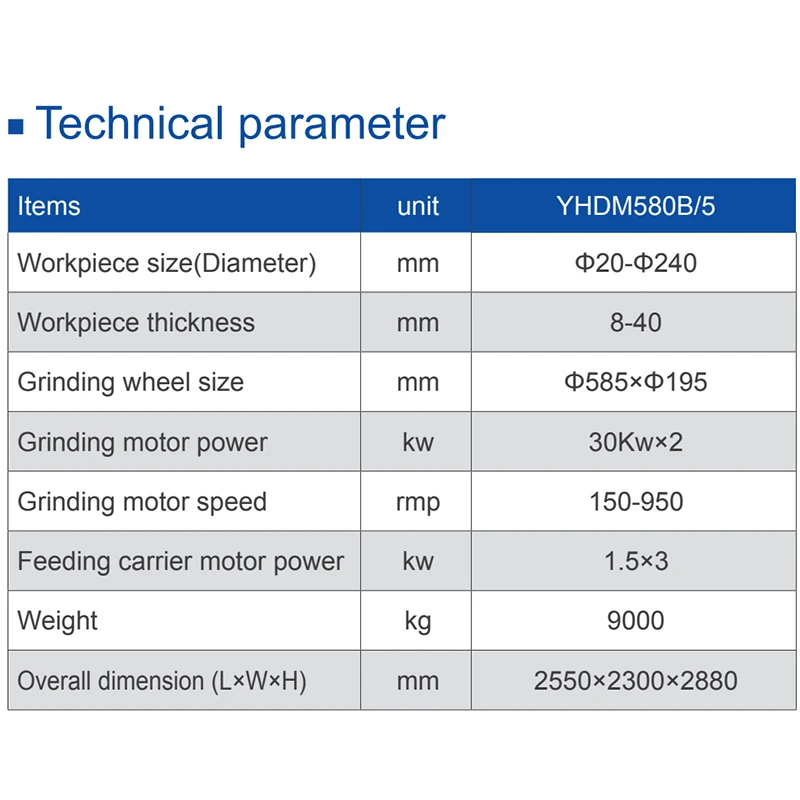

Item/Product Model | Unit | YHDM580B/5 |
| Workpiece diameter | mm | Φ20-Φ240 |
| Workpiece thickness | mm | 8-40 |
| Wheel size | mm | Φ585xΦ195 |
| Grinding head motor | kw | 30 x 2 |
| grinding head speed | rmp | 150-950 |
| Feeding tray motor power | kw | 1.5 x 3 |
| Machine quality | kg | 9000 |
| Machine Dimensions (L x W x H) | mm | 2550x2300x2880 |
Packaging & Shipping
1.Moisture-proof packaging+Wooden Box.
2.Special packing requirements available.

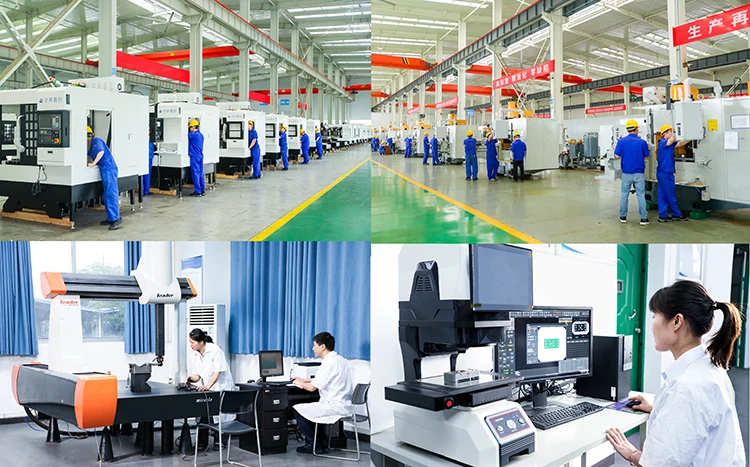

Company Information
Our R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers

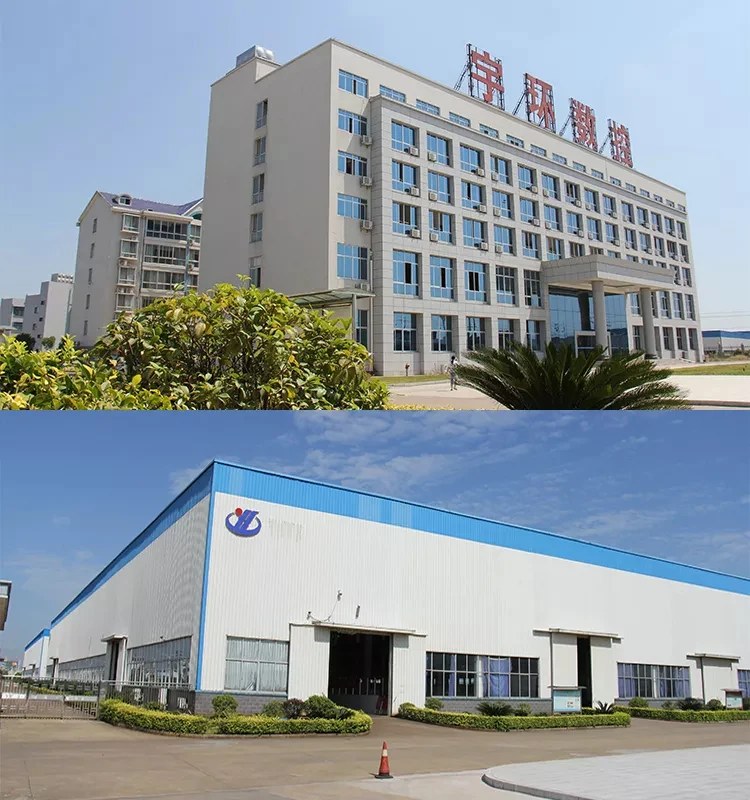

- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Certifications
Our R & D team establish a long - term partnership with National University of Defense Technology , Dalian University of Technology , Hunan University , Central South University , and other renowned institutions . Yuhuan is also research base for Hunan University’s doctoral student,get 5—9 patents per year .
- has got 36 related patents
- A certificate of international standard products in 2005
- has passed ISO9001 : 2000 international quality system certification, has estabished corporate product standards
Foreigners Visiting
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, United States, Thailand, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Customers
Our products are widely used in Automotive/3C IT Electronic/ Shipbuilding/Bearings/seals/ Household Appliances And others.
After-Sales Service
1.Guarantee period is one year. Within this period, the replaced parts will be offered free if has quality problem.
2.We could arrange engineers to user’s site for installation and final-acceptance according to customer’s requirements.
3. We will offer free the training for machine’s management /operation/maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
