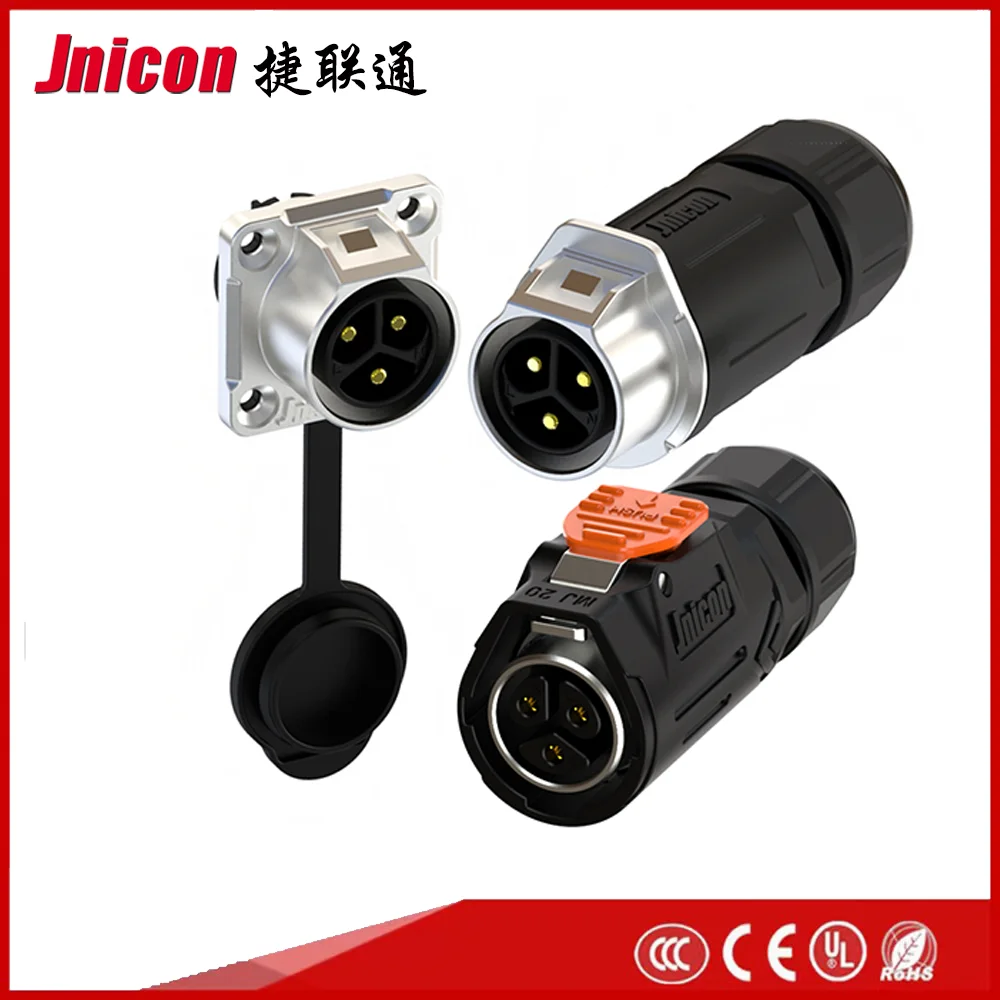

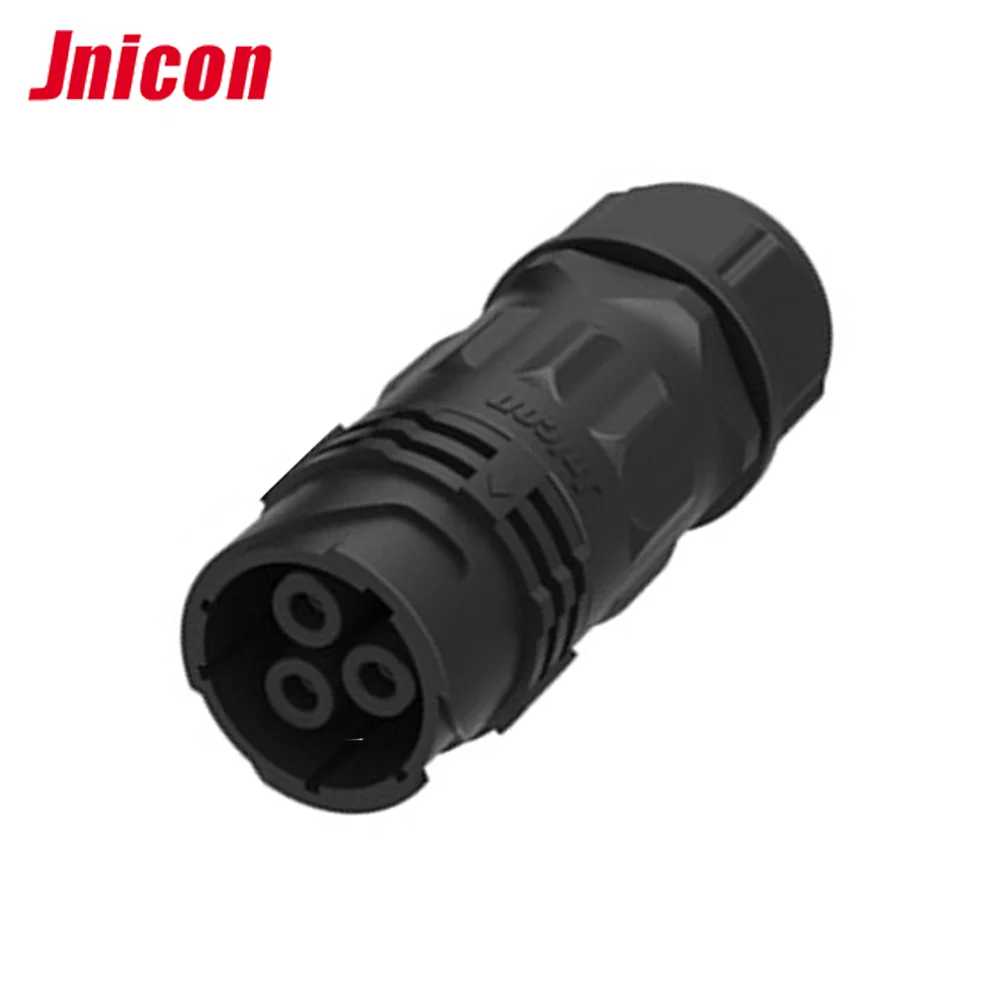

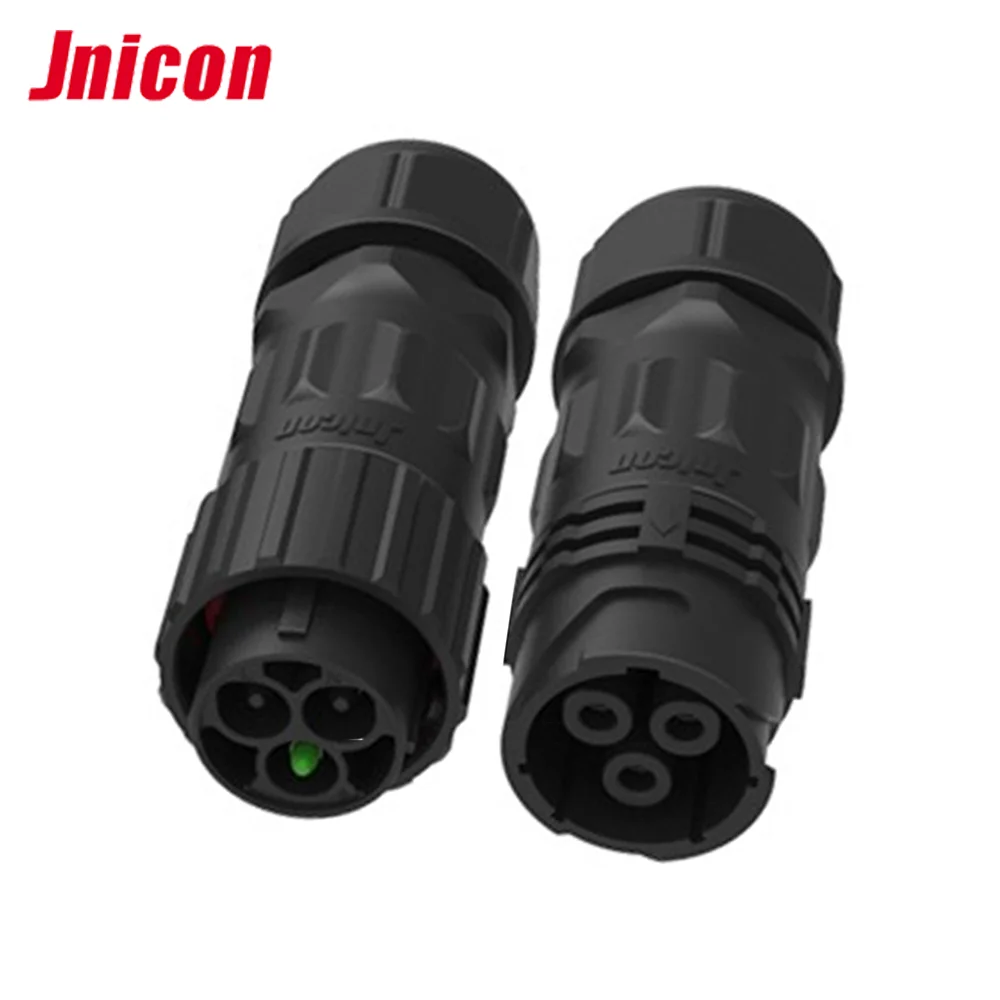

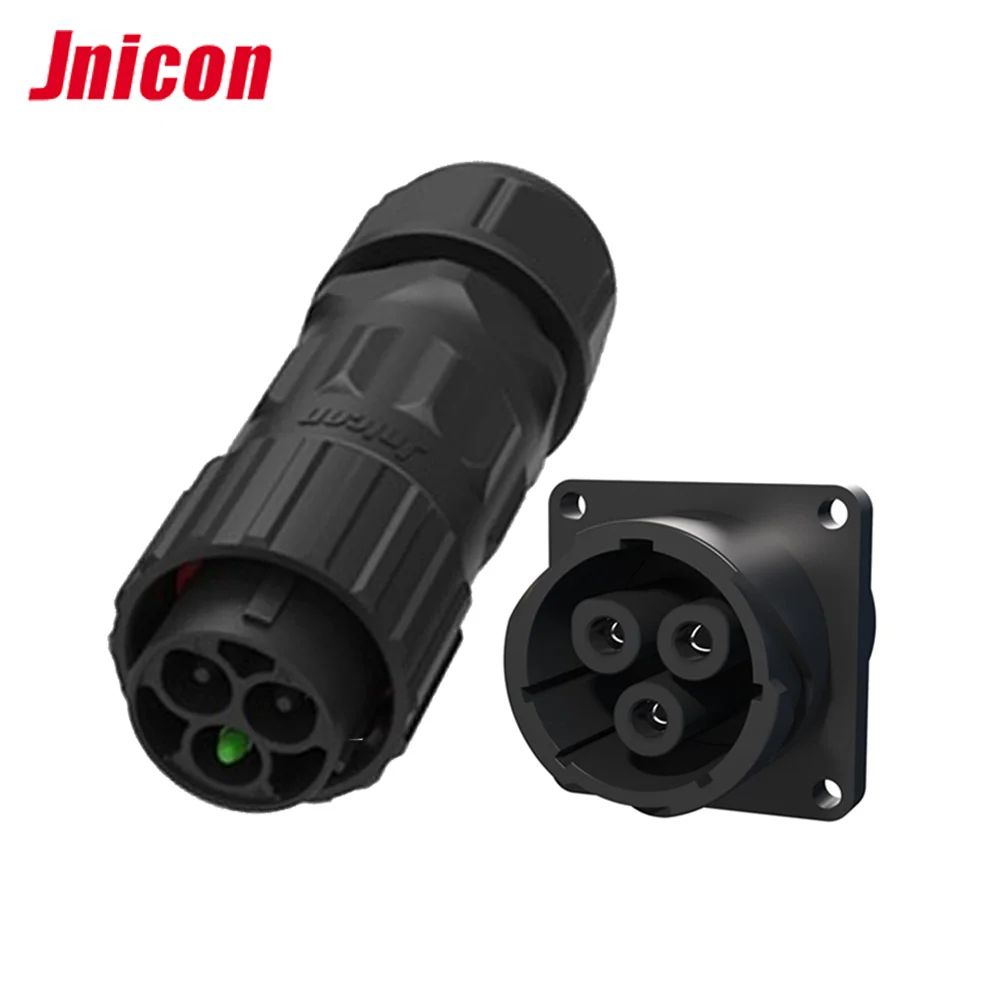

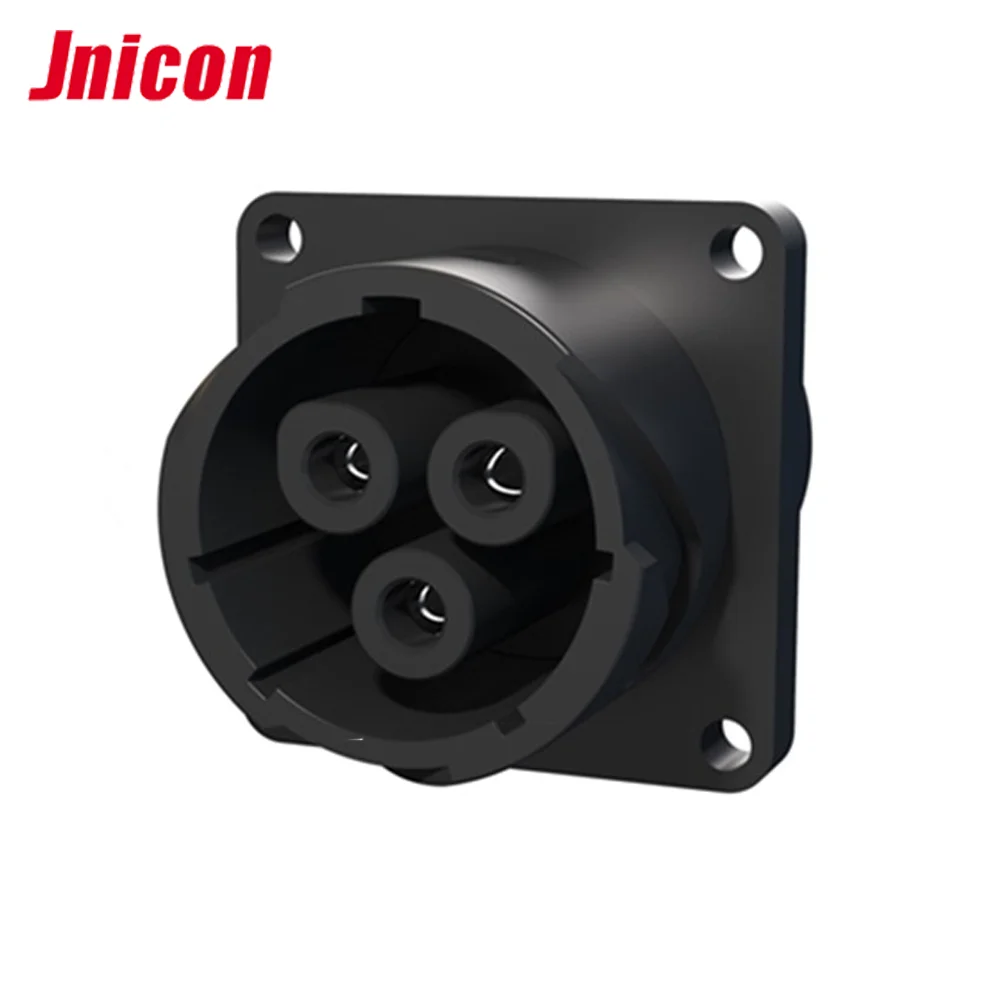

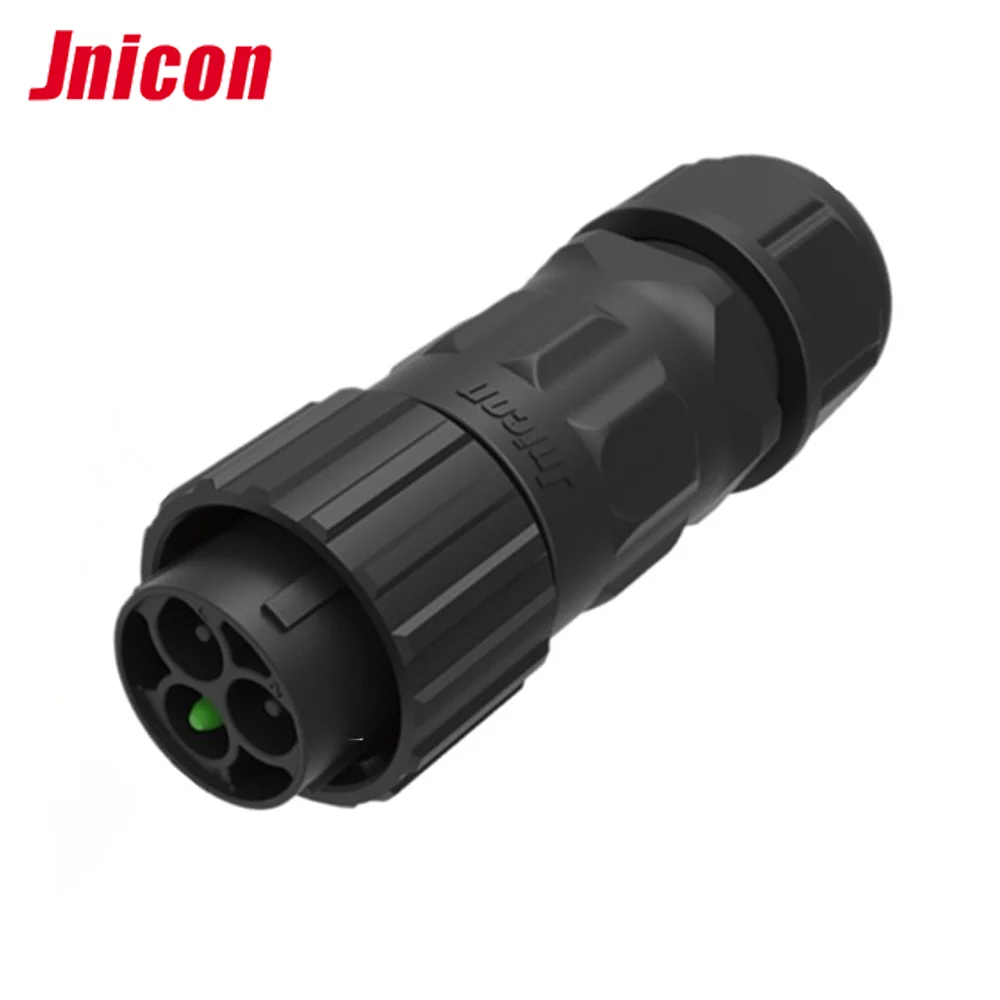

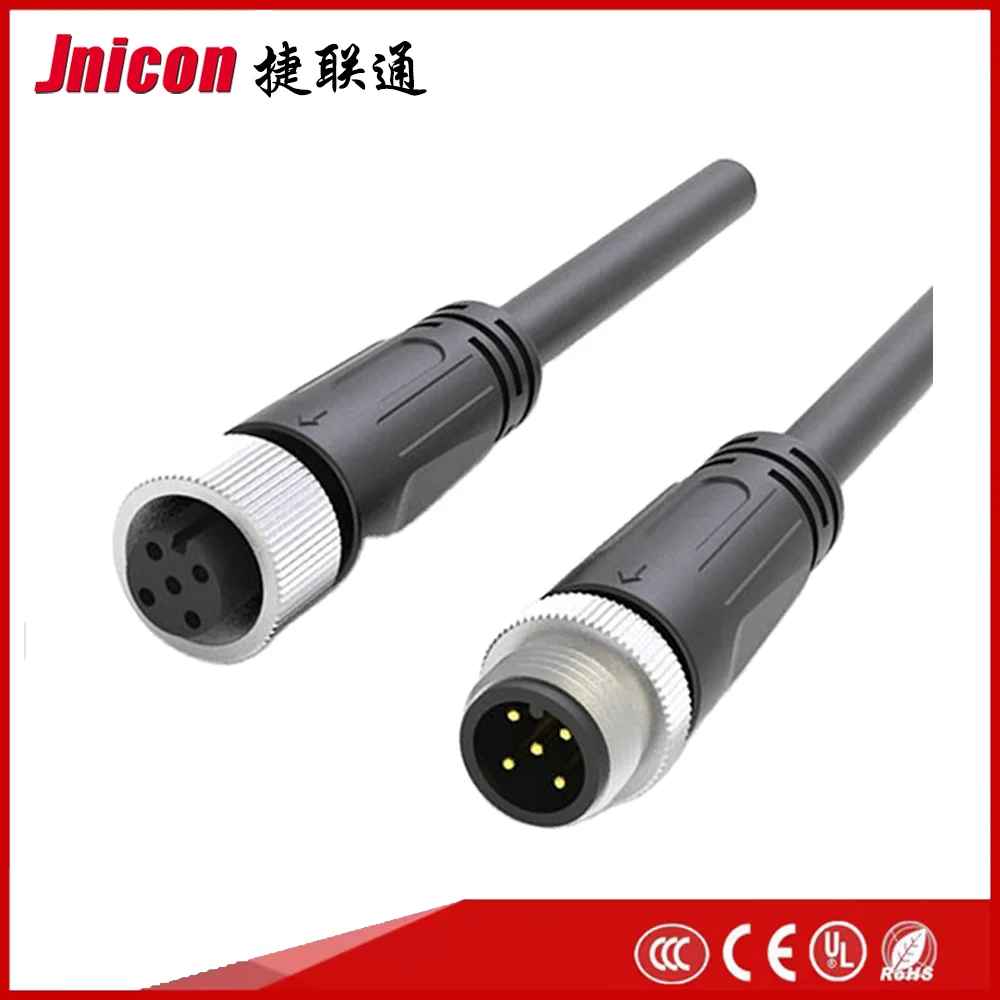

Jnicon 80A 600V plastic electrical socket plug 2 pin 3 pin IP67 waterproof female socket male connector
- Category: >>>
- Supplier: Shenzhen Jnicon Technology Co. Ltd.
Share on (1601269028708):
Product Overview
Description
1. Multi pin from 2 to 22，offering flexible options for the transmission of electrical current or signals, perfectly suited for a wide array of application scenarios.
2. Certificated by UL,CE,TUV,CQC,RoHS,IP67.
3. Multiple connection modes are available, screw lock, push lock, bayonet lock, quick lock.
4. Super flexible service match all your needs: field assembly, molded with cable, 180 °straight , 90° angle, USB, RJ45 , RJ 11，Y splitter，Y splitter connectors are optional.
5. Customized service are available, OEM &ODM are always welcome.
3. Multiple connection modes are available, screw lock, push lock, bayonet lock, quick lock.
4. Super flexible service match all your needs: field assembly, molded with cable, 180 °straight , 90° angle, USB, RJ45 , RJ 11，Y splitter，Y splitter connectors are optional.
5. Customized service are available, OEM &ODM are always welcome.
Product Description
M28 Waterproof Connector | ||||
Number of contacts | 3pin | |||
Current/Voltage rating | 80A 600V | |||
Withstanding voltage | 2500V | |||
Connecting mode | Bayonet lock | |||
Protection level | IP67 | |||
Cable gague | MAX 6.0mm²(10AWG) | |||
Diameter range | φ6—φ16 | |||
Material | Plastics, PA66 | |||
Operating temperature | -40℃～105℃ | |||
Flame-resistant rating | UL94-V0 | |||
Features

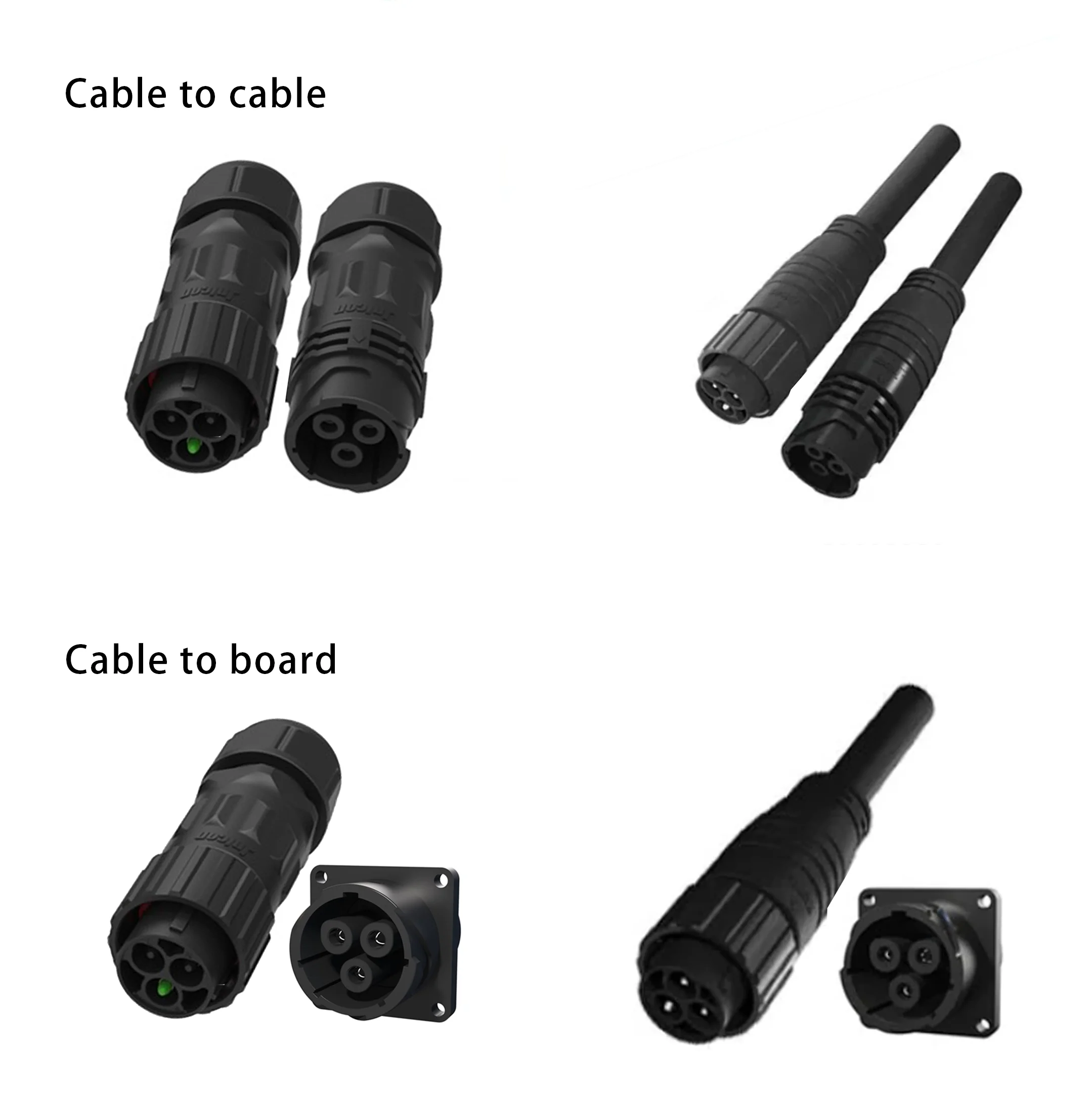

Jnicon M28 waterproof connector support 2/3/4/5/2+8pin,widely applied in new energy,communication,LED lighting, electrical equipment, automation machines mechanical equipment,solar power equipment,ect.
1. Nylon material( Advanced structure and good performance)
2. Field assembly type (solder terminal,waterproof rating is IP67).Customers are free to solder any cable lengths according to their own project requirements.
3. Multi-core design to fit with different industrial demands.
4. Crimping terminal and screw terminal available,easy to assemble and strong.
5. Gold-plated contact,stronger corrosion resistance and conductivity.
6. Support max.80amp rated current.
2. Field assembly type (solder terminal,waterproof rating is IP67).Customers are free to solder any cable lengths according to their own project requirements.
3. Multi-core design to fit with different industrial demands.
4. Crimping terminal and screw terminal available,easy to assemble and strong.
5. Gold-plated contact,stronger corrosion resistance and conductivity.
6. Support max.80amp rated current.
Specification
Number of contacts | 2 pin | 3 pin | 4 pin | 5 pin | |||
Rated current/voltage | 80A 600V | 80A 600V | 60A 600V | 40A 300V | |||
Contact diameter x number | Φ4.8 | Φ4.8 | Φ3.6 | Φ3.0 | |||
Withstanding voltage | 2500V | 2000V | |||||
Diameter range | Φ10mm~Φ19mm | ||||||
Operating temperature | -40° ~ 105° | ||||||
Protection level | IP67 | ||||||
Connecting mode | Bayonet locking | ||||||
Housing insulating parts | High-performance engineering plastics | ||||||
Copper needles | Copper alloy | ||||||
Flammability | UL-94V0 | ||||||

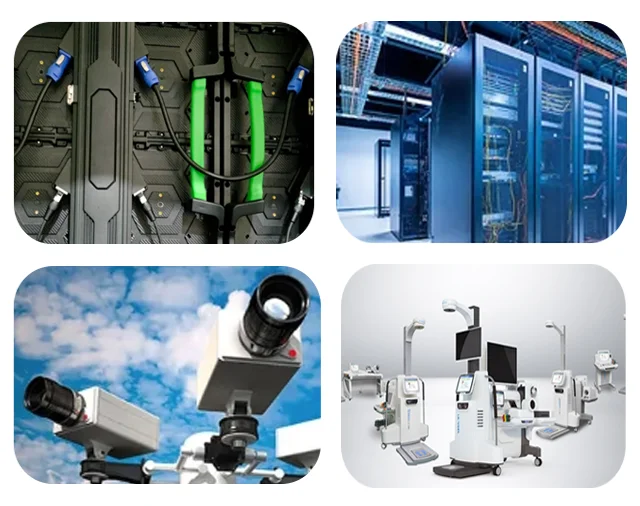

Application | Energy storage, new energy vehicles, stage lighting equipment, audio equipment, automation equipment, surveillance camera device, handling robot equipment | ||||||

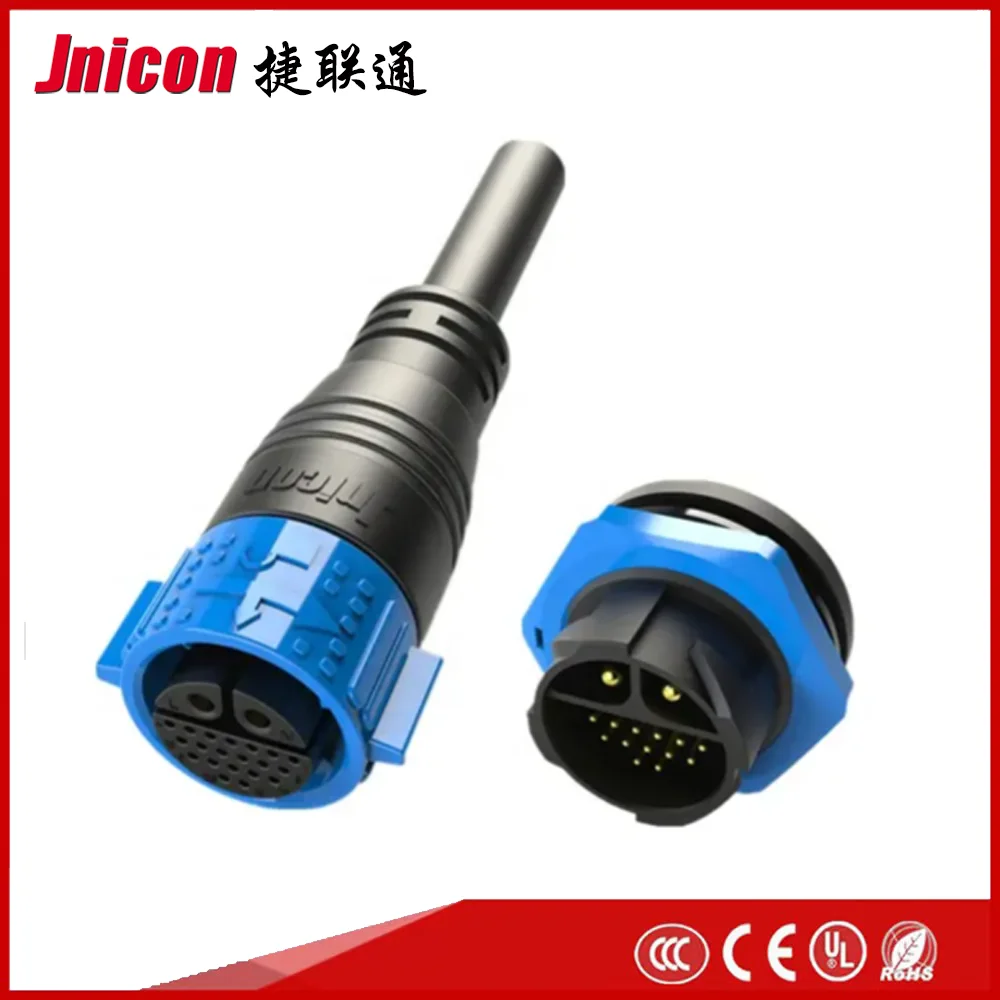

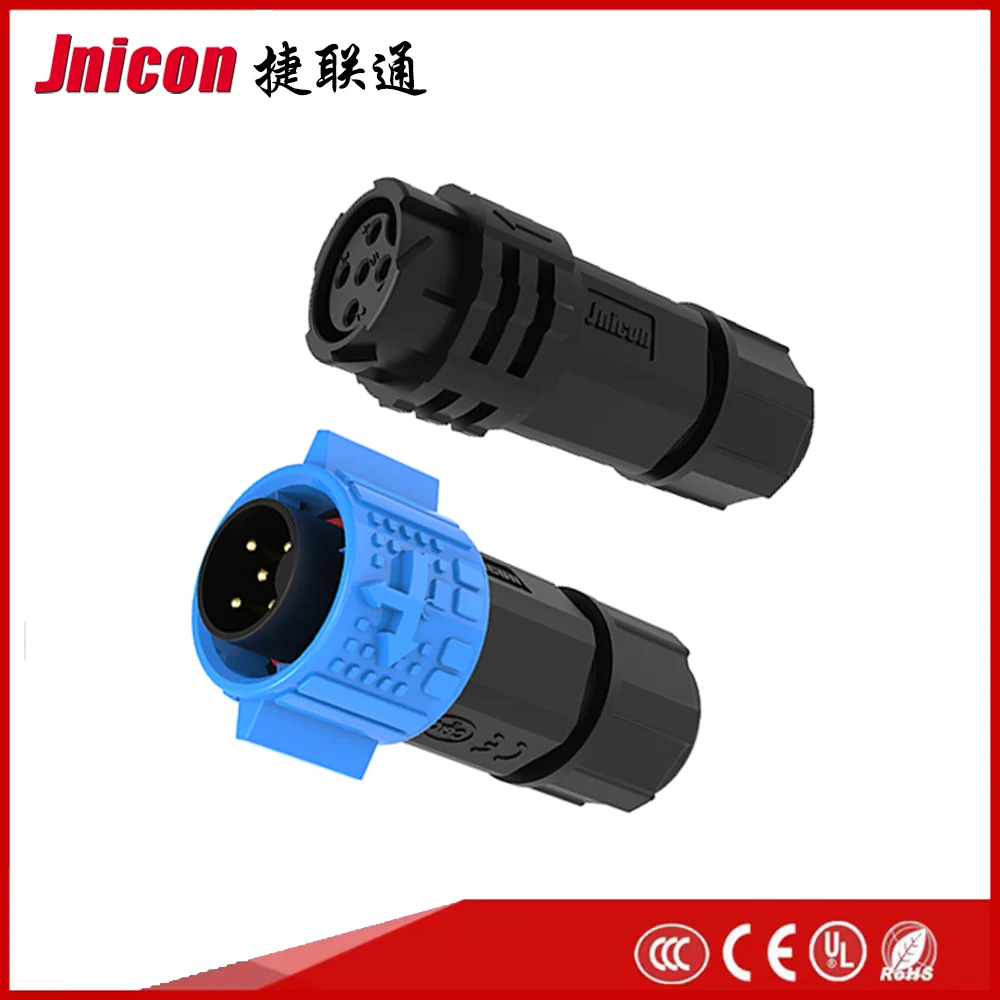

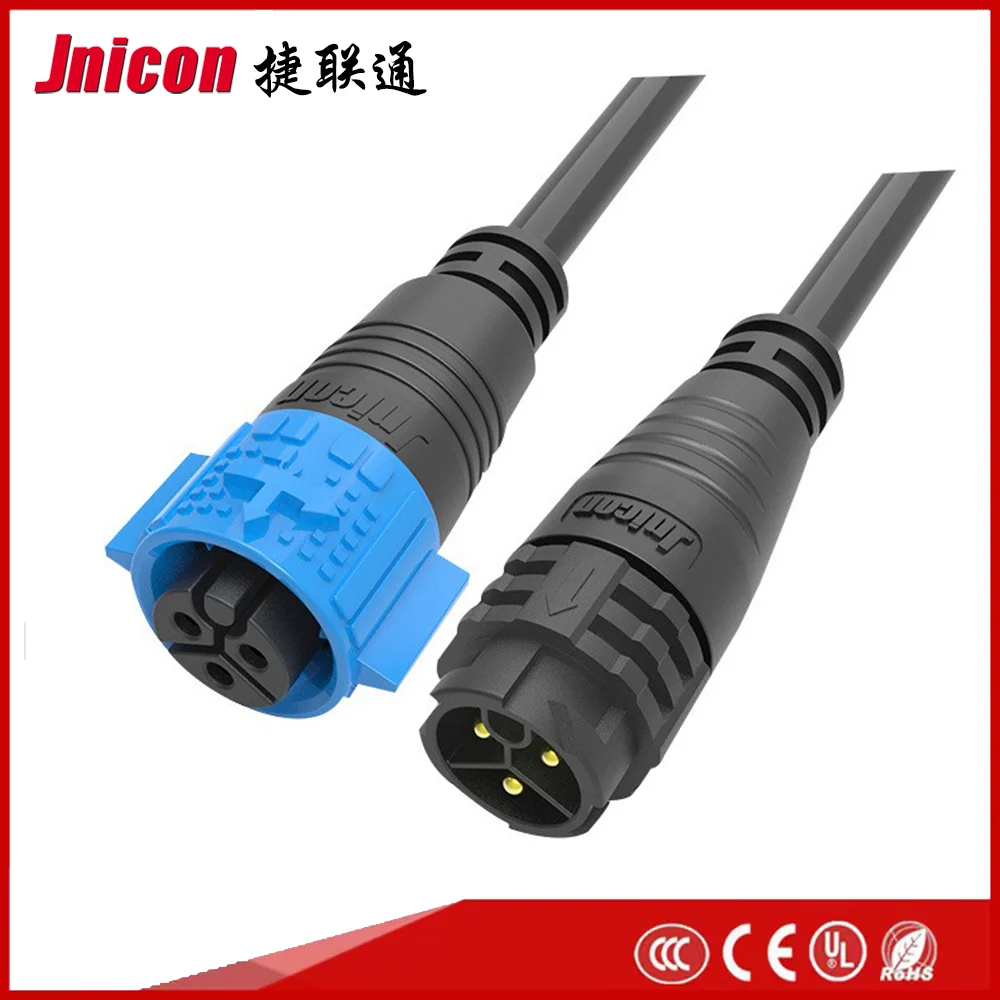

Related Product
Application
Company Profile

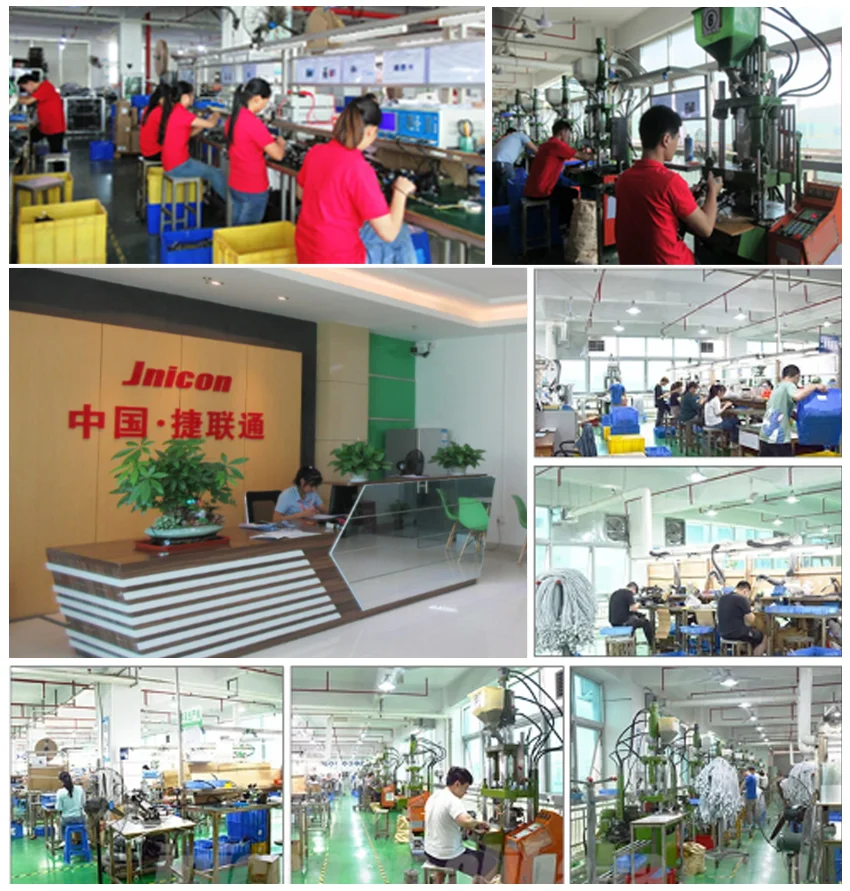

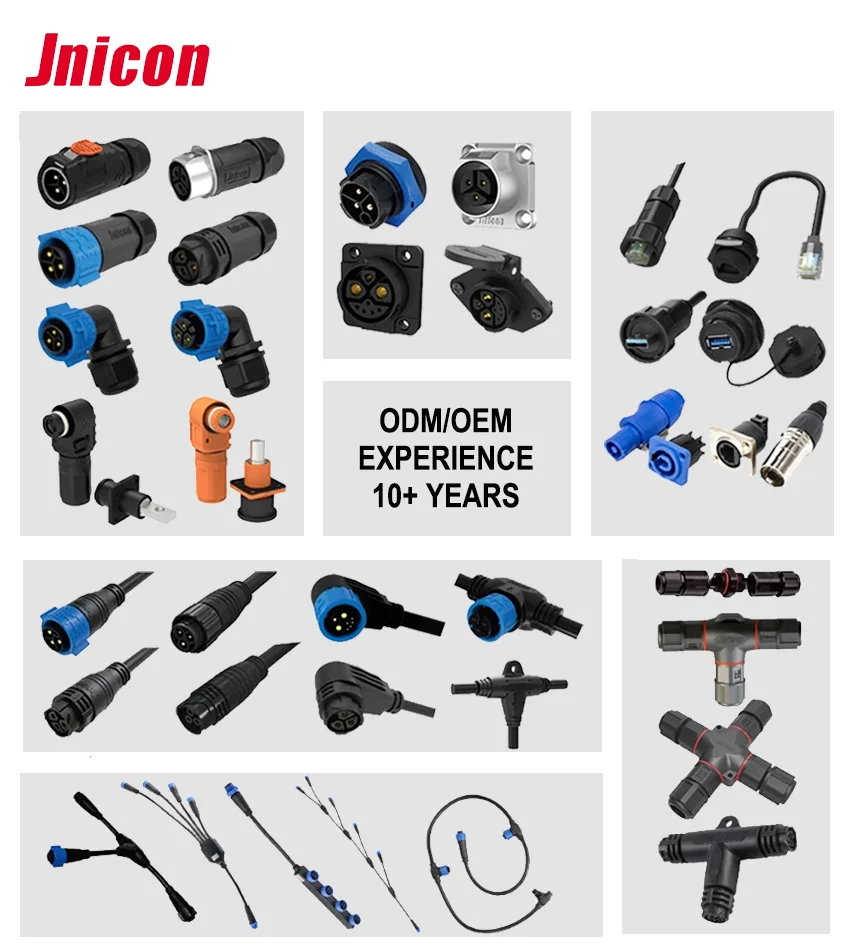

Shenzhen Jnicon Technology Co.,ltd was established in 2013, located in Shenzhen China, specialized in waterproof connectors, power connector and signal connectors. Products up to 14 series, more than 1000 varieties, widely applied in outdoor LED lighting, LED display, communication, new energy, automobile electronic applications etc.
Jnicon has more than 50 items invention, utility model and design patents till 2017. Products have UL, TUV, CCC, CE and RoHS certification. Jnicon does not only povide waterproof connectors, but also offers OEM/ODM service for our customers, including product design, mold development, etc.
With years of manufacturing experience, excellent quality, advanced services, and competitive prices, Jnicon has won numerous customers' trust and support.
Jnicon has more than 50 items invention, utility model and design patents till 2017. Products have UL, TUV, CCC, CE and RoHS certification. Jnicon does not only povide waterproof connectors, but also offers OEM/ODM service for our customers, including product design, mold development, etc.
With years of manufacturing experience, excellent quality, advanced services, and competitive prices, Jnicon has won numerous customers' trust and support.
