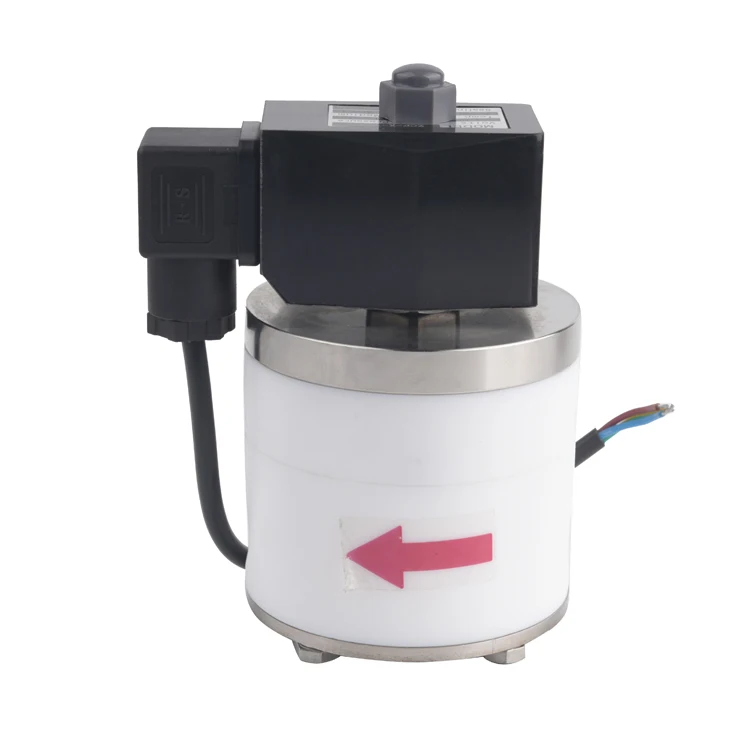

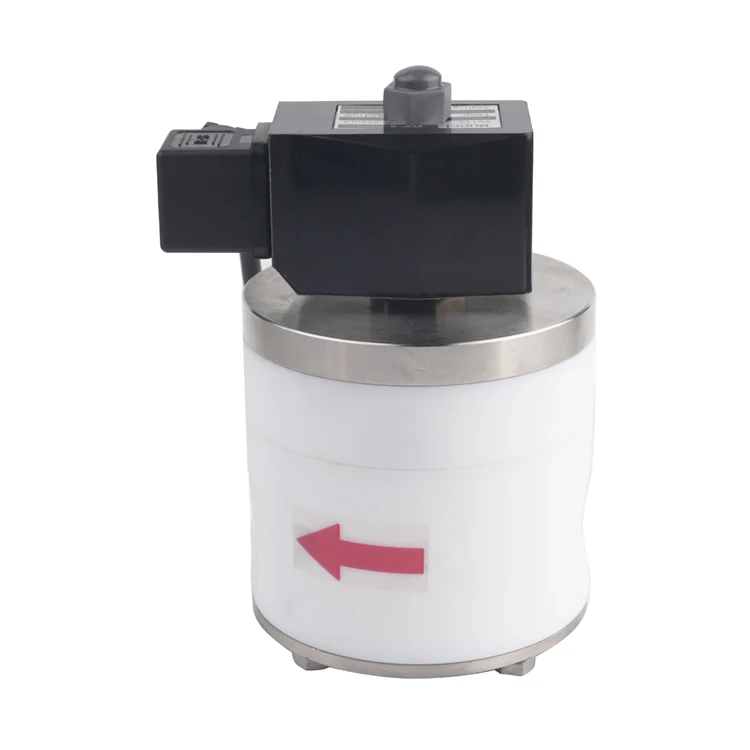

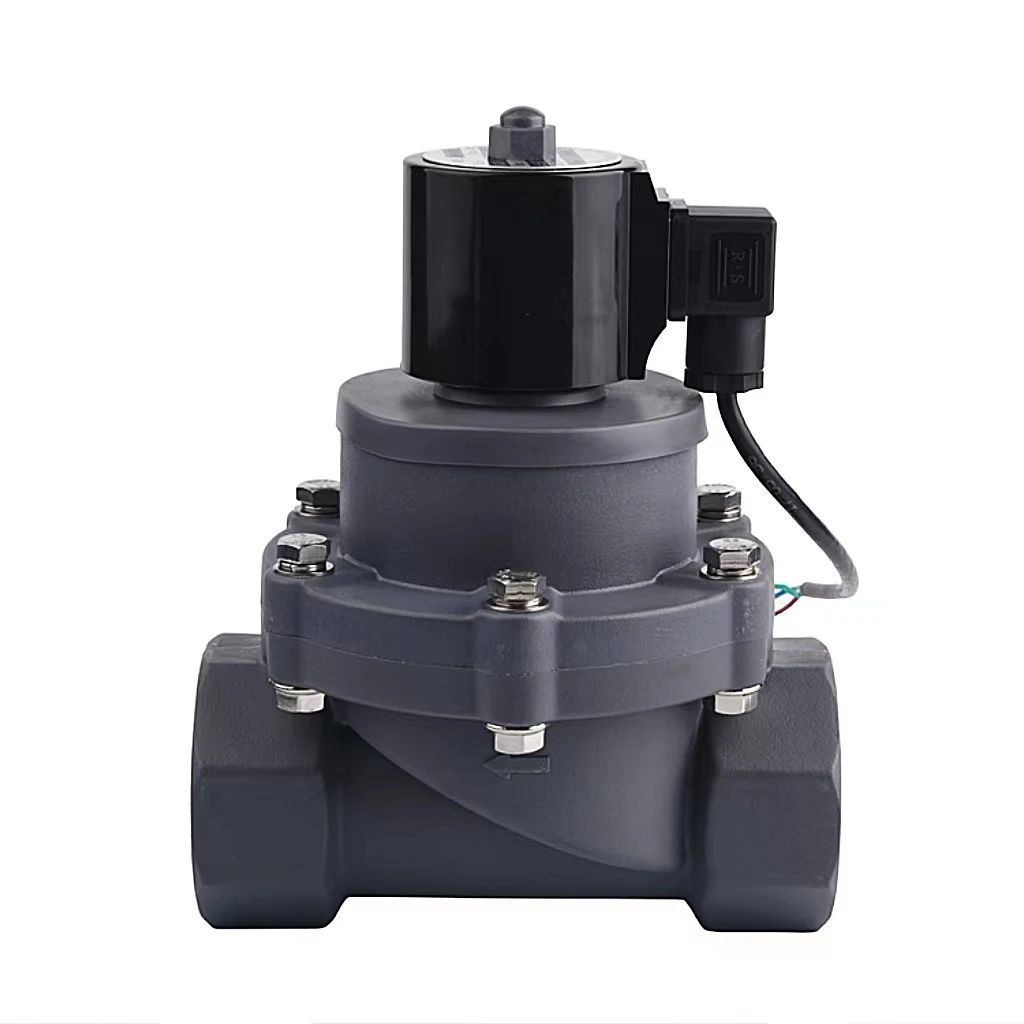

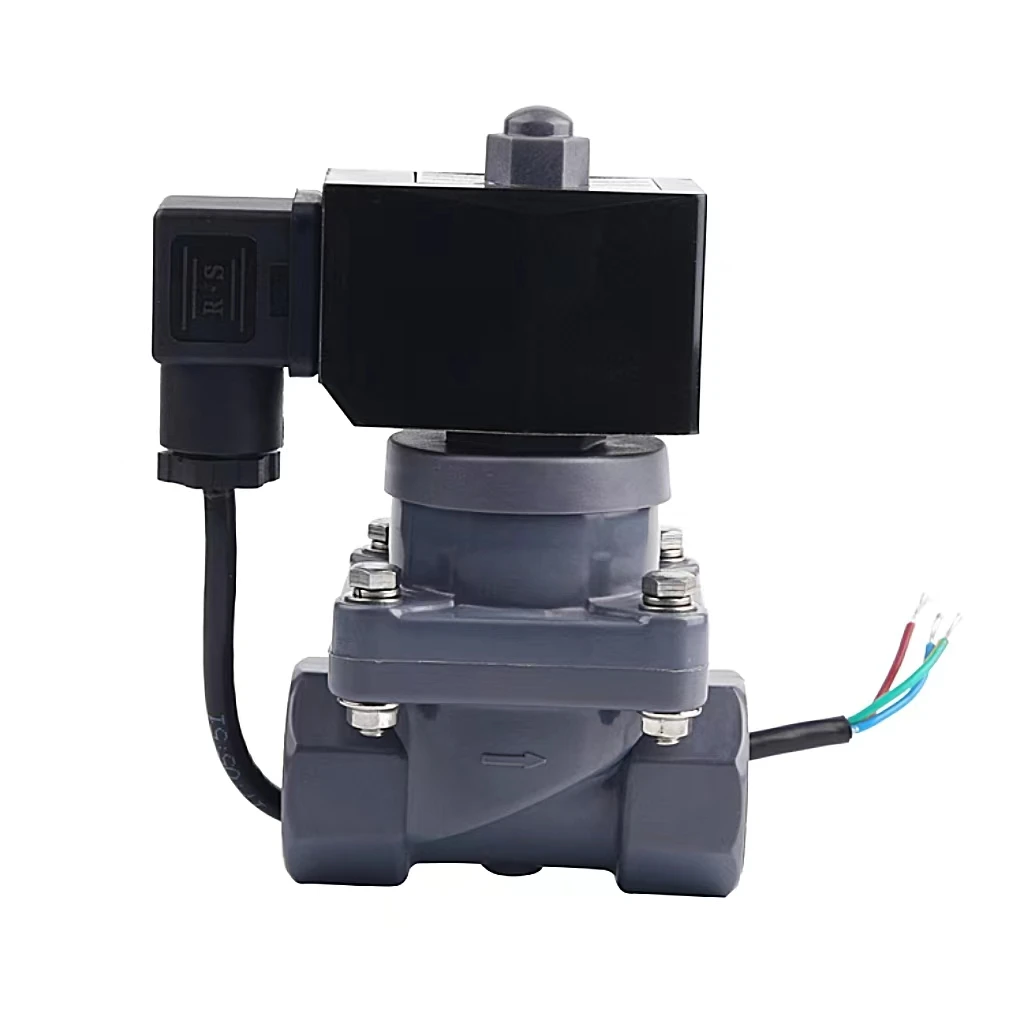

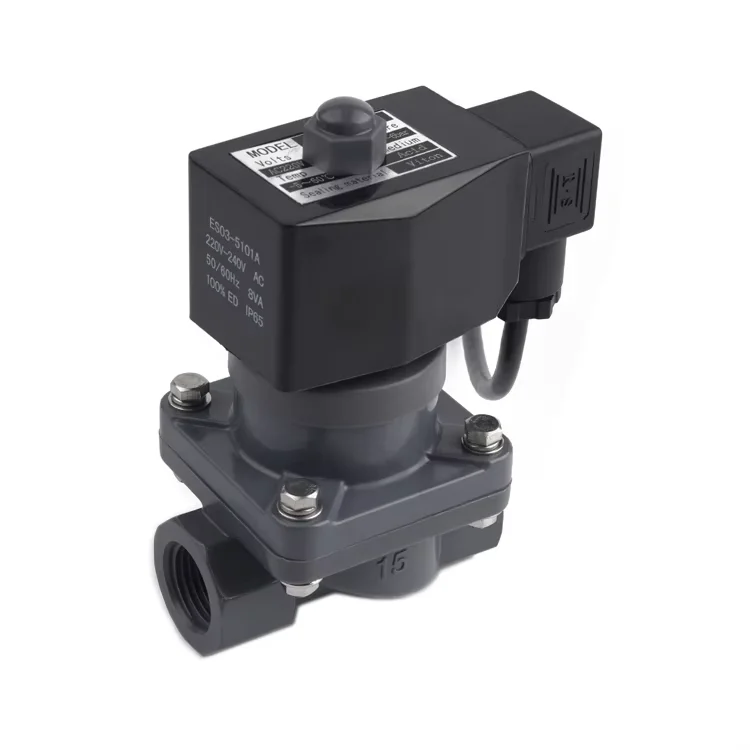

Fast Shipping from NingBo 12V Anti Corrosive Piston Industrial UPVC CPVC Hydraulic Solenoid Valve
- Category: >>>
- Supplier: Ningbo Mingyuanhongda Automation Co. Ltd.
Share on (1601269028894):
Product Overview
Description
Products Description
Product Parameter
Product name | Solenoid Valve |
Material | UPVC CPVC |
Seal Material | VITON EPDM(Optional) |
Medium | Acid |
Working Pressure | 0.3~6bar |
Voltage | DV24V/AC110V/AC220V |
Working Temperature | -5~60℃ |
Working Tpye | Pilot Diaphragm Operate NC |
Duty Cycle | ED 100% |
Degree of pretection | IP65 |
Product Features

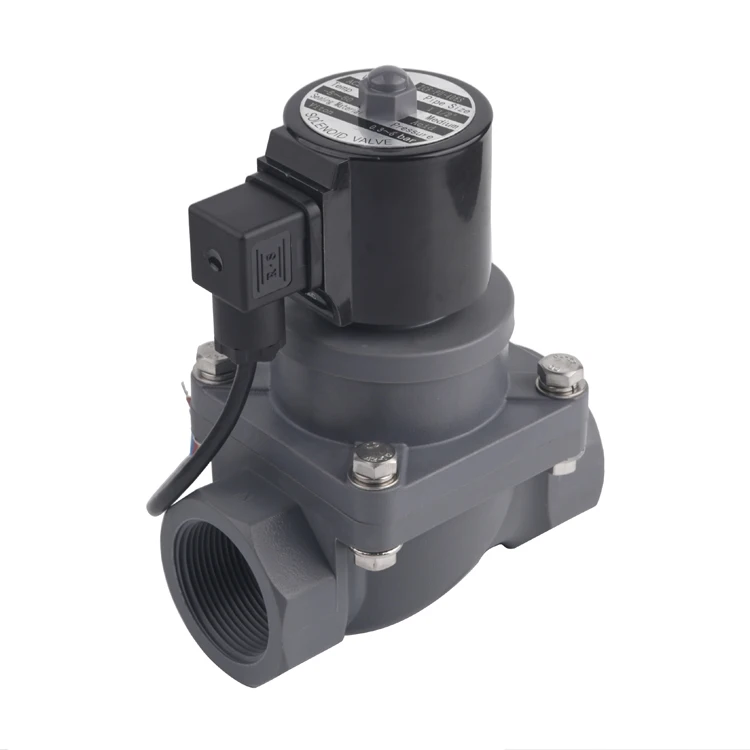

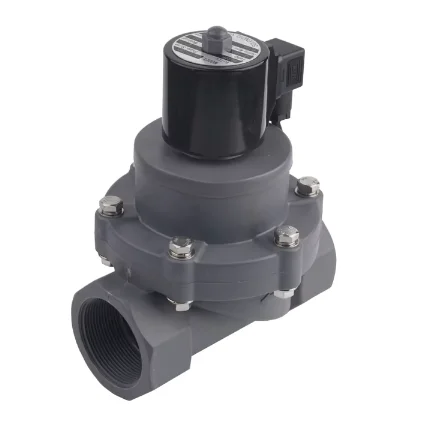

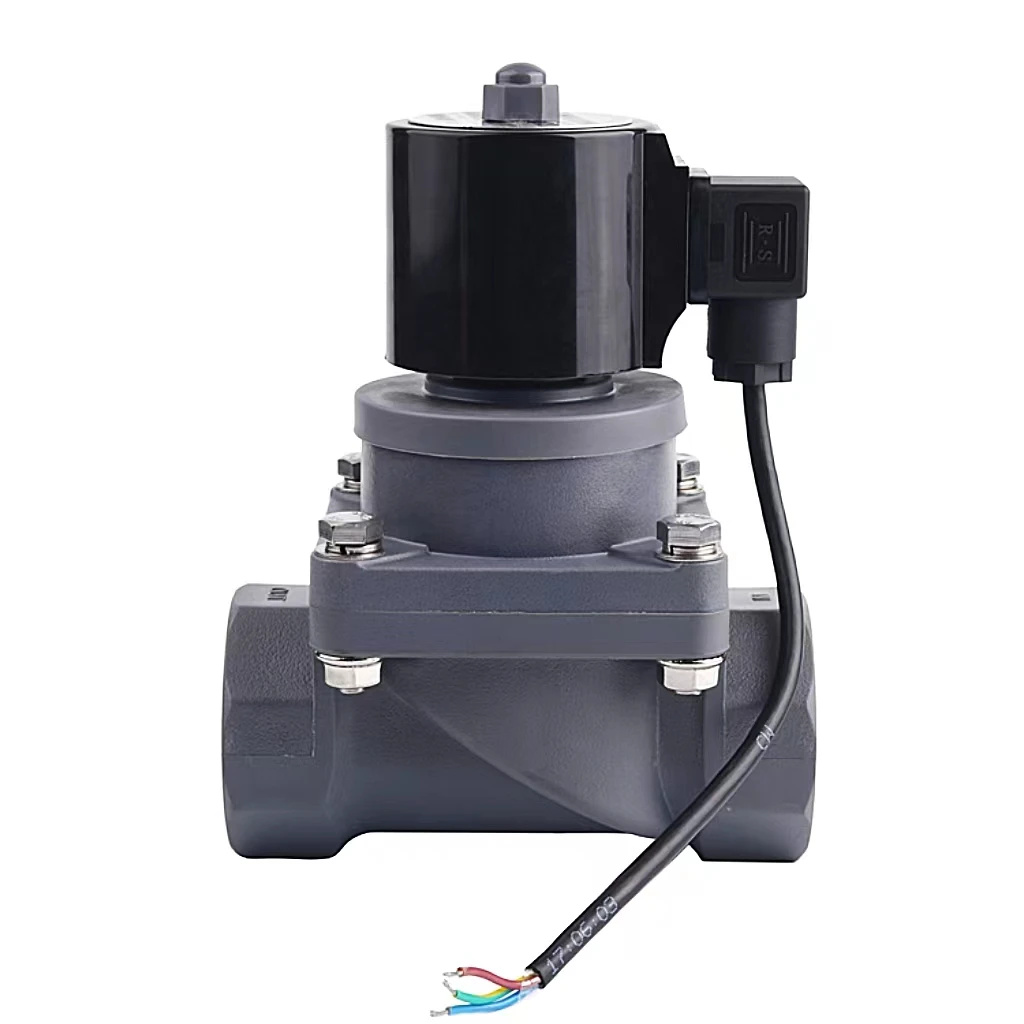

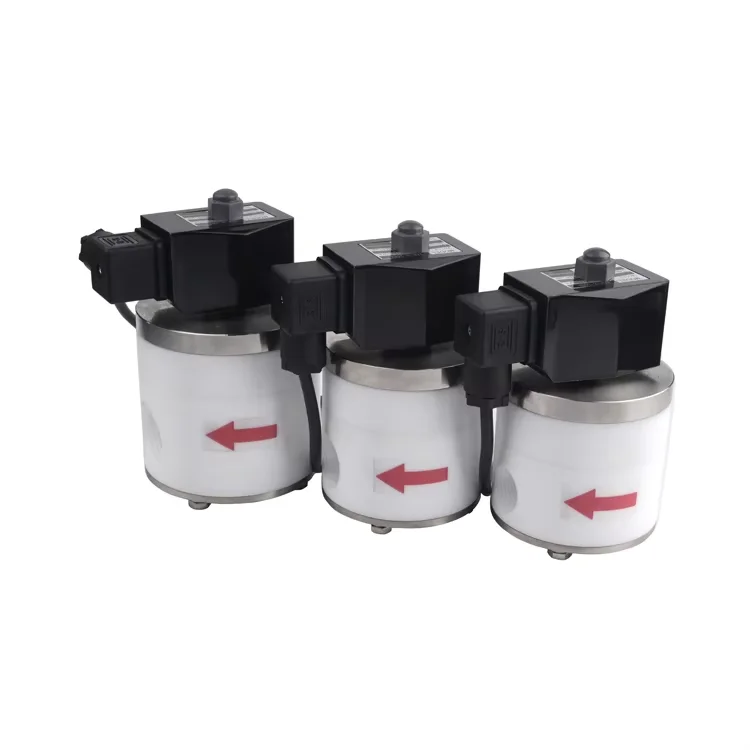

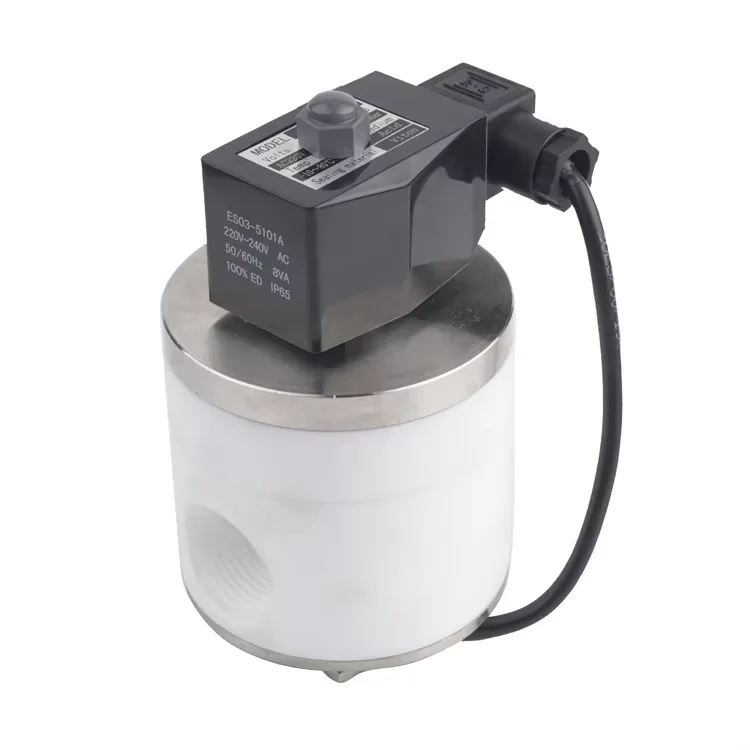

ZCF-P-series 2-way anti-corrosive solenoid valve 1/2”~2”
Techinical Parameters:
Working medium: acid、alkaline (liquid, gas)
Medium temperature: -5℃~60℃
Environment temperature: -10℃~50℃
Working pressure: 0.3~ 6 bar
Working type: pilot diaphragm type (NC)

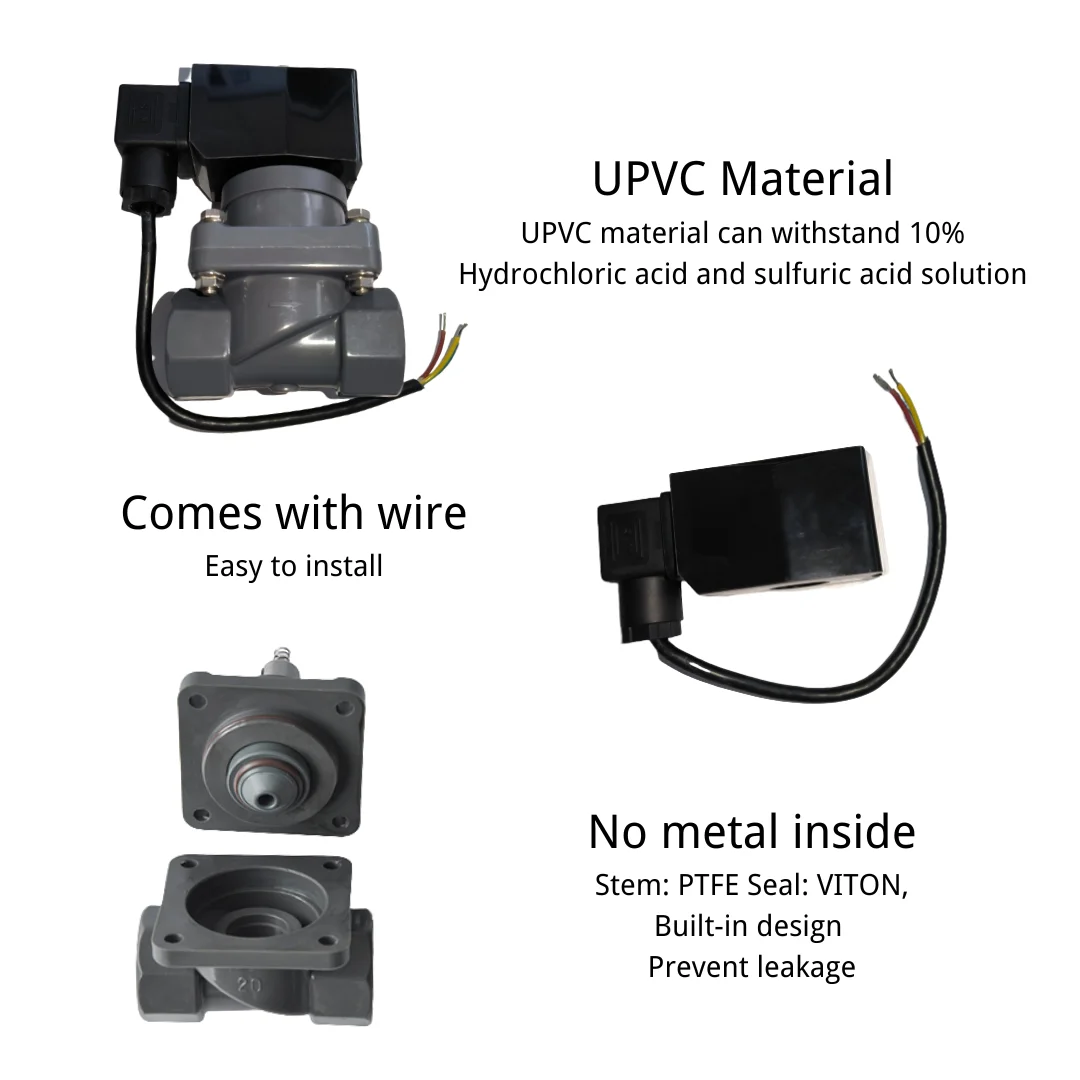

Valve body material: UPVC, CPVC
Sealing material: VITON
Interface: G thread/ NPT thread
Working voltage: AC220~240V 50/60Hz 9VA;
DC24V 8W IP65 H degree
Es low power energy saving coil
DN15-25mm can be adapted to Encapsulated Ex-proof coil
Working medium: acid、alkaline (liquid, gas)
Medium temperature: -5℃~60℃
Environment temperature: -10℃~50℃
Working pressure: 0.3~ 6 bar
Working type: pilot diaphragm type (NC)
Valve body material: UPVC, CPVC
Sealing material: VITON
Interface: G thread/ NPT thread
Working voltage: AC220~240V 50/60Hz 9VA;
DC24V 8W IP65 H degree
Es low power energy saving coil
DN15-25mm can be adapted to Encapsulated Ex-proof coil
Product Deatils

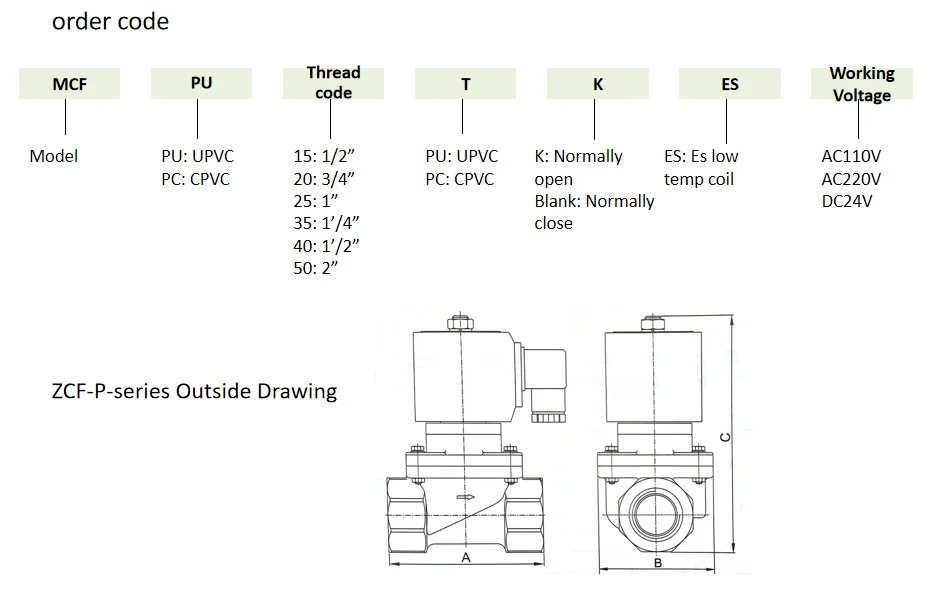

Solenoid Valve Drawing
Specification Table

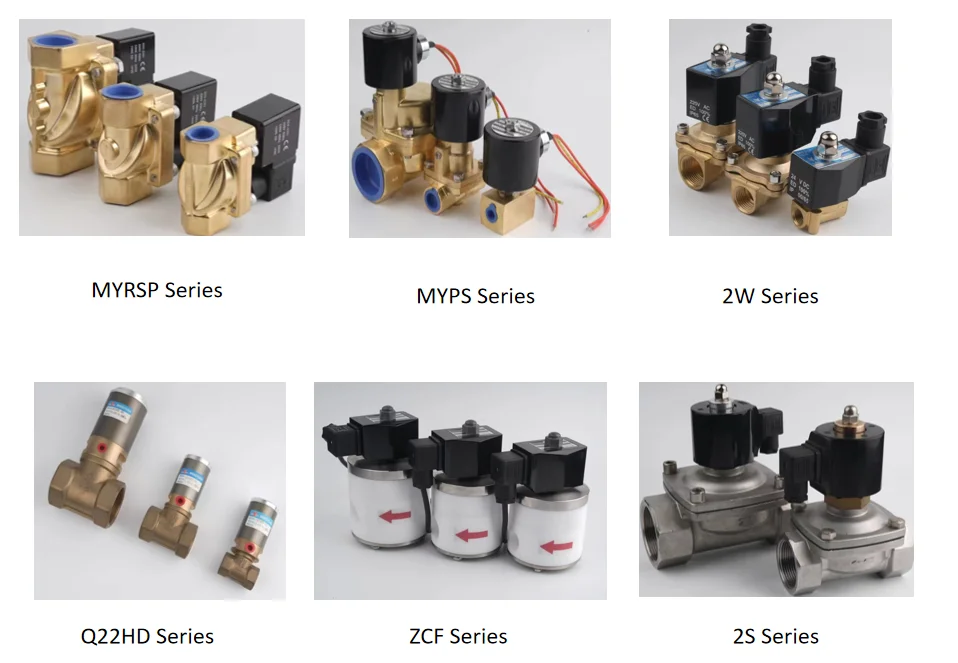

More Options
Company Profile
Certificates Honors
FAQ
Q1: Would you send me samples to check the quality before we conclude the business?
Q4: What's your price?
Q5: How about the product quality?
Q6: Can I print own logo on package?
Q7: What's your products' advantage?
Q8: What is your payment term?
A1: Of course, we'd be happy to send that for you. We can also customize your own logo if you provide the artwork.
Q2: How about your warranty policy and after service?
A2: A year free warranty. And we would responsible for all.
Q3: When will you make the delivery?
A3: We will make the delivery within 30 days according to the quantity of the order.
Q4: What's your price?
A4: We are committed to providing you with high quality products and service at reasonable prices.
Q5: How about the product quality?
A5: Our products have been checked in the whole process of production and passed 100% quality inspection.
Q6: Can I print own logo on package?
A6: Sure! Customized package and OEM printing are available.
Q7: What's your products' advantage?
A7: ①Good quality and competitive prices.
②Strictly quality control when producing.
③ Professional team work , for design ,development, producing, assemble, packing and shipping.
Q8: What is your payment term?
A8: T/T,Western Union, MoneyGram, and Paypal. This is negotiable.
