OCEAN Bakery Small Muffin Madeleine Production Fully Automatic Cup Cake Machine to Make Cupcake and Pies
- Category: >>>
- Supplier: Henan Ocean Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601269041011):
Product Overview
Description
Product Description
Introduction

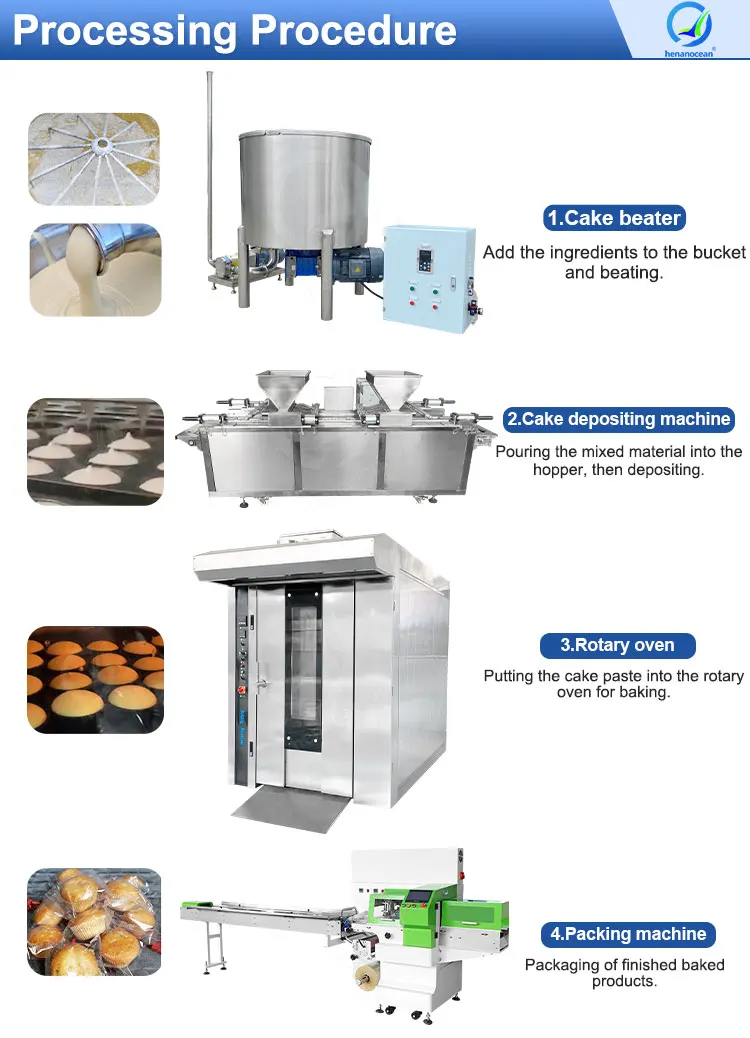

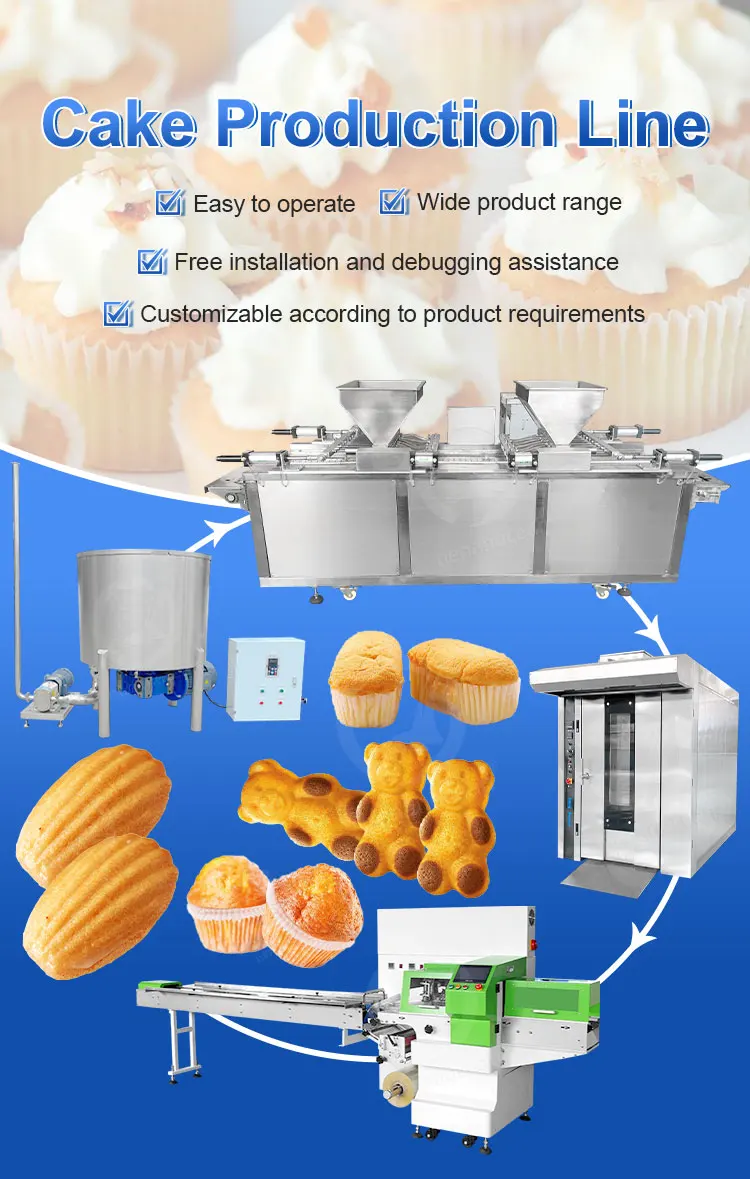

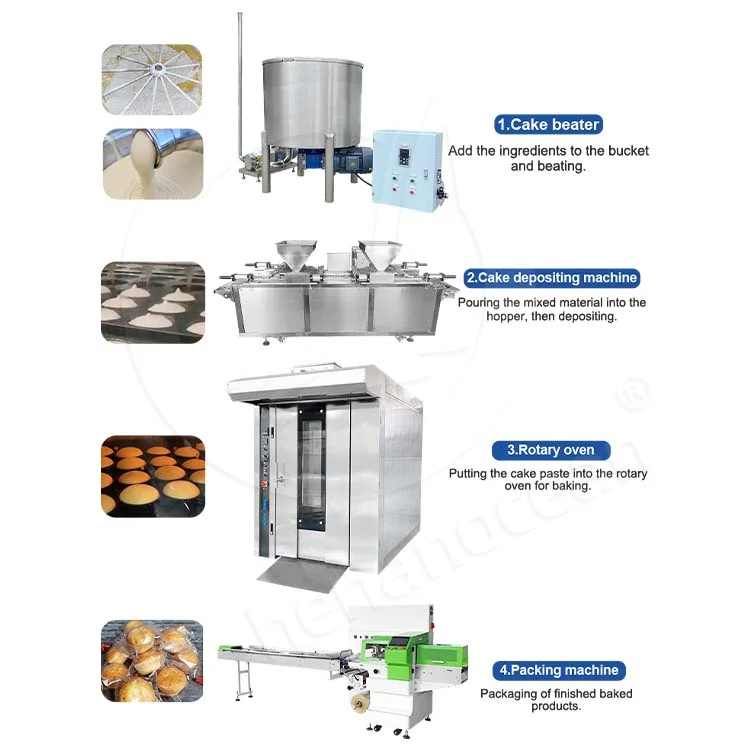

The cupcake production line consists of a beater, a cupcake filling machine, an oven, a cream whipping machine and a cream depositing machine. The working principle is: put flour, sugar, egg liquid and other raw materials into the beater to mix, then pour them into the cupcake filling machine to deposit and shape them, then put them into the oven to bake, and finally put the baked products on the cream depositing machine to deposit the cream to complete the final shaping of the product.
Application

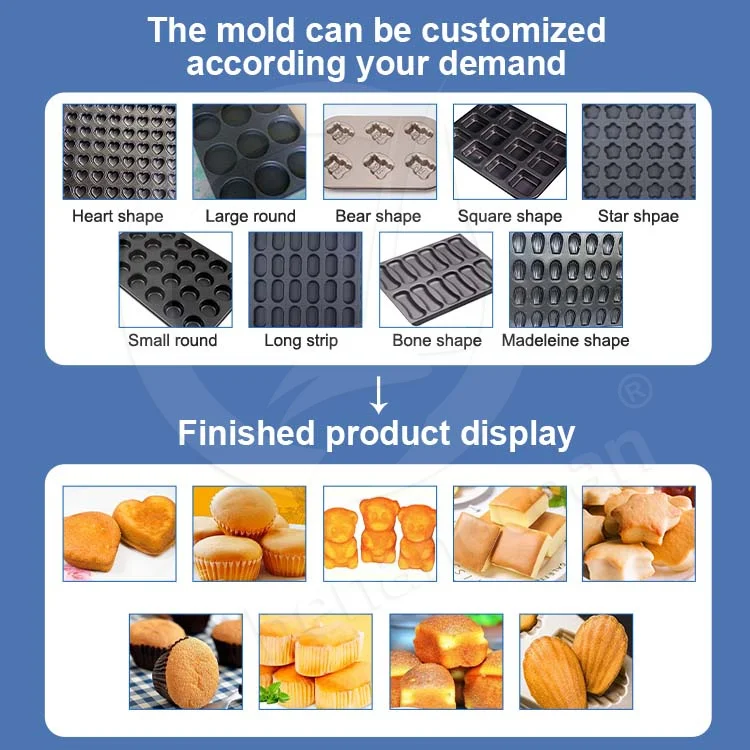

This cake production line is suitable for all kinds of cup cakes, muffin cake, madeleine cakes, etc. Some machines can also be adjusted according to demand to produce various other types of cakes.
Features

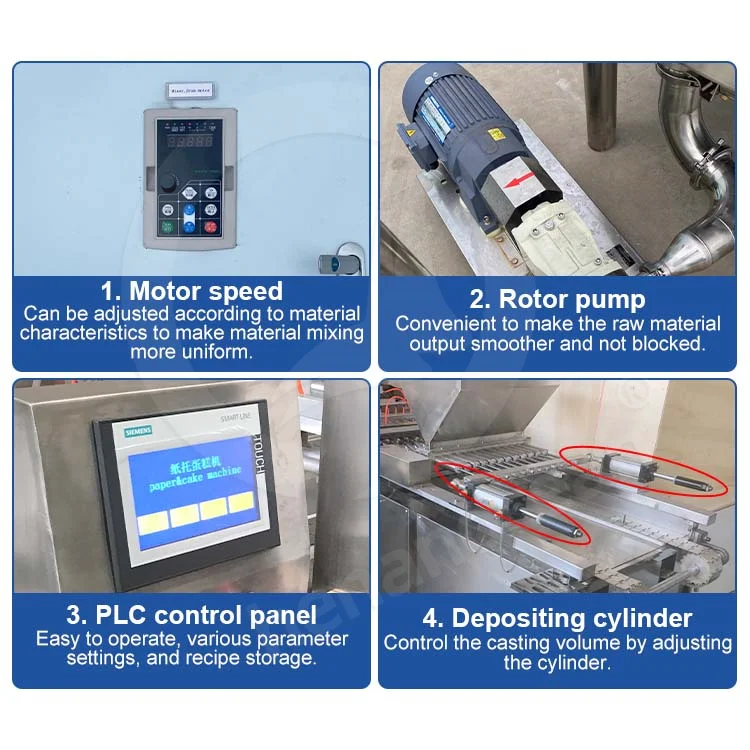

1. The speed of the beater stirring motor can be adjusted according to the characteristics of the material, so that the material mixing and mixing are more uniform.
2. The raw material output of the beater adopts a rotor pump to make the raw material output smoother.

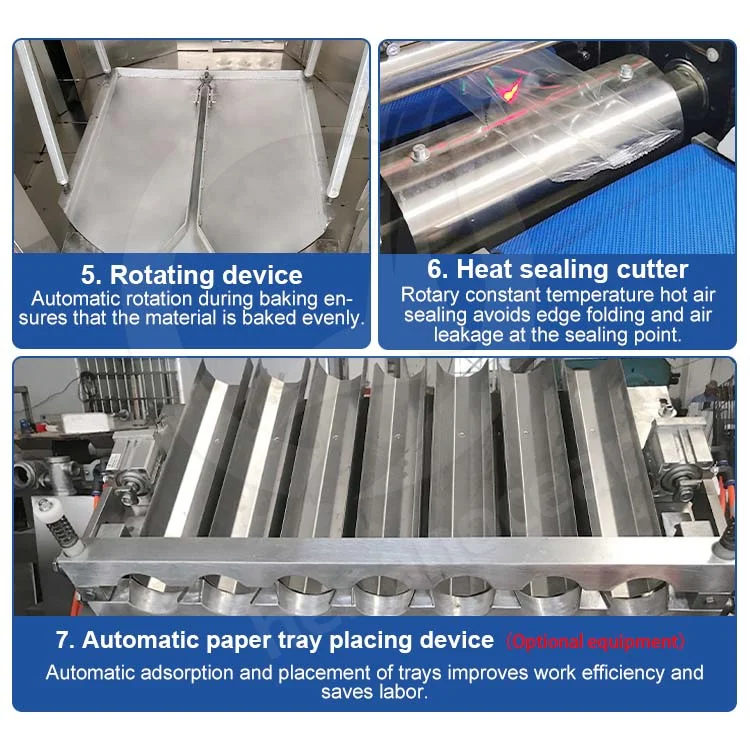

3. The paper tray cake filler is equipped with an automatic paper tray device to save manpower.
4. The pouring amount of the paper tray cake filler is adjusted by adjusting the pouring cylinder.
5. The gas layer furnace, low temperature and top temperature can be adjusted, suitable for materials with special baking processes.
6. The cream whipping machine adopts continuous inflation and egg-free method. The taste is delicate and dense, moist and elastic, with special egg-beating balls, and the cake structure is stable, the color is good, and the taste is good.
7. The filling roller in the hopper of the cream depositing machine adopts food-grade silicone circular gears, which can reduce the defoaming of the cake batter.
8. The crumb box is installed under the conveyor belt of the cream depositing machine to effectively handle the materials remaining on the conveyor belt.

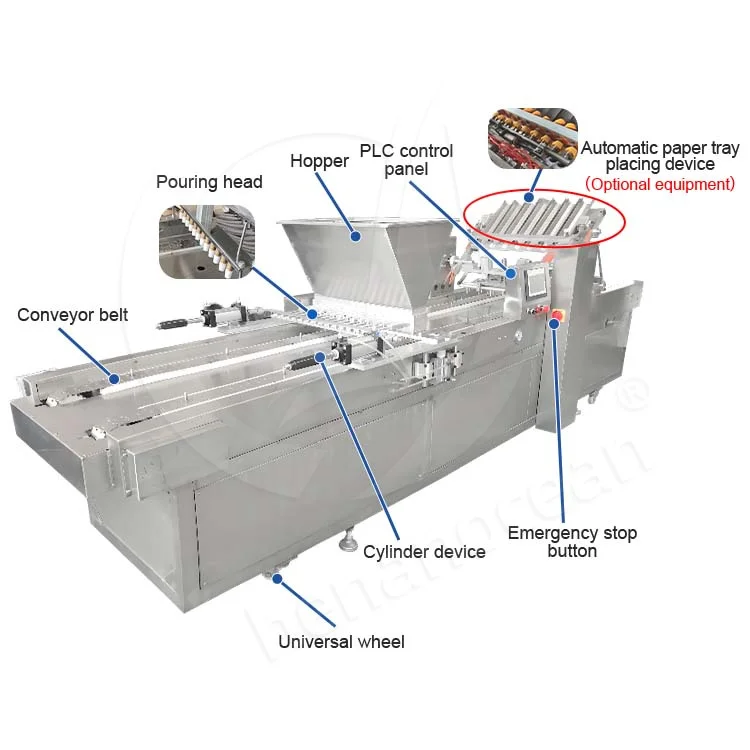

9. The pouring height of the pouring head can be adjusted using a handwheel according to the product height requirements.
10. The equipment can be adjusted and controlled through the touch screen to match the production line.

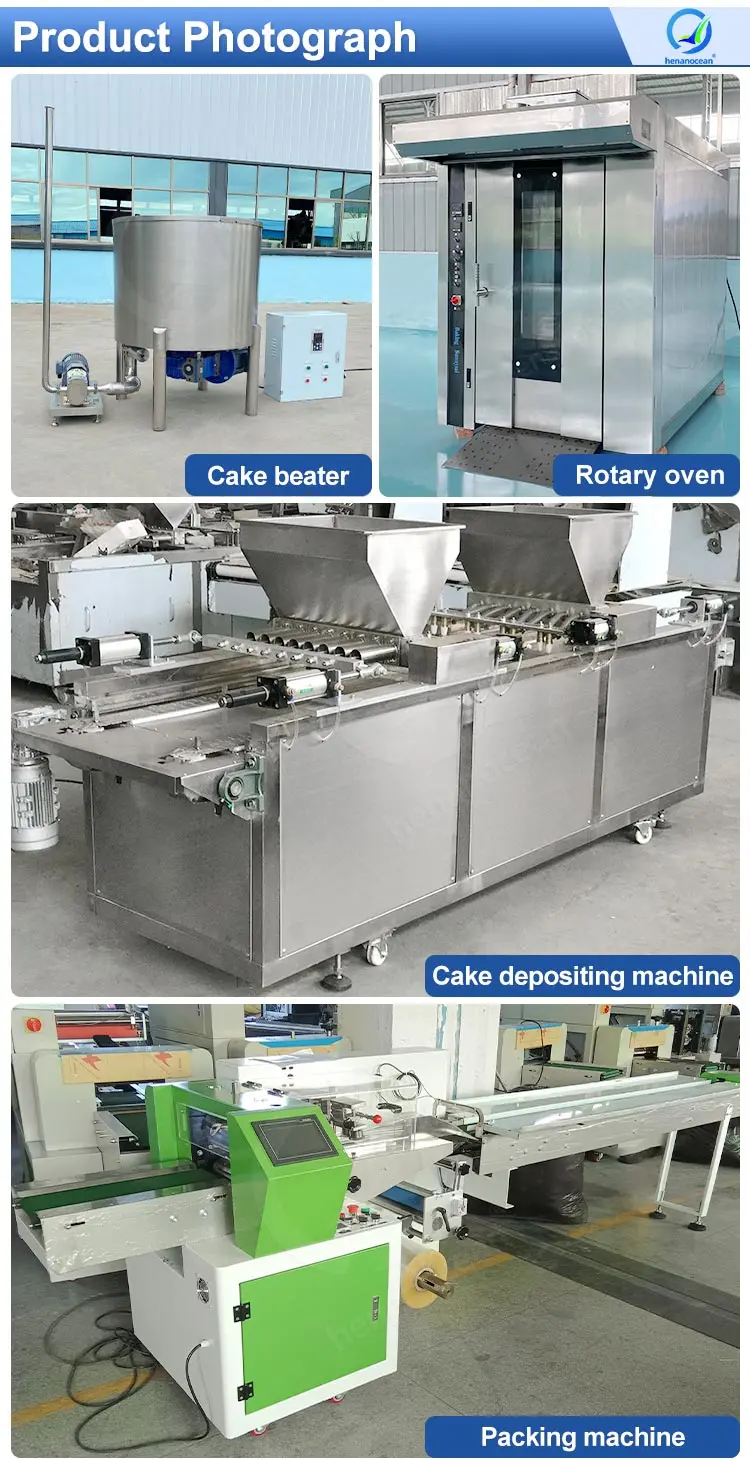

Cake beating machine | ||
Voltage | 380V 3P 50HZ customized | |
Power | 3.5kw | |
Capacity | 300L/time | |
Dimension | 1000*2000mm | |
Weight | 120kg | |
Cake depositing machine | ||
Voltage | 380V 3P 50HZ customized | |
Power | 2.05kw | |
Capacity | 100-200kg/h | |
Dimension | 4100*1050*1380mm | |
Weight | 850kg | |
Oven | ||
Voltage | 220v 1P 50HZ customized | |
Power | 0.2kw | |
Dimension | 1340*900*1480mm | |
Weight | 225kg | |
Packing machine | ||
Model | orangemech-ZBJ-350S | |
Film width | Max：350mm | |
Bag length | 90-330mm | |
Bag width | 30-160mm | |
Product height | Max：70mm | |
Film roll diameter | Max：320mm | |
Packaging speed | 60-120bag/min | |
Packaging materials | OPP, OPP/CPP, KOP/CPP, ALU-FILM | |
Power | 220V 50/60Hz 2.4KW | |
Machine size | 3960*770*1450mm | |
Machine weight | 350Kg | |
Production Details
Factory Real Shot
Related Products
Company Information
1. More than 20 years of professional mechanical equipment manufacturers.
2. R&D team keep sustained technology improving anddeveloping.
3. Strict Q.C.and full process monitoring management.
4. ISO 9001, ISO 14001, ISO 45001, CE. BSCI, ETL certificated.OEMODM services.
5. Self owned professional R&D capacity,lab, QC capability.
Certification and Approva
Oversea Customer Visit
Exhibition Photos
Oversea After-sales Service
Our Services
1. 24-hour communication service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
