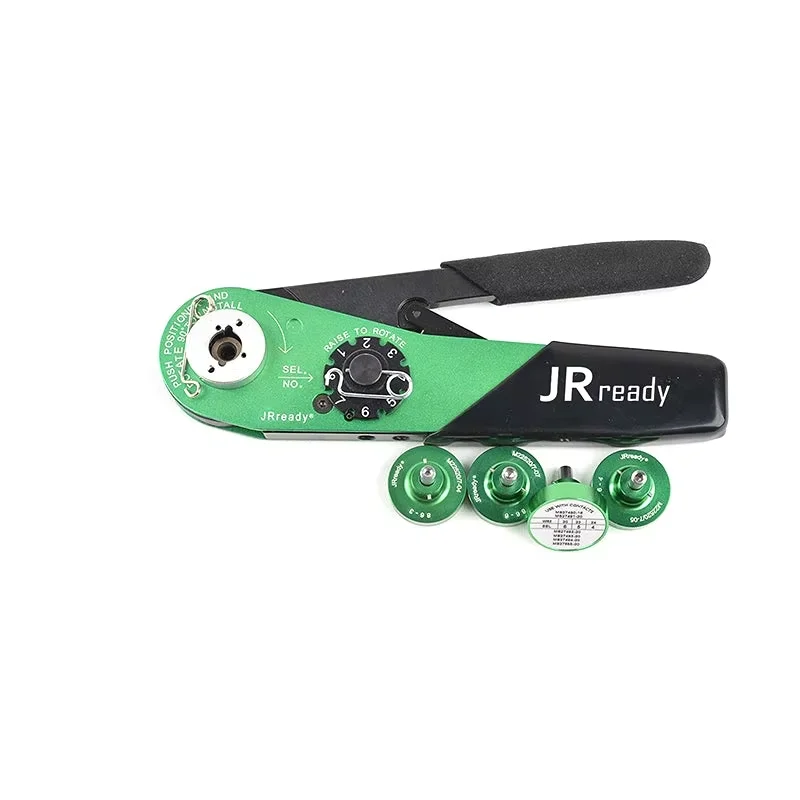

ST1123 Crimp Tool Kits(YJQ-W7A Crimper 16-28AWG +86-3+86-4+86-6+86-7 Locators) Crimp MIL-PRF-38999 SERIES 1,3,4, MIL-DTL-83733,MIL-DTL-24308 Connector Contacts

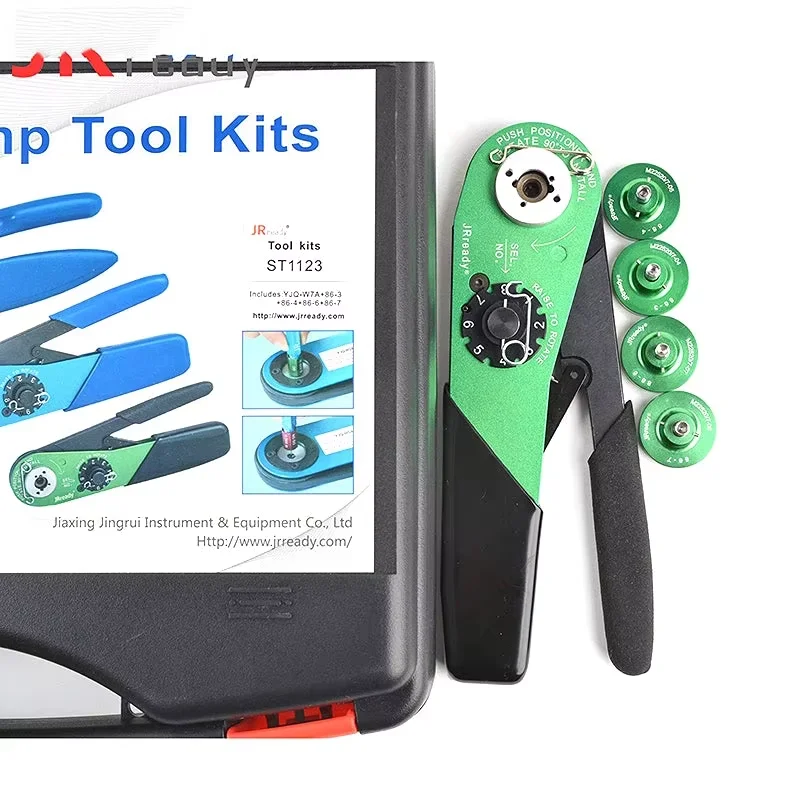

* ST1123 Crimp Tool Kit includes YJQ-W7A four-indent hand crimp tool, 86-3 positioner, 86-4 positioner, 86-6 positioner, and 86-7 positioner;
* Applicable Connector Models: MIL-PRF-38999 SERIES 1, MIL-PRF-38999 SERIES 3, MIL-PRF-38999 SERIES 4, MIL-DTL-83733,MIL-DTL-24308;
* Applicable Contact Size: 16#, 20#, 22#, 22M#, 22D# Pins / Sockets;
* Applicable Wire Crimp Range: 16-28AWG (1.32-0.08mm²).

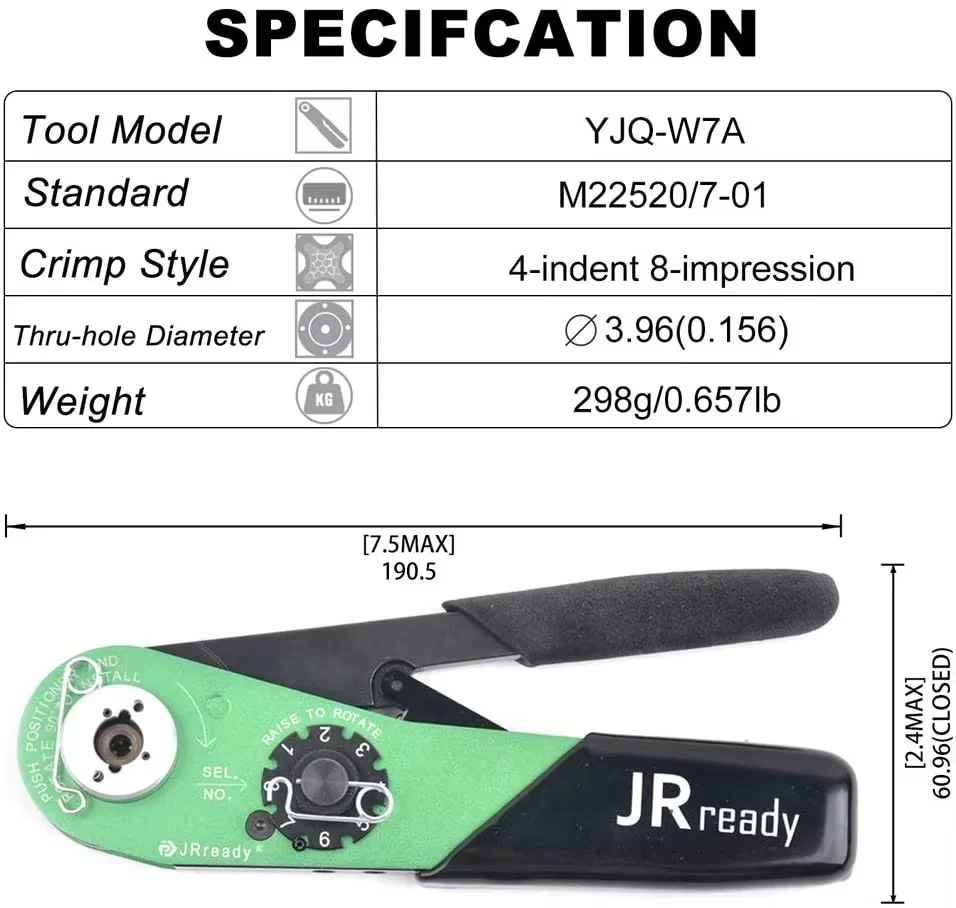

1.YJQ-W7A aviation crimp tool is designed according to MIL-C-22520/7-01. And it is widely used in connecting contacts and wires in
the electronic connectors.
2. 86-3 positioner is designed according to MIL-C-22520/7-04 to ensure the accuracy and consistency of the crimping position.
3. 86-4 positioner is designed according to MIL-C-22520/7-05 to ensure the accuracy and consistency of the crimping position.
4. 86-6 positioner is designed according to MIL-C-22520/7-07 to ensure the accuracy and consistency of the crimping position.
5. 86-7 positioner is designed according to MIL-C-22520/7-08 to ensure the accuracy and consistency of the crimping position.
6. Specific Application Details:
1) Used to crimp 22#, 22M#, 22D# Sockets in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/56-350, M39029/56-349,
M39029/56-348;
2) Crimp 20# Pin/Socket in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/58-363, M39029/56-351;
3) Crimp 16# Pin/Socket in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/58-364, M39029/56-352;
4) Crimp 22#, 22M#, 22D# Socket in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/56-350, M39029/56-349,
M39029/56-348;
5) Crimp 22#, 22M#, 22D# Pin in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/58-362, M39029/58-361,
M39029/58-360;
6) Crimp 22D# Socket in MIL-DTL-83733 SERIES Connectors. Contacts Part Number: M39029/57-354;
7) Crimp22# Pin/ Socket in MIL-DTL-24308 SERIES Connectors. Contacts Part Number: M39029/58-360.
* ST1123 Crimp Tool Kit includes YJQ-W7A four-indent hand crimp tool, 86-3 positioner, 86-4 positioner, 86-6 positioner, and 86-7 positioner;
* Applicable Connector Models: MIL-PRF-38999 SERIES 1, MIL-PRF-38999 SERIES 3, MIL-PRF-38999 SERIES 4, MIL-DTL-83733,MIL-DTL-24308;
* Applicable Contact Size: 16#, 20#, 22#, 22M#, 22D# Pins / Sockets;
* Applicable Wire Crimp Range: 16-28AWG (1.32-0.08mm²).
1.YJQ-W7A aviation crimp tool is designed according to MIL-C-22520/7-01. And it is widely used in connecting contacts and wires in
the electronic connectors.
2. 86-3 positioner is designed according to MIL-C-22520/7-04 to ensure the accuracy and consistency of the crimping position.
3. 86-4 positioner is designed according to MIL-C-22520/7-05 to ensure the accuracy and consistency of the crimping position.
4. 86-6 positioner is designed according to MIL-C-22520/7-07 to ensure the accuracy and consistency of the crimping position.
5. 86-7 positioner is designed according to MIL-C-22520/7-08 to ensure the accuracy and consistency of the crimping position.
6. Specific Application Details:
1) Used to crimp 22#, 22M#, 22D# Sockets in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/56-350, M39029/56-349,
M39029/56-348;
2) Crimp 20# Pin/Socket in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/58-363, M39029/56-351;
3) Crimp 16# Pin/Socket in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/58-364, M39029/56-352;
4) Crimp 22#, 22M#, 22D# Socket in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/56-350, M39029/56-349,
M39029/56-348;
5) Crimp 22#, 22M#, 22D# Pin in MIL-PRF-38999 SERIES Connectors. Contacts Part Number: M39029/58-362, M39029/58-361,
M39029/58-360;
6) Crimp 22D# Socket in MIL-DTL-83733 SERIES Connectors. Contacts Part Number: M39029/57-354;
7) Crimp22# Pin/ Socket in MIL-DTL-24308 SERIES Connectors. Contacts Part Number: M39029/58-360.
