(China Top Manufacturer)Mining processing crushing equipment stone rock ore jaw crusher
- Category: >>>
- Supplier: Gongyi City Yuxiang Heavy Machinery Co. Ltd.
Share on (1601269095930):
Product Overview
Description

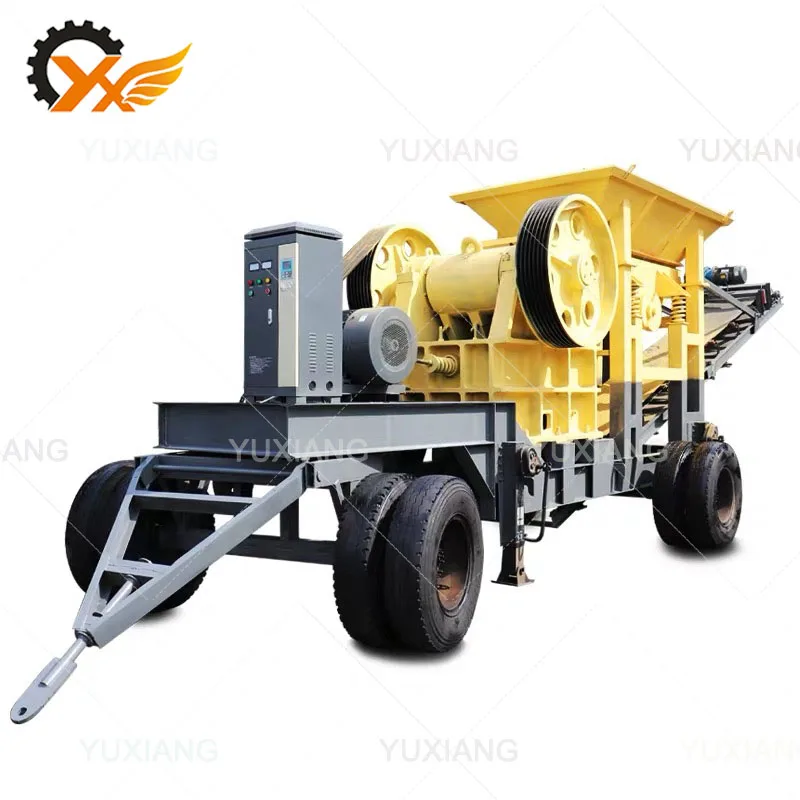

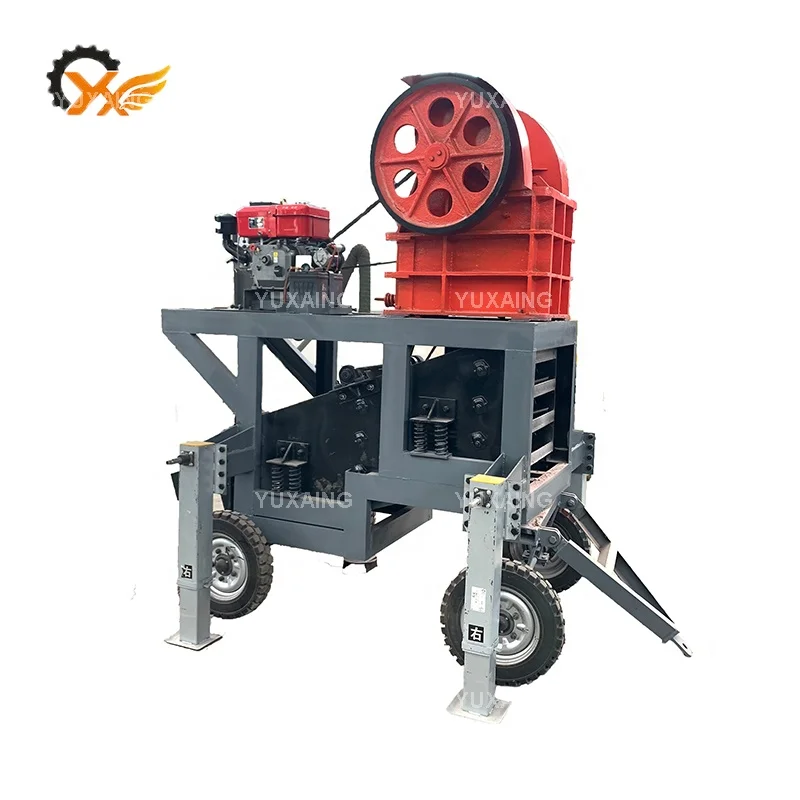

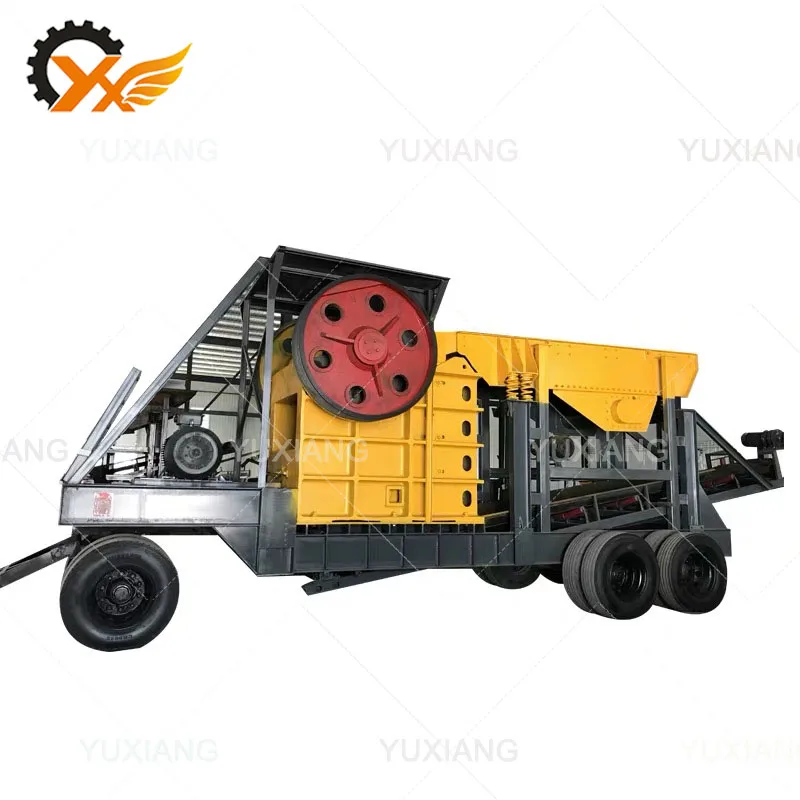

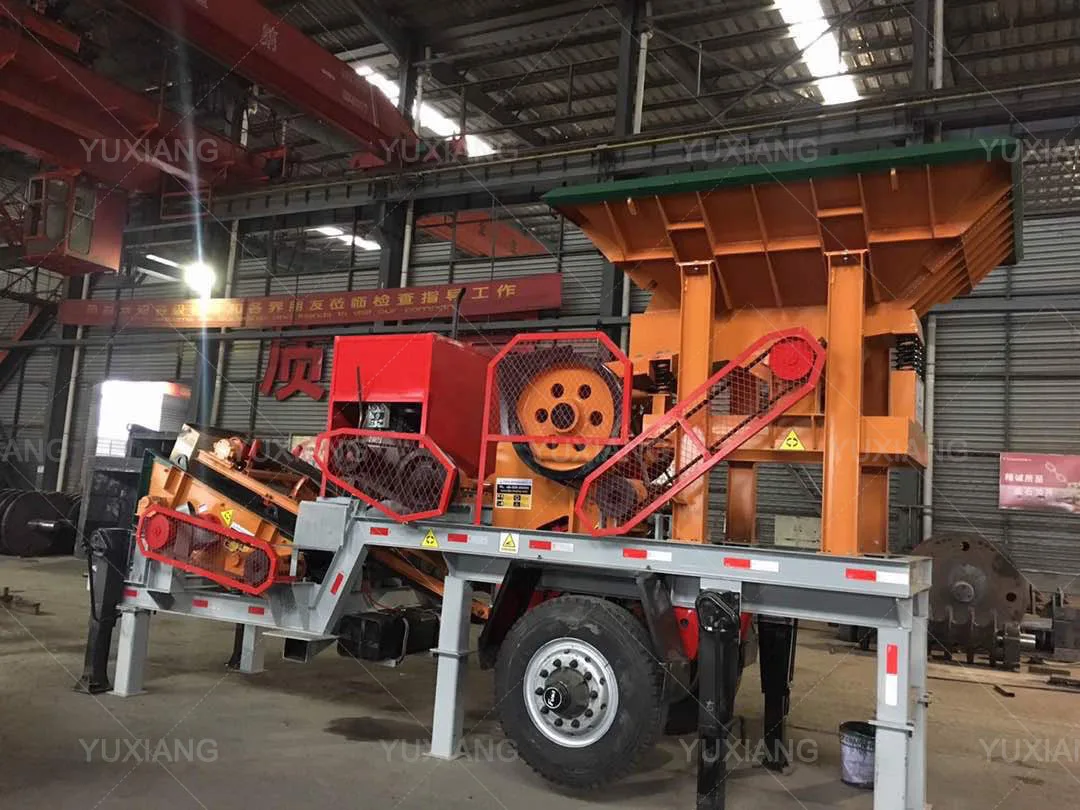

Mobile PE200x300 PE250x400 diesel engine stone rock jaw crusher machine with vibrating screen
Product Description
Jaw crusher with larger feed openings and bigger crushing strokes, it is suitable for crushing big size lumps in large quantity.From the welded steel base to the rugged eccentric shaft, the jaw crusher is built with brute strength with quality bearings. Jaw crusher is one of the main types of secondary crushers in a mine or ore processing plant.
Application

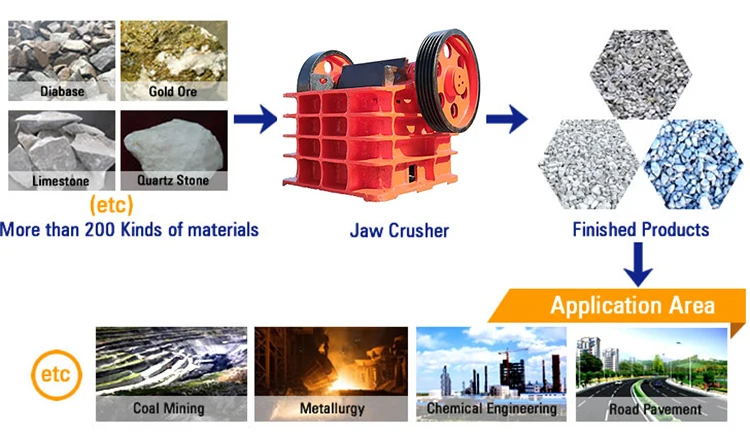

Jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc.
Product Paramenters
Model | Adjustment Range(mm) | Max.Feed lump Size(mm) | Main shift speed (r/min) | Capacity (t/h) | Motor Power (kw) |
PE150x250 | 10-40 | 125 | 285 | 1-3 | 5.5 |
PE200x300 | 20-70 | 165 | 265 | 2-8 | 7.5 |
PE250x400 | 20-80 | 210 | 310 | 5-20 | 15-18.5 |
PE400x600 | 40-90 | 340 | 275 | 10-40 | 30 |
PE350x750 | 30-55 | 290 | 300 | 20-50 | 37 |
PE500×750 | 50-100 | 425 | 275 | 34-88 | 55 |
PE600×900 | 75-200 | 480 | 255 | 40-120 | 75 |
PE750×1060 | 80-200 | 630 | 250 | 80-160 | 90 |
PE900×1200 | 100-200 | 750 | 250 | 110-220 | 110 |
PE1000×1200 | 195-265 | 850 | 200 | 315-500 | 110 |
PE1200×1500 | 150-300 | 1020 | 180 | 400-800 | 160 |
PE150×750 | 10-40 | 125 | 300 | 5-15 | 15 |
PE250×1000 | 15-55 | 210 | 300 | 10-32 | 30-37 |

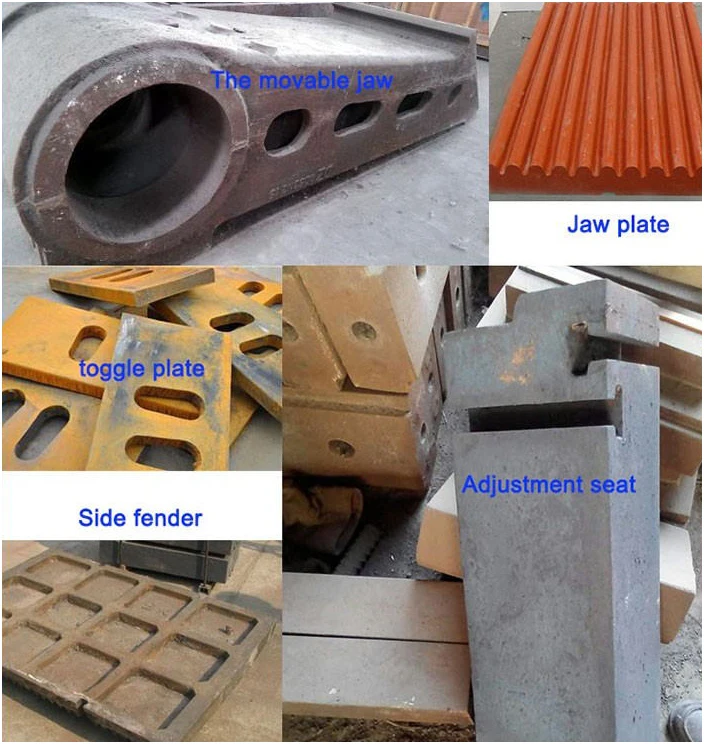

Details Images

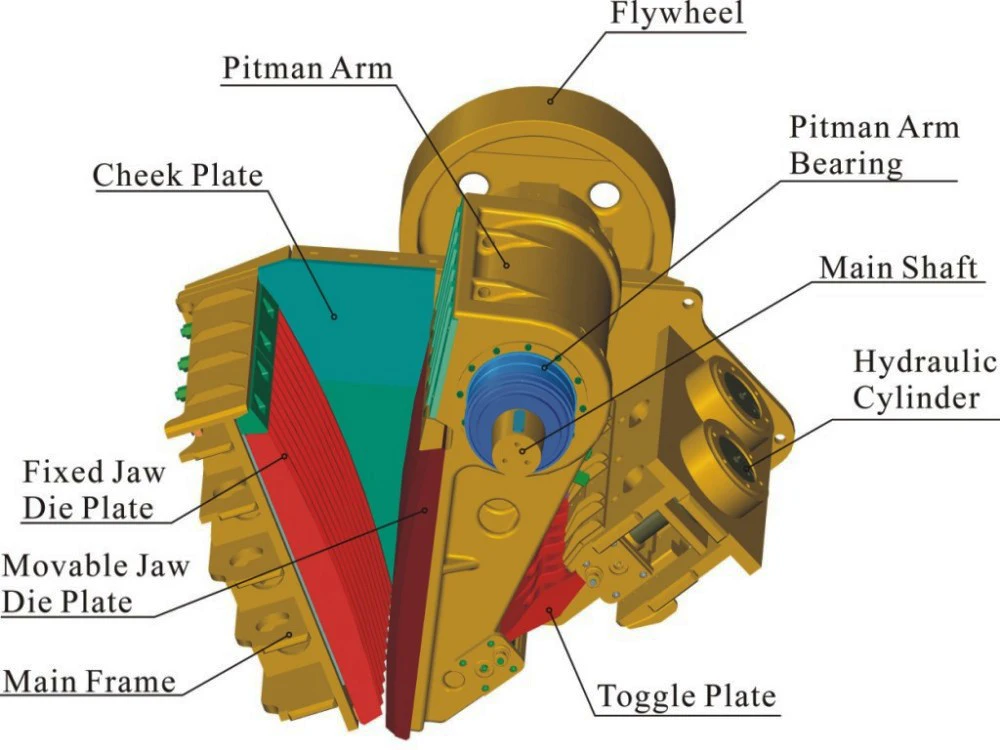

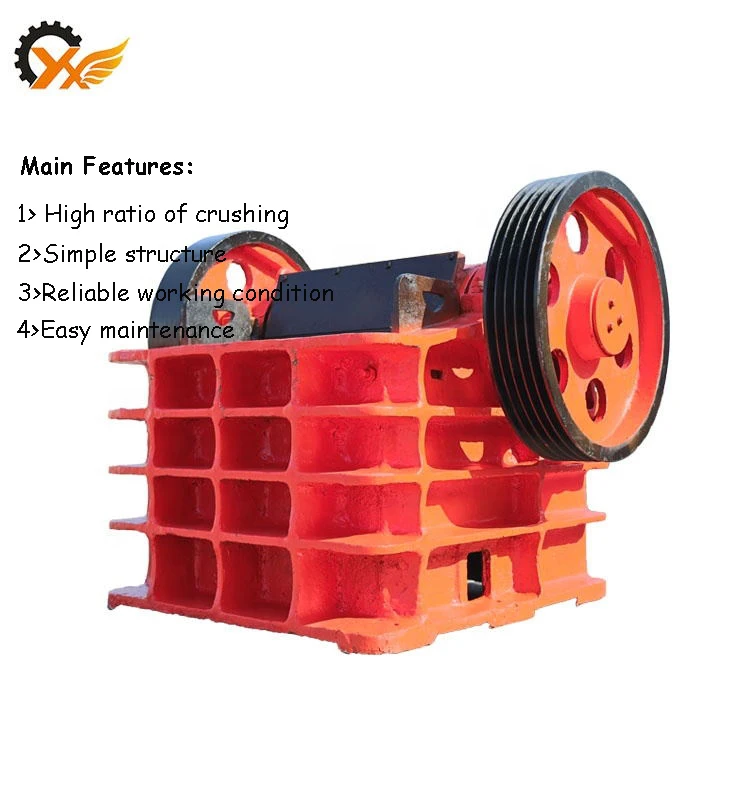

Structure of jaw crusher
A jaw or toggle crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw, called a swing jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker. The volume of cavity between the two jaws is called the crushing chamber.
Product advantages:
1>Select the highest production materials, unique jaw structure, seal guarantee, extend the life of the bearing. 2>High crushing strength, high yield, the use of finite element analysis technology, the crusher has higher strength.
3>Unique flywheel design, unique flywheel design, effectively reduce vibration, machine running more stable.

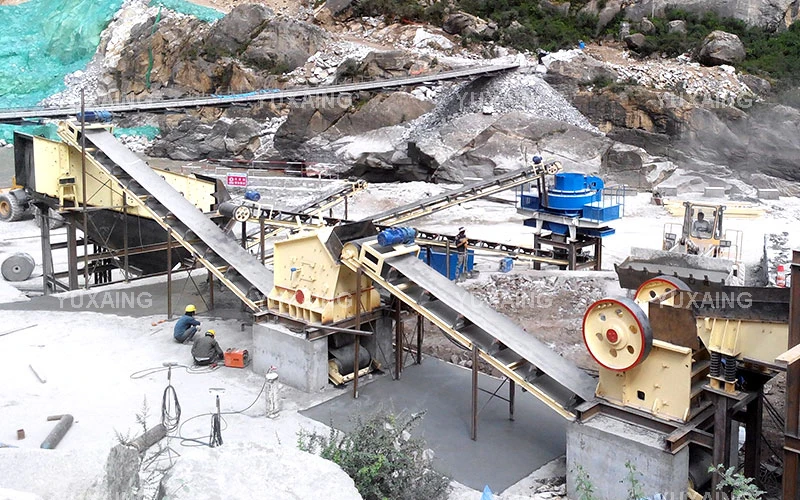

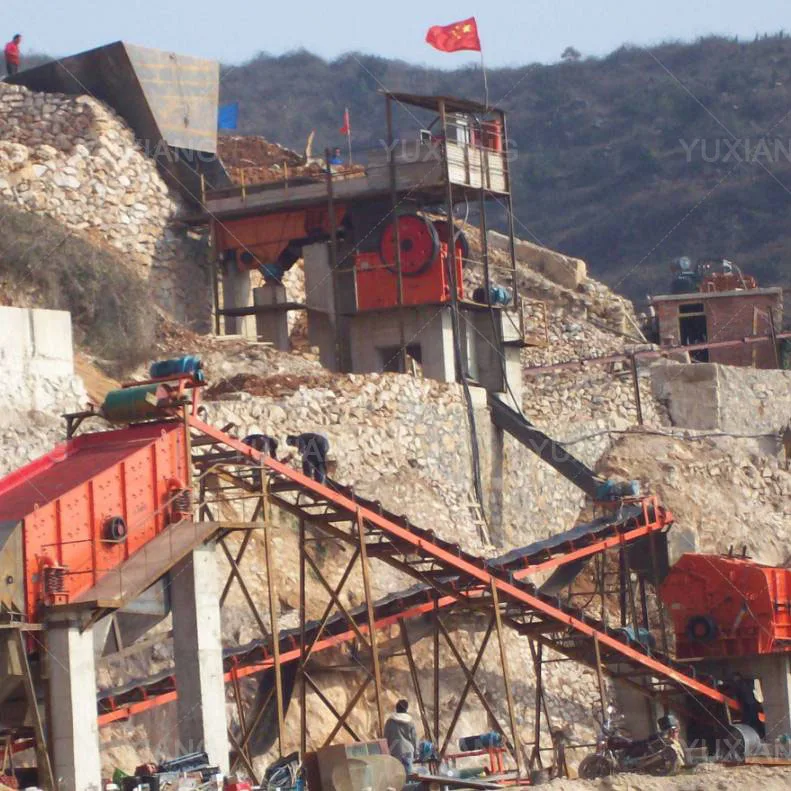

>>>Customer Case<<<
Packing&Shipping
Our services
(1) Guide customers to choose suitable hemp machine to provide advanced, energy-saving and practical technological process.
(2) We are responsible for process flow chart and design.
After-sales service:
(1) Our company will send professional engineers to guide the installation and commissioning of the equipments. In addition, we will design and manufacture products that can be tailored to customers' specific requirements.
(2)The quality we guarantee is one year, except for the wearing parts.
Related Products

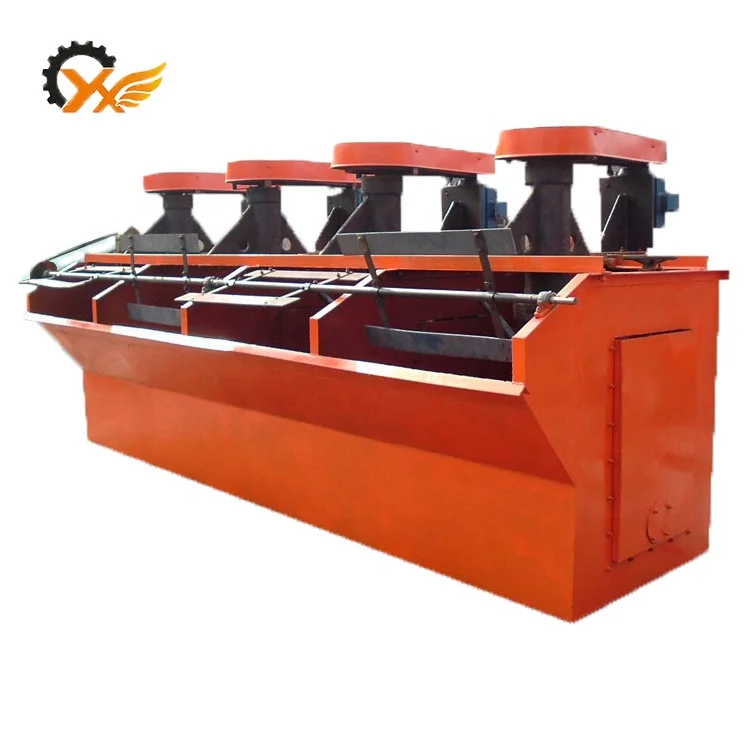

Flotation machine
Flotation machine is the latest design to use the circular tank concept and combines the benefits of circular cells with the unique features of the Minerals mechanism to create the ideal conditions to maximize flotation performance for all roughing, cleaning and scavenging duties.

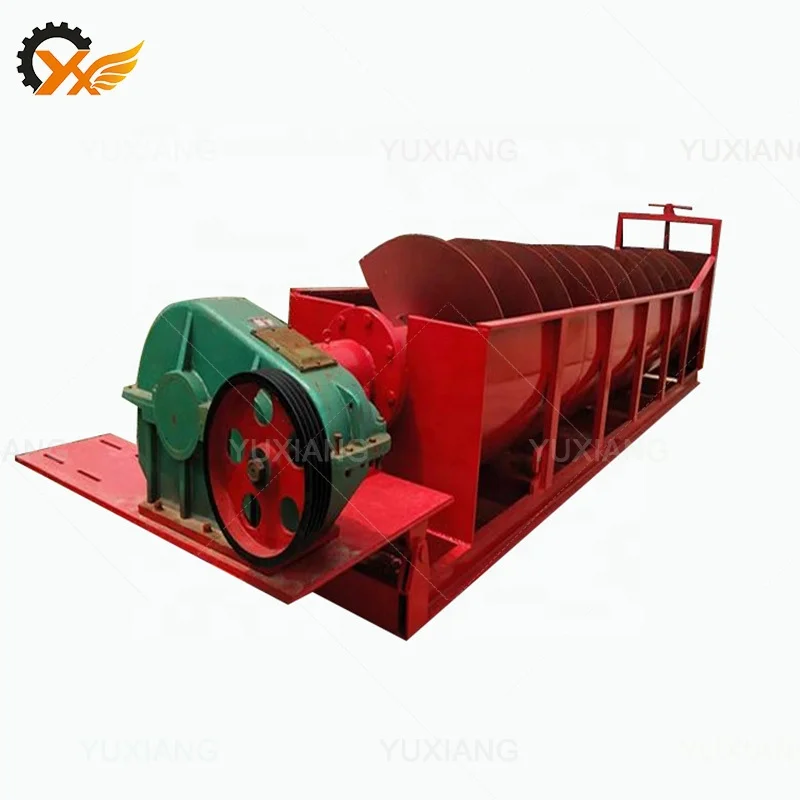

Spiral classifier
Spiral classifier is widely used in ore dressing plant and ball mill to form closed cycle and split flow ore sand, or used in gravity concentrator to grade ore sand and fine mud.
Company Introduction
Gongyi Yuxiang Heavy Machinery Factory has been established for more than 20 years. It is a large and medium-sized heavy machinery manufacturing co., LTD., which integrates r&d, manufacturing and sales. Since its establishment, the use of scientific modern enterprise management methods, excellent product quality and perfect after-sales service, set up a good image at home and abroad.
Our products include crusher series, grinding machine series, drying machine series, charcoal machine series, carbonization furnace series, granulator series. It is widely used in mining, building materials, metallurgy, chemical industry, communications, water conservancy and other industries. Our products are not only sold to more than 20 provinces, cities and autonomous regions, but also exported to more than 10 countries and regions such as Eastern Europe, Middle East, Asia, Africa, North America, South America and Oceania.
Our products include crusher series, grinding machine series, drying machine series, charcoal machine series, carbonization furnace series, granulator series. It is widely used in mining, building materials, metallurgy, chemical industry, communications, water conservancy and other industries. Our products are not only sold to more than 20 provinces, cities and autonomous regions, but also exported to more than 10 countries and regions such as Eastern Europe, Middle East, Asia, Africa, North America, South America and Oceania.
