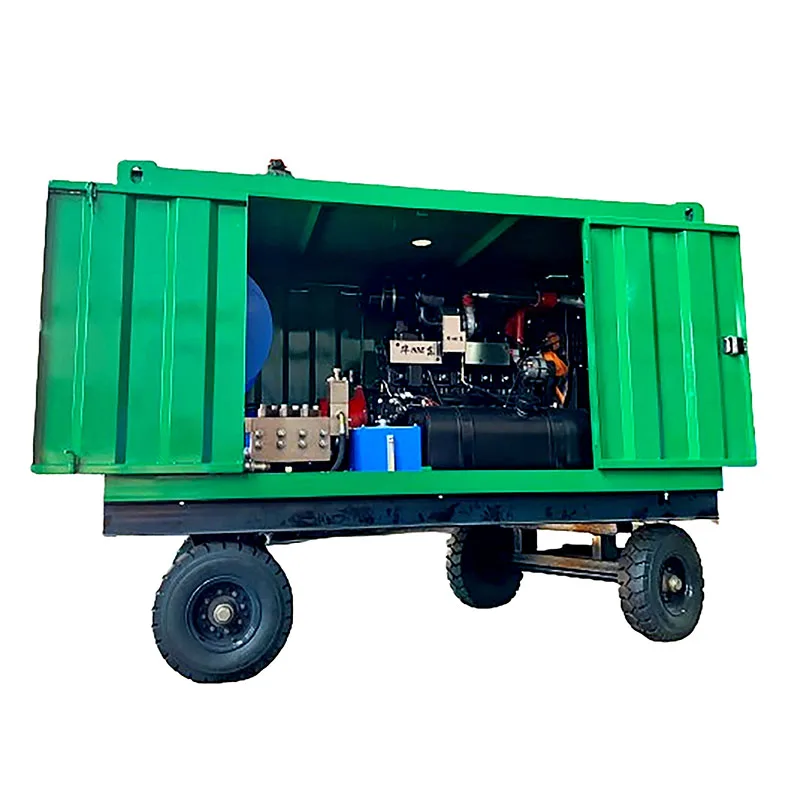

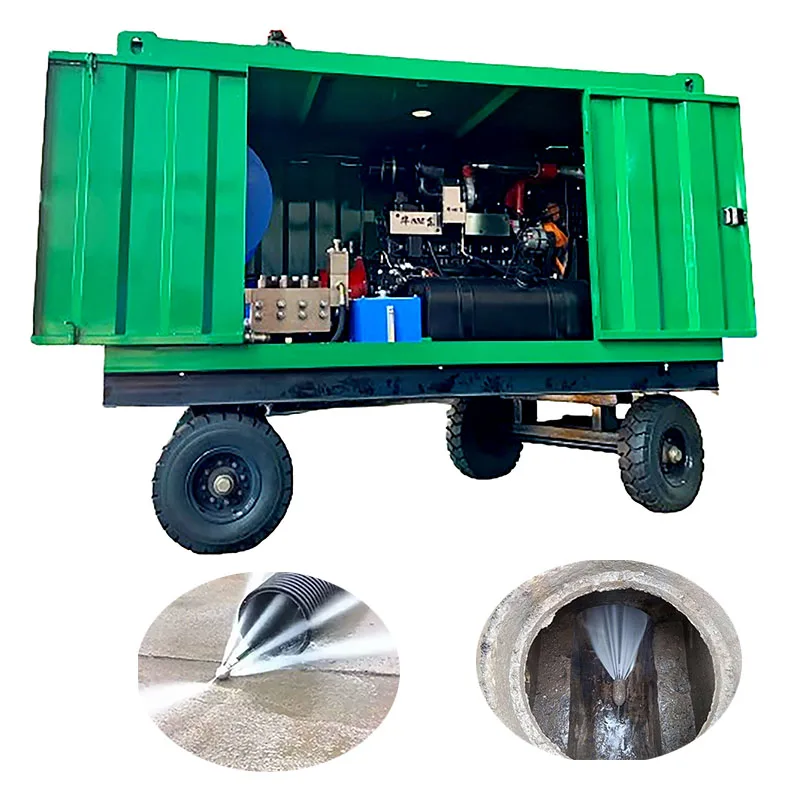

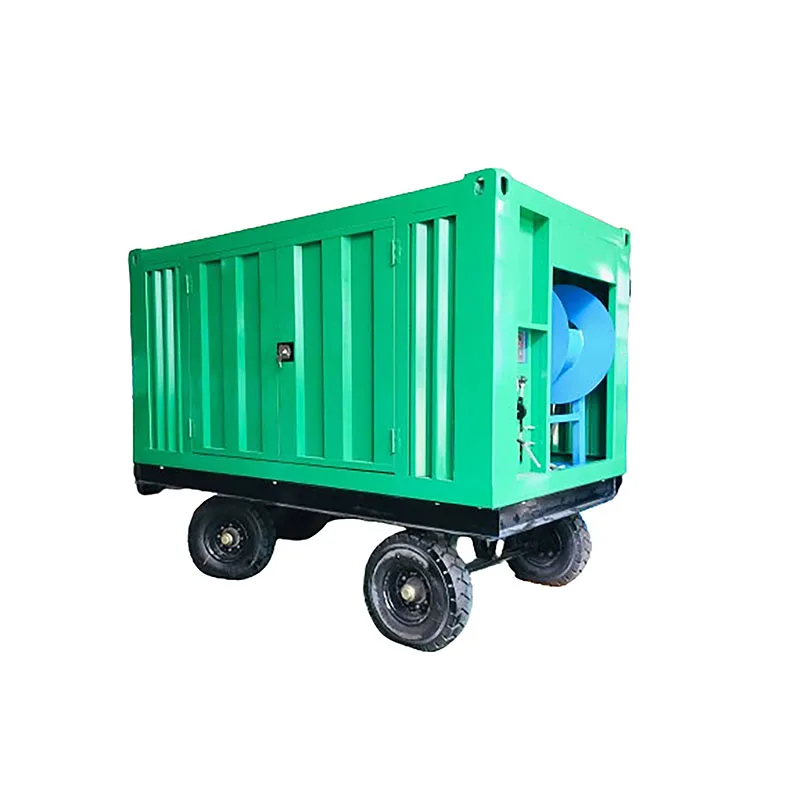

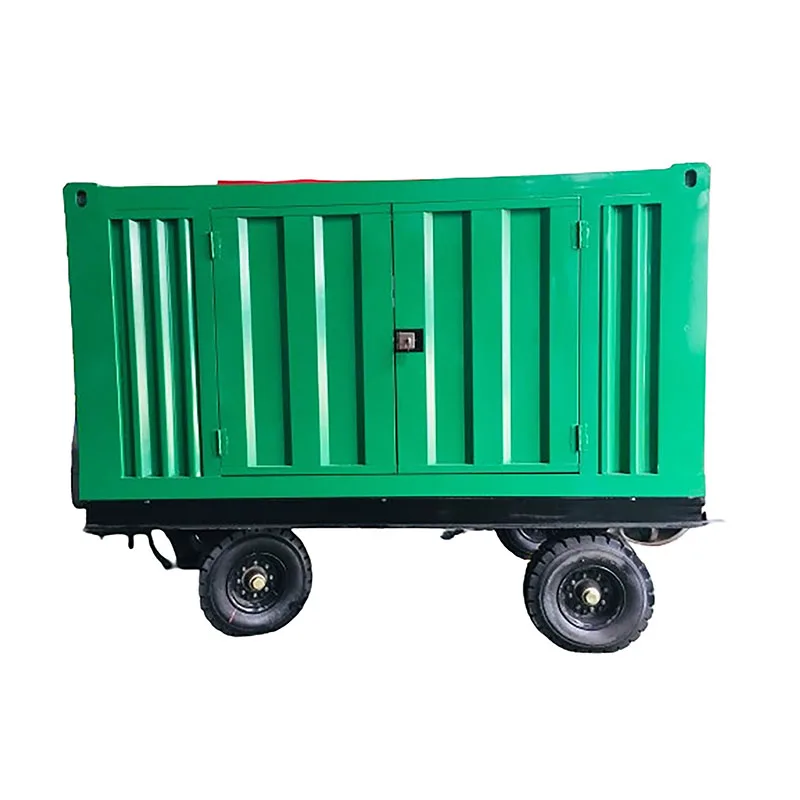

170L 24Mpa Diesel Engine Large Sewer Drain Tube Cleaning High Pressure Water Jetting Machine Hydro Blasting Equipment
- Category: >>>
- Supplier: Zhengzhou Guangyuan Cleaning Equipment Co. Ltd.
Share on (1601269154152):
Product Overview
Description
Product Description

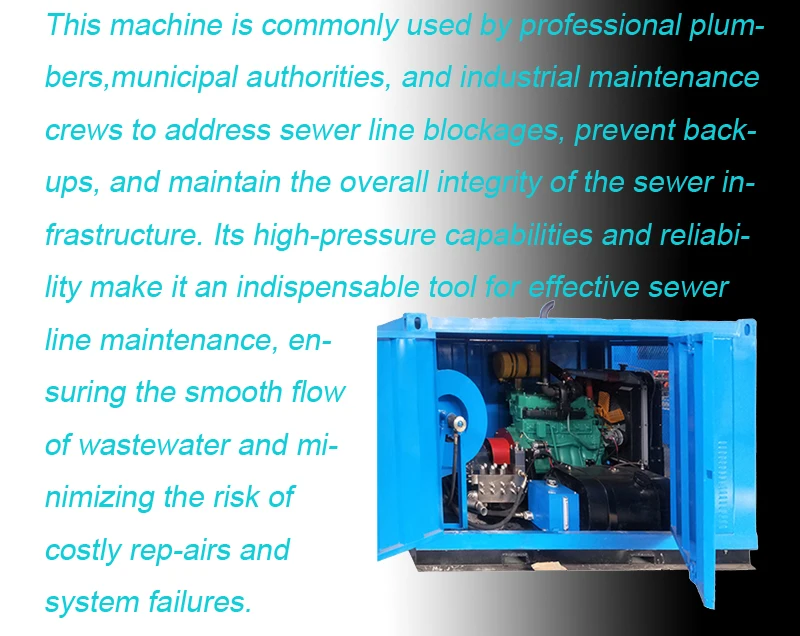

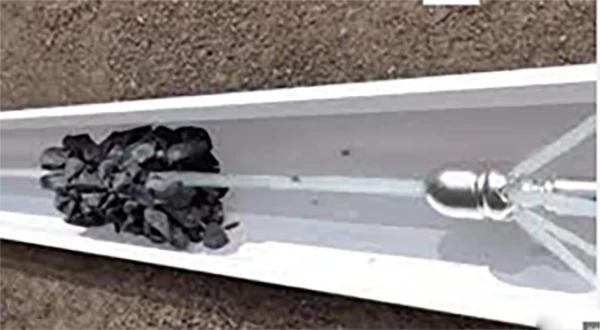

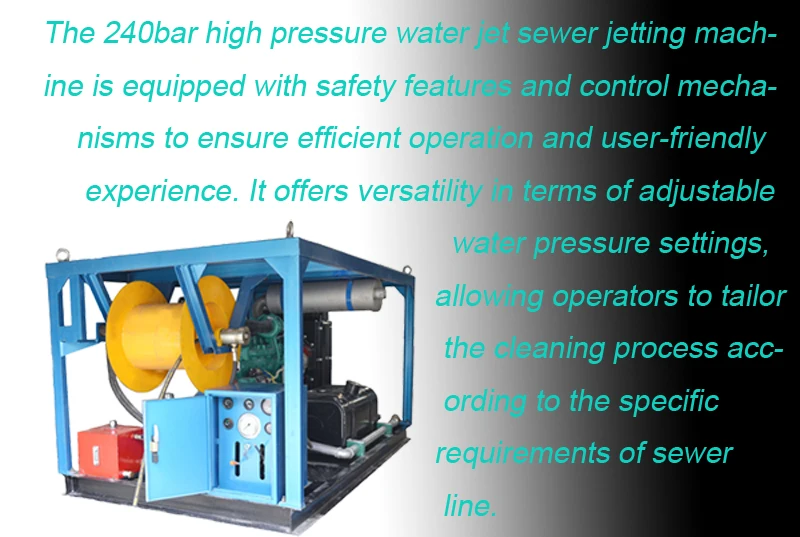

The 240bar 170L/min pipe dredging machine has shown unique advantages when dealing with specific pipe cleaning tasks: 1. High-efficiency flushing ability: Although the pressure is relatively low (240bar), it has a good cleaning effect on soft blockages such as silt and leaf accumulation. The large flow rate of 170L/min ensures fast flushing, especially suitable for large-diameter pipes or occasions where a large amount of water is required for flushing. 2. Powerful dredging without damage: The lower pressure level helps to protect the inner wall of the pipe from damage, and is suitable for cleaning work that requires protection of the pipe material, such as plastic pipes, aging metal pipes, etc.
3. Wide applicability: It is suitable for cleaning urban rainwater drainage systems, residential drainage pipes, agricultural irrigation systems, and cleaning of lighter blockages in industrial pipes. It can effectively handle most dredging needs in daily maintenance. 4. Energy saving and environmental protection: The large flow design reduces the need for extremely high pressure, indirectly saving energy consumption. At the same time, if an electric motor model is used, it is more environmentally friendly and low-noise than a fuel-driven one. 5. Easy operation and simple maintenance: Usually equipped with a convenient operation interface and quick-connect pipe accessories, it is easy to deploy and change the work site quickly, and the maintenance is relatively simple, which reduces the long-term use cost.

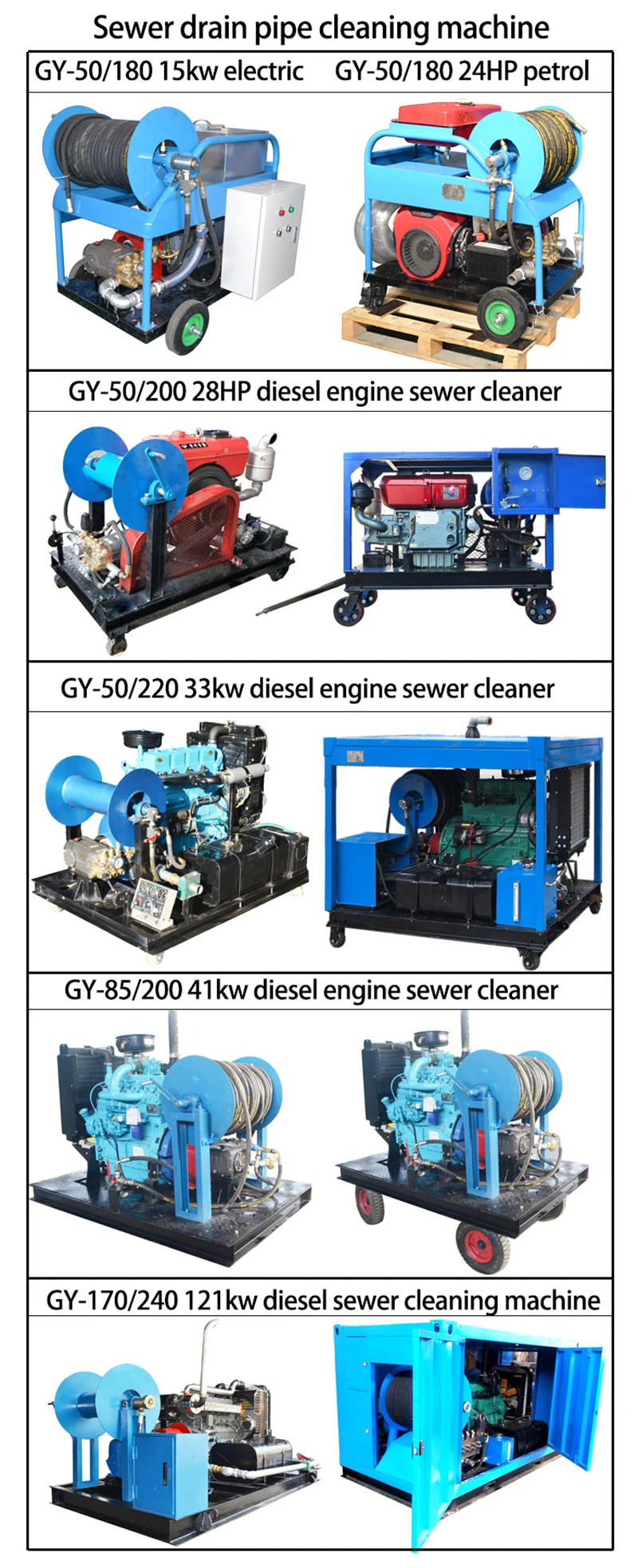

Sewer cleaning machine details:
Model | Rate Pressure | Water Flow | Engine | Sewer Cleaning Dia. |
GY-50/180E | 180bar | 50L | Elec. 15KW | 50-300mm |
GY-50/180G | 180bar | 50L | Gasoline 24HP | 50-400mm |
GY-50/180D | 180bar | 50L | Diesel 28HP | 50-400mm |
GY-85/200 | 200bar | 85L | Diesel 41KW | 50-600mm |
GY-135/210 | 210bar | 135L | Diesel 84KW | 50-800mm |
GY-170/240 | 240bar | 170L | Diesel 110KW | 50-1000mm |
GY-170/280 | 280bar | 170L | Diesel 121KW | 50-1200mm |

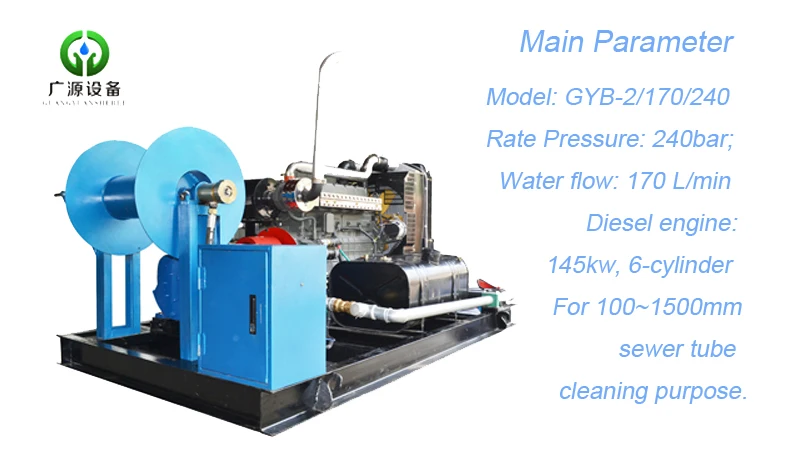

Specification
Model | GYB-2-170/240 |

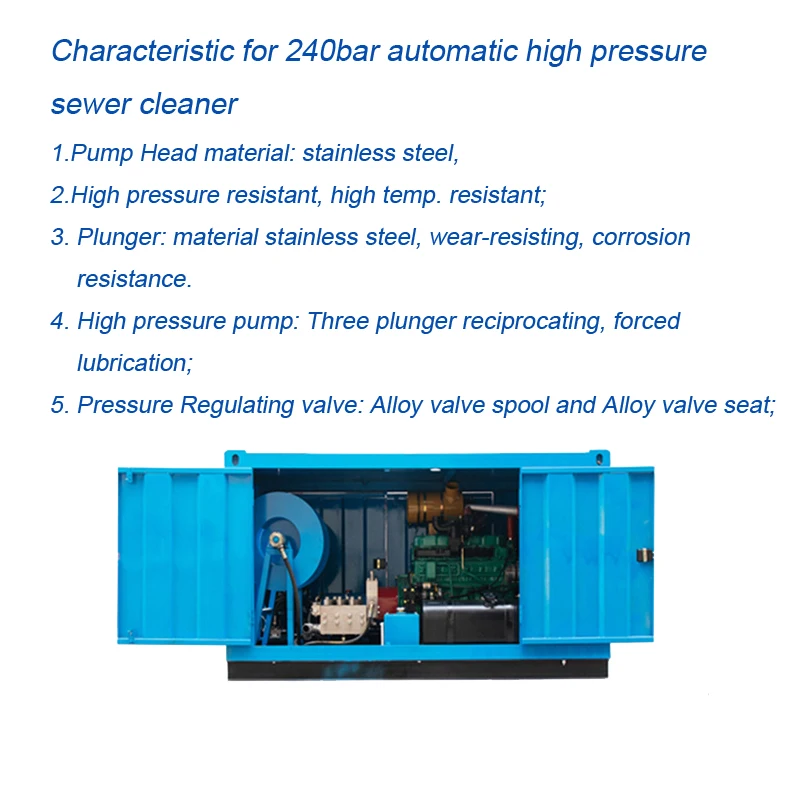

High pressure pump | Triple plunger pump Pump head material: copper Plunger material:ceramic Plunger diameter: 45mm Pump speed: 405rpm |
Rate Pressure | 10~240 bar / 3200 psi |
Water flow | 170 L/min |

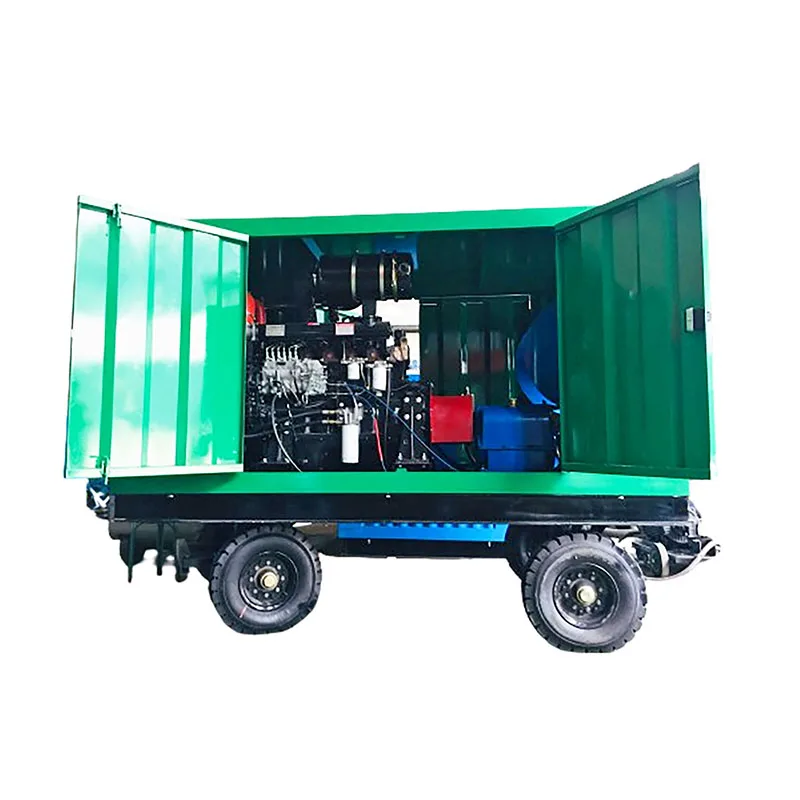

Diesel engine | 145kw, 6-cylinder |
Hose reel | Automatic hydraulic reel |
Cleaning pipe diameter | 100~1500mm sewer jetting machine |
High pressure hose | 80-100meters |

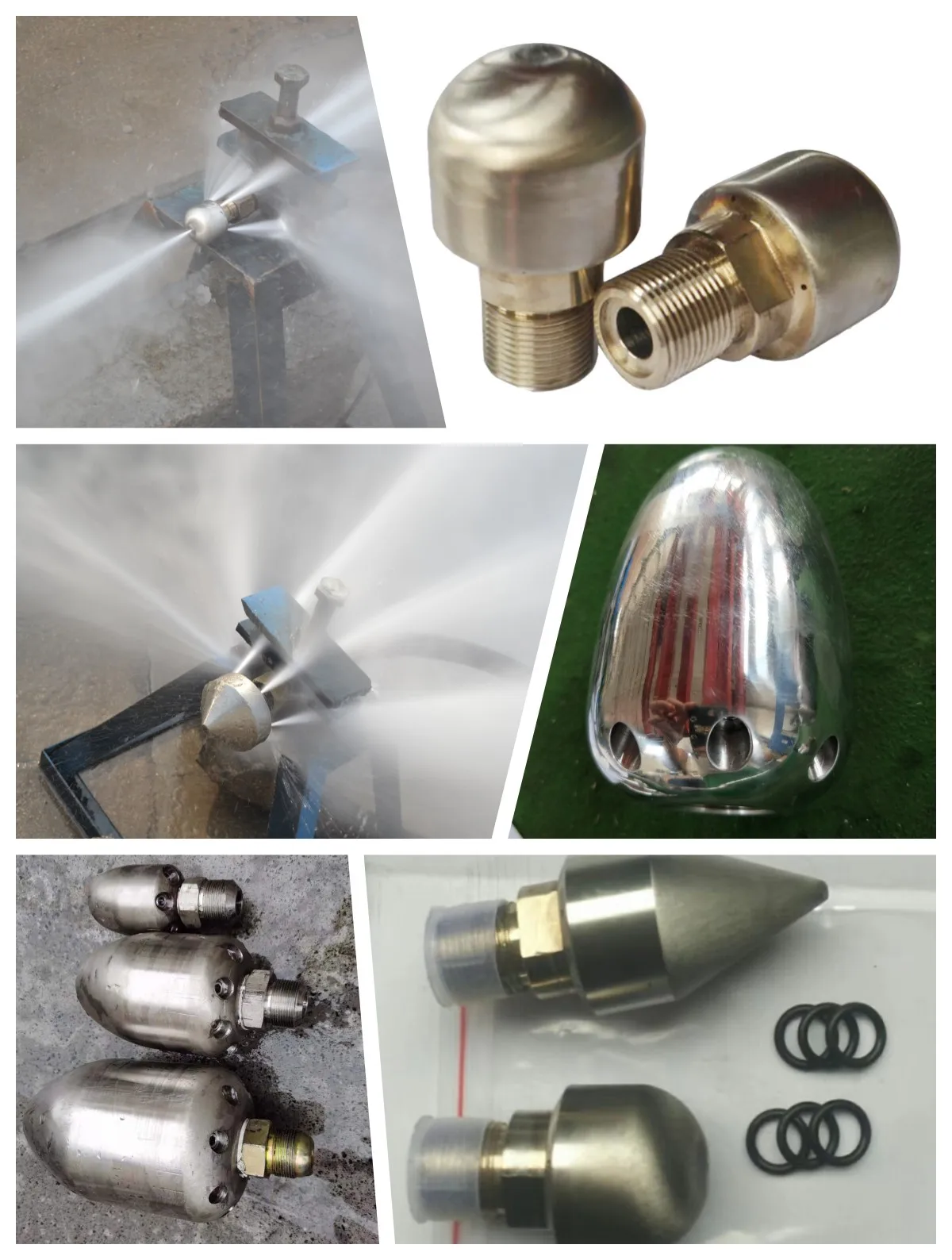

Pipe cleaning nozzle | DN40, DN50,DN80, rotating nozzle for sewer drain pipe cleaning 240bar automatic high pressure sewer cleaner |
Application

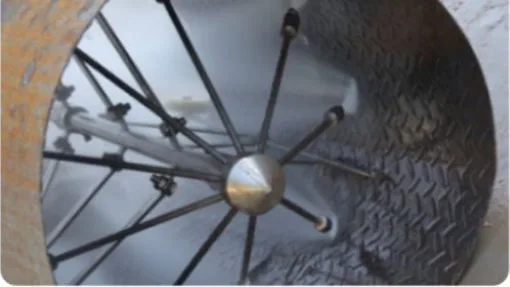

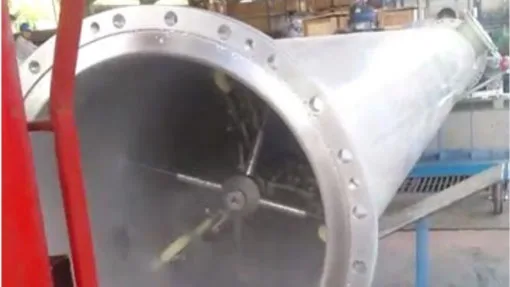

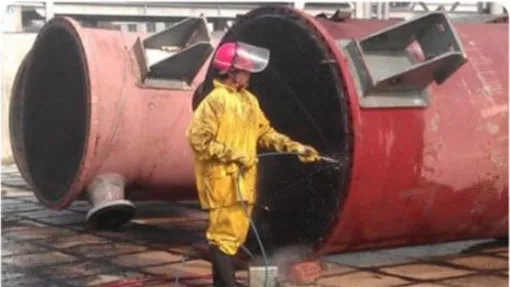

1.Industrial tube cleaning;
2.Boiler pipe cleaning;
3.Pipe pressure test, valve / hose pressure test, hydro pressure test, etc;

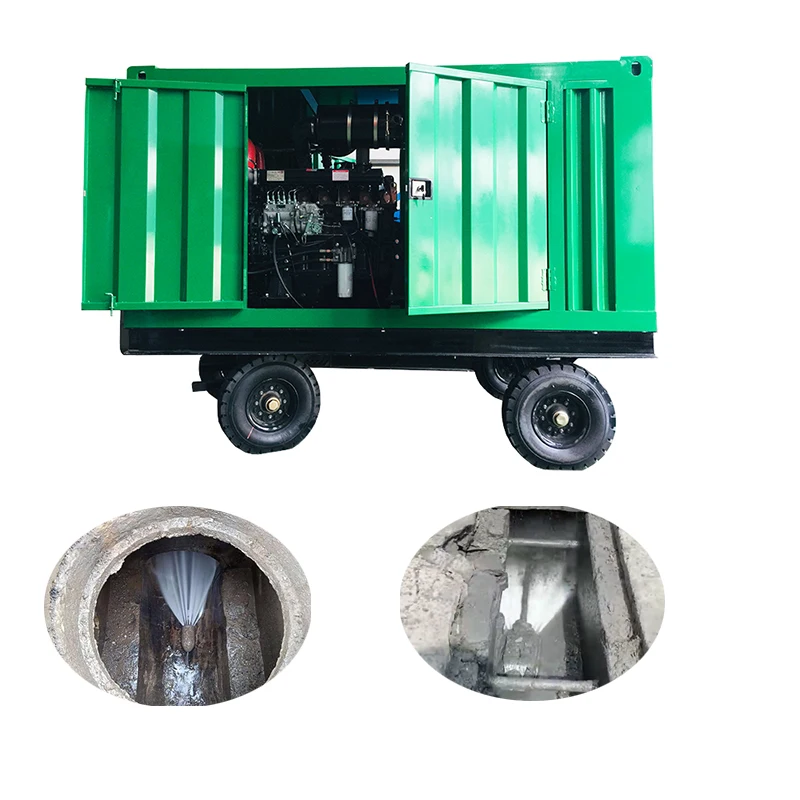

4.Municipal pipe dredging cleaning;
5.Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom;
6.Water injection.
2.Boiler pipe cleaning;
3.Pipe pressure test, valve / hose pressure test, hydro pressure test, etc;
4.Municipal pipe dredging cleaning;
5.Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom;
6.Water injection.
Customized service
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhengzhou GuangYuan Cleaning Equipment Co.,Ltd. Is a manufacturer for high pressure water jetting machine, founded in 2012, is committed to explore the field of a high pressure water jet market brand. Our company is located in Henan Province, China.
We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, High pressure cleaner, high pressure pump, cleaning system customization etc. Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. 15kw electric sewer pipeline cleaner, which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc. Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world. We sincerely look forward to cooperating with new and old clients.
Certifications
FAQ
1.Are you trading company or manufacturer?
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
--We are manufacturer here for over 15 years. Producing commercial high pressure cleaner.
2. How to choose suitable model?
-- You can confirm your working purpose request, we have rich experience on water jetting field, and also we have our own Professional technical team to give you better suggest and recommend;
3.What kind of engine we can choose?
-- Here has Electric motor drive, Diesel engine, Petrol engine; you can freely choose it.
4.What's your warranty?
--Warranty is one year.
5.How long is your delivery time?
--It's according to the model you order. If has in stock,within 2 days; if without stock, within 15 days.
6.What's your payment terms?
-- We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment <=USD 5000, suggest 100% in advance;
Payment >=USD 5000, suggest 40% in advance, balance before shipment.
7.What Certificate do you have?
--We can offer CO ( Certificate of Origin), FA(Form A), FE, FF; CE certificate,
-- Or if you have other request certificate, pls confirm with us.
8.Which is your shipping port?
--Our nearest sea port is Qingdao port, also can deliver from other port if you request, such as Ningbo, Guangzhou, Shanghai, Tianjin, etc.
9.What's the shipping way?
--As machine is little big, suggest delivery by sea, if accessories or spare parts, suggest by express (DHL, Fedex, etc).
