Sanitary Stainless Steel SS304/SS316 Food Grade Rotary Lobe Rotor Pump for Syrup Honey Chocolate Grease
- Category: >>>
- Supplier: Shanghai Cixi Instrument Co. Ltd.
Share on (1601269155262):
Product Overview
Description
Products Description

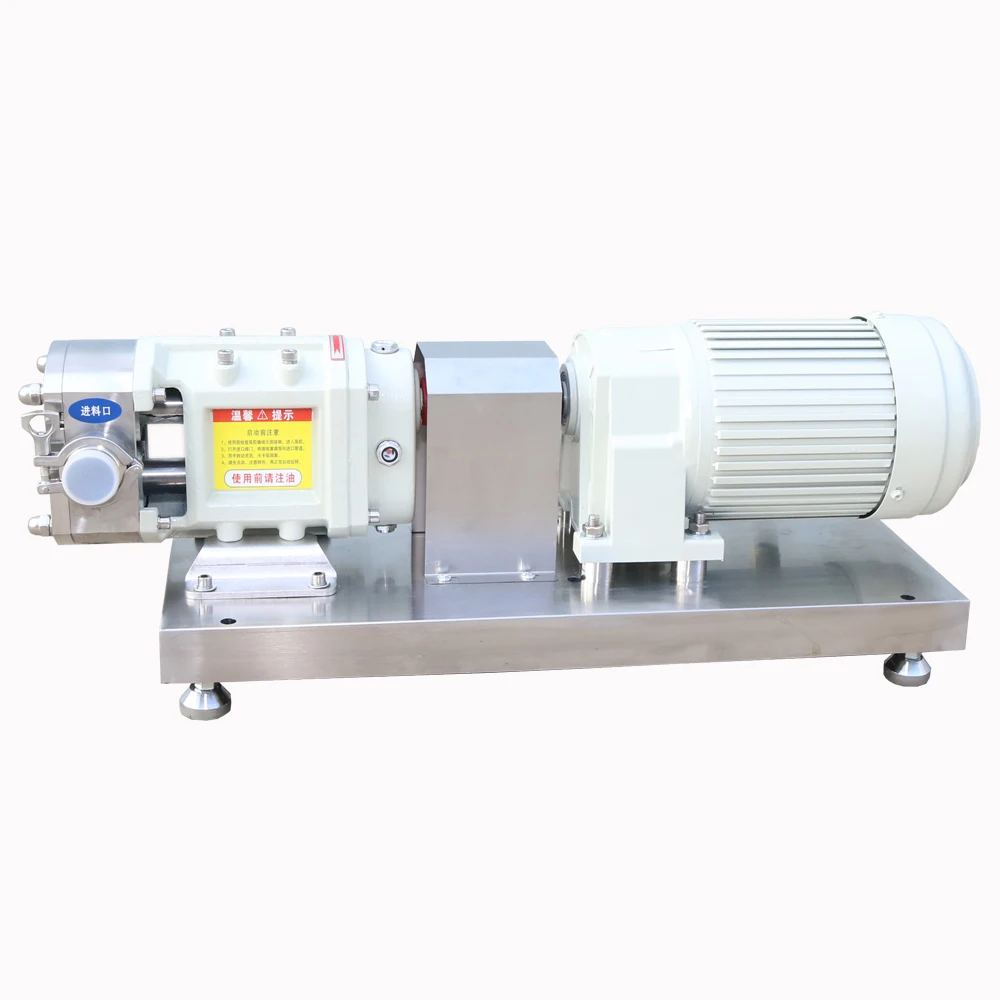

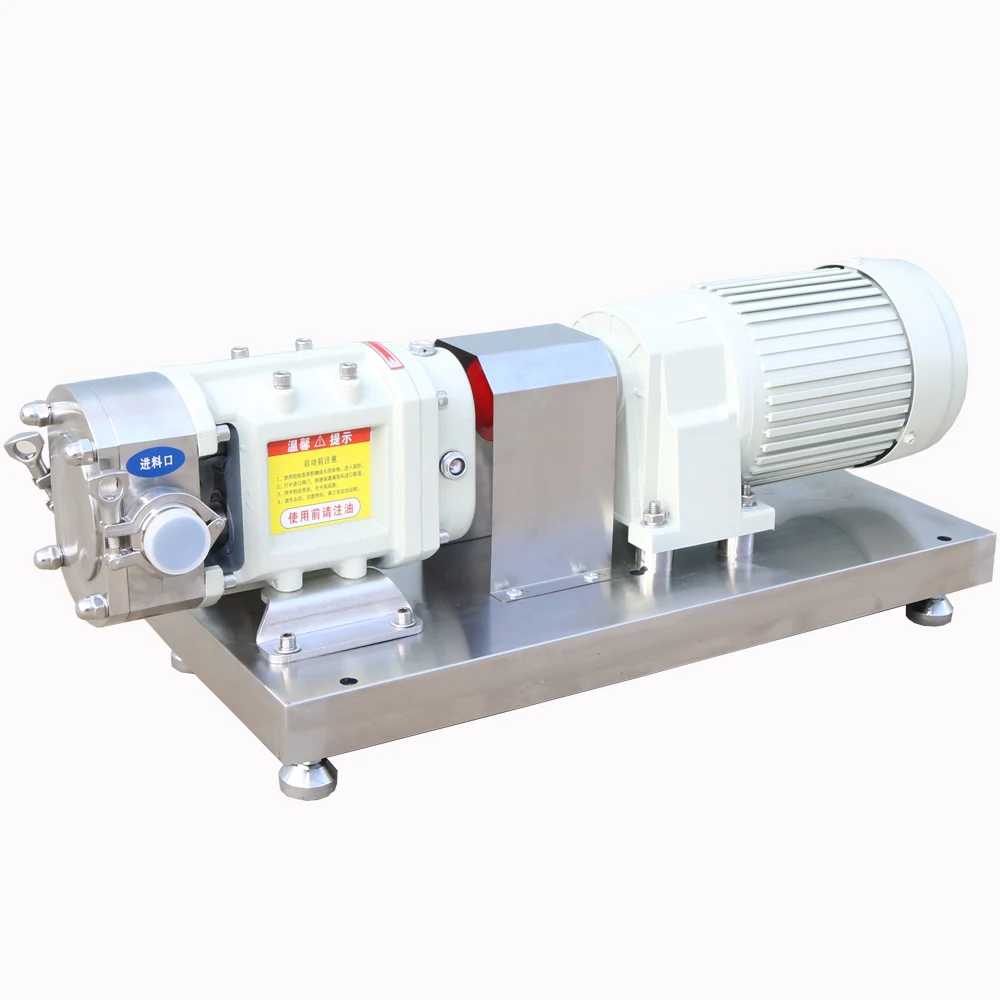

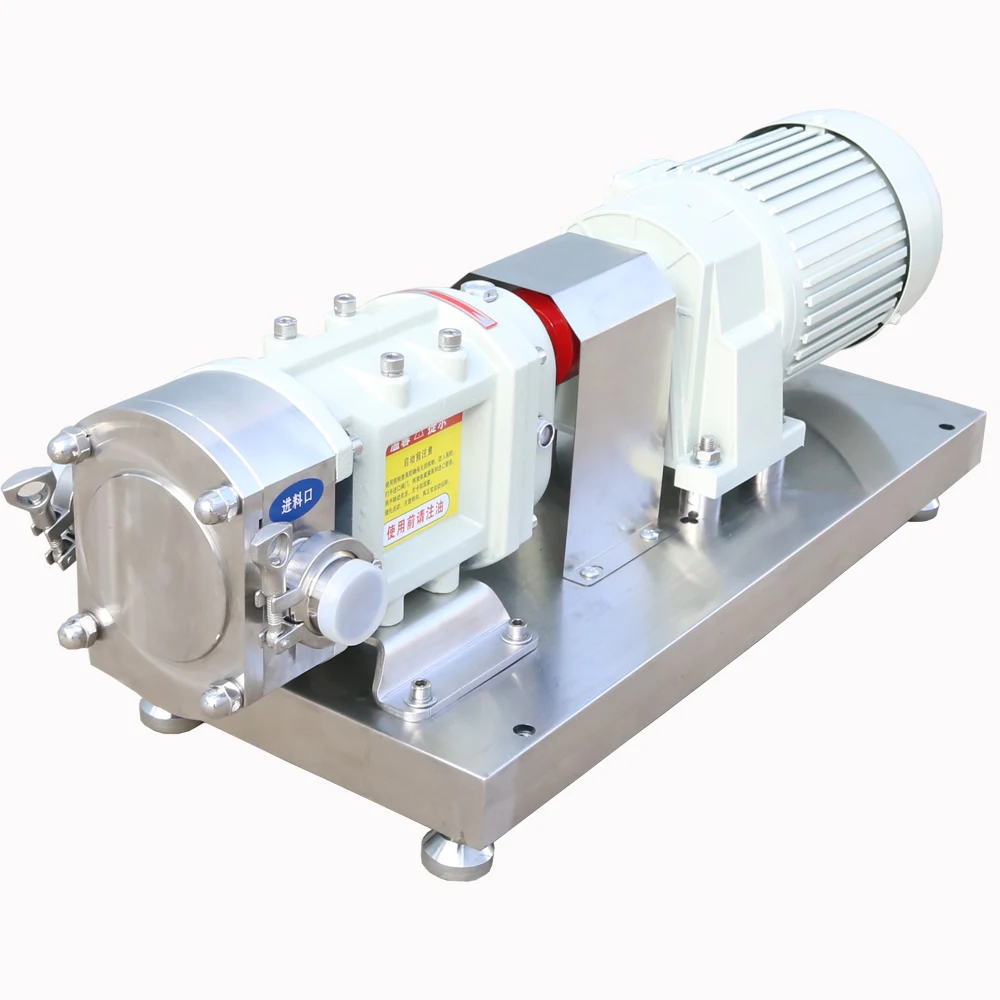

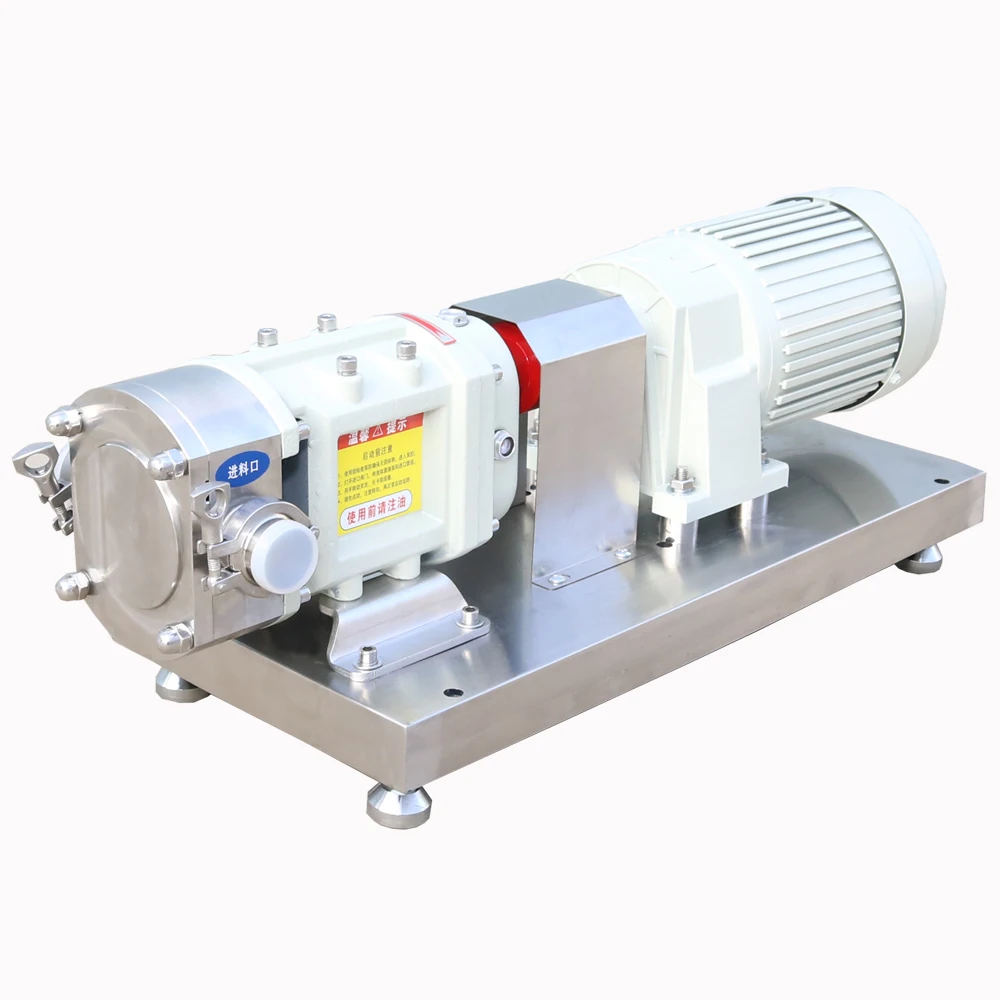

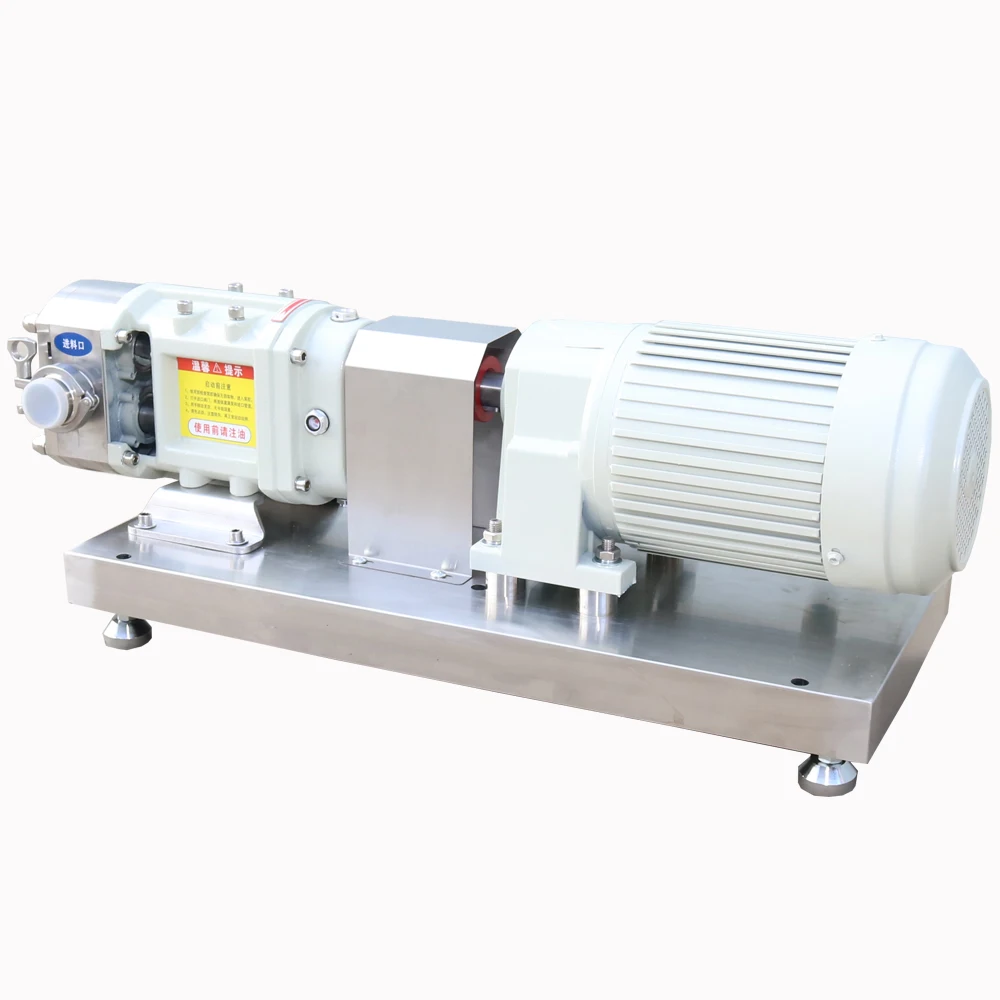

High viscosity lobe rotor pump
A high viscosity rotary pump is a pump specifically designed for transporting high viscosity liquids, which delivers fluids through one or more pairs of rotating rotors. The design of this pump enables it to have good efficiency and stability in handling high viscosity fluids, and is commonly used in industries such as petroleum, chemical, food, and pharmaceuticals. It is suitable for transporting fluids such as syrup, resin, grease, coatings, etc.
[Parameters] | ||
Material | Stainless Steel(304 and 316L options) | |
Rated power (kw) | 0.55KW-30kw, 0.55KW-30KW | |
Rated flow rate (m³/ H) | 7m³/ H-1000m³/ H | |
Rated head (m) | 10m-60m | |
Outlet Size | 32MM-102MM | |
Static seal | silicone rubber, fluorine rubber, PTFE, EPDM | |
Voltage (V) | 210V-460V | |
Speed | 2850/3440 r/min | |
Connection Form | Clamp,thread,flange,DIN,SMS,RJT,3A | |
Temperature | 120℃/248°F | |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage | |
Package | Cartons without pallet Cartons with pallet Or as buyer's requirements | |
characteristic:
Strong adaptability: capable of transporting liquids with different viscosity ranges, effectively handling fluids from low viscosity to high viscosity.
Low shear force: During the pumping process, the shear force on the fluid is relatively low, making it suitable for conveying materials that are easily damaged by shear and maintaining the physical and chemical properties of the fluid.
Strong self-priming ability: Some high viscosity rotary pumps have self-priming function and can transport media containing bubbles.
Stable flow rate: The flow rate is proportional to the rotational speed and can be precisely controlled, making it suitable for situations where stable flow rate is required.
Compact structure: Small footprint, easy installation and maintenance.
Low shear force: During the pumping process, the shear force on the fluid is relatively low, making it suitable for conveying materials that are easily damaged by shear and maintaining the physical and chemical properties of the fluid.
Strong self-priming ability: Some high viscosity rotary pumps have self-priming function and can transport media containing bubbles.
Stable flow rate: The flow rate is proportional to the rotational speed and can be precisely controlled, making it suitable for situations where stable flow rate is required.
Compact structure: Small footprint, easy installation and maintenance.
Application scenarios:
Food industry: Conveying high viscosity materials such as honey, chocolate sauce, jam, etc.
Chemical industry: Processing liquids such as resins, adhesives, paints, etc.
Pharmaceutical industry: transporting ointments, concentrates, etc.
Petroleum industry: used for transporting high viscosity petroleum products such as heavy oil and lubricating oil.
Chemical industry: Processing liquids such as resins, adhesives, paints, etc.
Pharmaceutical industry: transporting ointments, concentrates, etc.
Petroleum industry: used for transporting high viscosity petroleum products such as heavy oil and lubricating oil.
