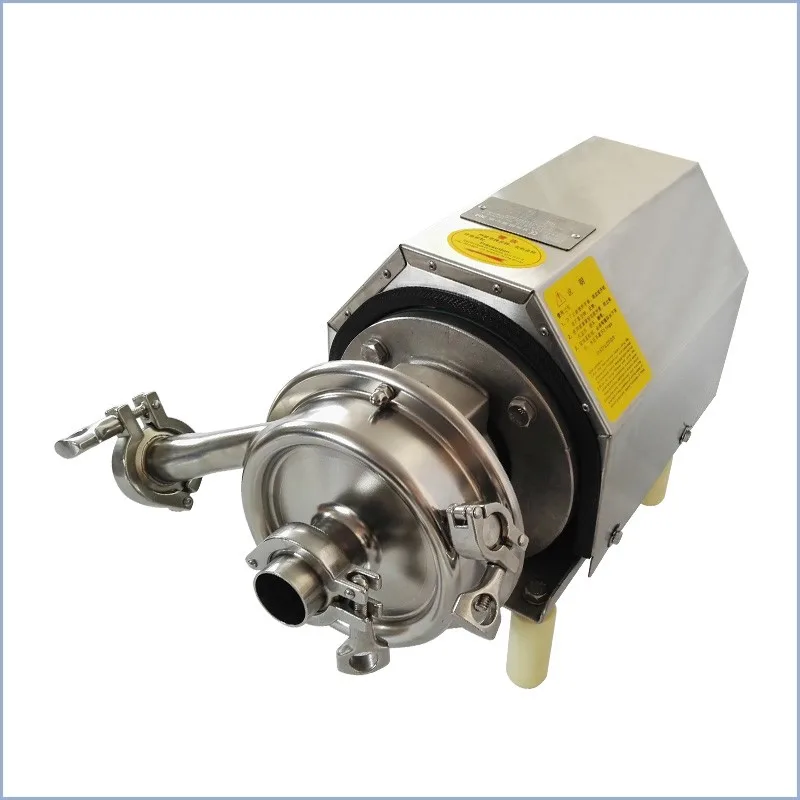

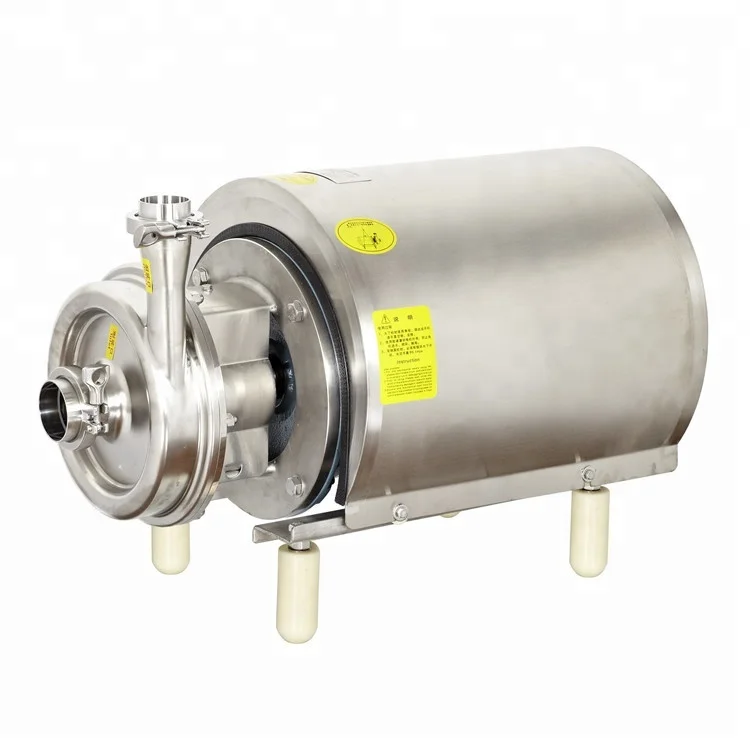

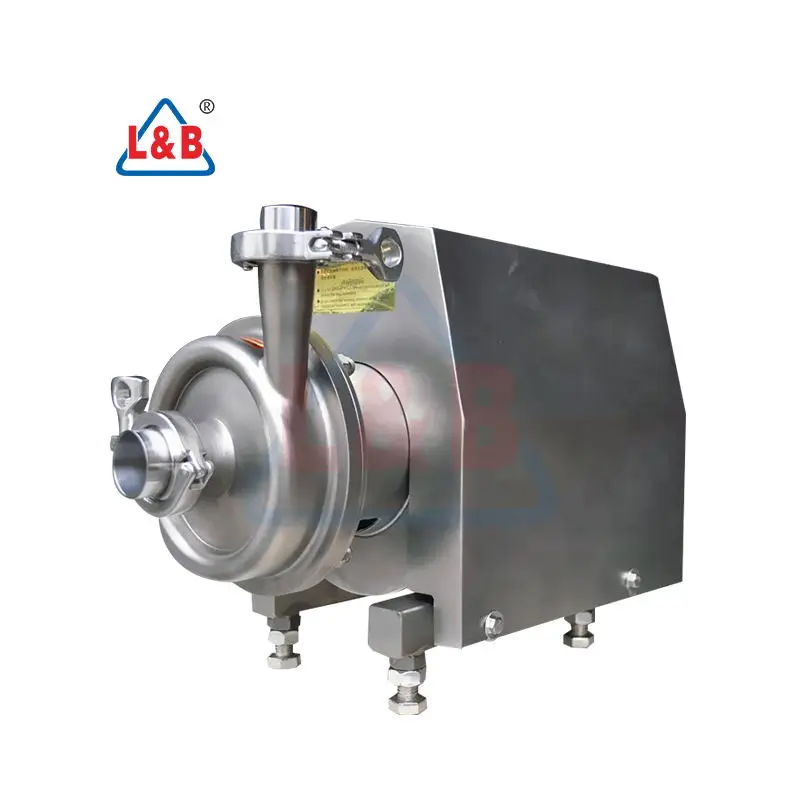

Sanitary Stainless Steel Centrifugal Pump for Liquid Transfer Beverage Wine Milk Alcohol
- Category: >>>
- Supplier: Zhejiang L&b Machinery Co. Ltd.Zhejiang Ltd.
Share on (1601269191955):
Product Overview
Description
Product Description
low viscosity liquid centrifugal water transfer pump for milk
Name :Centrifugal water pump
Material:ss304 ss316 stainless steel
Model:BLS-LXB
Function:DELIVERY
Brand name:BLS
Certificate:CE, ISO9001,
Advantages:high quality and favorable price and 20years professional manufacture
Delivery time:Normally 15-20 workdays
Name :Centrifugal water pump
Material:ss304 ss316 stainless steel
Model:BLS-LXB
Function:DELIVERY
Brand name:BLS
Certificate:CE, ISO9001,
Advantages:high quality and favorable price and 20years professional manufacture
Delivery time:Normally 15-20 workdays
Function and Feature:

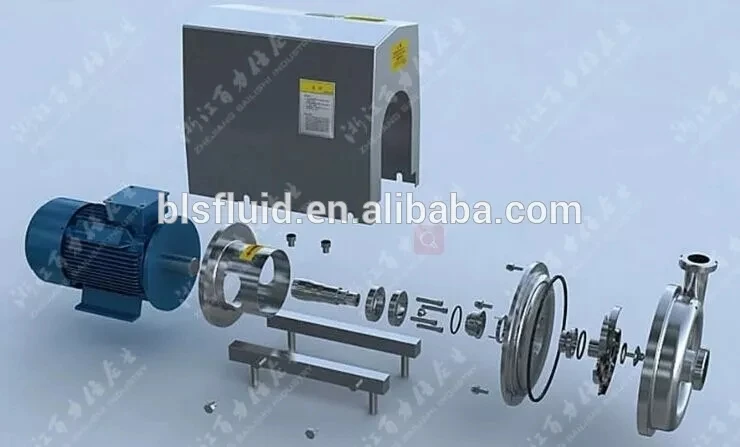

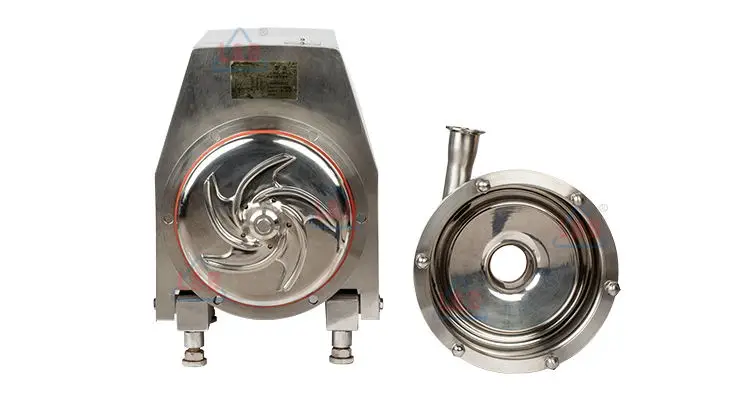

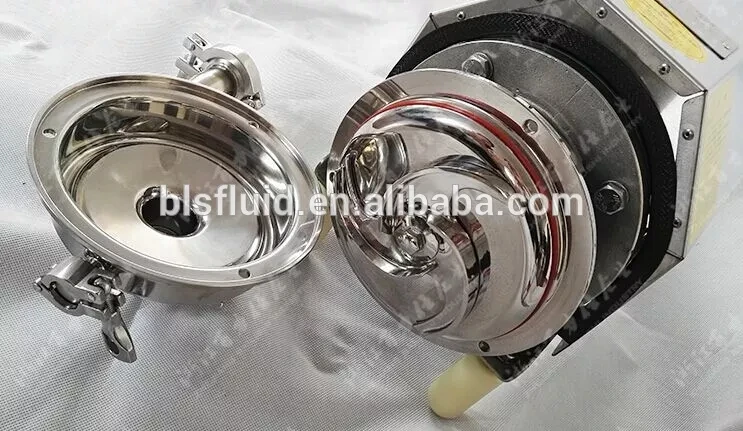

This pump is mainly composed of pump body, pump deck, motor etc.
Each part link with nuts.
At the bottom of pump deck, the foot of pump can be adjusted, it convenience setup, don’t need static setup foundation.
In process of setup can according with different needs to setup outline pipe vertical or ration with 60
This series pump in process of design adopt smooth transition, rigidity structure, think wall design.
Technical Parameter
Model | Capacity (Ton/Hour) | Lift(m) | Power(kw) | Speed(RPM) |
BLS3-15 | 3 | 15 | 0.75 | 2800 |
BLS3-20 | 3 | 20 | 1.1 | 2800 |
BLS5-24 | 5-40 | 24 | 1.5 | 2800 |
BLS5-32 | 5-40 | 32 | 2.2 | 2800 |
BLS10-24 | 10 | 24 | 2.2 | 2800 |
BLS10-32 | 10 | 32 | 3 | 2800 |
BLS15-24 | 15 | 24 | 3 | 2800 |
BLS20-24 | 20 | 24 | 4 | 2800 |
BLS20-35 | 20 | 35 | 5.5 | 2800 |
BLS30-24 | 30 | 24 | 5.5 | 2800 |
BLS30-35 | 30 | 35 | 7.5 | 2800 |

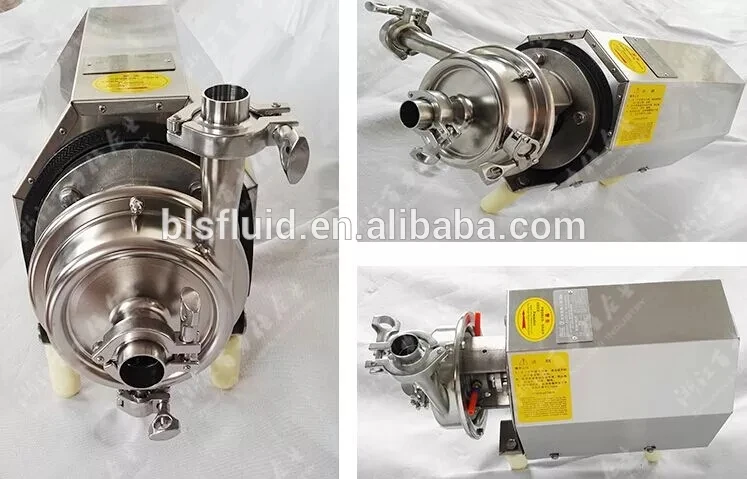

Detailed Images

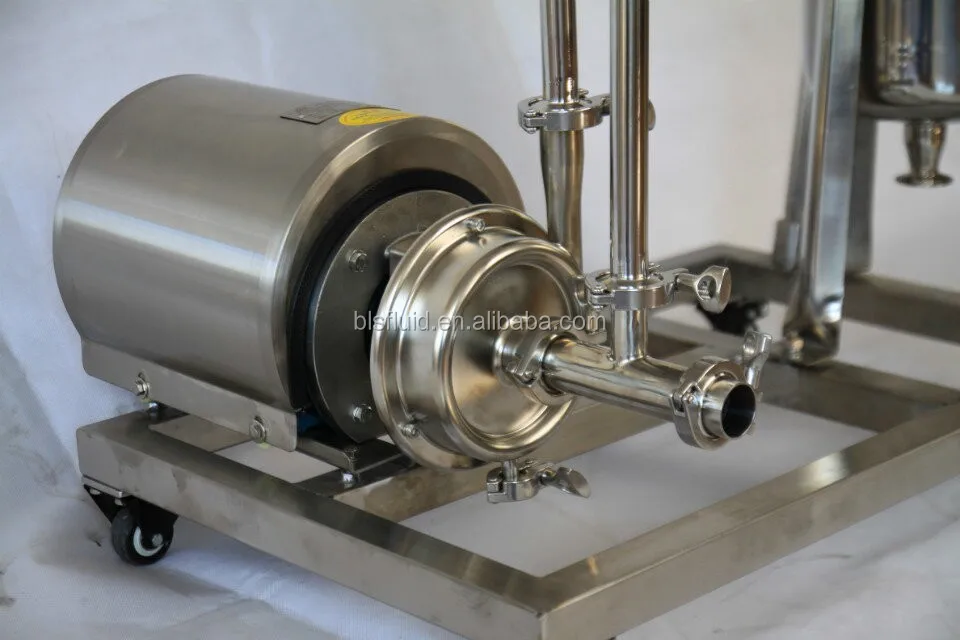

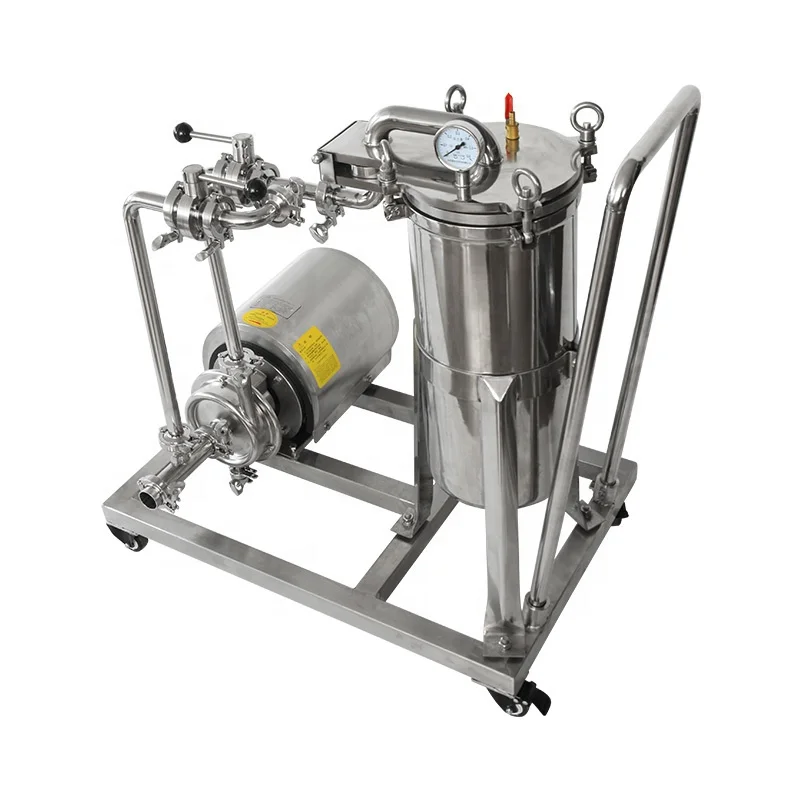

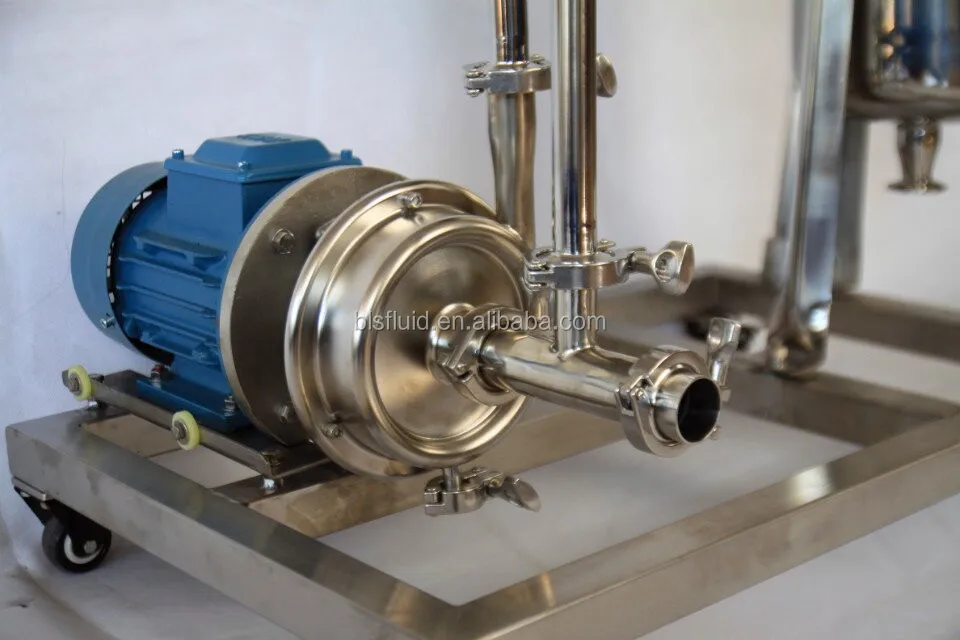

the cntrifugal can be connected with the filter to transfer the liquid

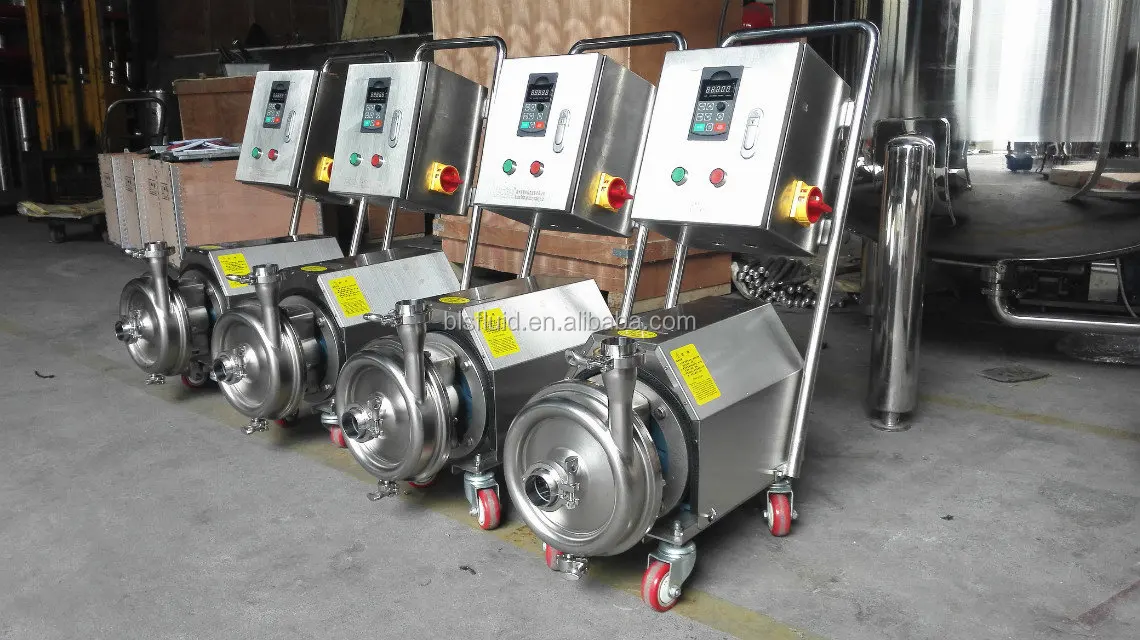

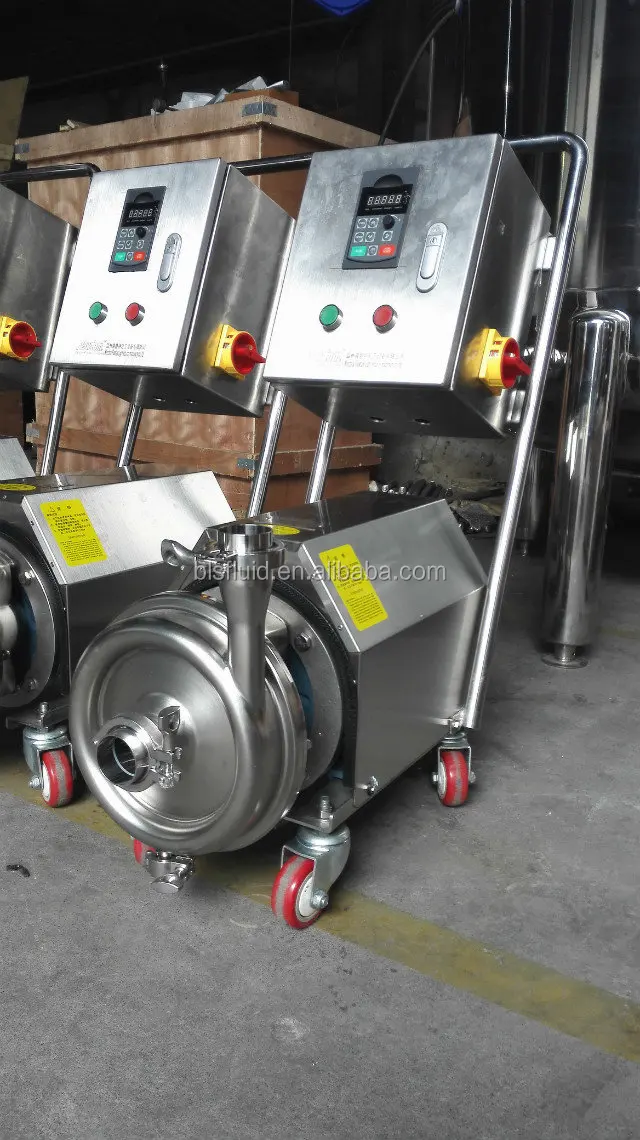

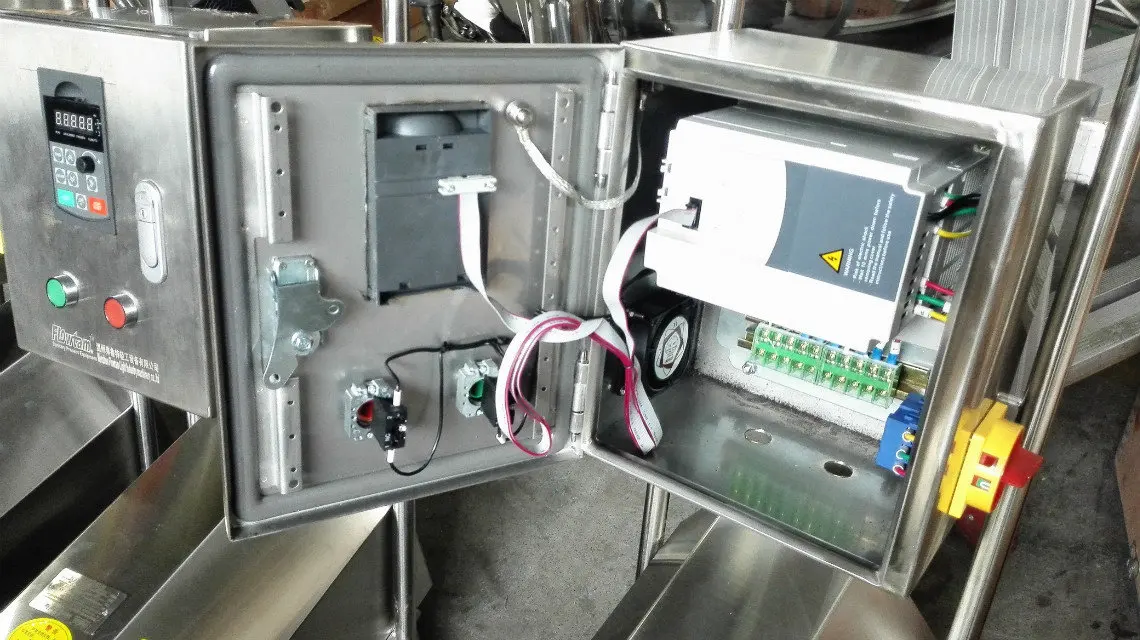

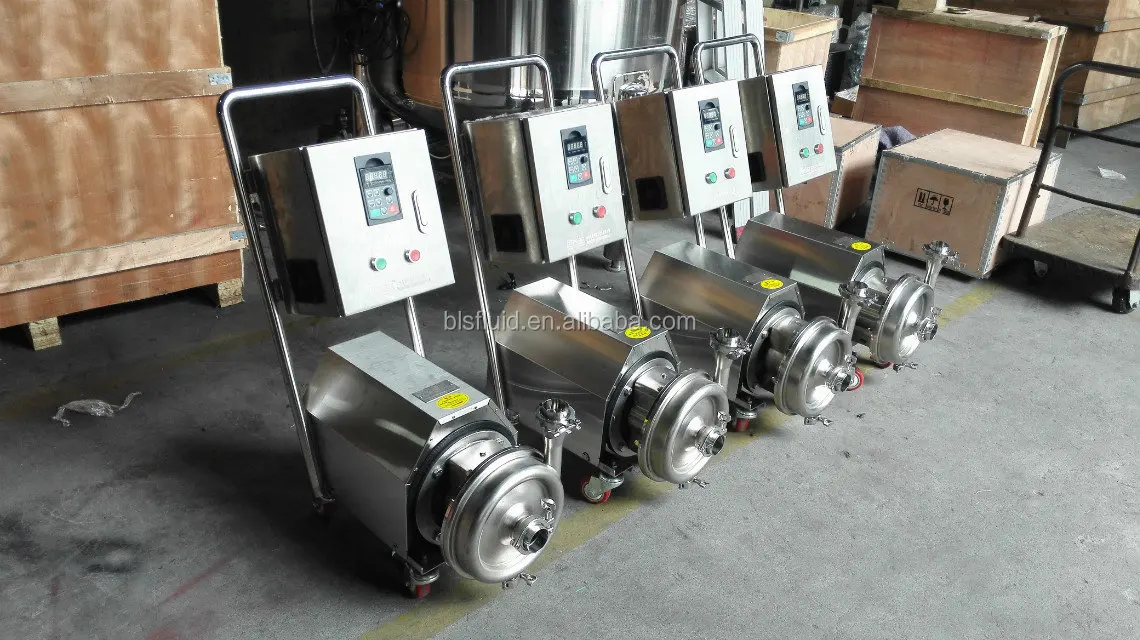

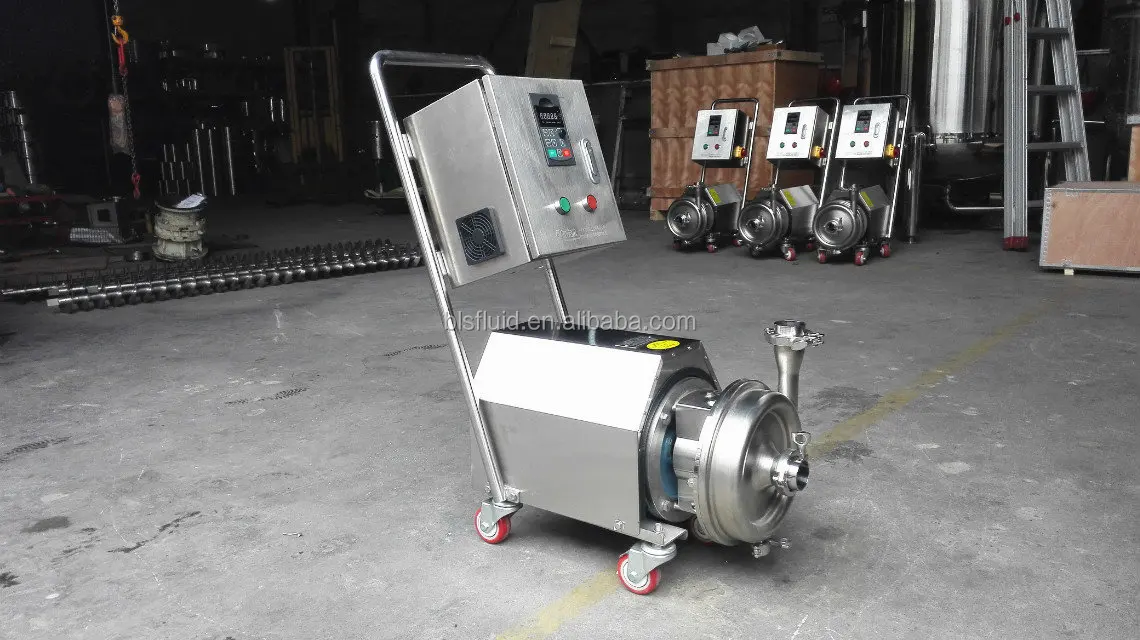

the filter can be installed speed converter and control box and trolley
Related Products

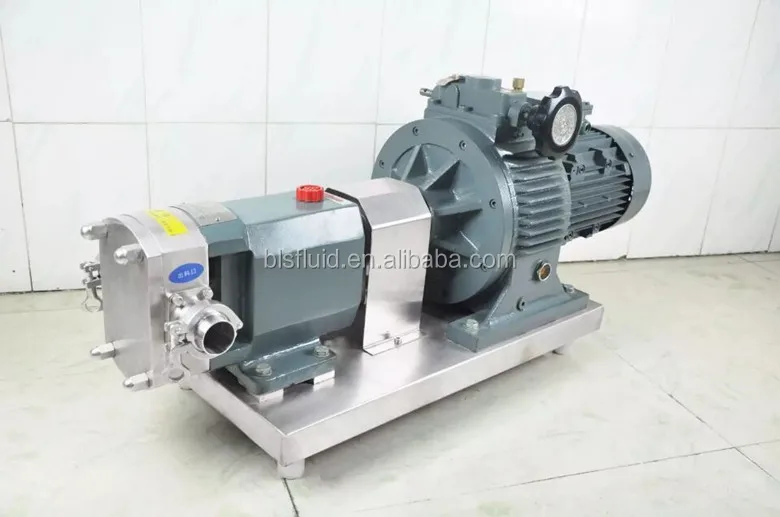

We have many kinds of sanitary transfer pump, for example twin screw pump,lobe pump,if you are interested in them,you can click the picture to know more.
Our Company
Zhejiang L & B Light Industry Machinery Co.,Ltd established in 1995,Located in BinHai Industrial Zone. Wenzhou City.
Our main products including colloid mills,Stainless Steel Tank, high shear mixer, beer fermenterand Sanitary pumps etc.
Meanwhile we also accept customized stainless steel parts and components for all industries.
BLS products could applied in food, beverage, cosmetics industries etc
We now exports our goods to United States, Australia, Newzealand and Japan etc.
