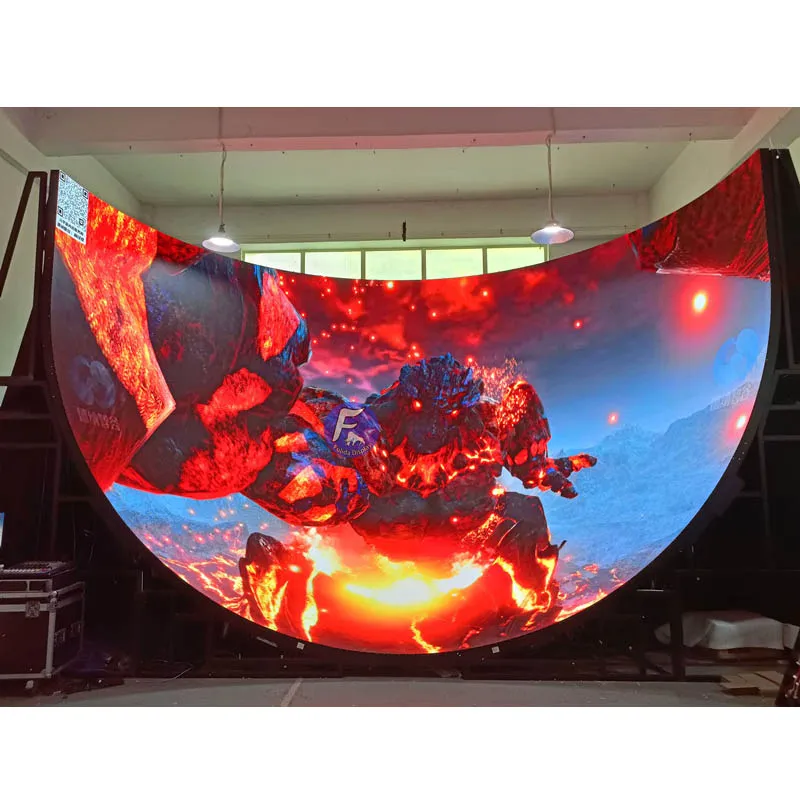

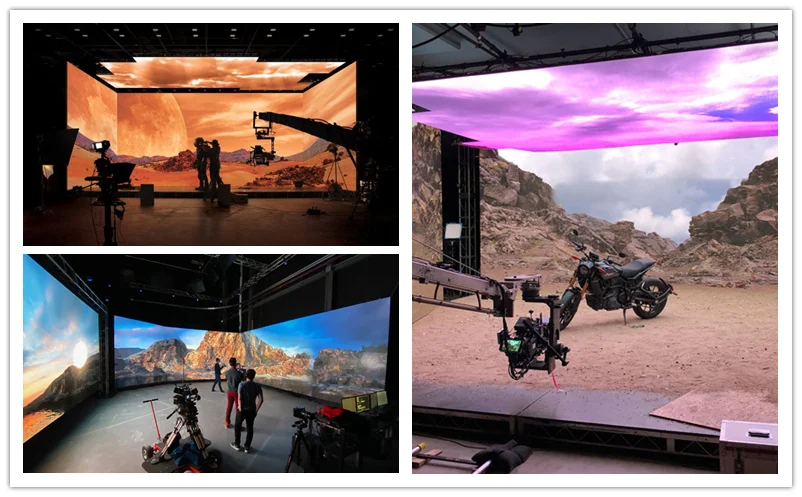

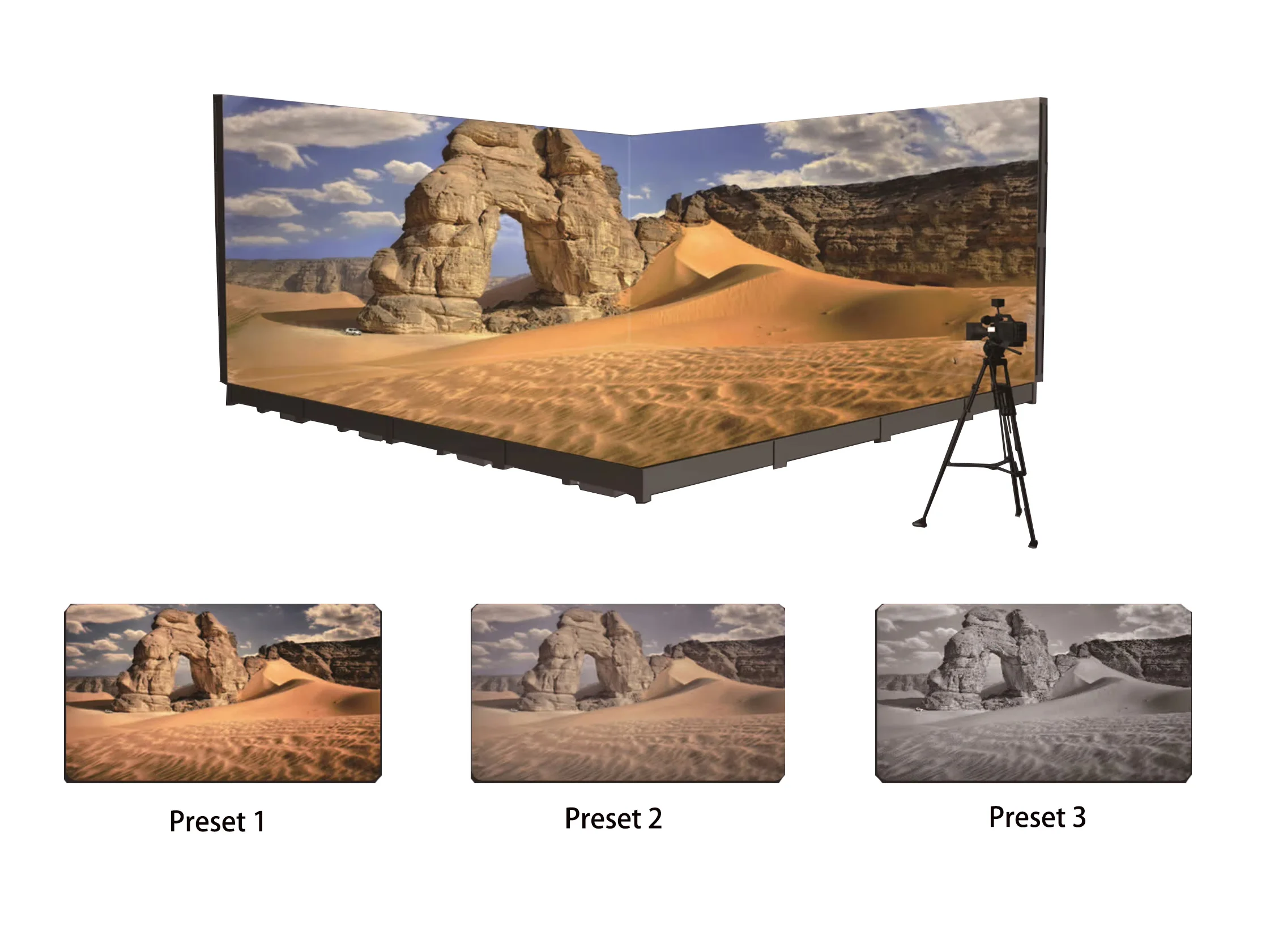

fine pitch COB P0.78 P0.9 P1.25 LED Wall for commercial flexible led video wall for Virtual shooting Living room stage concert
- Category: >>>
- Supplier: Shenzhen Fulida Display Co. Ltd.
Share on (1601269198399):
Product Overview
Description
Product Description
The Advantages of COB LED Display Screens

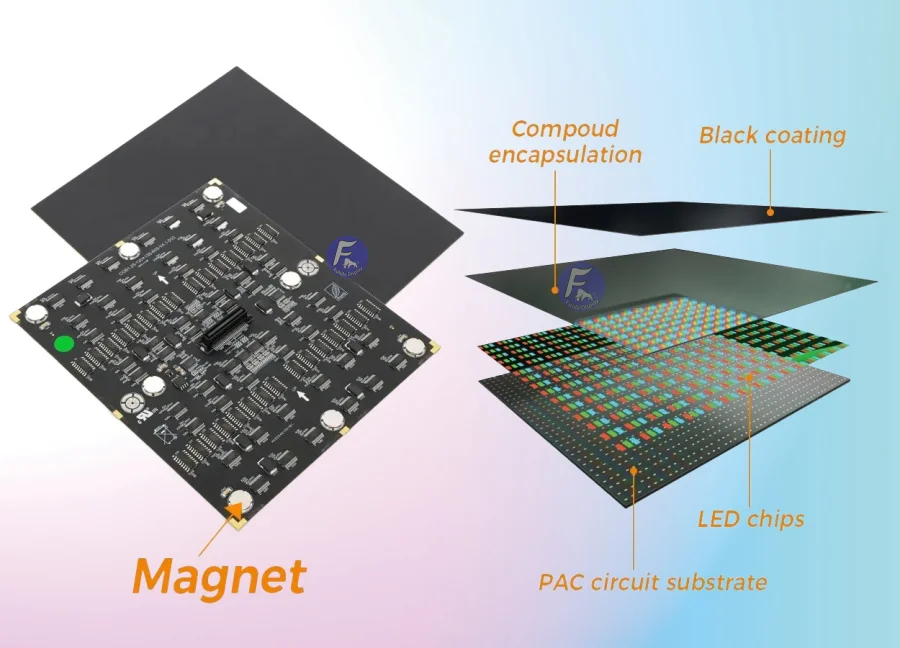

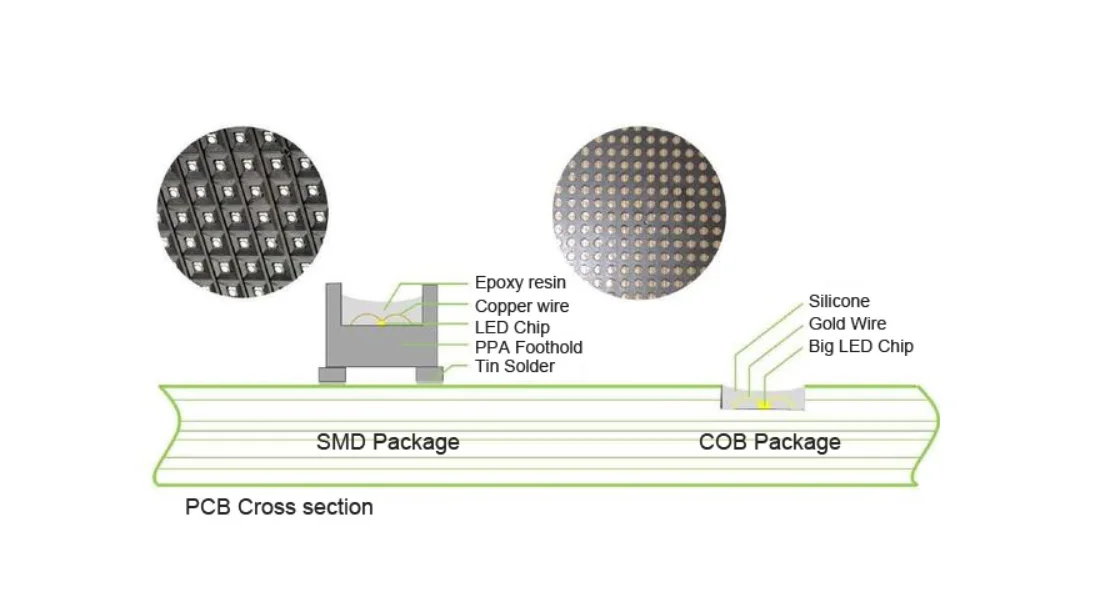

COB LED Screen is a new type of LED packaging technology introduced in recent years, which directly solders LED chips onto PCB boards without the need for brackets and reflow soldering. Therefore, it can achieve smaller point spacing and higher resolution, especially suitable for small pitch LED display fields.
* High Brightness & High Contrast
COB technology can effectively suppress moire patterns, giving COB LED displays high resolution, improving light quality, and
presenting clear and delicate images. Meanwhile, due to its high contrast characteristics, the image has clear brightness and rich
colors, which can bring an immersive visual experience.

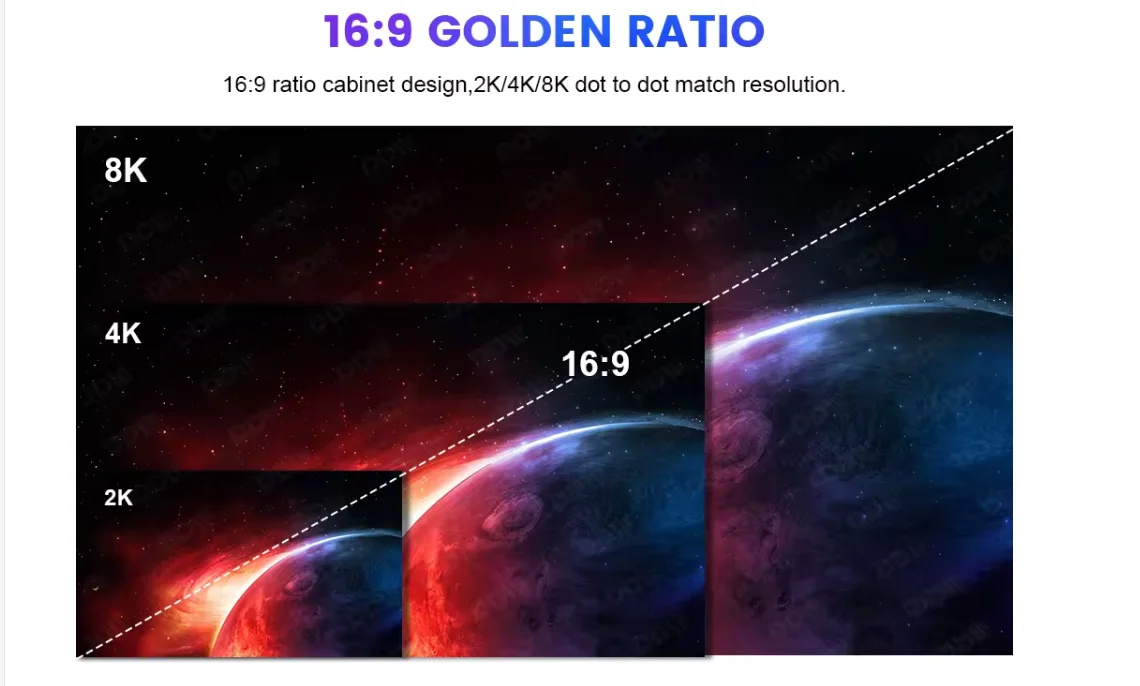

The typical feature of COB LED Screen is the ability to achieve smaller point spacing, such as P0.9, P0.6, etc., combined with the
golden ratio of the cabinet size, making it possible to achieve a perfect 16:9 ratio, improving the overall resolution of the LED
screen and achieving better visual effects.
golden ratio of the cabinet size, making it possible to achieve a perfect 16:9 ratio, improving the overall resolution of the LED
screen and achieving better visual effects.

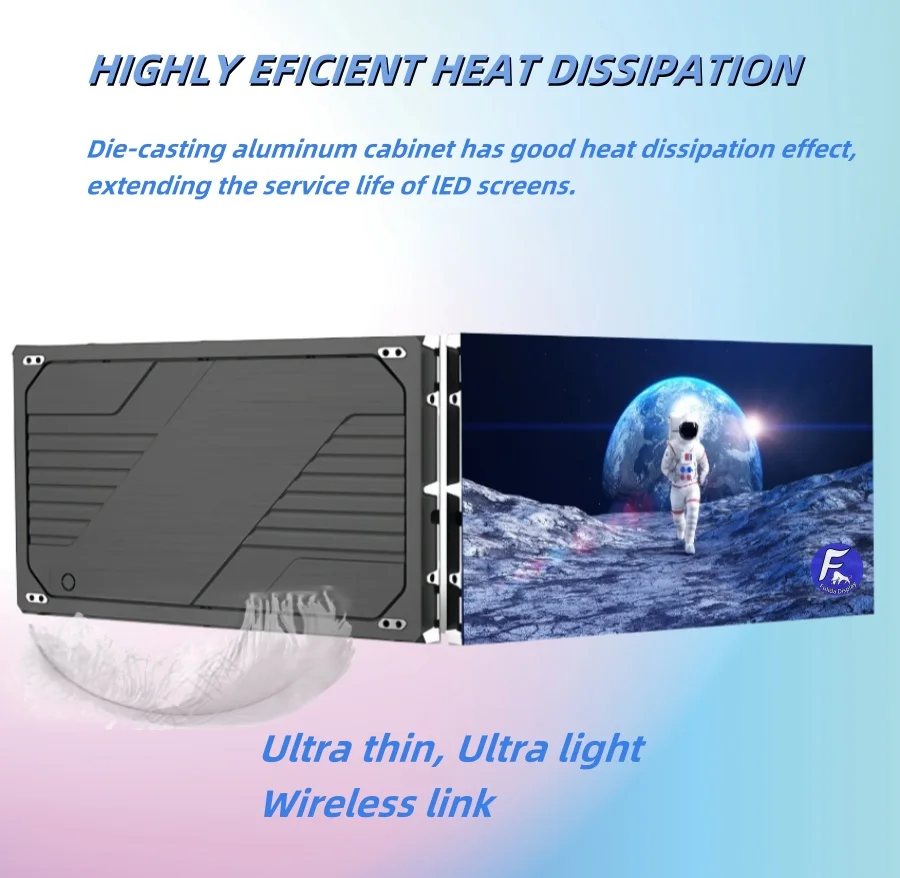

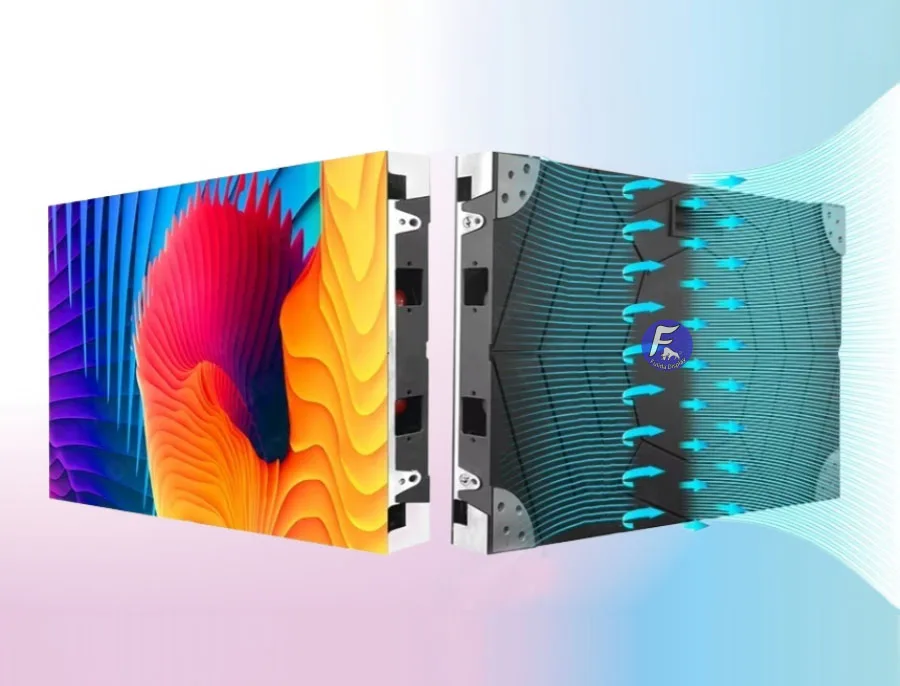

* Efficient heat dissipation
The LED chips of COB LED screens are directly soldered onto the circuit board, effectively improving the efficiency of heat
conduction. This design reduces the luminous temperature of LEDs, prolongs their lifespan, and also reduces the risk of
performance degradation and malfunctions caused by overheating.

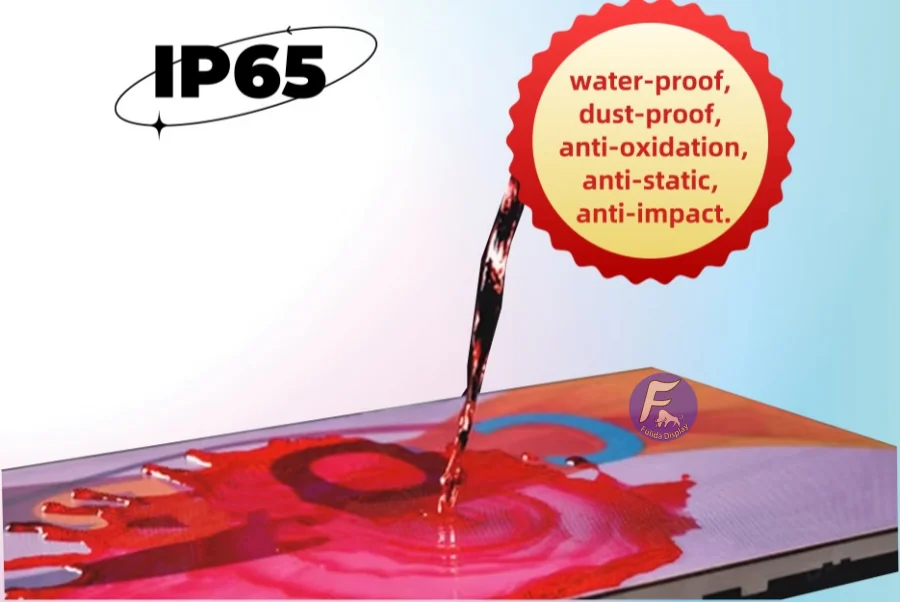

The COB LED screen series products have an IP65 protection level, and their unique packaging makes them more adaptable to the
environment, especially in some humid and humid scenes, which can achieve stable operation.
environment, especially in some humid and humid scenes, which can achieve stable operation.
Different pixel pitch (Resolution) for Option
Model | COB 0.78 | COB 0.93 | COB 1.25 | COB 1.56 | |||
pixel pitch | 0.78mm | 0.93mm | 1.25mm | 1.56mm | |||
LED Type | Flip Chip COB | Flip Chip COB | Flip Chip COB | Flip Chip COB | |||
Pixel Density ( pixels/m2 ) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | |||
LED Panel Resolution | 192x216 pixels | 160x180 pixels | 120*135 pixels | 96*108 pixels | |||
Scan Model | 54 | 60 | 45 | 54 | |||

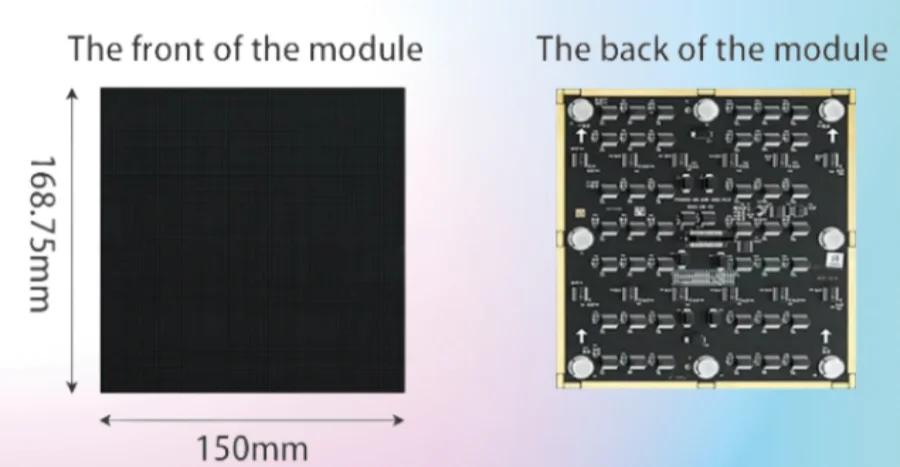

LED panel size | 150x168.75mm all the same size, if you have any special size needs, please send inquiry to us. | ||||||
Cabinet sizes | 600x337.5mm 600x675mm, if you have any special size needs, please send inquiry to us. | ||||||
Cabinet material | die-casting aluminum | ||||||
Cabinet weight | 4.5 KGs | ||||||
Maintenance | front access, front service | ||||||
Viewing Angle | Horizontal 170° / Vertical 170° | ||||||
Color temperature | 6500K | ||||||
Power Consumption (W/m2 ) | Max.: 400W. Avg. : 90W | ||||||
Working voltage (input) | 90~240V 50/60Hz | ||||||
Signal output | HDMI/DVI/DP | ||||||
Grayscale level | 16bits | ||||||
protection | front IP65, back IP40 | ||||||
Certifications
Related Products
Company Introduction
Fulida display is a wholesale LED screen company that manufactures good & high quality indoor and outdoor LED Displays. We provides the customized screen products and OEM service.
Our Office and aging workshop

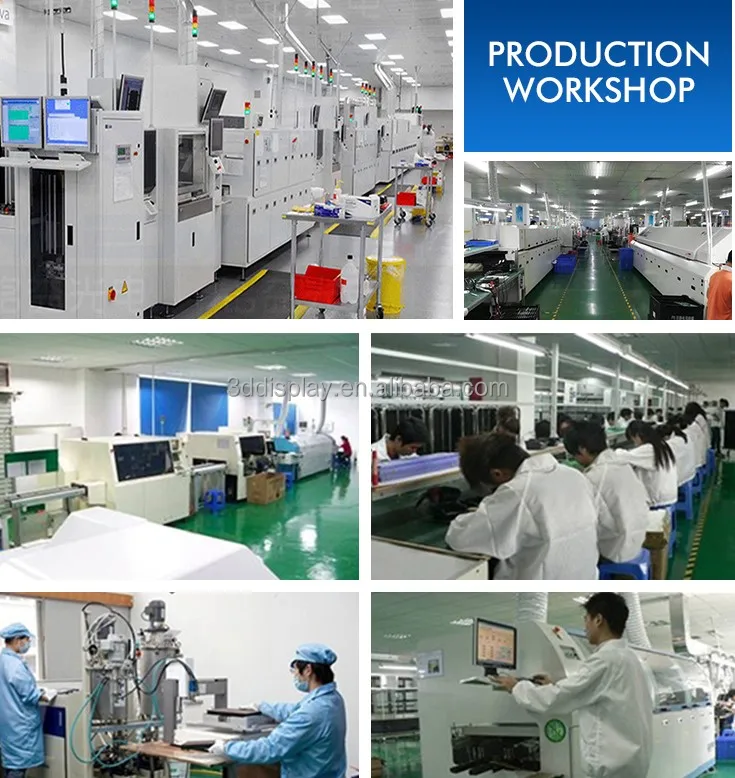

.Production workshop
Packing&Shipping
FAQ
Q.Can I have a sample order for led display?
A: Sample order is acceptable. we welcome clients to order sample for testing quality .
Q. What about the lead time?
A:Sample needs 5-7 days, Bulk order needs 7~14 working days.
Q.How do you ship the goods and how long does it take to arrive?

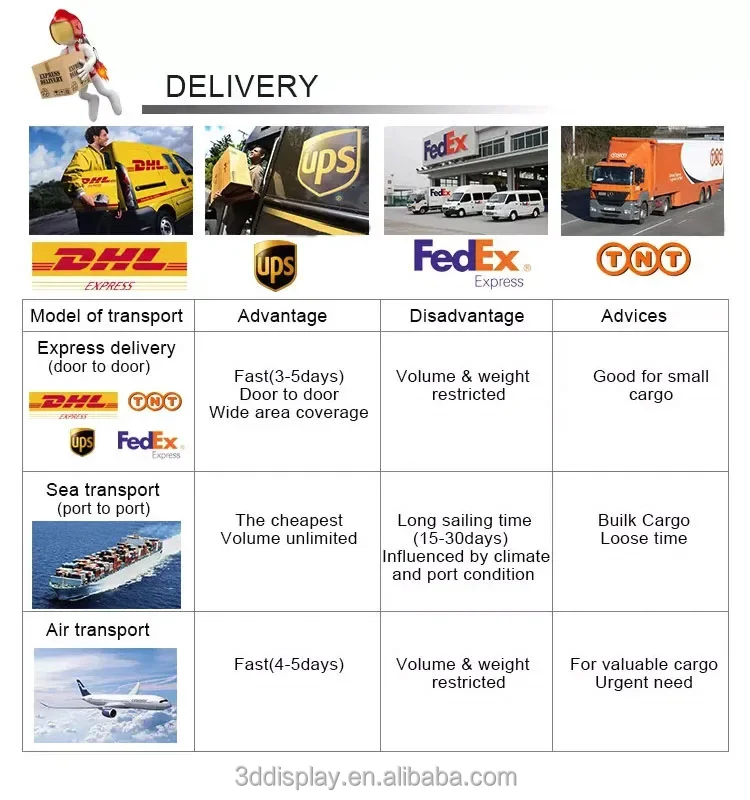

A: Led screens will be packed by wooden box or flight case. We usually shipped them by Sea. But client also can chose DHL, UPS, FedEx or TNT also option.
Q. How to proceed an order for led screen?
A: Please let me know your order requirements. So that we will quote price according your information. If everything confirm, we will send the PI to client and arrange deposit. When we get ready the order, client pay the balance. Goods can be shipped after that.
Q. Is it OK to print my logo on led display product?
A: Yes. Your logo can be print on the cabinet.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q: What would the screen weight be?
A: The weight of aluminum profile or die-cast aluminum cabinet is between 22~30kg per square meter. The iron cabinet is generally 35~55kg per square meter.
Q: If I only purchase LED modules, what other components do i need?
A: For fixed installation, in addition to Led modules, customers also need to purchase sending cards, receiving cards, power supplies and a variety of cables. We will provide these components for a fee.

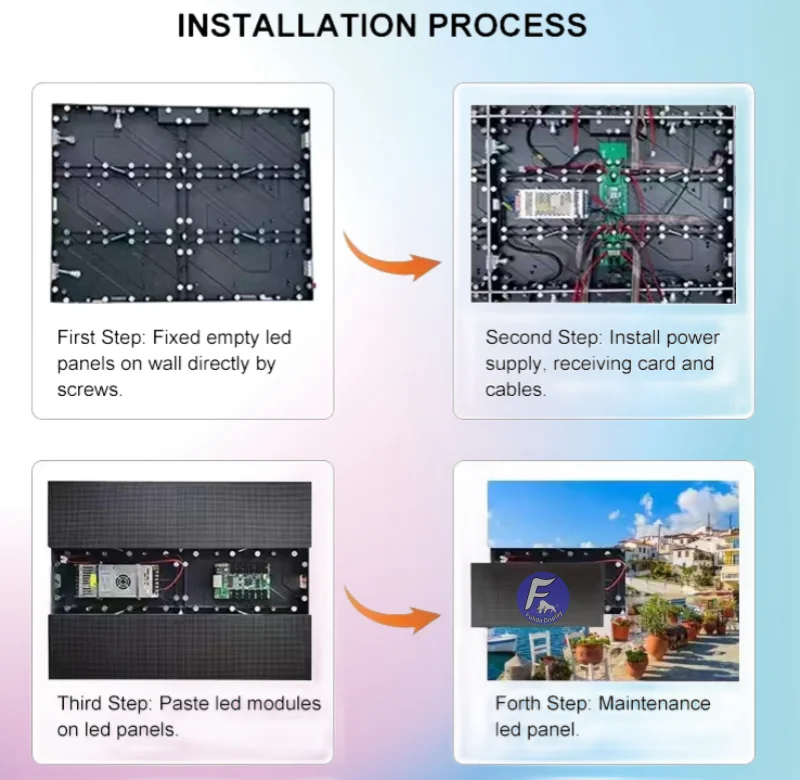

Q: How do I install the LED screen?
A: The screen with cabinet is easy to install, and only the cabinets need to be spliced together. If the customer only buys LED modules and components, we will provide detailed installation instructions.
Q: How do I debug the LED screen?
A: The clients told us in advance what length and width he needed to install. We will debug the LED screen before shipment. After installation, the client can use it immediately after connecting the sending card. We will also provide remote technical support.
Q. What about the lead time?
A:Sample needs 5-7 days, Bulk order needs 7~14 working days.
Q.How do you ship the goods and how long does it take to arrive?
A: Led screens will be packed by wooden box or flight case. We usually shipped them by Sea. But client also can chose DHL, UPS, FedEx or TNT also option.
Q. How to proceed an order for led screen?
A: Please let me know your order requirements. So that we will quote price according your information. If everything confirm, we will send the PI to client and arrange deposit. When we get ready the order, client pay the balance. Goods can be shipped after that.
Q. Is it OK to print my logo on led display product?
A: Yes. Your logo can be print on the cabinet.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q: What would the screen weight be?
A: The weight of aluminum profile or die-cast aluminum cabinet is between 22~30kg per square meter. The iron cabinet is generally 35~55kg per square meter.
Q: If I only purchase LED modules, what other components do i need?
A: For fixed installation, in addition to Led modules, customers also need to purchase sending cards, receiving cards, power supplies and a variety of cables. We will provide these components for a fee.
Q: How do I install the LED screen?
A: The screen with cabinet is easy to install, and only the cabinets need to be spliced together. If the customer only buys LED modules and components, we will provide detailed installation instructions.
Q: How do I debug the LED screen?
A: The clients told us in advance what length and width he needed to install. We will debug the LED screen before shipment. After installation, the client can use it immediately after connecting the sending card. We will also provide remote technical support.
