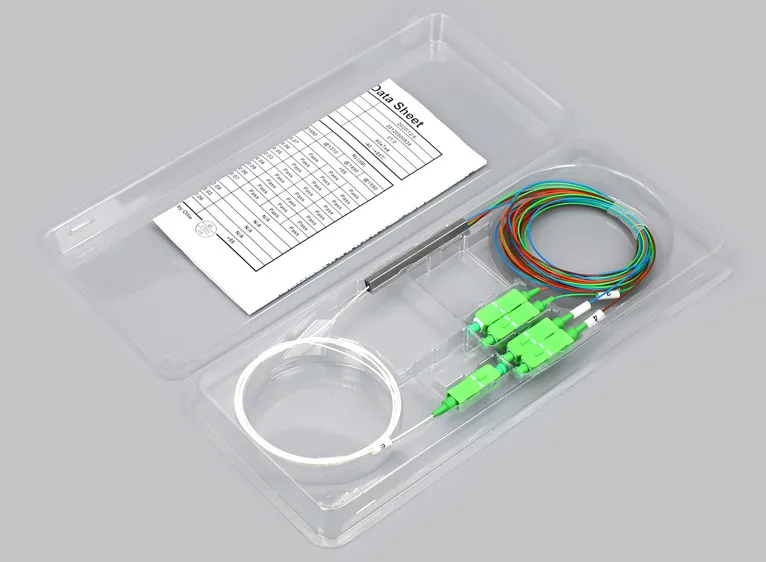

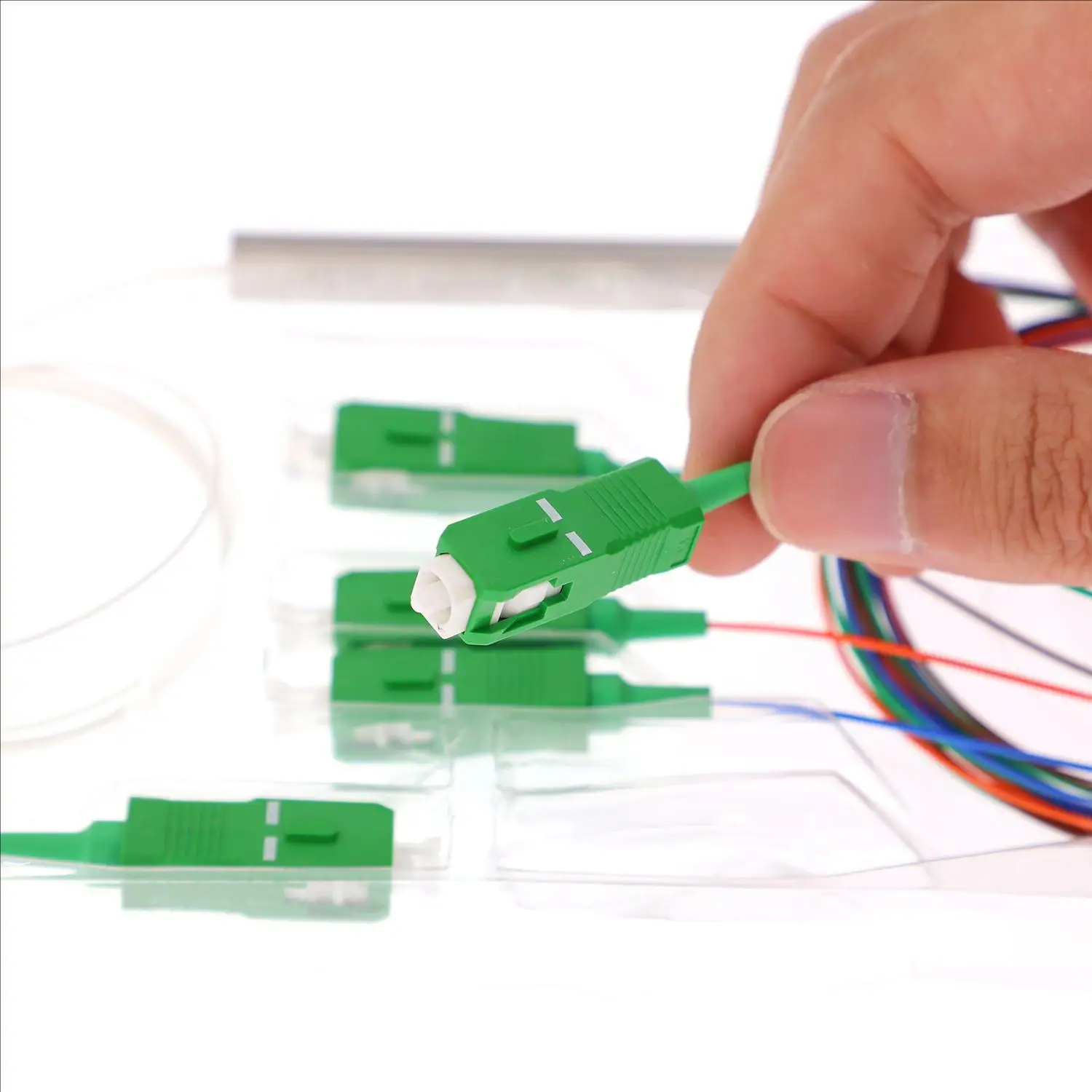

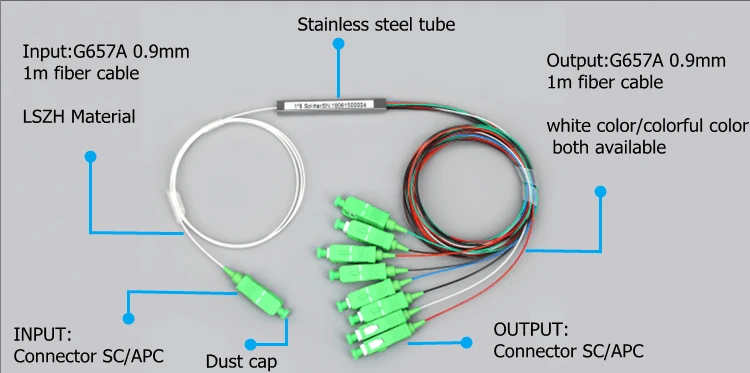

Factory Price 1x2 ABS Box type PLC Splitter Single Mode Fiber Optical ABS Box Type plc 1x2 PLC splitter with SC Connector

Parameters

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

SMF-28e or customer specified

Insertion Loss (dB)(S/P Grade)

4.0/3.8

7.3/7.0

10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Loss Uniformity (dB)

0.4

0.6

0.8

1.2

1.5

2.5

Return Loss (dB) (S/P Grade)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent Loss(dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability(-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~85

Storage Temperature (°C)

-40~85

Packaging Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

50×7×4

60×12×4Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
