Kensing ton Lock HYSTOU Mini PC Dual HD MI USB DC IN DDR5 Intel Core i5 1235U Win 10/11 SSD HDD SATA Computer

Product Overview

Description

Fanless HYSTOU Dual HD-MI USB 3.0 DC-IN DDR5 Intel Core i5-1235U Mini PC Win 10/11 Pro 10th Processor Computer



Industrial computers are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. HYSTOU industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.

About Us

HYSTOU is a reputable manufacturer and exporter of Mini PCs.

HYSTOU is a reliable OEM supplier in China.

HYSTOU have built a strong reputation in the global market, dedicated to delivering top-quality products, excellent customer service, competitive pricing, quick responsiveness and punctual delivery.

HYSTOU eagerly invite customers to collaborate with us!!!

Features:

1.Dual Screen Display + Desktop PC with 4K HDMI

2. 2.4G/5.0G Dual-band WiFi and BT 4.2

3.Whisper-quiet and Powerhouse Performance

4.Rich & Diverse Ports

5.Support Windows 10,11, Linux

6.Easy to Carry and Saving Place

Packing List

1*Mini PC
1* CD Driver

1* Power Adapter
2* WiFi Antennas(barebone not include WiFi)
1*SATA Power Cable
1* User Manaul & Warranty Card

About System:

Free windows 10 trail version,If need windows 10/11 lience please contact us ,which need add usd 30/unit.Please inform us which language you want to install. If you don't leave message,will install English language for you.

We provide permanent technical support and 3 years warranty

Processor
CPU	Intel Corei5-1235U (12M Cache, 10 Cores 12 Threads, Base Frequency 3.30 GHz Turbo Frequency 4.40 GHz)
TDP	15W
CPU Lithography	14 nm

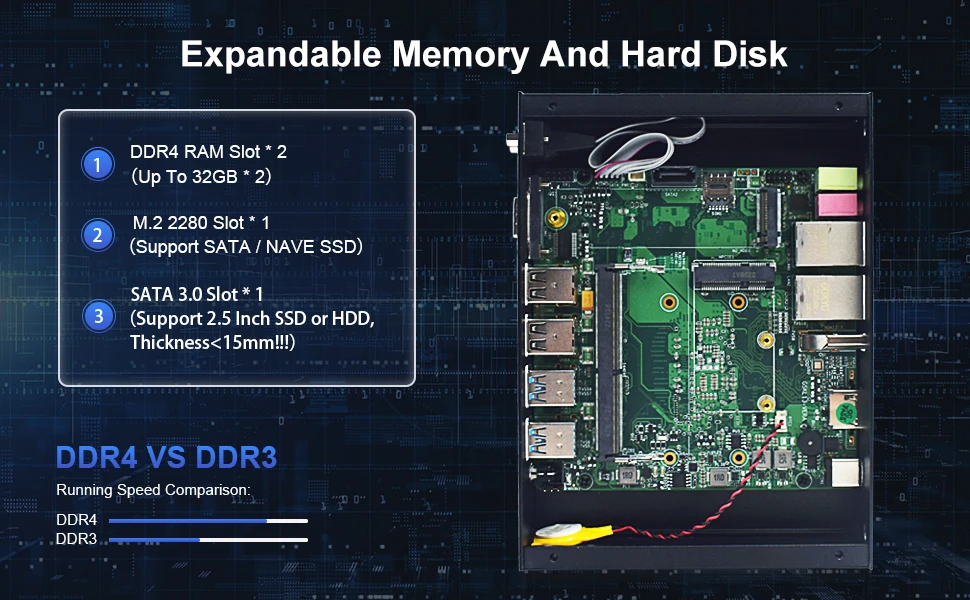

Memory Specifications
Max Memory Size	64GB
Memory Types	2*DDR4 SO-DIMM260 pin
Memory Channels	Dual Channels
ECC Memory	Don’t support
Storage Specification
m.2 SSD	1*M.2 2280 M KEY PCIE3.0
SATA	1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA	NO mSATA slot
Graphics
ProcessorGraphics	Intel UHD Graphics 620
HDMI	2*HDMI4096*2160@30Hz(4K)
Power Specification
Adapter Output	DC 12V/5A
Adapter Input	AC 110-240V, 50/60HZ
Consumption	45W
Auto Power On	Support Auto Power On Function

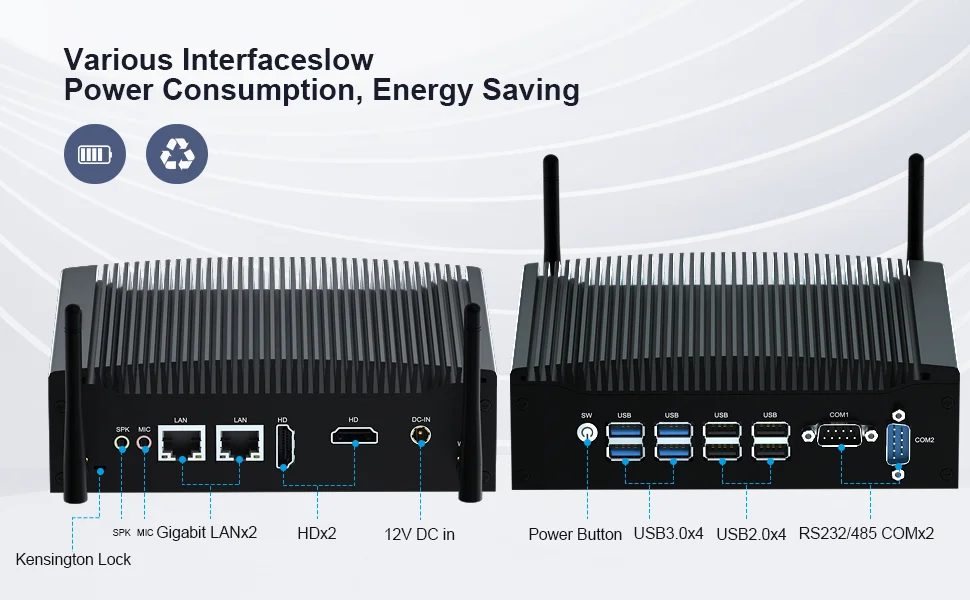

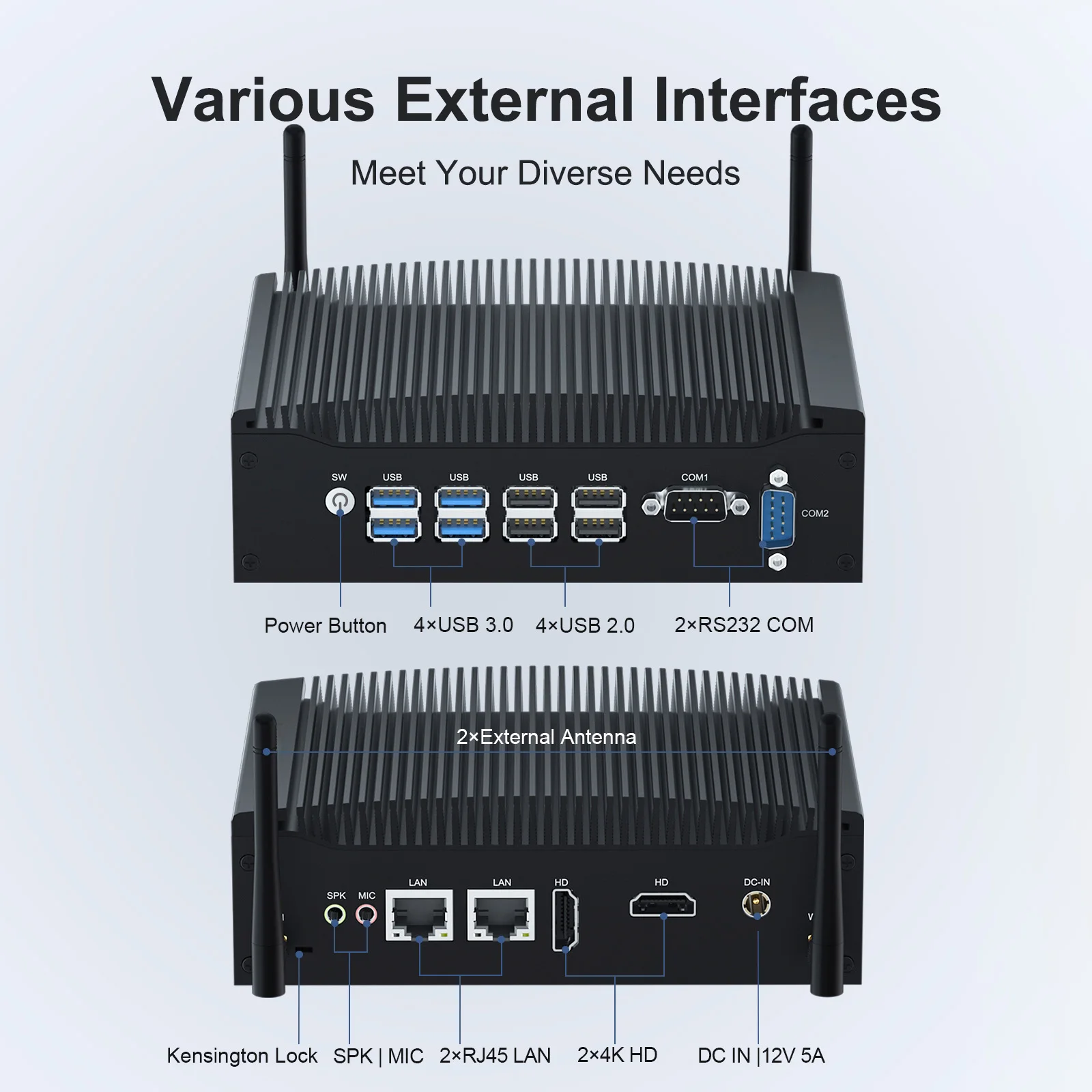

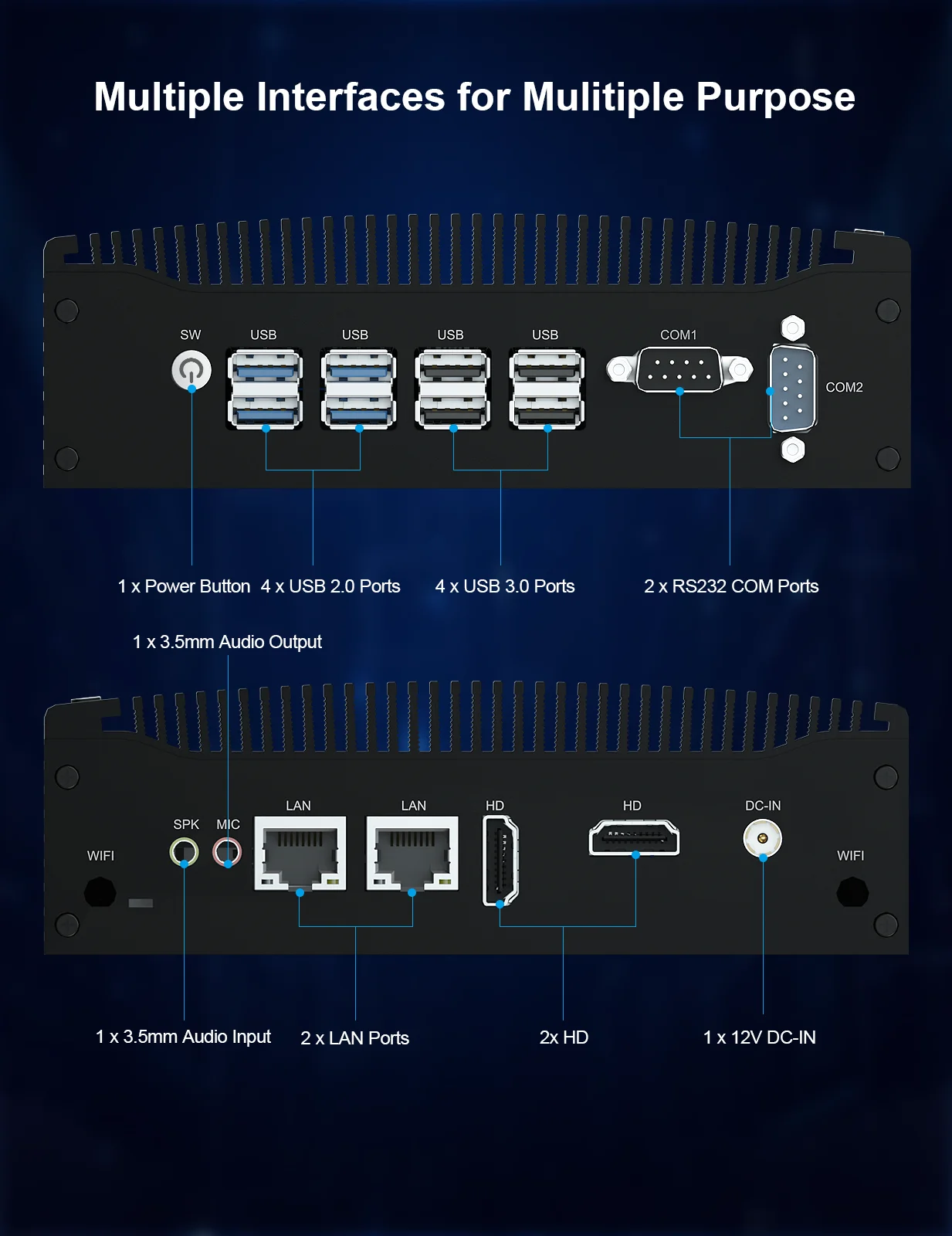

In & Out interfaces
USB Port	4*USB 3.0 port,4*USB 2.0 port
Audio	1*3.5mm MIC in & SPK out
Video	HDMI 4096*2160@30Hz + HDMI 4096*2160@30Hz 2 Display Output
Audio Cards	USB Audio Device
Lan Port	2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Com Port	2*RS232 Com port
Wi-Fi	InsideWifi & Bluetooth Combo
Others
System	Support Windows10, 11,Linux
BIOS	Support AUTO POWER ON,Wake On LAN,RAID,PXE
SIM	1*SIM slot,Support Nano-SIM(9*12mm)
MPCIE	1*MPCIE,Support Wifi/3G/4G Module(26.80*30mm)
Work Environment	-10℃--60℃(14F~140F) , 30%--90% Humidity
Case Material	Full Brushed Aluminum Alloy

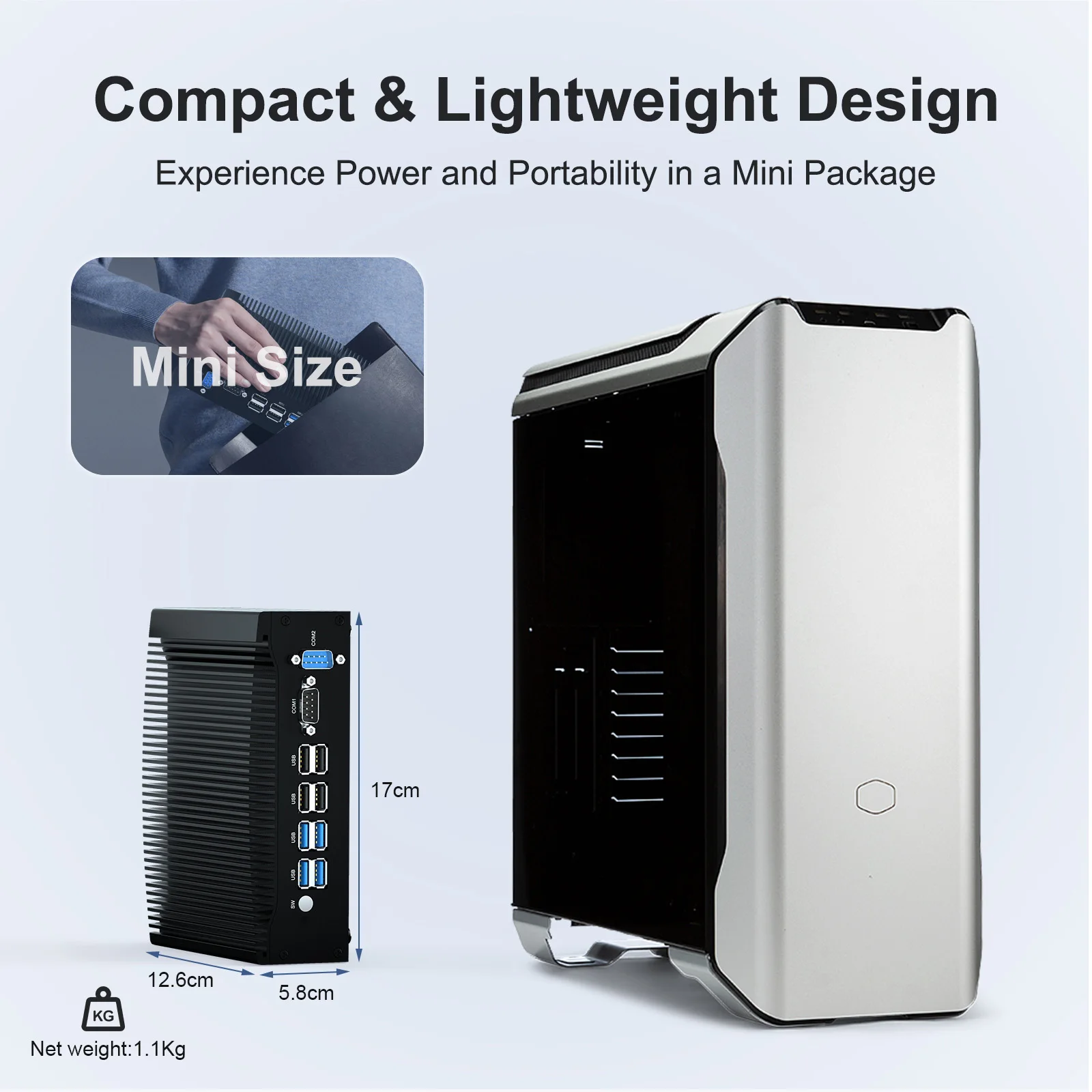

Dimension	PC size 170*126*58mm  Package size 308*206*75mm
Weight	Net 1.1kg; Gross 1.9 kg

About Payment:

1. We prefer payment through ESCROW which is security way for you.

2. Pls make sure the shipping address, zip code and tel-number are correct before payment.

3. The buyers are responsible for all additional custom fees, brokerage fees, duties and taxes for importation into your country.

4. We also can accept the payment by Paypal if you think Paypal is convenient for you to order.

5. Welcome to contact us by chat tool directly or leave a message if you order in bulk.

6. Refund will be done by ESCROW on aliexpress or by Paypal.

About Shipment:

1. All items will be double checked and well packed and they will be dispatched within 5 business days when order is paid.

2. Normally we ship package by DHL, it will take about 3~7 working days to most of countries, door to door.

3. If you address is a remote area by DHL, if you do not add remote area shipping fee, we will arrange shipment by our methods, hope you can kindly understand it, thanks.

4. e-EMS: it is for Russia and some other countries.

5.If you choose the shipping way is air post mail , it normally takes 30-90 days without tracking information, pls noticed. It's  better to choose EMS or DHL , more faster and safe .

6. If you don't get the package in normal time, please contact us kindly, we will do our best to assist you.

7. If you don't accept above terms, pls do not buy it, thanks.

About Warranty:

1. We provide one year warranty period, repair or replace for free;   the second year and the third year, we can repair it free. but we will charge for the parts that need to change.

2. If you are not satisfied with the item and want to return it reasonably, please contact us kindly first. We will try our bestto deal with the issue for you or you can exchange or return the item in one week.

3. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.

4. If you want to return the item, pls confirm the return address with us, we only accept EMS or Post for return product. Thanks.

5. If the product break down, please contact us.

Feedback:

1. We maintain high standards of excellence and strive for 100% customer satisfaction!

2. If you are satisfied with them, please lease 5 star positive feedback.

3. Negative feedback or low DSR does no resolve any underlying issues. If you have a problem, please contact us via email firstly and give us the opportunity to reasonably rectify in a reasonable amount of time. We will try to respond ASAP, and we are always willing to work things out.

4. For some uncontrollable factors, the item may be damaged during shipping. If you receive a broken item, pleasecontact us first, we will investigate and replace, if you have any other questions please email us. we will respond within24 hours or less.
