20 Sections Hydraulic Composer Wood Clamp Carrier with Pneumatic Panel Flattener

Product Overview

Description

Solid wood board hydraulic clamp carrier machine



Technical specifications

Model	MH2500/2	MH4600/2	MH5200/2
Max processing length	2500mm	4600mm	5200mm
Max processing width	1300mm	1300mm	1300mm
Max processing thickness	150mm	150mm	150mm
On tlowing cylinder bore	φ80mm	φ80mm	φ80mm
Each scolding quantity	6pcs	12pcs	14pcs
Side cylinder bore	φ40mm	φ40mm	φ40mm
Side quantity	6pcs	12pcs	14pcs
Side lifts the cylinder bore	80mm	63mm	63mm
Side lifts quantity	4pcs	4pcs	4pcs
Electrical machinery power	5.5kw	5.5kw	5.5kw
Air composer	16Mpa	16Mpa	16Mpa
Overall size	310*2300*2320mm	5000*2300*2320mm	5600*2300*2320mm
Weight	3800kg	6800kg	7200kg

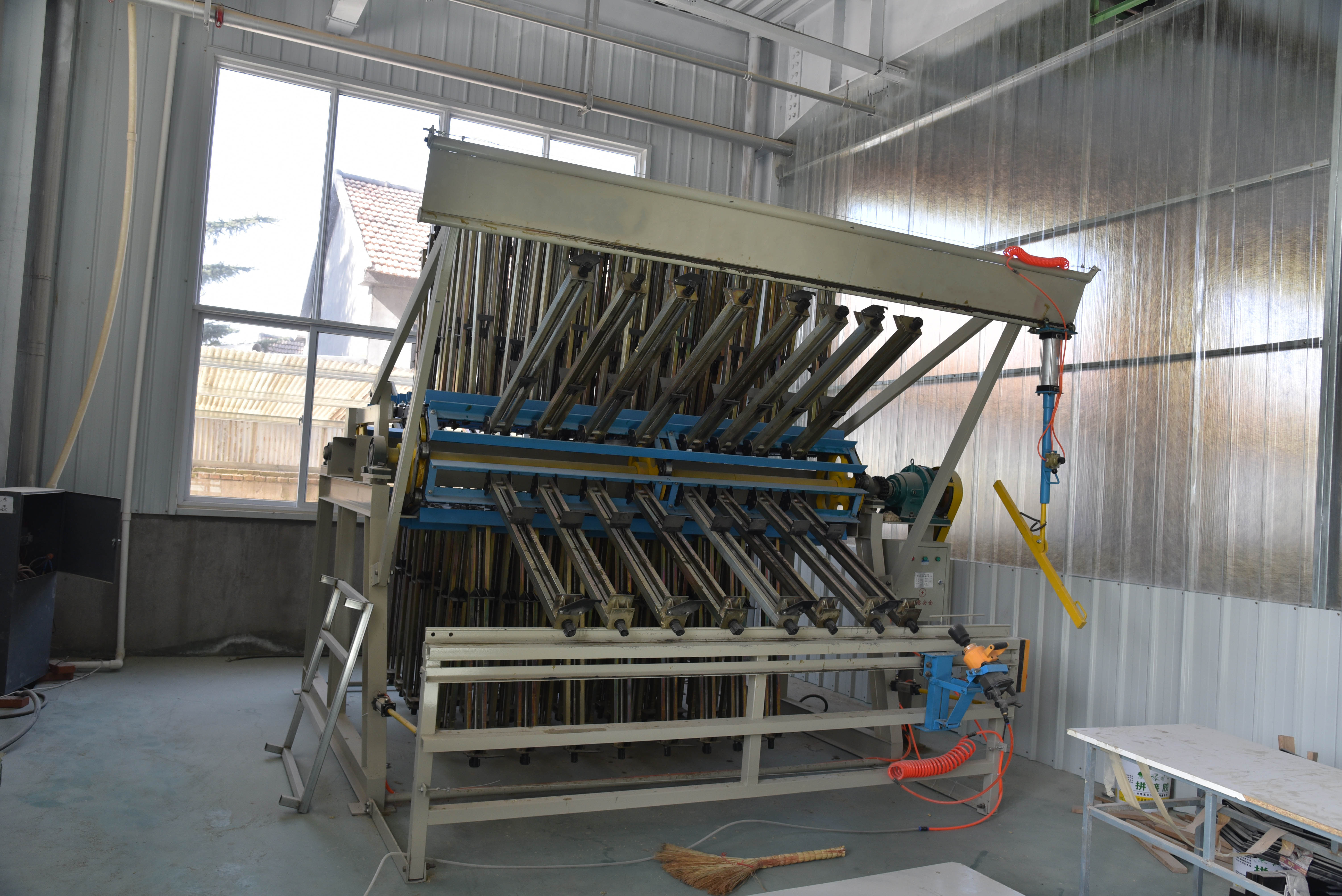

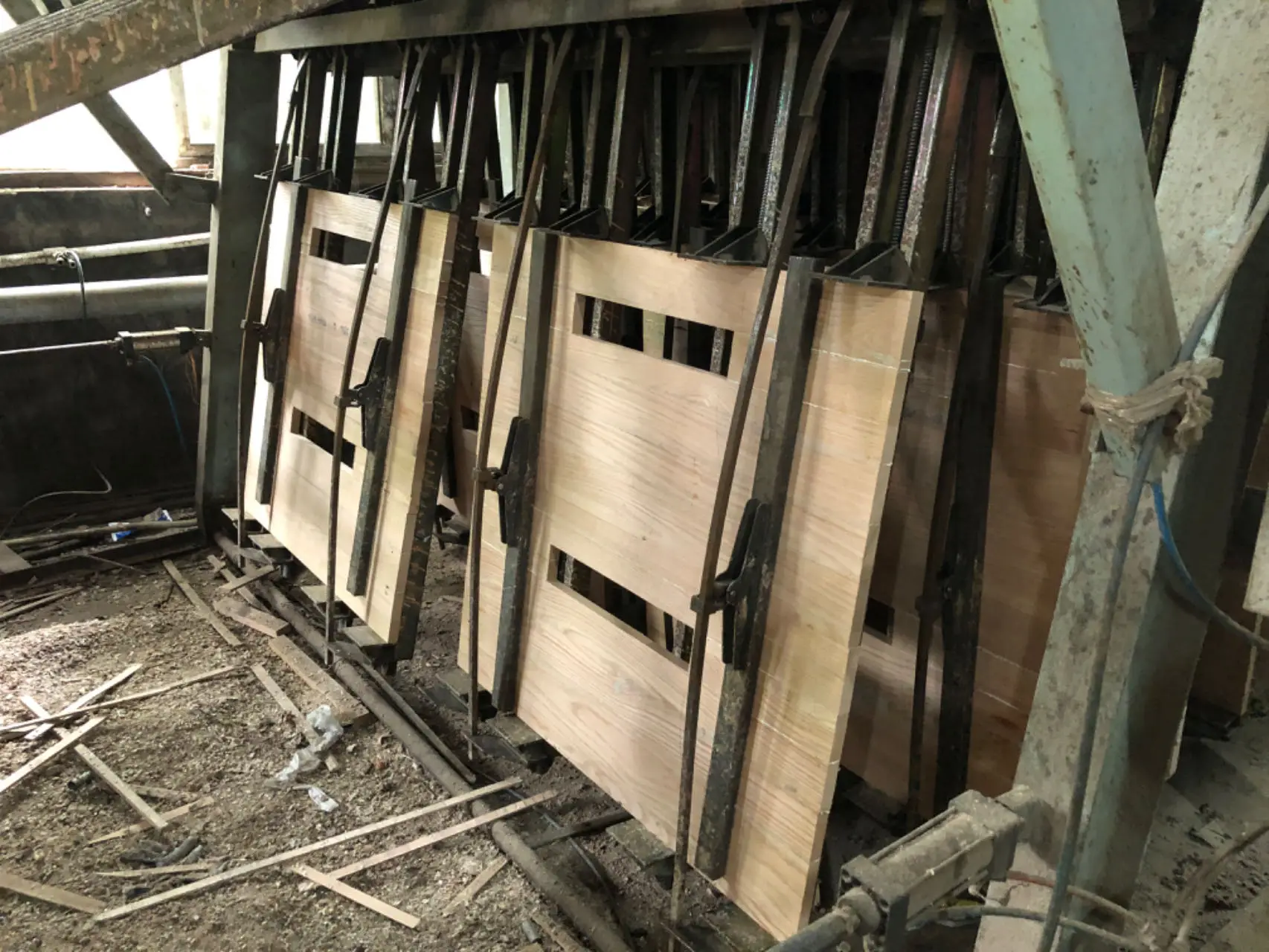

Picture:



Hydraulic Composer Quotation MJ series hydraulic composer is a necessary machine for saw tree and wood floor industry, utility furniture industry, and so on. It splices small boards which have been processed and treated in advance into big board, and it improves the wood utilization rate. This machine assorts imported hydraulic tools from Taiwan, and it has the features of homogeneous pressure, steady performance, high production efficiency, etc.









Company introduction

Qingdao Zhongding Machine co.,ltd is a leading company of specilizing in manufacturing and exporting woodworking machine , and we are able to offer professional woodworking machine to customes , Our company professional technology , full range of testing lines and pipelining and four professional lines of woodworking machine.

Main market

Which have been exported to a lot of countrise and Regions . Sich as Europe , Russia, Southeast Asia . Middle East . North America  and south America , Australia .

Quality certificate



ISO9001 and  CE security certificate



Business terms :



Payment terms: TT or L./C with deposit



Delivery time : Within 30 days



Packing :wooden case or as you want
