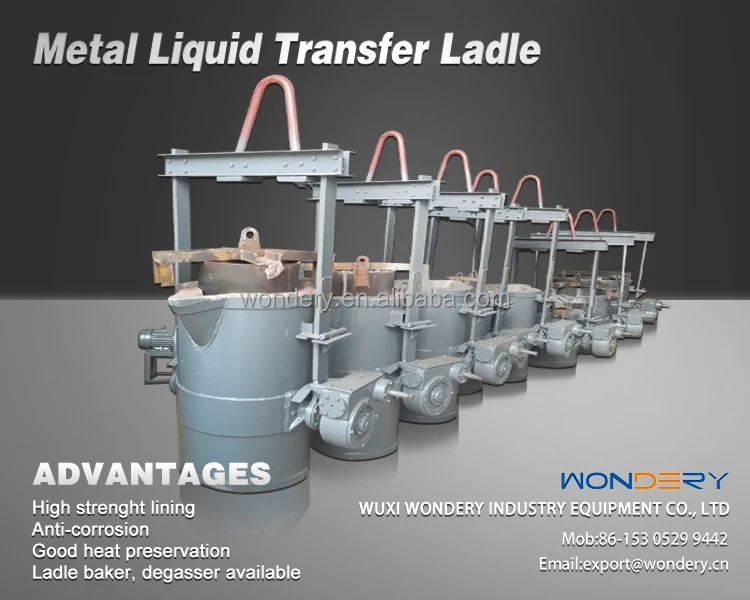

Wondery Foundry Steel Iron Ladle For Casting Pouring Melting Industry
- Category: >>>
- Supplier: Wuxi Wondery Industry Equipment Co. Ltd.
Share on (1601269271033):
Product Overview
Description
Product Application

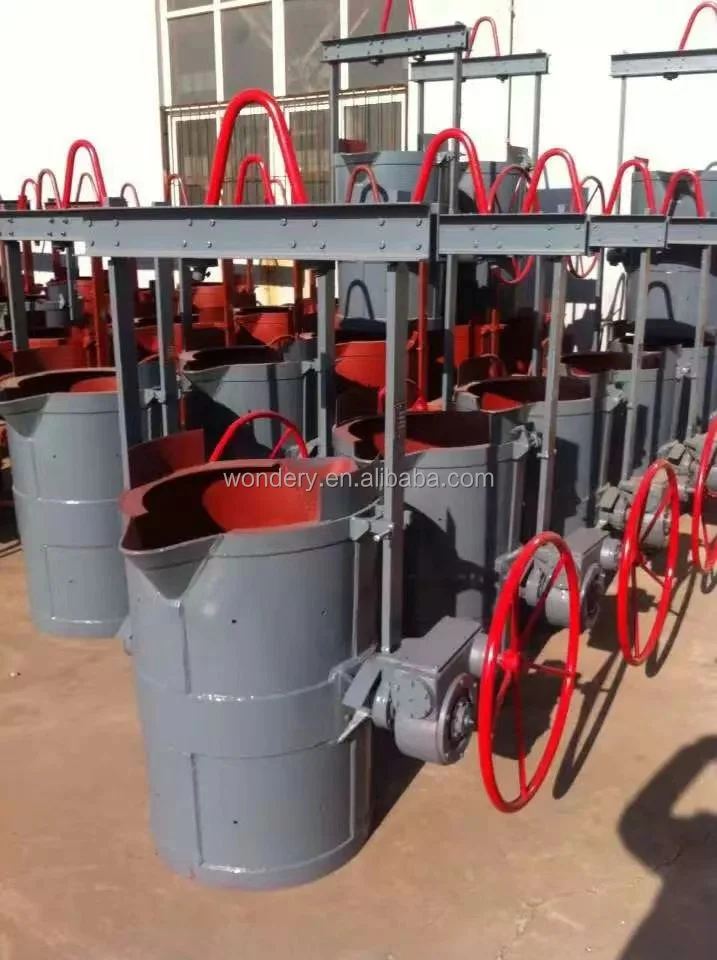

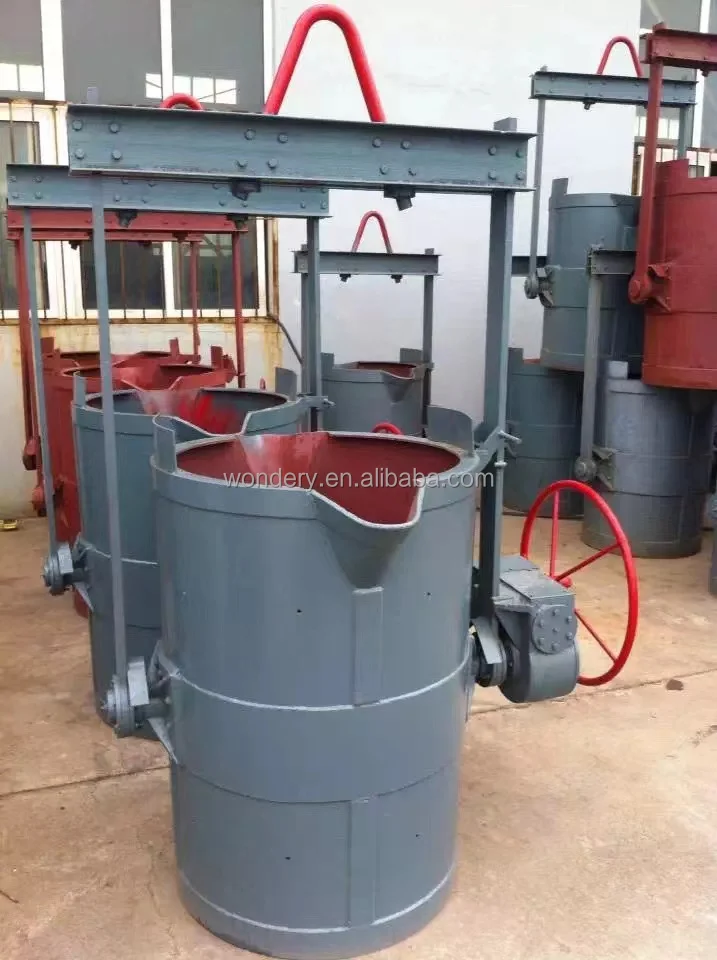

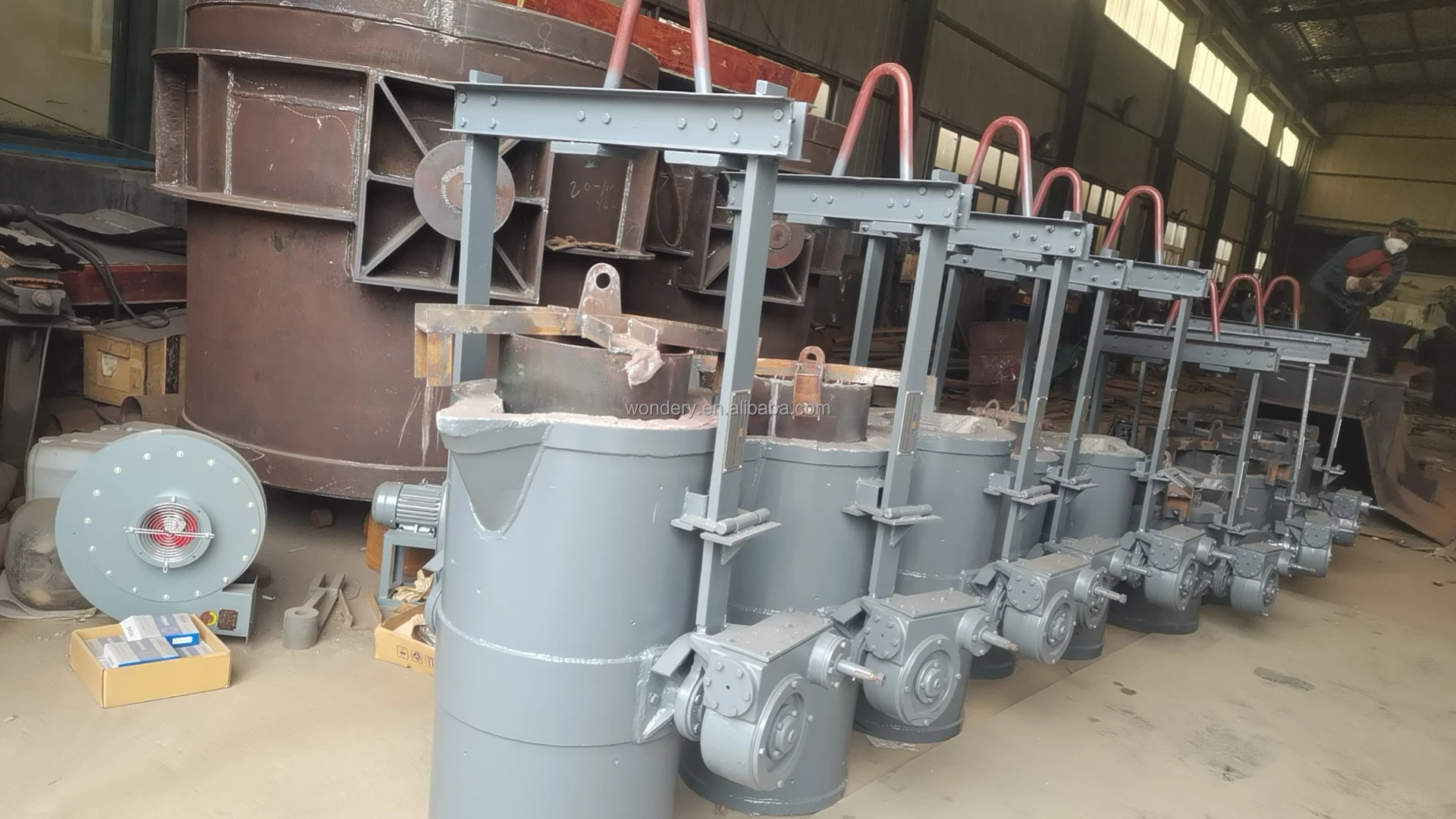

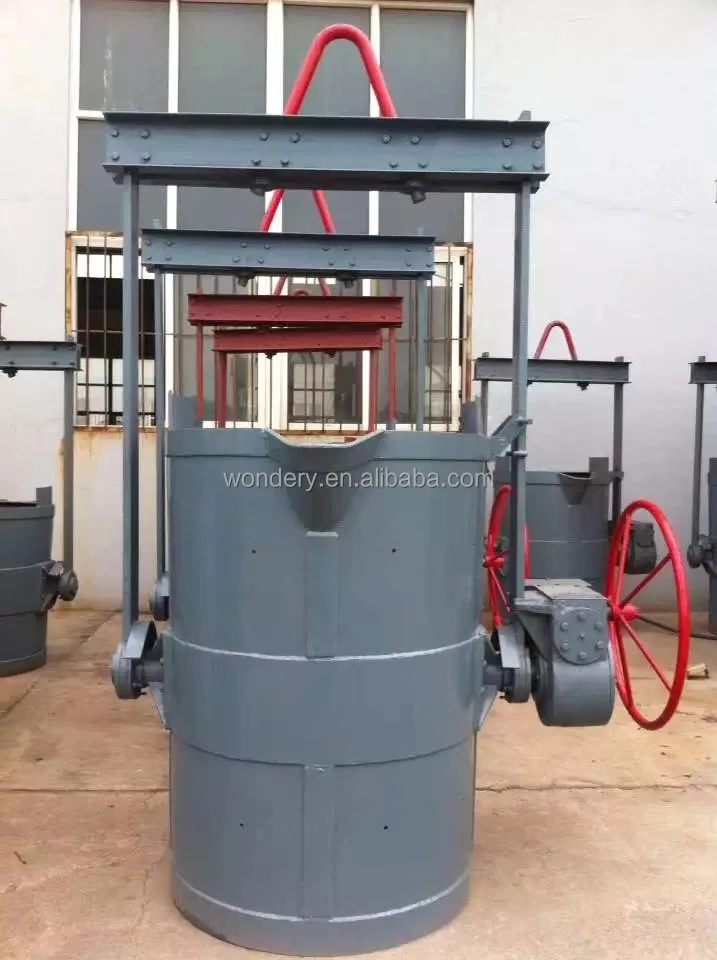

Steel liquid iron ladle is an indispensable pouring equipment in casting workshop. It is easy to operate, handwheel rotation is
Technical Parameter | |||||||

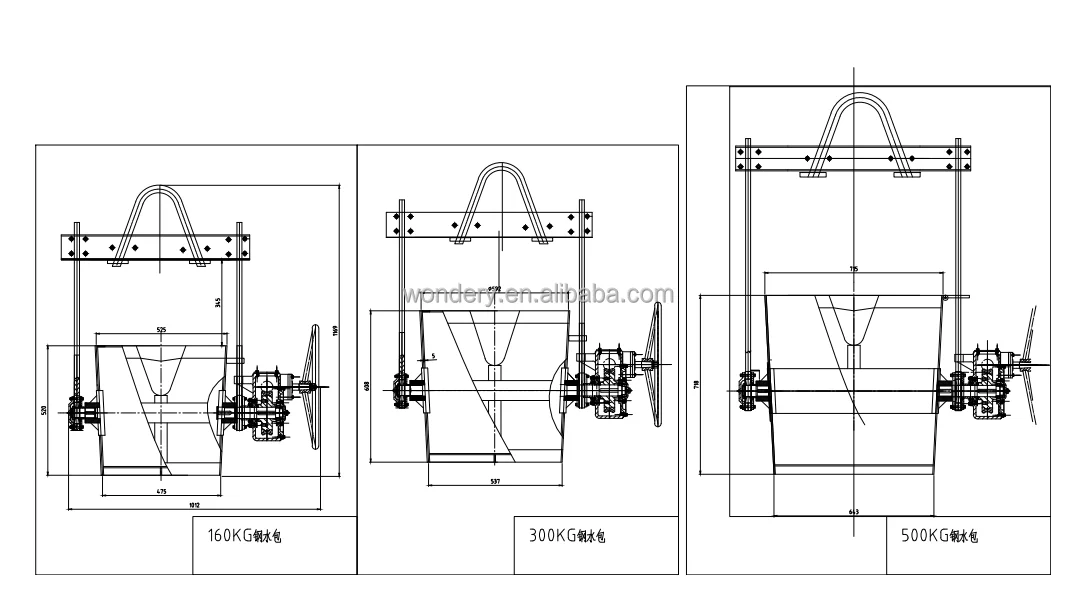

Model | Capacity（t） | Handwheel diameter（φ） | Overall velocity ratio （i） | Overall dimensions (mm) Length × width × height | |||
TB-0.5 | 0.5 | 600 | 80 | 1150×750×1350 | |||
TB-0.75 | 0.75 | 600 | 80 | 1210×850×1455 | |||
TB-1 | 1 | 600 | 80 | 1260×895×1480 | |||
TB-1.5 | 1.5 | 600 | 87 | 1380×1030×1858 | |||
TB-2 | 2 | 600 | 87 | 1440×1100×1890 | |||
TB-3 | 3 | 700 | 140 | 1620×1260×2130 | |||
TB-4 | 4 | 700 | 140 | 1750×1386×2180 | |||
TB-5 | 5 | 850 | 210 | 1905×1495×2525 | |||
TB-8 | 8 | 1100 | 320 | 2436×1745×2960 | |||
TB-10 | 10 | 1100 | 320 | 2485×1895×3095 | |||

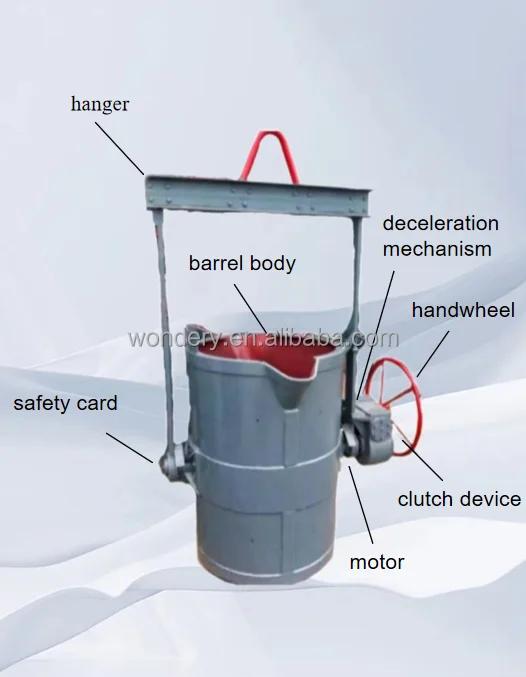

Working principle
The motor is driven by a worm through the sprocket, chain (belt pulley, belt), and a worm is driven by a two-stage worm. After slowing down, the barrel slowly tilts to pour out the metal liquid in the barrel evenly to complete the pouring process.
The deceleration mechanism is composed of a set of sprockets (belt wheels) and two-stage worm drive. The worm is made of high quality steel and is quenched on the tempered surface. Worm gear selection of high quality aluminum bronze, high strength, smooth transmission, and reliable self-locking performance, safe and reliable use.
The deceleration mechanism is composed of a set of sprockets (belt wheels) and two-stage worm drive. The worm is made of high quality steel and is quenched on the tempered surface. Worm gear selection of high quality aluminum bronze, high strength, smooth transmission, and reliable self-locking performance, safe and reliable use.
Wuxi Wondery Industry Equipment Co., Ltd is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
