Product Overview
Description
mining machinery 50-100tph basalt limestone aggregate impact crusher stone crushing plant
Product Description
Impact crusher is the use of impact energy to achieve the purpose of material crushing: When working, the rotor rotates under the drive of the motor. At this time, the material enters the action zone of the plate hammer, is broken by the impact of the plate hammer, and is thrown to the counter device to be broken again, and then springs back from the counter lining plate to the plate hammer action zone to break again. This process is repeated until the material is broken to the required size.
Stone, limestone, pebbles, river pebbles, quartzite, basalt, iron ore, granite, shale, gypsum and so on
Finished product specification：
Main accessories:
Counter plate: high manganese steel material, high resistance
Wheel: Reversible, made of cast steel
Plate hammer: chromium molybdenum alloy cast steel and other materials, good wear resistance and corrosion resistance
Wheel: Reversible, made of cast steel
Plate hammer: chromium molybdenum alloy cast steel and other materials, good wear resistance and corrosion resistance

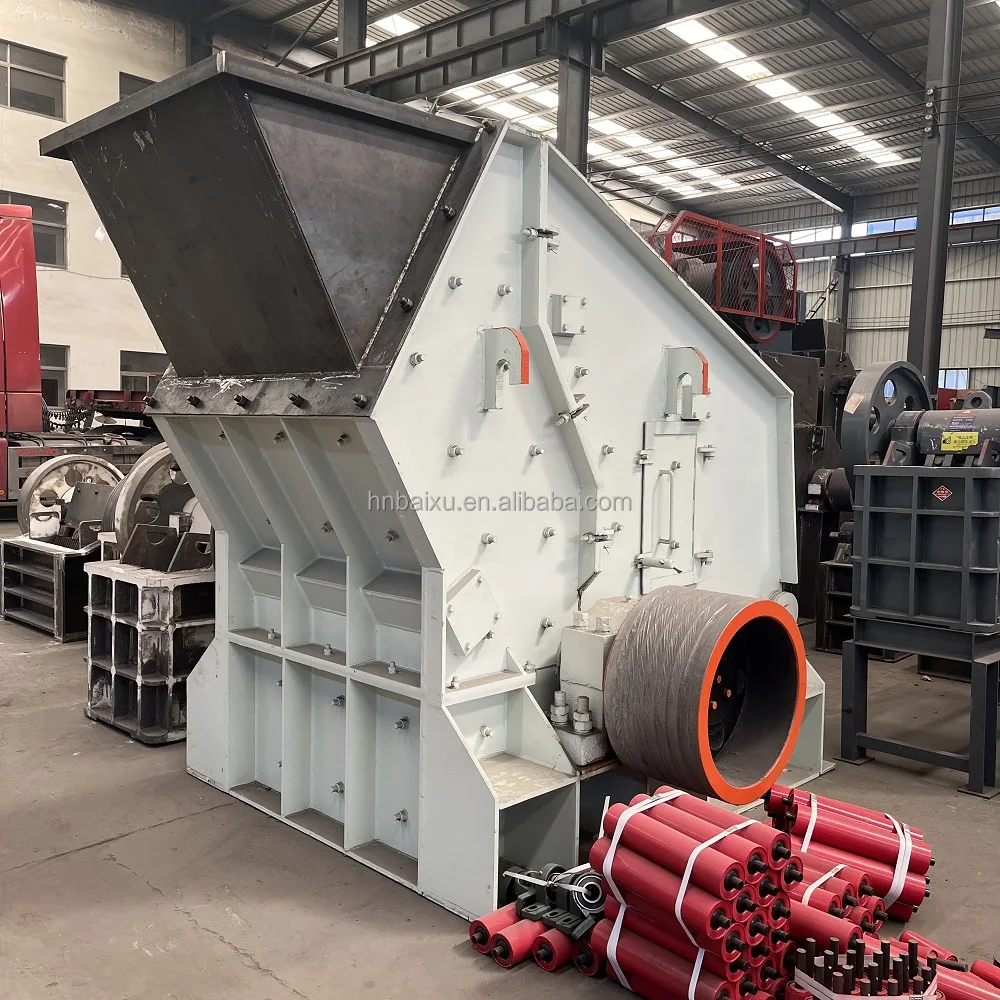

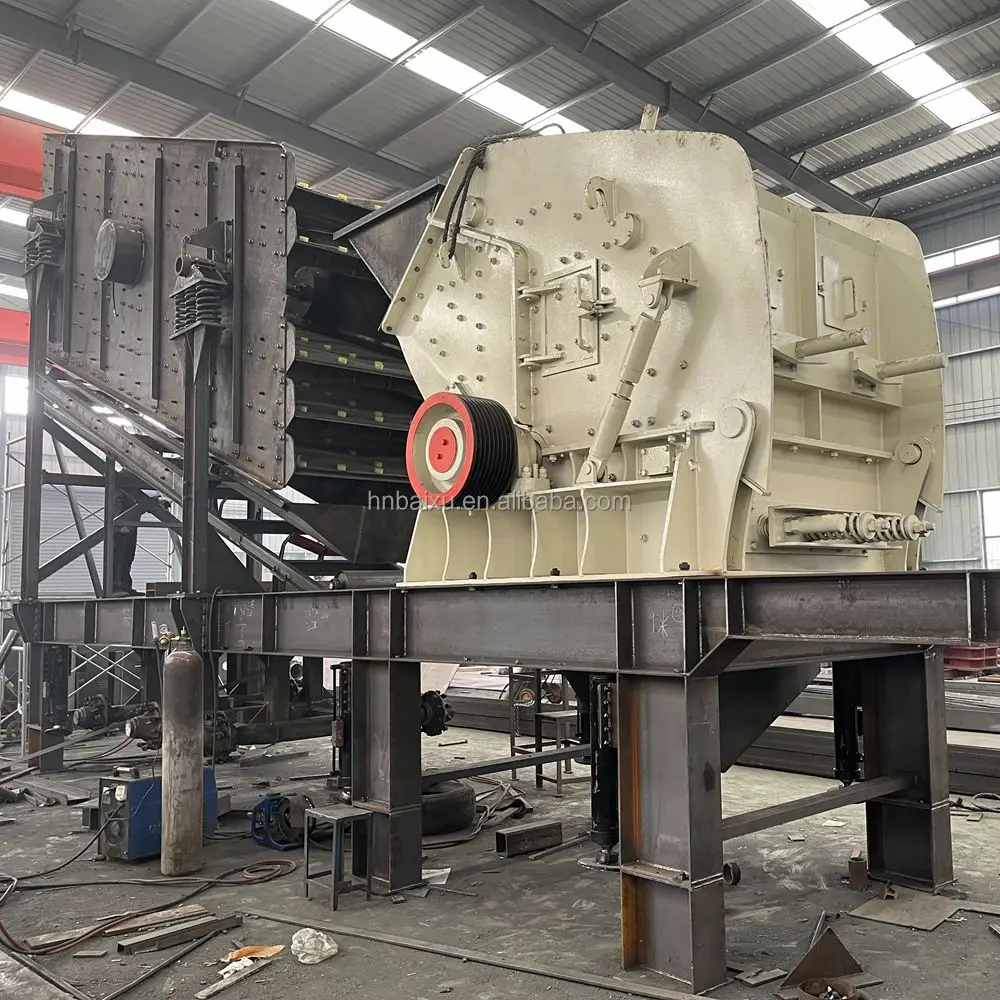

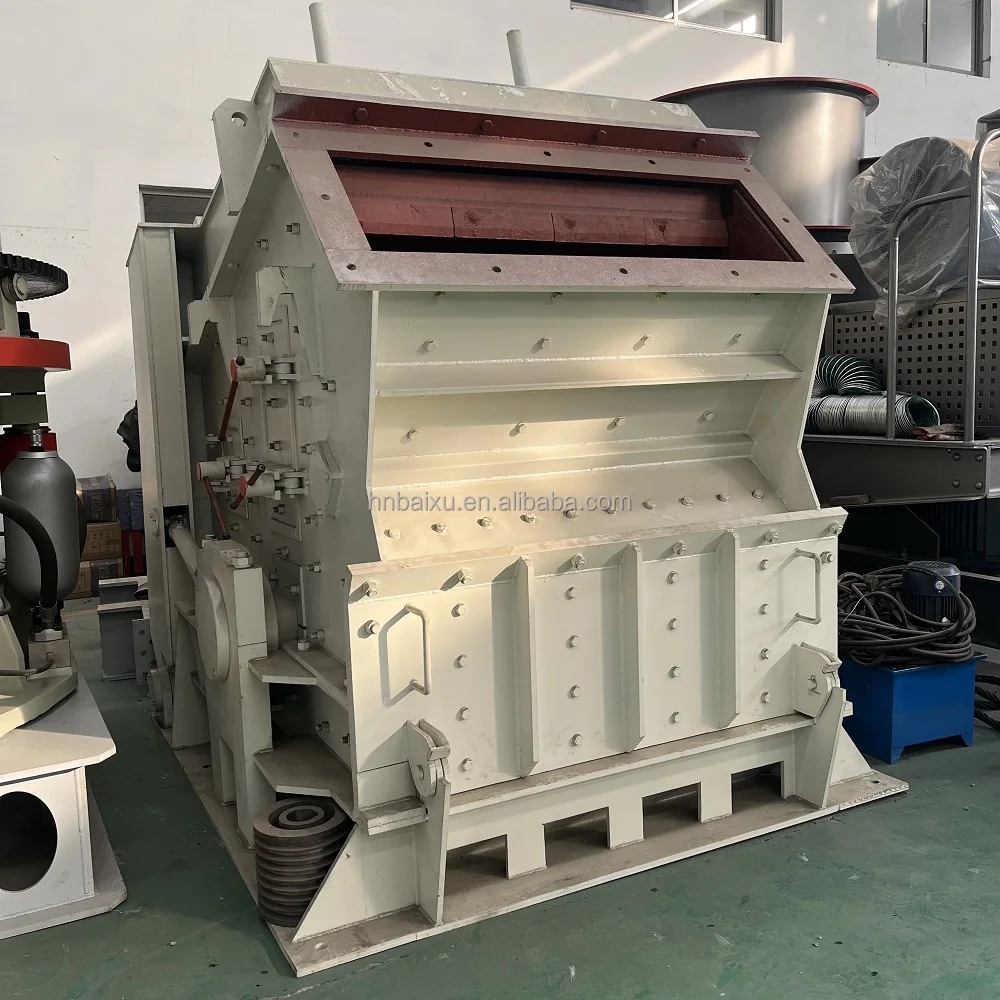

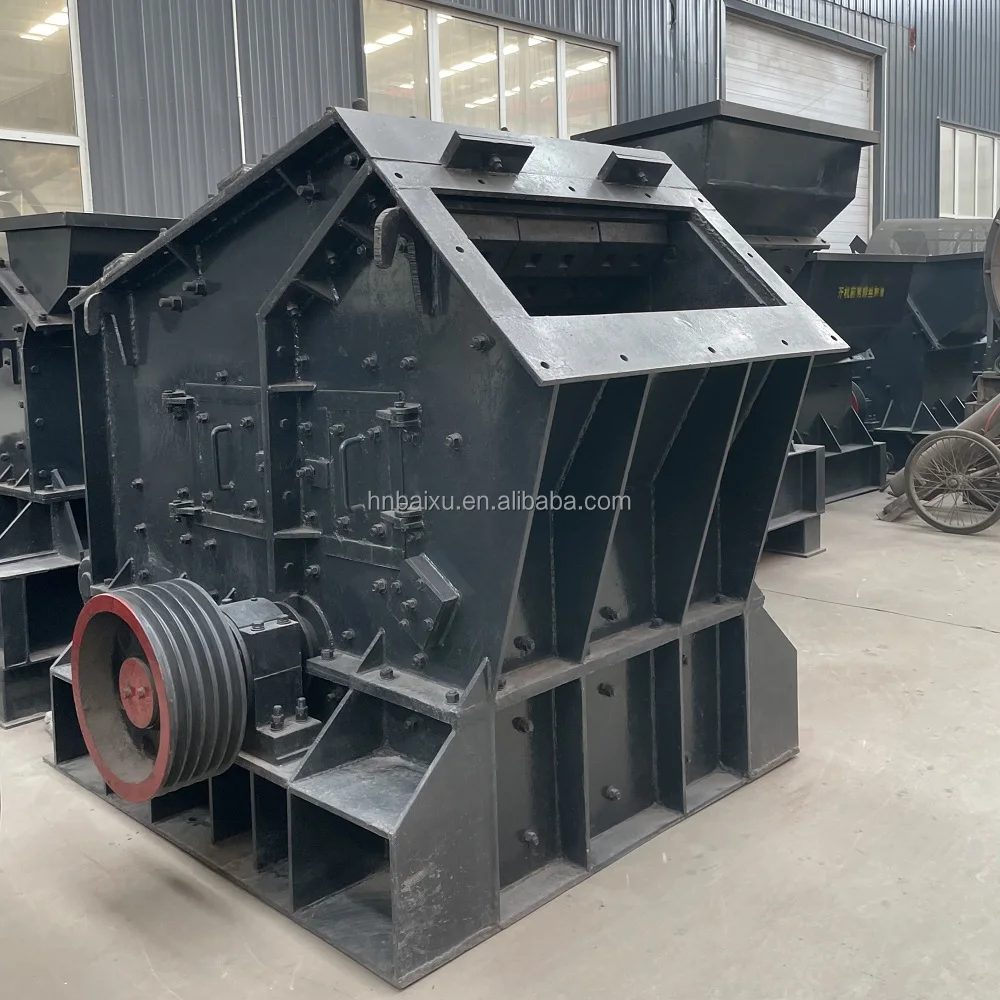

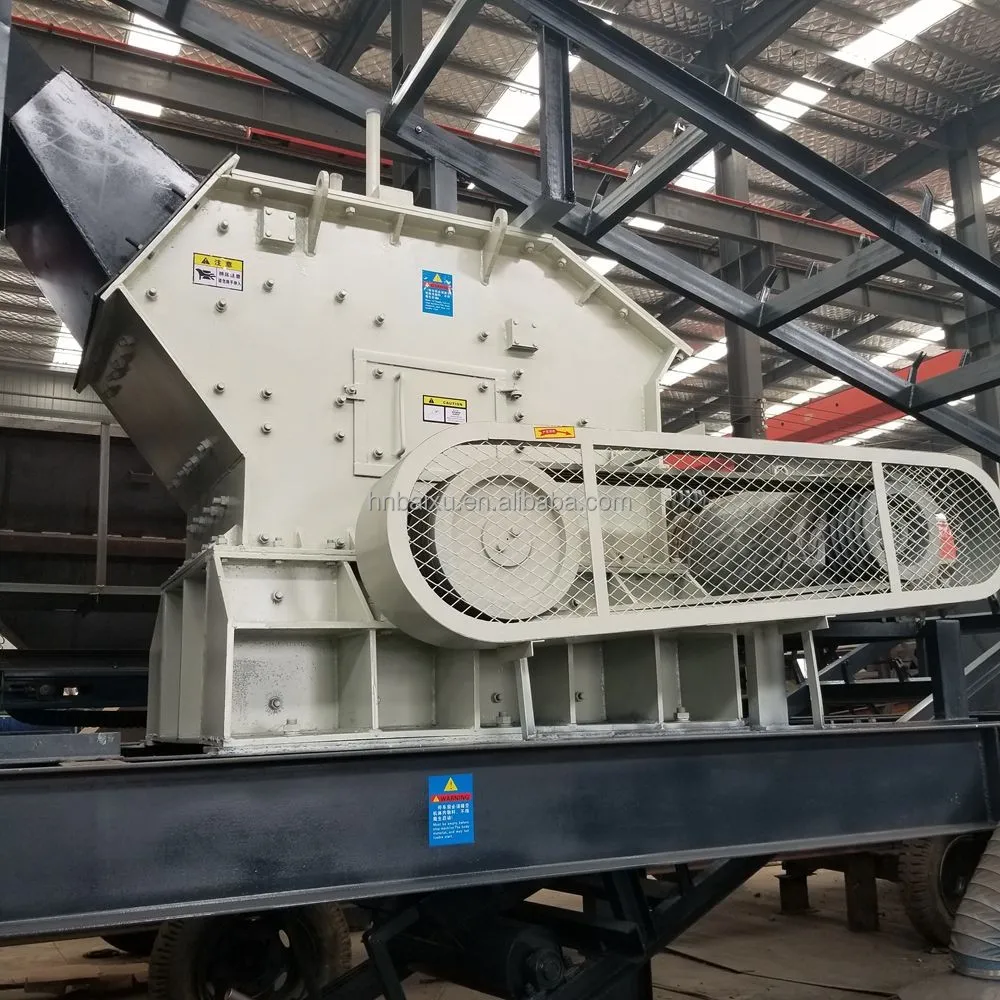

Workshop real shot impact crusher：

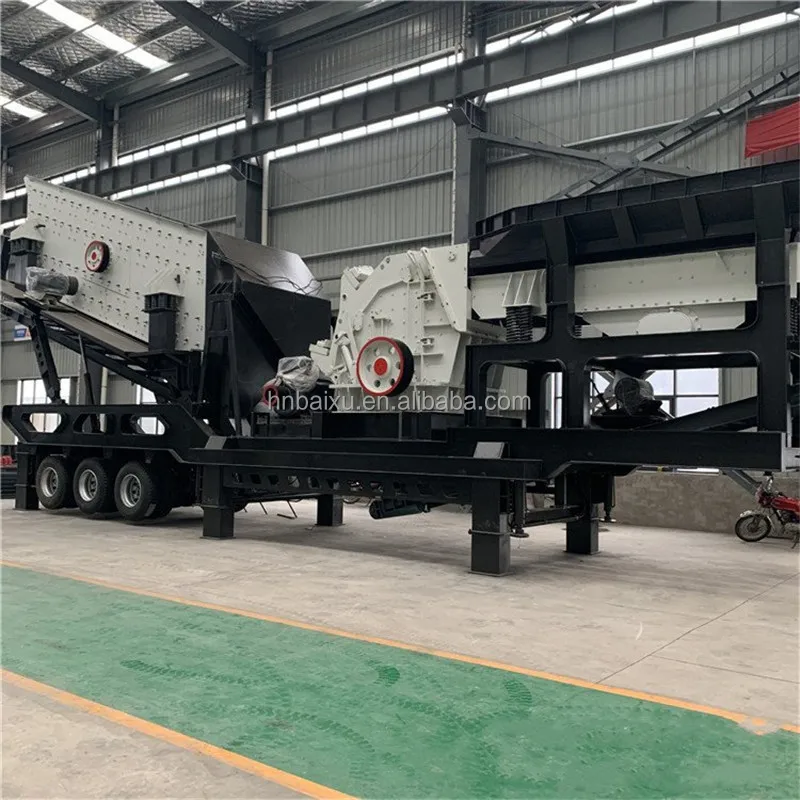

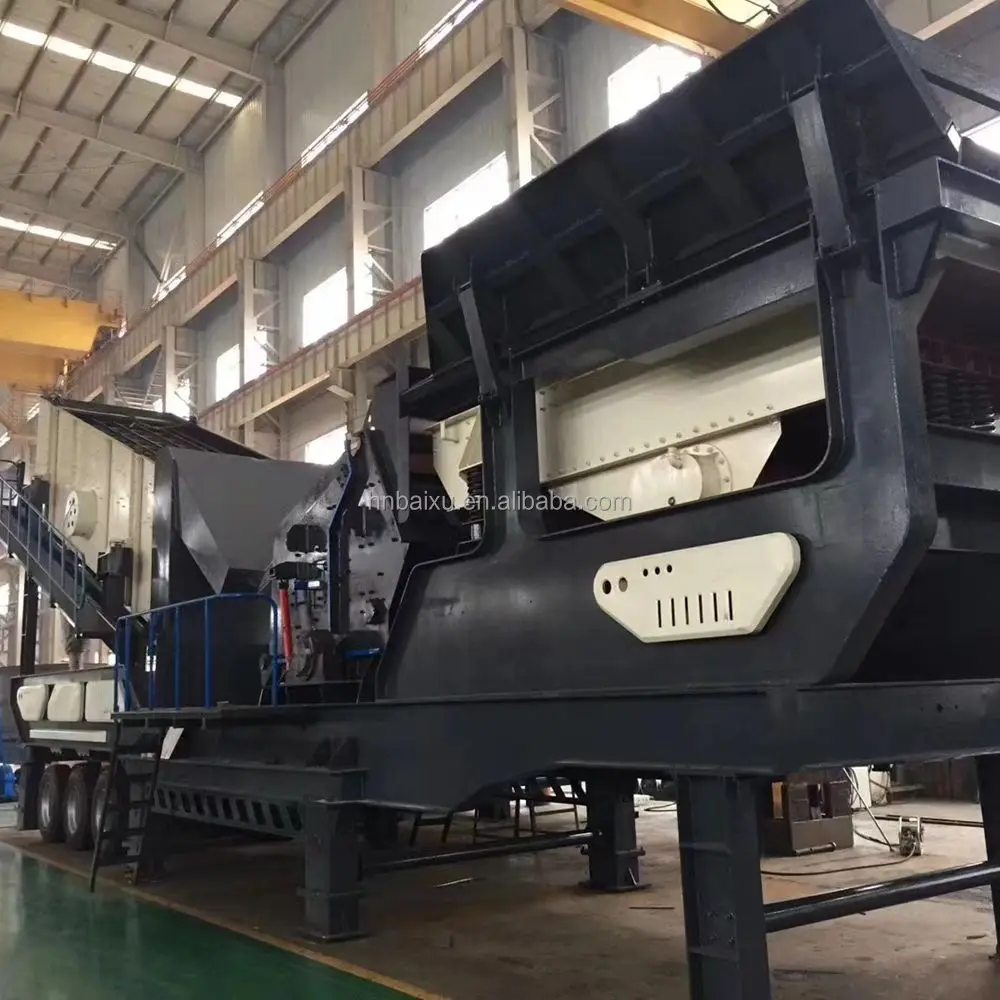

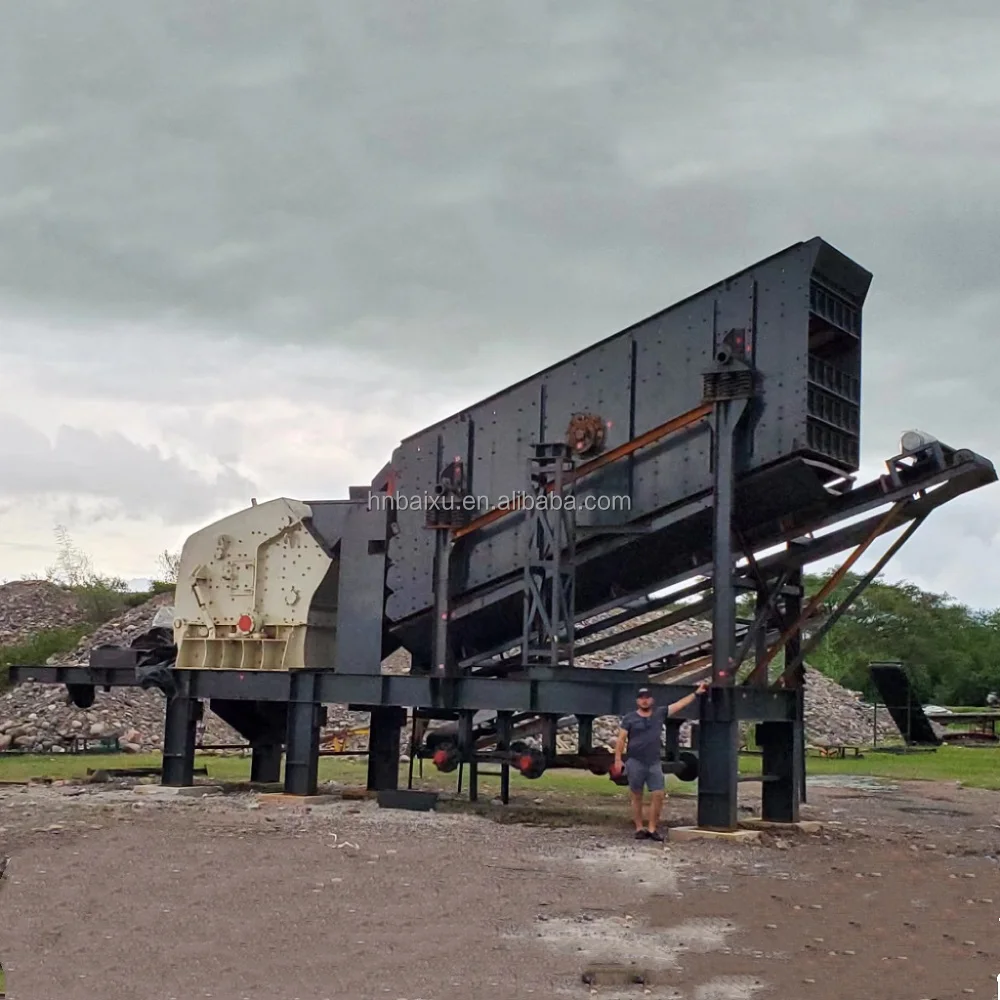

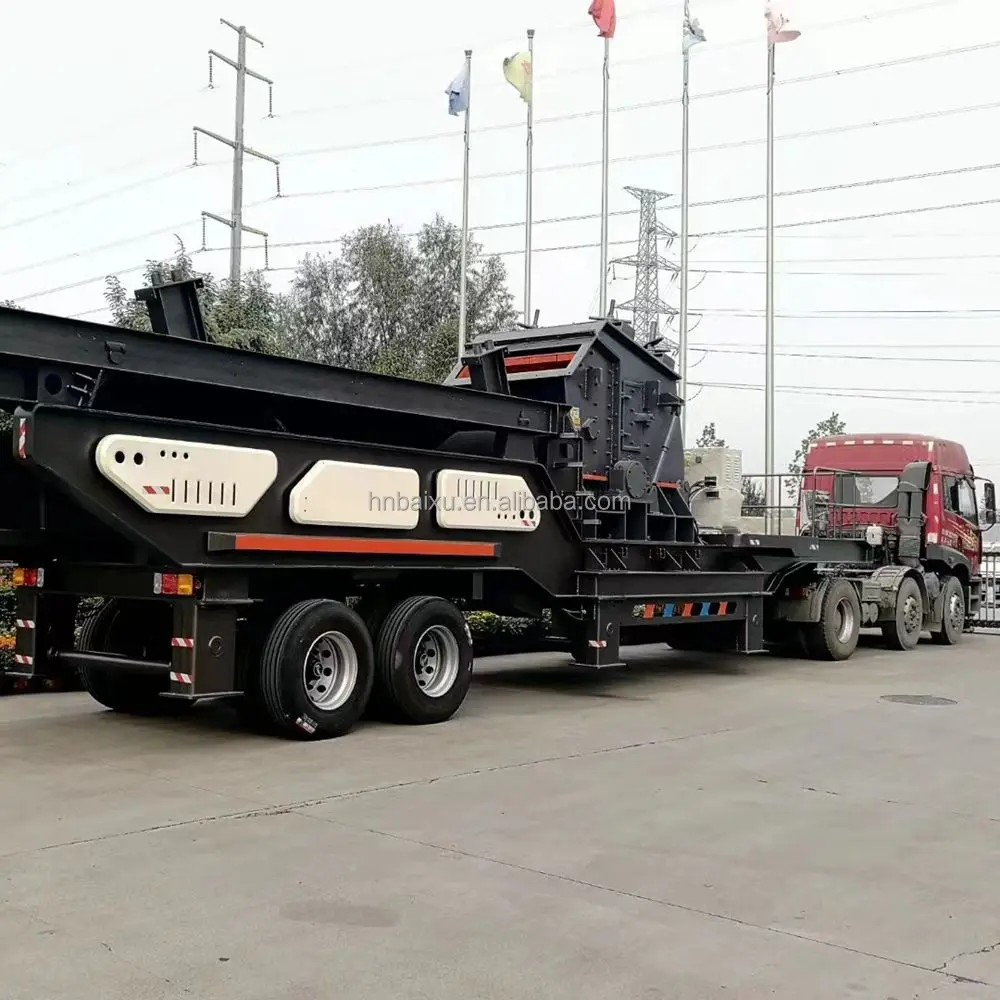

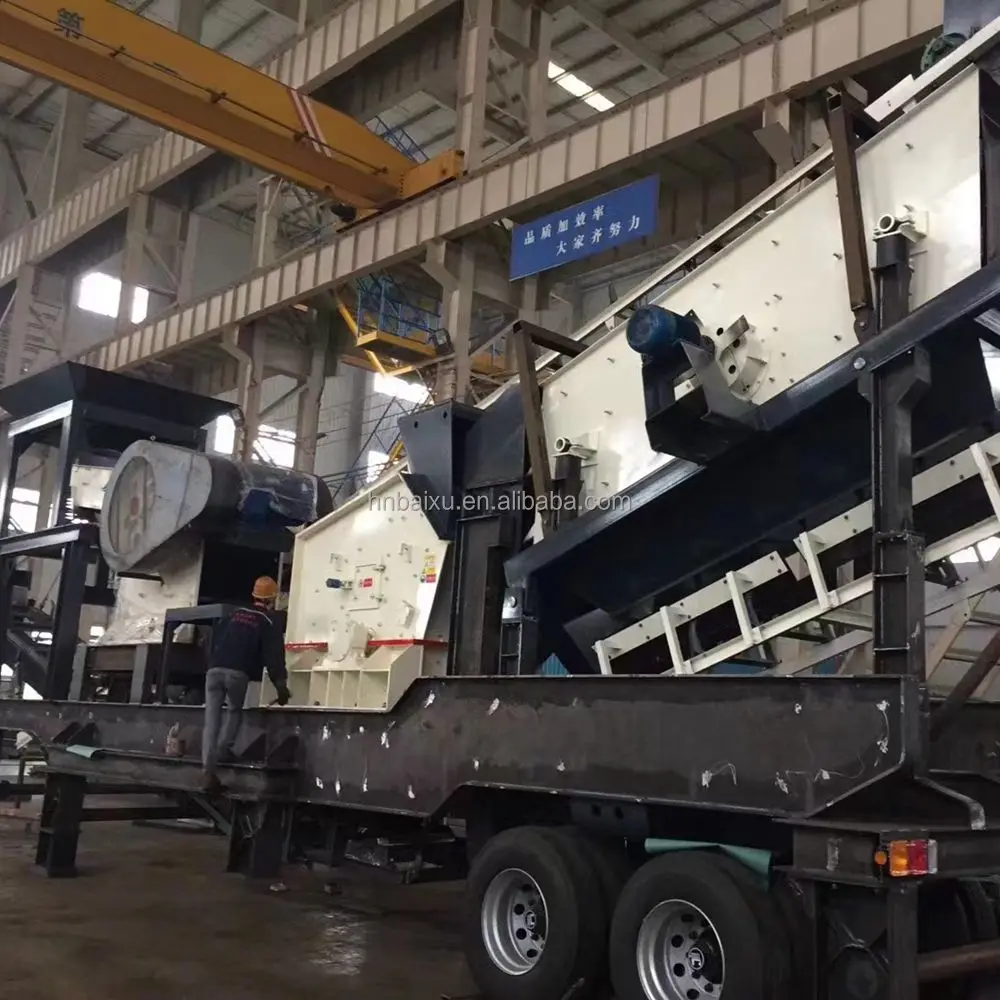

Mobile impact crusher production line：
Technical parameter
Model number | specification(mm) | Feed port size(mm) | Maximum feed size (mm) | yield（t/h) | Motor power (kw) | Dimension (Length x width x height)(mm) |
PF-1007 | 1000*700 | 400*730 | 300 | 30-70 | 45 | 2330*1660*2300 |
PF-1010 | 1000*1050 | 400*1080 | 350 | 50-90 | 55 | 2370*1700*2390 |
PF-1210 | 1250*1050 | 400*1080 | 350 | 70-130 | 110 | 2680*2160*2800 |
PF-1214 | 1250*1400 | 400*1430 | 350 | 80-180 | 132 | 2650*2460*2800 |
PF-1315 | 1320*1500 | 860*1520 | 500 | 100-280 | 200 | 3180*2720*3120 |
PF-1320 | 1300*2000 | 993*2000 | 500 | 140-380 | 250 | 13220*3100*3120 |
PF-1520 | 1500*2000 | 830*2040 | 700 | 200-550 | 315-400 | 3959*3564*3330 |
PF-1820 | 1800*2000 | 1260*2040 | 800 | 300-800 | 630-720 | 4400*3866*4009 |
Product advantage
High efficiency and low energy consumption
Crushing ratio
Advanced technology
Reasonable structure
Uniform particle size
Easy to operate and easy to maintain
Crushing ratio
Advanced technology
Reasonable structure
Uniform particle size
Easy to operate and easy to maintain
Production site

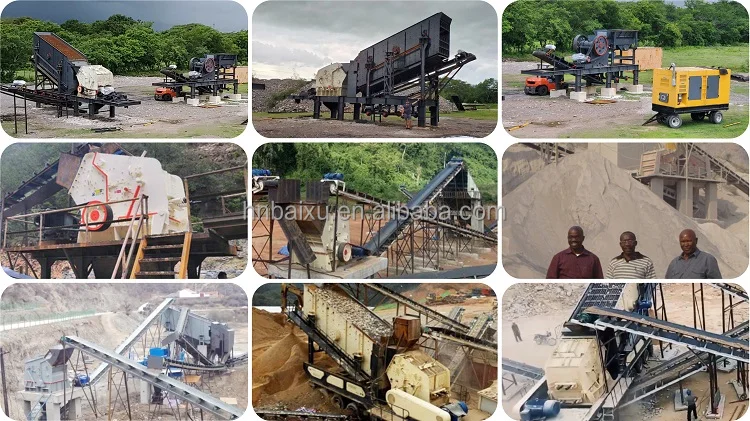

stone crushing plant counterattack crusher production site：
sold to more than 20 countries, service more customers
Company introduction
Henan Baixu Machinery Equipment Co., Ltd. has become and mining equipment, cement machinery, building materials equipment production, research and development, sales in one of the enterprises. The main production of jaw crusher, hammer crusher, impact crusher, crusher production lines, engineering building materials machinery and other products. It is widely recognized in stone crushing, construction sand, mineral processing equipment and other business fields. Business and service agencies all over the
country, and exported to Eastern Europe, Central Asia and other countries.
country, and exported to Eastern Europe, Central Asia and other countries.
Exhibition hall, workshop, well equipped：
Mine sand and stone equipment in stock

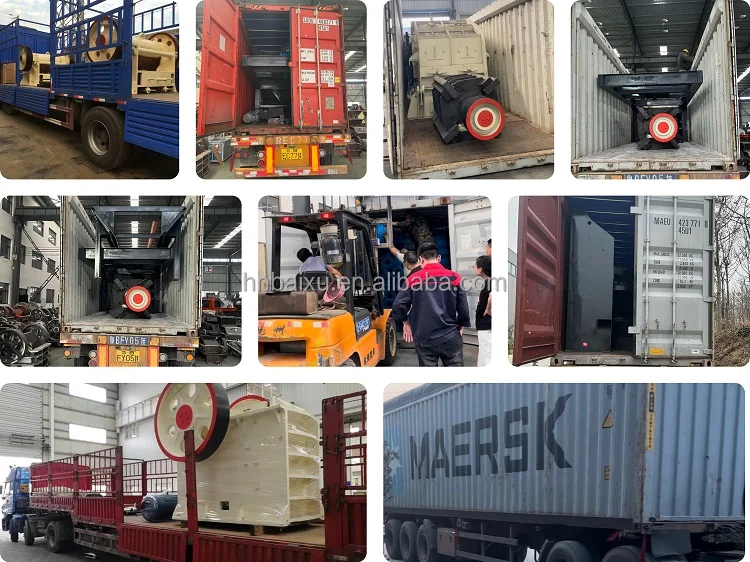

Packing and transportation
Factory delivery routine：
FAQ
Q: What materials can the impact crusher break?
A: The impact crusher can break a series of hard materials such as pebbles, granite and cement blocks. The material can be broken into small pieces of optional size.
Q: Are the wearing parts of crushing equipment durable?
A: First, the wearing parts need to be replaced within a certain period of time. I can get you to sell the wearing parts at factory price
Q: How long does the warranty last?
A: The wear parts are guaranteed for one and a half years. If you have any questions, please feel free to contact us
Q: Is it convenient to replace the wearing parts of crushing equipment?
A: Yes, the mechanical equipment is easy to replace. If you want, we can provide you with a video guide
Q: How do you help customers install equipment?
A: They are usually assembled and ready to use when they are delivered. Video instruction will be provided if required
A: The impact crusher can break a series of hard materials such as pebbles, granite and cement blocks. The material can be broken into small pieces of optional size.
Q: Are the wearing parts of crushing equipment durable?
A: First, the wearing parts need to be replaced within a certain period of time. I can get you to sell the wearing parts at factory price
Q: How long does the warranty last?
A: The wear parts are guaranteed for one and a half years. If you have any questions, please feel free to contact us
Q: Is it convenient to replace the wearing parts of crushing equipment?
A: Yes, the mechanical equipment is easy to replace. If you want, we can provide you with a video guide
Q: How do you help customers install equipment?
A: They are usually assembled and ready to use when they are delivered. Video instruction will be provided if required
