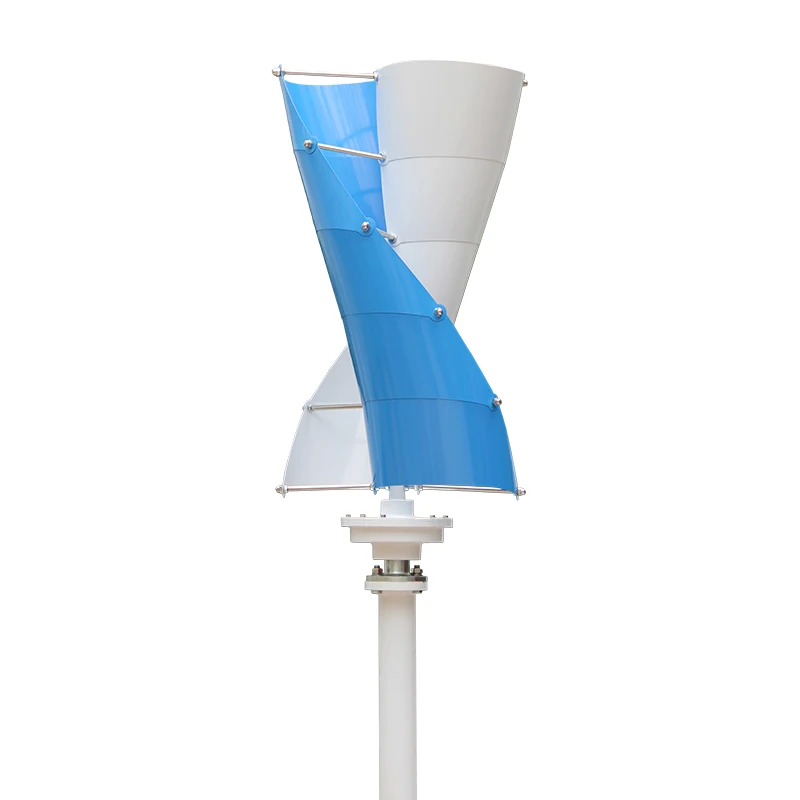

New Factory Direct Sale Alternative Power Wind Turbine 900 Generator Turbine Energy Power Turbine
- Category: >>>
- Supplier: Wuxi Yunxinda Technology Co. Ltd.Wuxi Ltd.
Share on (1601269309884):
Product Overview
Description
Products Description
Product Specifications
Model | YXD-300 SV | YXD-900 SV | YXD-1200 SV | ||
Average Power(/day) | 300W | 900W | 1200W | ||
Maximum power(/day) | 1.8KW | 5.4KW | 7.2KW | ||
Rated voltage | 12/24V | 12/24V | 12/24V | ||
Start up wind speed | 1.5m/s | 1.5m/s | 1.5m/s | ||
Rated wind speed | 10m/s | 10m/s | 10m/s | ||
Survival wind speed | 45m/s | 45m/s | 45m/s | ||
Top net weight | 13kg | 15kg | 24kg | ||
Wheel diameter | 0.47m | 0.47m | 0.66m | ||
Blades number | 3/5 | ||||
Blades material | Aluminum alloy | ||||
Generator | Three phase permanent magnet ac generator | ||||
Magnetic steel | NdFeB | ||||
Generator case | Die-casting aluminum | ||||
Control system | Electromagnet/ wind wheel yaw | ||||
Speed regulation | Automatically adjust windward | ||||
Working temperature | -40℃～80℃ | ||||
Lubrication | Grease injection | ||||
