Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Good Price High speed Fiber Laser Cutting Machine 3KW Power Fiber Laser Cutting Machine All Covered with raycus auto head
- Category: >>>
- Supplier: Jinan Looke Intelligent Equipment Co. Ltd.
Share on (1601269394780):
Product Overview
Description
Product Description
Good Quality Fiber Laser Cutting Machine High Power Fiber Laser Cutting Machine All Covered Fiber Laser Cutting Machine
Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs
the working life. Large format cutting area meets the demands of various kinds of metal processing.
the working life. Large format cutting area meets the demands of various kinds of metal processing.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Specification
Model | 1390/1313/1310 Fiber laser cutting machine |
Working area | 1300*900/1300*1300/1500*3000mm working area |
Laser source | 1000/1500/2000/3000/4000/6000W Raycus/ MAX fiber laser source |
Laser cutting head | Raytools or WSX laser head |
Bed structure | High rigidity welded steel framework |
Table surface | Blade table |
Guide rail | Taiwan Hiwin linear square guide rail 25mm |
Transmission | X,Y with helical gear rack ,Z with TBI ball screw |
Motors and drivers | Delta servo motor & driver, X,Y axis 750w, Z axis 400w |
Control system | FSCUT 1000S/2000C control system |
Software | CypOne laser cutting software with BMC 1603 control card |
Chiller | S&A, Dual Temperature Control or Hanli brand chiller |
Reducer | Japan imported SHIMPO reducer |
Tool sensor | Automatic tool sensor |
Lubrication system | Electric automatic lubrication system |
Pressure valves | High-pressure(N2,air):2.5MPa(Shuoda) |
Low-pressure(O2):1MPa(SMC) | |
Electronic Proportional Valve | PMC |
Electronic Components | Delixi, Omron |
Max. idling speed | 80m/min |
Positioning Accuracy | ±0.03mm |
Re-Positioning Accuracy | ±0.02mm |
Instruction format | G code *.u00 *.mmg *.plt |
Working voltage | AC380V, 3 phase,50-60hz(for more than 1000w) AC220V, single phase, 50-60hz(for 1000w) |
Others | Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc |

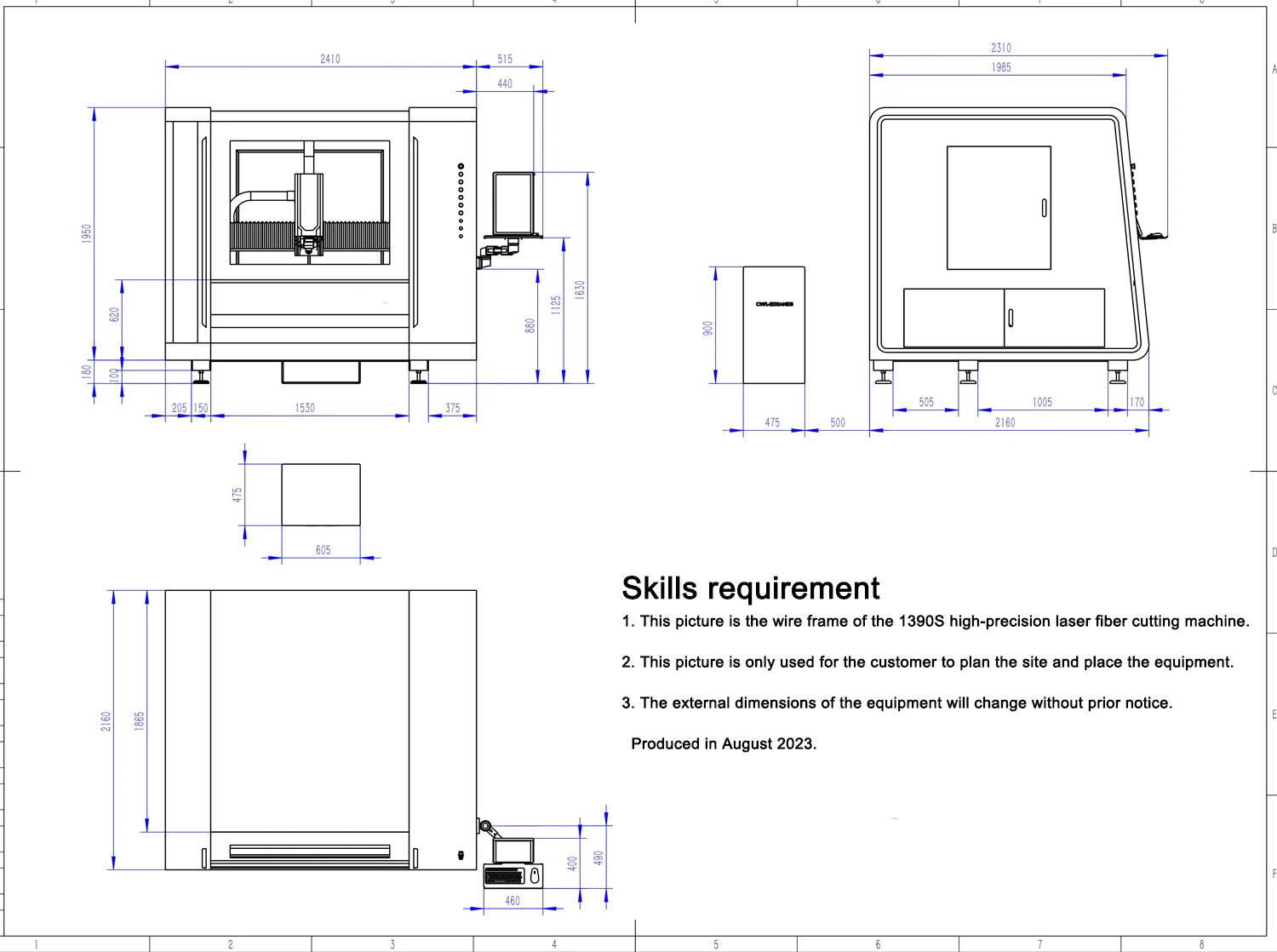

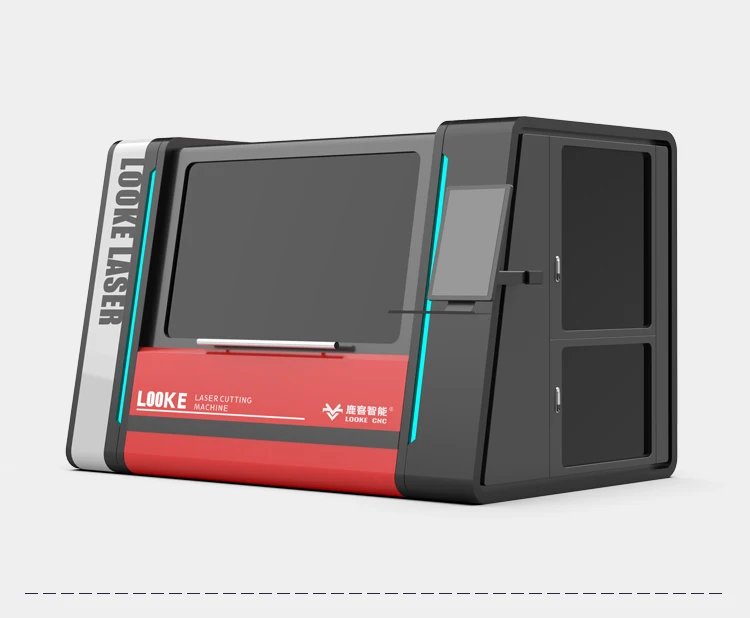

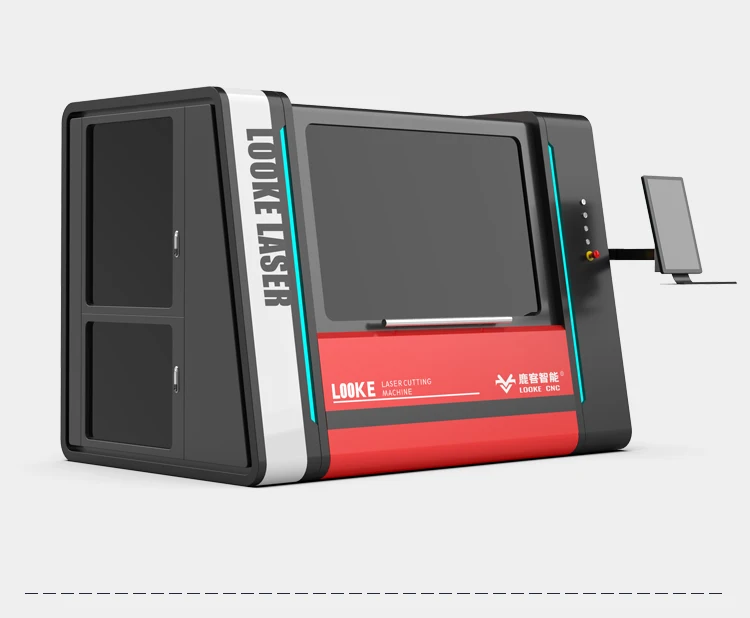

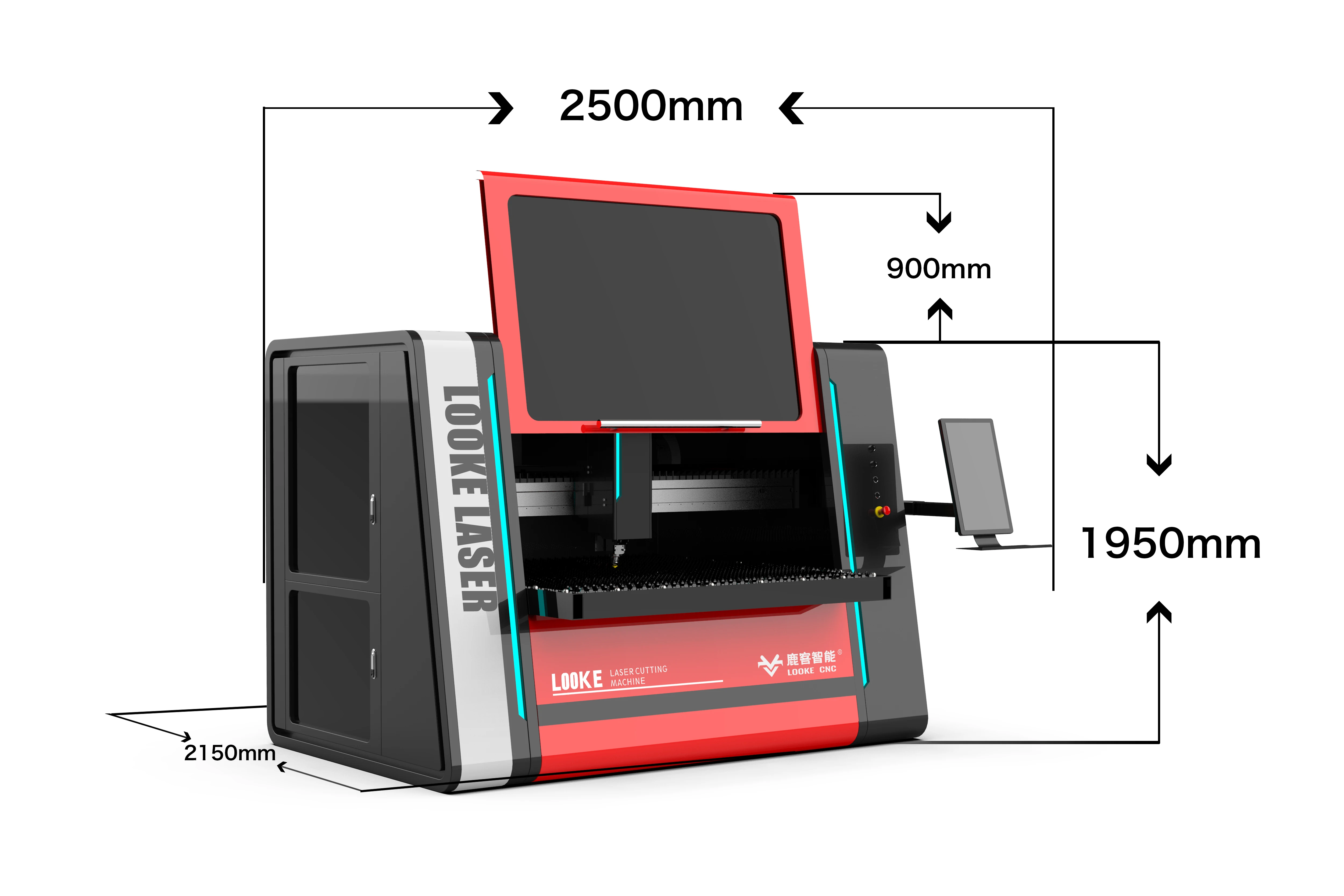

LOOKE-1390S fiber laser metal cutting machine outline dimension wire frame diagram
1. This picture is only used for customer to plan the venue and display the machine.
2. When the machine dimension changed, will let you know.
3. This picture provided by Jinan LOOKE Intelligent Equipment Co.,LTD
3. This picture provided by Jinan LOOKE Intelligent Equipment Co.,LTD

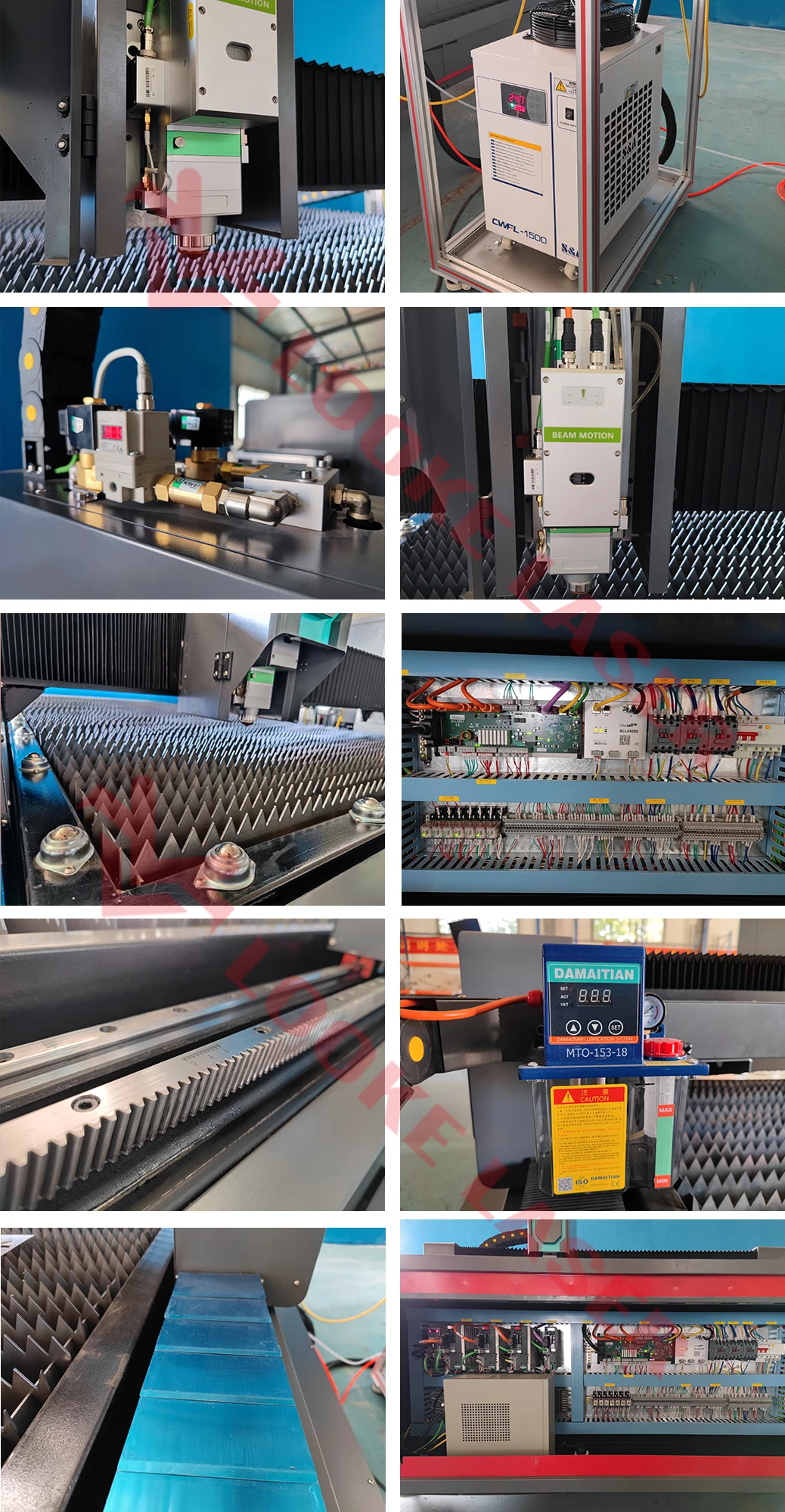

Machine details
Delta servo motor
Delta servo driver
Performance feature
1.Excellent beam quality: Smaller focus diameter , high work efficiency, better processing quality.
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
2. High cutting speed: 2-3 times faster than YAG and CO2 laser .
3.High Stability: Adopt superior quality fiber laser, stable performance, key parts can reach .
4. High efficiency for photoelectric conversion : Compared with CO2 laser cutting machine, Fiber laser cutting machine has 3 times photoelectric conversion and with energy saving & friendly environment
Advantages:
1. Low cost: The whole power consumption is only 20-30% of traditional CO2 laser cutting machine.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.
2.Low maintenance cost: It is with Optical fiber line transmission, no need reflector lens, can save a lot of maintenance cost.
3.Easy Operation : Fiber Line transmission, no adjustment of optical path.
4.Super-flexible optical effect : small volume, compact structure, easy to flexible manufacturing requirements.

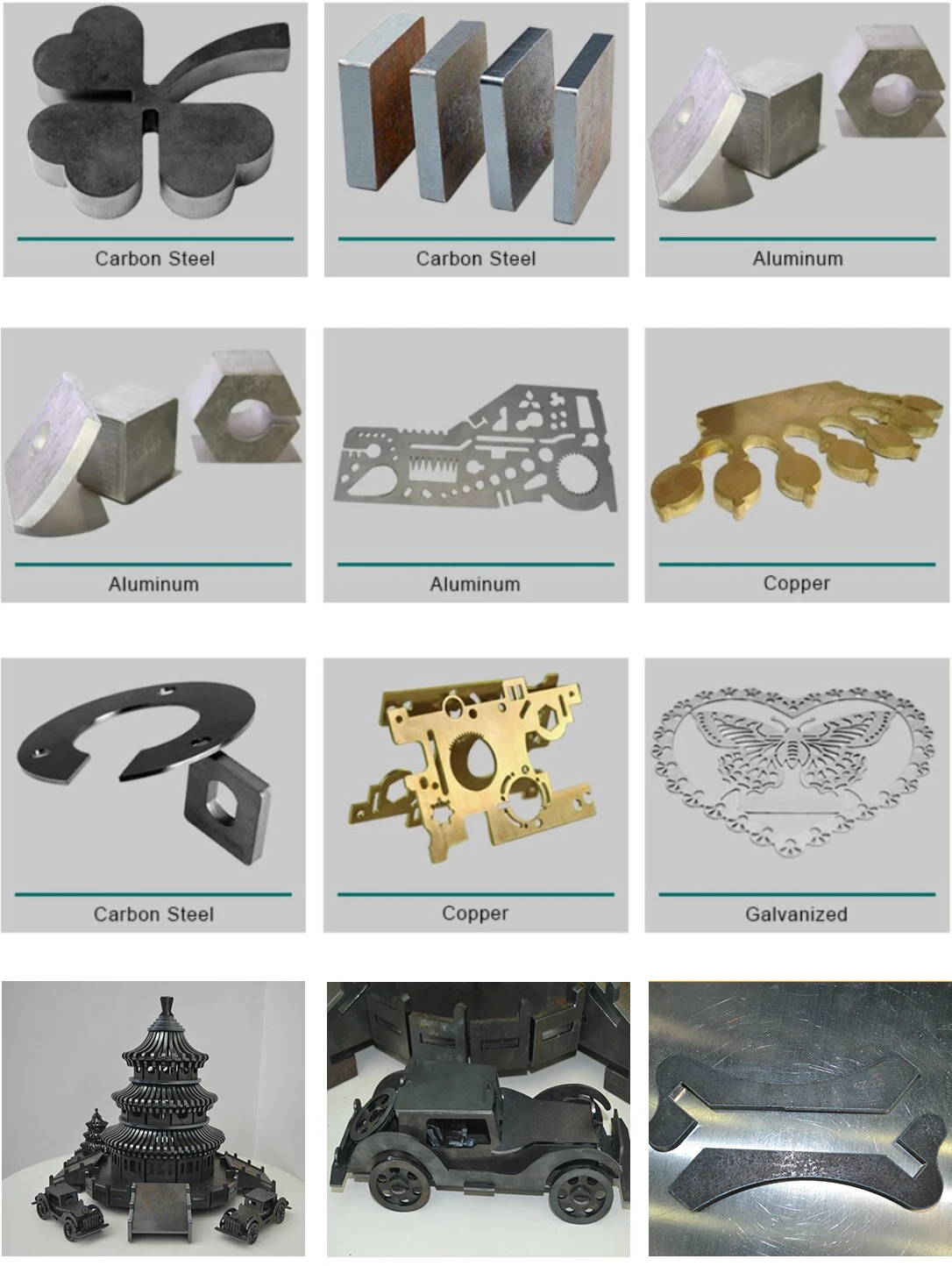

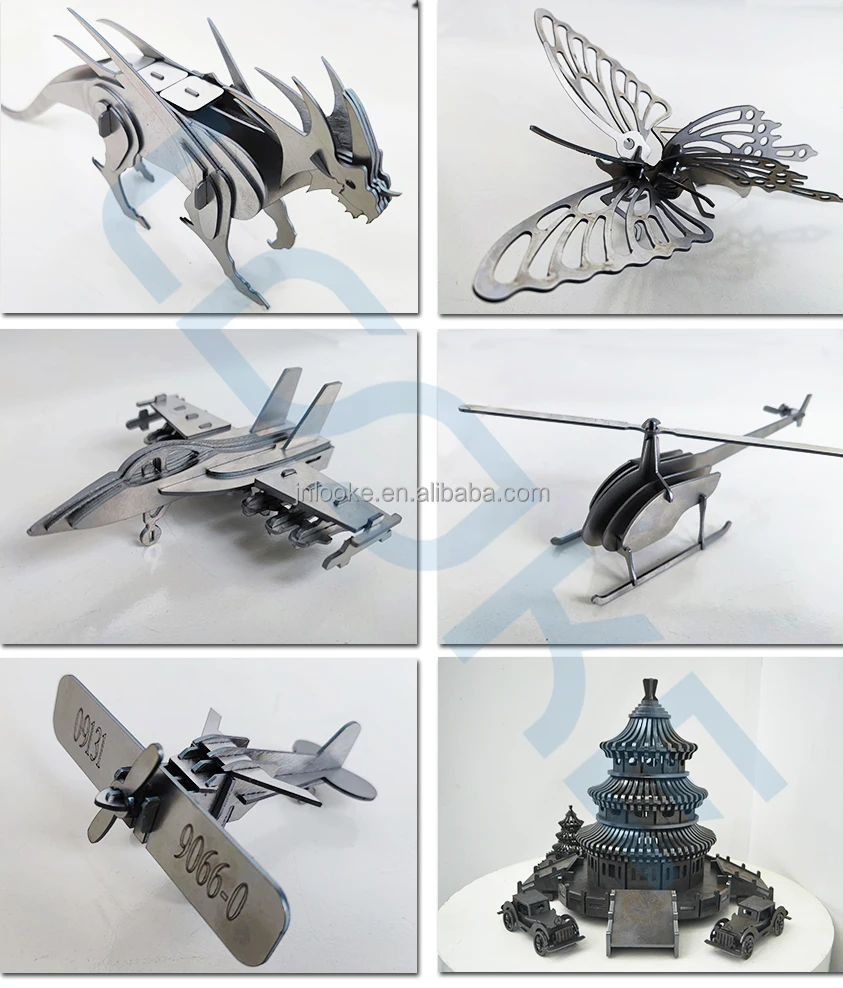

Sample exbition
1000w Fiber Laser Cutting machine: Laser Cutting machine is widely used in cutting and shaping for metal plates, pipes (pipe cutting plus pipe cutting device can be), stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
Packing & Delivery
We will strictly inspection the goods before packing by professional team. Before shipping, they will commission cnc router firstly, then brush oil to linear guide, ball screw, and all the metal sheet,and then lubricate all the hinged parts like pin and bearings. All those wood carving machine will be kept clean,covered of plastic film and then put into the plywood case. Then the
cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.
cnc router will be in its good conditions on the whole inland and sea transportation. When the machine arrives, a nice,safe,strong and beautiful packaging will catch the client's eyes unexpectedly.

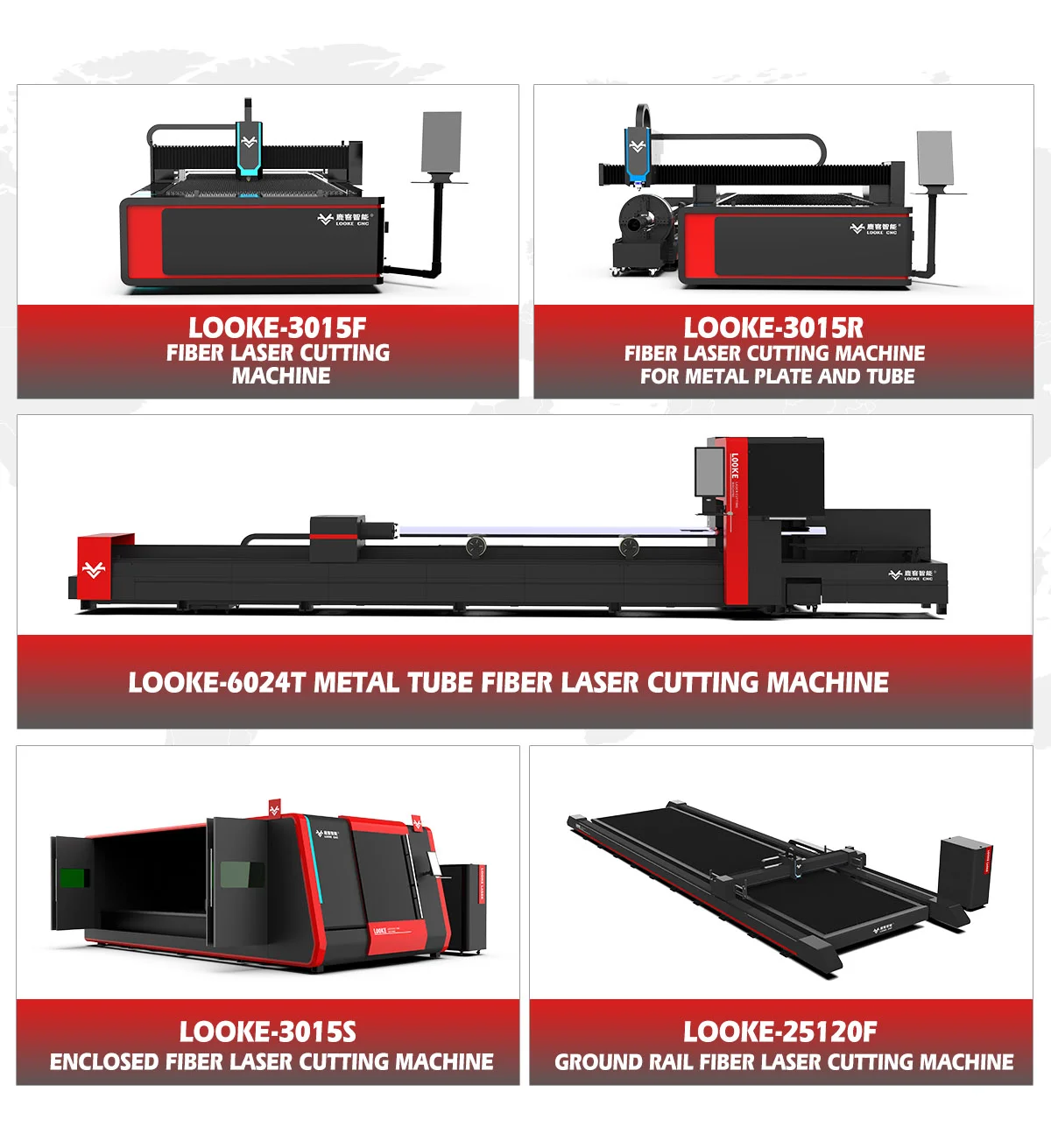

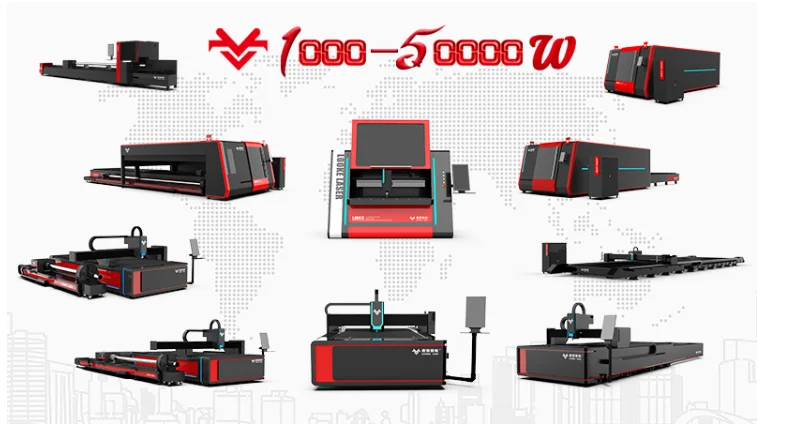

Related machine
Company Profile
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.
Certificate
We have CE/ ISO9001/SGS/TUV certificates
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5 years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
