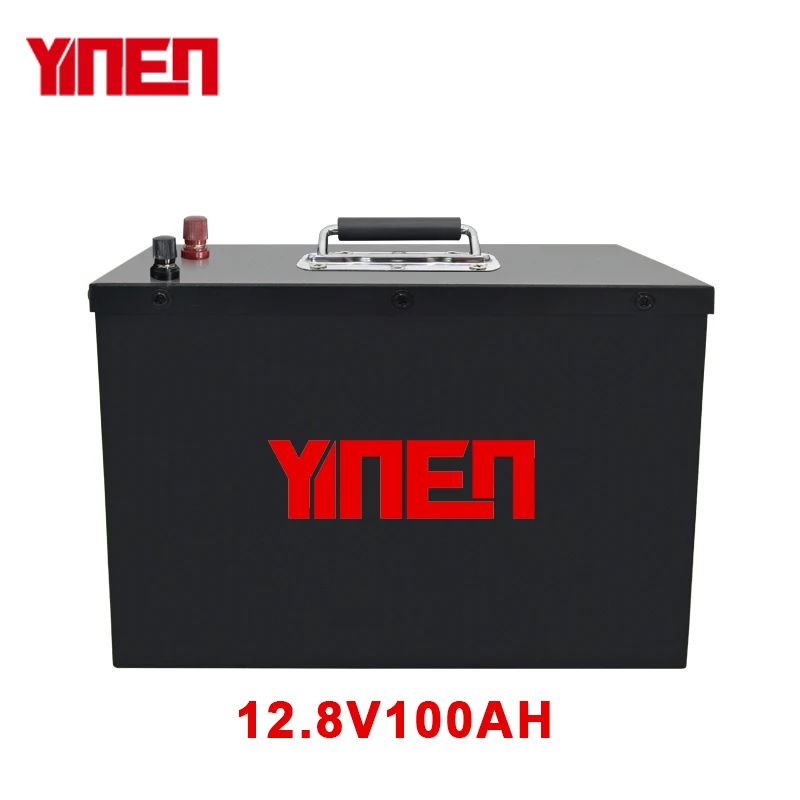

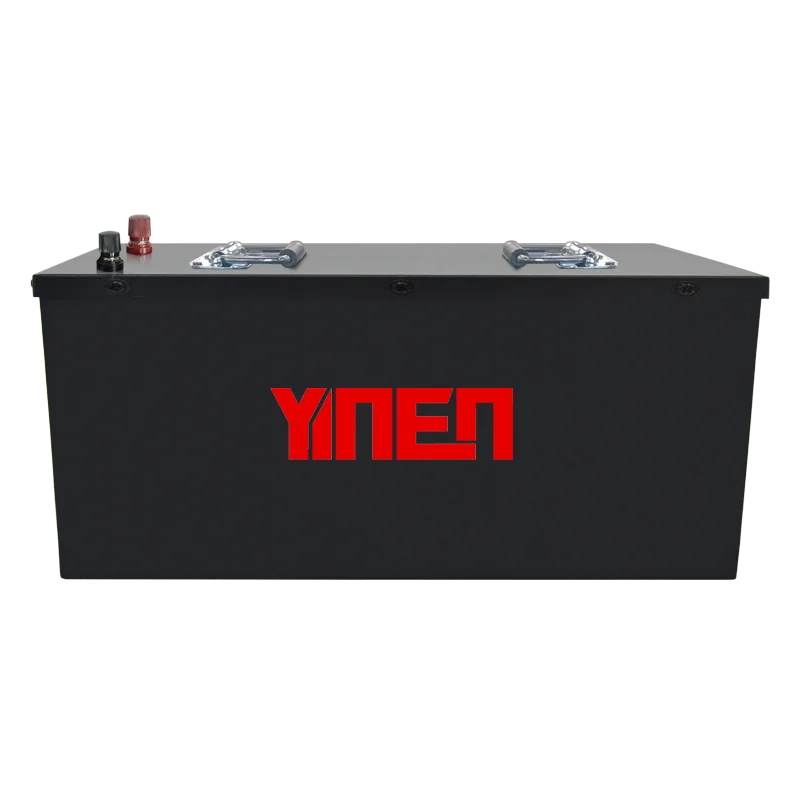

Lithium Ion Batterie 12.8V 100ah 200ah Lifepo4 Battery Golf Cart Electric Car Batteries
- Category: >>>
- Supplier: Anhui Jnge Power Co. Ltd.Anhui Ltd.
Share on (1601269399772):
Product Overview
Description
Products Description

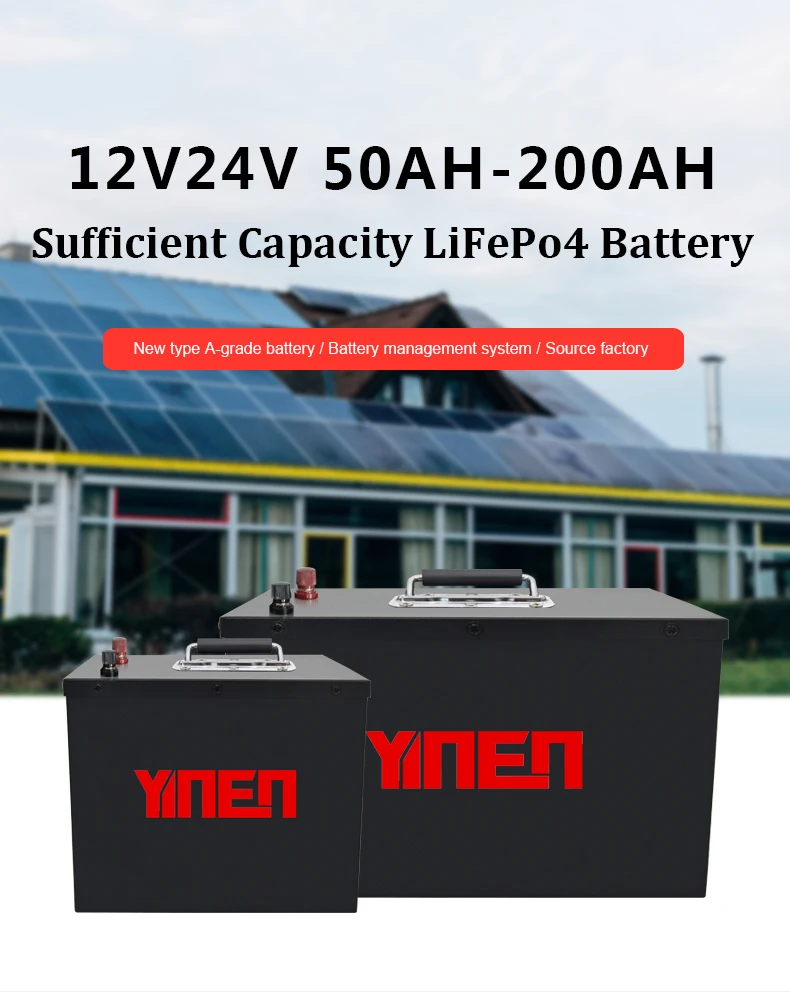

Sufficient Capacity LiFePo4 Battery
1. Source factory ISO
2. A+ grade cell, precision assembly
3.>5000 cycles Reliable Performance
4. High energy ratio, autonomous cooling, free combination
5.Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Support custom BMS protection board
7.Optional Bluetooth Monitor

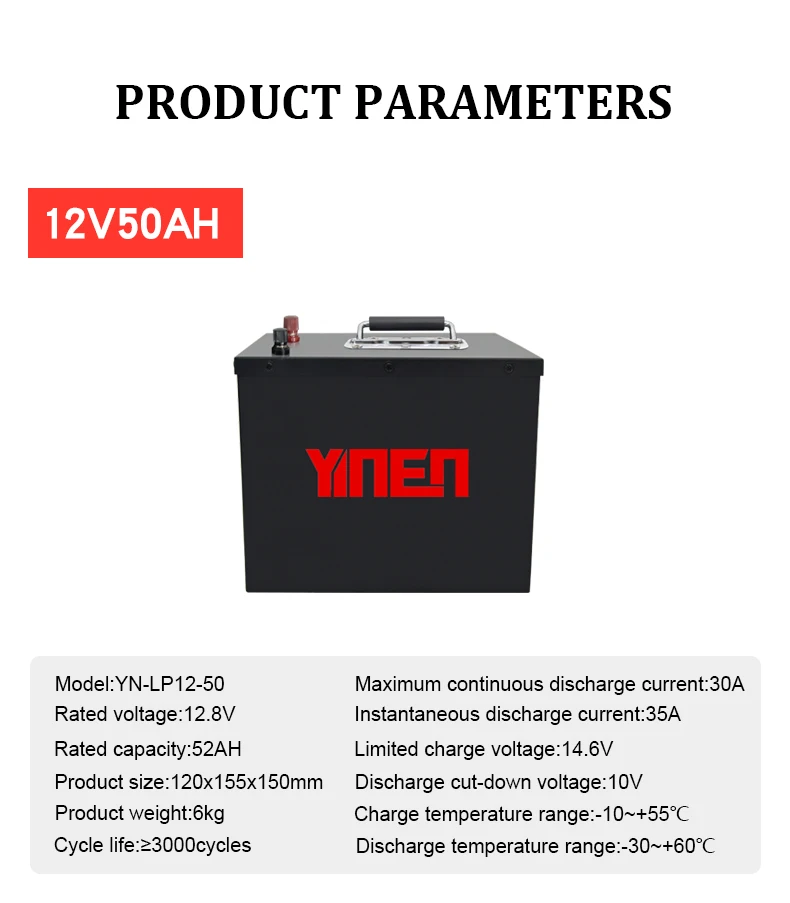

PRODUCT SPECIFICATIONS

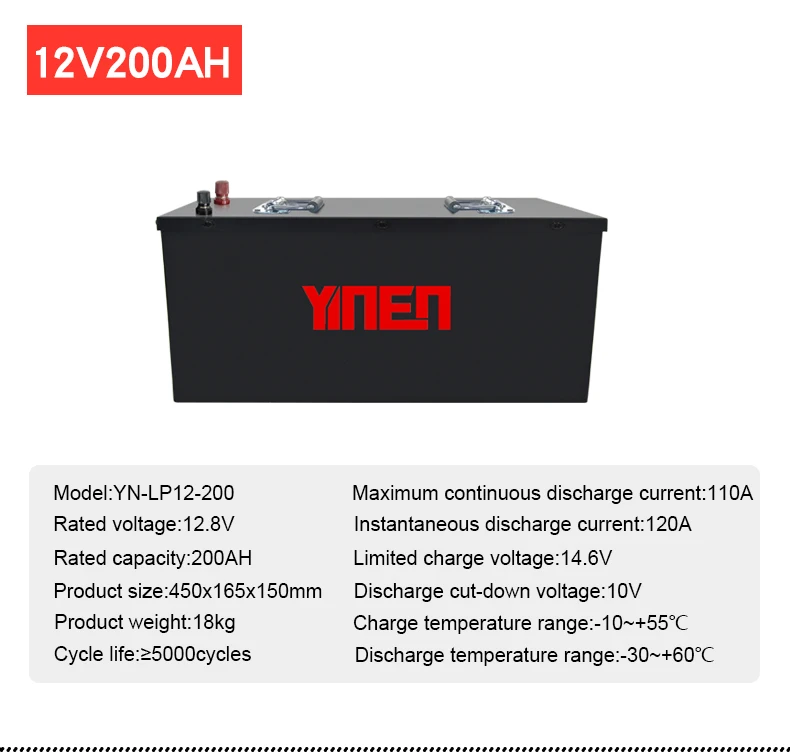

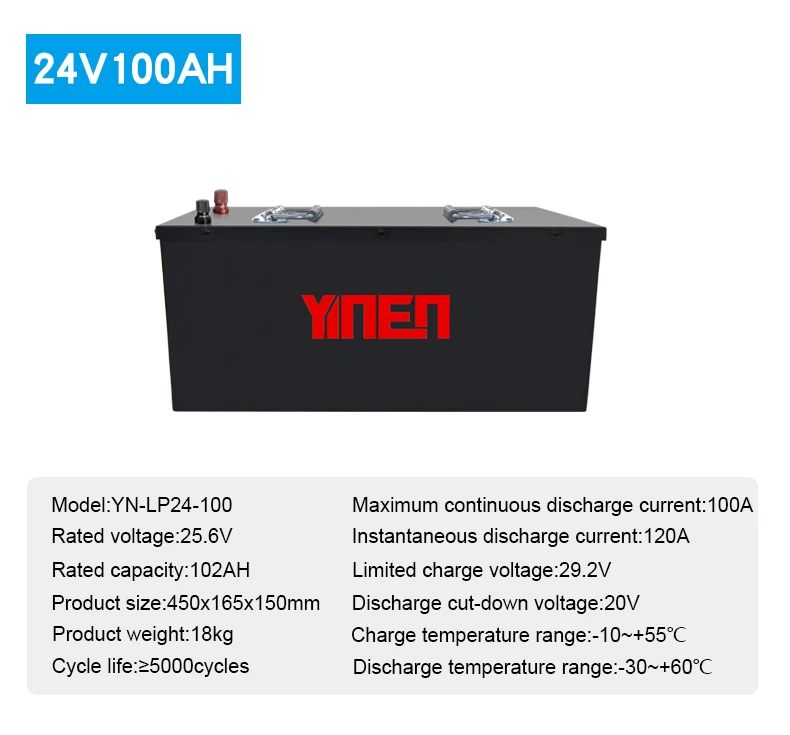

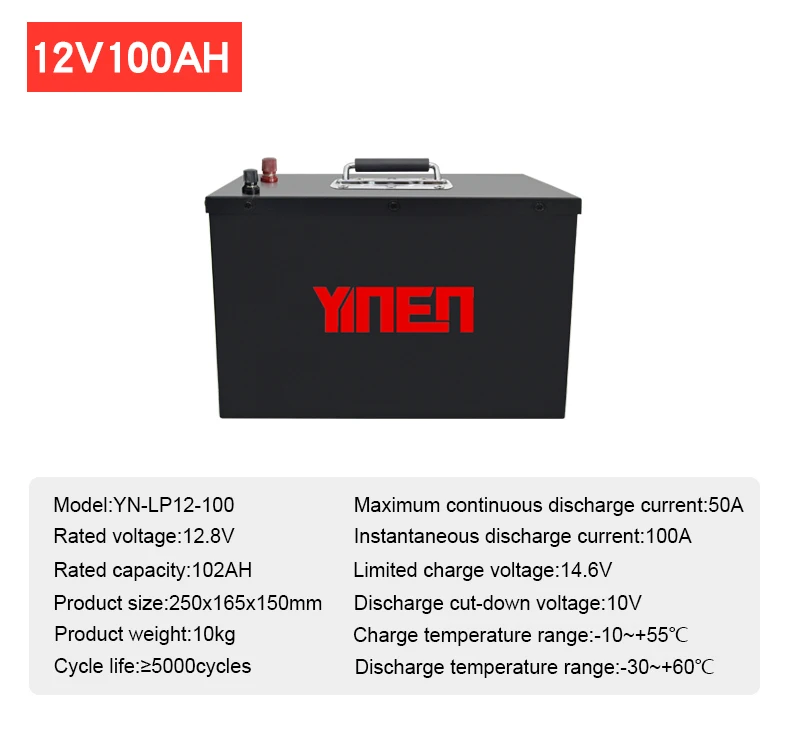

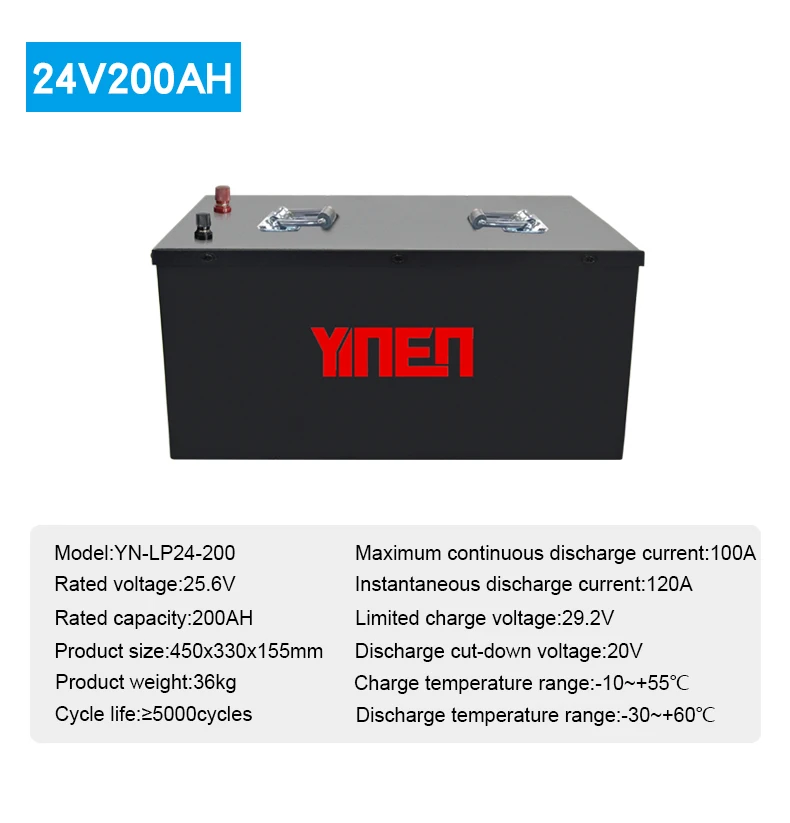

Model | YN-LP12-50 | YN-LP12-100 | YN-LP12-200 | YN-LP24-100 | YN-LP24-200 |
Rated voltage | 12.8V | 12.8V | 12.8V | 25.6V | 25.6V |
Rated capacity | 52AH | 102AH | 204AH | 102AH | 204AH |
Product size | 120x155x155mm | 250x165x150mm | 450x165x150mm | 450x165x150mm | 450x330x155mm |
Product weight | 6kg | 10kg | 18kg | 18kg | 36kg |
Cycle life | ≥3000cycles | ≥5000cycles | ≥5000cycles | ≥5000cycles | ≥5000cycles |
Maximum continuous discharge current | 30A | 50A | 110A | 100A | 100A |
Instantaneous discharge current | 35A | 100A | 120A | 120A | 120A |
Limited charge voltage | 14.6V | 14.6V | 14.6V | 29.2V | 29.2V |
Discharge cut-down voltage | 10V | 10V | 10V | 20V | 20V |
Charge temperature range | -10~+55℃ | -10~+55℃ | -10~+55℃ | -10~+55℃ | -10~+55℃ |
Discharge temperature range | -30~+60°℃ | -30~+60℃ | -30~+60℃ | -30~+60℃ | -30~+60℃ |

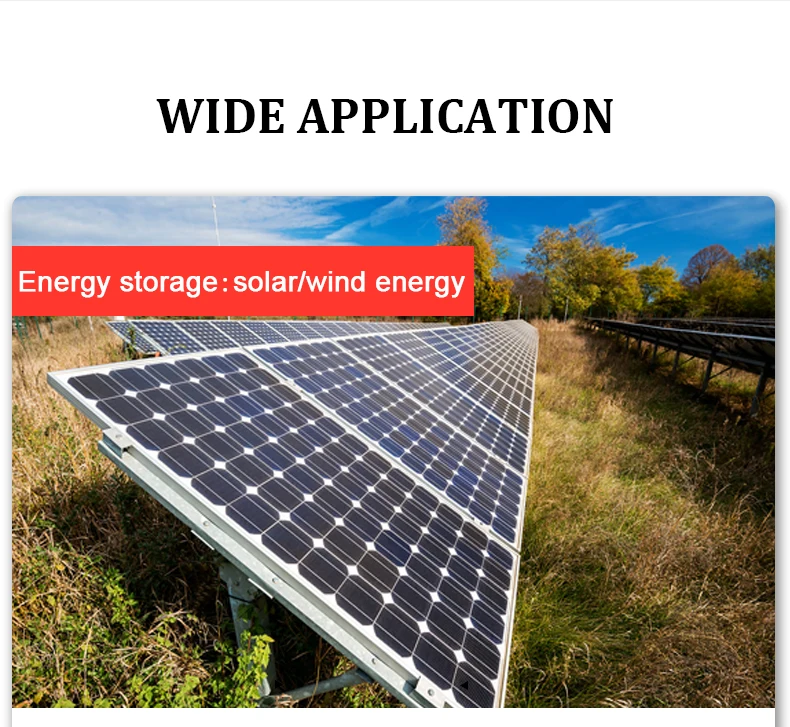

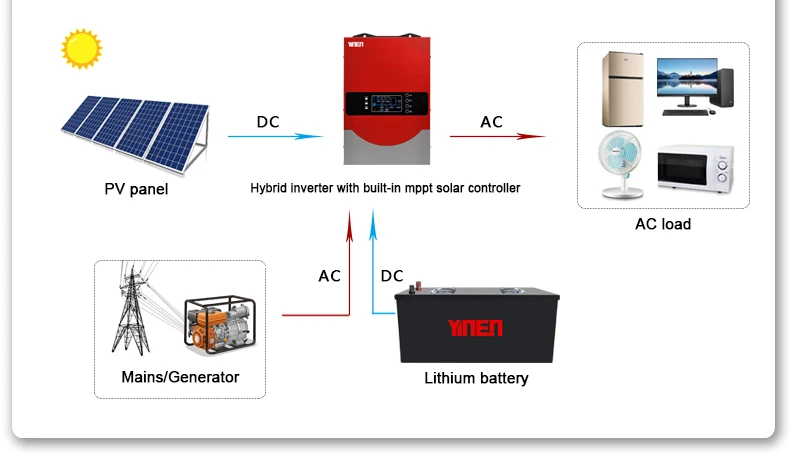

Application
Certifications

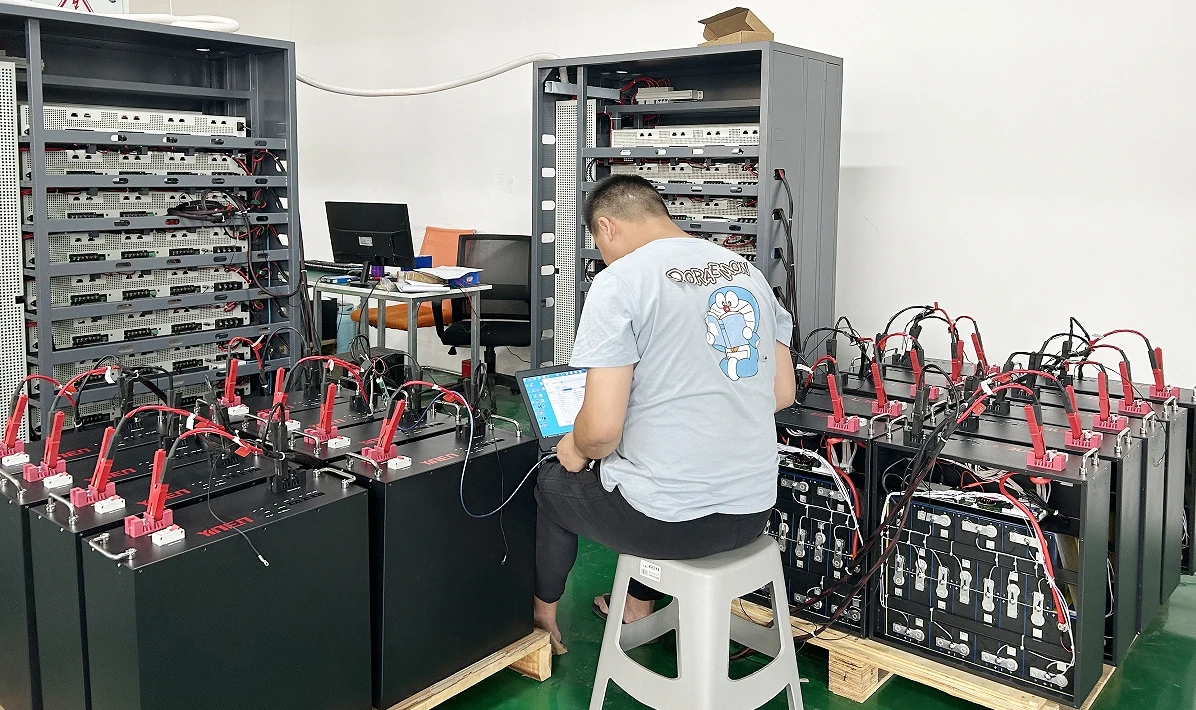

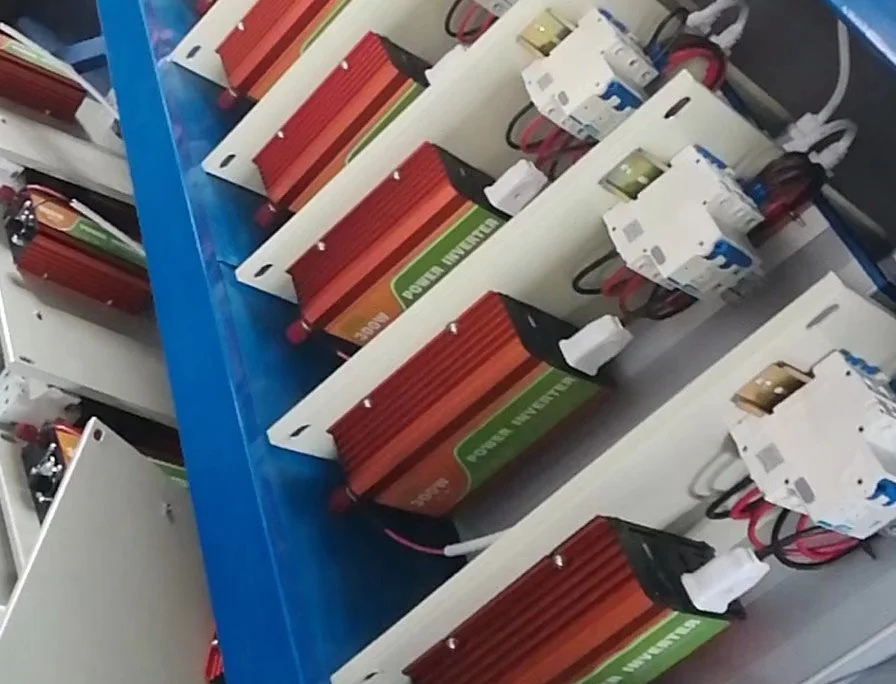

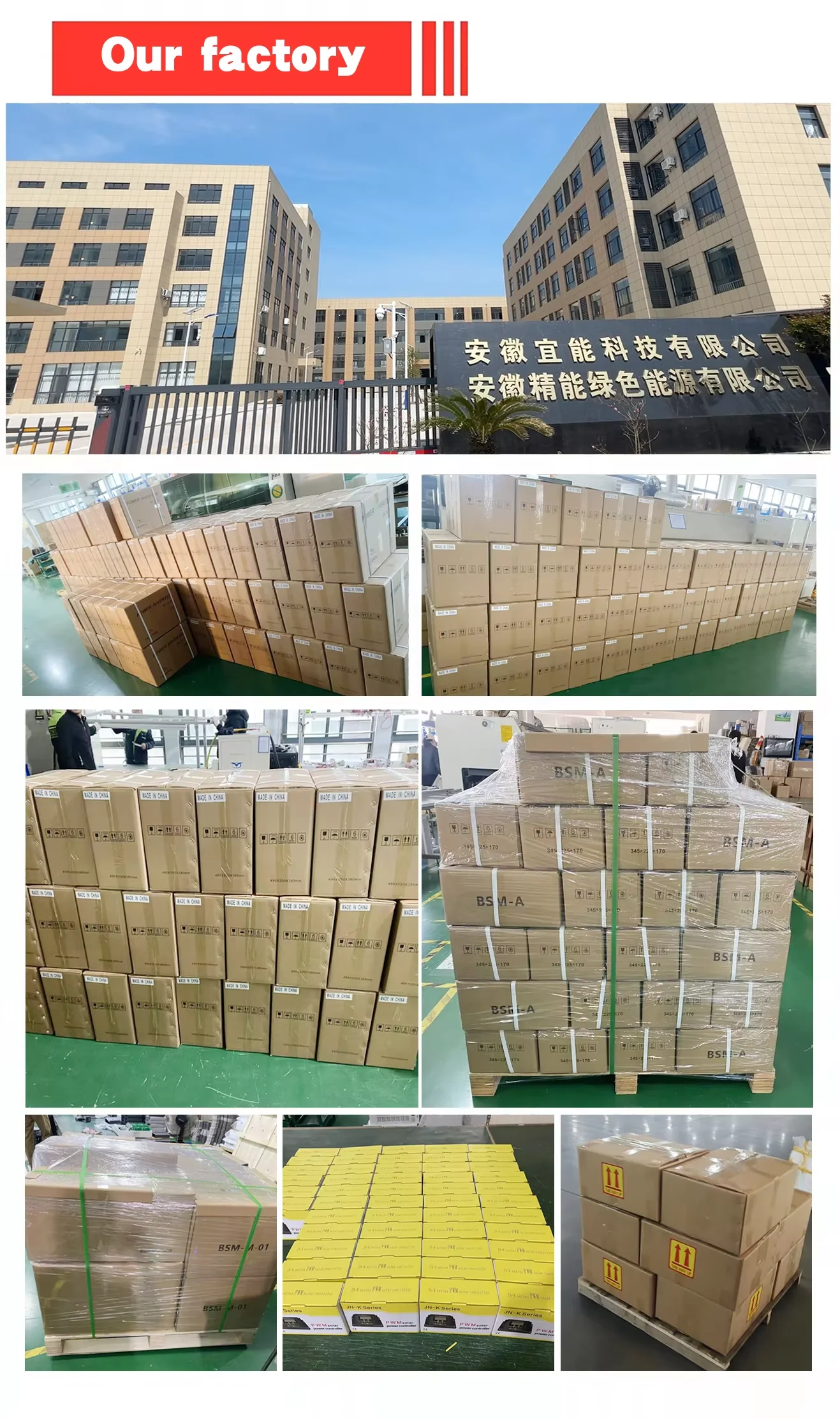

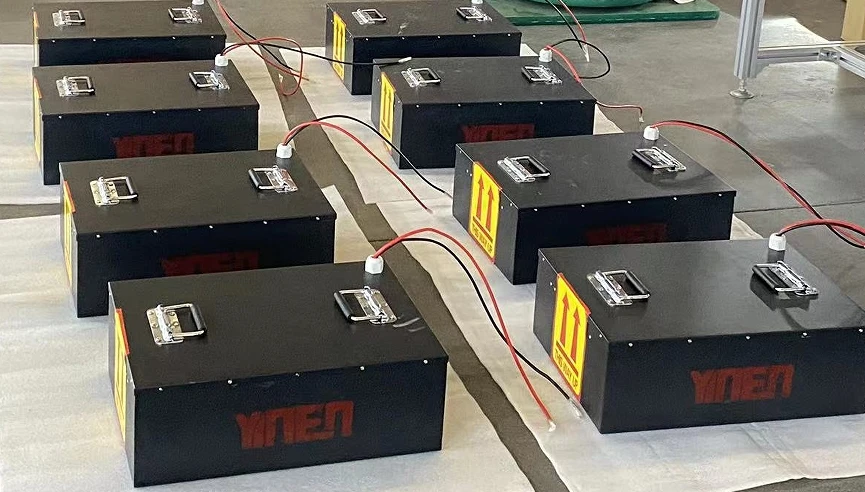

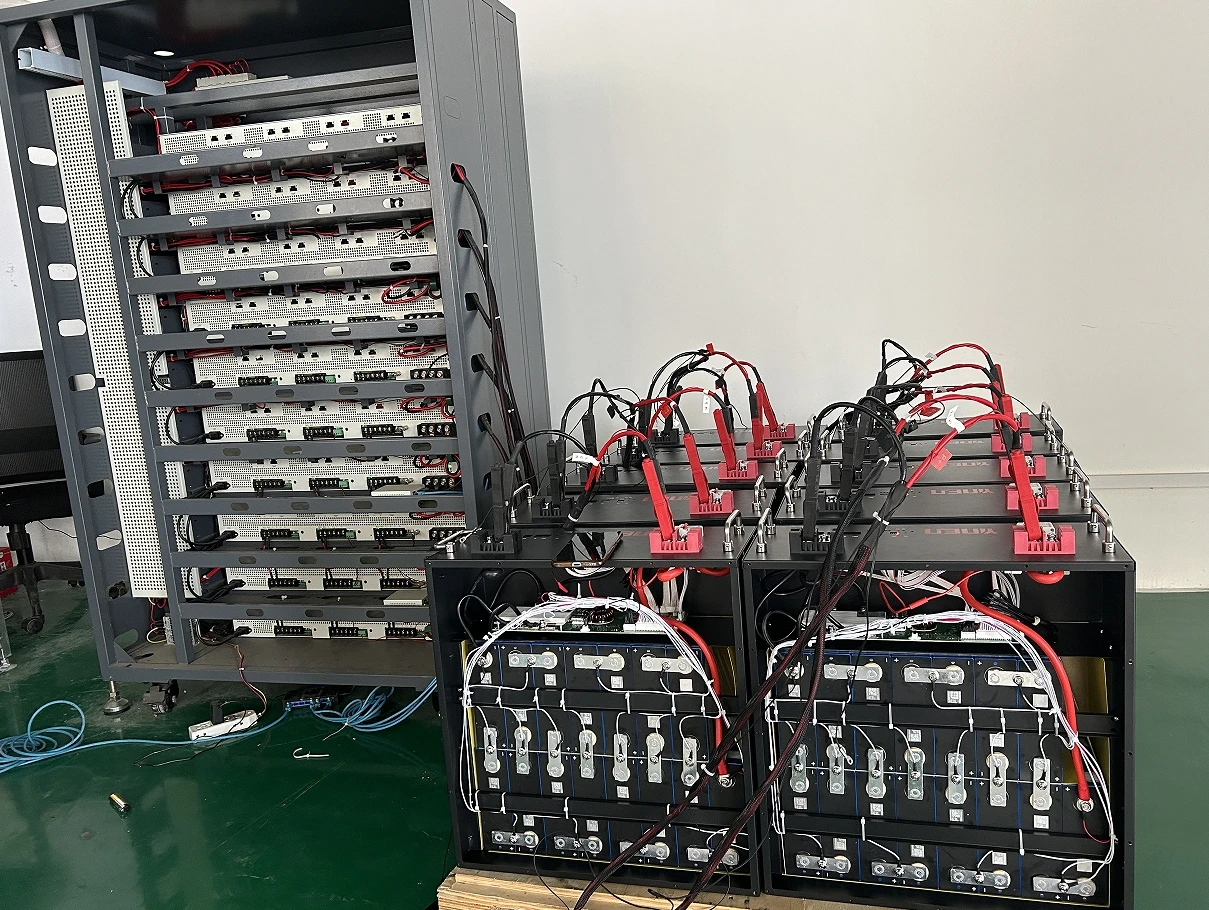

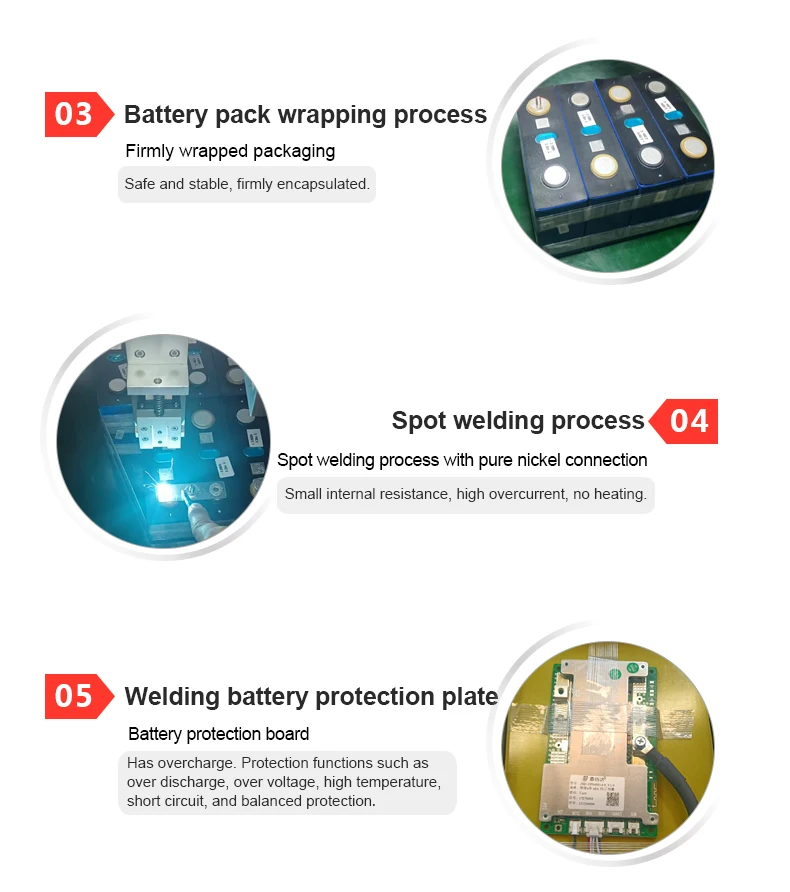

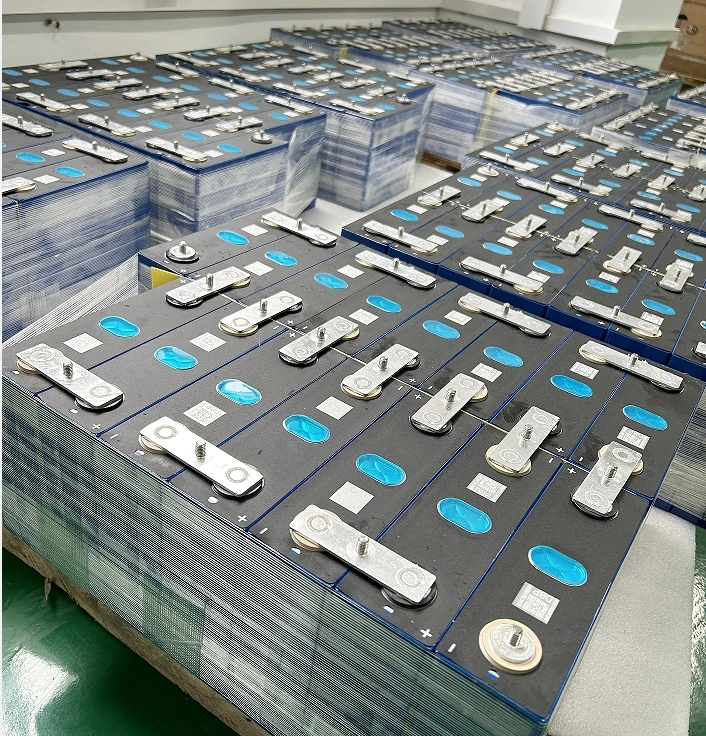

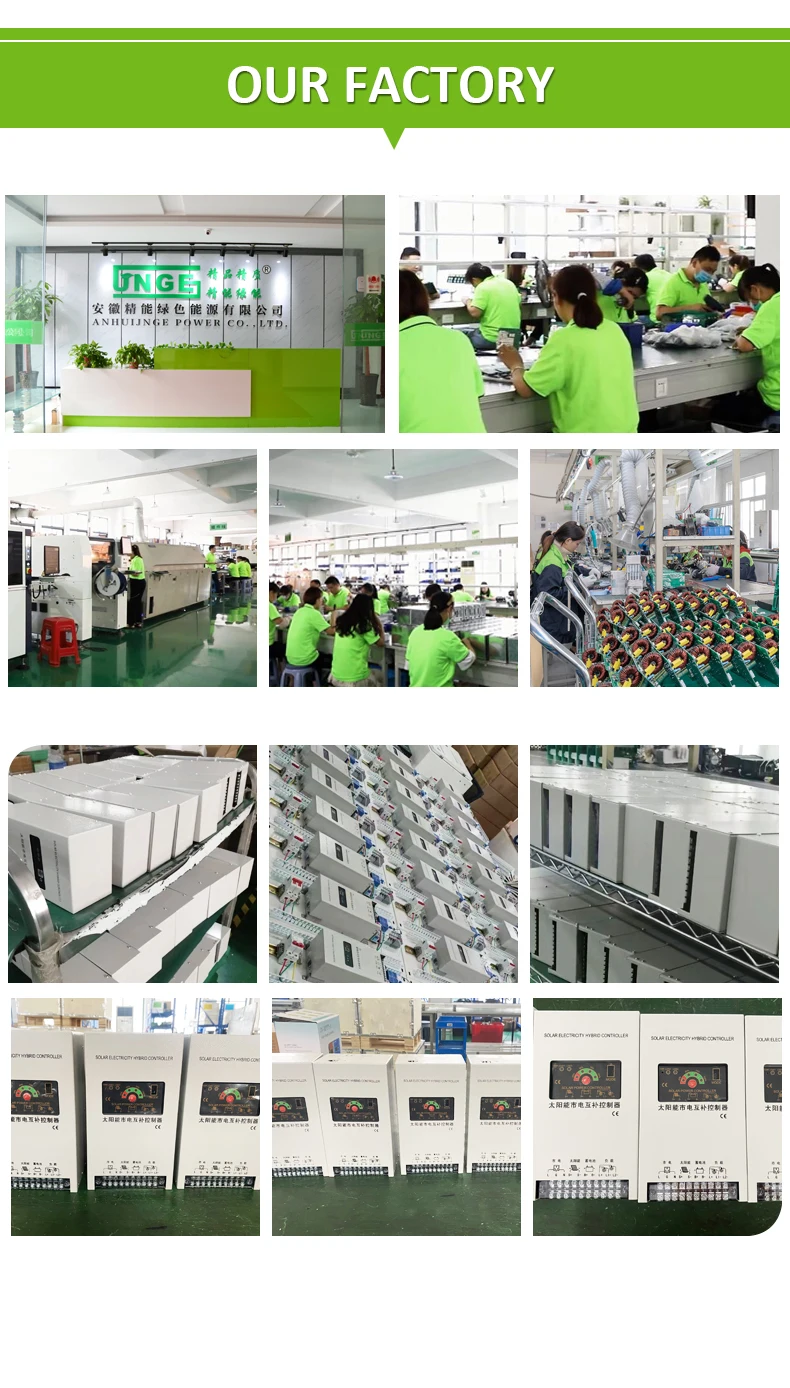

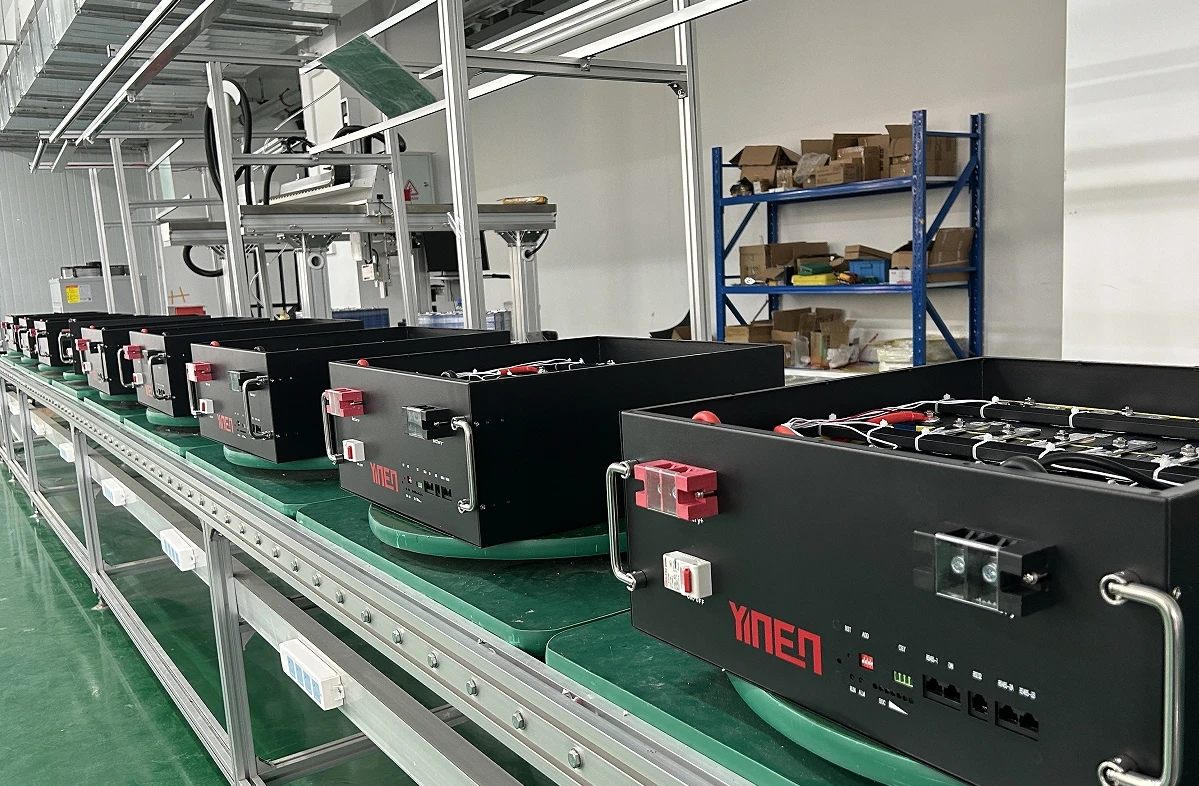

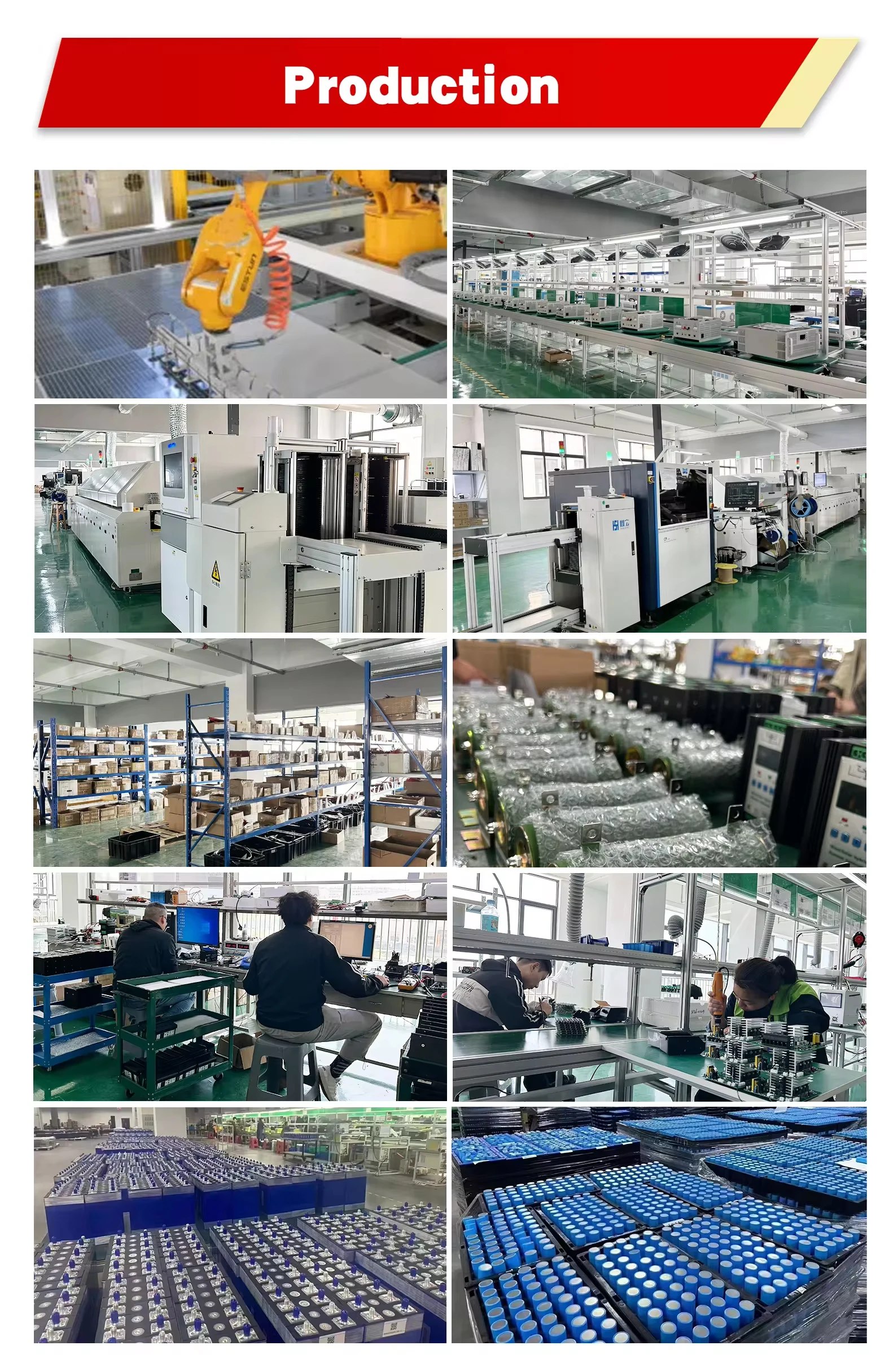

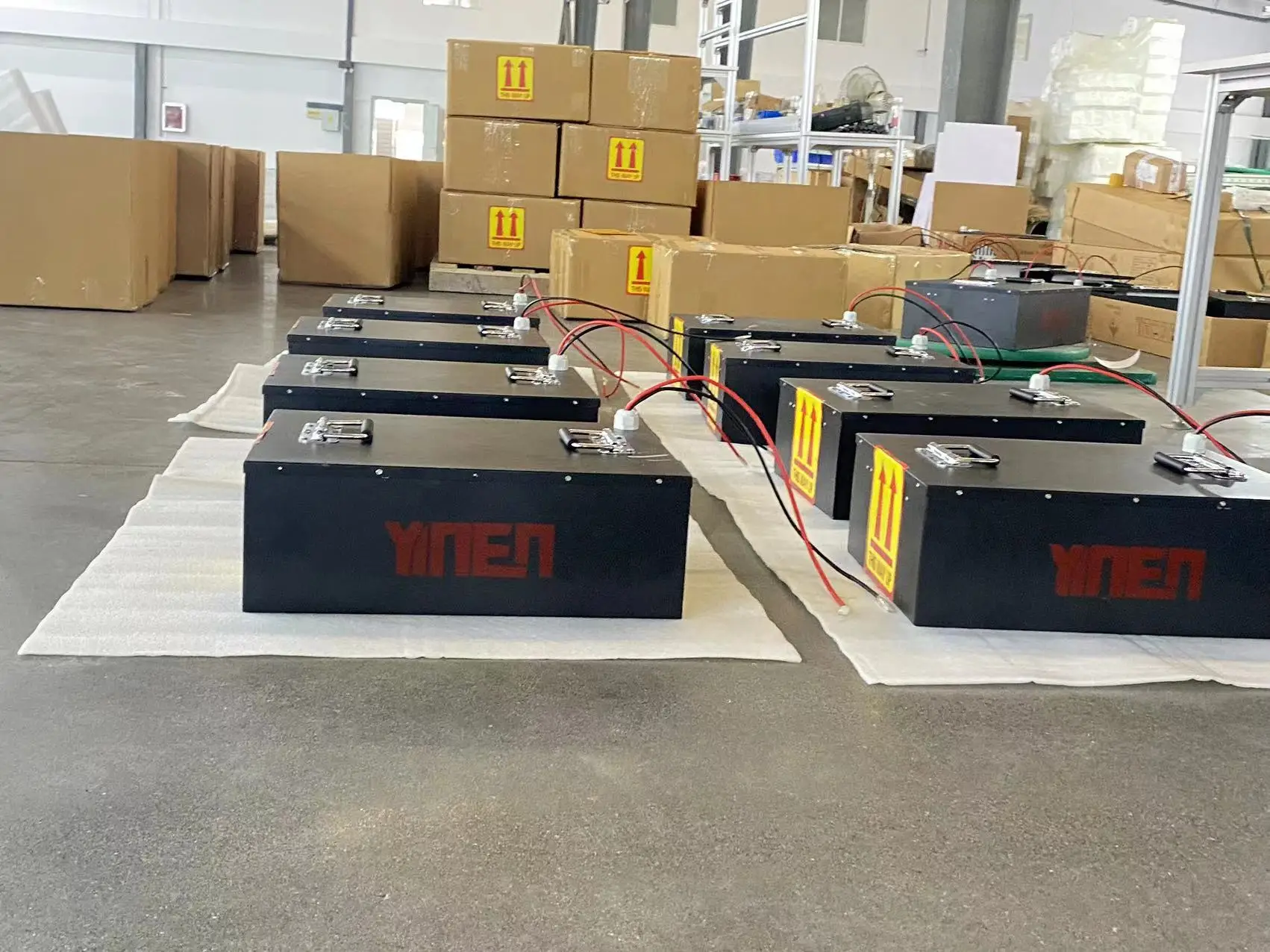

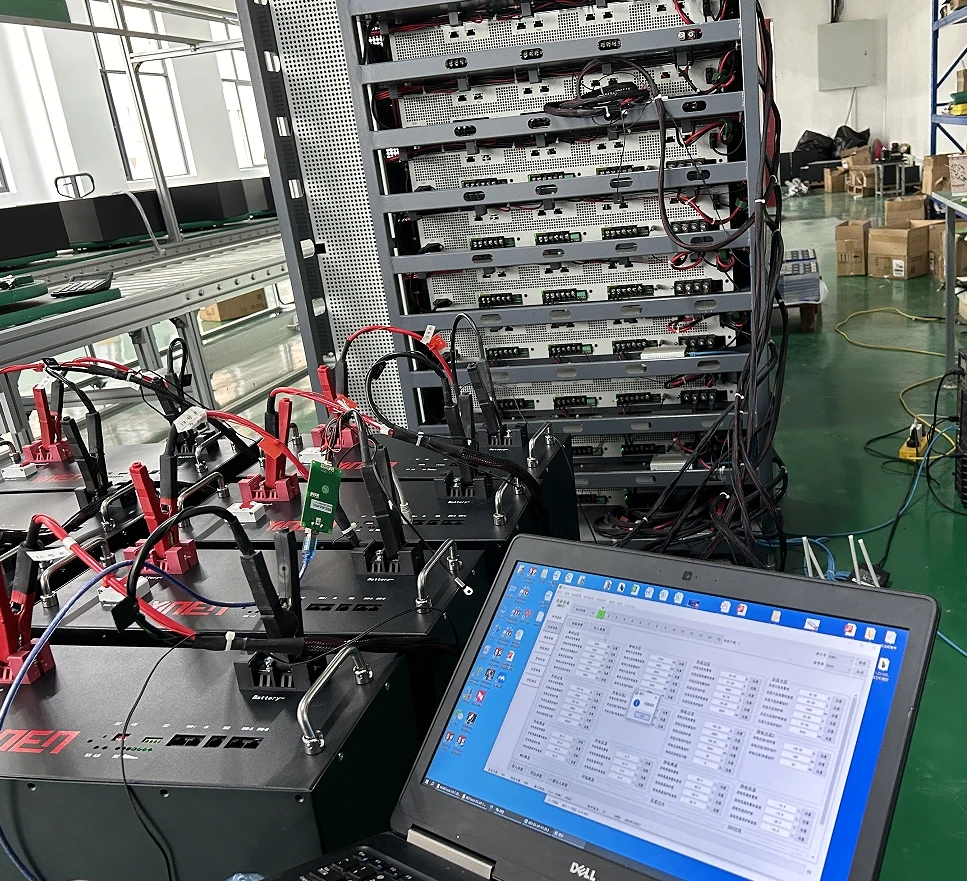

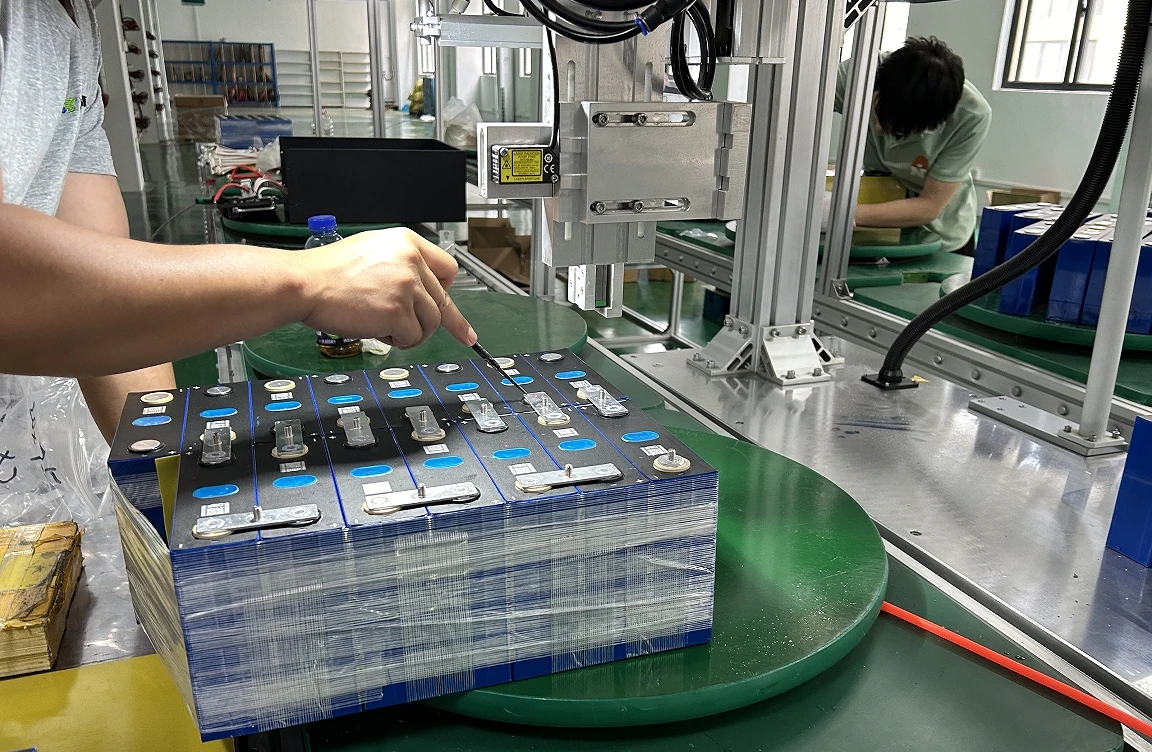

Production Process

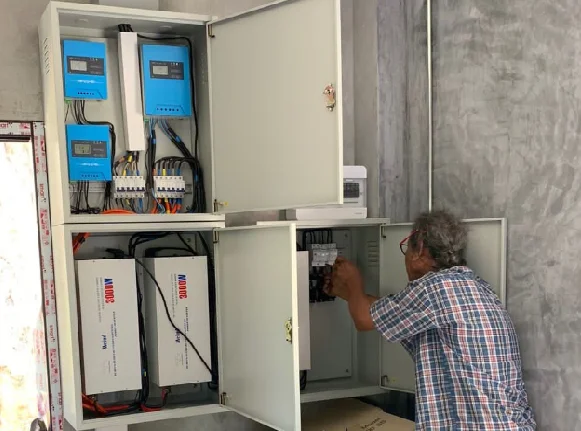

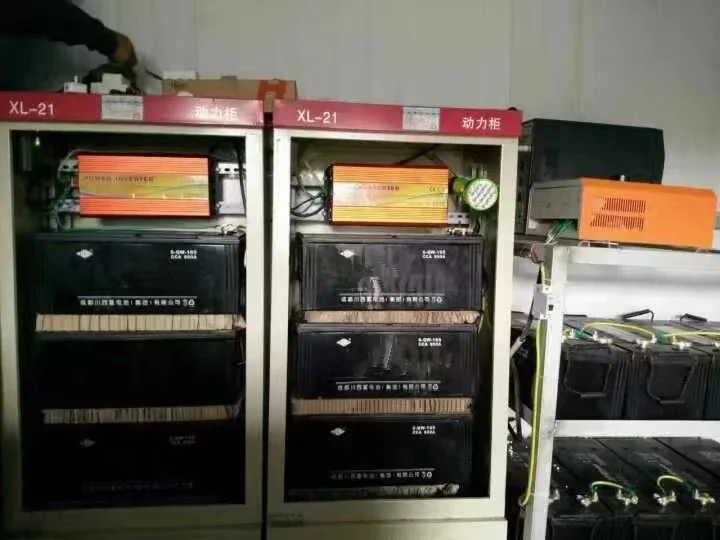

Exhibition and Projects Show
