standard curtain wall glass sizes semi hidden frame Storefront Curtain Wall wall curtain yellow
- Category: >>>
- Supplier: Luoyang Jiulong New Material Technology Co. Ltd.Luoyang Ltd.
Share on (1601269404850):
Product Overview
Description
Glass curtain wall refers to a building envelope or decorative structure that is supported by a structural system and has a certain displacement ability relative to the main structure, without sharing the load on the main structure. There are two types of walls: single-layer and double-layer glass. Glass curtain wall is a beautiful and innovative method of decorating building walls. Its most important feature is the organic integration of architectural aesthetics, building functions, building energy efficiency, and building structure. It is not only simple, luxurious, and modern, but also reflects the surrounding scenery with good decorative effects. Moreover, it combines walls and windows, greatly reducing the weight of buildings.
The glass curtain wall of modern high-rise buildings adopts a combination of mirrored glass and ordinary glass, with insulated glass filled with dry air or inert gas in the compartments. Insulated glass can be divided into two layers and three layers. Two layers of insulated glass are composed of two layers of glass and a sealed frame, forming a sandwich space; Three layer glass is composed of three layers of glass to form two inter-layer spaces.Insulated glass has the advantages of sound insulation, heat insulation, frost prevention, moisture resistance, and high wind pressure resistance. According to measurements, when the outdoor temperature is -10 ℃, the temperature in front of a single-layer glass window is -2 ℃, while the indoor temperature using three-layer insulated glass is 13 ℃. In hot summer, double-layer insulated glass can block 90% of solar radiation heat. Sunlight can still penetrate through the glass curtain wall, but most people do not feel hot when exposed to it. Rooms with insulated glass curtain walls can achieve warmth in winter and coolness in summer, greatly improving the living environment.

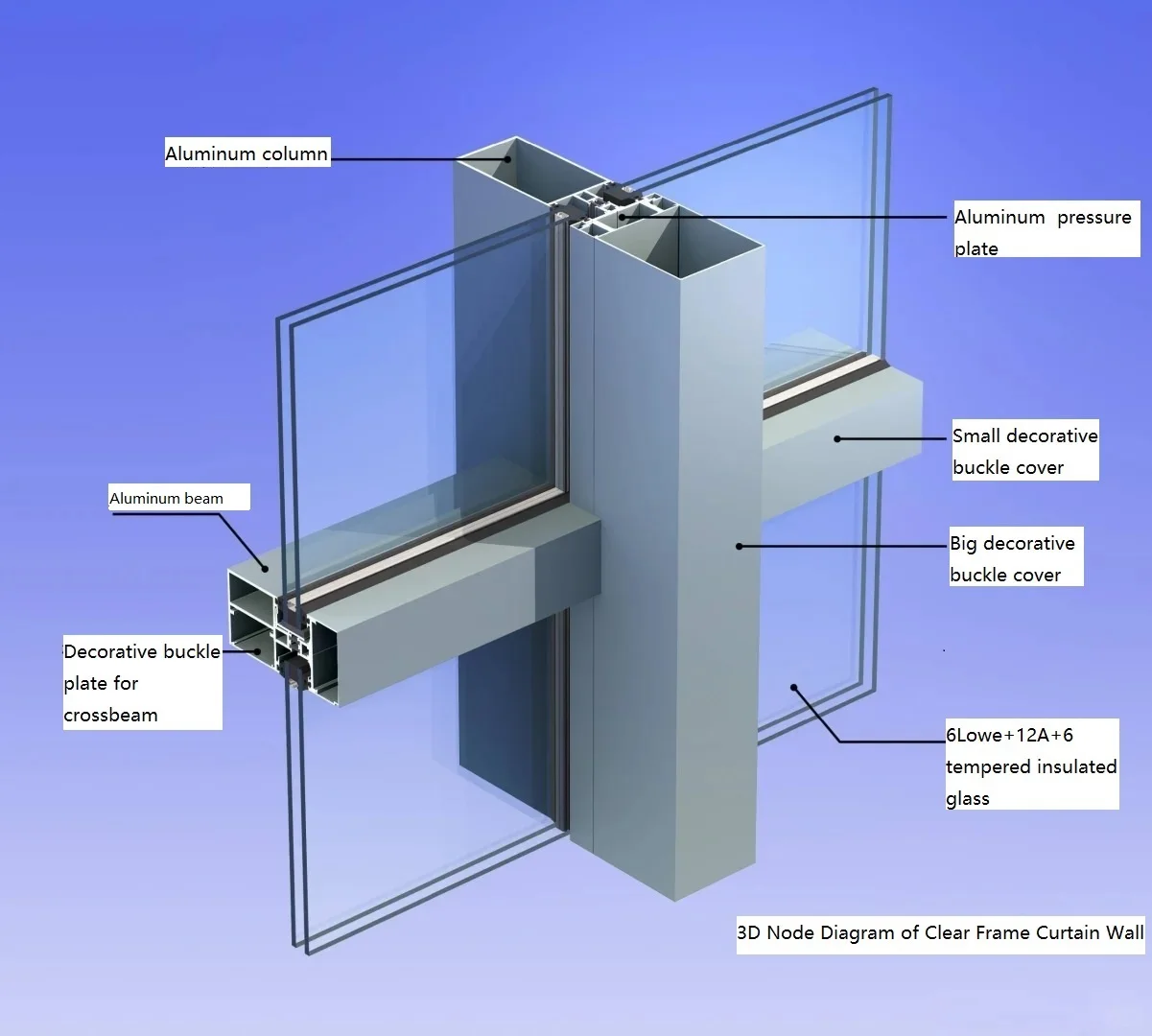

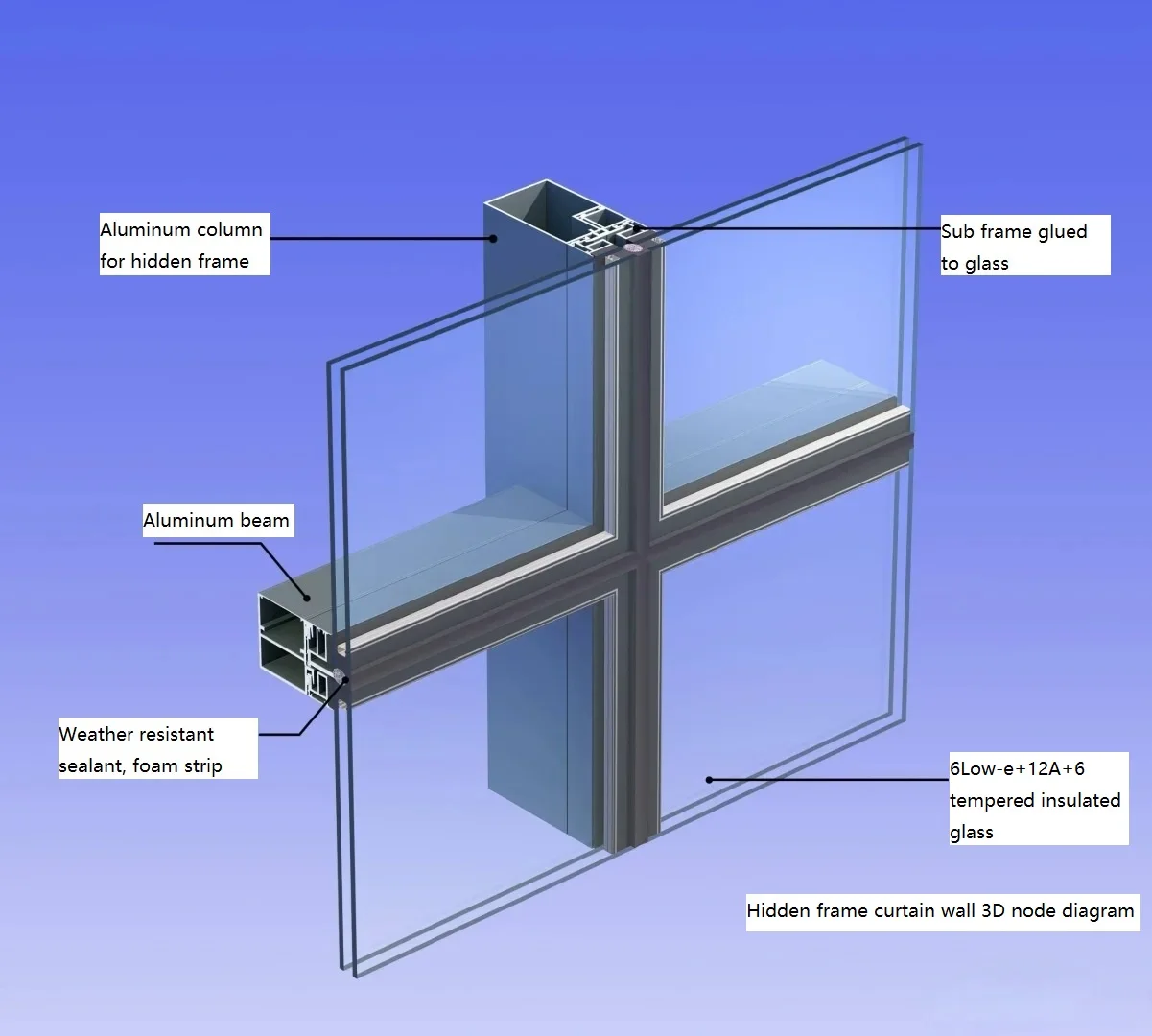

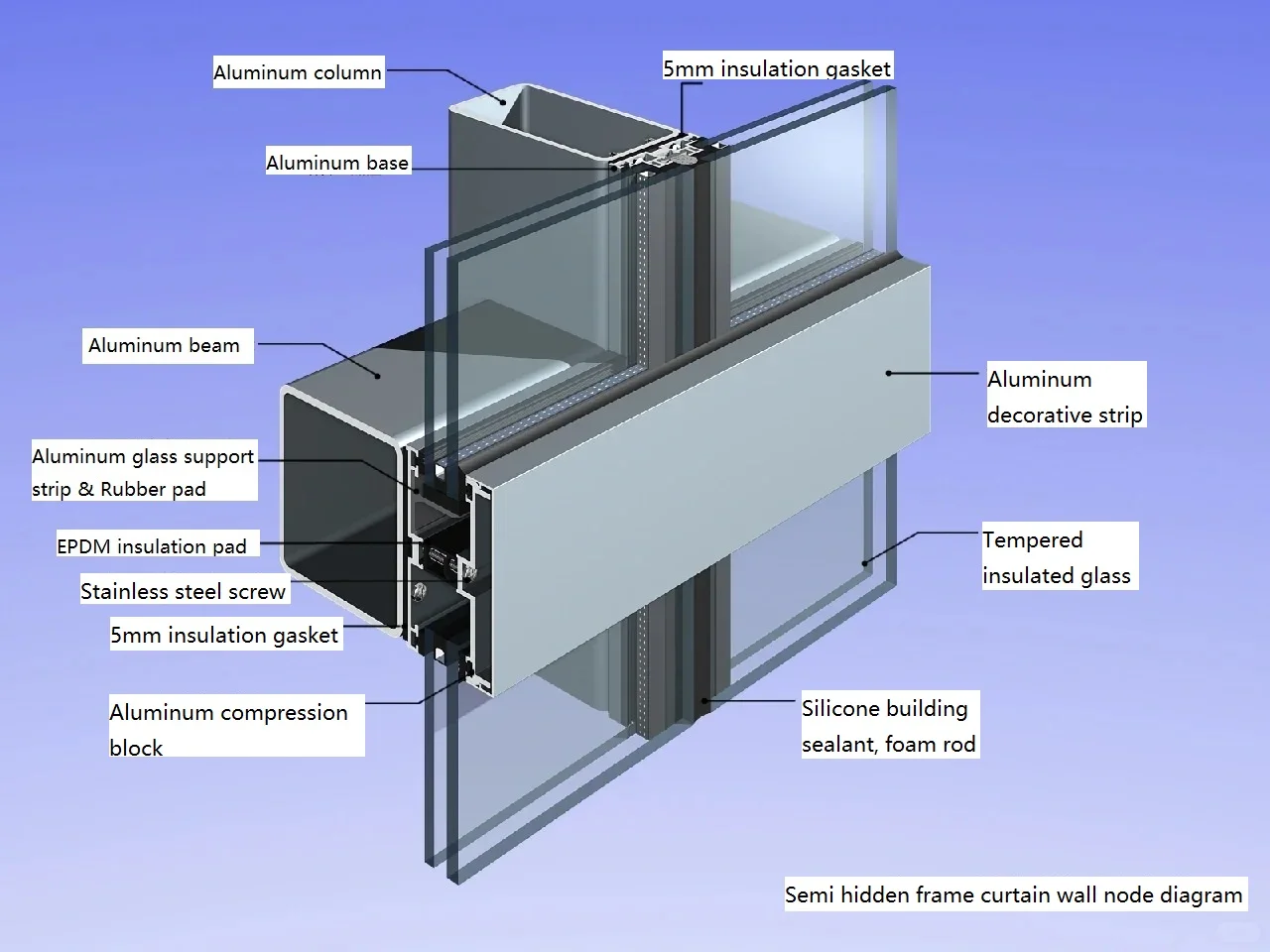

Frame supported glass curtain wall is a glass curtain wall supported by a metal frame around the glass panel, mainly including: Clear frame glass curtain wall, semi hidden frame glass curtain wall, and hidden frame glass curtain wall.
Frame Material | China brand Aluminum profile |
Glass option | Single glass: 4mm,5mm,6mm,8mm,10mm,12mm and etc. |
Glass Color | Tinted Glass; Blue Glass; Grey Glass; Obscure Glass; Low-E Glass; Frosted Glass etc. |
Hardware | Handle,Lock,Sealing Strip,Friction hinge,etc |
Advantages | Excellent weather resistance / excellent heat insulation and energy saving / excellent water resistance / excellent sound proofing/ corrosion resistance / excellent fire proofing / attractive appearance / environmentally friendly / durable performance / easy to clean / low maintenance |
Application | Exterior / Entry / Hall / Home Bar / Gym / Laundry / Courtyard / Other / Kitchen / |
Home Office / Living Room / Bedroom /Dining / Outdoor / School / Mall / | |
Supermarket / Workshop | |
Color | Customized (have many color for choose,brown,silver,green,white,gold,etc) |
Size | Customized (according to client's required) |
Packing | Seaworthy Packing |
Advantage
1.Aesthetics:Curtain walls have various exterior designs and can be made of various materials such as glass, stone, metal plates, etc., combined with different colors and textures to form unique visual effects and enhance the aesthetics and modernity of the building.
2.Non-load-bearing:The curtain wall does not bear the structural load of the main building. It is connected to the main structure of the building through the supporting structure system and only plays the role of enclosure and decoration. This makes the design of the curtain wall more flexible, allowing lightweight materials to be chosen as needed.
3.Functionality:In addition to its decorative function, curtain walls also have multiple functions, such as waterproofing, fireproofing, heat insulation, sound insulation, etc. These functions can effectively protect the internal space of the building and improve the comfort and safety of the building.
4.Energy saving:The use of energy-saving materials such as insulating glass and LOW-E glass, combined with double-layer or multi-layer structures, effectively reduces energy loss and improves the thermal insulation performance of the building.
5.Easy maintenance:The panels and supporting structure system of the curtain wall are relatively independent, making maintenance and replacement easy. When some panels are damaged or need to be cleaned, they can be removed and installed separately without affecting the normal use of other parts.
Q: Are you a trading company or a factory ?
A: We have our own factory, established in 2004, located in Luoyang, Henan Province.
Q: What is the MOQ?
A: Generally speaking, we can accept orders even for a single piece of glass, but there is no discount on the price, and transportation is also borne by the buyer. If you want to received best price, the more quantity, the quote will be better.
Q: How to get a quotation?
A: We need some information, such as size, thickness, color, quantity, edge,structure…The more detailed, the better.
Q: How to place order?
A: (1). After the quotation is confirmed, we will send a formal invoice via email for client .
(2). The production and delivery time will be determined by both parties through negotiation based on the order quantity. We will send product photos to the customer before shipment.
Q: What's the production time?
A: It usually takes 30 working days for production, and if you need it faster, we can also try our best to shorten the production cycle.
Q: Can I visit your factory?
A: Yes, when customers need to know more about us, we welcome you to visit our factory. We will take you to our workshop to visit the production process and discuss orders in our office.
Q: How can I make sure my order is delivered on time?
A: We give priority to export orders and keep updating progress from production to delivery.
