Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core
Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core
Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core
Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core
Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core
Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core
Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core

Nanocrystalline core for transformer,soft magnetic material iron core toroidal magnetic core

Share on (1601269454027):


Price:

Quantity:


Product Overview

Description



Overview






Products Description


Nanocrystalline Core for high-power high-frequency switching power supplies require a low-frequency loss in the transformer core, which results in a saturation magnetic density Bs and a low residual magnetic density Br to obtain a large working magnetic density △B; therefore， the transverse magnetism is used for nanocrystalline alloys The heat treatment process can obtain an iron core with low residual magnetism and constant magnetic permeability.




Place of origin
Jiangsu,China
Brand name
Yucheng
Product name
Nanocrystalline Switch Hi-Power Transformer Core
Material
Electrical Steel,Amorphous,Nanocrystalline core
Material Brand
Baosteel, NSC, JFE, TKS, POSCO, NLMK
Frequency
50-100K HZ

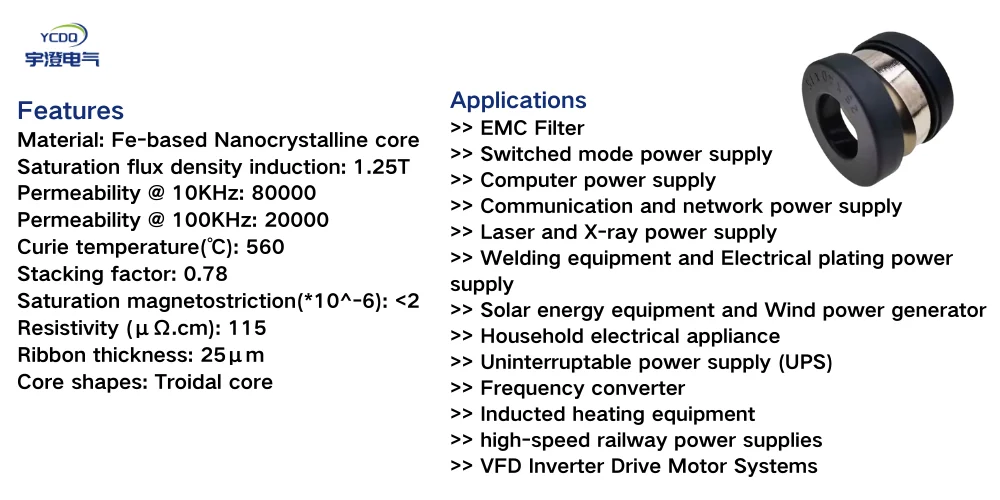

Application
Switched-mode power supplies;
Solar inverters Frequency converter;

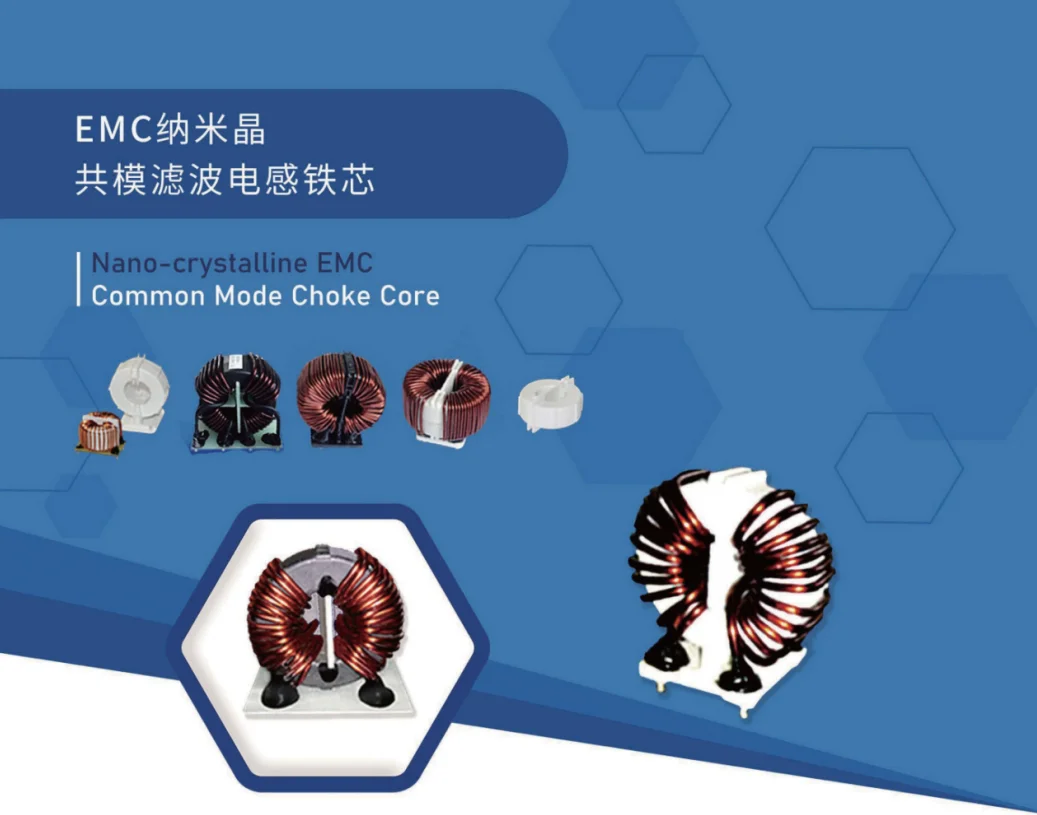

EMC filters;
Welding equipment

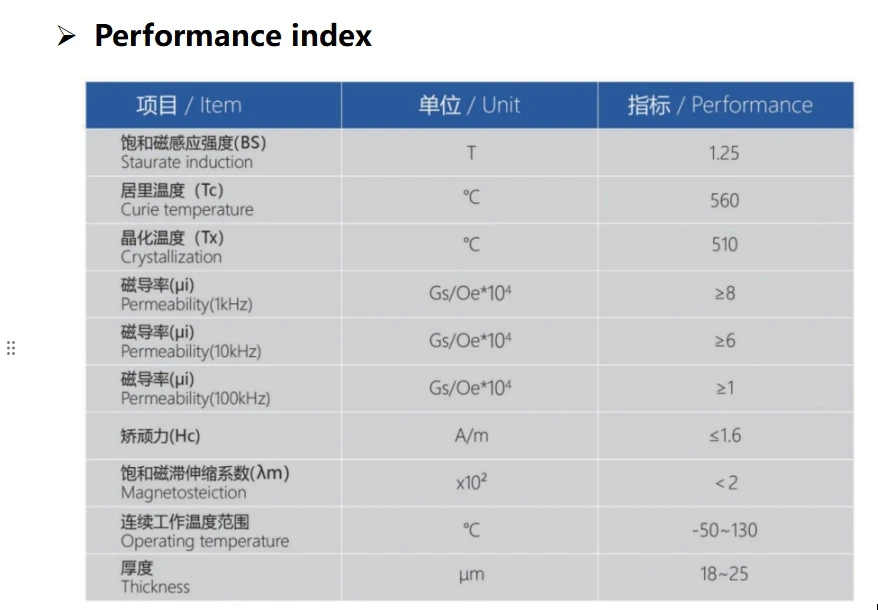

Performance feature
High permeability/Low iron loss/Low noise/No magnetic flux leakage
BS
1.25T
Curie temperature
540℃
Permeability(1kHz)
≥8Gs/Oe*104
μi
≥1Gs/Oe*104
Magnetosteiction
<2×10²
Hc
≤1.5A/m
Craftwork
Tape Winding
Certificate
RoHS 2011/67/EU
Thickness
18~26μm














These cores are our standard products, we can also design and produce high performance cores according to customer’s requirements,including sizes, inductance and applications. We can help customers to select the best performance cores.

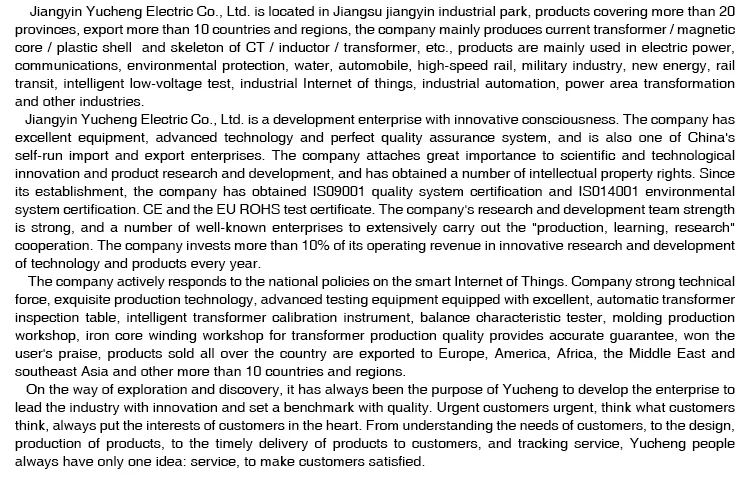

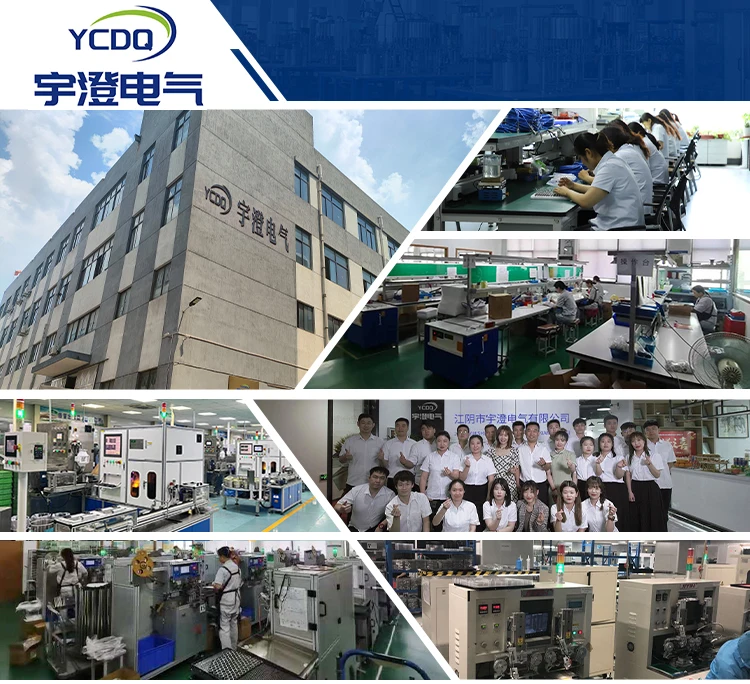

Company Profile
