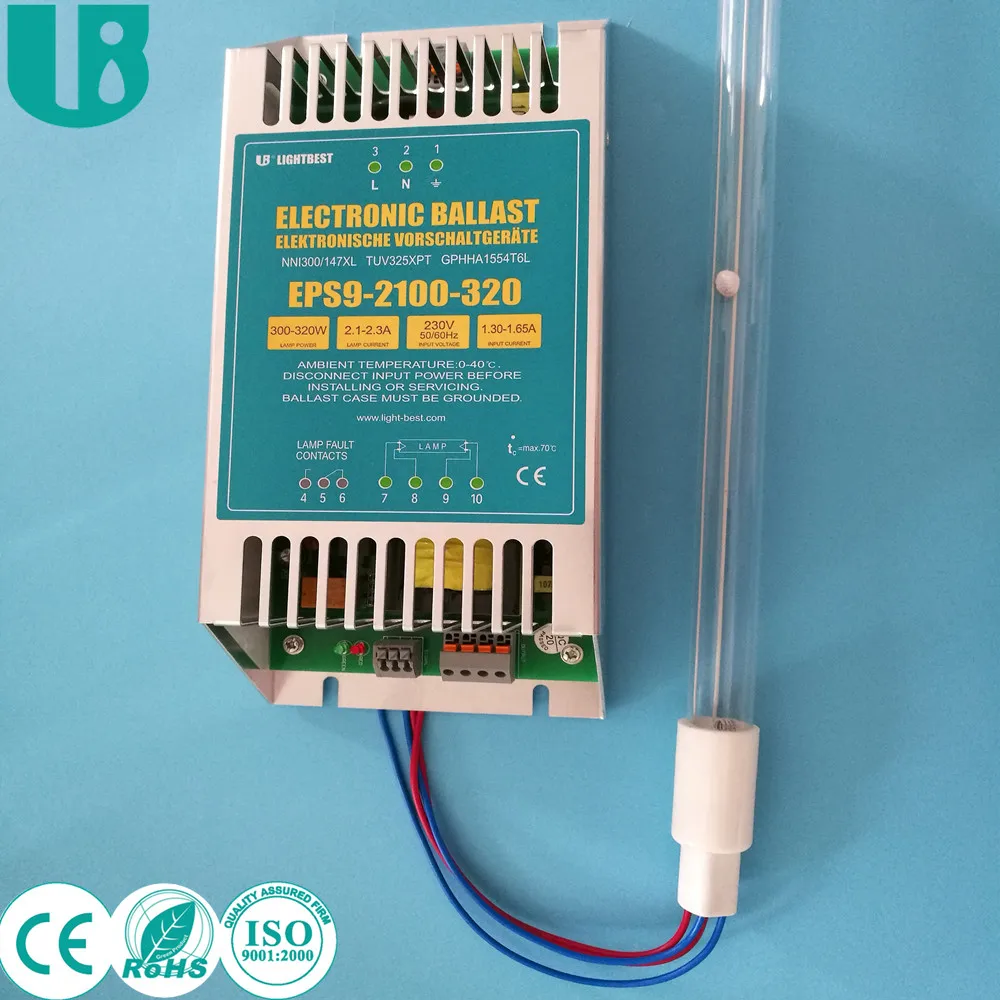

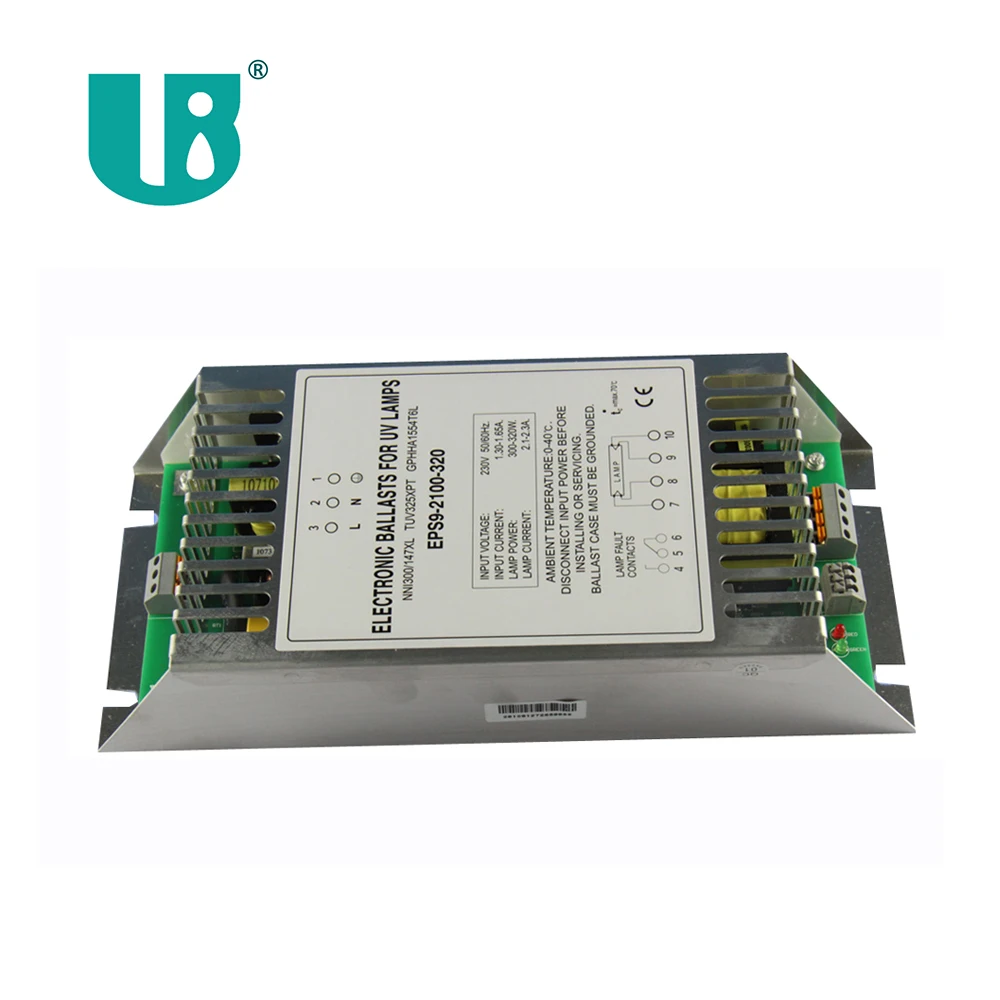

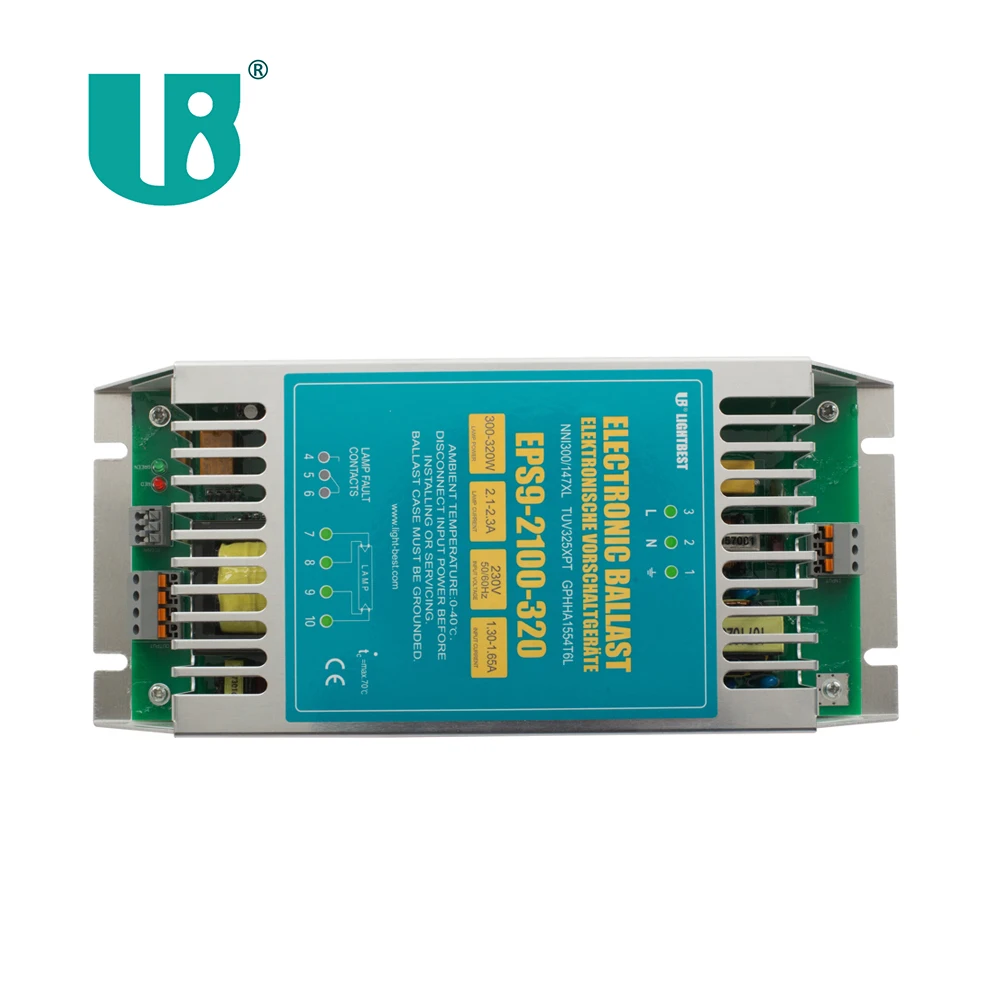

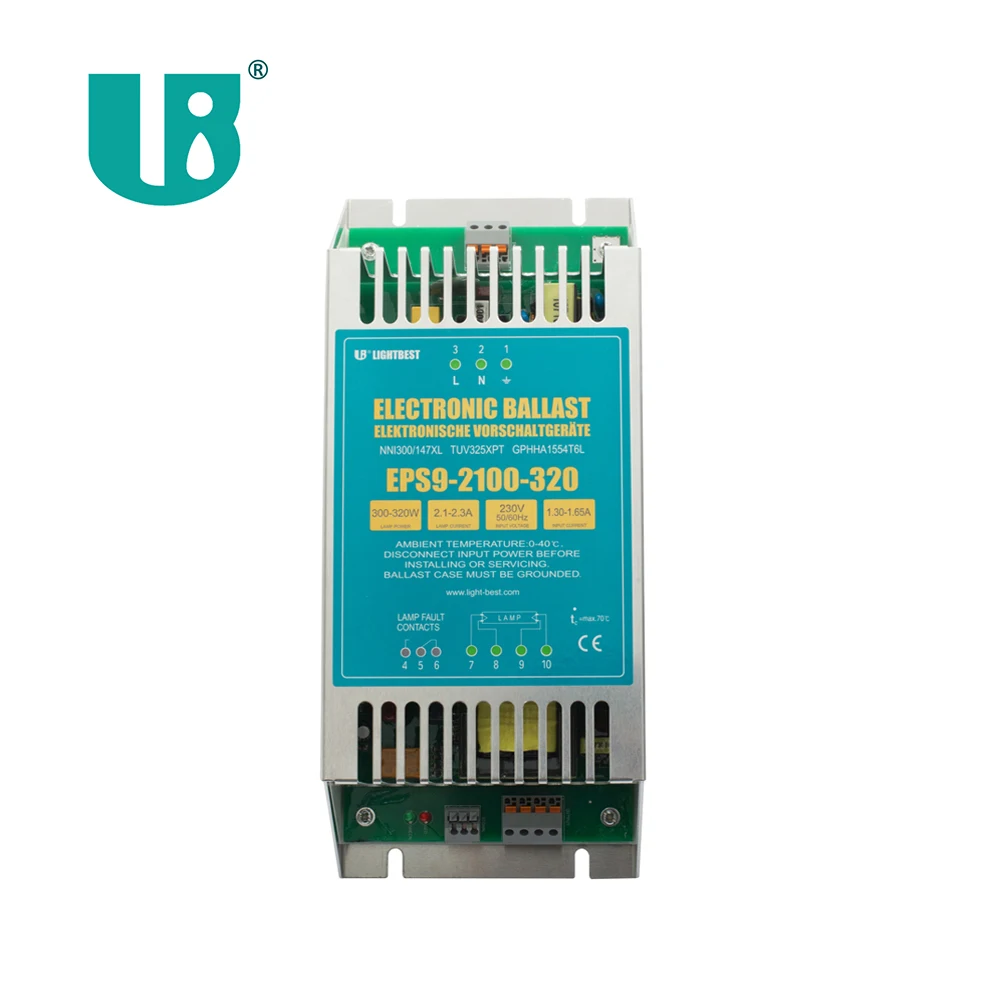

320W electronic ballast EU market uv lamp transformer preheat start ballast

320W electronic ballast EU market uv lamp transformer preheat start ballast

The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.

There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy. Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.

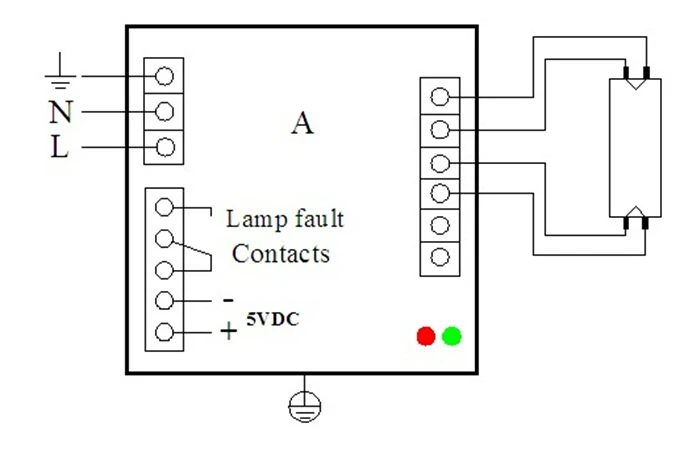

l  Wiring diagrams

l  Technical specifications

       Mains Voltage: 110-240VAC±10%

       Mains Frequency: 50/60Hz

       Power Factor: >0.98

       Efficiency: >94%

       Operating Frequency: 40-60KHz

       Starting: Preheat

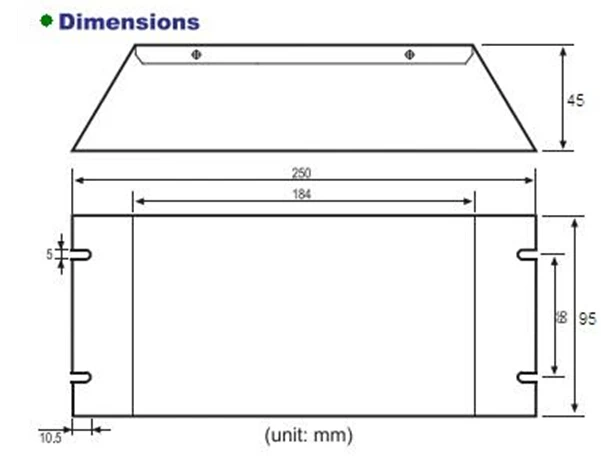

       Dimensions: 250*95*45 mm

l  Lamp status indication via LED indication

       Green LED:Lamp on

       Red LED:Lamp fault

l  Lamp status forwarding

       Potential free relay contacts for lamp on/lamp fault..

l  Installation requirement

       Wire Gauge:1.0-1.5mm²

       Max.cable length between ballasts and lamp:5m

       Relay contacts:potential free,load:50…500mA at 24…230V AC;

              50…500mA at 5…60V DC

DC5V±5% 5mA:lamp on. DC 0V:lamp fault or on lamp. Connect LED.

DC5V±10% Max 50mA:lamp on. DC 0V:lamp fault or on lamp. Connect Relay.

l  Mounting restrictions

       Disconnect Input Power Before Installing or Servicing.

       Ballast Case Must Be Grounded.

       Don’t short any two wires of the four outputs.

l  Applications

All areas of applications include UV lamps

=>Municipal water treatment

=>Industrial water treatment

=>Water injection for oilfield

Lightbest provided: OEM service

                                Buyer Logo /Label
                                Custom Design Service

Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will be deducted from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.

Lightbest concentrates on water purification treatment and supplies customers with one-stop service and solution on water treatment fields. We specialize in UV germicidal lamps, UV water sterilizers, electronic ballasts, booster pumps, ion exchange resin, FRP tanks, PP filter etc., and adhere on the principle of fighting, upholding, sharing and win-win together. We have been a supplier of water treatment with high-quality products, perfect service, professional operation and reasonable price both in China and the globe.

Our factory has established a strict product quality control system and has gained the ISO9001-2000 certificate and introduced 5S quality management system from Japan. Our products have successfully passed CE and RoHS certifications. Our products are best-sellers in foreign and domestic markets, and exported to many countries and regions such as America, Germany, Italy, Holland, Romania, Russia, Indonesia, Vietnam, Malaysia, Singapore, Japan, Korea, Brazil, Chile, Hong Kong, Taiwan and so on.

We introduced advanced production equipment and strict management of all aspects of the production process. Each position of the staff must strictly follow the operating requirements of the production process, and each product must have been tested by professional testing equipment before selling.

Q: What's your advantage compared with other suppliers?

A: Our uv lamps are made with high-quality quartz, the same supplier for Philips and Lightsources.
There are CE and Rohs certificates and competive prices.

Q: What's my consideration when I choose one model of uv lamps?
A: -The water treatment volume and speed;
and lamp watts and length.
