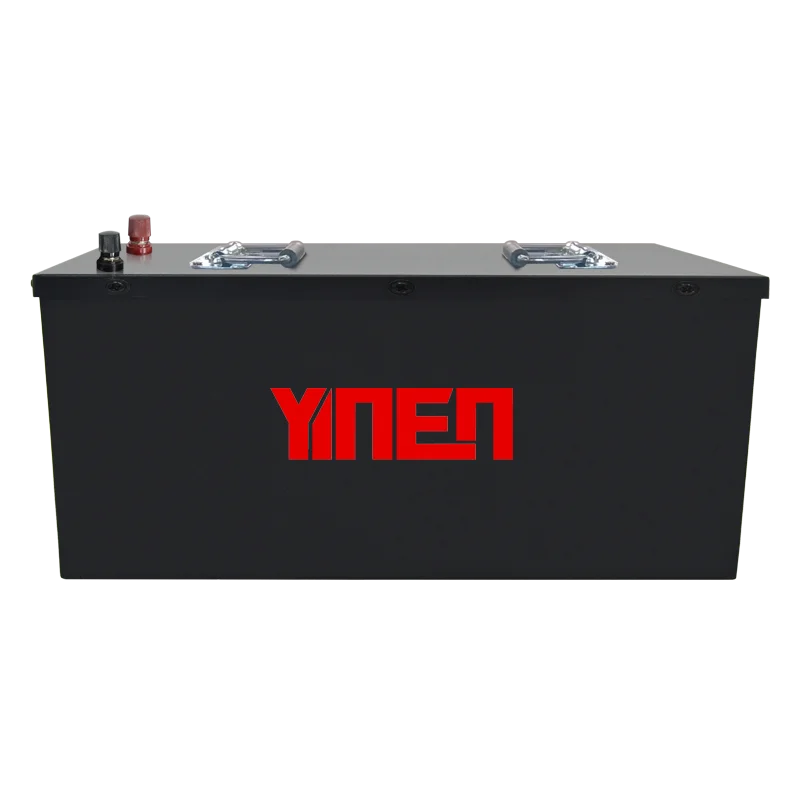

Recharge 12.8V 200AH Lifepo4 Battery With RS485 Communication For Home Solar Power System
- Category: >>>
- Supplier: Anhui Yinen Technology Co. Ltd.
Share on (1601269484397):
Product Overview
Description
Products Description

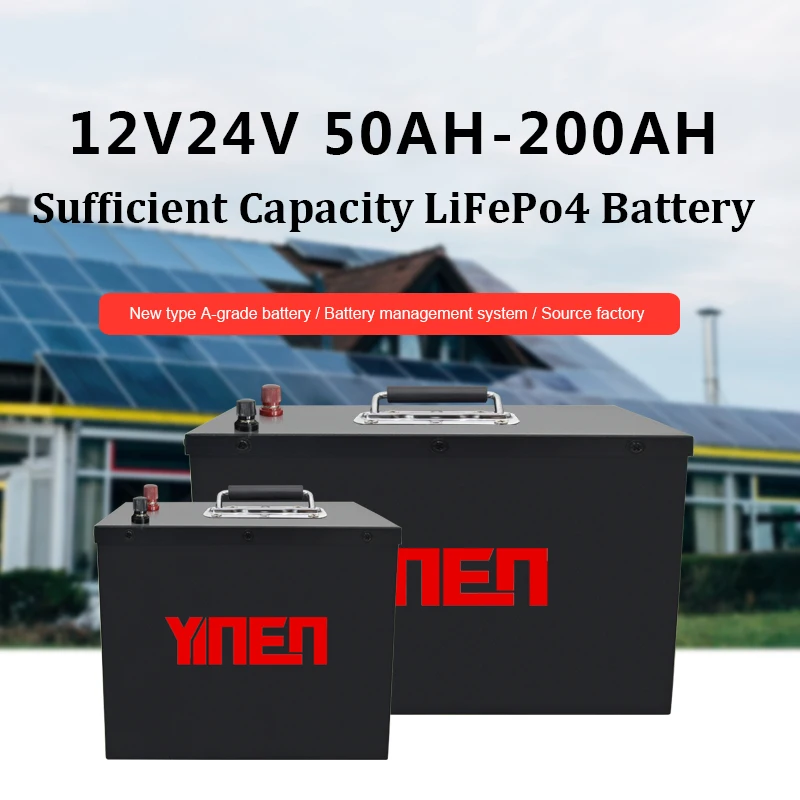

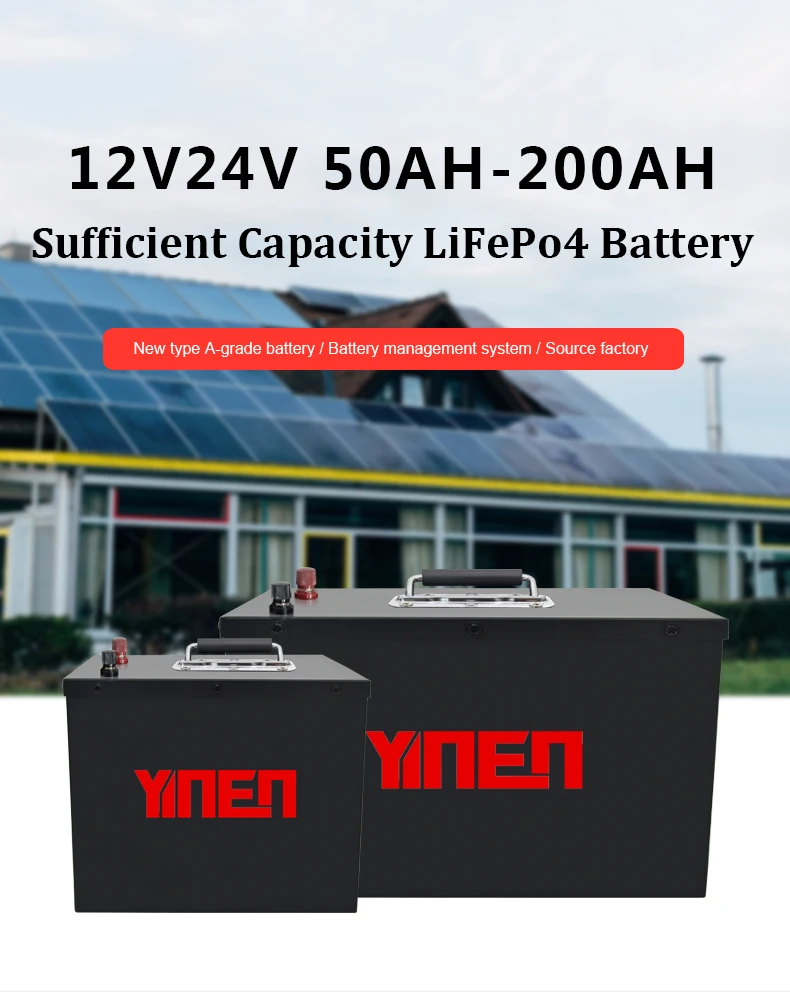

Sufficient Capacity LiFePo4 Battery
1. CE ROHS MSDS UN38.3 Certificated
2. New type A-grade battery
3.>5000cycles Reliable Performance
4.With Battery management system
5.Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Source factory
7.Can be discharged and used in environments ranging from -30 °C to 60 °℃
2. New type A-grade battery
3.>5000cycles Reliable Performance
4.With Battery management system
5.Safe and stable;Long cycle life;High-capacity;High temperature resistance;Light weight
6.Source factory
7.Can be discharged and used in environments ranging from -30 °C to 60 °℃

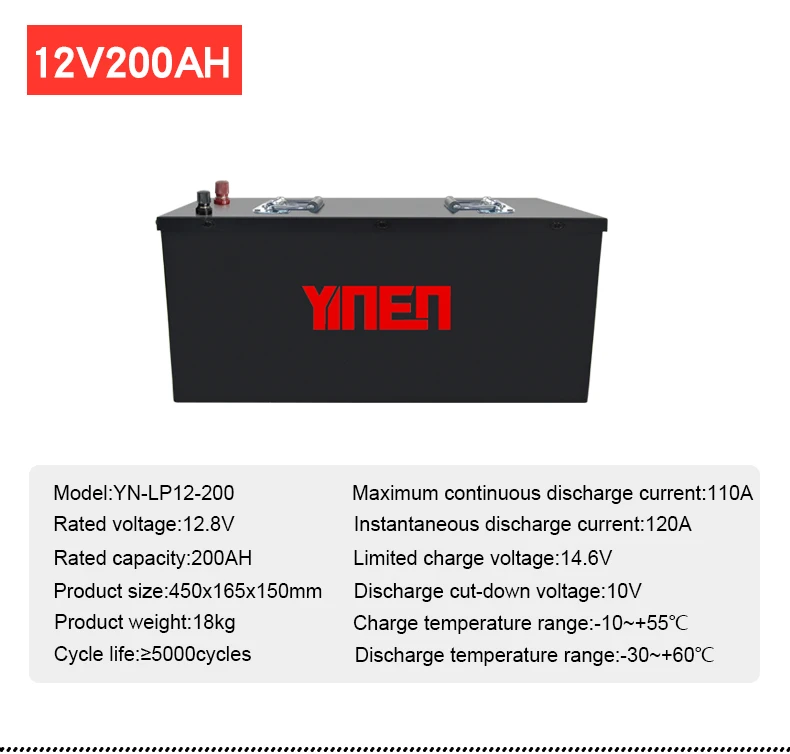

PRODUCT SPECIFICATIONS

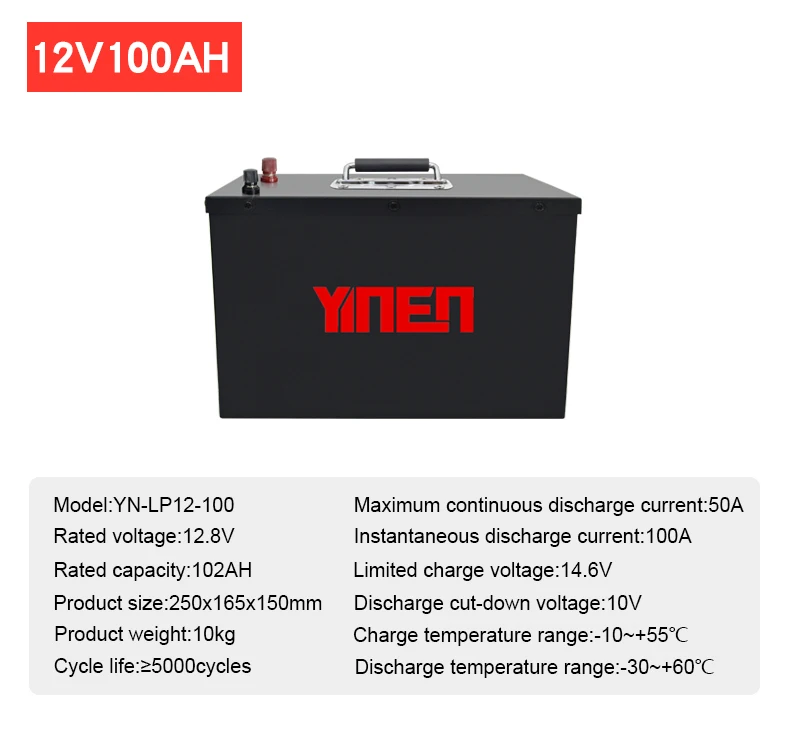

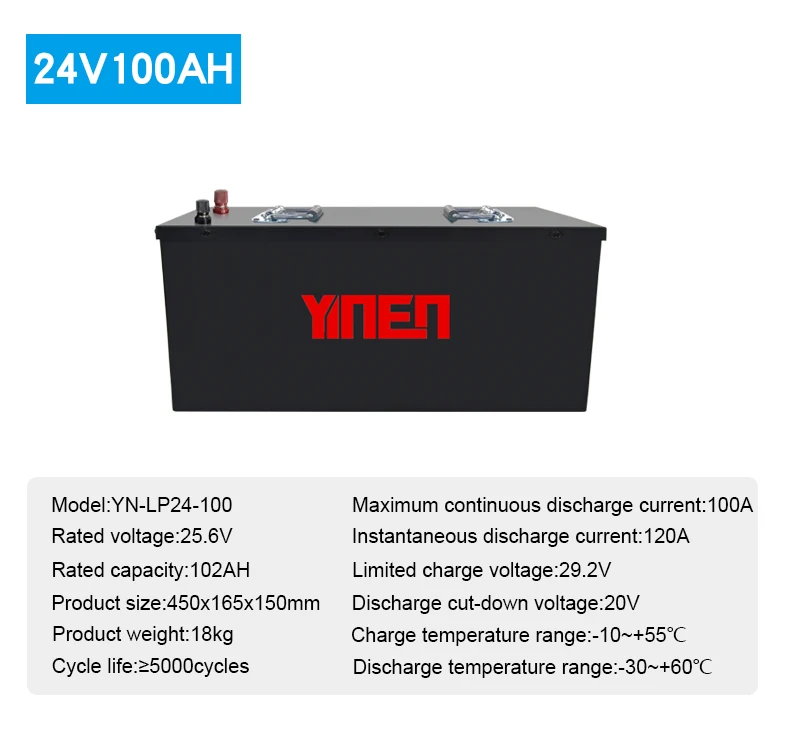

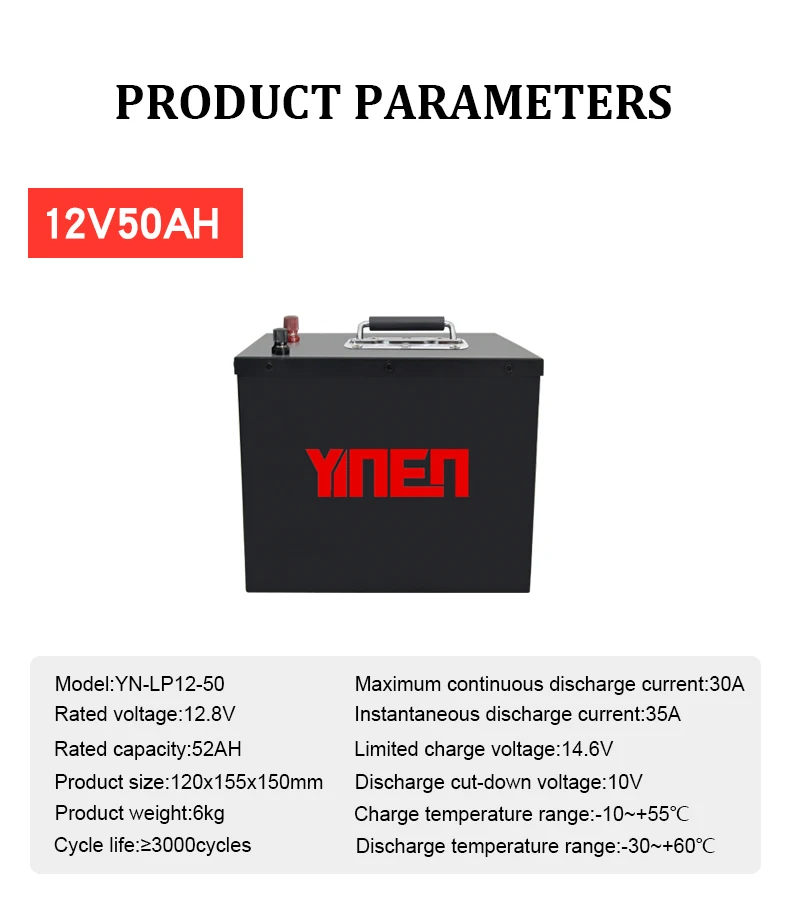

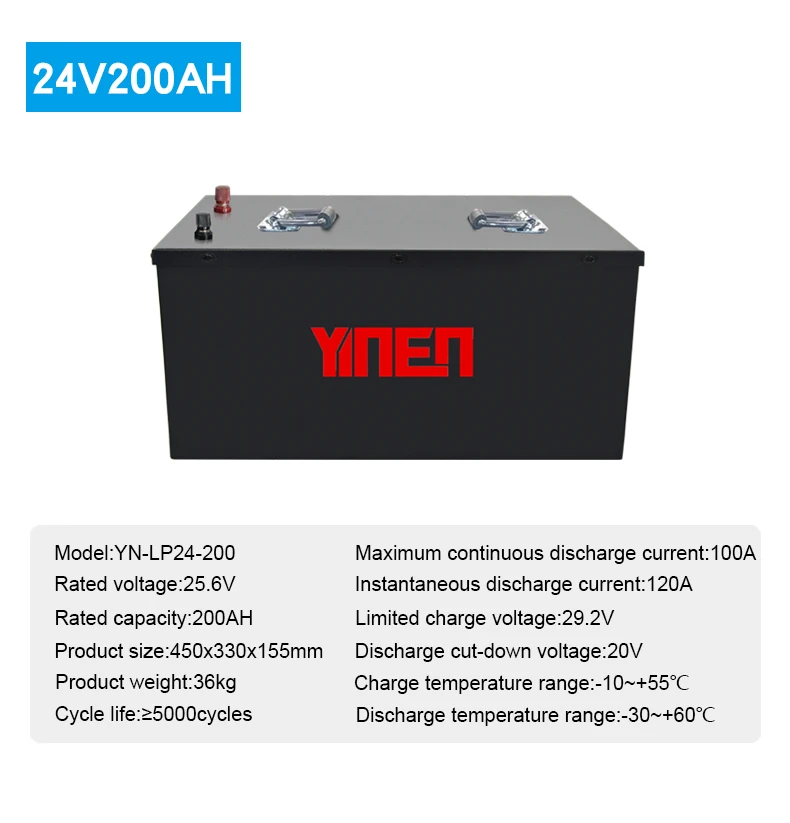

Model | YN-LP12-50 | YN-LP12-100 | YN-LP12-200 | YN-LP24-100 | YN-LP24-200 |
Rated voltage | 12.8V | 12.8V | 12.8V | 25.6V | 25.6V |
Rated capacity | 52AH | 102AH | 200AH | 102AH | 200AH |
Product size | 120x155x150mm | 250x165x150mm | 450x165x150mm | 450x165x150mm | 450x330x155mm |
Product weight | 6kg | 10kg | 18kg | 18kg | 36kg |
Cycle life | ≥3000cycles | ≥5000cycles | ≥5000cycles | ≥5000cycles | ≥5000cycles |
Maximum continuous discharge current | 30A | 50A | 110A | 100A | 100A |
Instantaneous discharge current | 35A | 100A | 120A | 120A | 120A |
Limited charge voltage | 14.6V | 14.6V | 14.6V | 29.2V | 29.2V |
Discharge cut-down voltage | 10V | 10V | 10V | 20V | 20V |
Charge temperature range | -10~+55℃ | -10~+55℃ | -10~+55℃ | -10~+55℃ | -10~+55℃ |
Discharge temperature range | -30~+60°℃ | -30~+60°℃ | -30~+60°℃ | -30~+60°℃ | -30~+60°℃ |

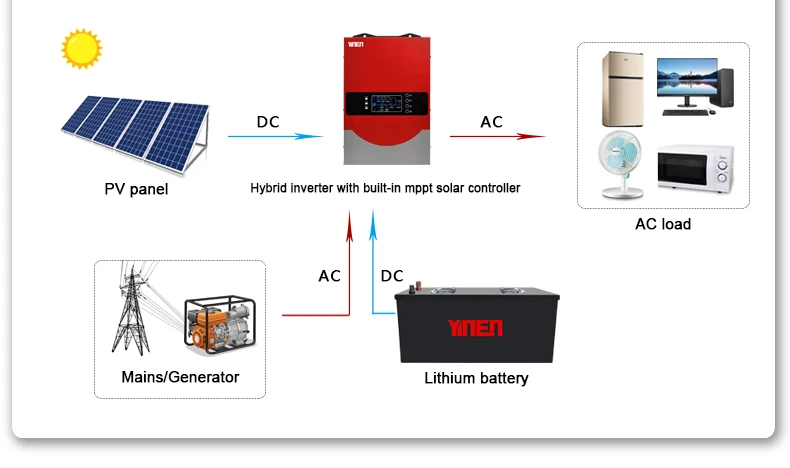

Application

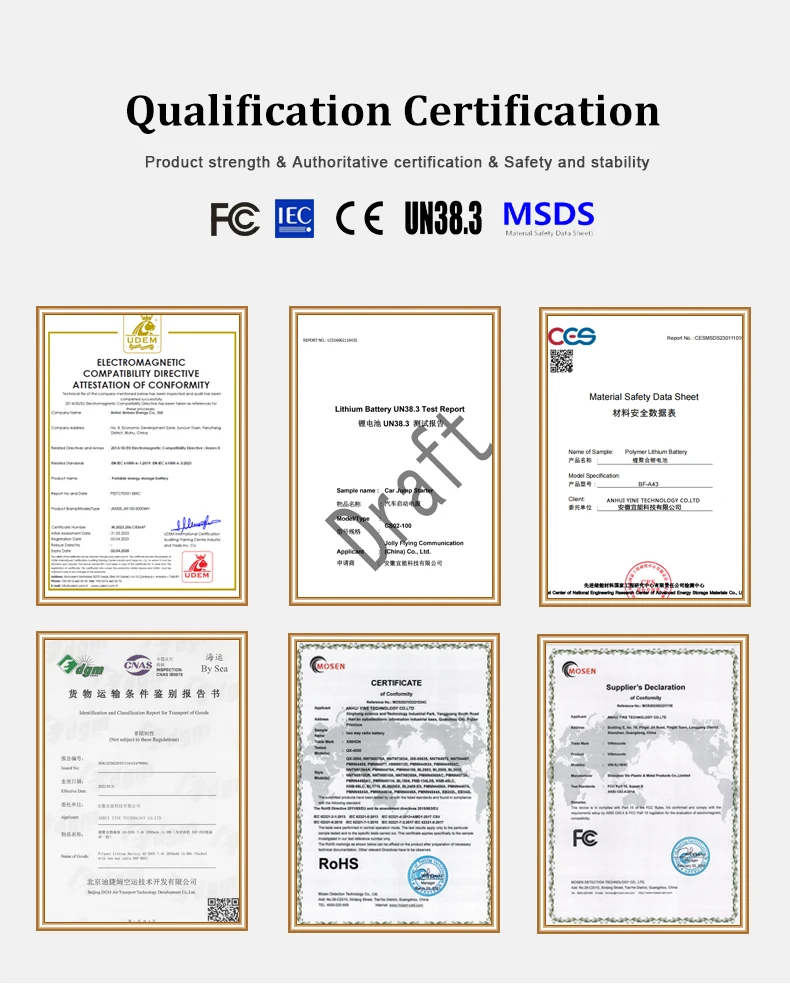

Certifications

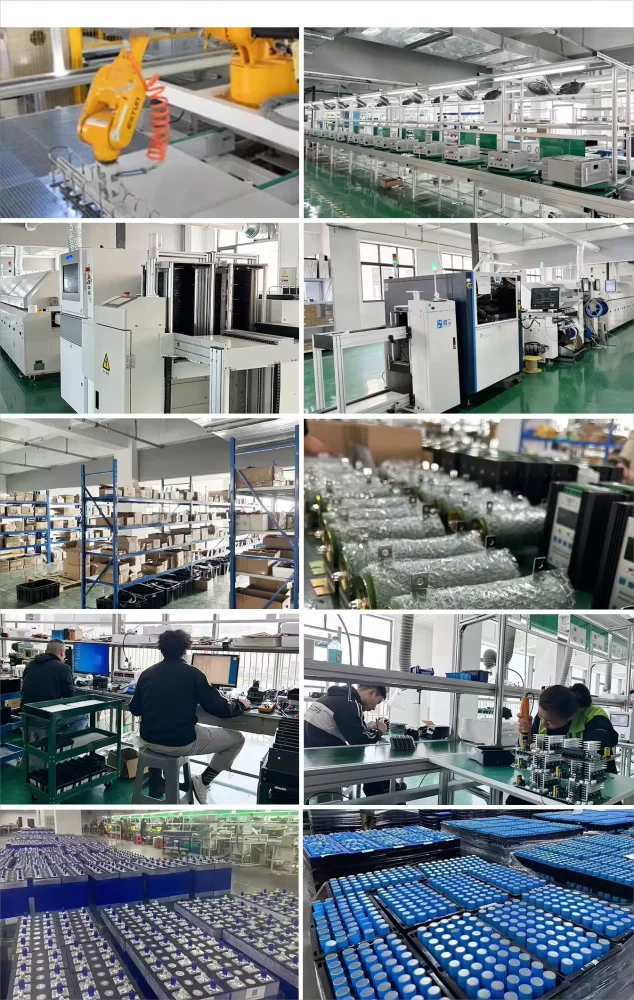

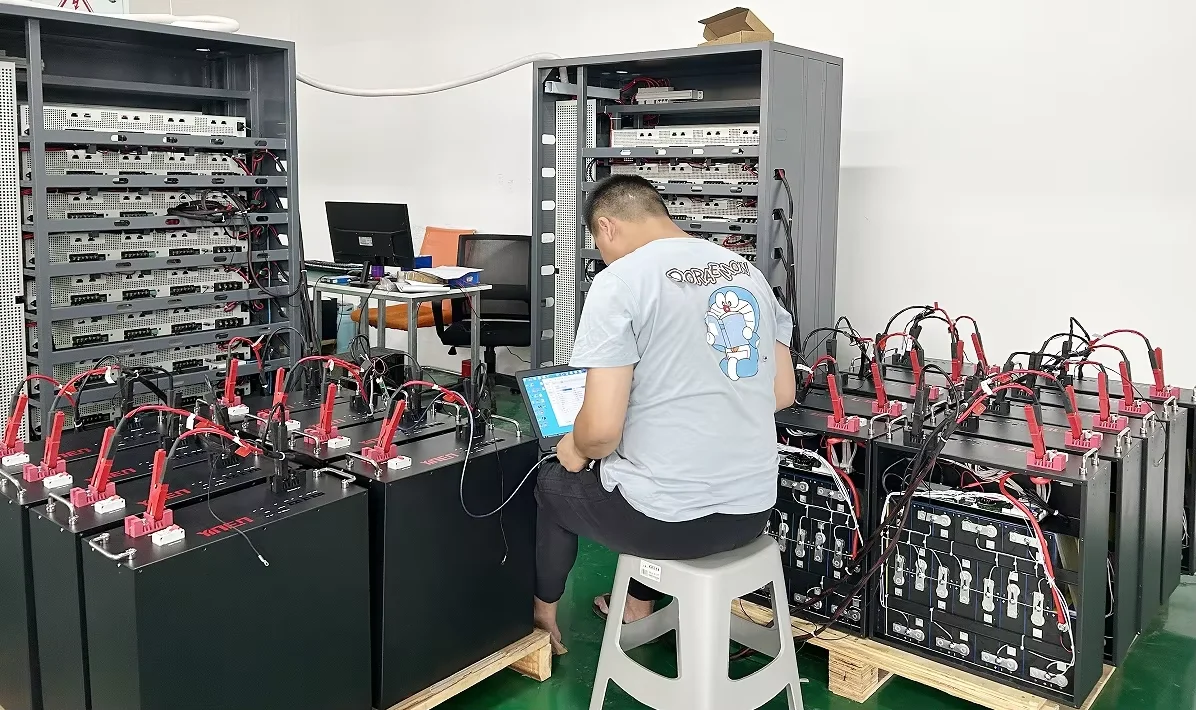

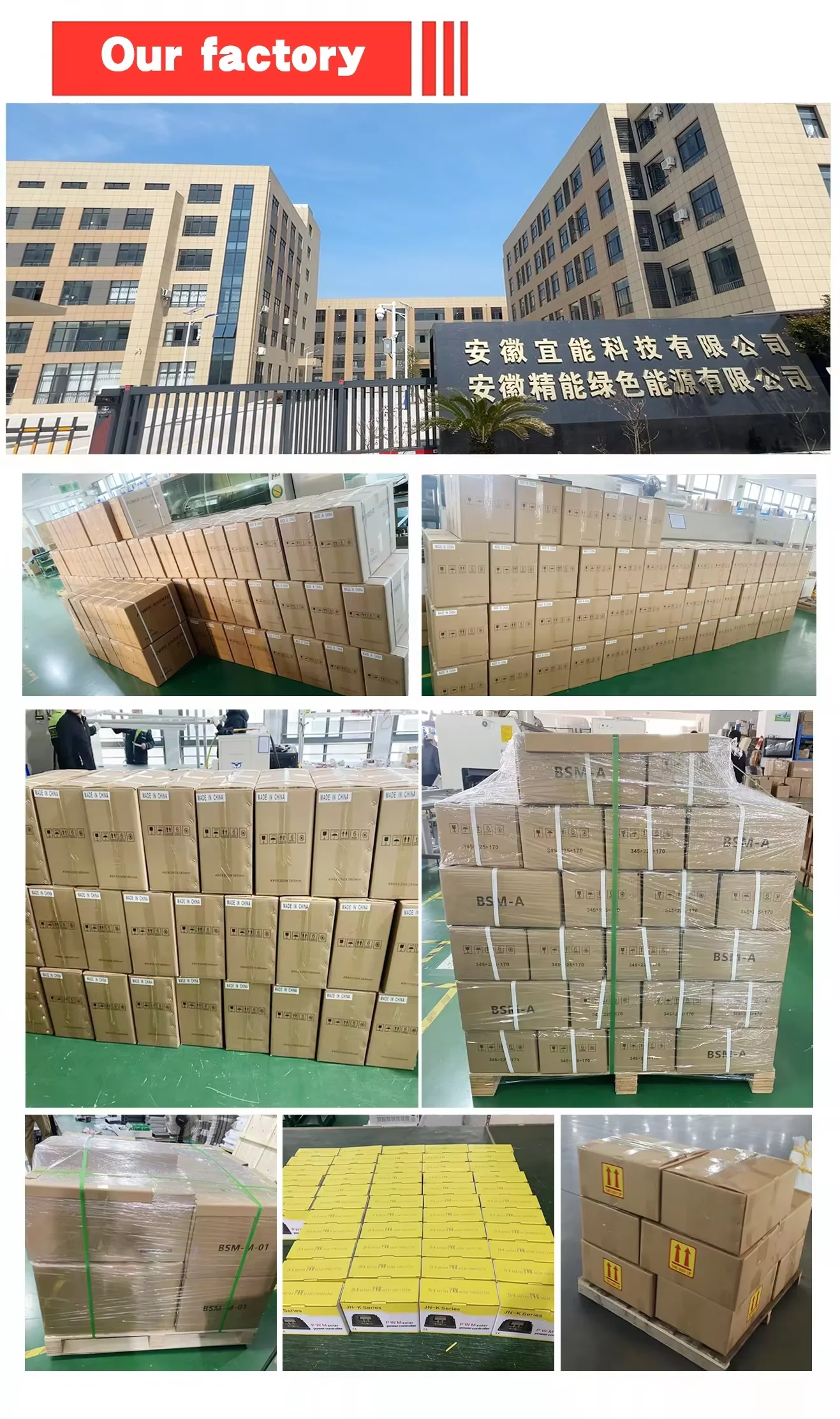

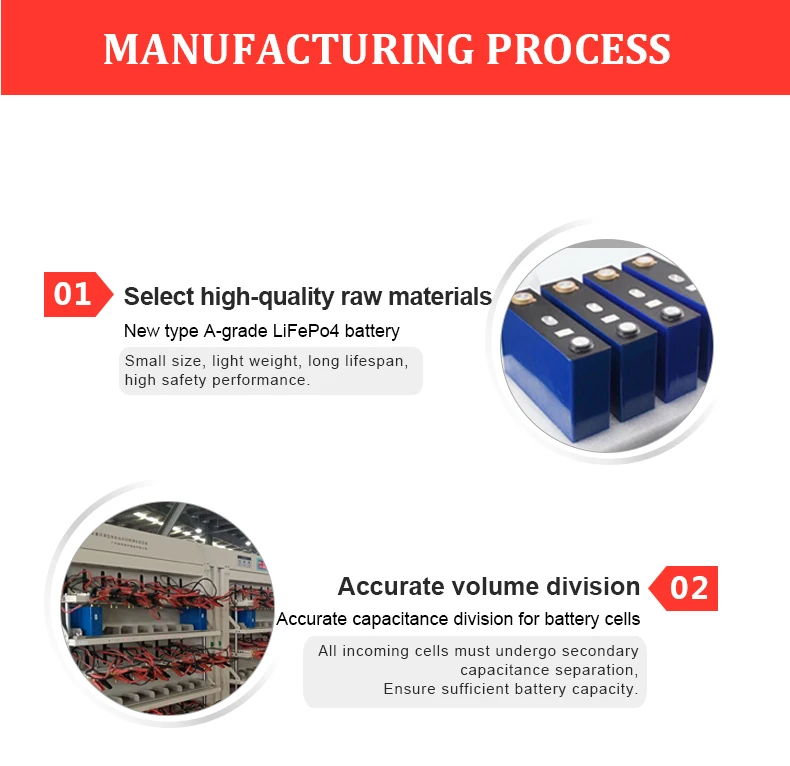

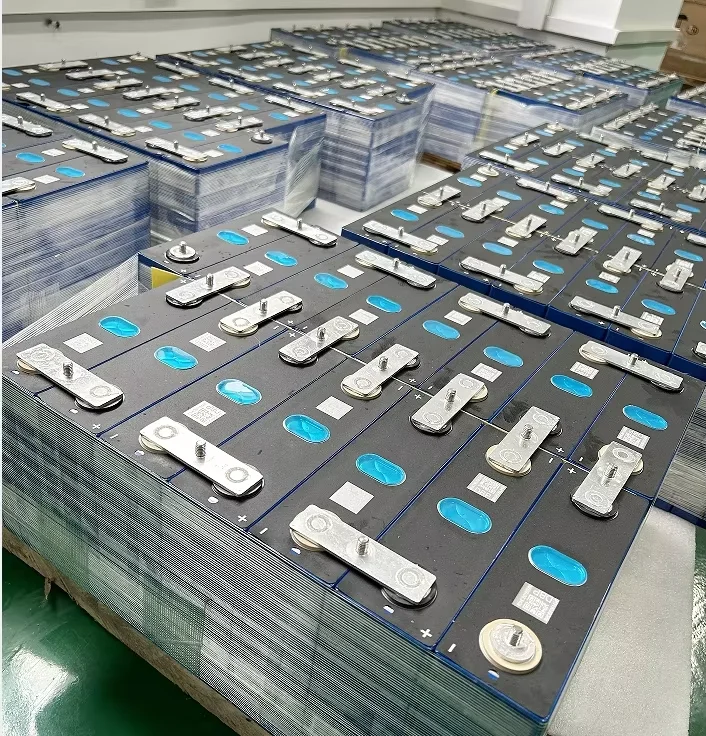

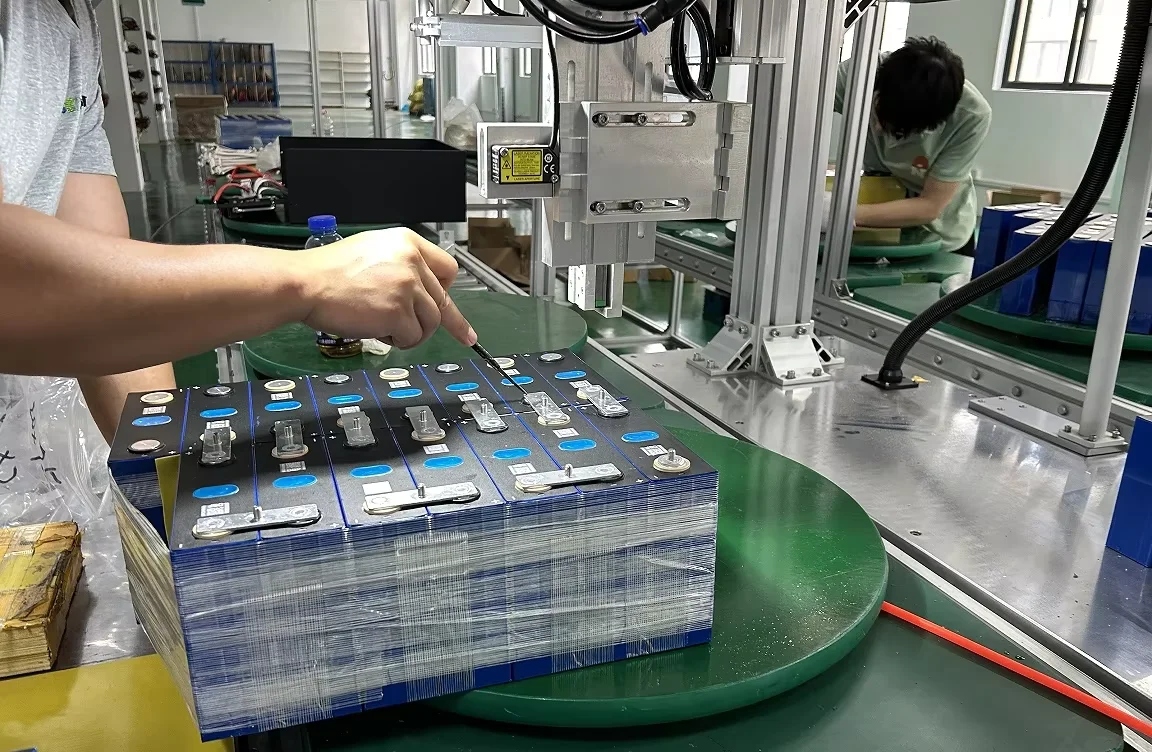

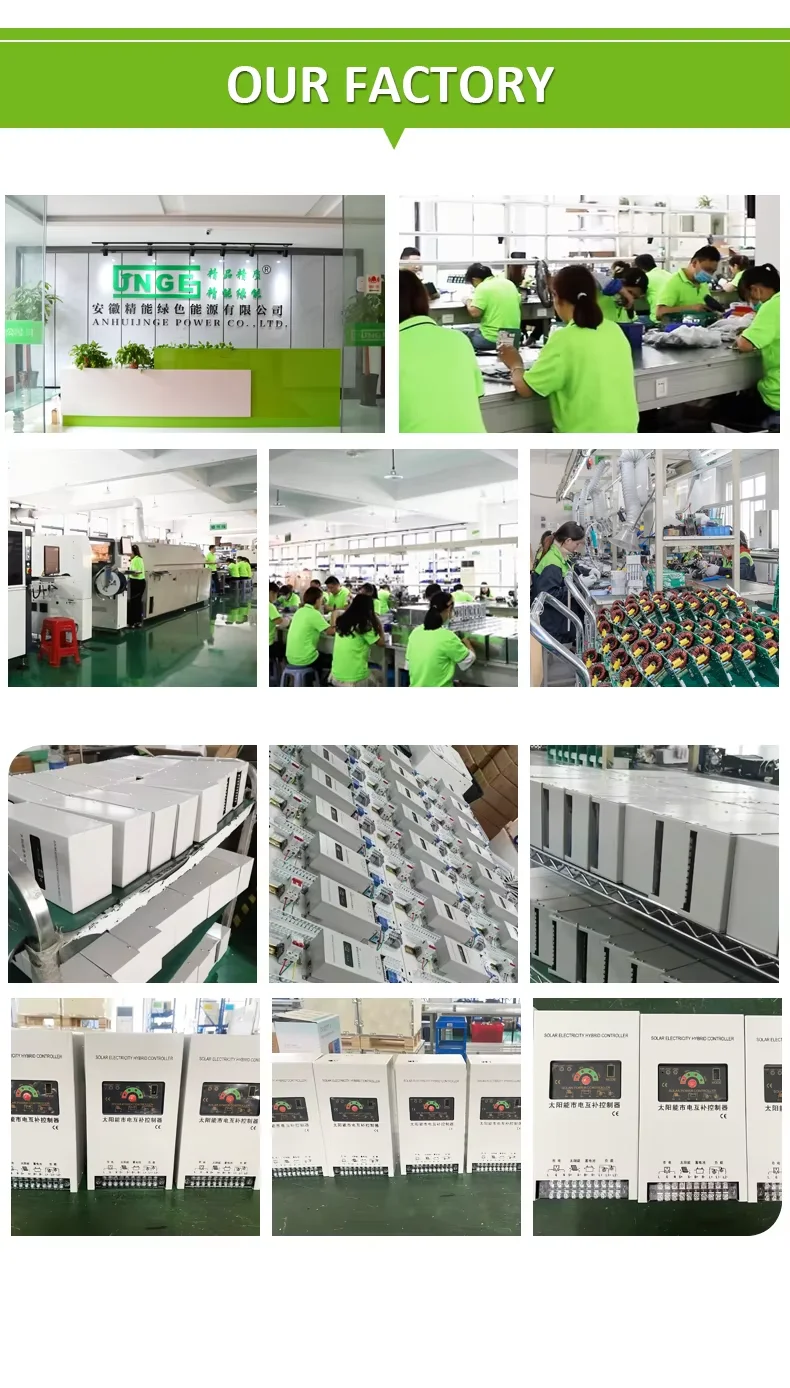

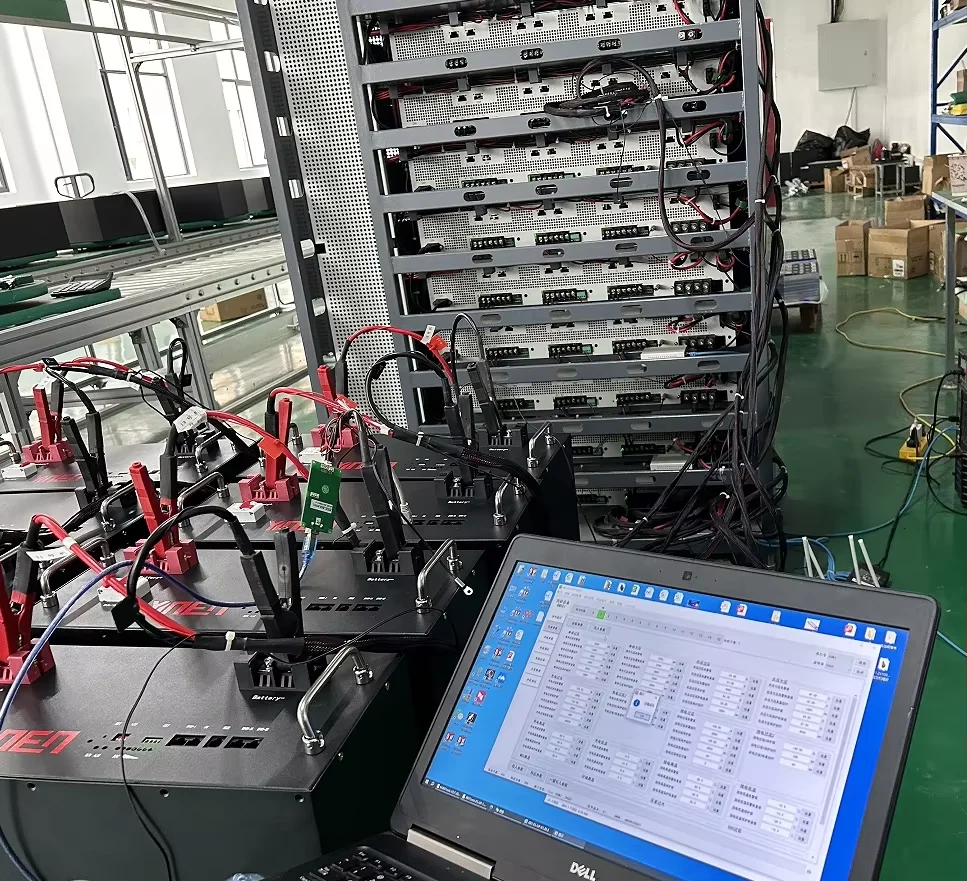

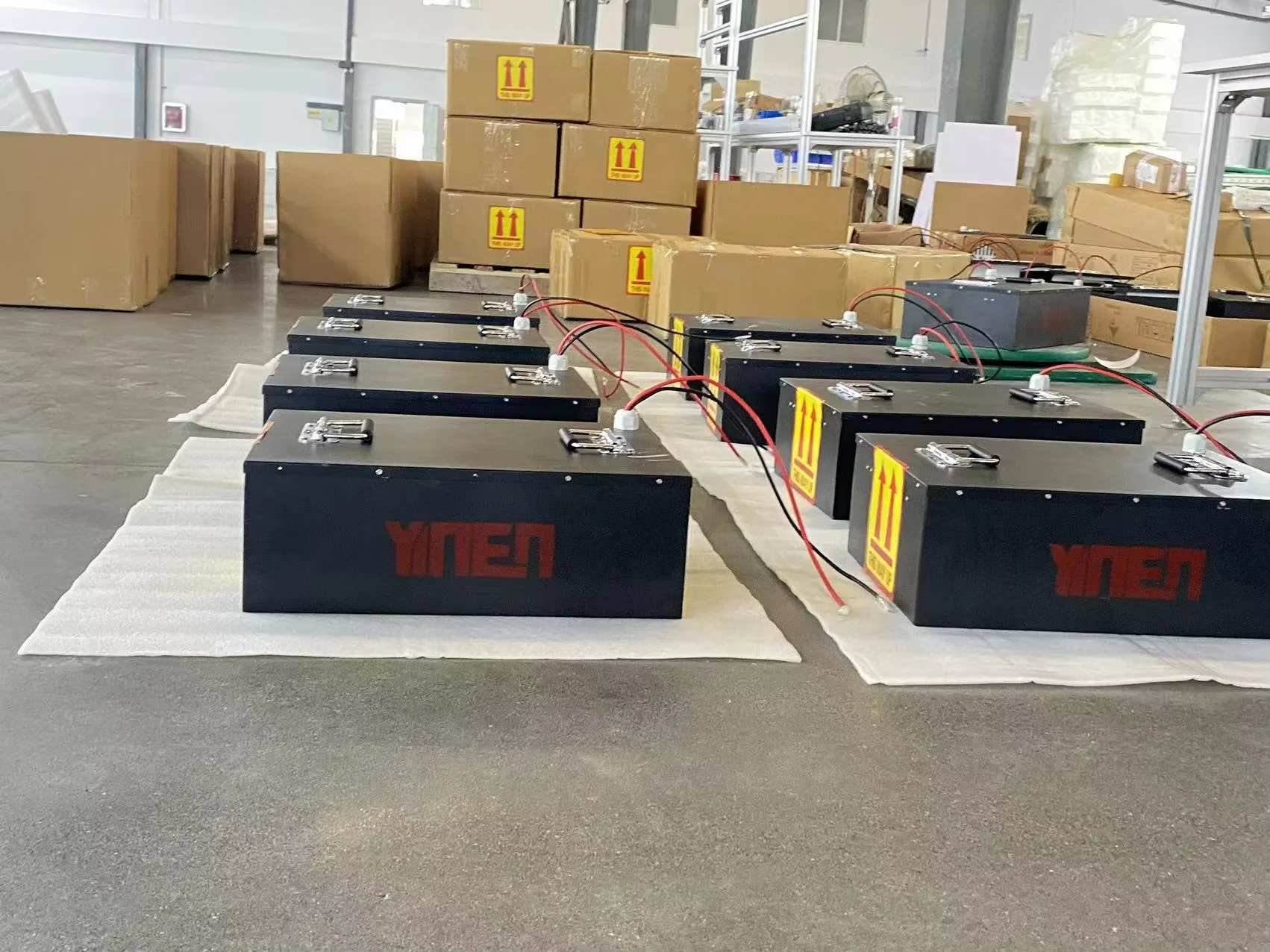

Production Process

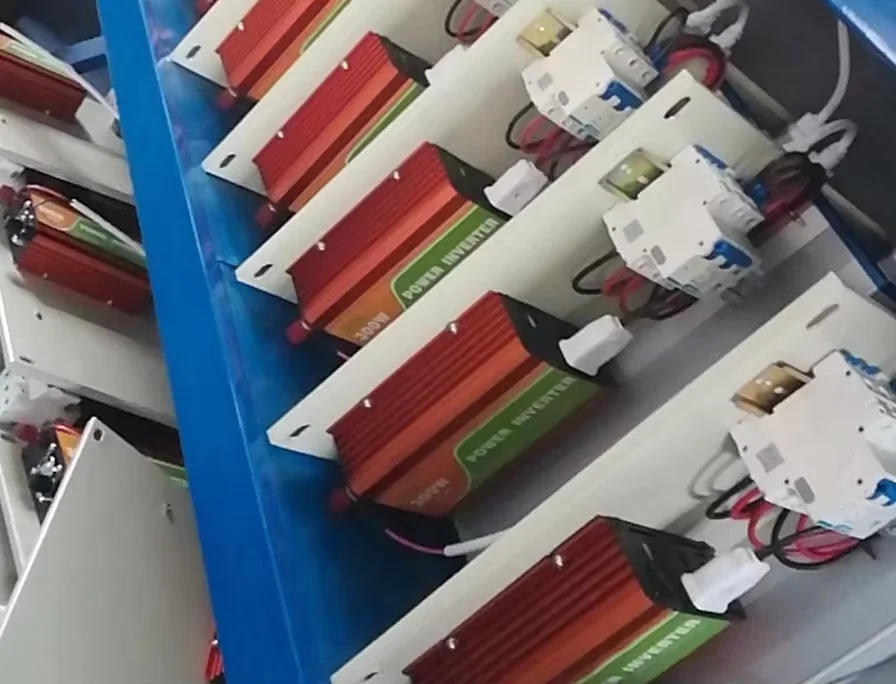

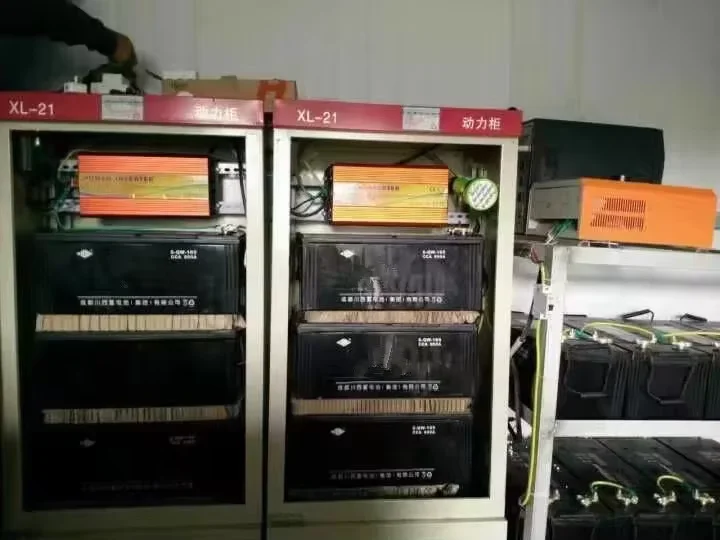

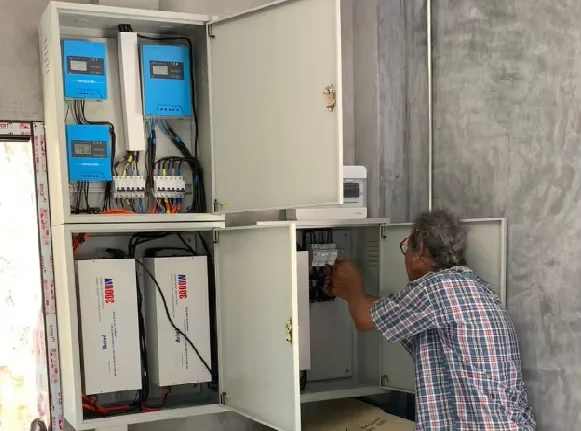

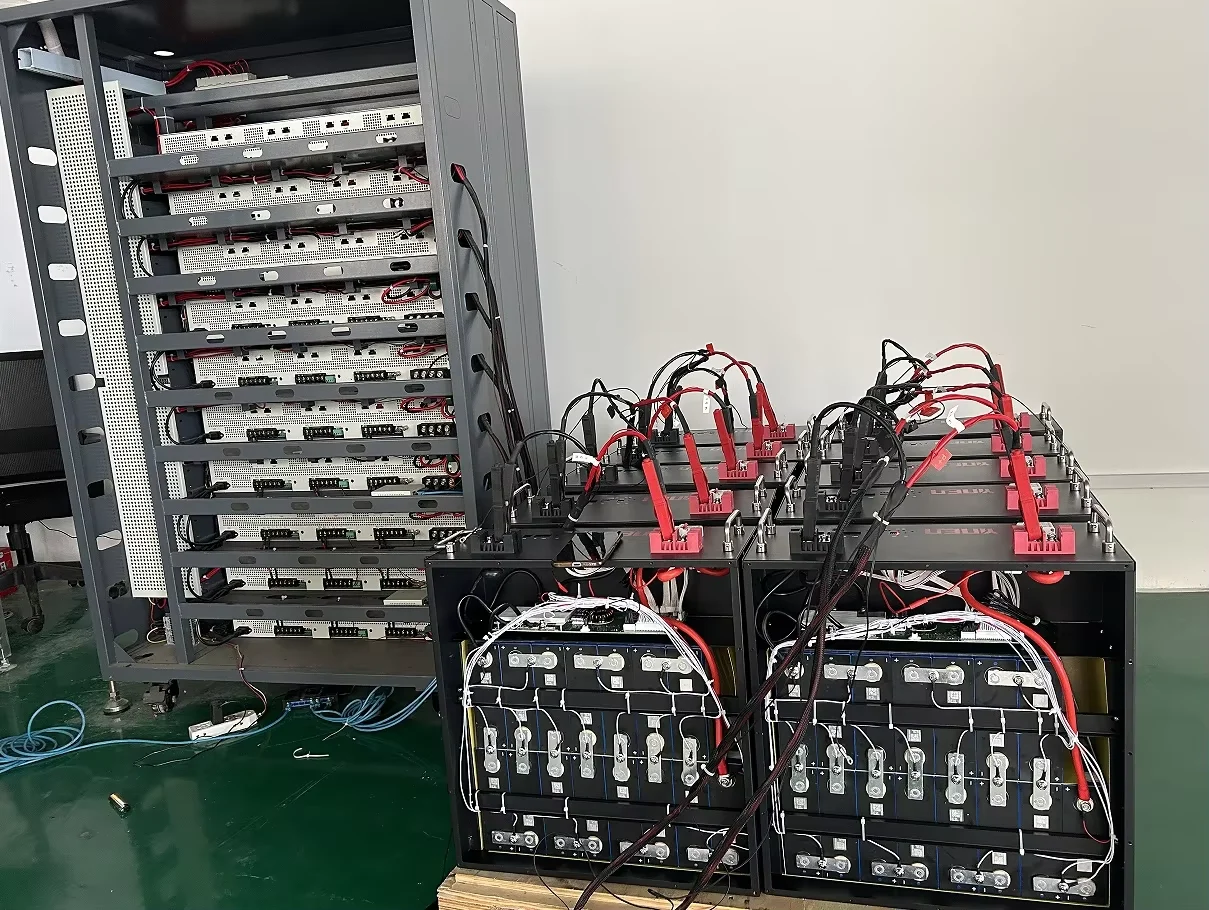

Exhibition and Projects Show
