110t/3200 China Press brake Price For Custom Made CNC Press Brake Machine for Precision Bending
- Category: >>>
- Supplier: Anhui Donghai Yuxiang Import&export Co. Ltd.
Share on (1601269500904):
Product Overview
Description
PRODUCT DESCRIPTION

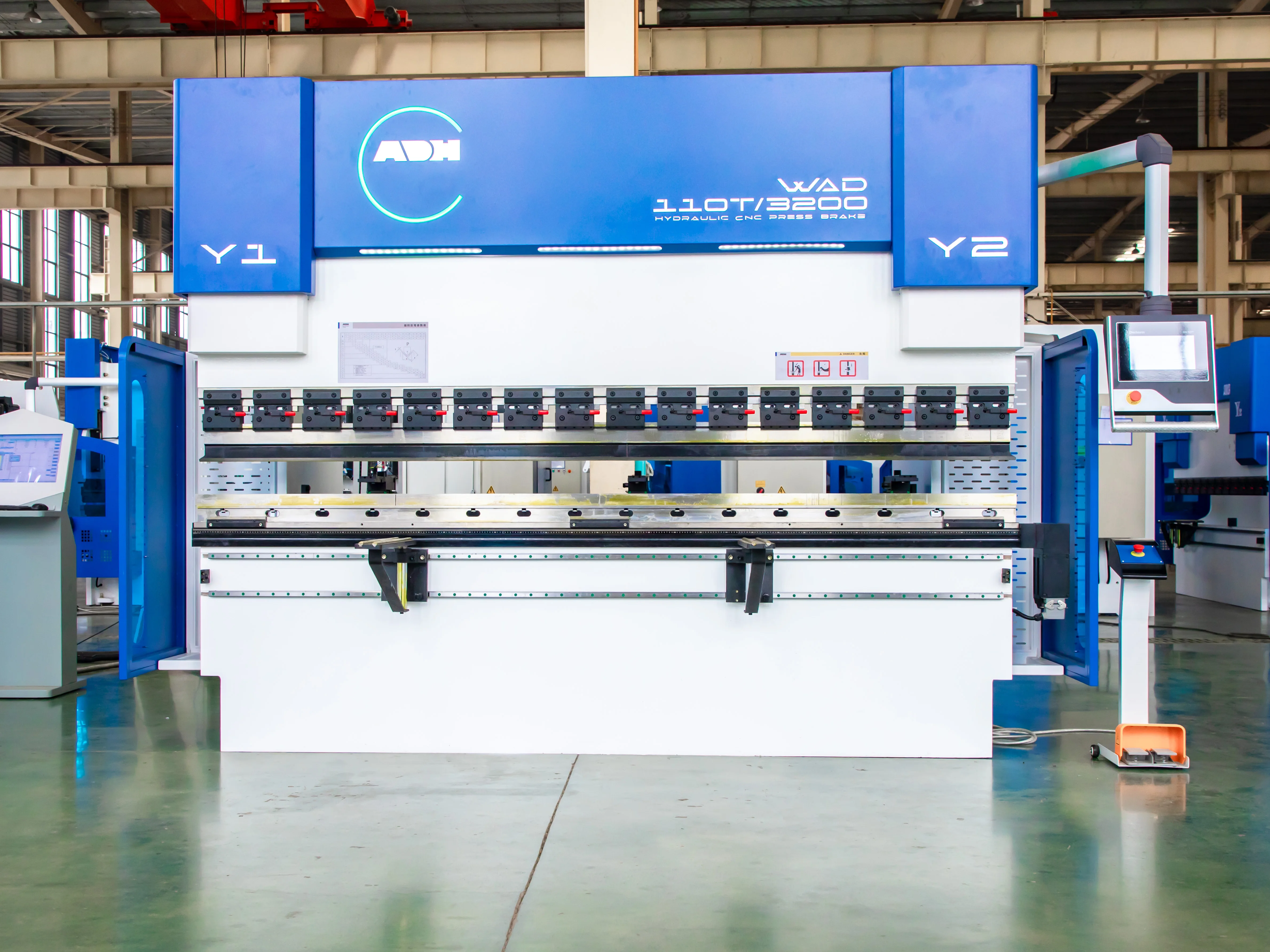

WAD SERIES CNC HYDRAULIC PRESS BRAKE
· electro hydraulic servo system
· mechanical compensation
· servo mo-tor back gauge
Model | 110T/3200 |
Bending Force | 1100 (KN) |
Bending Length | 3200 (mm) |
Oil Tank | 170 (L) |
Aprroaching Speed | 220 (mm/S) |
Ram Speed | 12 (mm/S) |
Return Speed | 160 (mm/S) |
Column Distance | 2700 (mm) |
Throat Depth | 400 (mm) |
Stroke | 200 (mm) |
Dimensions | 3800*1800*2600 (L×W×H mm) |
PRODUCT DETAILS
Mechanical Structure

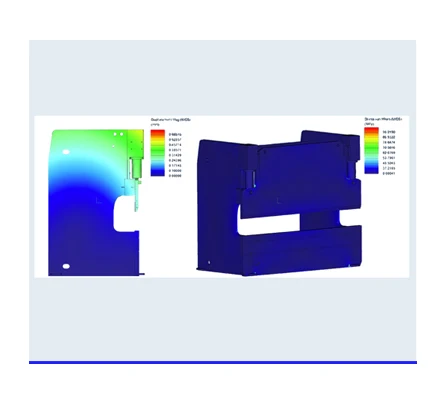

The structure mainly includes frame, column, ram, worktable, main cylinder, and back gauge,all optimized through finite element analysis and 3D software, durable and stable, enhancing the machine's performance and lifespan.

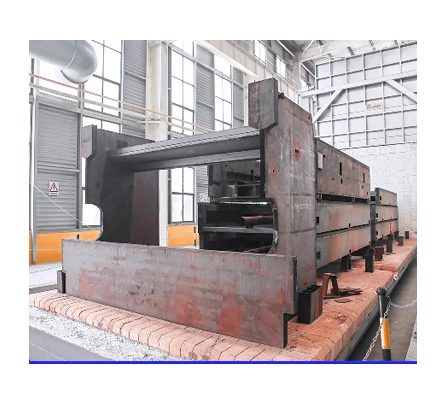

Frame
High-yield steel mono-block frame, undergoes post-welding heat treatment to relieve stress, supported by a 15-year warranty, indicating a strong commitment to long-term customer satisfaction and reliability.

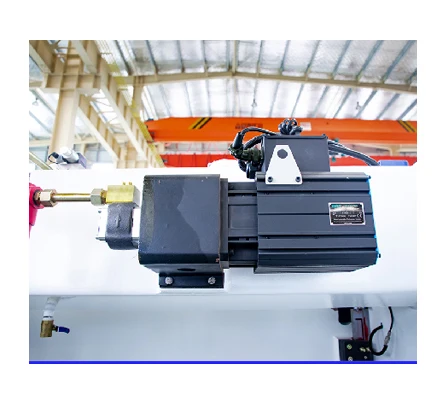

Servo Motor
The servo motor can save 40% energy, enhance ram efficiency by 7-20%, reduce oil temperature by 10-20℃, operates at a quiet 60 dB sound pressure level.
Hydraulic System
HAWE's German-engineered oil pump and hydraulic valve system, high reliability, energy efficiency, and eco-friendly performance, alongside easier maintenance and improved bending precision.

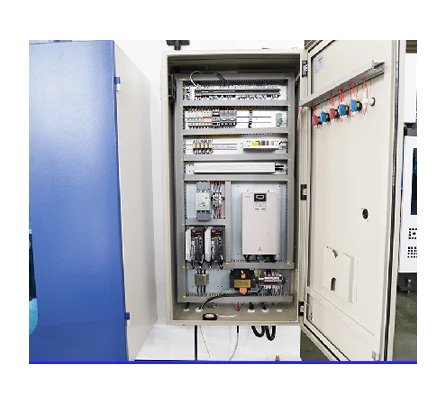

Electrical System
Equipped with Schneider electrical components, ensures reliable performance even in unstable electrical conditions.Replacement parts are available globally, convenient and fast.
Fast Clamp
The fast clamp enables swift top punch replacement, facilitates rapid intermediate loading, quick and convenient, reducing downtime while boosting work efficiency.
Crowning
The system features an advanced deformation compensation algorithm that adjusts for the
bending of both the ram and worktable, user-friendly and handy, enhancing product straightness and angle precision.
bending of both the ram and worktable, user-friendly and handy, enhancing product straightness and angle precision.

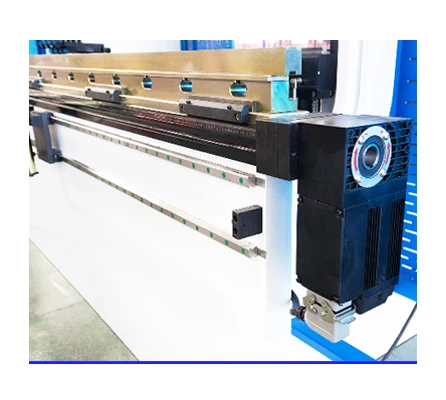

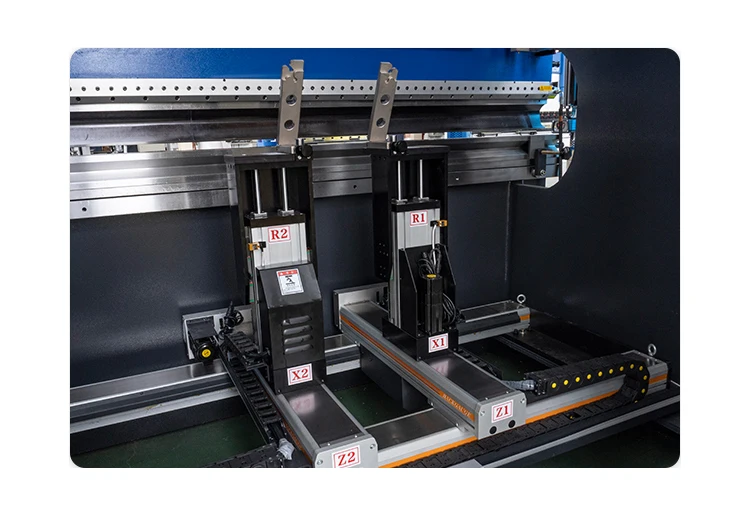

BACKGAUGE
·Number of axis:3+1,4+1,4+1+2,6+1,8+1
·Taiwan PMI ball screws and linear rails ensures precise and smooth motion control.·Timing belt and wheel mechanism contributes to efficient power transmission.
·Servo motor control allows for precise positioning and speed control of the machinery.
·Adjustable height of the backgauge finger provides versatility.

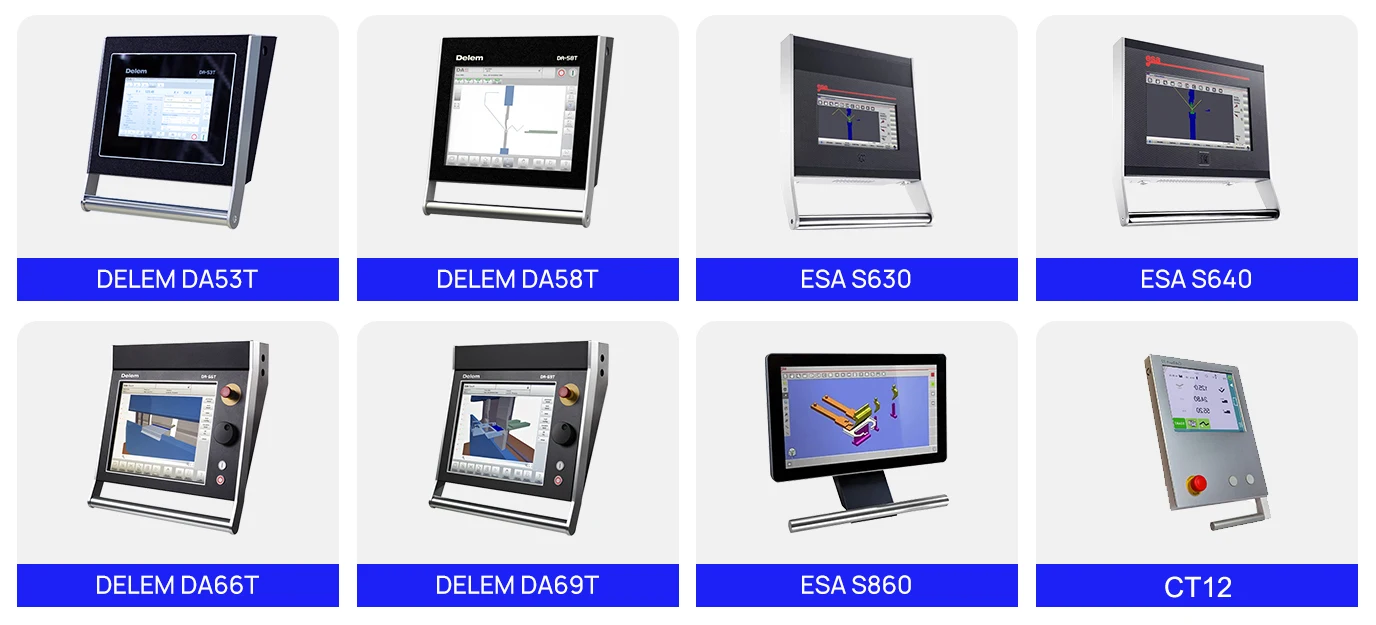

CNC CONTROLLER
OPTIONAL
Front Sheet Follower Supports System
Automatic Robot
DSP Laser Protection
MCS+ DSP AP
Light Curtain
Double Sided Quick Clamp
ROL200 PN POWER Pneumatic Fast Clamping
Wila Hydraulic Clamping System
WHO WE ARE

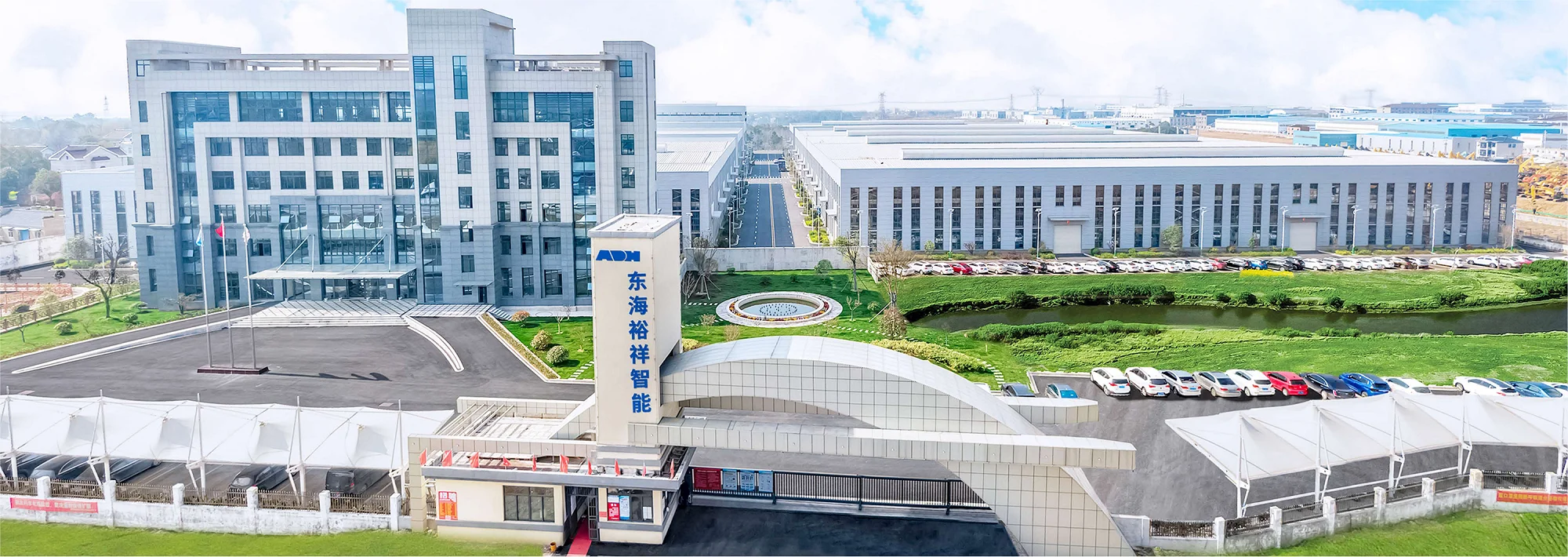

ADH Company, founded in 2002, is located in Ma'anshan City, Anhui Province, China. Our company covers an area of 450 Mu and mainly produces press brake machines, hydraulic shearing machines, laser cutting machines, laser automation, CNC turret punches, and sheet metal automation equipment.

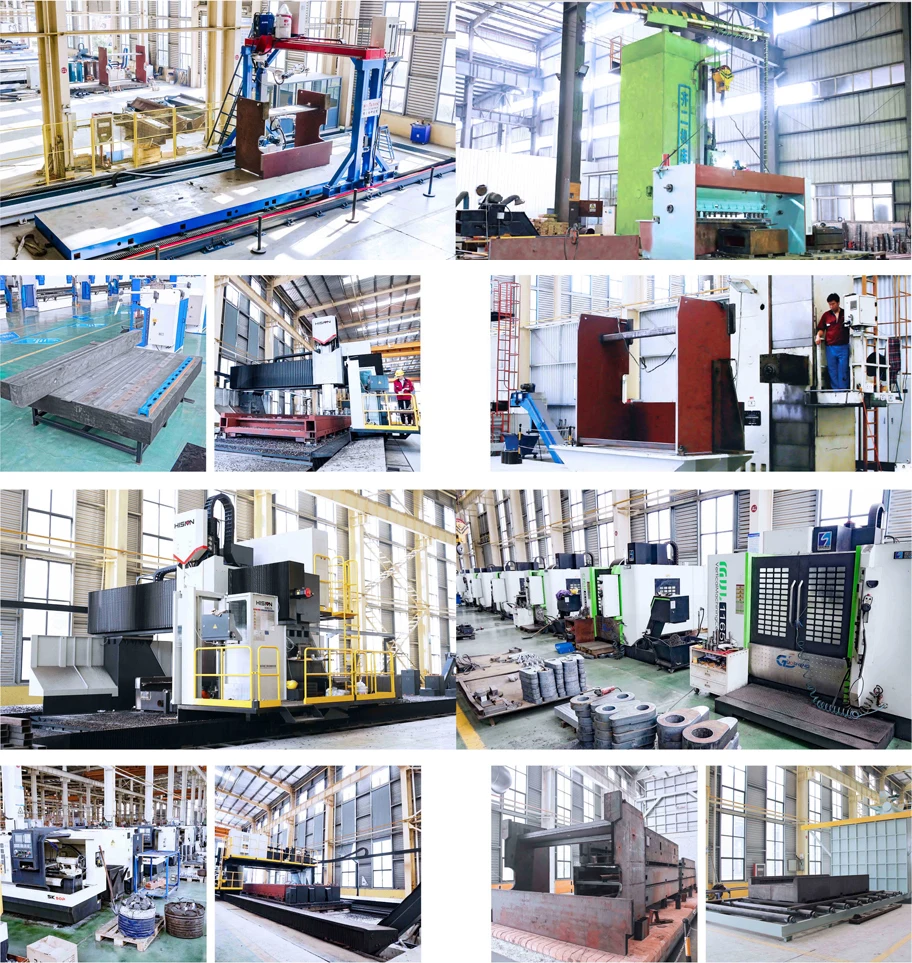

ADH has three production bases, four testing centers, and three business divisions: press brake machine manufacturing, laser cutting machine manufacturing, and industrial automation manufacturing. lt is equipped with 9 heavy fioor boring machines, multiple 4-16m pentahedral gantry machining centers, a 16m large heat treatment annealing furnace, a shot blasting machine,a 20m electric welding platform, a 10000-ton bending machine special assembly platform.and some other heavy processing equipment, with an annual output of more than 5000 sets of various machine tools.
Our company has a complete set of product quality management systems, and each equipment can leave the factory only after passing the strict quality inspection process.
We have set up more than 150 offices and after-sales service outlets at home and abroad. Our service network covers the world, and our products are exported to more than 100 countries in South America, Southeast Asia, Europe, the Middle East, and other regions.
ADH, a rising brand, is committed to becoming a new driving force for the development of intelligent equipment. At the same time,we provide the best cutting and bending machine tools for customers all over the world.
Our company has a complete set of product quality management systems, and each equipment can leave the factory only after passing the strict quality inspection process.
We have set up more than 150 offices and after-sales service outlets at home and abroad. Our service network covers the world, and our products are exported to more than 100 countries in South America, Southeast Asia, Europe, the Middle East, and other regions.
ADH, a rising brand, is committed to becoming a new driving force for the development of intelligent equipment. At the same time,we provide the best cutting and bending machine tools for customers all over the world.
FABRICATION EQUIPMENT
SERVICE COMMITMENT
Our team of professional engineers carefully reviews every suggestion and provides the most suitable final solution for the user.
Our team ensures that all equipment delivered to customers meets the hiqhest quality standards.
During the 1-3 year warranty period,we offer free replacement of parts for our customers.
We can quickly supply customized accessories to ensure our customers' machines run smoothly without interruption.
The main core components of the machine are sourced from internationally renowned brands.
We provide customized solutions that cater to the specific needs of our customers.
EXHIBITION
FAQ
Here are the most frequently asked questions by our customers.
Are you a factory or a trading company?
We are a manufacturer. Our company was founded in 2002, and has 20 years of production experience.
Where is your company?
Our company is in Maanshan, Anhui Province, which is only half an hour’s drive from Nanjing Lukou Airport. If you visit our company, we will arrange a special bus to meet you at the airport.
How long does it take to deliver the machine?
Generally, we will deliver the goods within 30 days. If the machine belongs to non-standard customized products, the time will be longer, but the longest time will not exceed 50 days.
What kind of payment do you accept?
Generally, we accept T/T and L/C payment, 30% deposit and 70% payment before delivery. If you are our special customer, we can accept better payment method.
What is the warranty period of your machine?
For conventional machines, our warranty period is one year. For special non-standard machines, we may provide a 2-3 year warranty,but this should be confirmed with our sales team in advance. During the warranty period, we provide free replacement parts.
Do you accept OEM customization?
Yes, we accept OEM customization, such as customized machine appearance, color, configuration, etc. Of course, the price of customized products should be a little higher. Please contact our business team for details.
