milling machine with tool change milling casting frame multifunctional rotary milling
- Category: >>>
- Supplier: Jiangsu Hoston Machine Tools Co. Ltd.
Share on (1601269541298):
Product Overview
Description

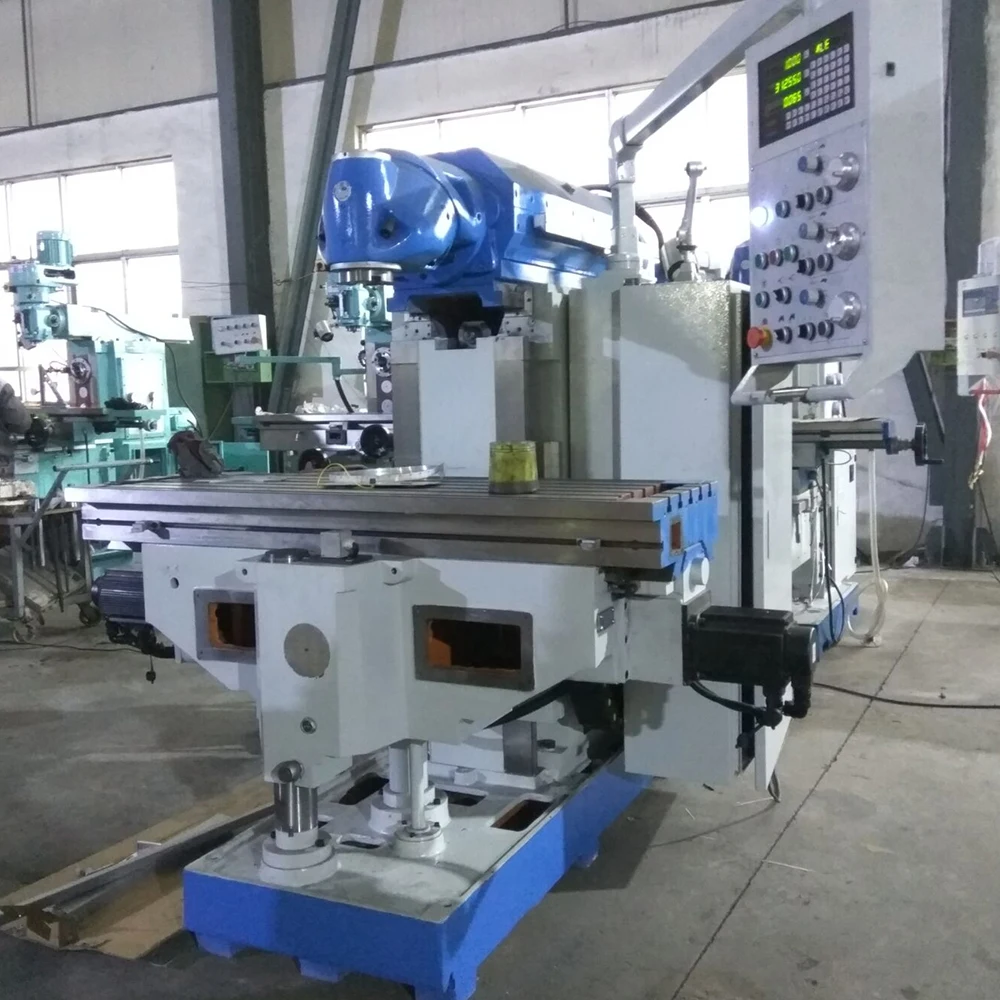

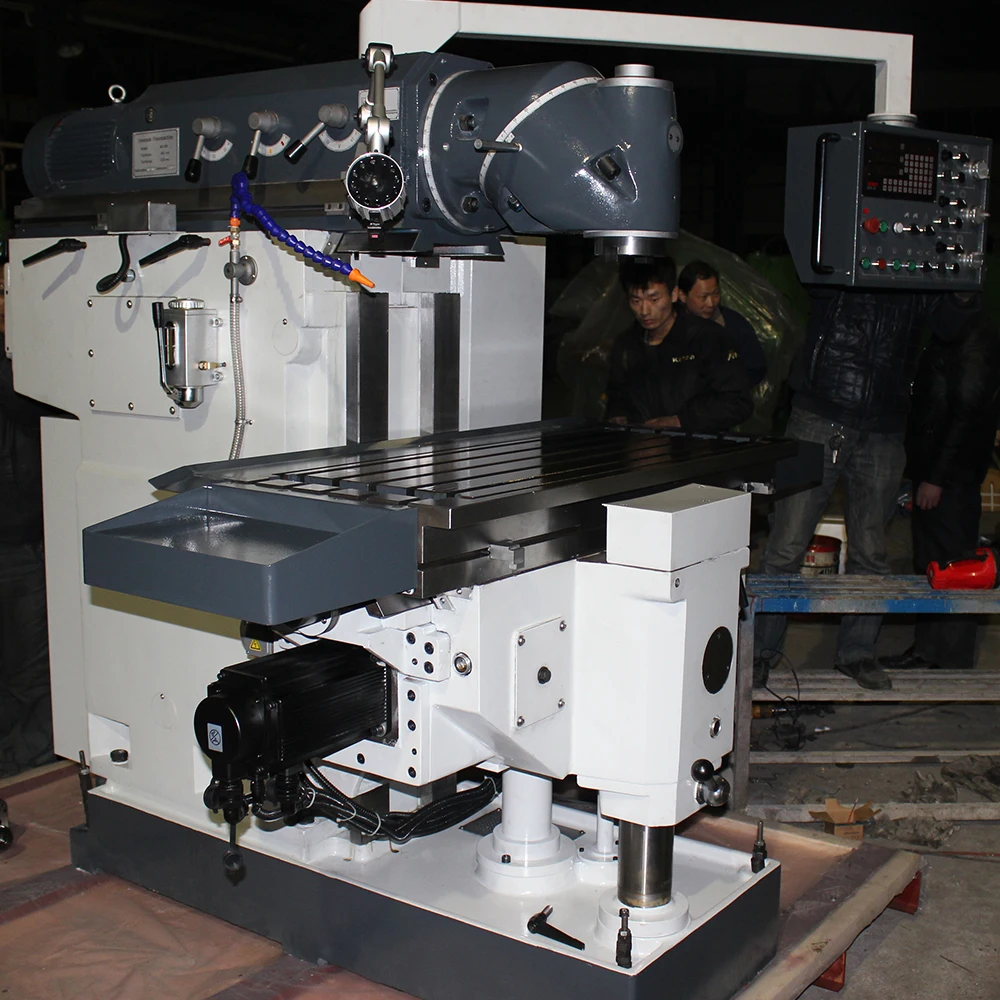

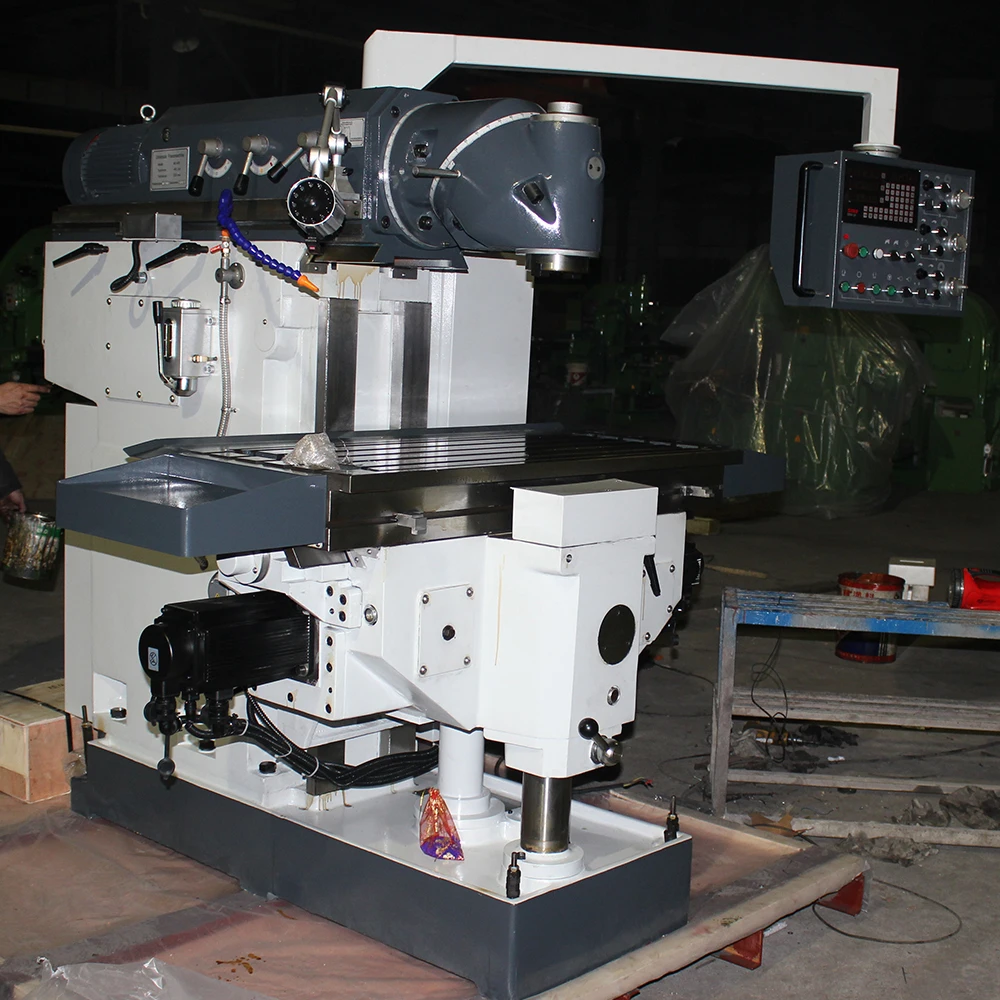

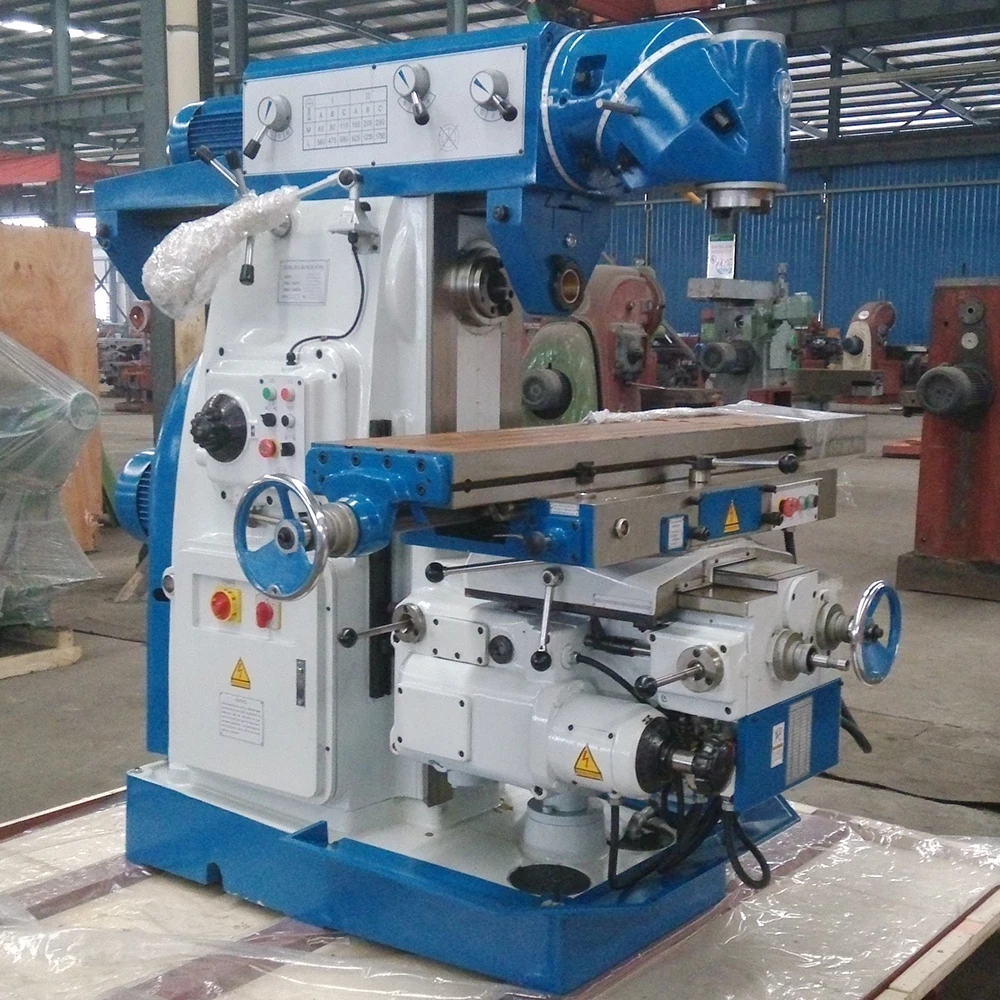

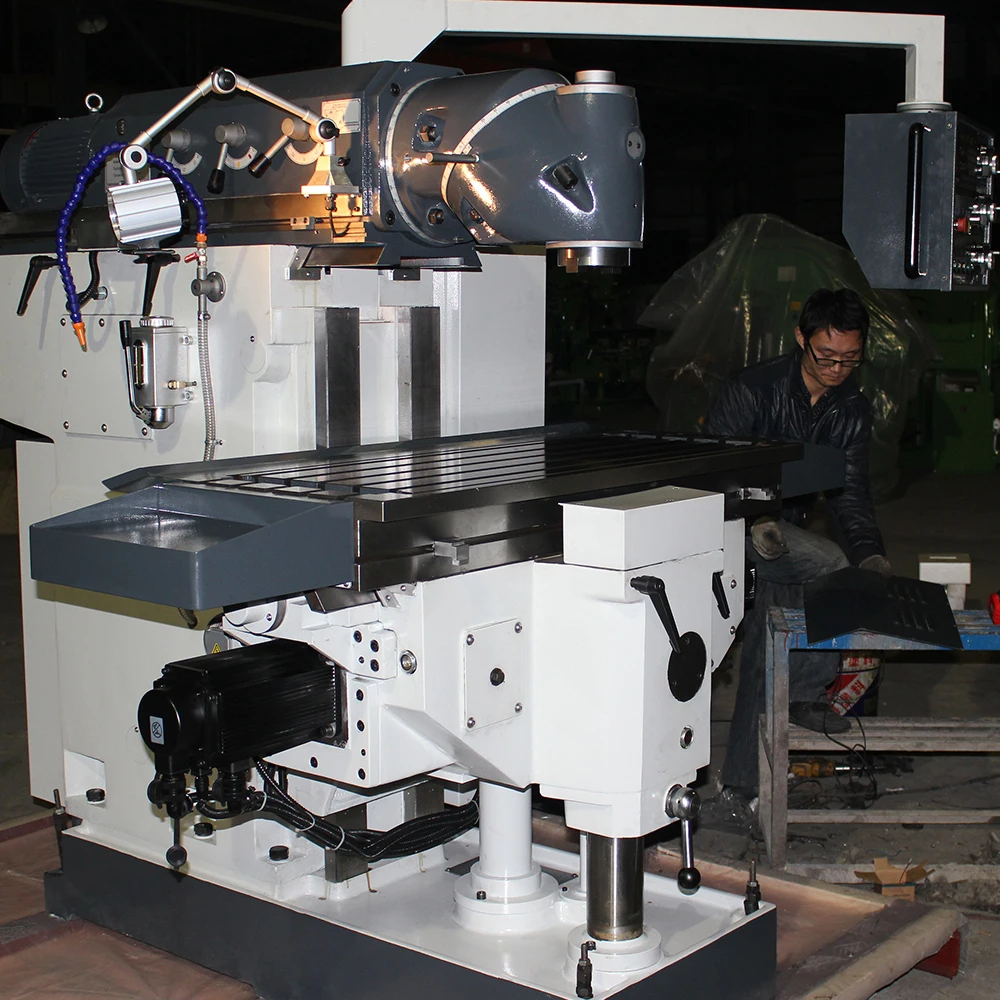

Hoston portable milling drilling machine
Machine Features
1. X Y Z 3-axis auto feed and fast feed ,finely graduated feeds in all axis, driven by servo motor
2. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
3.Rotary table ±45° can be ordered
4.Eeasy operation, low trouble rate
5.ideal for workshop&training
Standard accessories
Milling cover, Horizontal arbor assmbly, Drawbar, Double-ended wrench, Inner hexagonal wrech,Machine vice,sleeve,washer,milling chuck,Milling cutter arbor
Optional accessories
Digital Readout, Aluminum hangarm , Spindle cover, Worktable cover, LED Worklamp, Swivel table ±45° slotting head.
Hoston portable milling drilling machine
Specifications | Unit | XL6436 | XL6436C | XL6436CL | |
Table size | mm | 1325×360 | 1600×360 | ||
Table travel (X/Y/Z) | mm | 750/320/460 | 1100/320/450 | 1300/320/450 | |
Table feed(X/Y/Z) | mm/min | 30~750/20~500/15~375 | |||
Spindle taper |
| 7:24 IS050 (H) 7:24 IS050 (V) | |||
Arm travel | mm | 550 | |||
Distance between spindle nose and table surface | mm |
196-656
| 196-646 | ||
Distance between horizontal nose and table surface | mm | 20-480 | 20-470 | ||
Distance between spindle axis and arm surface | mm | 200 | |||
Spindle speed range | r.p.m | 12 steps 60-1750 (V) 12 steps 60-1800 (H) | |||
T-slots(NO./width/pitch) | mm | 3/18/80 | |||
Main motor power | Kw | 5.5 (H) 4 (V) | |||
3 to feed Ac servo motor torque | N.m | 10 | |||
Overall size | mm | 1800×2100×2000 | 2245×2100×2000 | 2520×2100×2000 | |
Net weight | kg | 2685 | 2750 | 2800 | |
Optional ±45° Swivel Table XL6436W
Model | Table size | Max table travel-X/Y/Z | Max rotary angle of table | Distance between spindle center line and table surface | Distance between spindle nose and table surface |
XL6436W | 1325×360 | 750/320/400 | ±45° | (H)20-420 | (V)190-590 |
XL6436CW | 1100/320/400 | ||||
XL6436CLW | 1600×360 | 1300/320/400 |
Hoston portable milling drilling machine
