Heavy duty tool cable retractor 120kg140kg 160kg hanging holding equipment
- Category: >>>
- Supplier: Beijing Tengli Hengxin Crane Machinery Co. Ltd.
Share on (1601269543403):
Product Overview
Description

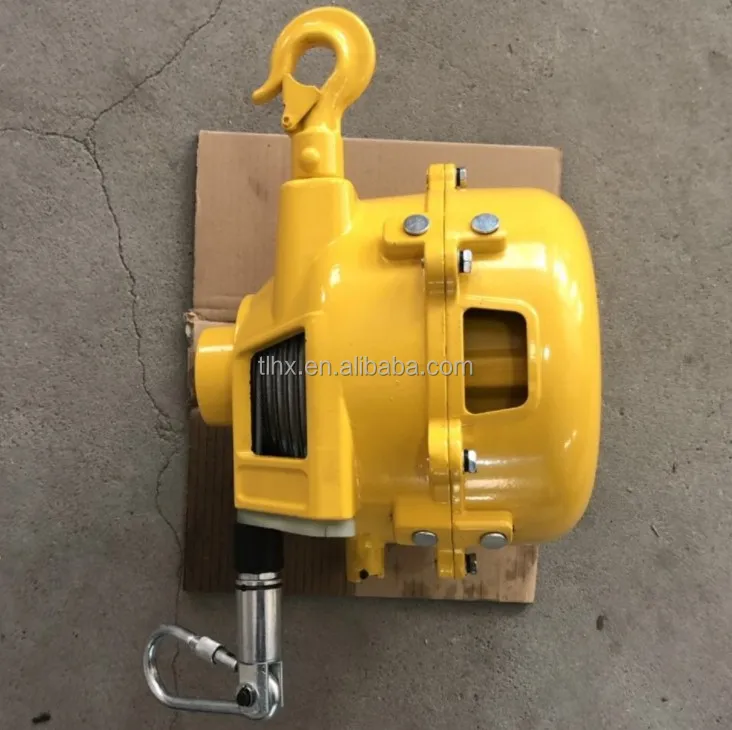

Heavey duty tool cable retractor 120kg140kg 160kg hanging holding equipment
1. load capacity:120kg-140kg; 140-160KG,
2. cabe travel:1.7M, 2.3M
Spring Tool retractor are time and effort savers. Whether keeping your assembly tools close at hand on a workbench or assemlbly area or suspending heavier tools or objects to make close to "weightless", spring balancers provide ergonomic assistance.

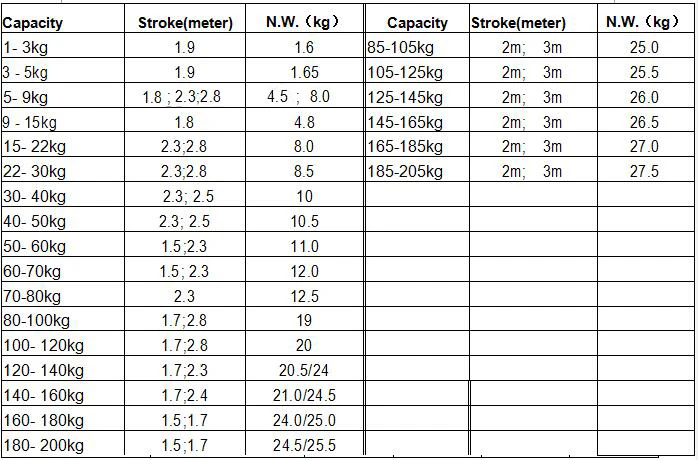

| TYPE | Min.Capacity | Max.Capacity | Stroke | N.W. |
| HW-3 | 1kg | 3kg | 1.9m | 1.6kg |
| HW-5 | 3kg | 5kg | 1.9m | 1.7kg |
| HW-9 | 5kg | 9kg | 1.8m,2.3m,2.8m | 4.5kg/8.5kg |
| HW-15 | 9kg | 15kg | 1.8m,2.3m,2.8m | 5kg/8.5kg |
| HW-22 | 15kg | 22kg | 2.3m | 8kg |
| HW-30 | 22kg | 30kg | 2.3m | 8.5kg |
| HW-40 | 30kg | 40kg | 2.5m | 10.5kg |
| HW-50 | 40kg | 50kg | 2.5m | 11kg |
| HW-60 | 50kg | 60kg | 2.8m | 11.5kg |
| HW-70 | 60kg | 70kg | 2.5m; 3.0M | 12kg |
| HW-80 | 70kg | 80kg | 2.8m; 3.0M | 12.5kg |
| HW-100 | 80kg | 100kg | 2.8m;3.0M | 27kg |
| HW-120 | 100kg | 120kg | 1.5m | 28kg |
| HW-140 | 120kg | 140kg | 1.7m,2.3m | 28.5kg |
| HW-160 | 140kg | 160kg | 1.7m,2.4m | 29kg |
| HW-180 | 160kg | 180kg | 1.7m | 29.5kg |
| HW-200 | 180kg | 200kg | 1.7m | 30kg |

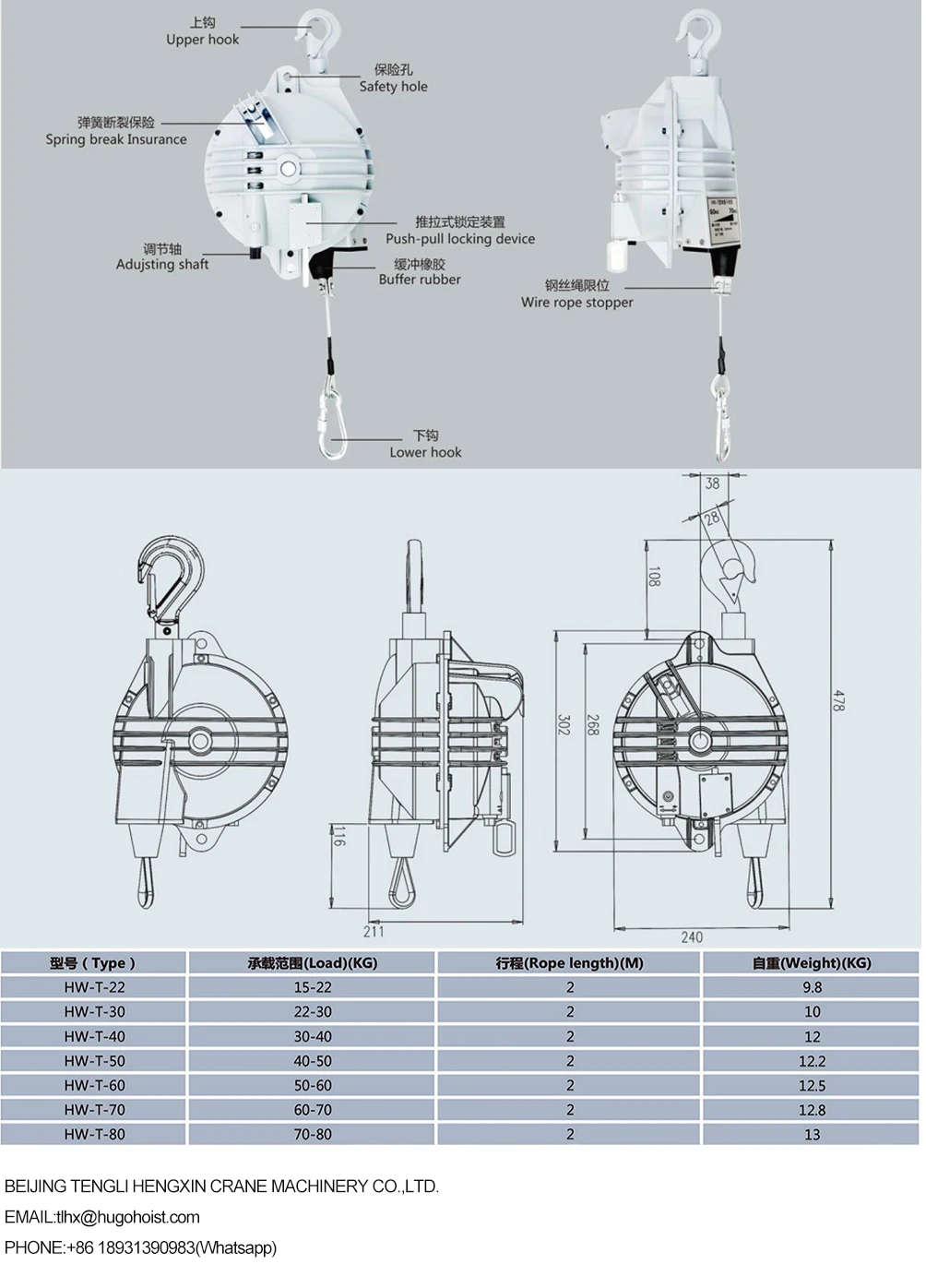

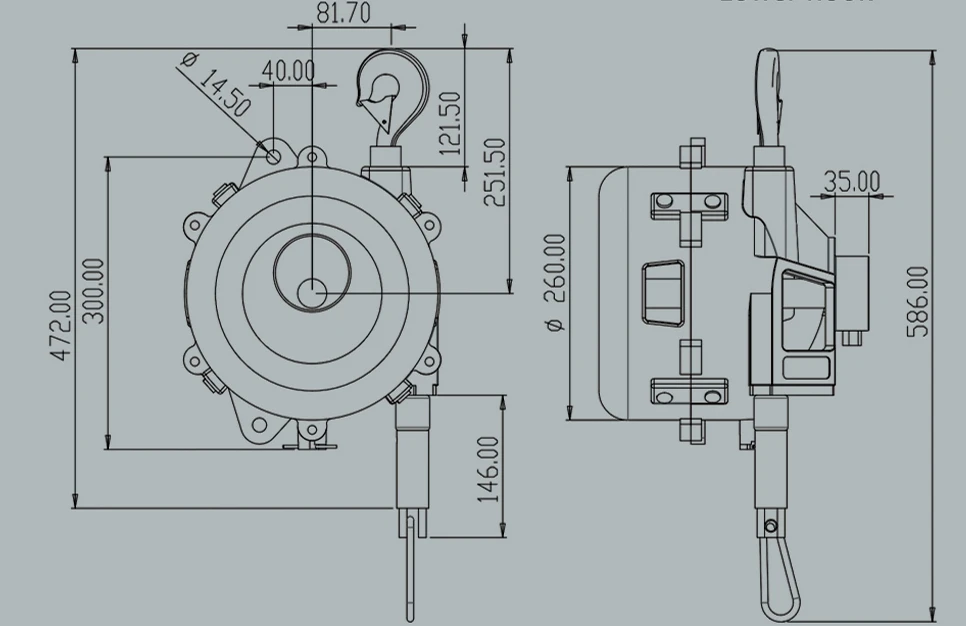

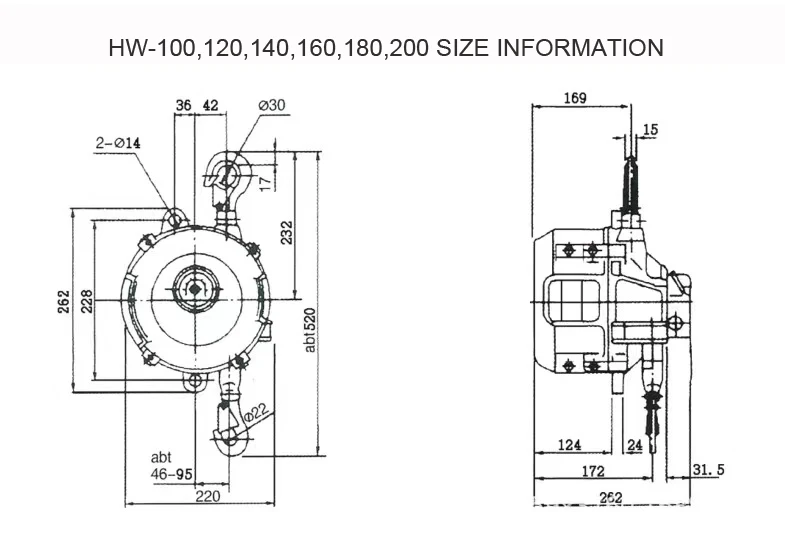

Spring balancer dimension:
Packing information:

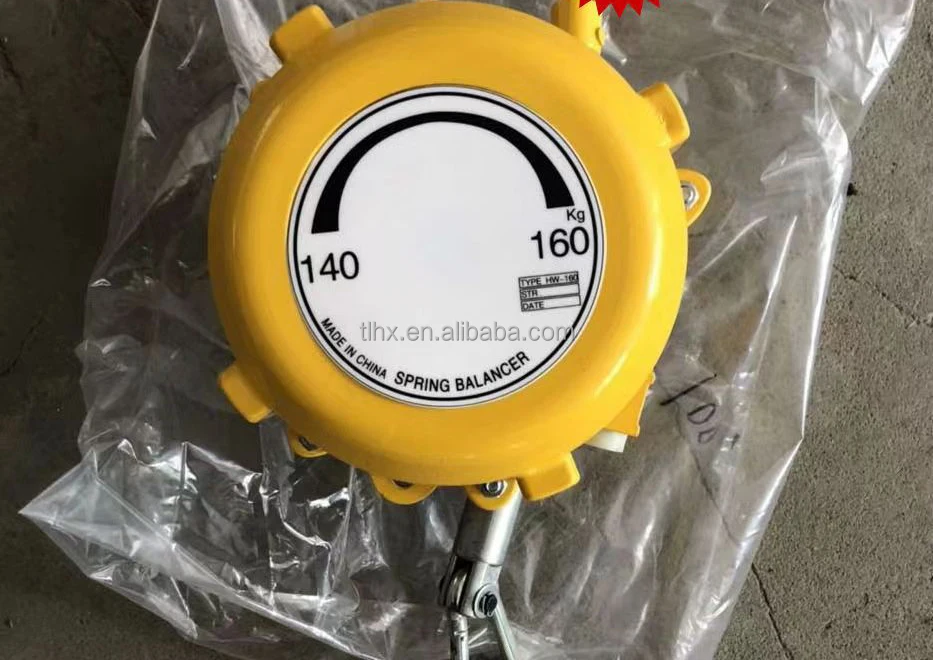

Capacity:140-160kg spring balancer
Packing method:1pc in one carton
packing size:390*310*340mm
N.W./G.W.:22kg/23kg
Our payment terms:
T/T, Western Union,L/C(amount should be up to USD1,000,000)
Our contact way
Beijing Tengli Hengxin Crane Machinery Co.,Ltd
Contact: Vicky Sun
Skype:vickysun1219
WeChat:Vickysun1219
