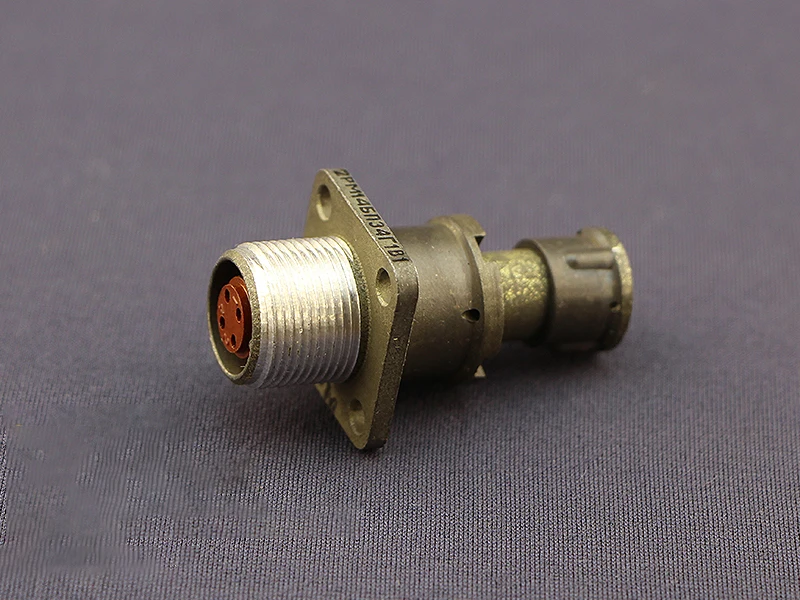

Russian 2pm connector 2PM14J4Z2 2RMT14B4SH1V1V 2PM 14 Series 4Pin male panel Socket
- Category: >>>
- Supplier: Dongguan Dosin Precision Industry Co. Ltd.
Share on (1601269556901):
Product Overview
Description
Product Description

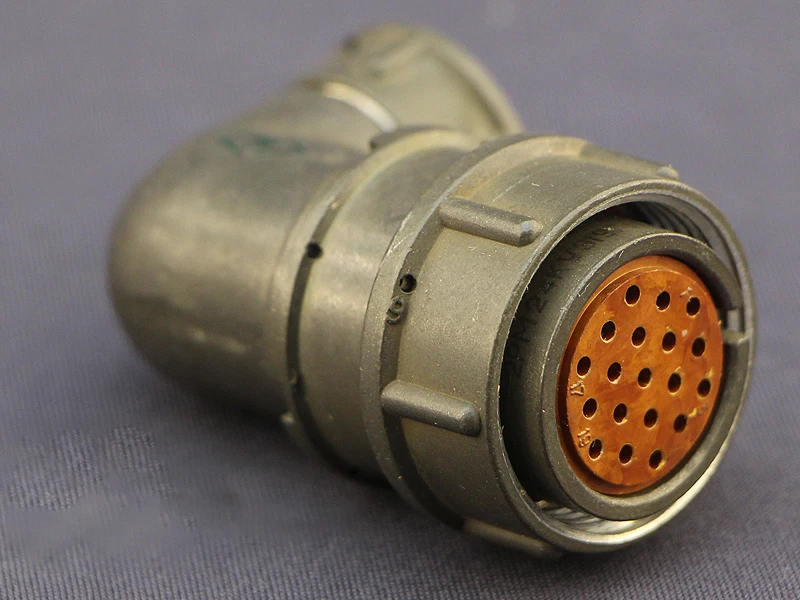

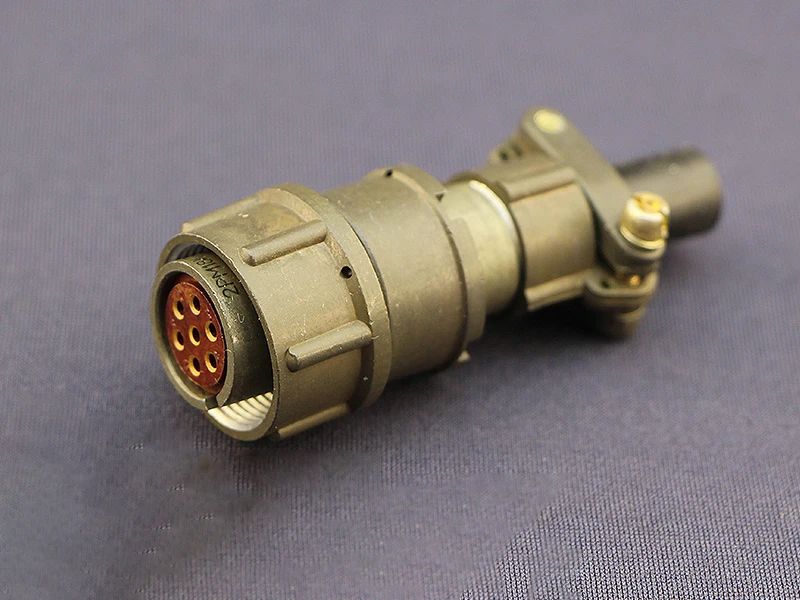

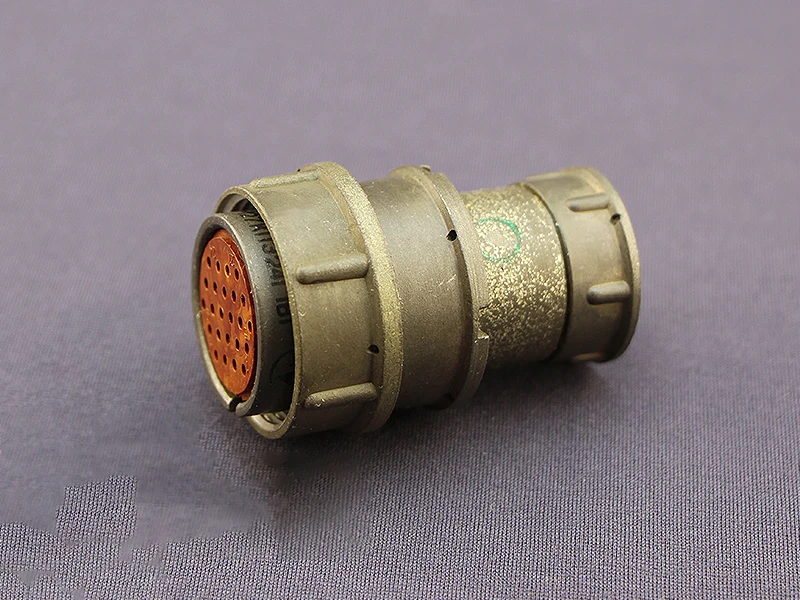

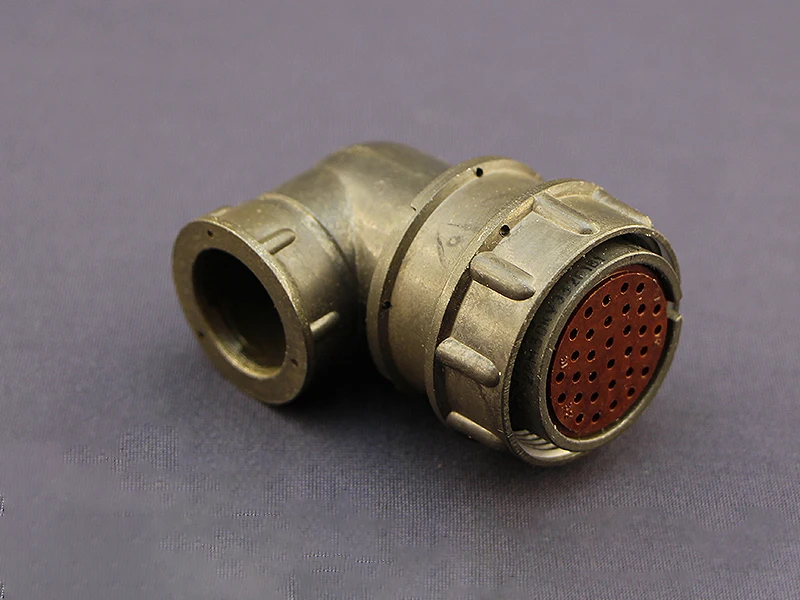

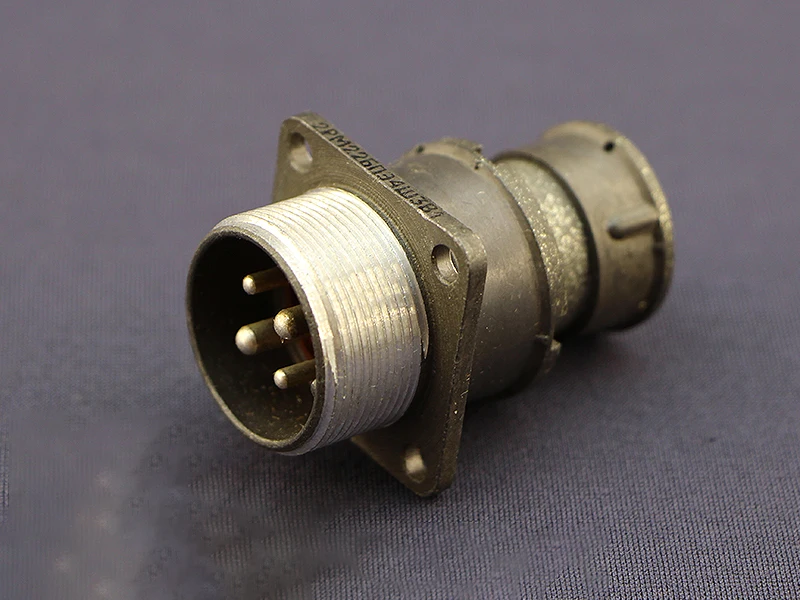

2PM series connector mainly adopts the technology of Russian connector, which is widely used in electrical connection and signal transmission between equipment, and its unique shape and structure design can make up some defects in use of many other similar connectors, such as the unique design of the shell threading hole and the tail screw, make it more convenient and scientific to use. The structural design of the internal insulator and pin socket also enhances its unique stability and reliability. This series of connectors also has a certain waterproof performance, which can prevent outdoor rain and other phenomena. Now there are mainly 2PM14-4, 2PM18 -4, 2PM18-7 and other specifications, its special structure and performance have won the general recognition of the market.
Features
1.High reliability: 2PM series connectors are manufactured with special materials and processes, which can work for a long time in a high temperature environment, ensuring the stability and reliability of the equipment and strong seismic performance.
2.High density: the connector is designed with high density for high-speed transmission and data processing.
3.Waterproof and dustproof: The connector adopts a waterproof and dustproof design, suitable for various harsh environments, resistant to high temperatures, and able to work normally in humid and dusty environments.
4.Easy to install: modular design, easy-to-use installation, convenient maintenance and replacement, greatly reducing maintenance cost and time
5.Multiple interface types: 2PM series connectors provide a variety of interface types, including plugs, sockets, PCB sockets and so on, which can meet the needs of different applications.
1.High reliability: 2PM series connectors are manufactured with special materials and processes, which can work for a long time in a high temperature environment, ensuring the stability and reliability of the equipment and strong seismic performance.
2.High density: the connector is designed with high density for high-speed transmission and data processing.
3.Waterproof and dustproof: The connector adopts a waterproof and dustproof design, suitable for various harsh environments, resistant to high temperatures, and able to work normally in humid and dusty environments.
4.Easy to install: modular design, easy-to-use installation, convenient maintenance and replacement, greatly reducing maintenance cost and time
5.Multiple interface types: 2PM series connectors provide a variety of interface types, including plugs, sockets, PCB sockets and so on, which can meet the needs of different applications.

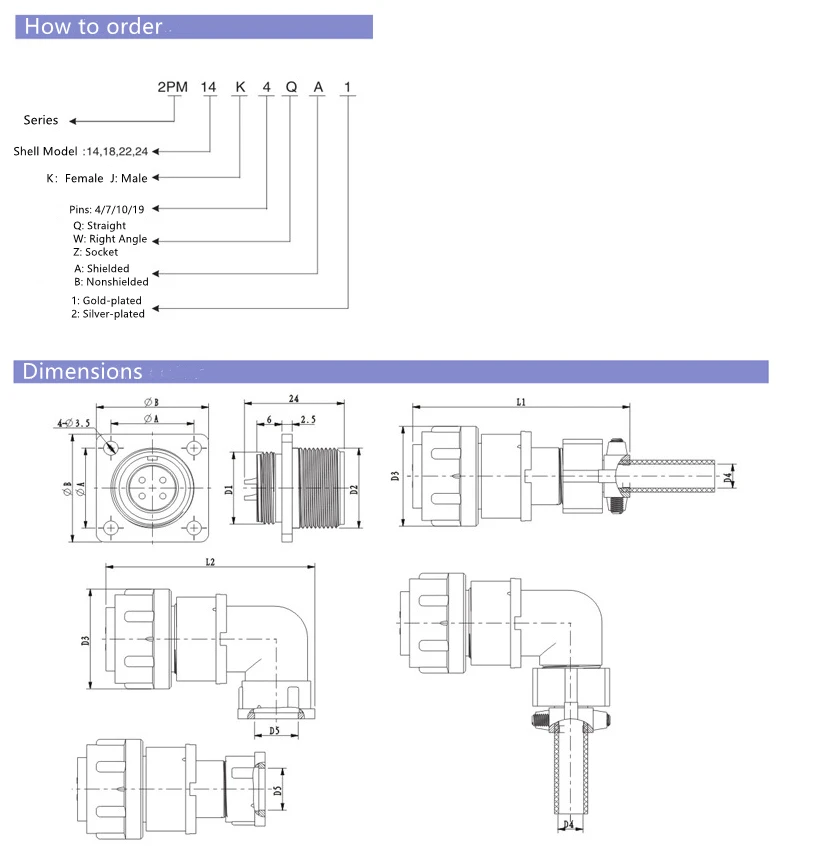

2PM14 | 2PM18 | 2PM22 |
2PM24 | 2PM27 | 2PM30 |

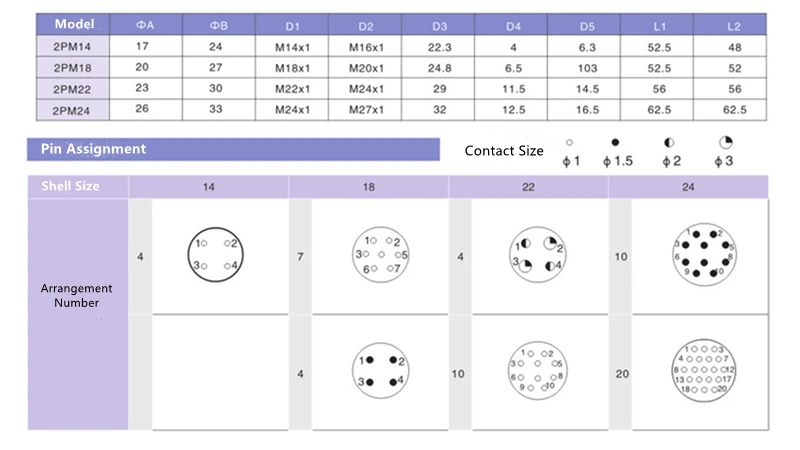

Product Parameters | ||
Product Name | 2PM Series Connector | |
Material | Die-cast Aluminum, Surface Oxidation Treatment | |
Shell Size | 2PM14/18/22/24/27/30 | |
Termination | Solder | |
Pins | 4/7/10/19/24/32 Pin | |
Mating Cycles | 500 | |
Rated Voltage | 400V | |
Rated Current | 5-10A | |
3C Rated Voltage Range | 400V | |
Insulater | Bakelite | |
Operating Temperature | -60℃ - +125℃ | |
Withstand Voltage | 1200V | |
Insulation Resistance | 2000MΩ | |
Contact Resistance | 2.5MΩ - 5MΩ | |
Installation Size | 14.5/18.5/22.5/24.5/27.5/30.5 mm | |

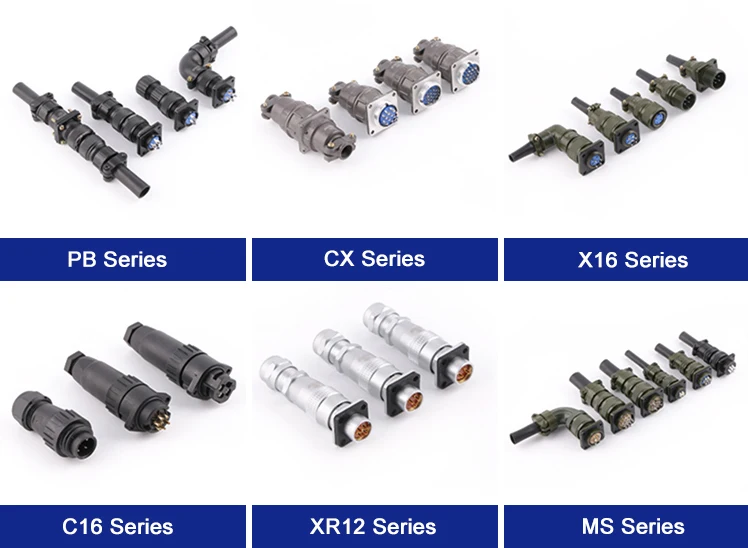

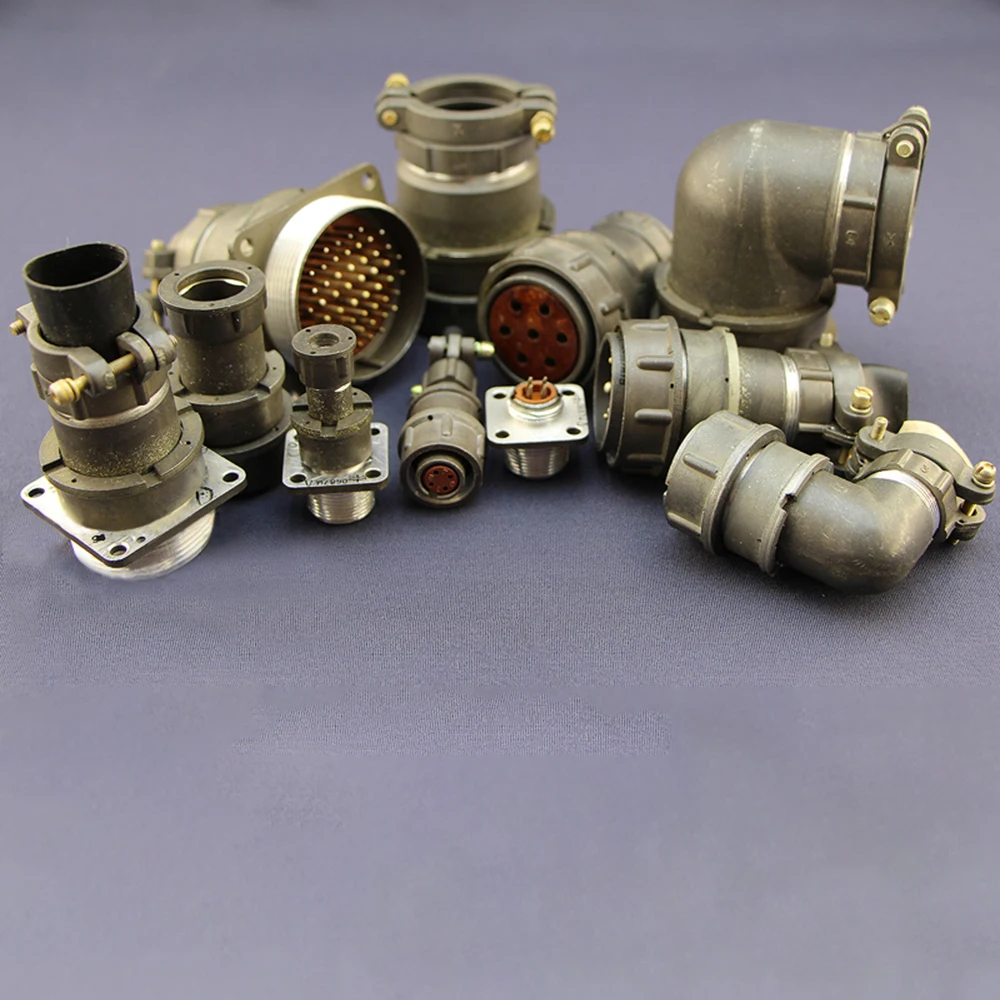

Related Products

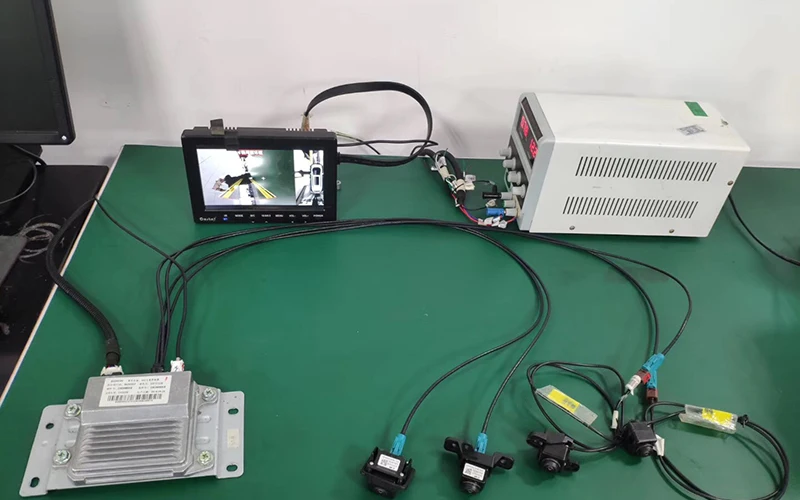

Applications
Company Profile

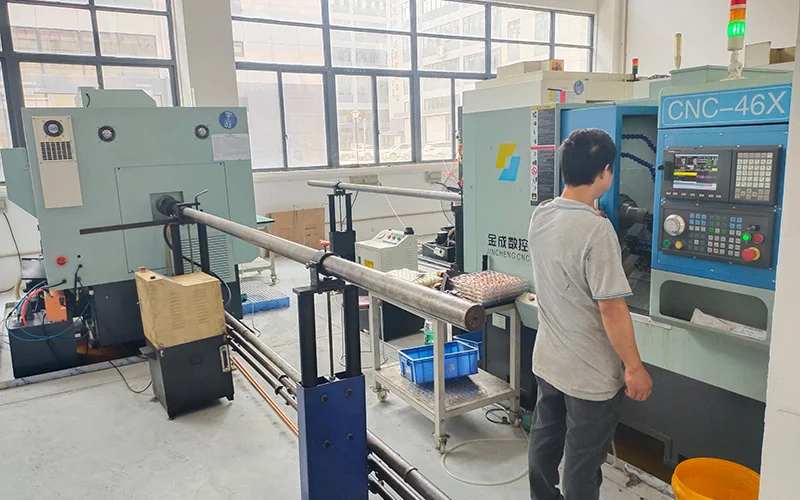

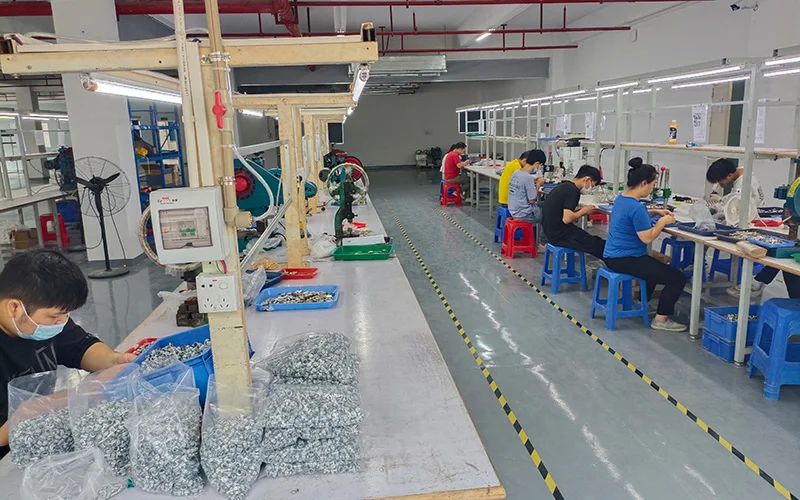

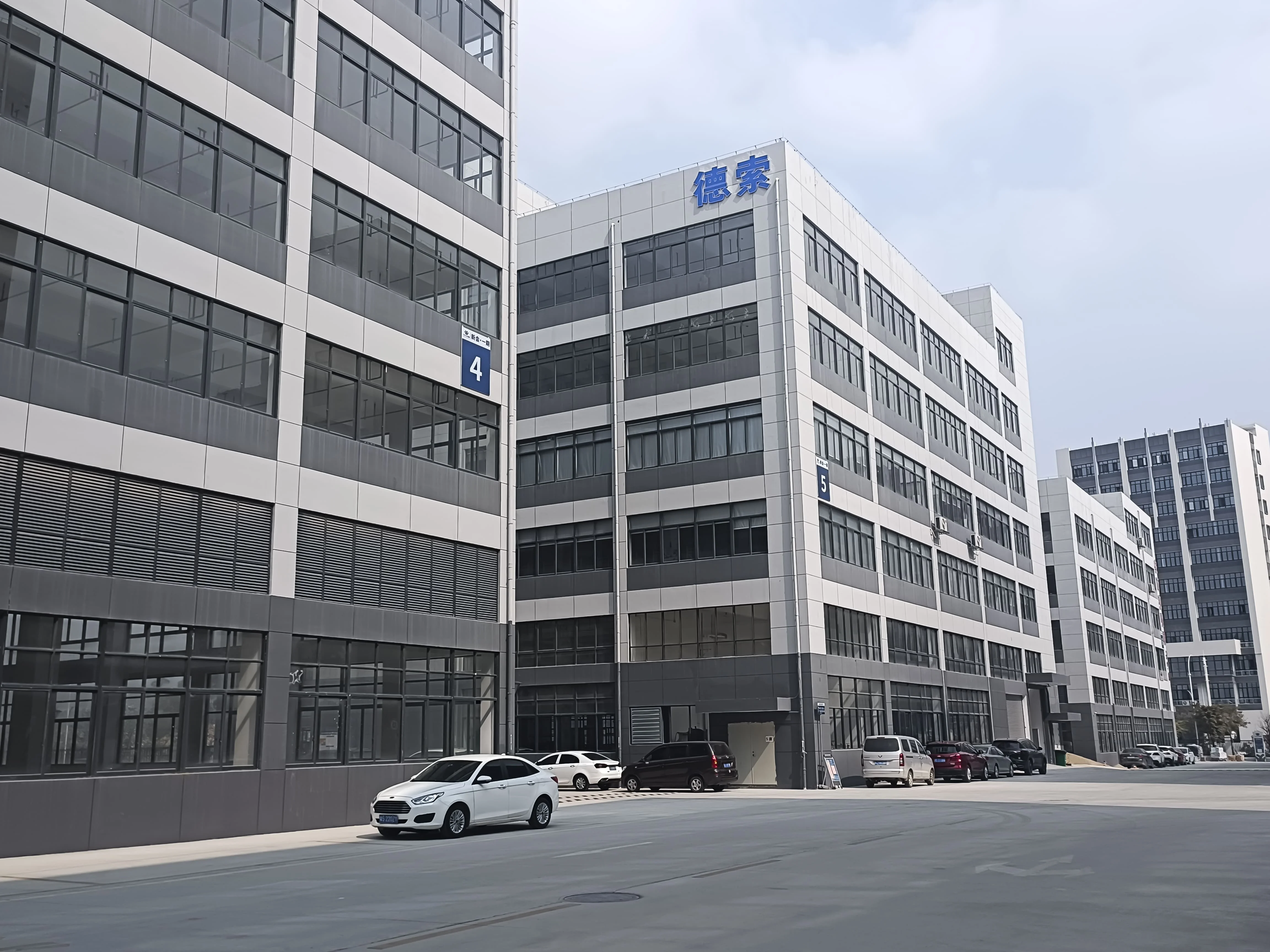

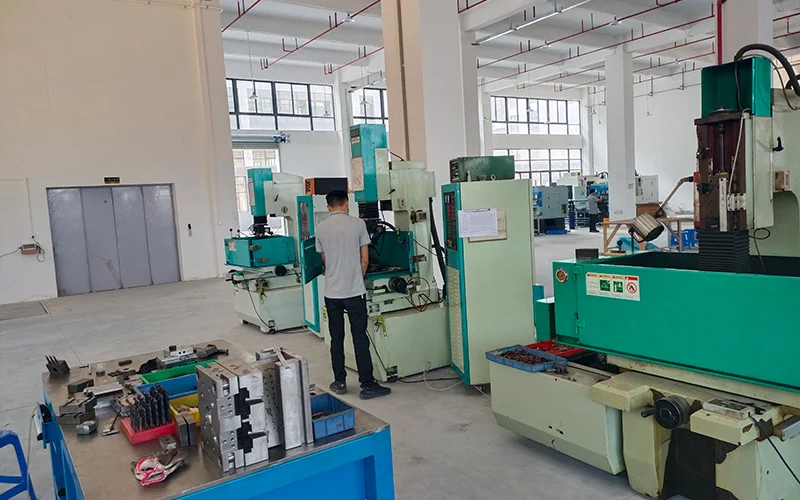

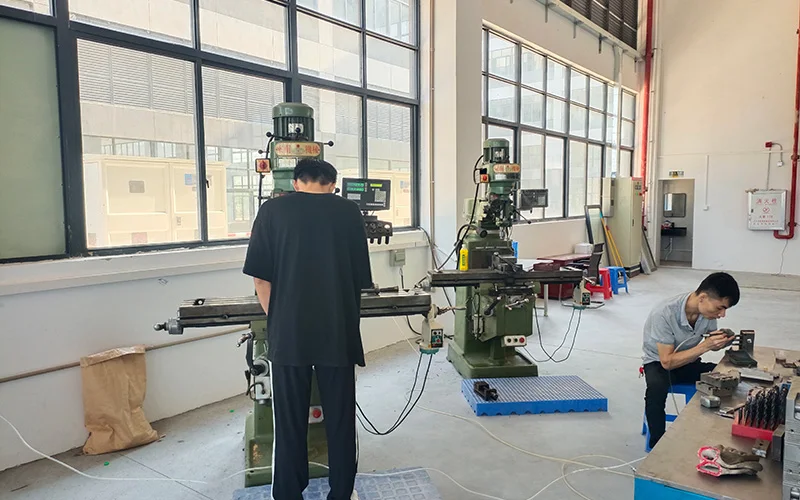

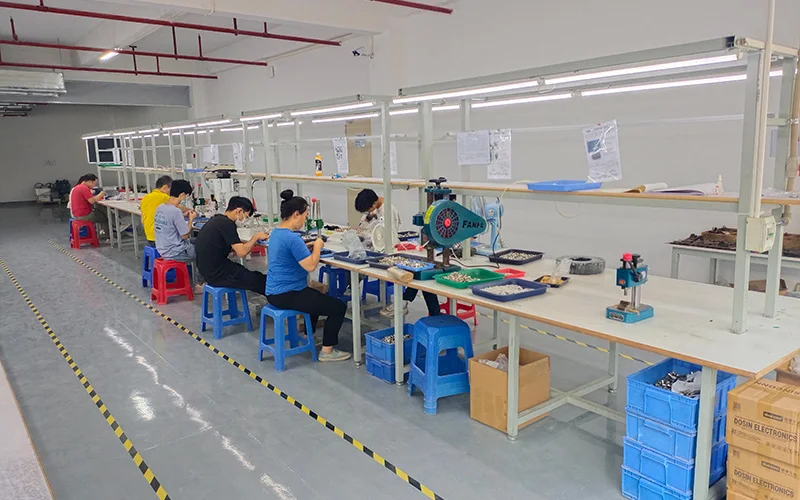

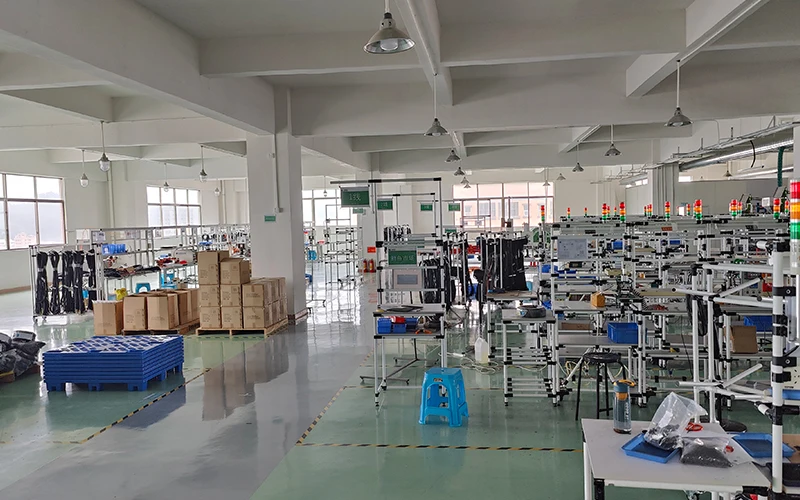

Dongguan Dosin Hardware Electronics Co., Ltd. was established in 2005, we located in Dongguan City China, with 3000㎡ premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, screw and contact pin machining, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Dongguan Dosin Hardware Electronics Co., Ltd is a part of Renhotec Group, also including Shenzhen Renhotec, Wuhan Renhotec and Elecbee technology.
We specialize in Research, Design, Development, Sales and Manufacture with industrial cable and connector. No matter in supply chain management or quality control, we will control strictly every link.
Our goals is to provide high performance connectors andcables with reliable quality and reasonable price.

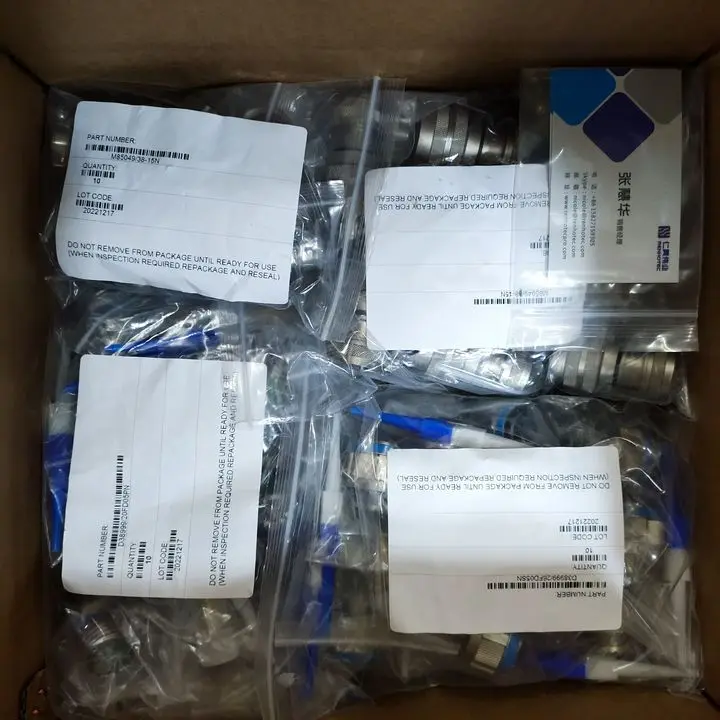

Packaging & Shipping
FAQ
1: Do you provide samples ?
Is that free or need to charge. Yes, samples supply is acceptable. Samples cost depends on the requested quantities .
2: How long is your delivery time?
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.
3: What is your terms of payment ?
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
4: What is your after-sales service ？
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support.
2: How long is your delivery time?
Normally it will take 1-3 days if the goods are in stock. Delivery time is about 7-10 days if arranged production. It also depends on the order quantity.
3: What is your terms of payment ?
We accept bank transfer, T/T, Paypal & Western Union, or other payment methods.
4: What is your after-sales service ？
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support.
