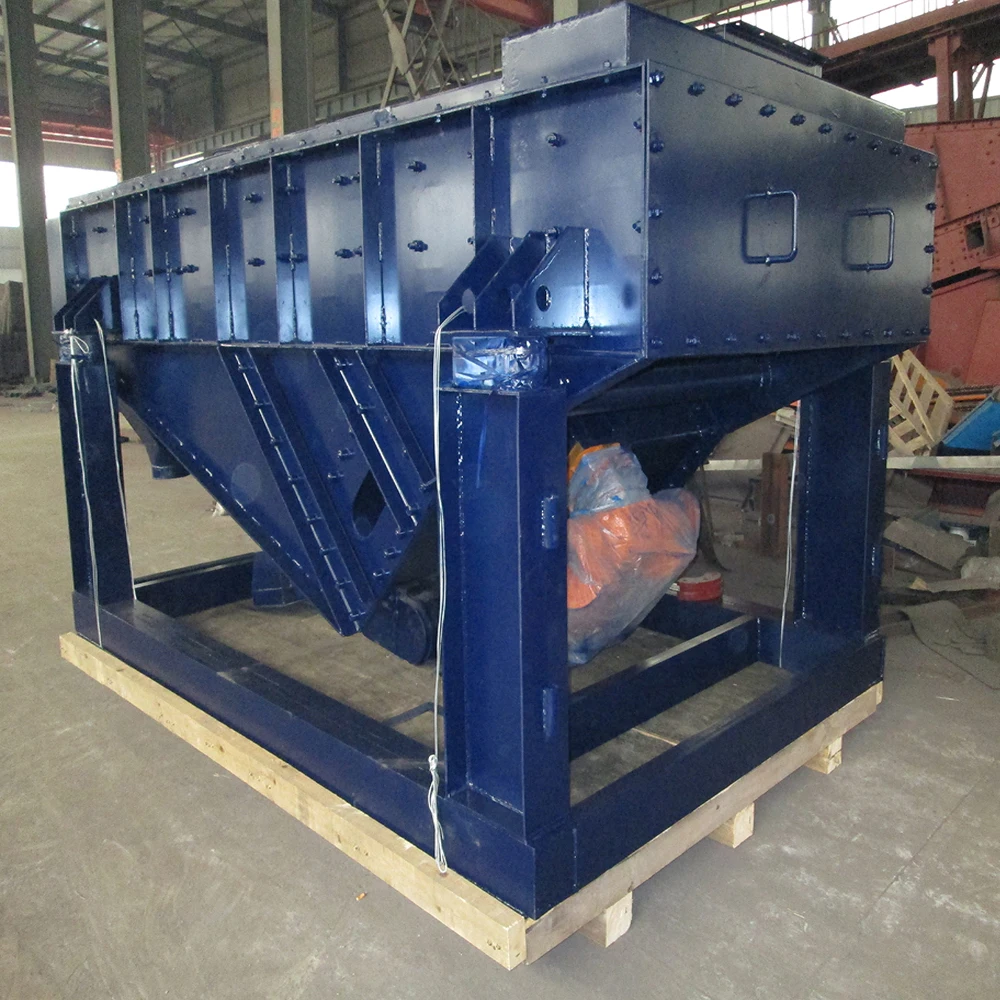

Mechanical Sand Sifter Sieve Machine with Linear Motion
Mechanical Sand Sifter Sieve Machine with Linear Motion
Mechanical Sand Sifter Sieve Machine with Linear Motion
Mechanical Sand Sifter Sieve Machine with Linear Motion
Mechanical Sand Sifter Sieve Machine with Linear Motion
Mechanical Sand Sifter Sieve Machine with Linear Motion
Mechanical Sand Sifter Sieve Machine with Linear Motion

Mechanical Sand Sifter Sieve Machine with Linear Motion

Share on (1601269611267):


Price:$20,000.00

Quantity:


Product Overview

Description





Specification


item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Gearbox, Motor
Condition
New
Type
LINEAR
Application
Ore
Place of Origin
China
Brand Name
PK
Voltage
220V or other
Dimension(L*W*H)
as per order
Weight
4000KG
Warranty
1 Year
Vibrating Screen
Vibrating Screen
Construction
Carbon steel, stainless steel
Applicable material
Sand,fertilizer,gravel,limestone,soil,grain
Mesh size
2-200mm
Screen surface area
5000*2000-1200*2400
Deck
1-6
Motion
Linear motion
Capacity
0.05-5 to 0.1-23
Certification
ISO9001:2008, CE
Applications
Coarse screening,grading,scalping


Product Description




Introduction

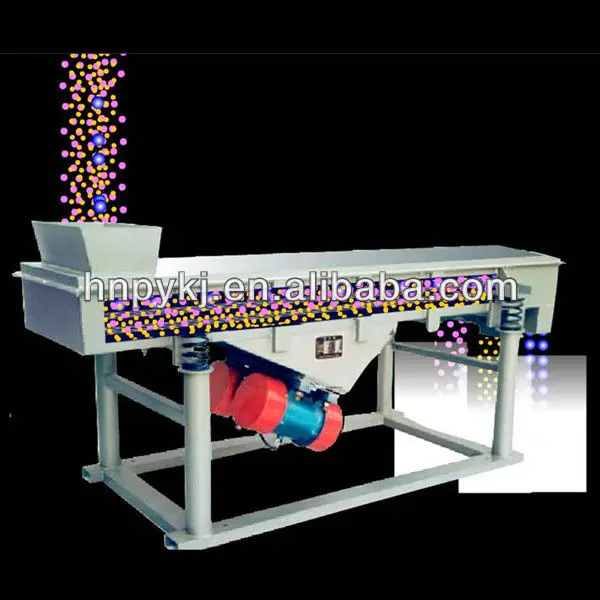

Linear vibrating screen is designed with dual-vibration motor drive,two synchronous motors are reversely placed so that the exciter generate reverse excitation force, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis,and stack together with the perpendicular direction of motor axis, so its trajectory is linear.Linear vibrating screen is suitable for particle size from 0.074 -5 mm,the maximum size should be less than 10mm.


Working Principle and Application
Linear vibrating screen is widely used in mining, coal, refractories, metallurgy, building materials and other industries.It is usually used for the screening and grading materials in large, middle and small particles.


Product features







Advantages and Feathers
1.Less energy consumption,lower noise,longer service life
2.The beam and screen box are connected by high strength blot without welding
3.High accuracy screening efficiency,simple and stable structure, convenient maintenance
4.Suitable for rough screening with high capacity
5.Long travel distance for materials on the screen surface, high screening efficiency


Product Paramenters


Type
Layer
Sieve Dimension (mm)
Sieve Mesh (mesh)
Particle Size(mm)
Capacity (t/h)
Power (kW)
Double Amplitude (mm)
Frequency (r.p.m)
Screen Angle (degree)
ZS-520
1-5
500X2000
2-325
<20mm
<5
0.37x2
6-10
1460/960
0-10
ZS-525
1-5
500X2500
2-325
<20mm
<8
0.37x2
6-10
1460/960
0-10
ZS-612
1-5
600X1200
2-325
<20mm
<3
0.37x2
6-10
1460/960
0-10
ZS-1020
1-5
1000X2000
2-325
<20mm
<12
0.75x2
6-10
1460/960
0-10
ZS-1025
1-5
1000X2500
2-325
<20mm
<16
0.75x2
6-10
1460/960
0-10
ZS-1030
1-5
1000X3000
2-325
<20mm
<20
1.1x2
6-10
1460/960
0-10
ZS-1224
1-5
1200X2400
2-325
<20mm
<23
1.5x2
6-10
1460/960
0-10


Note: the parameter above is just for reference,it can be customized by different requirment.


♦Material to be processed: _____
♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total material capacity feeding from the inlet): _____t/h
♦Layer number: ______
♦Bulk Density: _____t/m3
♦Mesh size of each layer: _____mm
♦Material temperature: _____ºC
♦Particle distribution percentage:____________(please check the following example to help you understand it.Supposing the layer number is 2 and the aperture size of each layer is 10mm and 5mm, then you will get 3 kinds of products: X,Y and Z.
♦water content:____%
X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Material is corrosive or not: ____ (Ps. Yes or No)
We want to confirm the following information:
♦Material is sticky or not: ____ (Ps. Yes or No)
1)The percentage of X in the whole material:_____%;
♦Working environment is indoor or outdoor: _____
2)The percentage of Y in the whole material:_____%;
♦Working environment temperature: ______ ºC
3)The percentage of Z in the whole material:_____%;)
♦Upstream equipment (Ps. It means what kind of equipment is used to feed the material): _____
♦Working power supply: _____V ______HZ
♦Downstream equipment (Ps. It means what kind of equipment is used to discharge the material): _____




Henan Pingyuan Mining Machinery Co., Ltd.
Established in 1960, Henan Pingyuan Mining Machinery Co., Ltd. Has enjoyed more than 50 steady years of successful growth to become an international company employing over 200 directemployees with annual sales exceeding $1,200 million.lt is located at 289 yellow river road of Xinxiang, China with an area of 88,400 m2 which includes 16,200 m2 of standard heavy duty industrial workshop.
We understand that our customers’ bulk conveying systems and processing equipment must be operated at peak performance at all times. That is why we're fully committed to giving our customers value before, during and even after the sale. One of the most important aspects of the services offered by PK machinery is the quick and easy provision of spare parts.PK machinery offers a full range of engineering and management services for designing and supplying systems and equipment.
lf you should ever have a need for service of your equipment, you can count on PK machinery to be there. Our understanding of quality is not limited to providing reliable systems and equipment.but also offering excellent customer services as well.










Q1：Are you factory or trade company?
A: We are factory


Q2：Where your products have been exported before?
A: Our products have been sold to South Asia, Africa, South America, middle East and so
on.


Q3：How will you help the customer to install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initialproduction at


Q4：How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. lf there are problemsyoucould not handle, we will send our technicians to your place and you are therefore.responsible for all thecost involved.


Q5：What about the payment method?
A: T/T, L/C Paypal is available


Q6：What about after-sale service?
A:12 months warranty for all kinds of products
