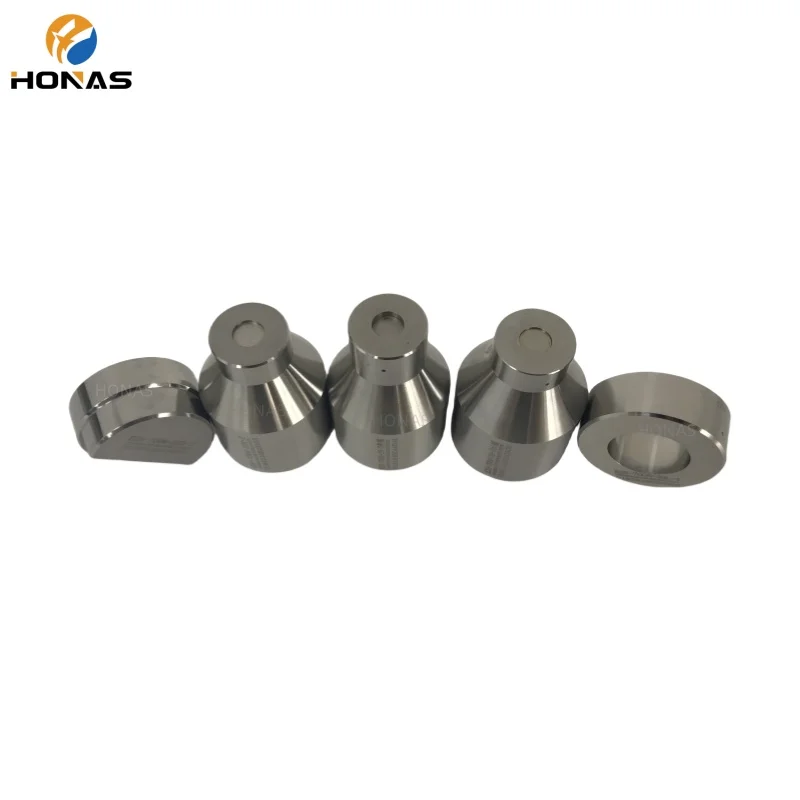

E27 Standard Lamphead Go No Go Gauge 7006 27B 1 Caper Thread Calibrador de Cabezal de Lampara
- Category: >>>
- Supplier: Shenzhen Honas Technology Co. Ltd.
Share on (1601269639872):
Product Overview
Description

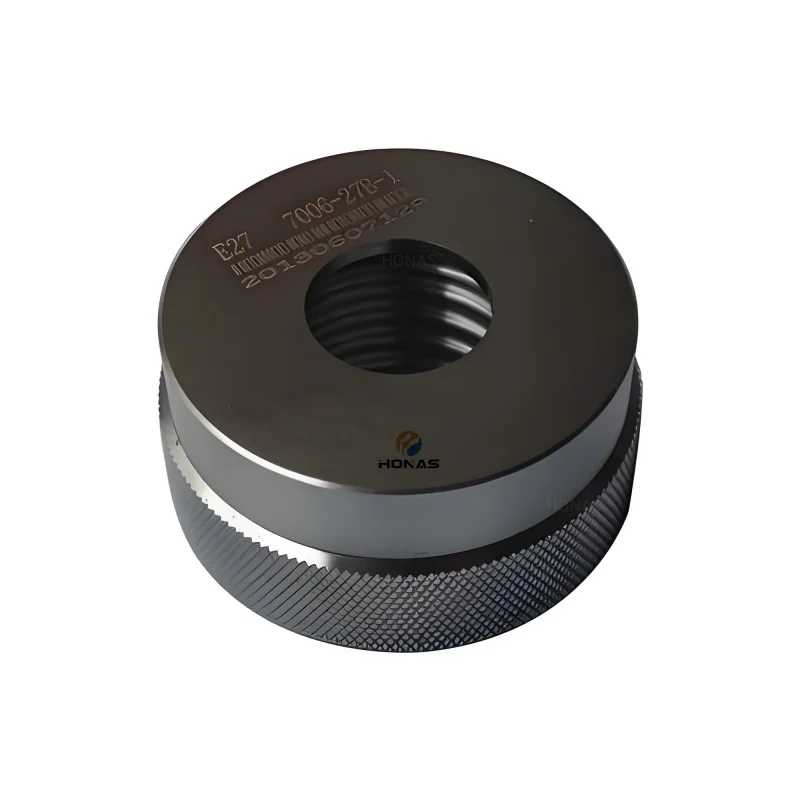

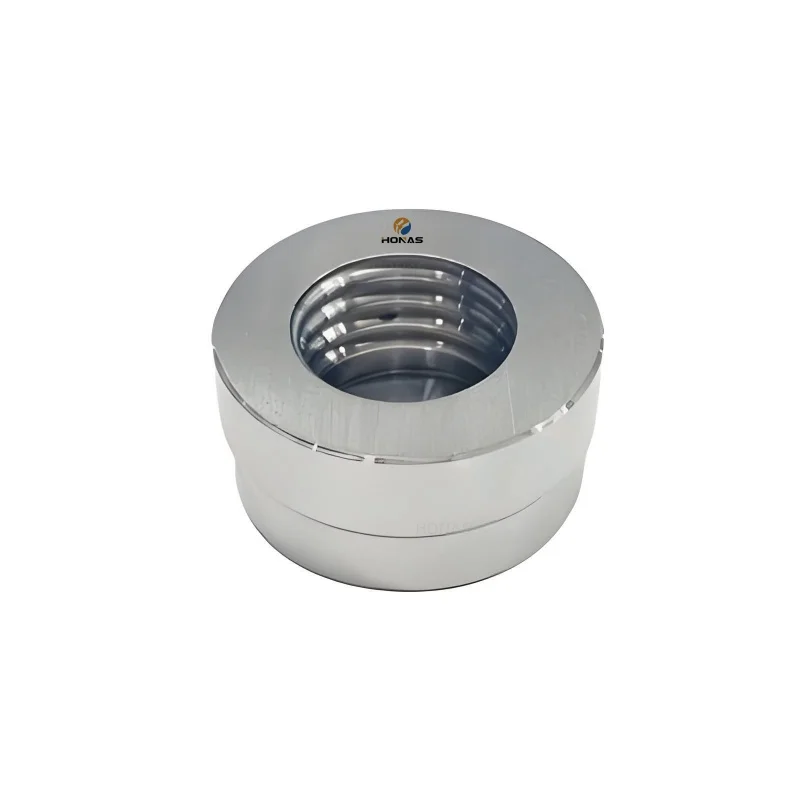

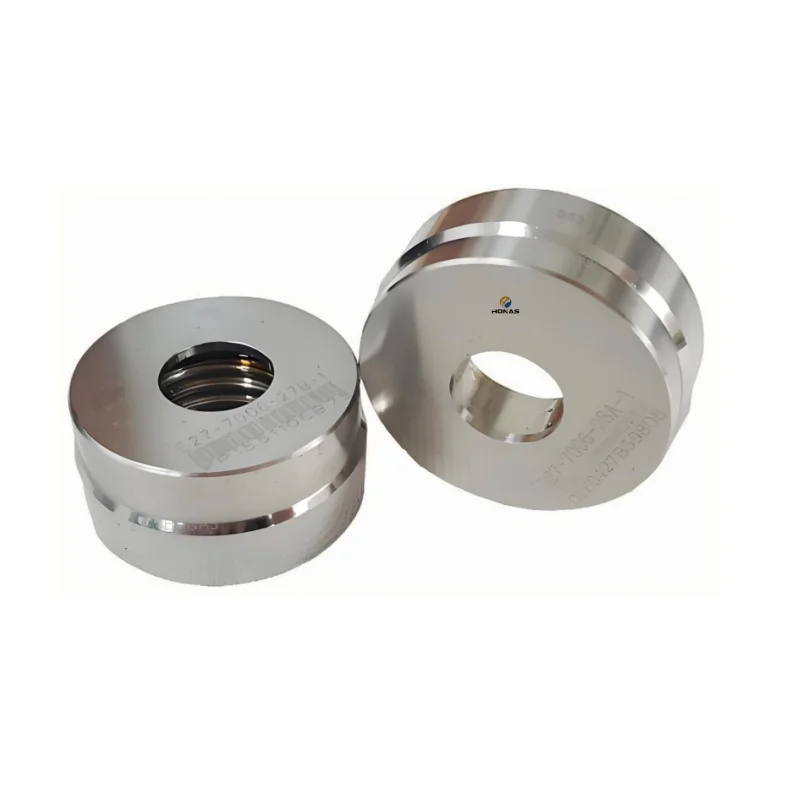

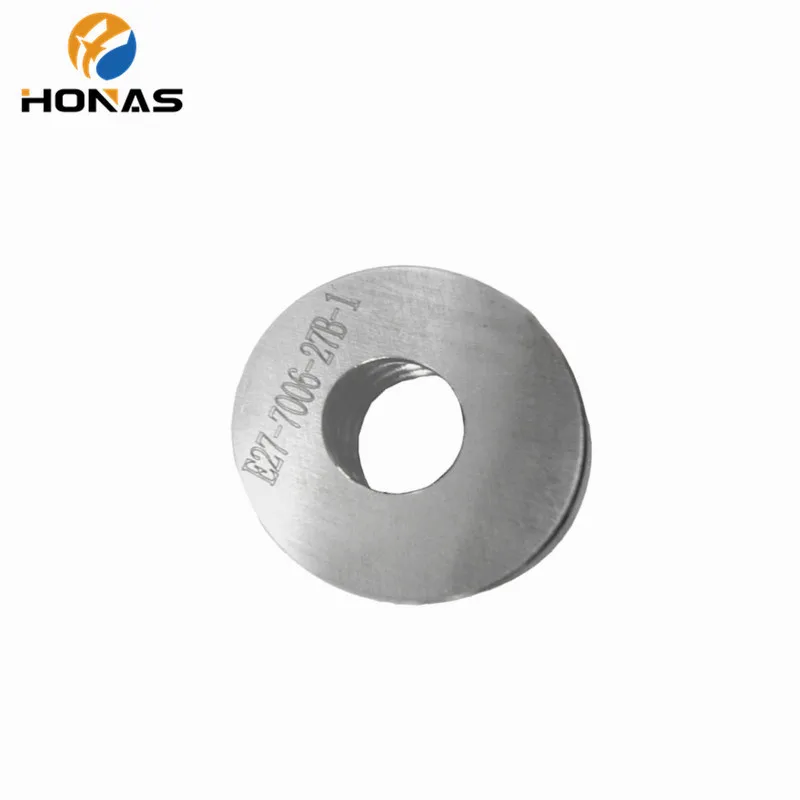

standard E27 cap thread go gauge 7006-27b-1
Product Description
Application:
The shape part of the edge of the thread shall be broken with radius of 0.2mm to 0.3mm.
Purpose：
To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps.
To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps.
Testing ：
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the center contact shall be co-planar with, or project beyond, surface X
When the cap on a finished lamp has been screwed into the gauge as far as it will go, the center contact shall be co-planar with, or project beyond, surface X

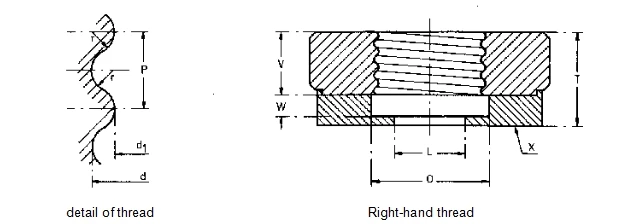

Reference | Dimension（mm） | Tolerance（mm） | Limit after wear （mm） |
d | 26.45 | +0.03/-0 | 26.50 |
d1 | 24.26 | +0.03/-0 | 24.31 |
L | 16.5 | ±0.1 | |
O | 28 | ±0.2 | |
P | 3.629 | - | |
r | 1.025 | - | |
T | 22.0 | +0.0/-0.03 | |
V | 15 | ±0.1 | |
W | 5 | ±0.1 |
