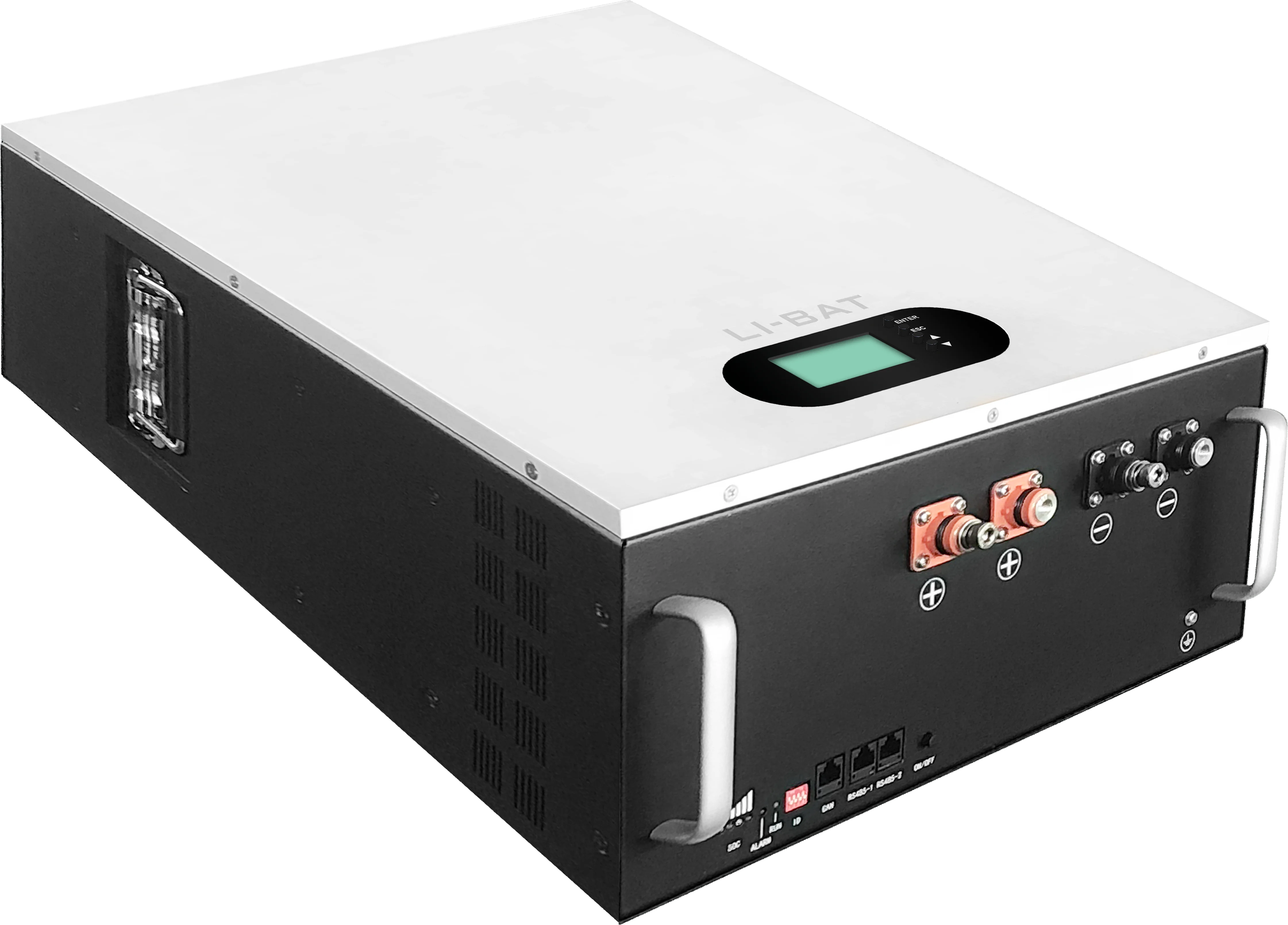

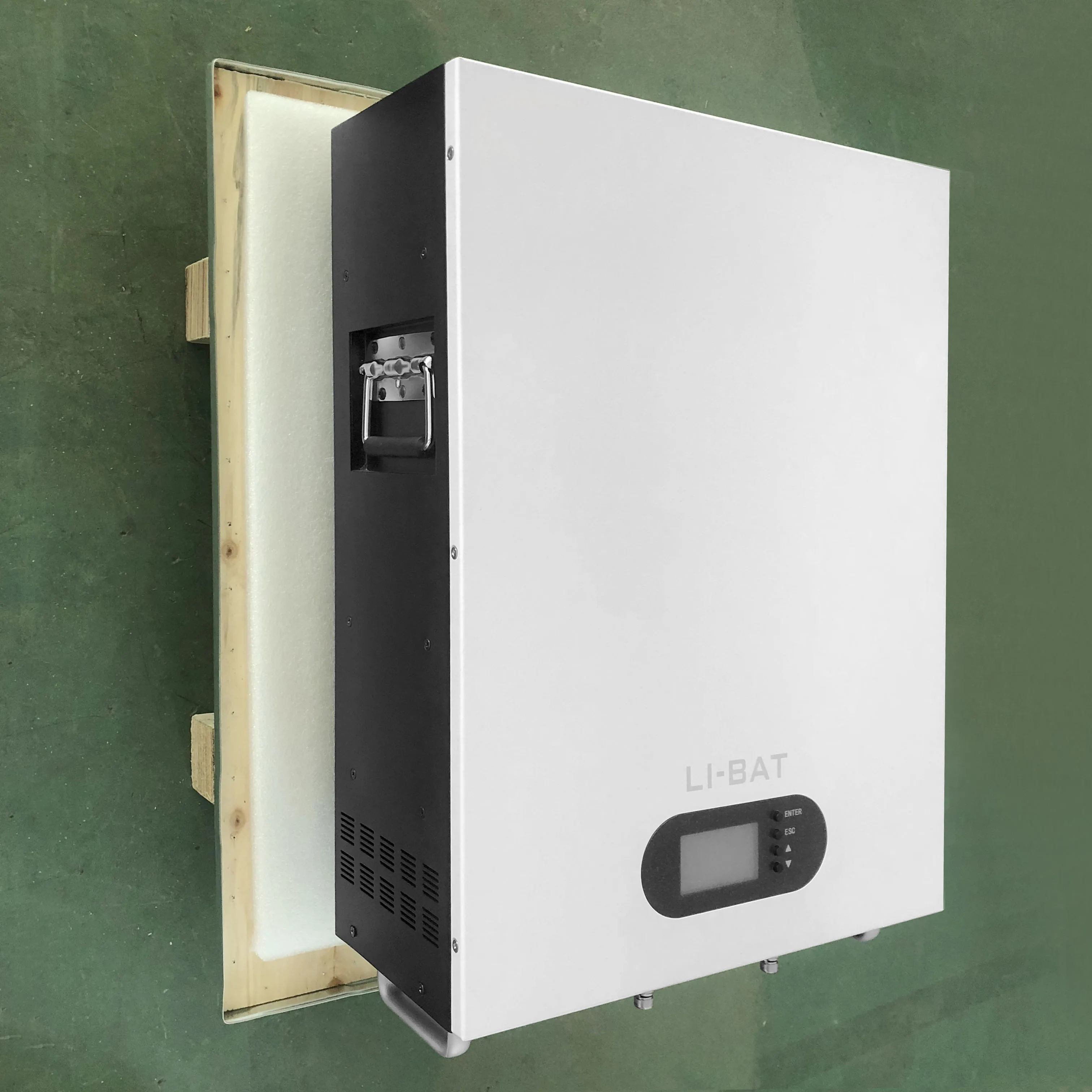

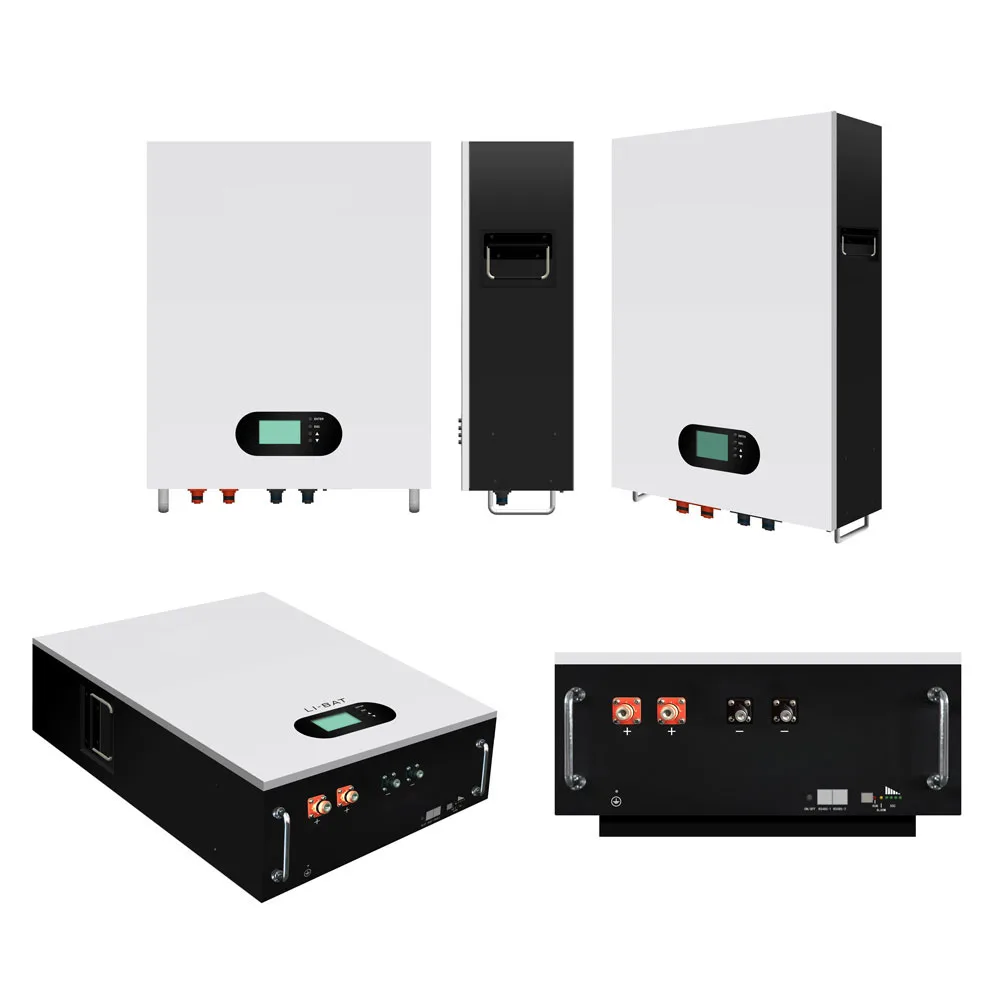

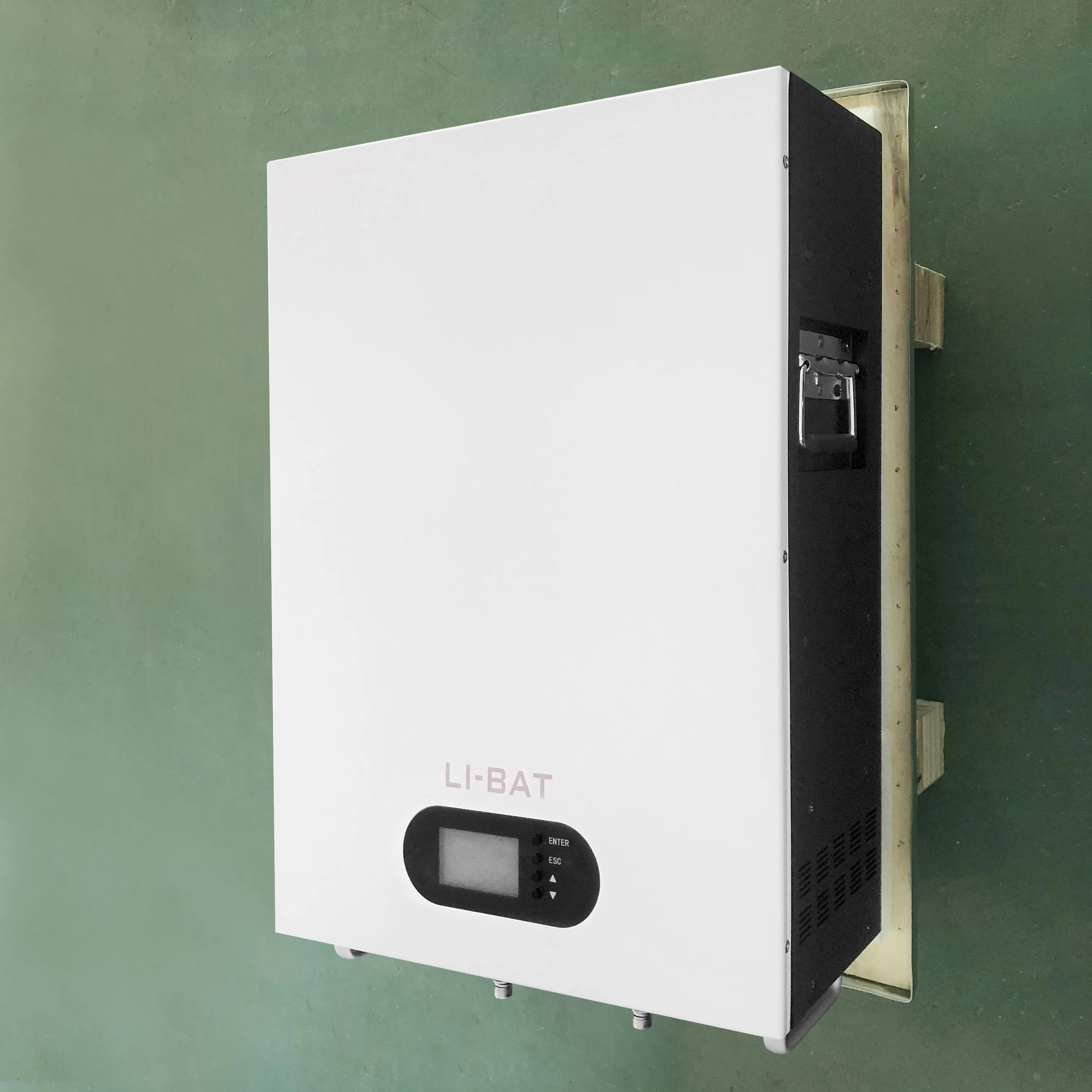

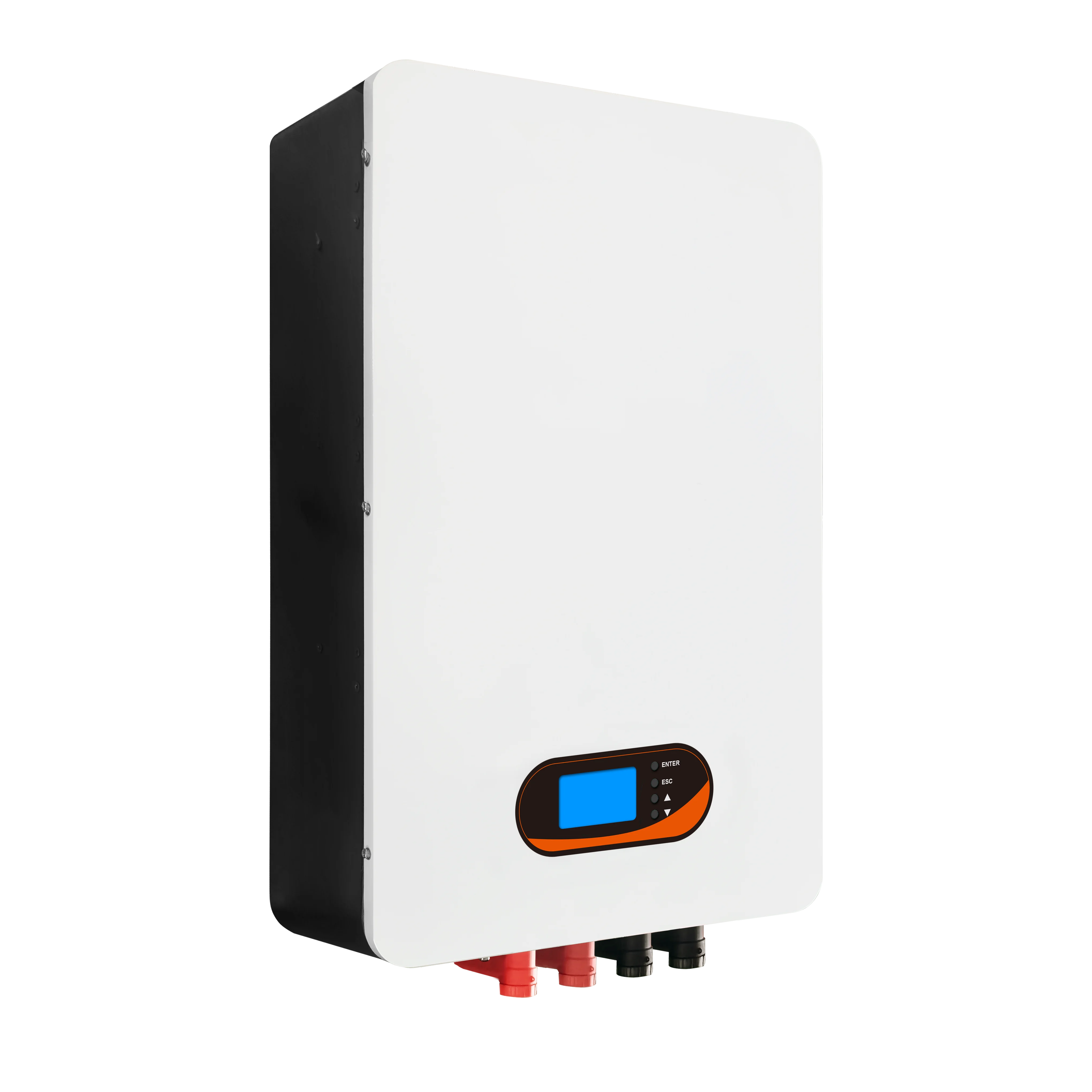

Solar Wall mounted 5kw 10kw LiFePO4 Lithium ion Battery 24V 48V 50AH 100AH 150AH 200AH 300AH 400AH Energey Storage Powerwall
- Category: >>>
- Supplier: Nanning Shuxin Trading Co. Ltd.
Share on (1601269652797):
Product Overview
Description
Video Description
Product Description

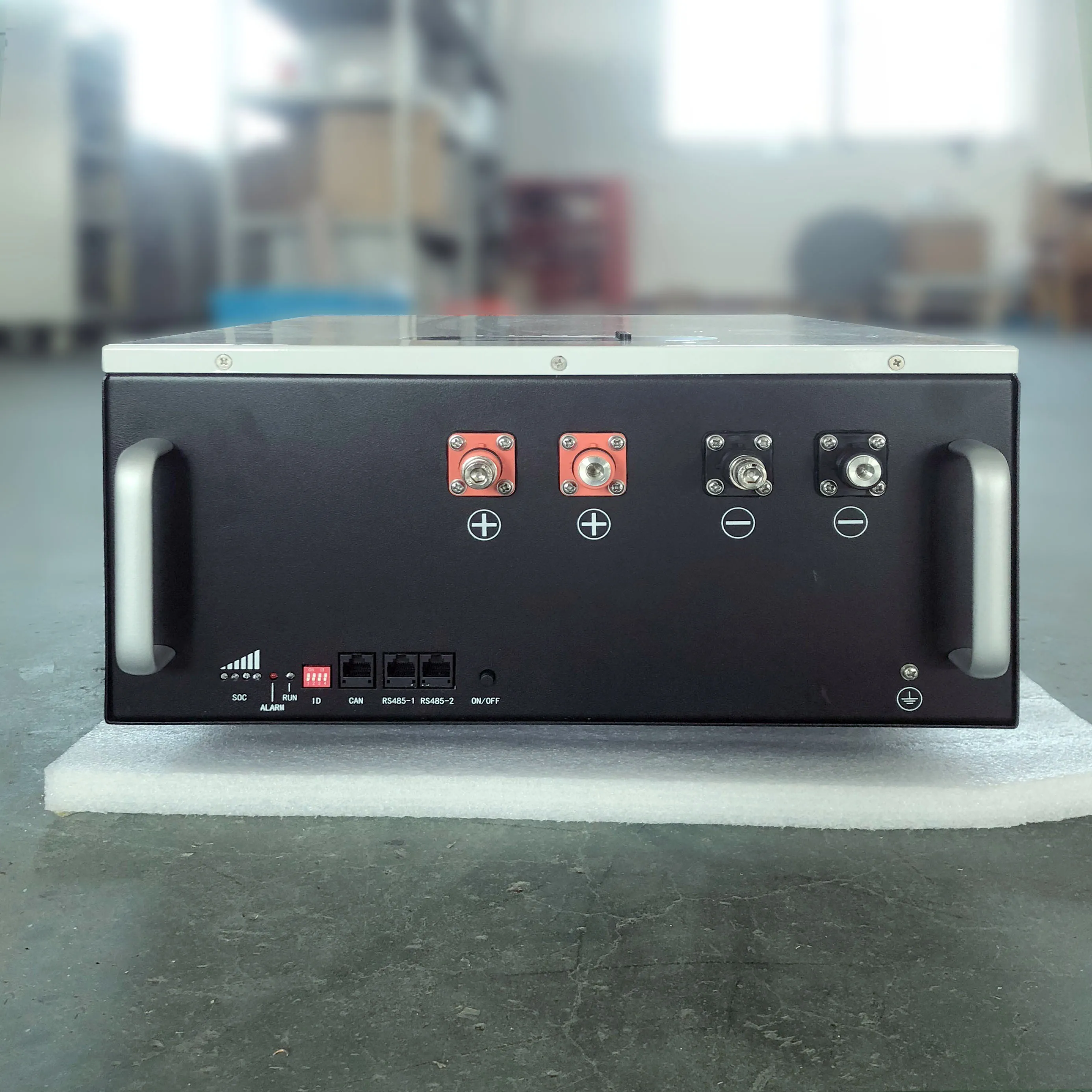

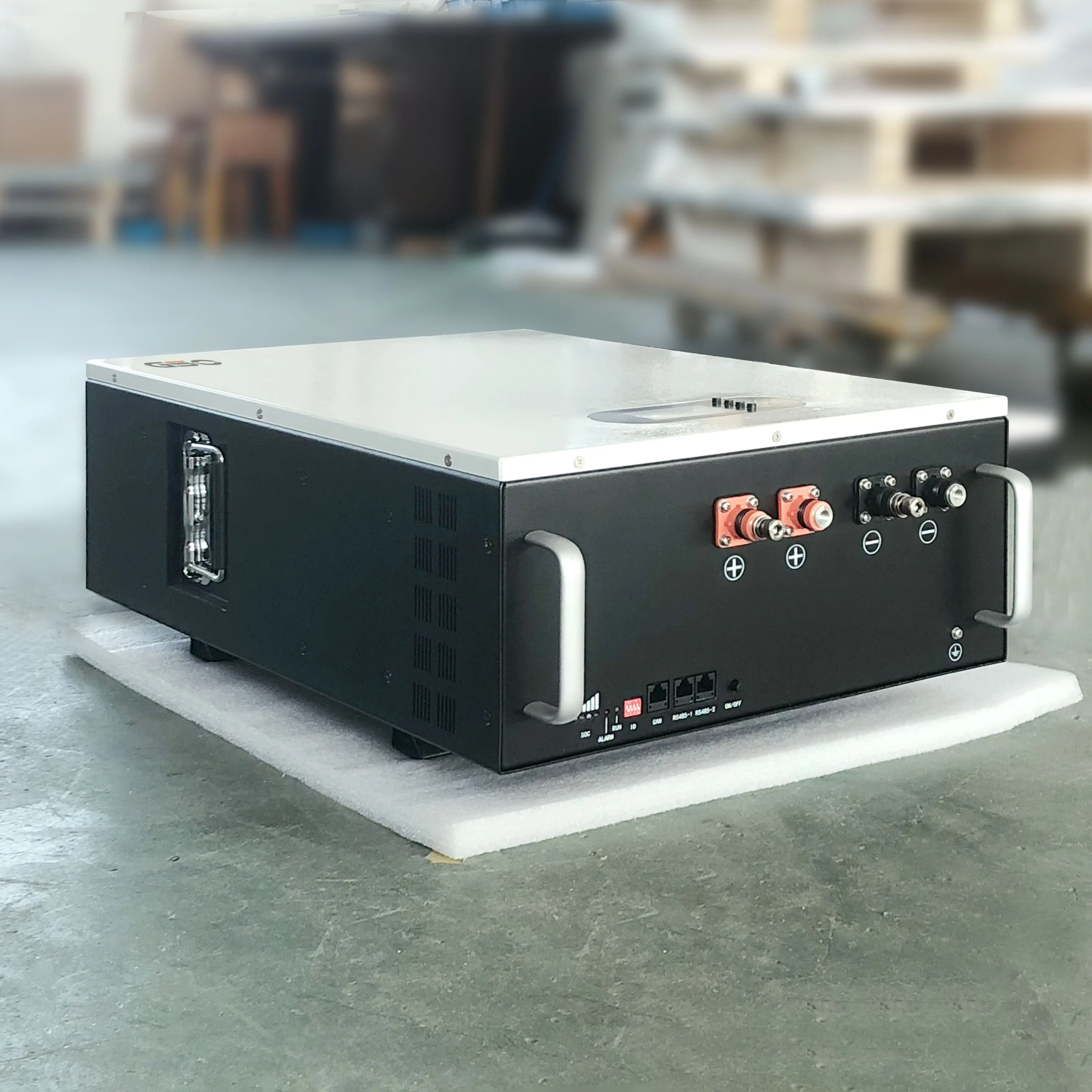

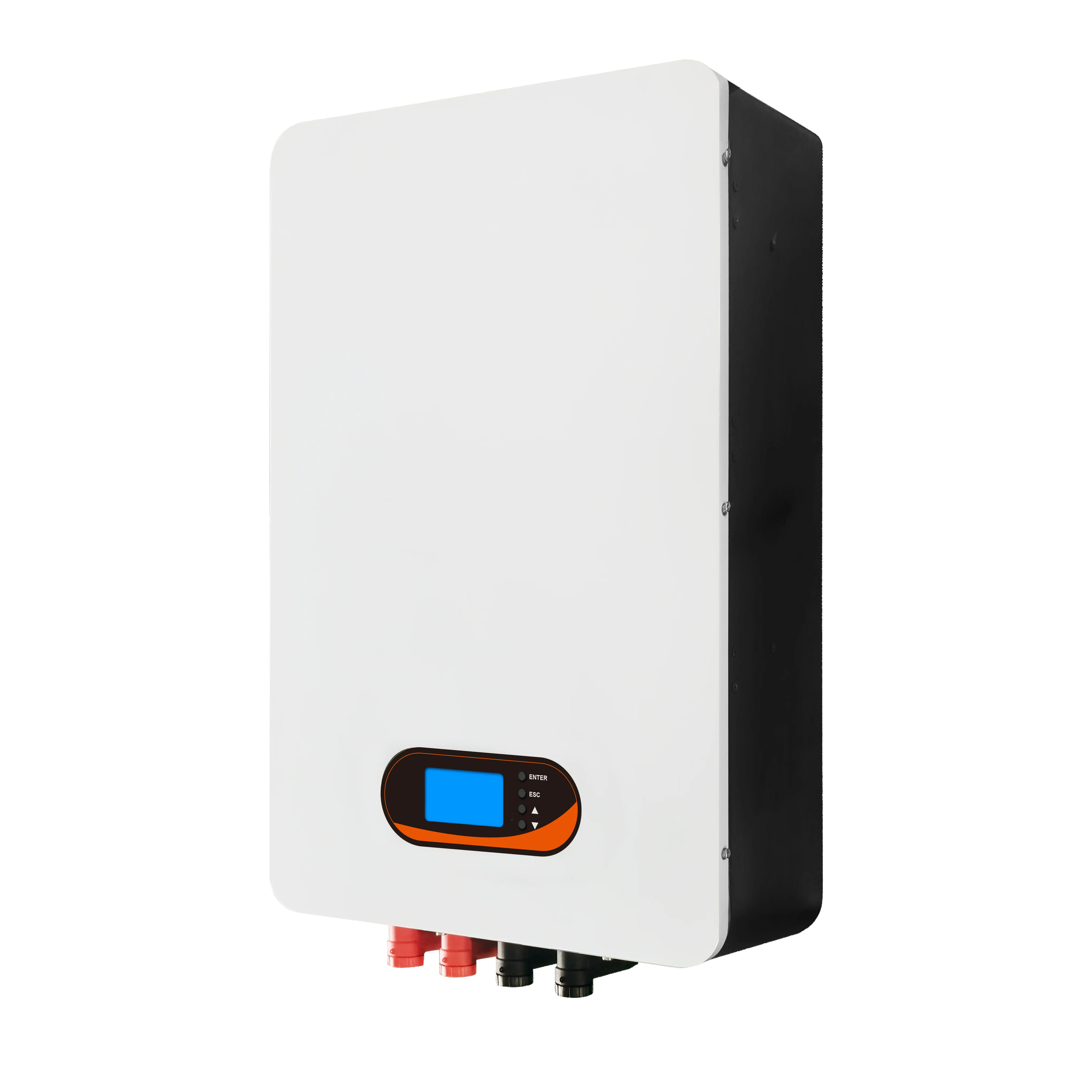

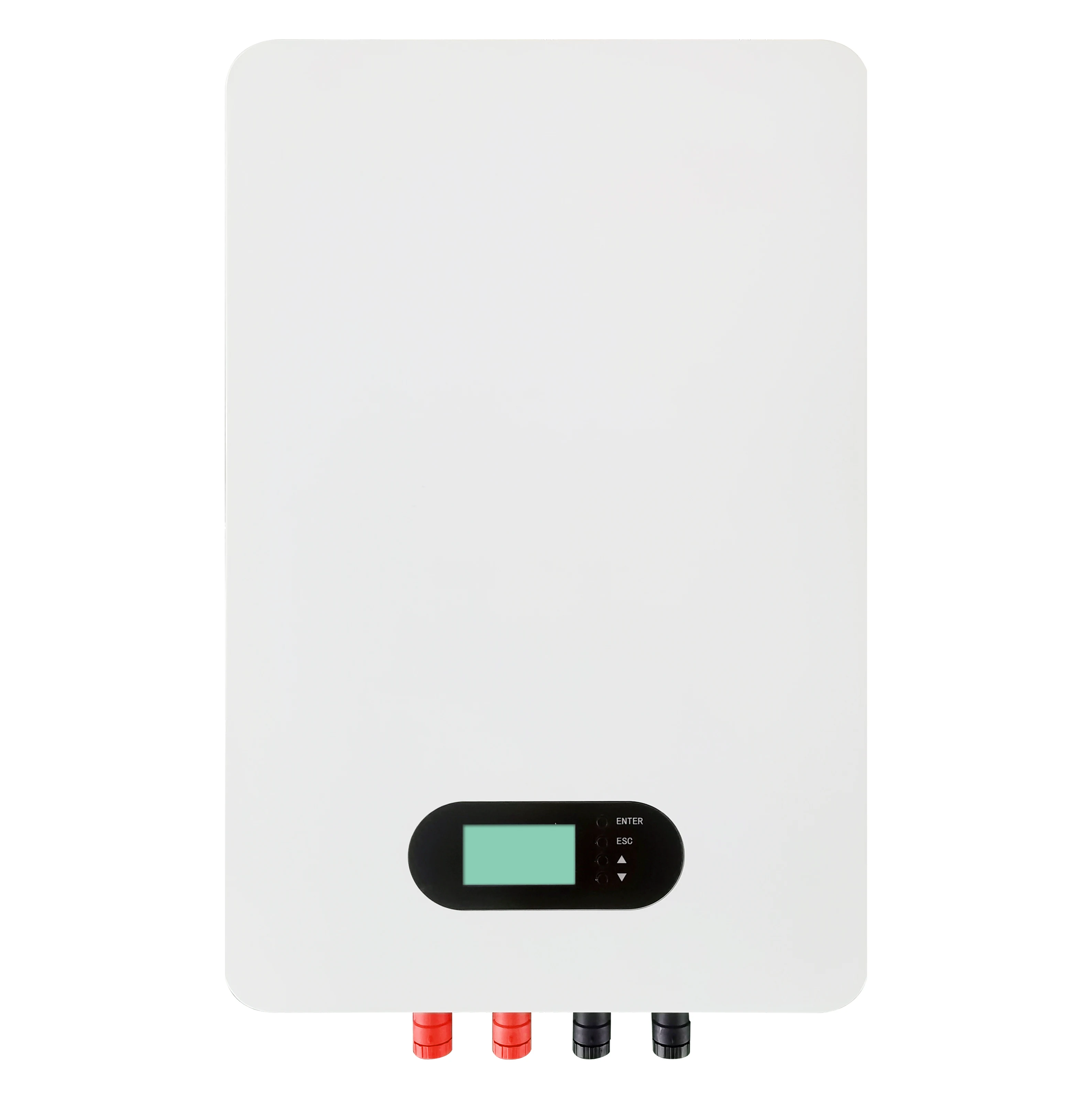

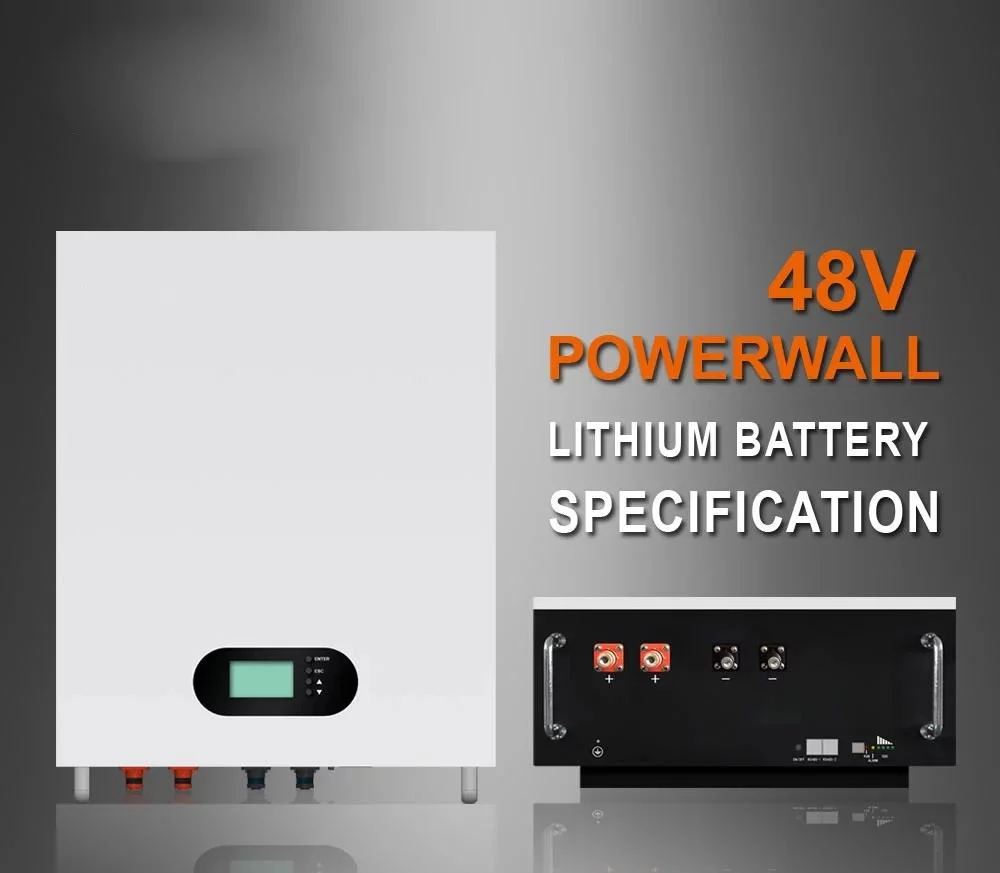

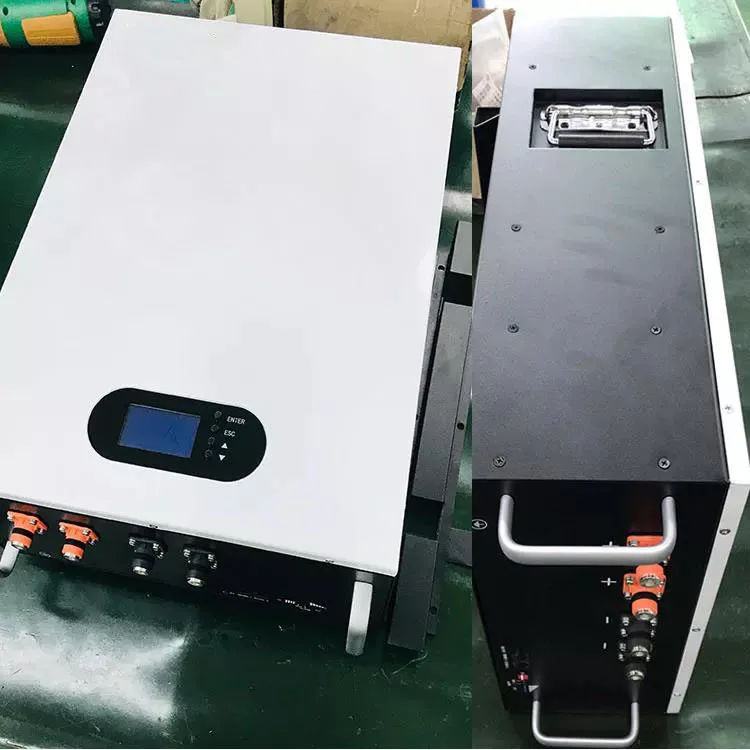

Equipment photos and parameters
Model | GBP48V-50AH-W | GBP48V-100AH-W | GBP48V-200AH-W | ||
Nominal Voltage(V) | 48 | ||||
Battery Capacity (AH) | 50(2.5KWH) | 100(5KWH) | 200(10KWH) | ||
Working Voltage Range | 42-56.25 | ||||
Recommended Charging voltage(V) | 52.5 | ||||
RecommendedDischarge cutoff Voltage(V) | 45.7 | ||||
Standard Charging Current(A) | 25 | 50 | 100 | ||
Max Continuous Charging Current(A) | 50 | 100 | 200 | ||
Standard Discharge Current(A) | 25 | 50 | 100 | ||
Max continuous Discharging current(A) | 50 | 100 | 200 | ||
Operating Temperature(℃) | -30℃~60℃(recommend 10℃~35℃) | ||||
Allowable humidity range | 0～85% RH | ||||
Storage temperature(℃) | -20℃~65℃(recommend 10℃~35℃) | ||||
Protection Level | IP20 | ||||
Coolingmethod | Natural air cooling | ||||
Certificate | CE UN38.3 | ||||
Cycle life | Around 5000 times | ||||
Communication | RS485(CAN optional) | ||||
Parallel function | 48V support at most support 20packs in parallel use(Capacity is 100kwh) | ||||
Max size(W*D*H) mm | 410*180*590 | 410*628*186 | 465*682*276 | ||
Weight | 30KG | 46KG | 91KG | ||
Remark | 0.5C Discharge MAX:1C,80%DOD | ||||
Campatible Inverters | SOFAR, OMNIK, KSTAR, HUAWEL, SMA, GOODWE, GROWATT, More brands will be ann ounced | ||||
Performance Test
Nominal Capacity
The battery pack is placed in a 25℃ environmental chamber,0.2C constant current and constant voltage to 54.65V, 0.05C cut-off,put it aside for 60 minutes; 1C discharge to 37.5V.
Rate Charging
The battery pack are charged at a constant current of 0.1C,0.2C,0.3C,0.5C,and 1C to 54.75V in an environment of 25℃.
Stop charging after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
Storage performance-place at room temperature
In a normal temperature environment,100% SOS storage for 28 days,test capacity retention and recovery rate(Test for 5 groups batteries)
Storage performance-place at high temperature
55℃,100%SOC storage 4*7 28 days,test capacity retention and recovery rate(Test average value for 5 groups batteries)
Cycle performance
25℃,0.2C constant current charge to 53.25V, constant voltage to 0.05C cut-off;after 30 minutes of storage,0.2C discharge Power to 42V,cycle to 80%SOC cut-off;
25℃,1C constant current charge to 53.25V,constant voltage to 0.05C cut-off;after 30 minutes of storage,1C discharge to 42V,cycle to 80%SOC cut-off.
Introduction to the factory
Product packaging
FAQ
1. who are we?
We are based in Guangxi, China, start from 2022,sell to Domestic Marke,South Asia,Eastern Asia,North
America,South America,Oceania,Western Europe,Southern Europe,Central America,Northern
Europe,Africa,Eastern Europe,Mid East,Southeast Asia. There are total about 11-20 people in our
office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Residential Energy Storage/Commercial Industrial ESS/Wall Mounted Lithium Battery Pack, Lithium Ion Power Battery, Battery Packs
4. why should you buy from us not from other suppliers?
Hunan Langle New Energy technology Co., Ltd. It is an integrated green energy enterprise specialized in the R&D and manufacturing
of F60 series lithium-ion battery cells and battery systems.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
We are based in Guangxi, China, start from 2022,sell to Domestic Marke,South Asia,Eastern Asia,North
America,South America,Oceania,Western Europe,Southern Europe,Central America,Northern
Europe,Africa,Eastern Europe,Mid East,Southeast Asia. There are total about 11-20 people in our
office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Residential Energy Storage/Commercial Industrial ESS/Wall Mounted Lithium Battery Pack, Lithium Ion Power Battery, Battery Packs
4. why should you buy from us not from other suppliers?
Hunan Langle New Energy technology Co., Ltd. It is an integrated green energy enterprise specialized in the R&D and manufacturing
of F60 series lithium-ion battery cells and battery systems.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
