Product Overview

Description





Automatic screw locking tool blow feeder robotic screw tightening machine screwdriver for hardware self screw drilling process

**Blow dispenser machine is for fast speed because screw directly blown to the screw nozzle and feeding screws directly, screw driver no need to pick the screws back and forth.

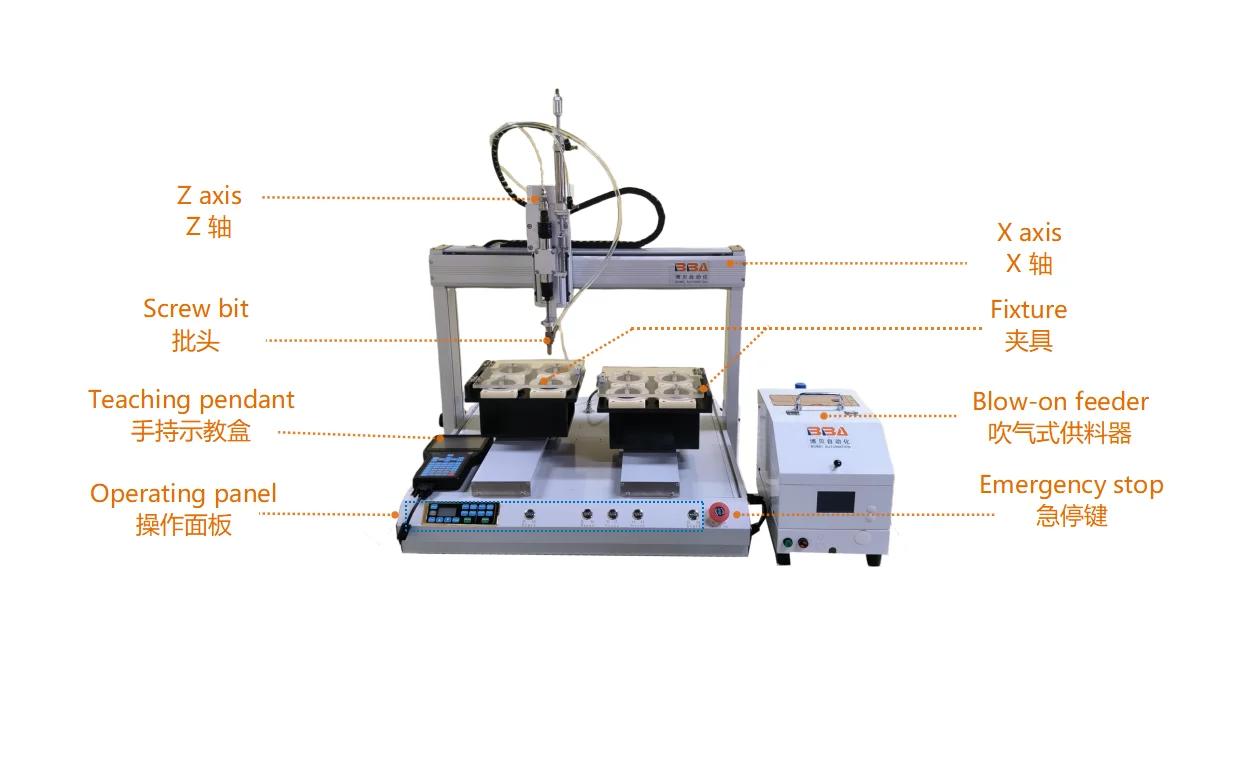

**Auto screwdriver machine is mainly composed of screw automatic conveying system, x-y-z movement platform, control system and fastening system. The work efficiency is much higher than the traditional manual work.
**Locking screw machine is with various types: single platform, double platform, dual screw feeding systems, double screw feeder with blowing and pneumatic mode to meet different product requirements.
**Screwing robot is programmed by teaching pendant for easy operation with detection functions as leak lock,sliding teeth,floating lock and so on.
**Screw fastening robot is applied to M1-M8 screws, mainly applicable for fire alarm, socket, switch, LED, valve, toy, automobile, household appliances, 3C industry etc.




Products Description

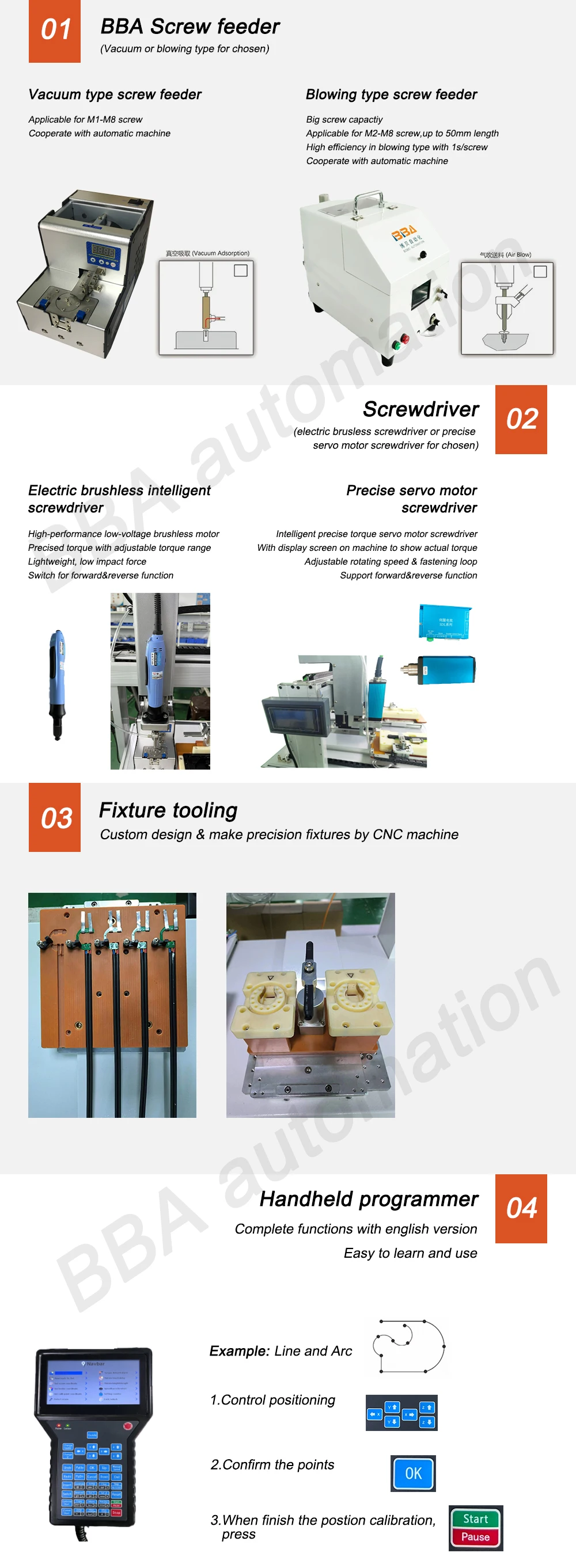

Machine external accessories




Detailed operating instructions & videos prepared to teach you step by step

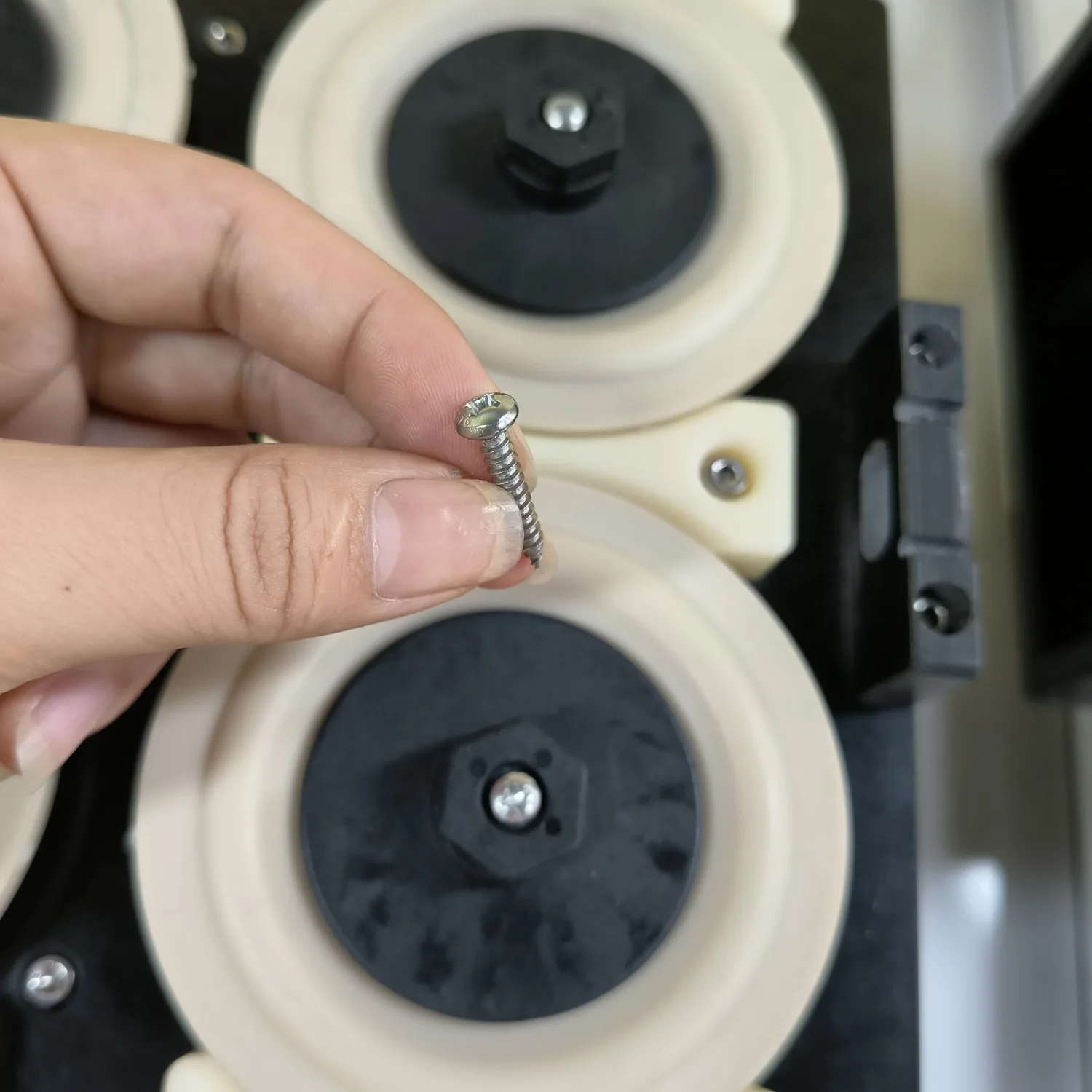

Applicable screws

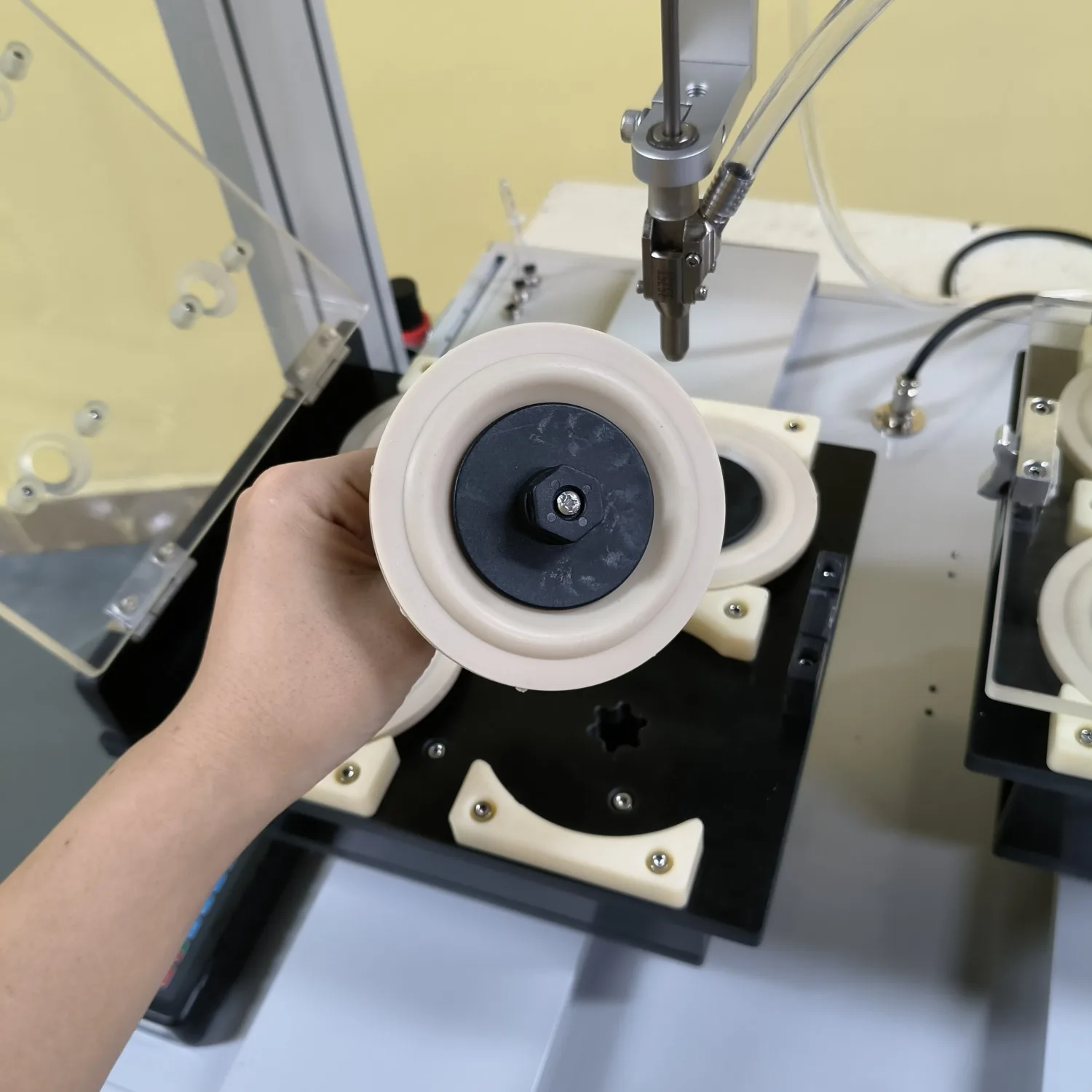

Customization available






Specification of screwing machine series


Model
BBA-331LS
(Single Y platform)
BBA-5441LS
(Double Y platform)
BBA-6441LS
(Dual screw feeding system
CUSTOMIZED
Power supply
AC 110/220V 50/60HZ
Stroke
X
300mm
X
500mm
X
600mm
To order
Y
300mm
Y1/Y2
400mm
Y1/Y2
400mm
Z
100mm
Z
100mm
Z
100mm
Maximum load weight
8KG(for work platform)
To order
Screwdriver torque
0.015~2.5N.m
More than 3.0N.m
Moving speed
10-800mm/s
Air pressure
0.5~0.7Mpa
Position accuracy
±0.02mm/axis
Program capacity
999 groups/1000 points per group
Motor system
Micro Precision Stepping Motor
Transmission mode
Precision toothed belt+guide rail
Universal screws
M1-M8
Control panel
Teaching pendant with display screen
Work efficiency
1.2~1.5s/pcs
Work environment
Temperature: 5-40℃         Humidity: 20-90%
Weight
100kg
120kg
150kg
To order
External machine Size
(L*W*H)
700*630*700mm
820*730*700mm
920*730*700mm
To order


Customer case








Packing & Delivery






Company Profile


BBA machine headquartered in Guangdong, China. The manufacturer of automation machines. Main products are auto screw fastening machine, soldering machine, screw feeder machine, glue dispensing machine, PCB pin foot cutting machine and other non-standard automation equipment. BBA has accumulated rich engineering experience and master full set of core technology, can provide customers with full services from technology to equipment.In addition, we have a professional screw tightening technology, which is very helpful for mass production of screw locking, including special screw as the helico coiled screw and headless screws. In the automation solution providing and other fields have been unanimously recognized by users.

Over the past years, BBA have actively expanded the oversea market, with users all over America&Europe&Southeast Asia. The good atmosphere of the enterprise attracts a large number of outstanding talents, which makes the high-quality company with a highly cooperative professional team.




FAQ


Q: Why choose us?
A: We are factory and provide overall solutions for processing equipment. Our standard equipment is very complete,all are in stock and can be shipped quickly. We have our own equipment factory, which can fully customize equipment according to customer requirements, such as ordering different machine size& appearance and brand for agents.
Q: How can we guarantee quality?
A: We implement strict incoming materials inspection and 100% tests before shipment. Furthermore, our products have CE certificate.
Q: How long is your warranty?
A: Lasts for 12 months, lifetime technical support.
Q: Why need use automatic screw feeder machine?
A: Precise locking performance, high efficiency 1.2s/screw, save labor cost, raise productivity.
Q: What screw can be used for automatic screw tightening robot?
A: Applicable for M1~M8 screws/bolts/nuts
Q: What's the bulk order delivery time?
A: Order lead time will be 3~10 working days, depends on your product.
