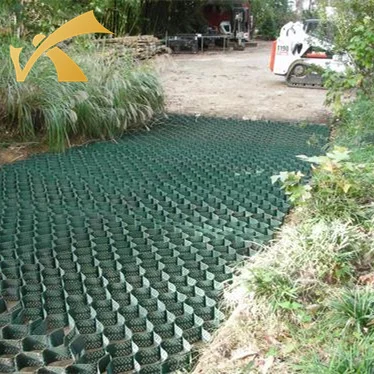

HDPE Plastic Driveway Gravel Grid Geocell for Soil Stabilization Retaining Walls Road Construction Slope Protection
- Category: >>>
- Supplier: Shandong Lianxiang Engineering Materials Co. Ltd.
Share on (1601269712468):
Product Overview
Description
Product Description

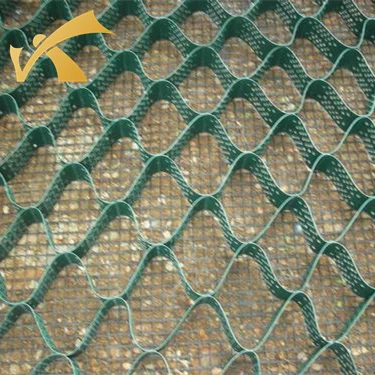

LianXiang HDPE GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene strips which are ultrasonically bonded together to form an extremely strong configuration.
Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
Geocell is efficient and economical for fast-built unpaved roadways and retaining walls,erosion control of slopes, and storm water control in channels.
Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.
Geocell is efficient and economical for fast-built unpaved roadways and retaining walls,erosion control of slopes, and storm water control in channels.

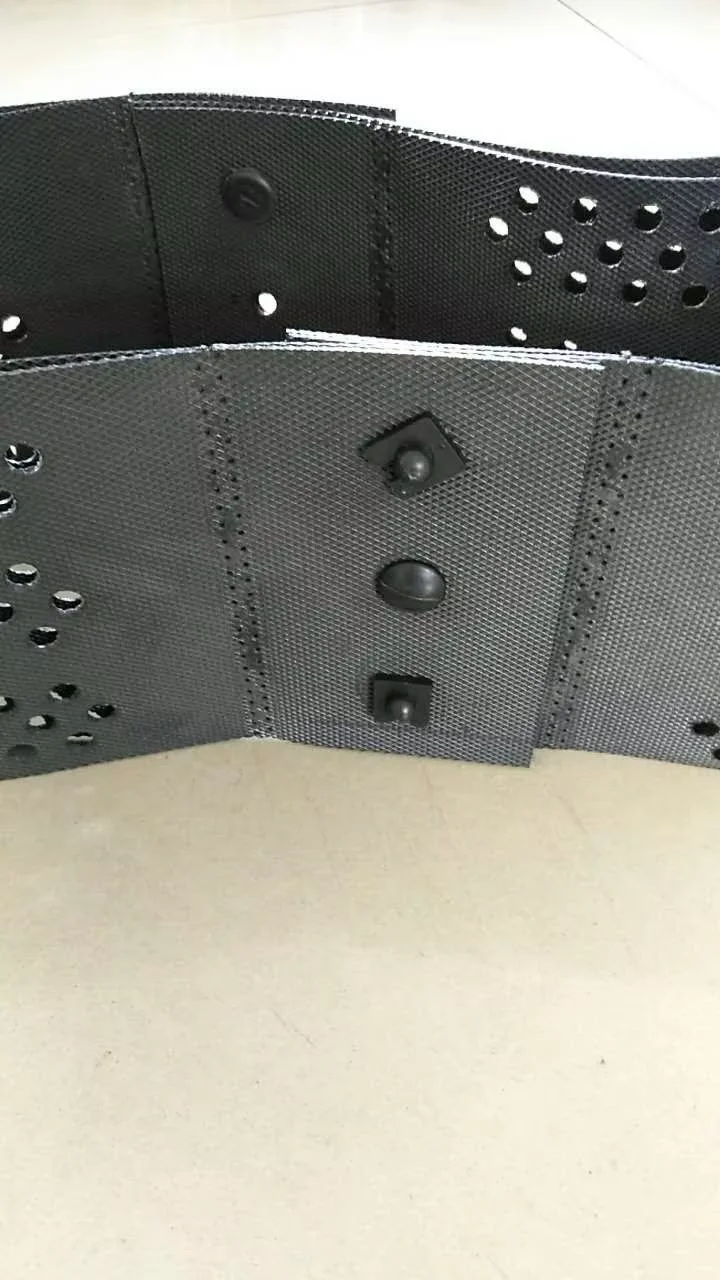

Textured & Perforated HDPE Geocell
Smooth & Perforated HDPE Geocell
Textured & Non-perforated HDPE Geocell
Smooth & Non-perforated HDPE Geocell

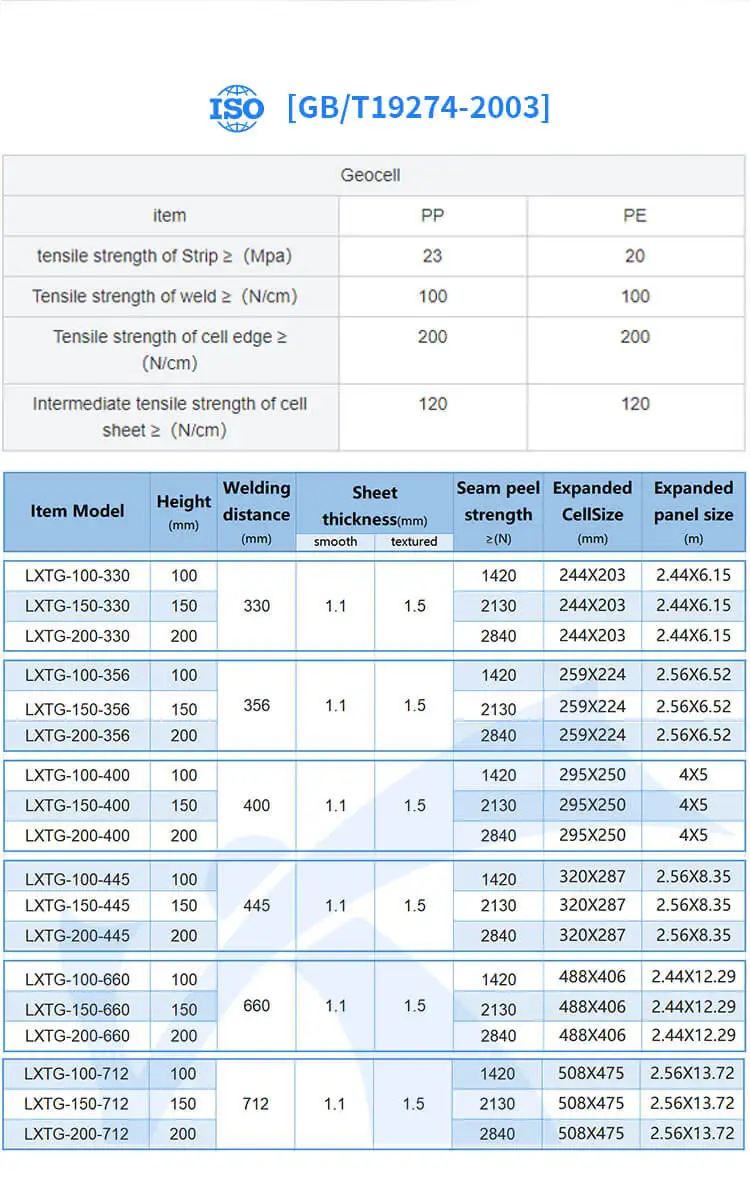

We can customize according to the size you need, such as the size and data shown below, we can guarantee excellent quality
NOTE
We can customize the size, thickness, color, etc. according to your needs.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
LianXiang Geocell selling points
1. Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different
geological conditions, such as saline soil, desert, etc.
2. Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3. Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4. Retractile, easy to transport.
5. Easy to use, can use the local materials and achieve rapid construction, reduce construction costs
geological conditions, such as saline soil, desert, etc.
2. Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3. Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4. Retractile, easy to transport.
5. Easy to use, can use the local materials and achieve rapid construction, reduce construction costs

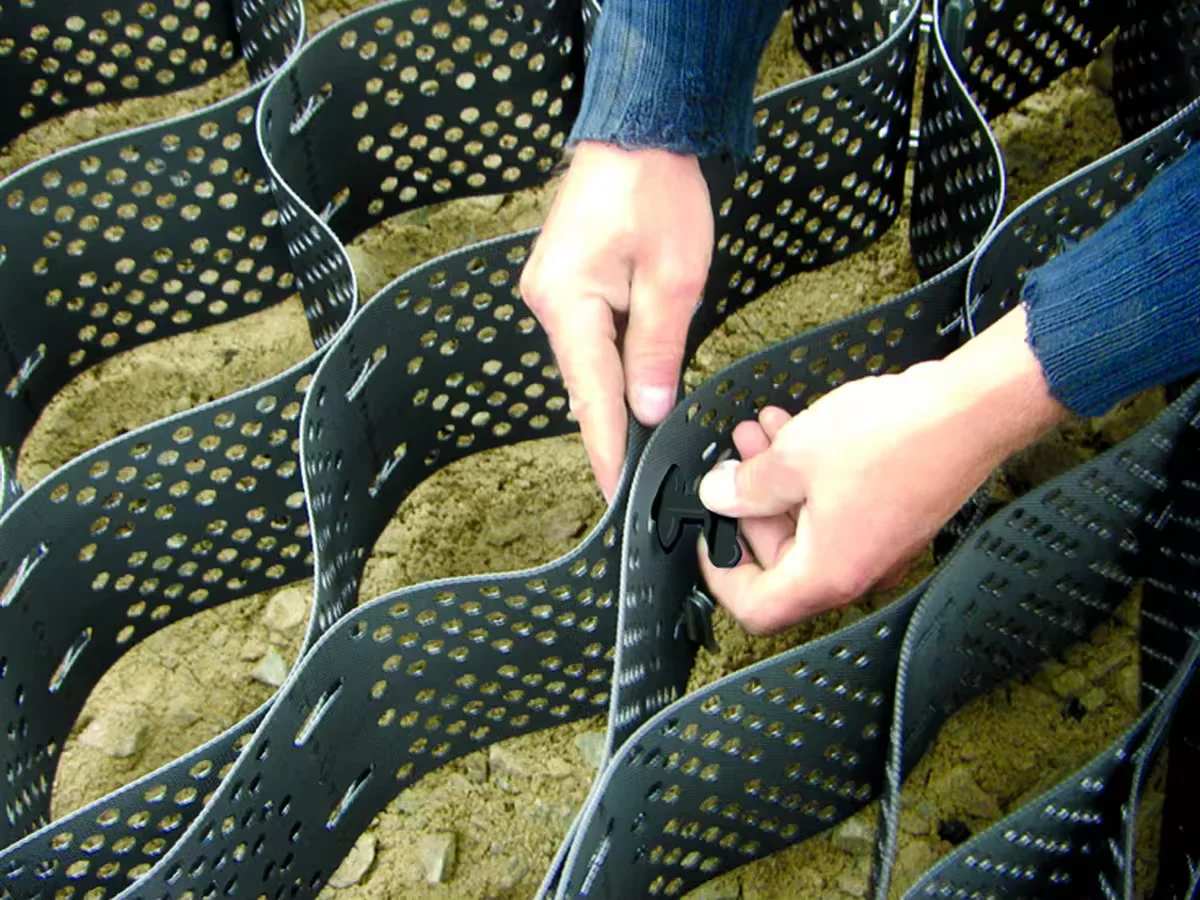

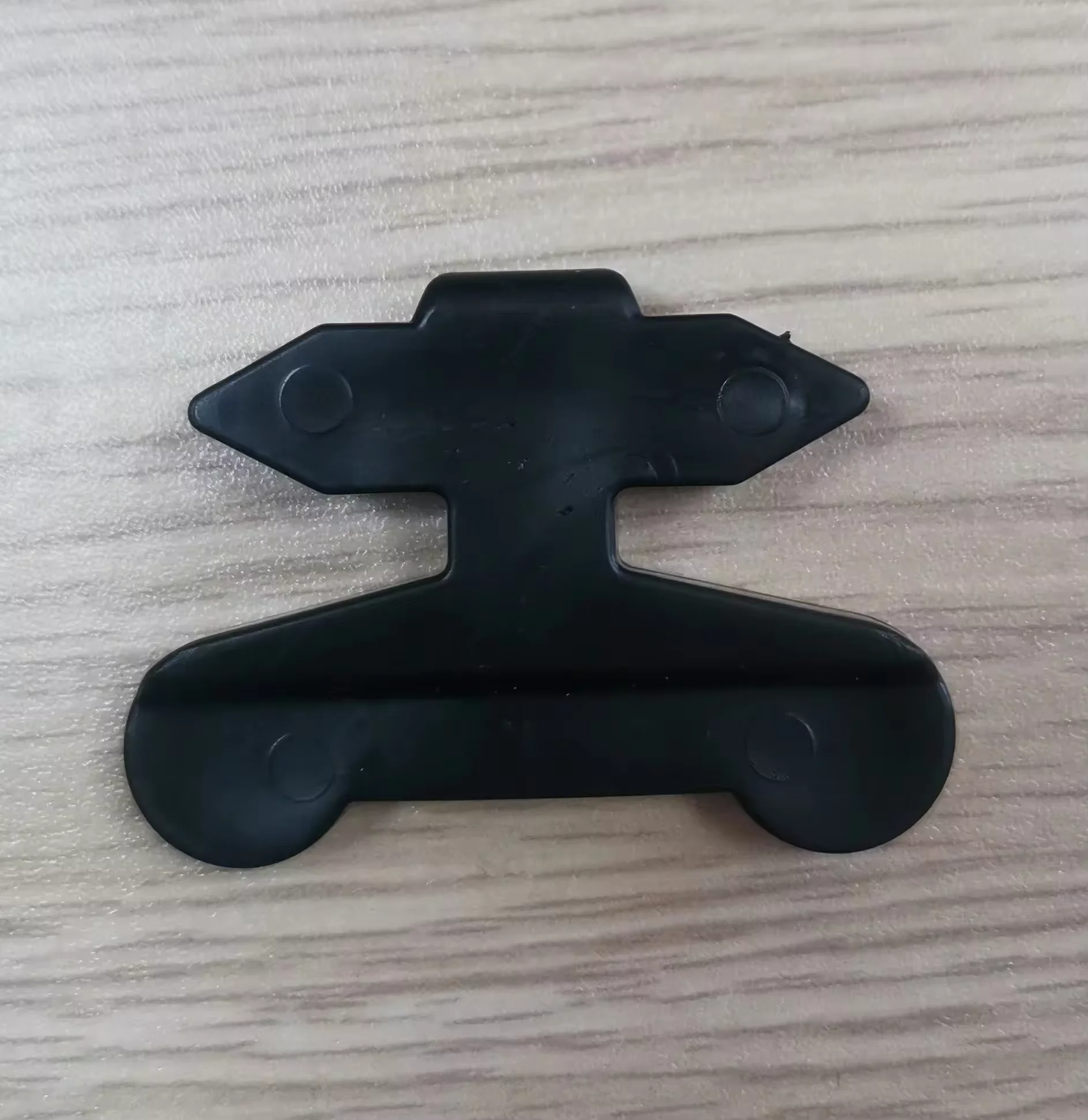

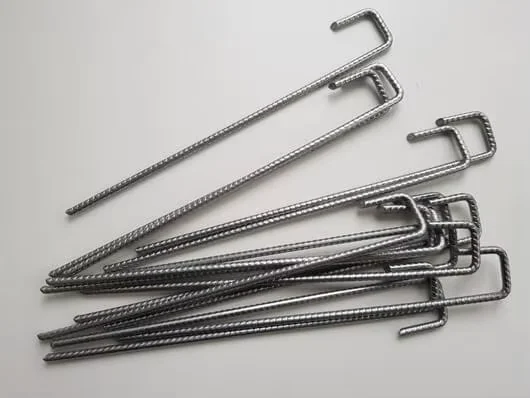

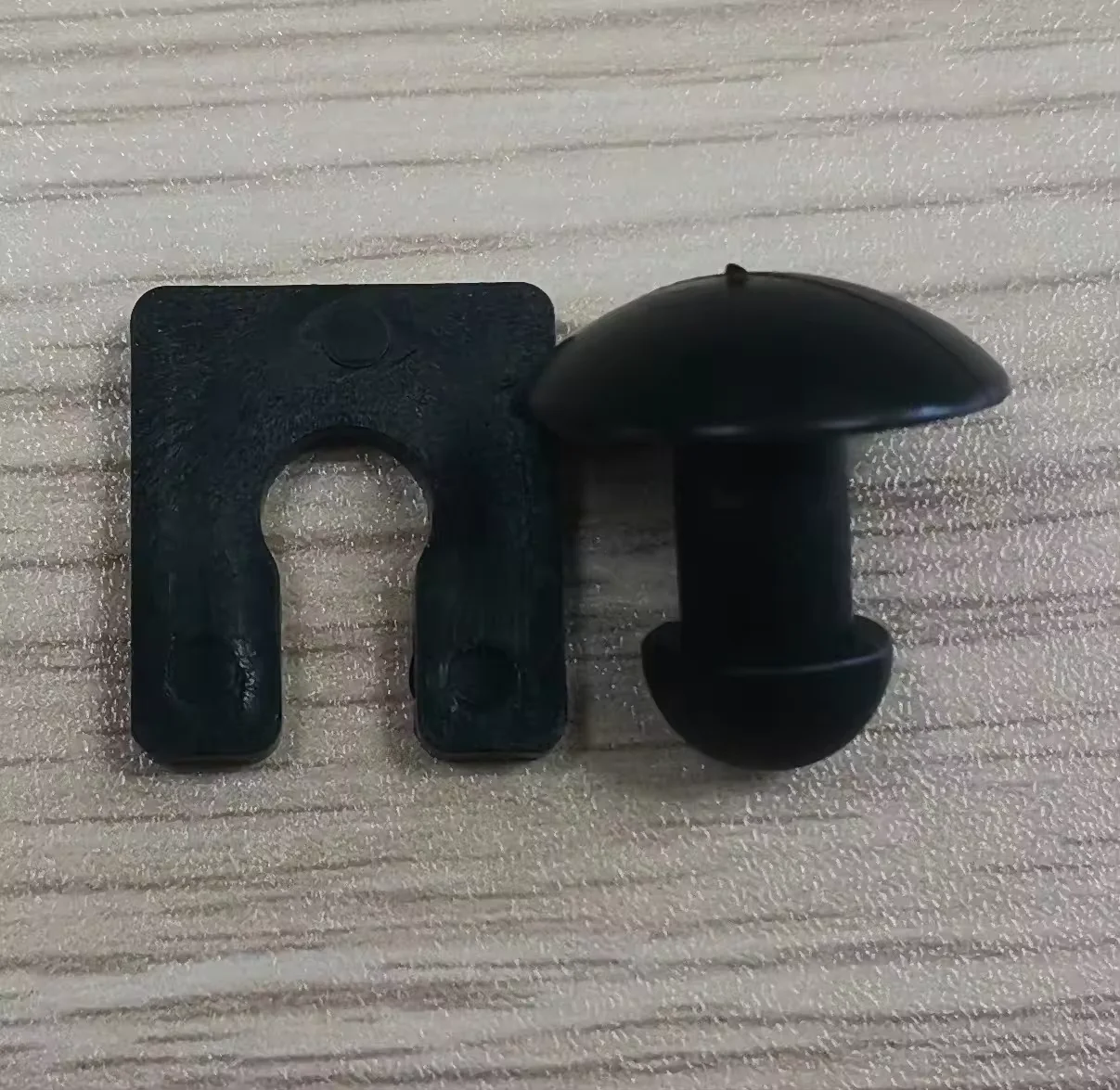

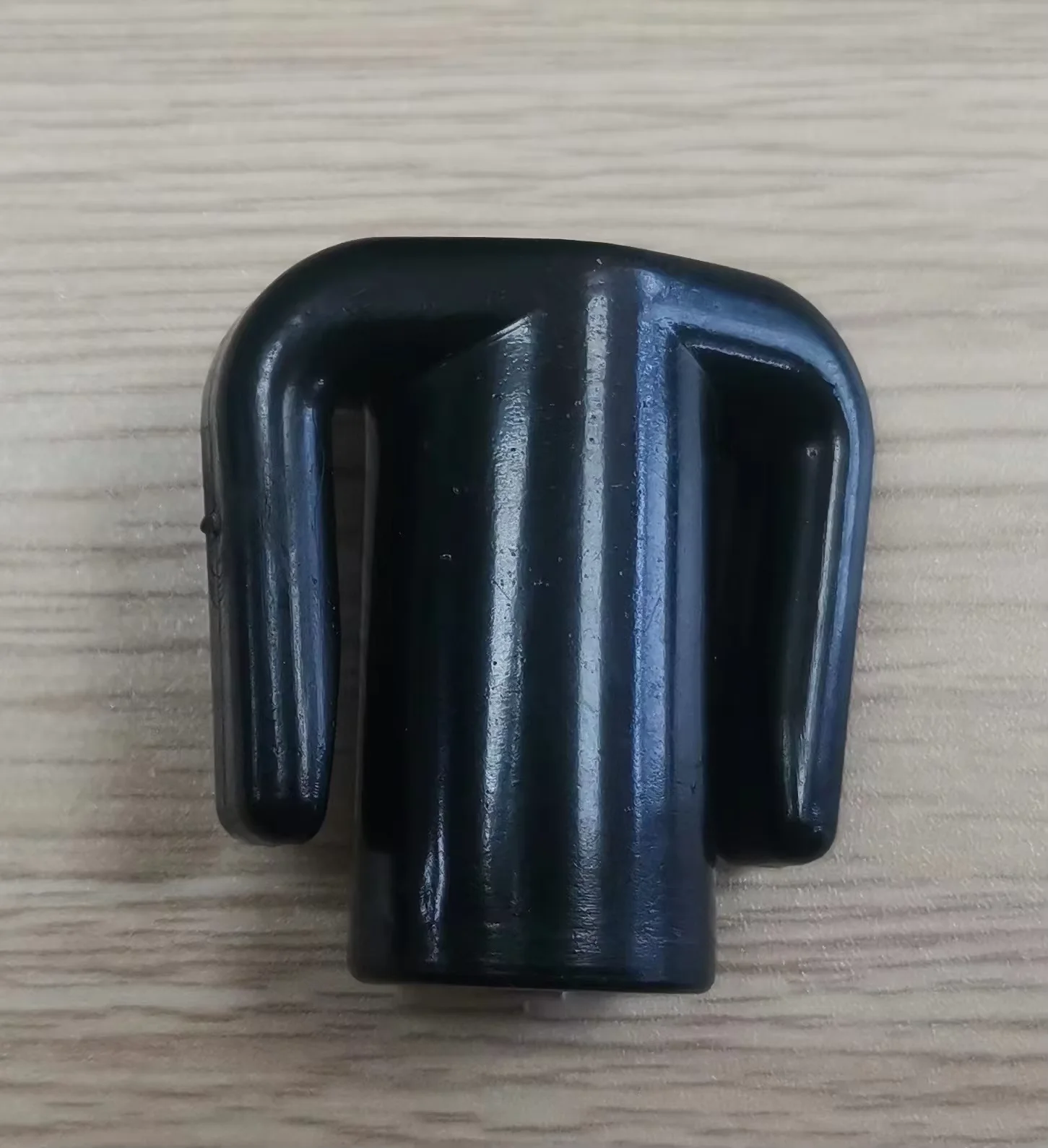

Geocell Accessories

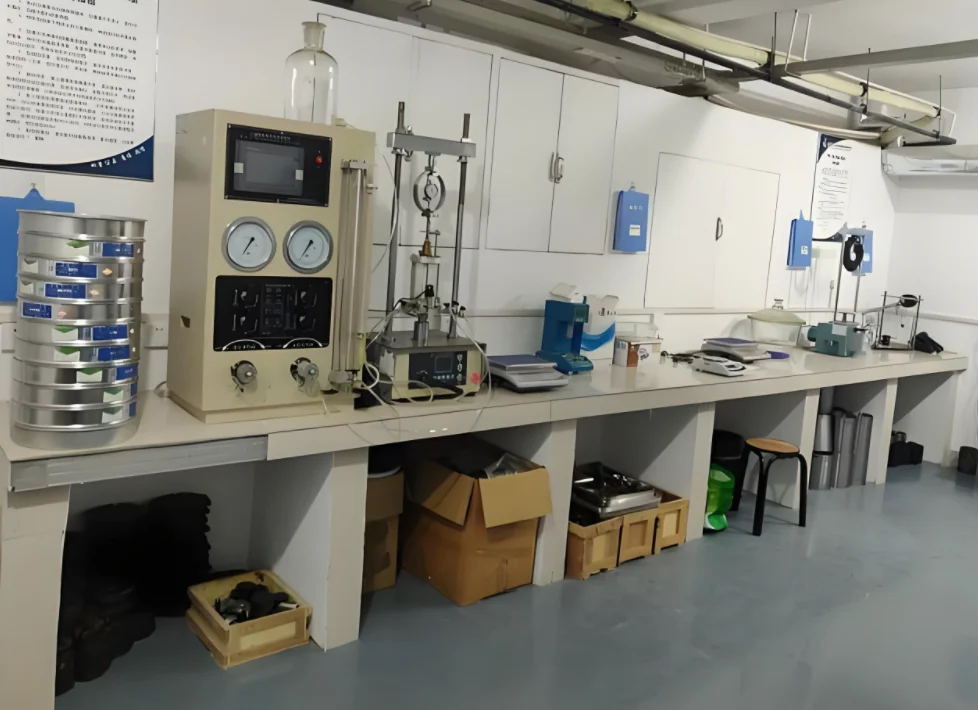

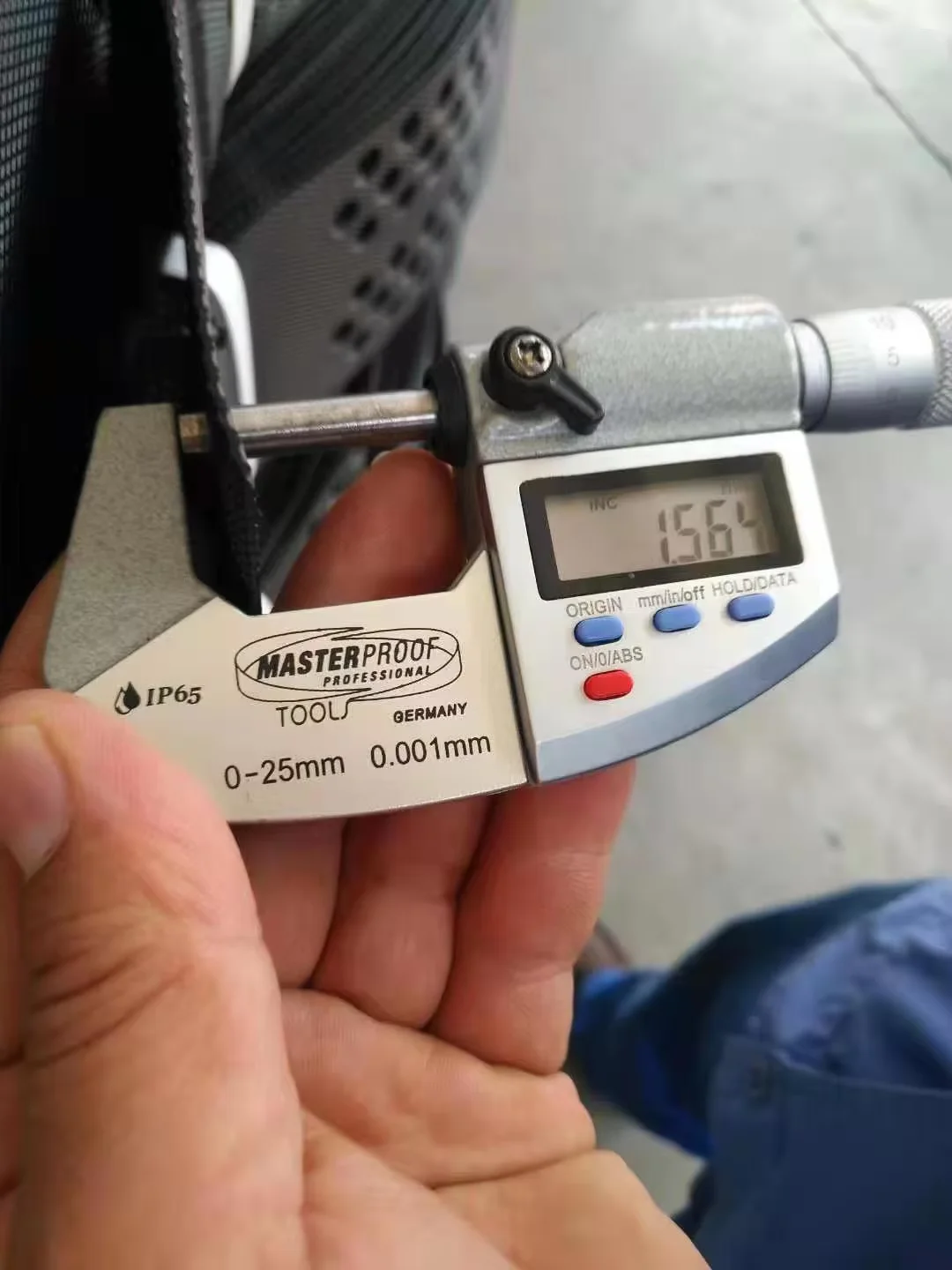

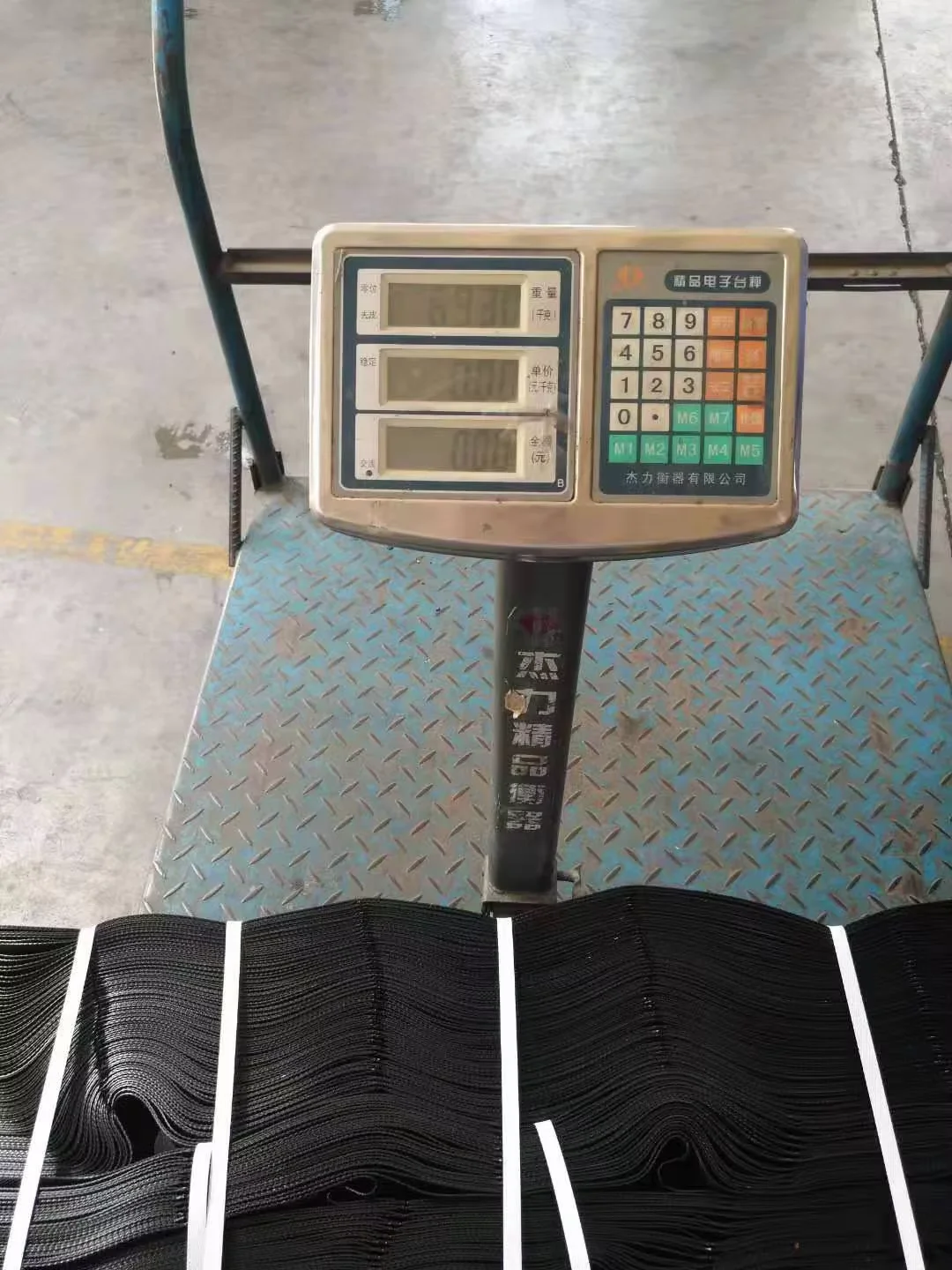

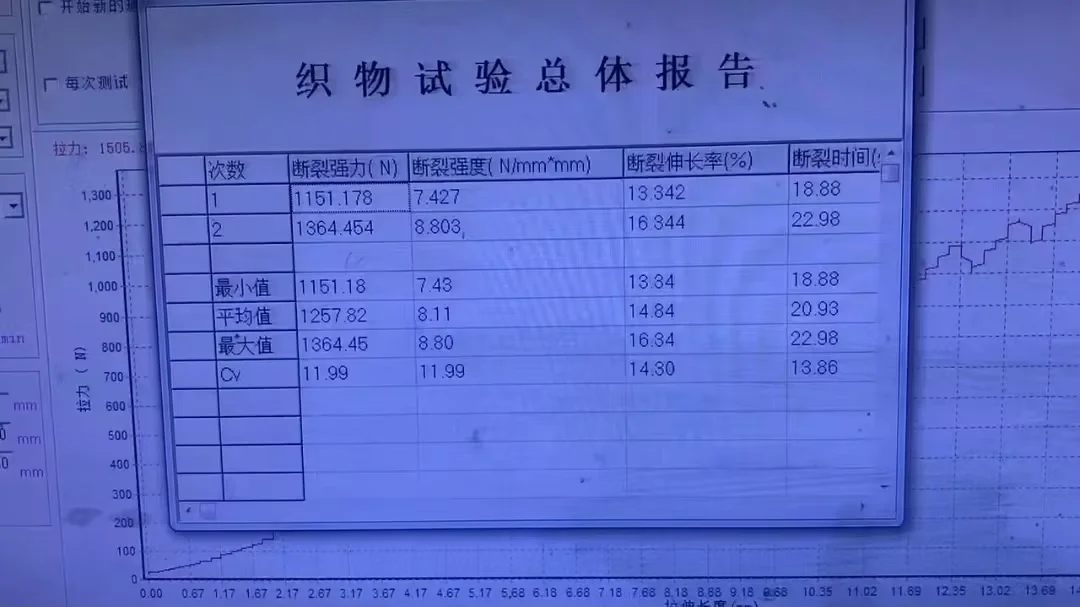

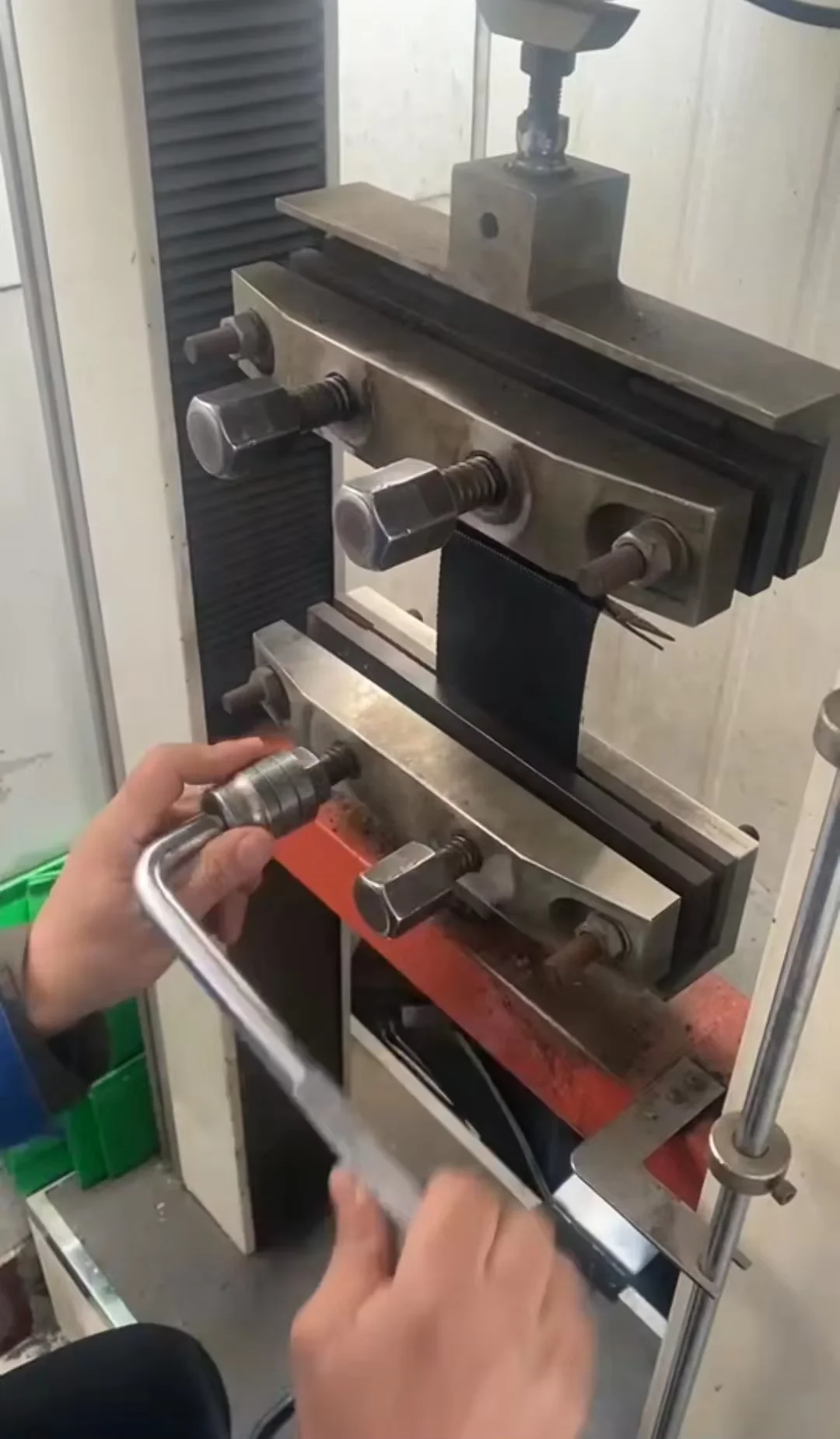

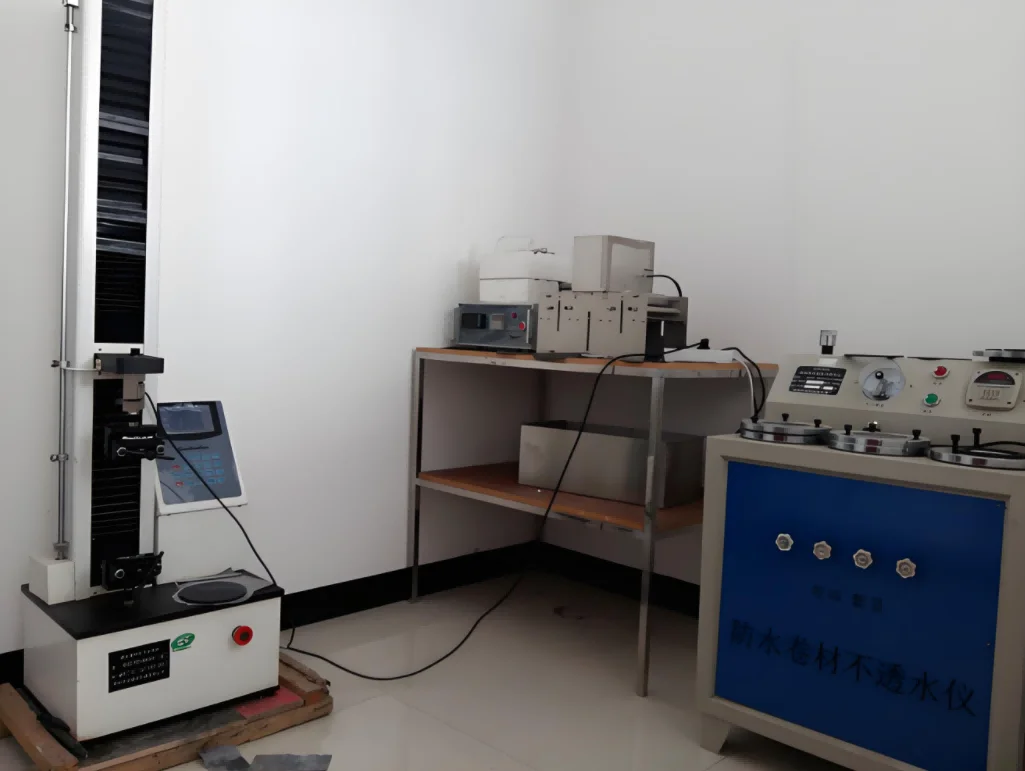

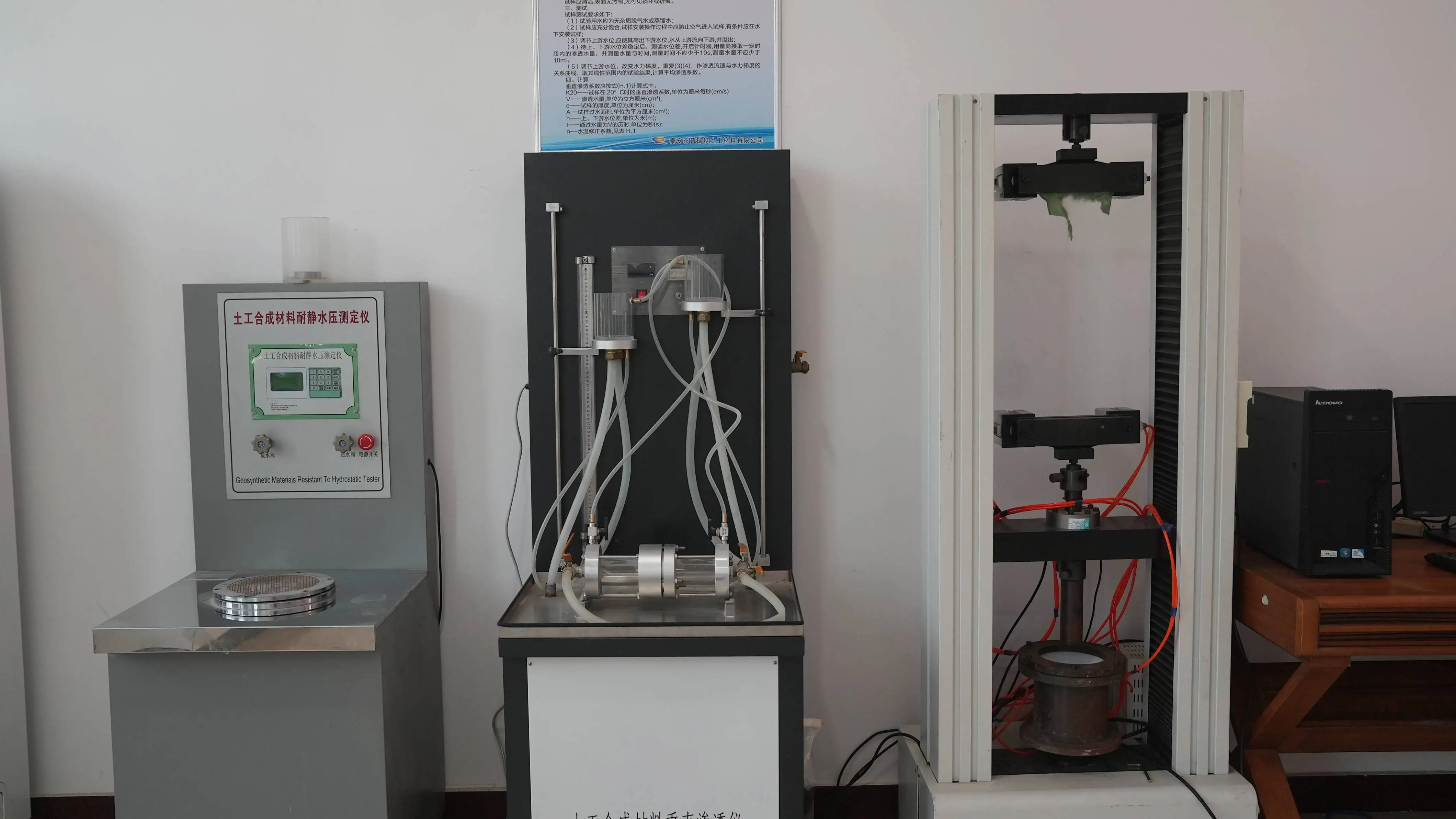

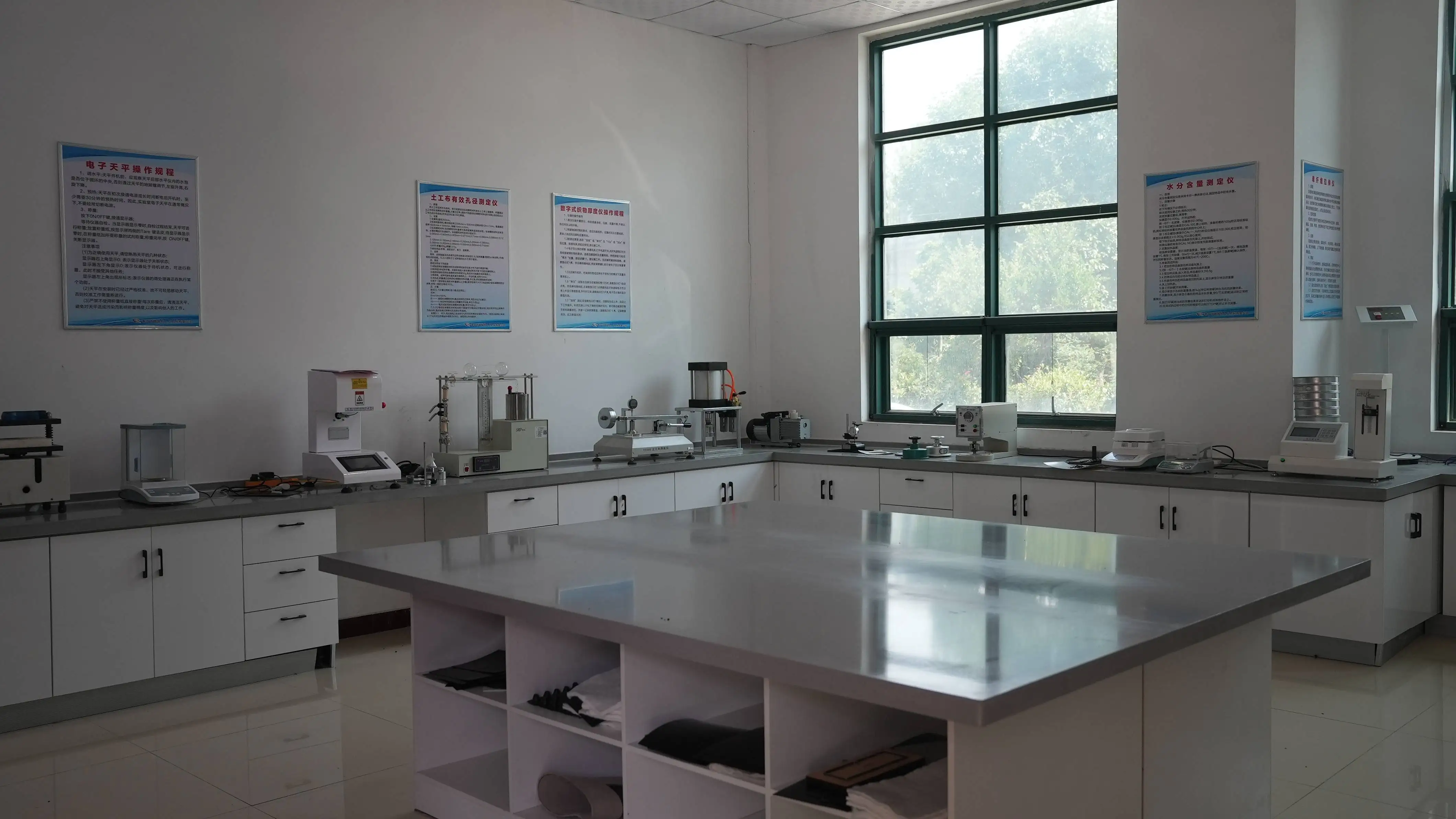

Strict quality control
Product Applicaiton
Applications

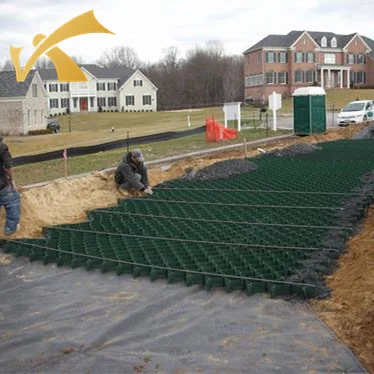

1. All kinds of road building, driveways, soil stabilization and embankment stabilization
2. Stabilize river embankments.
3. Prevent landslides.
4. Using Geocell in construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed,good performance and greatly reduce the project cost.
2. Stabilize river embankments.
3. Prevent landslides.
4. Using Geocell in construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed,good performance and greatly reduce the project cost.

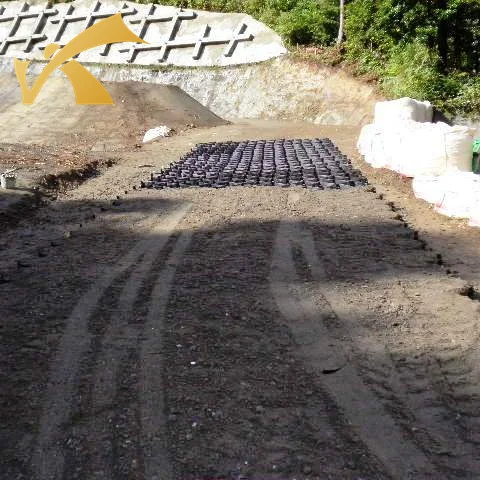

BASE STABILIZATION
strength and stiffness of the infill, which boosts their weight bearing capabilities and allows for the use of permeable
aggregates.
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior
material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include
reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast
confinement;working platforms in intermodal ports; airport runways.
material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include
reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast
confinement;working platforms in intermodal ports; airport runways.
CHANNEL PROTECTION
the channel characteristics, can be filled with angular rock, vegetated soil, or concrete. Geo Products offers the
needed anchoring for the system's integrity.
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in
the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D
cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances
load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D
cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances
load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
RETAINING WALLS

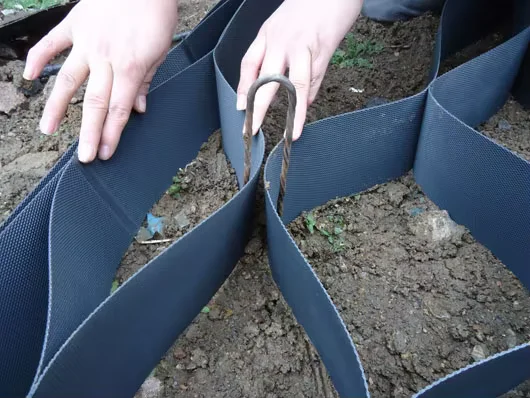

In very steep slope applications, soils can be retained with a vertical wall structure. Filled with local soils, LX-Geocell can
be used in both cut and fill situations by holding the soil in place and providing drainage throughout the structure. The outer
cells can be vegetated, providing an environmentally pleasing look..
be used in both cut and fill situations by holding the soil in place and providing drainage throughout the structure. The outer
cells can be vegetated, providing an environmentally pleasing look..
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography
for steep faces, walls and irregular topography

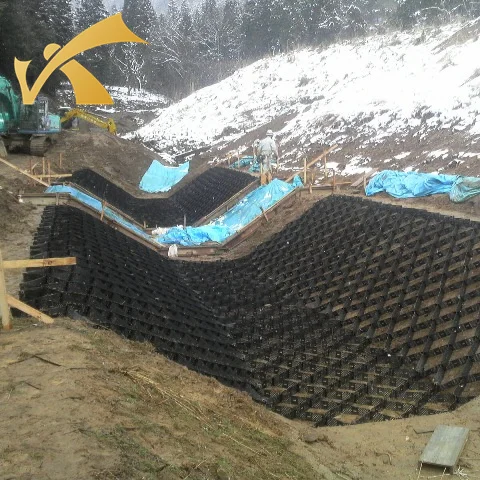

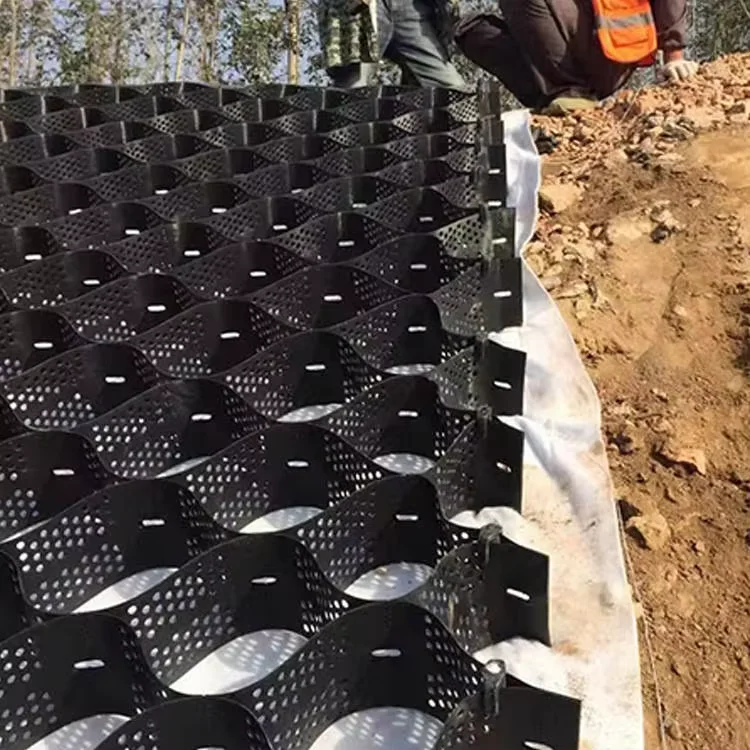

SLOPE EROSION
LX-Geocell placed on slopes will hold infill material in place. The cell walls slow the flow of water down the slope or in areas
affected by
wave action, reducing the formation of rills, a major cause of soil erosion. Depending on the site specifics, can
confine infill material such as angular rock, concrete or native soils.
affected by
wave action, reducing the formation of rills, a major cause of soil erosion. Depending on the site specifics, can
confine infill material such as angular rock, concrete or native soils.
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Our Customers
Company Profile
PACKAGE AND DELIVERY
Packaging: Strips packaging or Pallet Packaging or customized packaging
Lead time: Winthin 7-15 days after receiving the deposit payment
Producing capacity: 170FCL per week
Lead time: Winthin 7-15 days after receiving the deposit payment
Producing capacity: 170FCL per week
Original packing.
Geocell is usually packed in pcs which is easy to transpot and also cost-effective!
On pallets.
Narmally geocell will be packed on pallets and load in the container.
Carton packing
Specially design and customize for customers, design brand LOGO and other customized services
Wooden packing
According to customer requirements, meet transportation needs
