Techfine 3600w 6200w 48v solar off grid hybrid high frequency pure sine inverter solar inversor With lightning protection
- Category: >>>
- Supplier: Guangdong Techfine Electronic Co. Ltd.
Share on (1601269831291):
Product Overview
Description
Key Features:

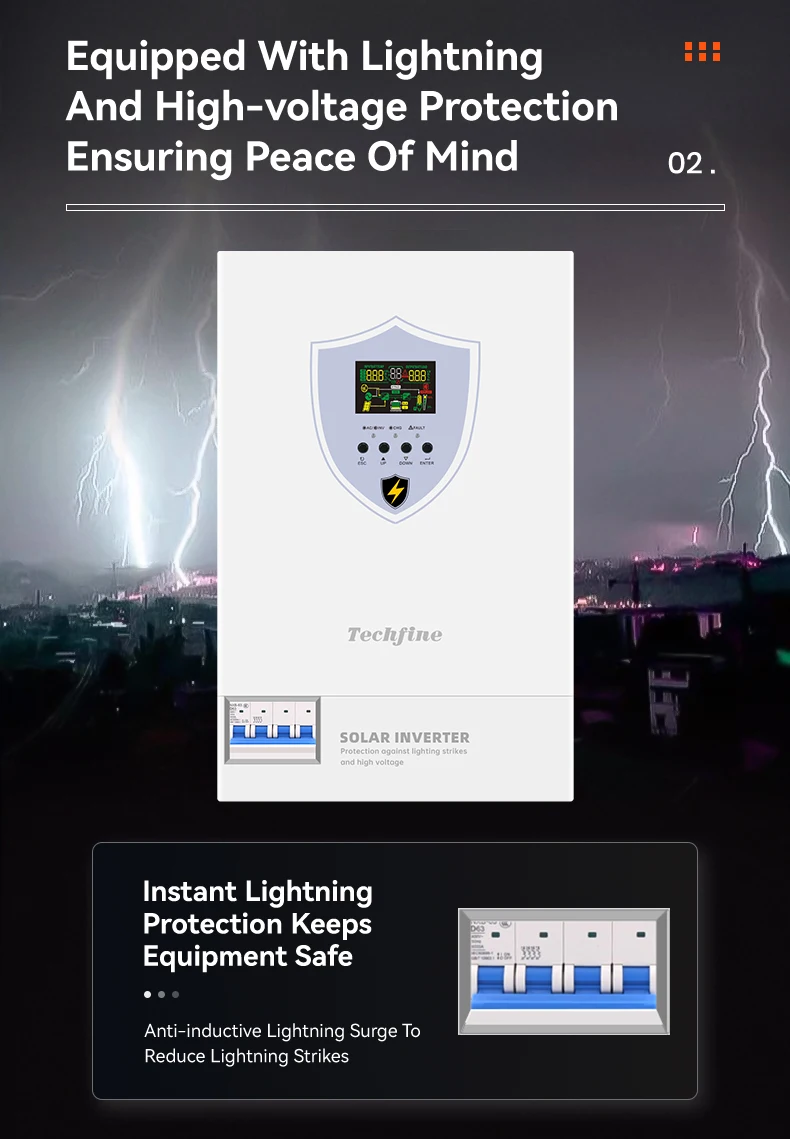

\\uD83C\\uDF1F With lightning protection and high voltage protection functions.

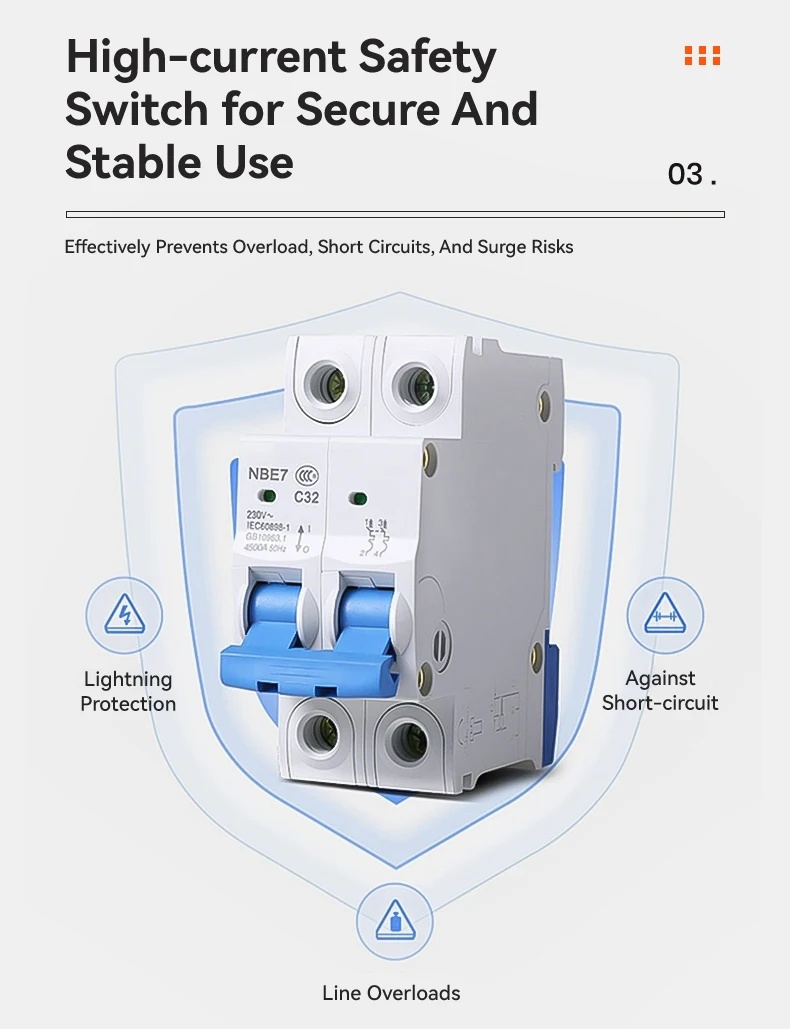

\\uD83C\\uDF1F Input and output safety switch design.

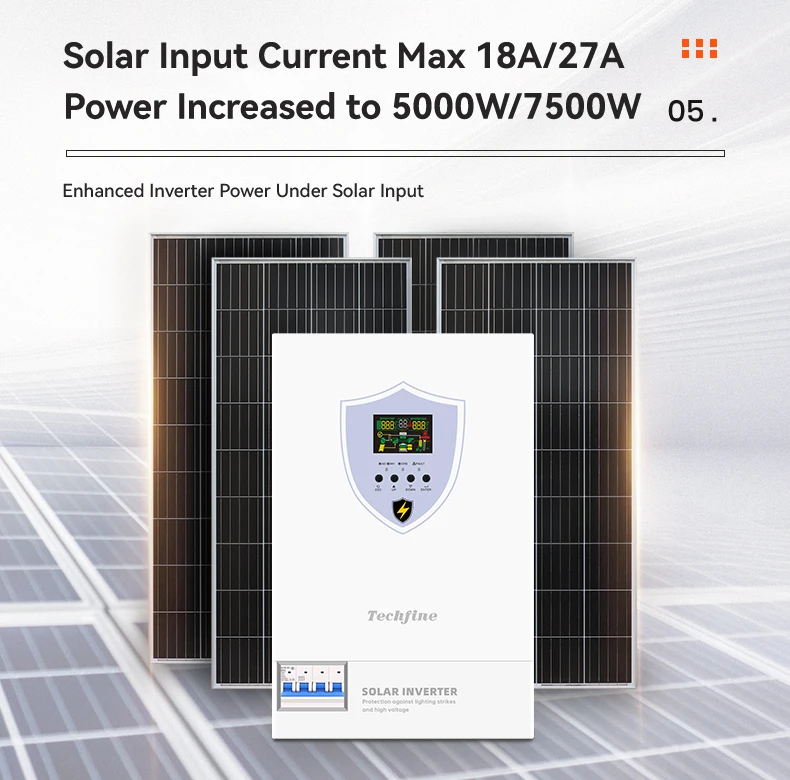

\\uD83C\\uDF1F Increase in photovoltaic input current and power.
\\uD83C\\uDF1F Increase in photovoltaic inverter power.

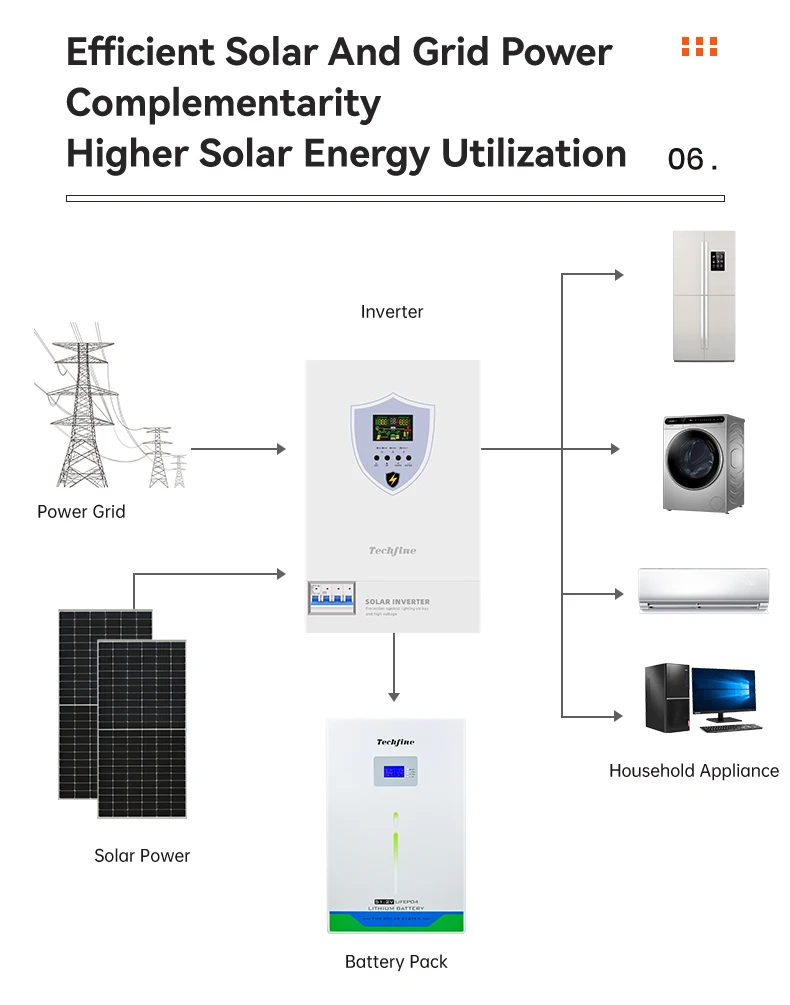

\\uD83C\\uDF1F Higher photovoltaic utilization when photovoltaic andmains complement each other.
\\uD83C\\uDF1F With EMl filtering, less interference.
\\uD83C\\uDF1F Pure sine wave output, can adapt to different loads.
\\uD83C\\uDF1F Output short-circuit protection function.
\\uD83C\\uDF1F Input and output safety switch design.
\\uD83C\\uDF1F Increase in photovoltaic input current and power.
\\uD83C\\uDF1F Increase in photovoltaic inverter power.
\\uD83C\\uDF1F Higher photovoltaic utilization when photovoltaic andmains complement each other.
\\uD83C\\uDF1F With EMl filtering, less interference.
\\uD83C\\uDF1F Pure sine wave output, can adapt to different loads.
\\uD83C\\uDF1F Output short-circuit protection function.
Products Details
Product Parameters
Model | 3024SMH | 3624SMH | 5548SMH | 6248SMH | |||||
Input | Input format | L+N+PE | |||||||
Rated input voltage | 220/230/240VAC | ||||||||
Voltage range | 90-280VAC±3V（normal mode) 170-280VAC±3V（UPS mode） | ||||||||
Frequency range | 50Hz/60Hz(Adaptive) | ||||||||
Output Rated Power | Battery Inverter | 3000W | 3600W | 5500W | 6200W | ||||
Photovoltaic Inverter | 3000W | 4500W | 6500W | 6500W | |||||
Output | Output voltage | 220/230/240VAC±5% | |||||||
Output frequency | 50/60Hz±0.1% | ||||||||
Waveform | Pure sine wave | ||||||||
Switching time (adjustable) | Computer equipment 10ms, home appliances 20ms | ||||||||
Peak Power | 6000VA | 7200VA | 11000VA | 12400VA | |||||
Overload capacity | |||||||||
Grid-connected operation | Output voltage | 220/230/240VAC | |||||||
Grid feeding voltage range | 195-253VA | ||||||||
Grid feeding frequency range | 49-51±1Hz/59-61±1Hz | ||||||||
Nominal output current | 13A | 15.7A | 23.9A | 26.9A | |||||
Power factor range | >0.99 | ||||||||
Maximum conversion efficiency (DC/AC) | 98% | ||||||||
Battery | Rated voltage | 24Vdc | 24Vdc | 48Vdc | 48Vdc | ||||
Constant voltage charging voltage (configurable) | 28.2Vdc | 28.2Vdc | 56.4Vdc | 56.4Vdc | |||||
Float charging voltage (configurable) | 27Vdc | 27Vdc | 54Vdc | 54Vdc | |||||
Charger | PV charging method | MPPT | MPPT | MPPT | MPPT | ||||
Maximum input power of PV | 5000W | 5000W | 7500W | 7500W | |||||
MPPT input voltage range | 60-500Vdc | ||||||||
Optimal Vmp operating range | 300~400Vdc | 300~400Vdc | 300~400Vdc | 300~400Vdc | |||||
Maximum PV input voltage | 500Vdc | 500Vdc | 500Vdc | 500Vdc | |||||
Maximum PV input current | 18A | 18A | 27A | 27A | |||||
Maximum PV charging current | 100A | 120A | 100A | 120A | |||||
Maximum mains charging current | 60A | 100A | 100A | 100A | |||||
Maximum charging current | 100A | 120A | 100A | 120A | |||||
Display | LCD Interface | Can display operation mode/load/input/output, etc. | |||||||
Interface | RS232 | Baud rate 2400 | |||||||
Expansion slot communication interface | Lithium battery BMS communication card, WIFI card, dry contact card, etc. | ||||||||
Parallel interface | No parallel function | No parallel function | Parallel (network) function | Parallel (network) function | |||||
Environmental parameters | Operating ambient temperature | -10~50℃ | |||||||
Operating environment humidity | 20%~95%(No condensation) | ||||||||
Storage temperature | -15~60℃ | ||||||||
Altitude | The altitude should not exceed 1000m, and the rating will be reduced above 1000m, and the maximum altitude is 4000m, refer to IEC62040 | ||||||||
Noise | ≤50db | ||||||||
Physical parameters | Depth × width × height (mm) | ||||||||
Weight (for reference) KG | 7.5 | 7.5 | 8.5 | 8.5 | |||||
Standards and certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | ||||||||
