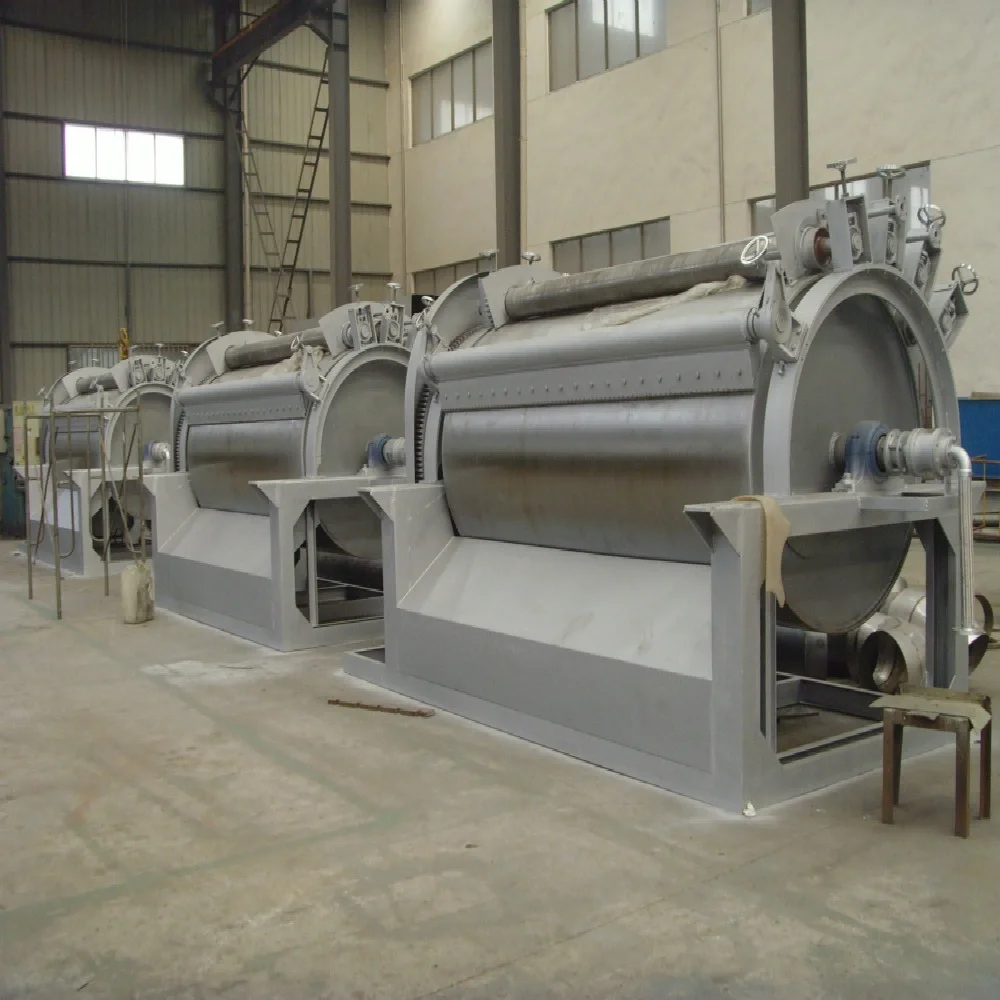

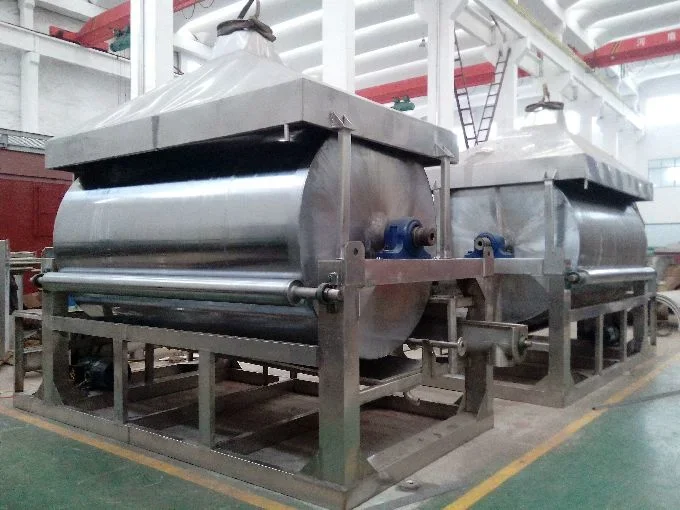

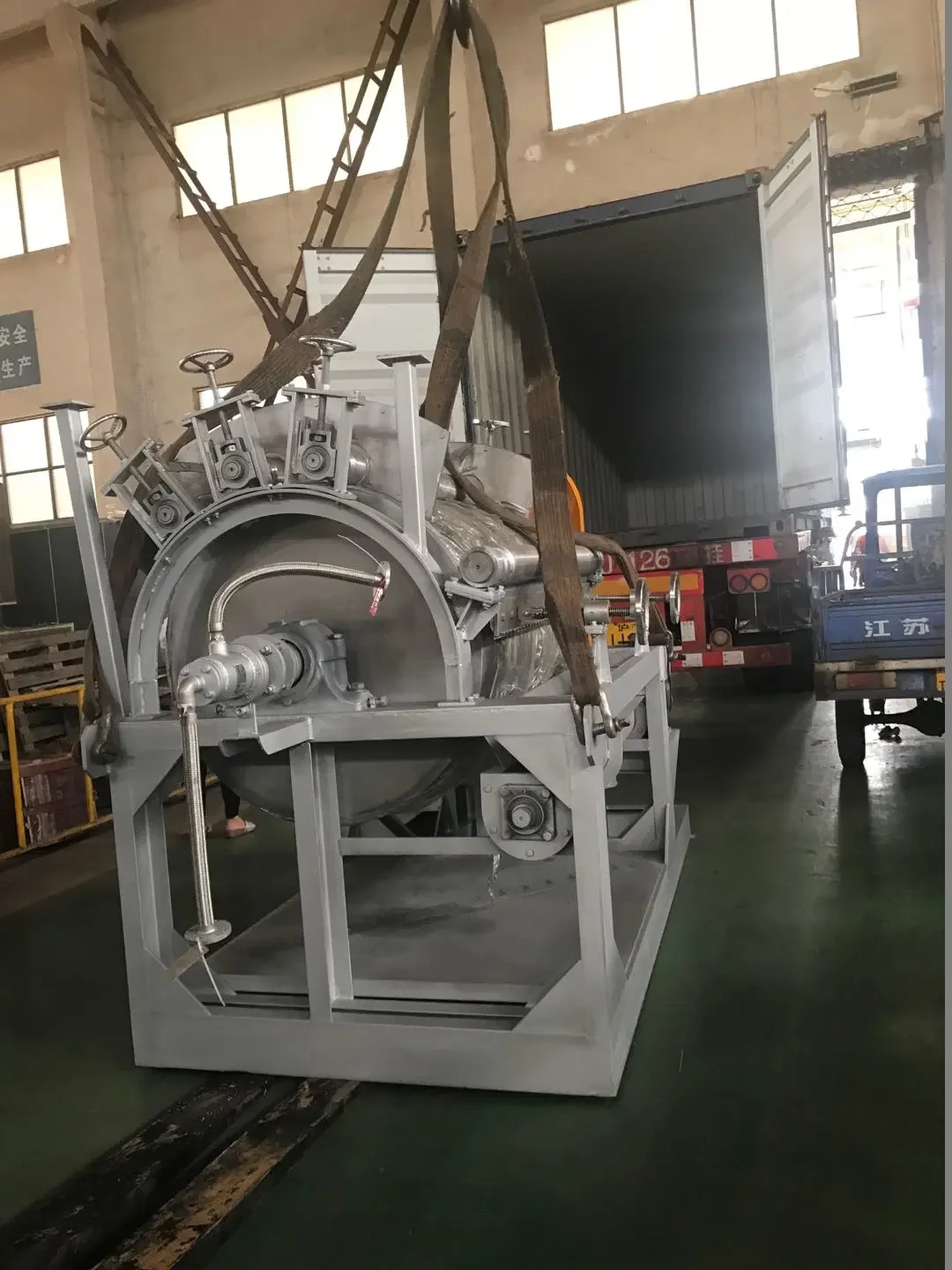

High Quality Automatic Cylinder Drum Dryer Scratch Board Drum Dryer for Food Processing New Condition Dehumidifier
- Category: >>>
- Supplier: Jiangsu Zhenxing Drying Equipment Co. ltd.
Share on (1601269853881):
Product Overview
Description

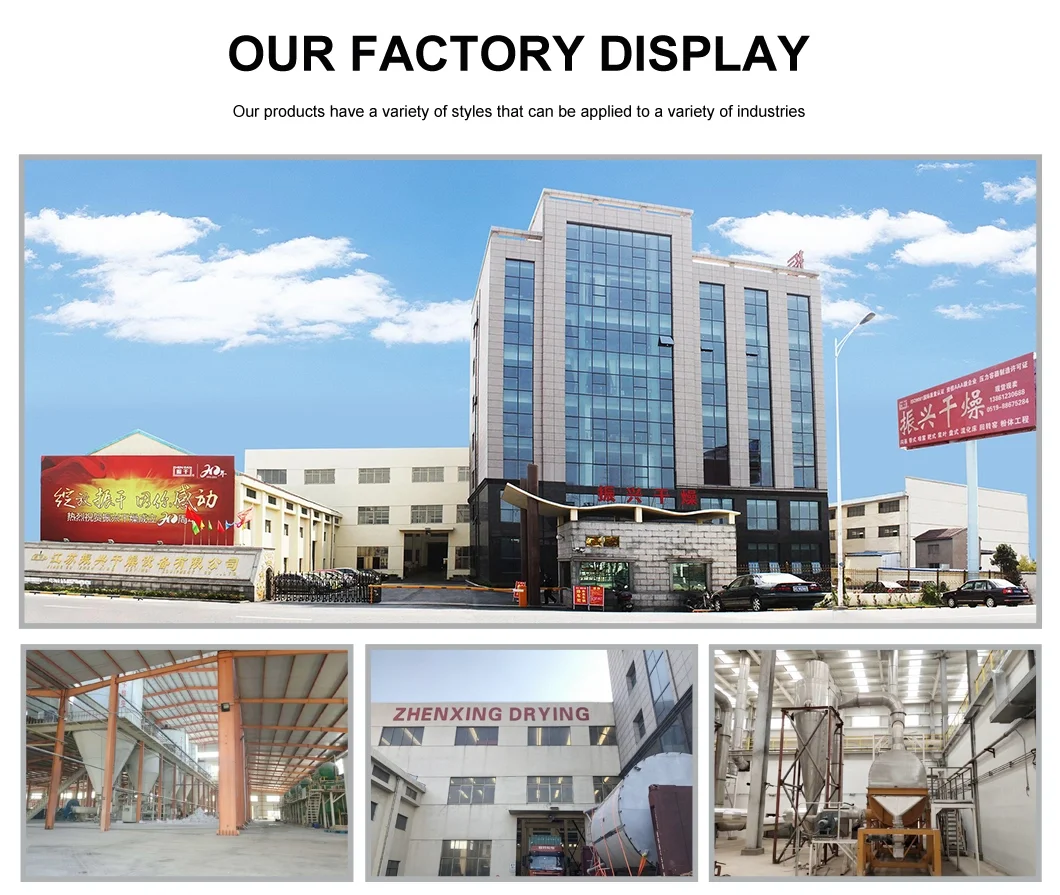

Our Company

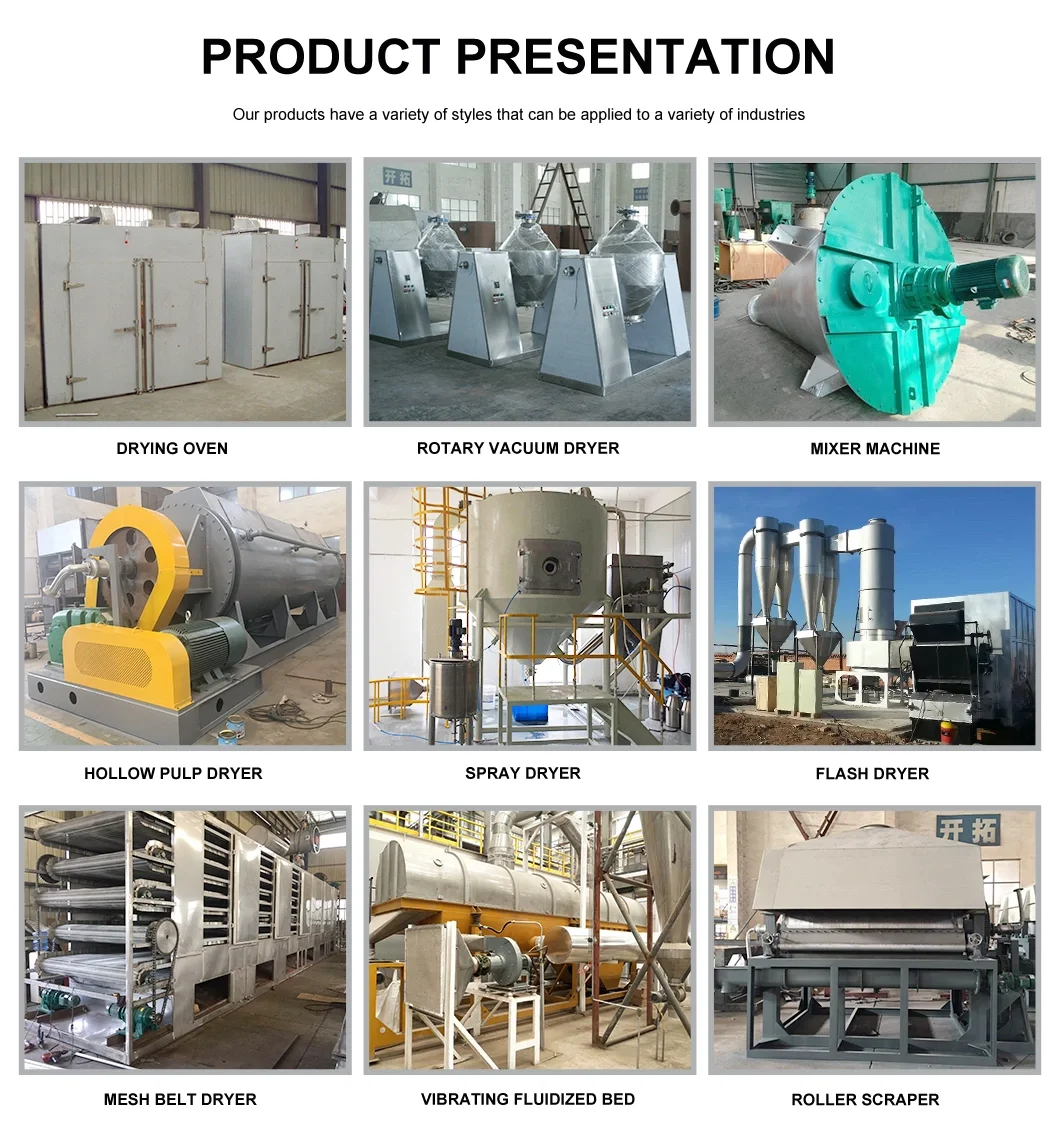

Jiangsu zhenxing drying equipment co.,ltd,this is Drying Equipment manufacture. We are specialized in development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.
We follow a strict quality control procedure and we provide high quality products with prompt after sales services and technical supports.
Our products have been exported to North America, Pakistan, India, Philippines, Thailand, Nigeria, South Africa, Mexico, Colombia, Australia, Egypt, Vietnam, Russia, and other countries.
We truly believe that honesty, credibility, and integrity are the keys to build a widely successful business!
We are strictly complying with the international technical standards and quality management systems and we became the leading company in the drying equipment industry. We also dedicated in the environment protection and energy conservation industry.
Our company mission and top priority is to be our customer’s best business partner by consistently providing quality products and good after sales service. We will keep continuous improvement to our products and services in order to provide high quality equipment to our customers
We are providing the continuous training programs and safe working environments to all of our employees and we are making our best efforts to ensure the development of the company.
Product Description
The drum dryer is an equipment used to convert the solutions and suspensions into the solids. The main purpose of these dryer is placed is to spread the liquid to a large surface area so that drying can occur rapidly.
The drum dryer is also called as an roller dryer or film drum dryer.
The drum dryer consists of a hollow roller with a smoothly polished external surface heated internally by steam.
It rotates on its longitudinal axis. The liquid to be dried is placed in a trough known as feed pan.
The liquid is picked up by the roller as it rotates covering the surface in a thin film is removed mechanically by a scrapper known as doctor knife.
The drying of the material is done by the process of steam when passed in to the drum. Due to the metallurgic nature of the drum the heat absorption is more.
By the mechanism of the conduction the heat get transferred in to the drum and drying process takes place, the drying capacity is directly proportional to the drum surface area.
the liquid material which is present in the pan gets adhere to the drum and gets dried by revolving at the rate of 1 to 10 revolution.
The materials is completely dried during its journey during its revolutions.
The dried materials is scrapped by the knife and that falls in to the bin.

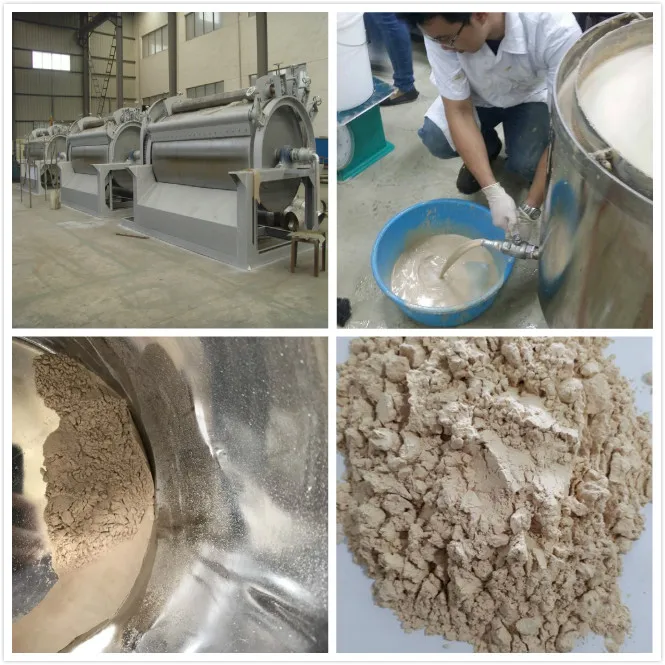

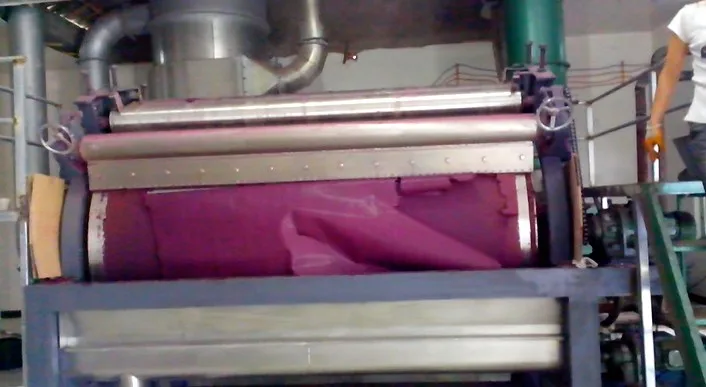

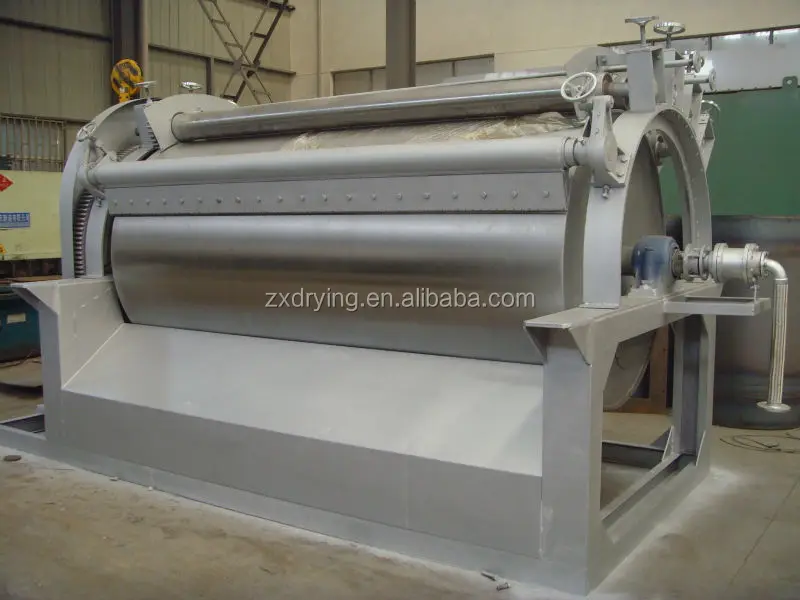

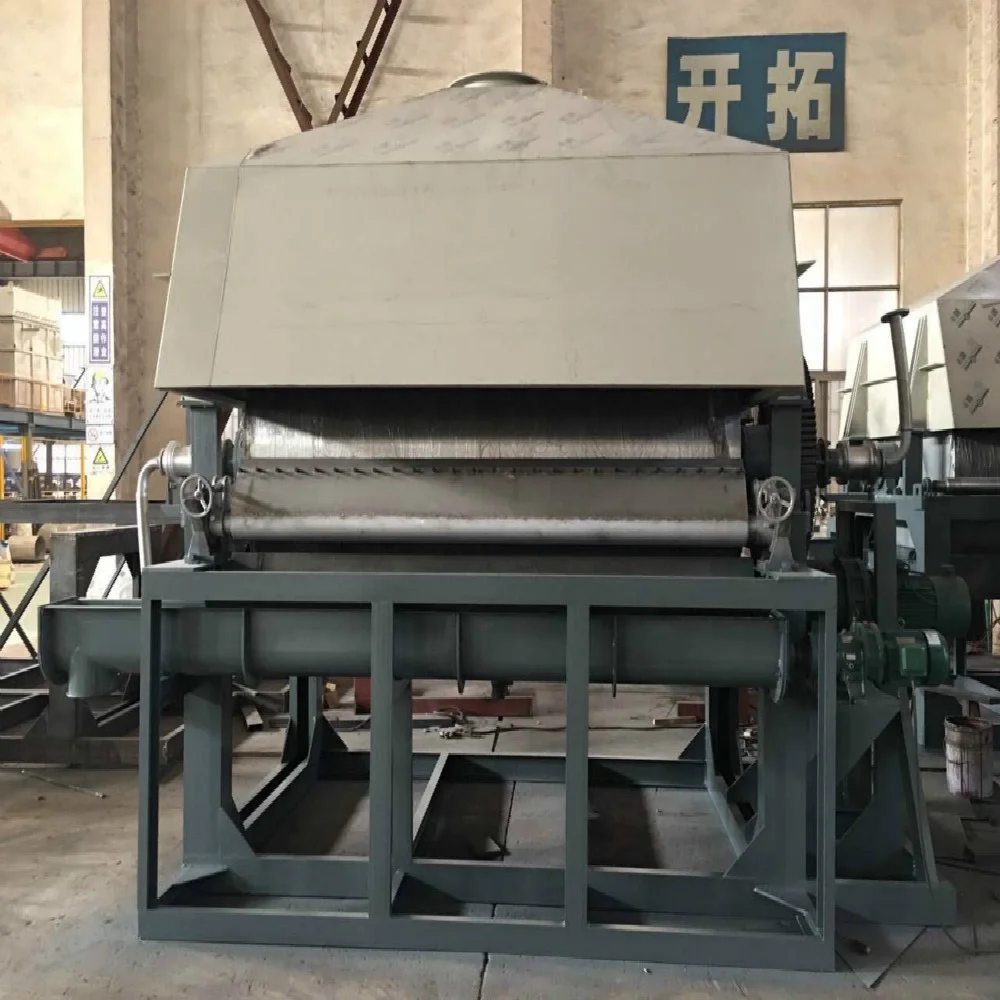

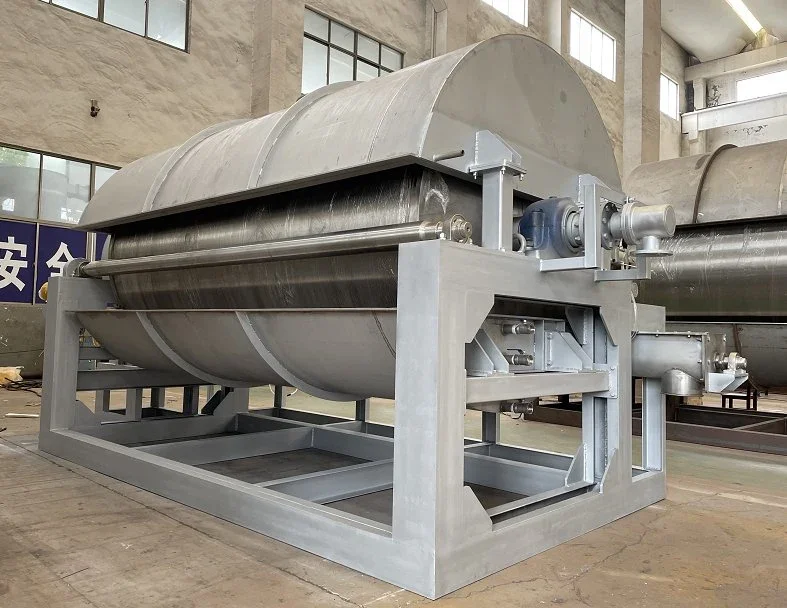

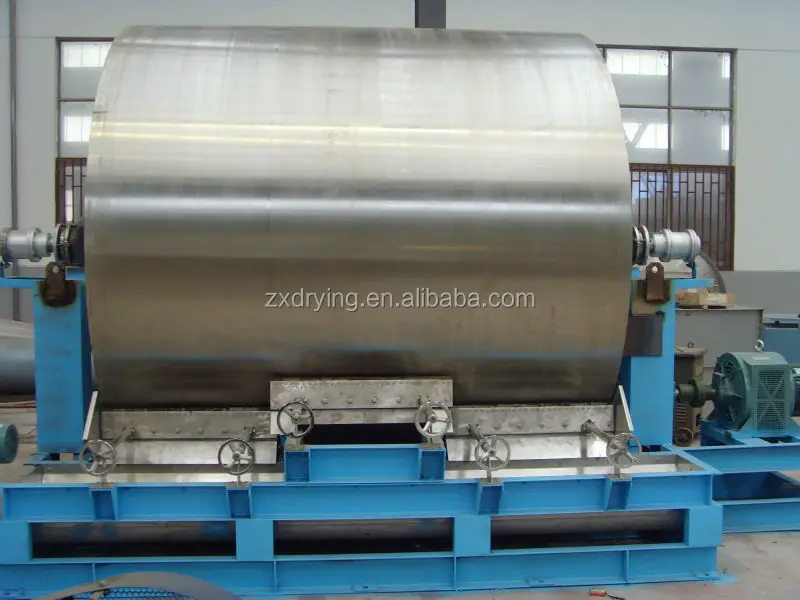

Detailed Images
PRINCIPLE
In drum dryer rotates on its longitudinal axis which is heated hallow metal drum , this metal drum is used to dipped in the solution to be dried .
As the dipping process completed the solution on the drum forms as a film on the surface of the dryer and made to dry, to form a layer on the surface of the metal drum. While the drum is rotating the suitable knife which is present just down to the metal drum scraps or peel offs the dried materials from the drum.
CONSTRUCTION
The construction of the drum dryer consists of a hollow steel drum of 0.6 to 3 meters diameter and 0.6 to 4.0 m length which is horizontally mounted and its external surface is smoothly polished for the easy removal of the dried cake.
Below the drum pan is placed with the feed in the manner that the drum dips partially in to the pan consisting of feed. One side of the drum a spreader is placed which is used to spread the material on to the drum and on the other side a doctors knife is placed to scrap or peel off the dried materials from the metal drum. After peeling of the material collect the materials in the conveyor or storage bin.
In drum dryer rotates on its longitudinal axis which is heated hallow metal drum , this metal drum is used to dipped in the solution to be dried .
As the dipping process completed the solution on the drum forms as a film on the surface of the dryer and made to dry, to form a layer on the surface of the metal drum. While the drum is rotating the suitable knife which is present just down to the metal drum scraps or peel offs the dried materials from the drum.
CONSTRUCTION
The construction of the drum dryer consists of a hollow steel drum of 0.6 to 3 meters diameter and 0.6 to 4.0 m length which is horizontally mounted and its external surface is smoothly polished for the easy removal of the dried cake.
Below the drum pan is placed with the feed in the manner that the drum dips partially in to the pan consisting of feed. One side of the drum a spreader is placed which is used to spread the material on to the drum and on the other side a doctors knife is placed to scrap or peel off the dried materials from the metal drum. After peeling of the material collect the materials in the conveyor or storage bin.
Technical parameter
Model | Drum Size mm | Heat Area m² | Capacity kg/h | Steam Consumption kg/h | Weight kg | Power kw | Dimension mm |
HG-600 | 600*800 | 1.12 | 40-70 | 100-175 | 850 | 2.2 | 1700*800*1500 |
HG-700 | 700*1000 | 1.65 | 60-90 | 150-225 | 1210 | 3 | 2100*1000*1800 |
HG-800 | 800*1200 | 2.26 | 90-130 | 225-325 | 1700 | 4 | 2500*1100*1800 |
HG-1000 | 1000*1400 | 3.30 | 130-190 | 325-475 | 2100 | 5.5 | 2700*1300*2250 |
HG-1200 | 1200*1500 | 4.24 | 160-250 | 400-625 | 2650 | 7.5 | 2800*1500*2450 |
HG-1400 | 1400*1600 | 5.28 | 210-310 | 525-775 | 3220 | 11 | 3150*1700*2800 |
HG-1600 | 1600*1800 | 6.79 | 270-400 | 675-1000 | 4350 | 11 | 3350*1900*3150 |
HG-1800 | 1800*2000 | 8.48 | 330-500 | 825-1250 | 5100 | 15 | 3600*2050*3500 |
HG-1800A | 1800*2500 | 10.60 | 420-630 | 1050-1575 | 6150 | 18.5 | 4100*2050*3500 |
Features
It takes les time to dry.
Thermo sensitives drugs can also be dried.
Drum dryers occupies less space.
In order to reduce the temperature of drying the drum can be enclosed in a vacuum chamber.
Rapid drying takes place due to rapid heat and mass transfer.
Application
Solutions, slurries, suspensions and more are dried in this dryer.
Milk products, starch products, ferrous salts, suspensions of zinc oxide, suspensions of the kaolin, yeast, pigments, malt extracts, antibiotics, glandular extracts, insecticides, DDT, calcium and barium carbonates are dried in this dryer.
Our Service
Design and production
We solicit buyers opinions widely at the design and production stage of equipment; especially at the stage of plan and elevation arrangement, we give full consideration to buyers’ site conditions and public engineering conditions, and pay concurrent attention to the optimum combination when assuring the quality of equipment.
Installation and commissioning
After the equipment is delivered to buyers factory, we will dispatch full-time technical personnel to instruct buyers’ installation and to take charge of commissioning until normal use of the equipment.
Training
Before buyers use our equipment normally, our commissioning personnel will organize buyers’ relevant personnel to accept training, which covers the maintenance and care of equipment, timely repair of common faults, and procedures for operation of equipment.
Warranty
We provide one-year warranty for our equipment. For damage of equipment arising from non-artificial factors within the warranty period, we will provide repair service for free; and for damage of equipment arising from artificial factors, we will provide repair service in time and collect corresponding cost.
Maintenance and period
For damage of equipment after expiration of warranty period, we will provide on-site repair service within 24h/48h for enterprises inside/outside the province after receiving buyers’ notification. The service provided after expiration of warranty period is fee-based, and flat cost will be collected each time when the service is provided.
We solicit buyers opinions widely at the design and production stage of equipment; especially at the stage of plan and elevation arrangement, we give full consideration to buyers’ site conditions and public engineering conditions, and pay concurrent attention to the optimum combination when assuring the quality of equipment.
Installation and commissioning
After the equipment is delivered to buyers factory, we will dispatch full-time technical personnel to instruct buyers’ installation and to take charge of commissioning until normal use of the equipment.
Training
Before buyers use our equipment normally, our commissioning personnel will organize buyers’ relevant personnel to accept training, which covers the maintenance and care of equipment, timely repair of common faults, and procedures for operation of equipment.
Warranty
We provide one-year warranty for our equipment. For damage of equipment arising from non-artificial factors within the warranty period, we will provide repair service for free; and for damage of equipment arising from artificial factors, we will provide repair service in time and collect corresponding cost.
Maintenance and period
For damage of equipment after expiration of warranty period, we will provide on-site repair service within 24h/48h for enterprises inside/outside the province after receiving buyers’ notification. The service provided after expiration of warranty period is fee-based, and flat cost will be collected each time when the service is provided.
Project Case

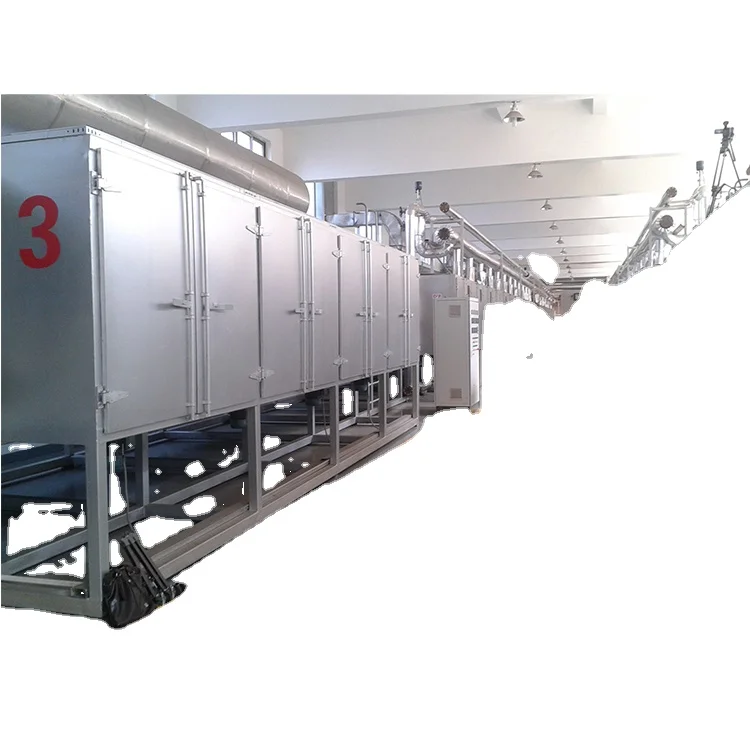

The pigment belt dryer equipment
This is belt dryer are customized to the Indian customer, Heat source：clean flue gases（heat exchanging type coal-fired hot air furnace, output quantity of heat is 160×104Kcal/h
Usage temperature：180-130℃
Circulating air volume：each section ≈18000 m3/h
Total installed power:120kW
Overall dimensions (L×W×H)：19000×2400×3100mm
it is used widly in chemical filed.

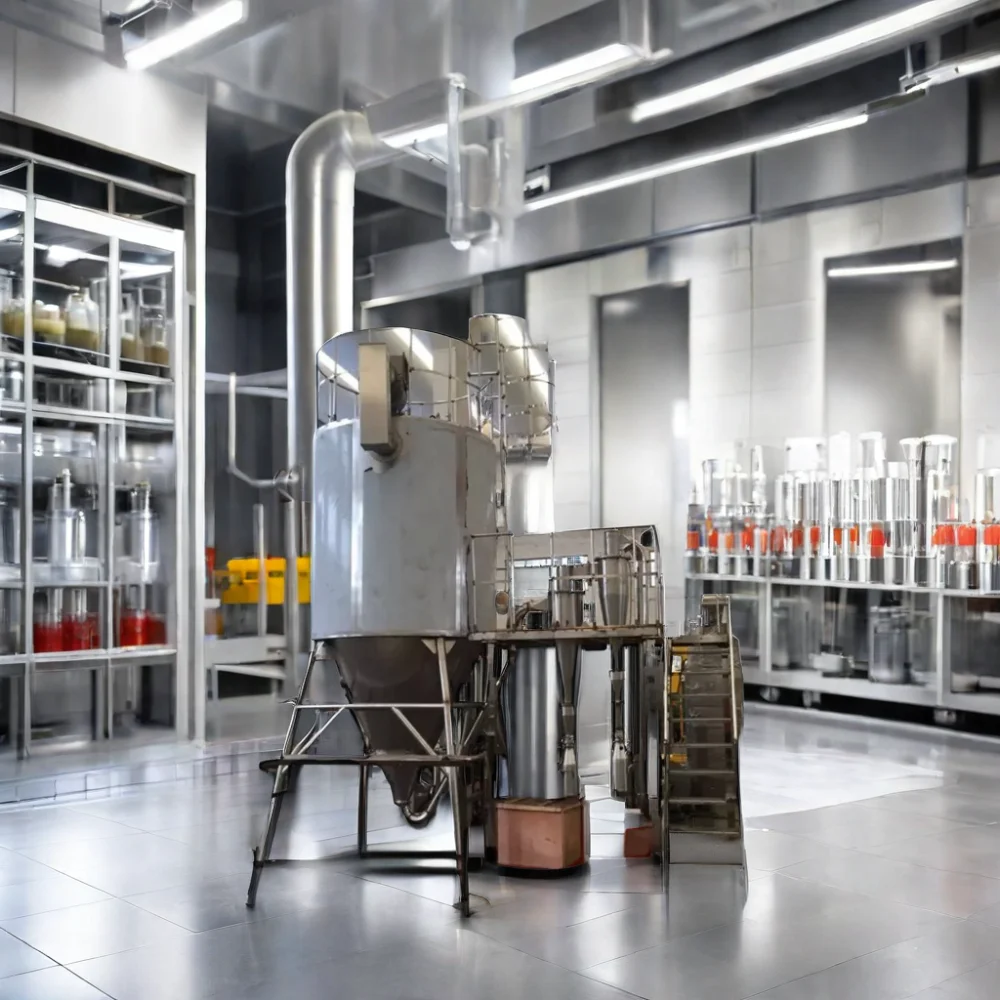

The spray dryer equipment.
1.\tName of material: coffee (instant)
2.\tInitial solid content: 35%
3.\tOutput: 1000kg/h (final moisture: ≤3.5%)
4.\tEvaporation capacity: 1650kg/h
5.\tInlet air temperature: 190°C (adjustable)
6.\tOutlet air temperature: 85°C (adjustable)
7.\tHeating method: heat-transfer oil heat exchange
8.\tRecovery method: fluidized bed central pipe discharging
9.\tDedusting method: cyclone cluster + wet scrubber

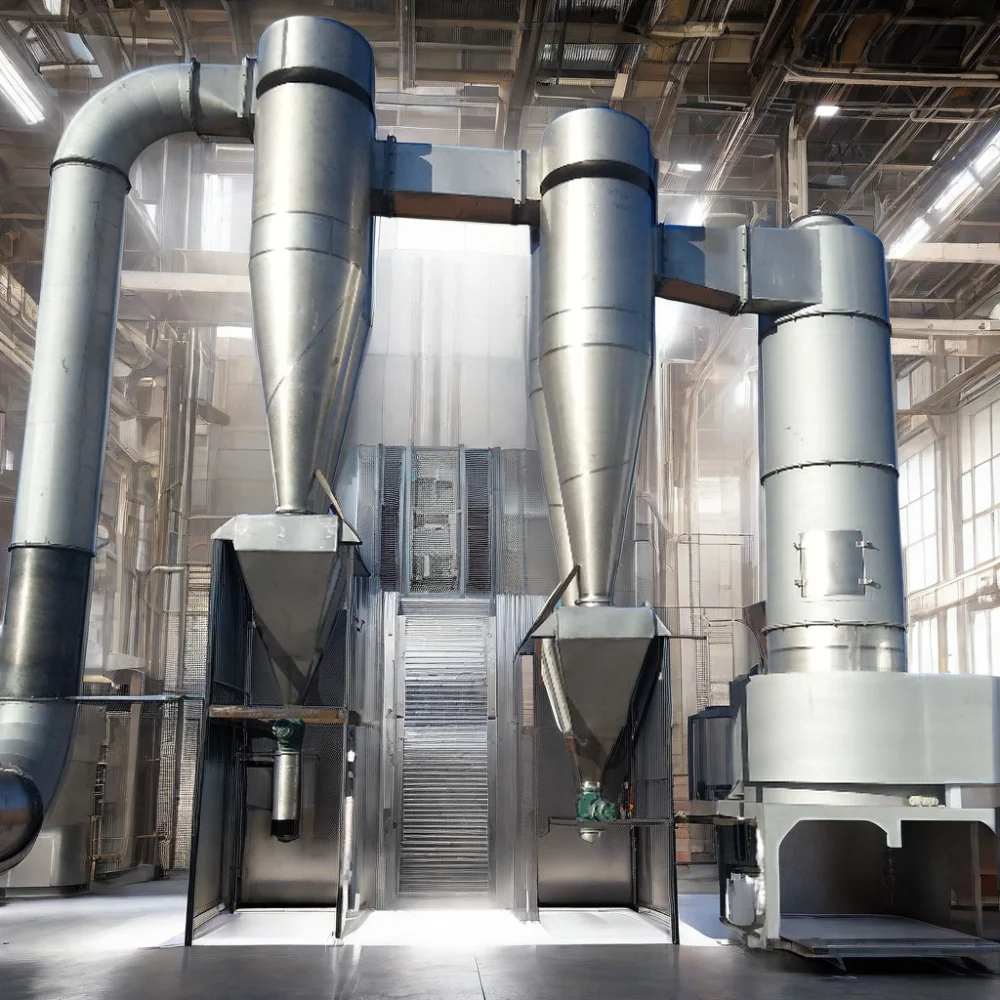

The flash dryer equipment
1. Material name: Manganese sulfate monohydrate
2.Feed capacity：5000kg/h
3.Evaporate amount：≤750kg/h
4.Powder water content：0.5%
5.Temperature：inlet 250-280℃，outlet 70-90℃
4.Install power：192kw
5.Gas consumption：140M3/H
