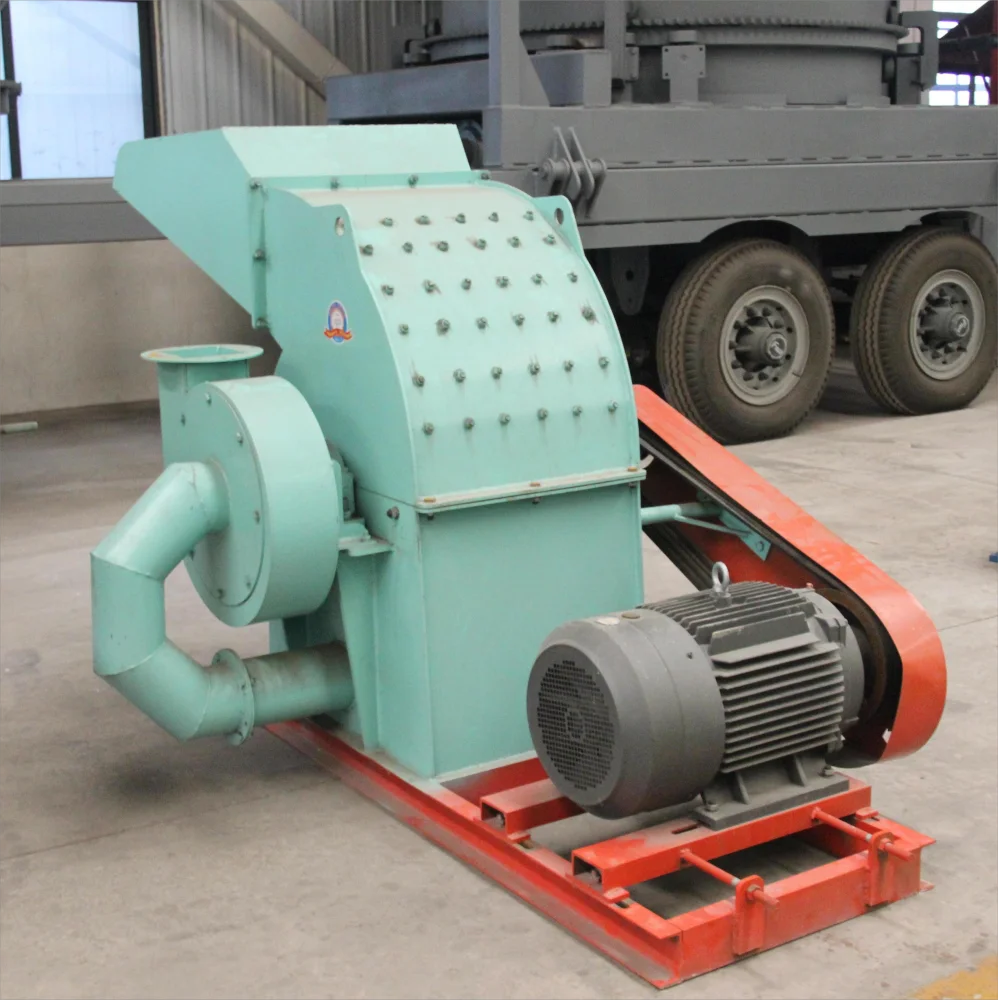

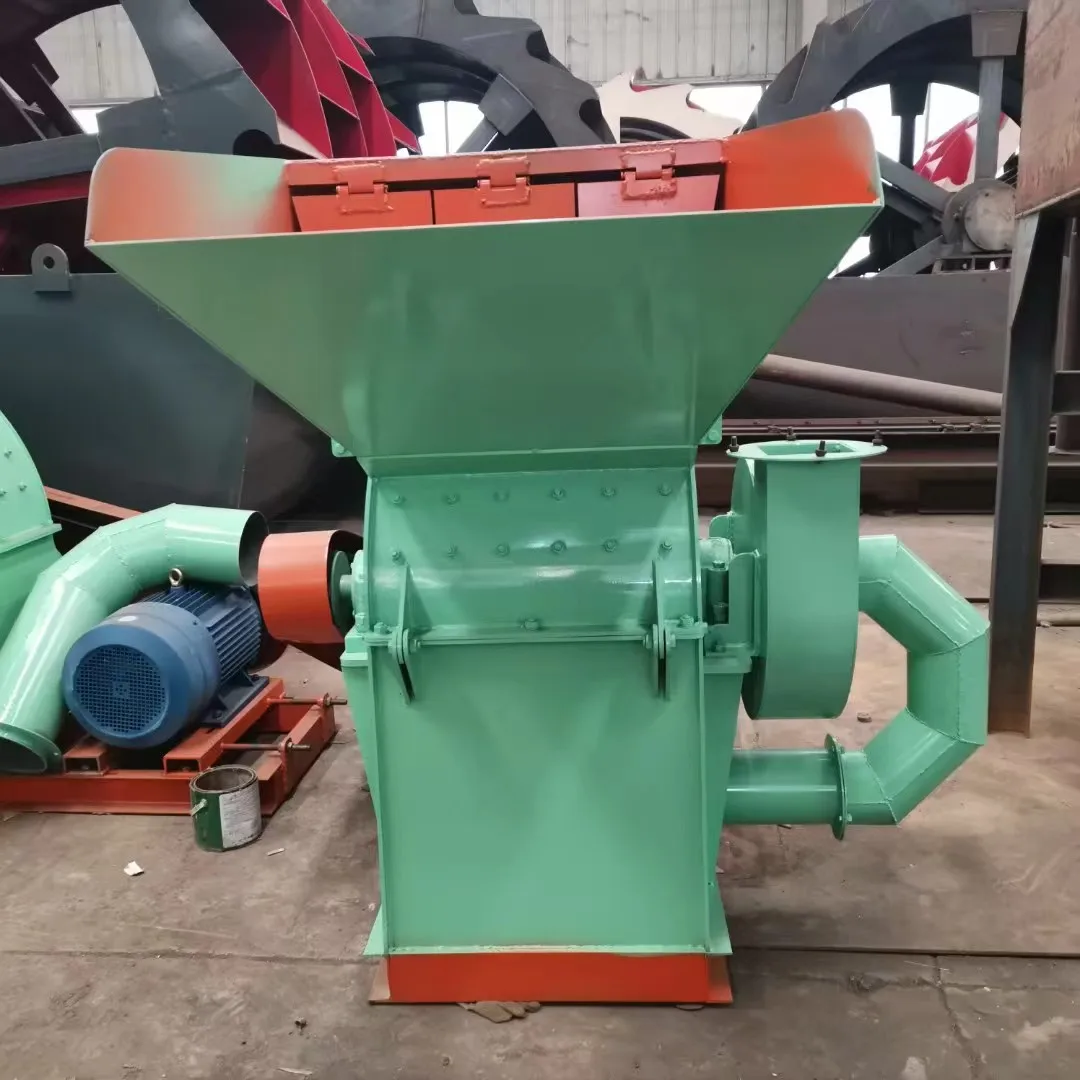

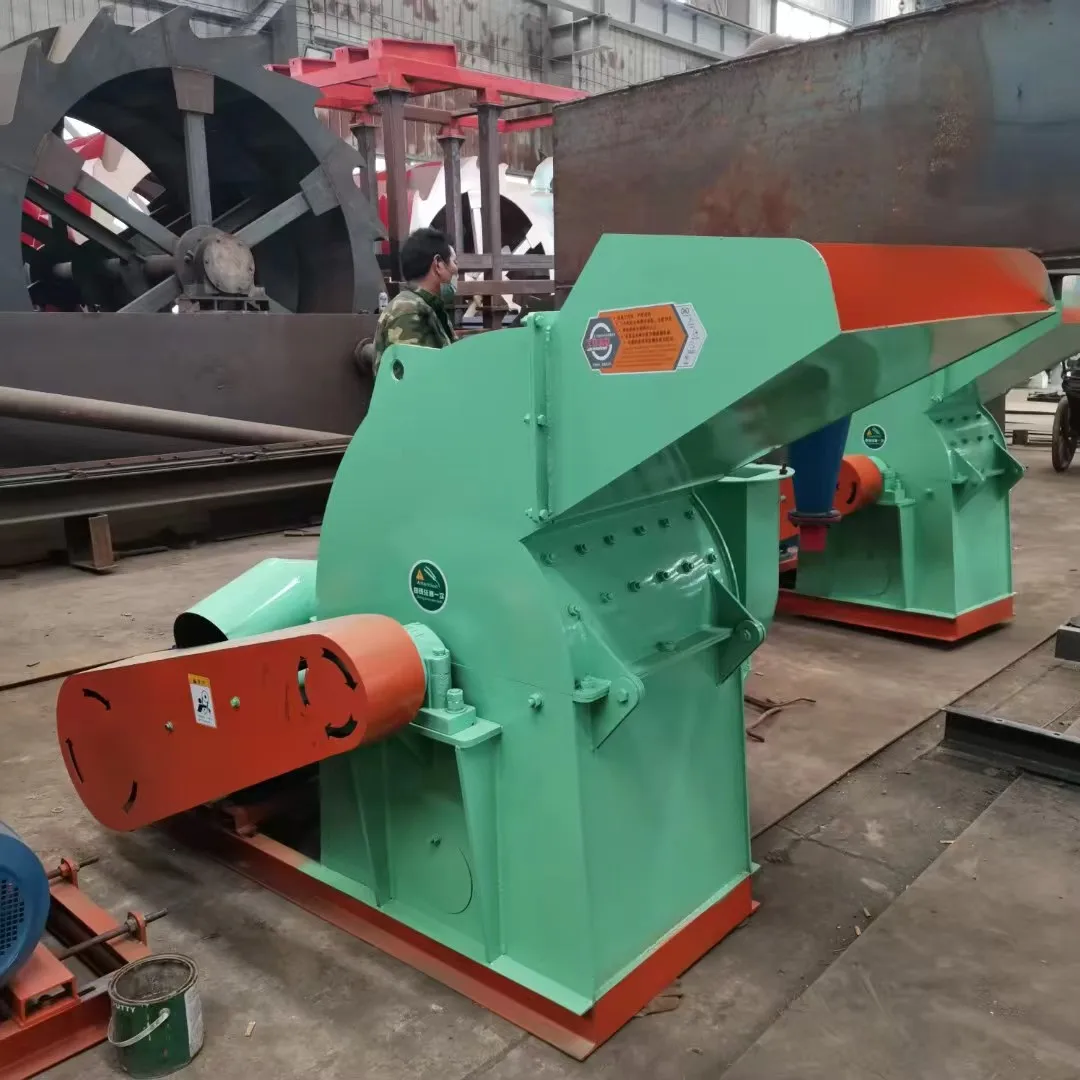

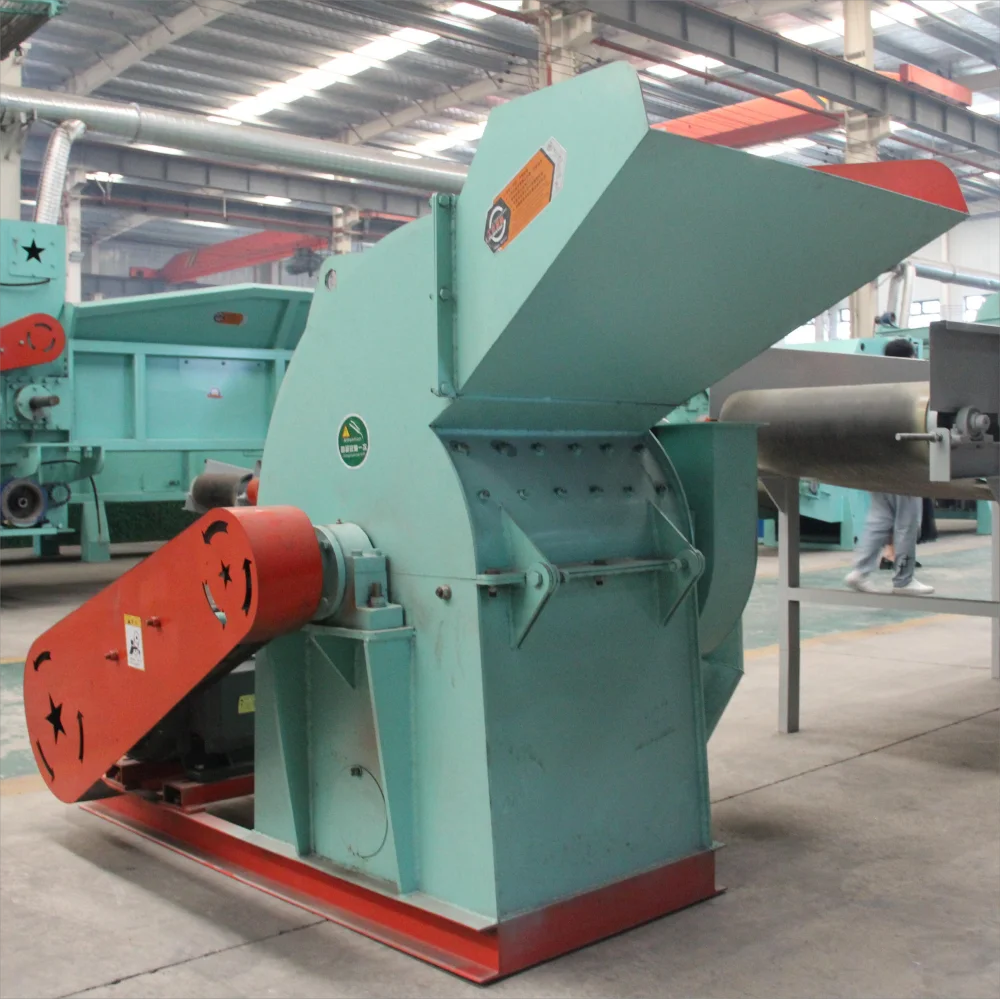

1500kw domestic wood chip machine double mouth crusher will crush raw materials into 5mm 20mm particles
- Category: >>>
- Supplier: Zhengzhou Debang Machinery Manufacturing Co. Ltd.
Share on (1601269872001):
Product Overview
Description
Product descriptions from the supplier
Overview
Product Description
Wood pulverizer is mainly divided into single-mouth wood pulverizer and double-mouth wood pulverizer. It is a special equipment for producing high-q wood chaff and sawdust. It grinds branches,leaves,pine,paulownia,miscellaneous wood, leftover materials from furniture factory, bamboo. thatch, stra um stalk and corn stalk into uniform sawdust at one time. Because of its advantages of low investment, high return, high utilization value, convenient operation and durability, it is small.
Multifunctional composite wood crusher large capacity crusher for wood

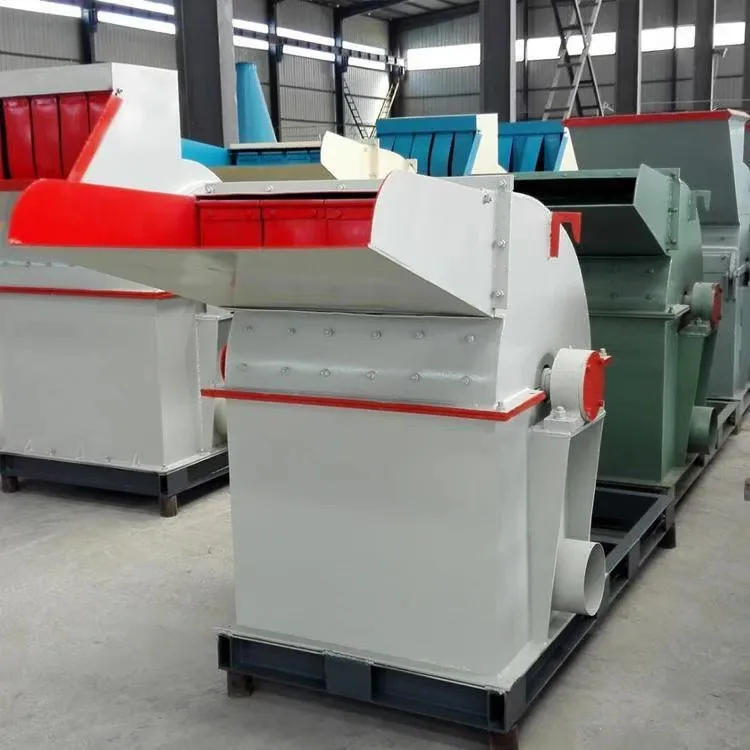

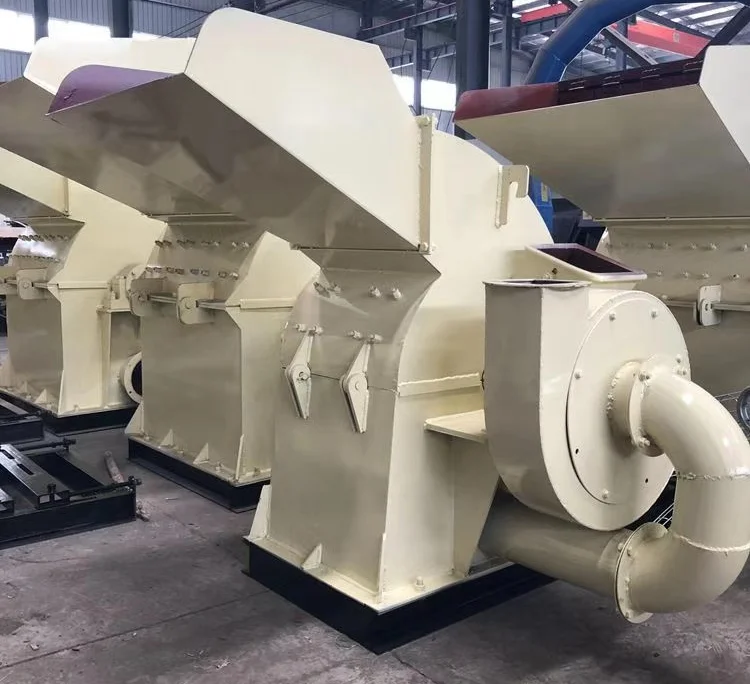

Wood pulverizer
Wood pulverizer is a new type of wood series production ideal woodworking machinery equipment. Wood pulverizer components are mainly composed of an organic shell, bearing, screen, transmission wheel, and trough frame. All materials are cast from manganese steel.
hammer（piece）
Various types of screens
Working principle:
This machine adopts self-priming feeding, and the material is sucked into the crushing chamber by the wind power of the induced draft fan. The material is driven by the motor to crush the chips on the spindle (there are three crushing chambers in this machine: coarse crushing, medium crushing and fine crushing, which improves the crushing breadth of the material and the uniformity of the finished product particle size). The crushed material is introduced into the wind power transportation by the induced draft fan, and is subjected to high-speed impact crushing in the process of being sucked into the wind power transportation, and the material enters the cyclone separator for separation through the transportation pipeline. The qualified material enters the exhaust pipe and is discharged from the discharge port, while the unqualified material returns to the crushing chamber from the return port to be crushed again until it meets the standard, and then enters the exhaust pipe and is discharged from the discharge port.

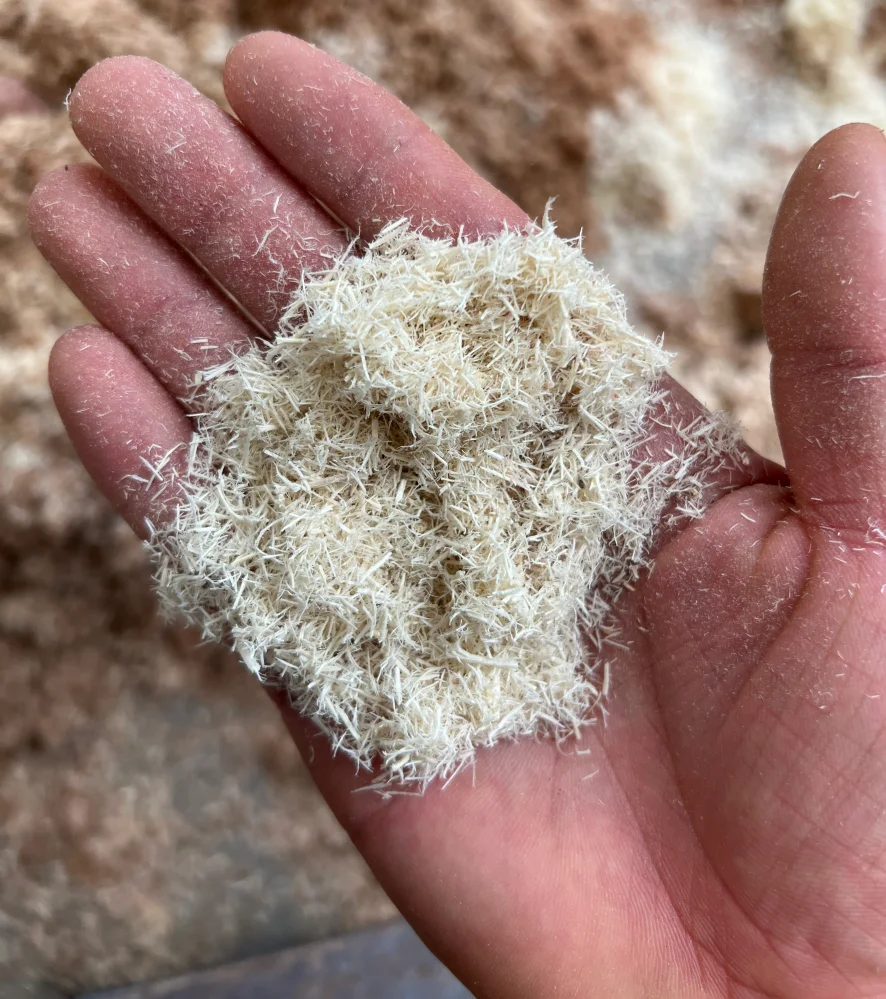

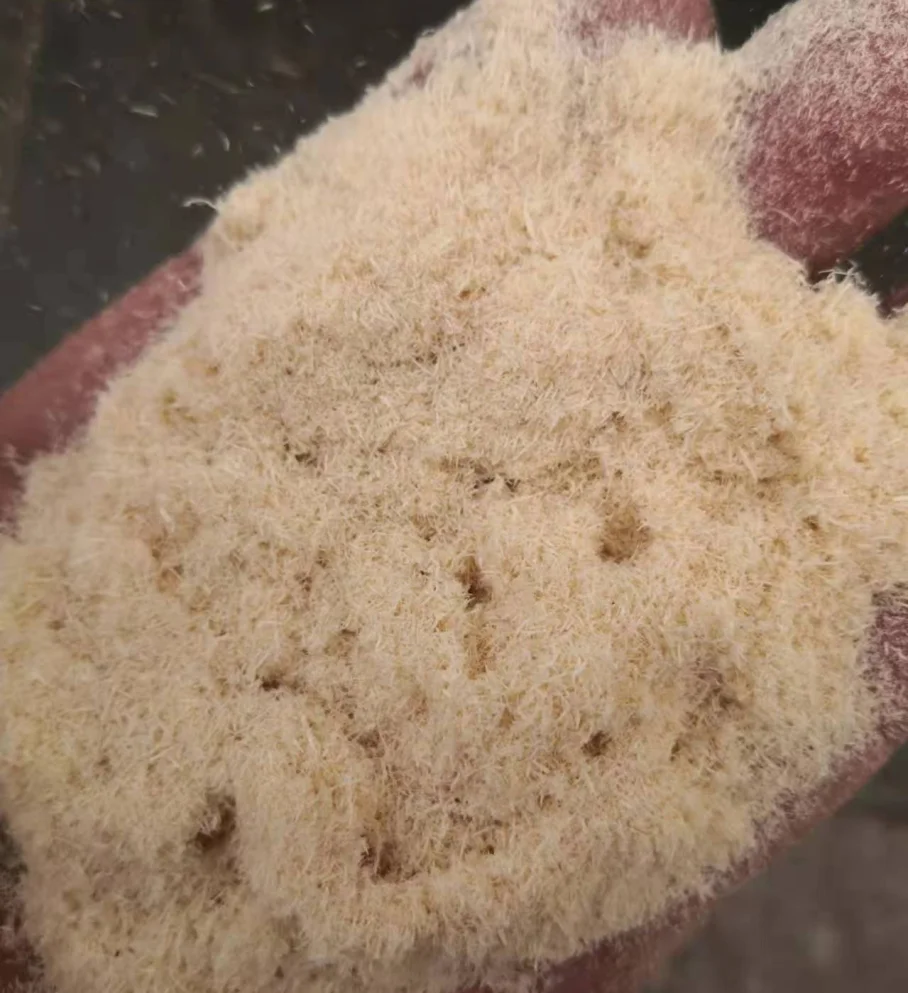

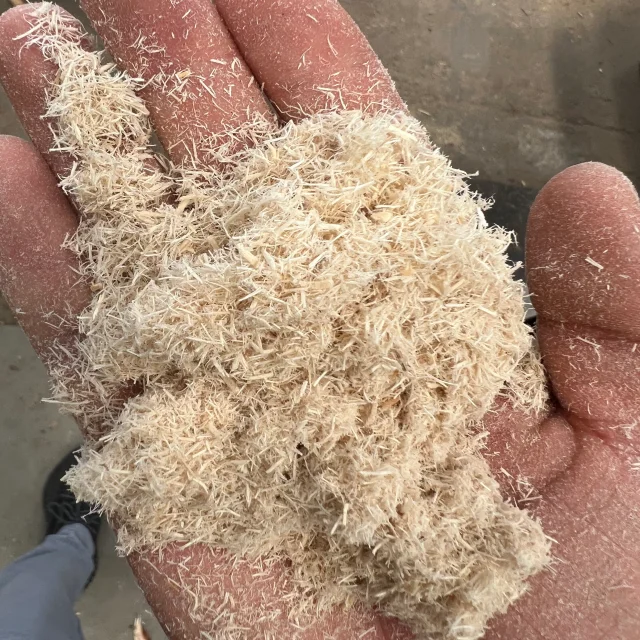

After pulverizering, final product can be controlled within 3 ~ 20mm.
Technical parameters
Model number | Main engine power（KW） | Productive capacity （Kg/h） | hammer（piece） | Floor space(m2) | Main engine size （mm） |
Type 500 | 22 | 600～1000 | 40 | 5 | 1850x1200x920 |
Type 600 | 30/37 | 1000～1500 | 40 | 7 | 2400x1600x1250 |
Type 800 | 45/55 | 1500～2500 | 56 | 9 | 2800x2000x1500 |
Type 900 | 55/75 | 2000～3000 | 64 | 12 | 3000x2200x1550 |
Type 1000 | 75/90 | 2.500～3500 | 72 | 14 | 3200x2400x1680 |
Application scenario

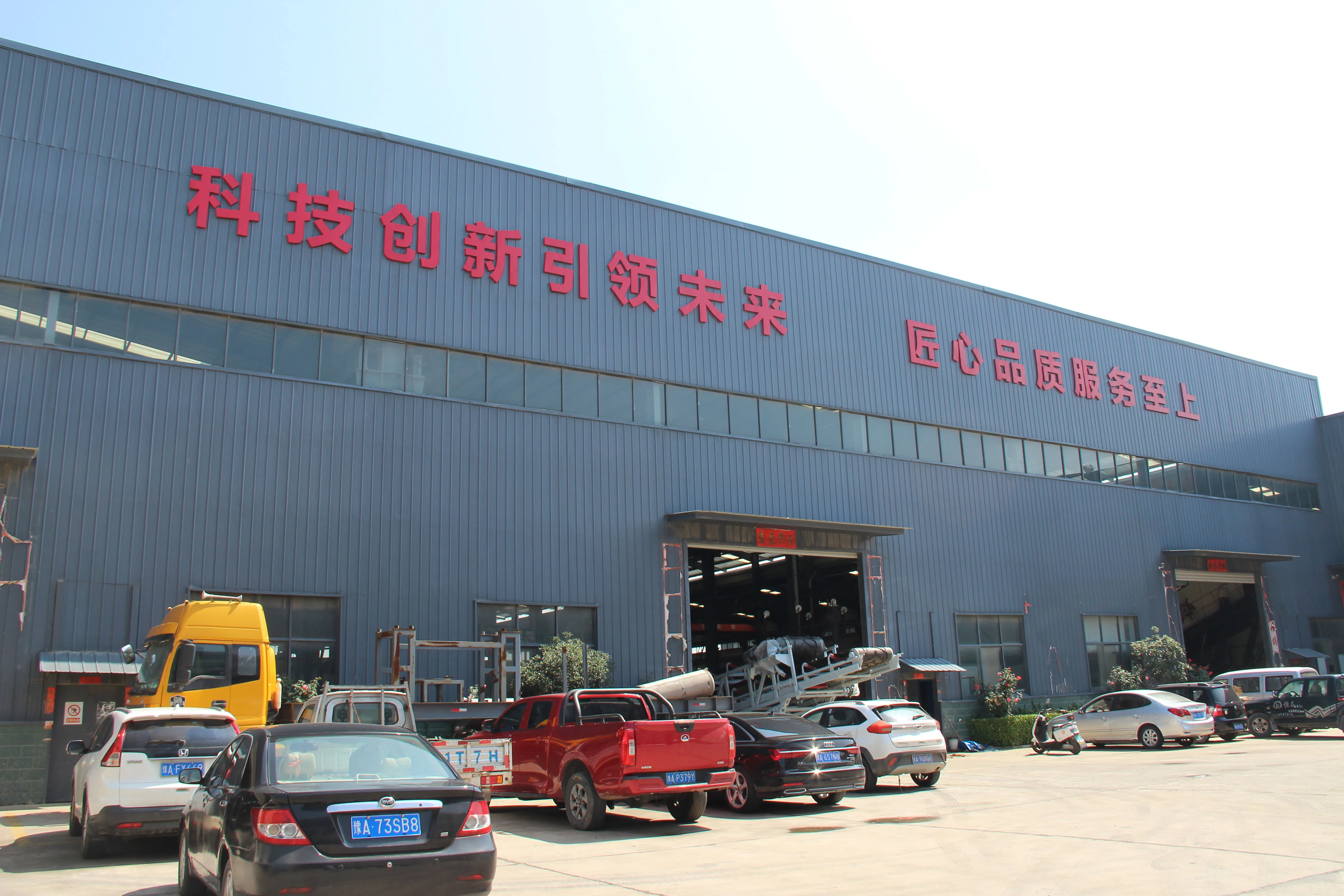

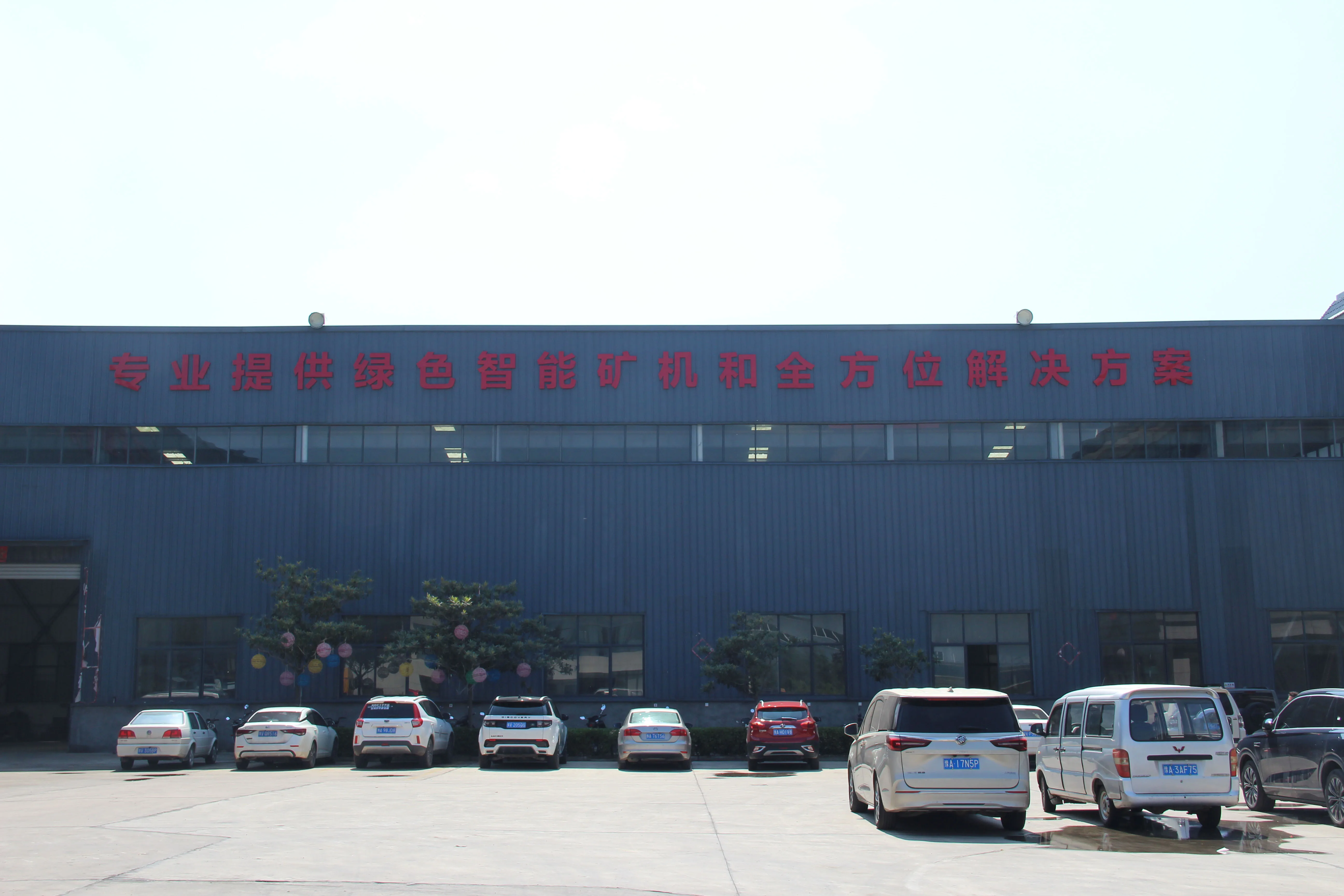

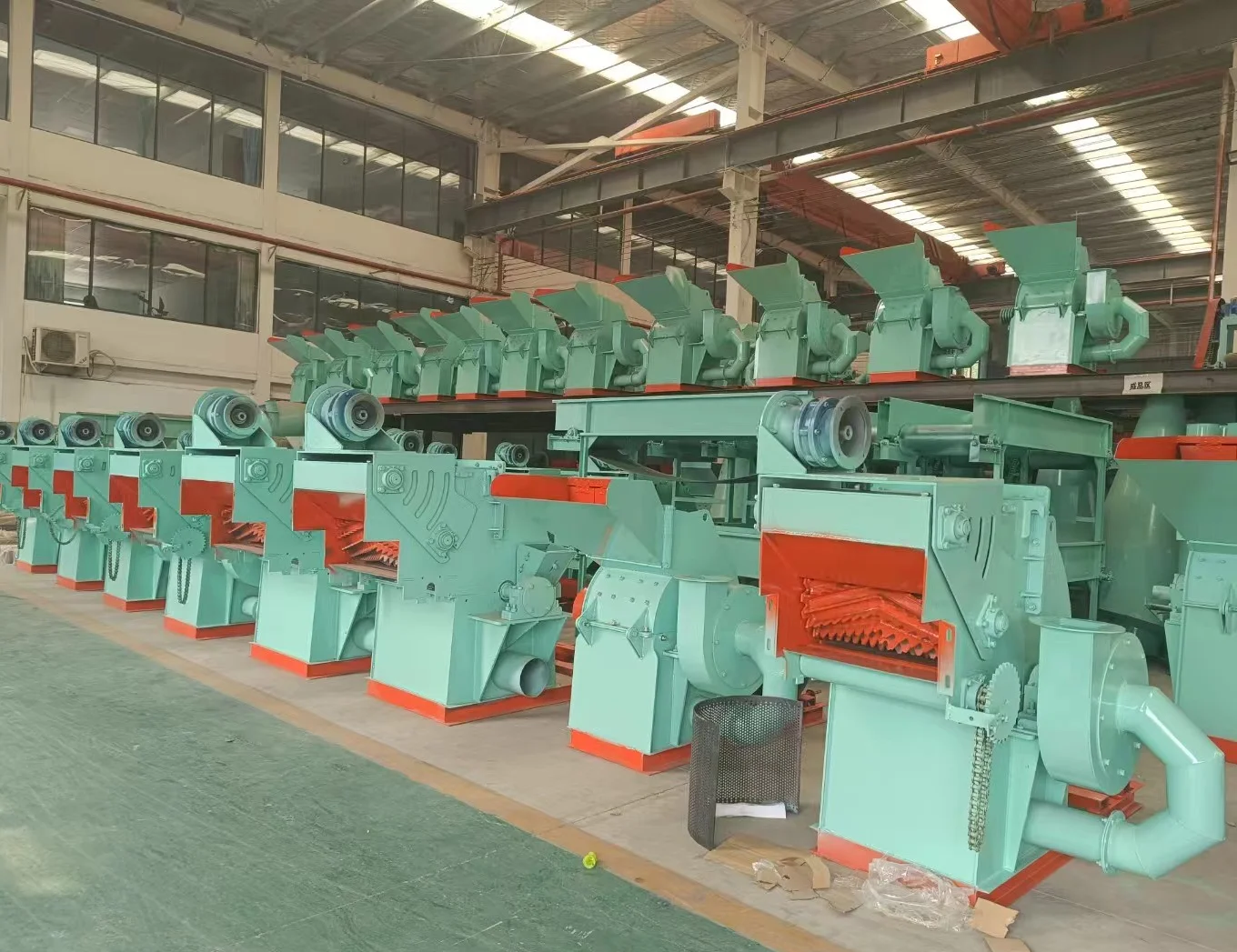

Company Profile
Zhengzhou Debon Environmental Protection Technology Co., Ltd. is a focus on biomass pellet machine series and wood crusher series of enterprises. Our factory is located in the north side of National Highway 310 in Zhengzhou, Henan Province, with a total area of 120,000 square meters, of which the standard heavy industry plant covers an area of 70,000 square meters. We have more than 200 sets of various types of metal processing, riveting and assembly equipment. At present, the company has more than 278 employees, and a total of 179 managers and technicians with medium and senior professional and technical levels. In addition to providing customers with existing equipment models to choose from, we can also customize the design and manufacture of products according to the special needs of customers.
Packing & Delivery

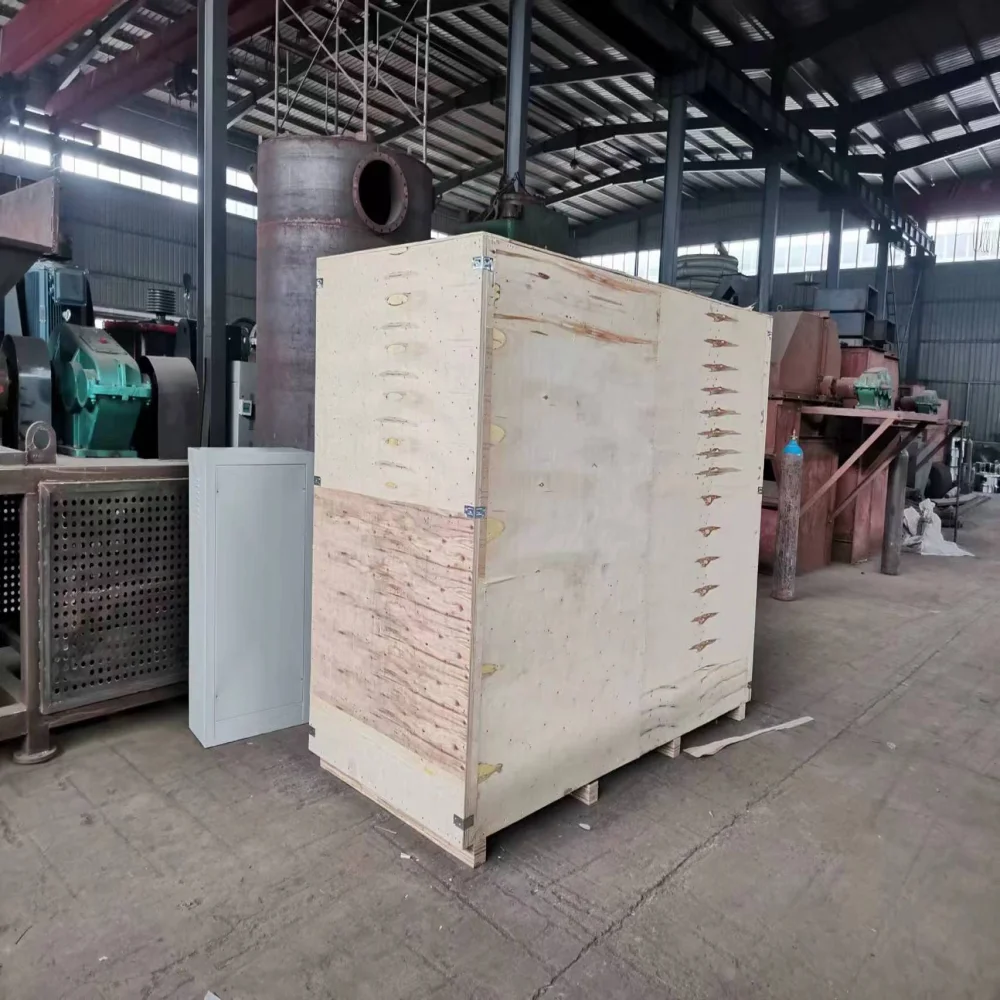

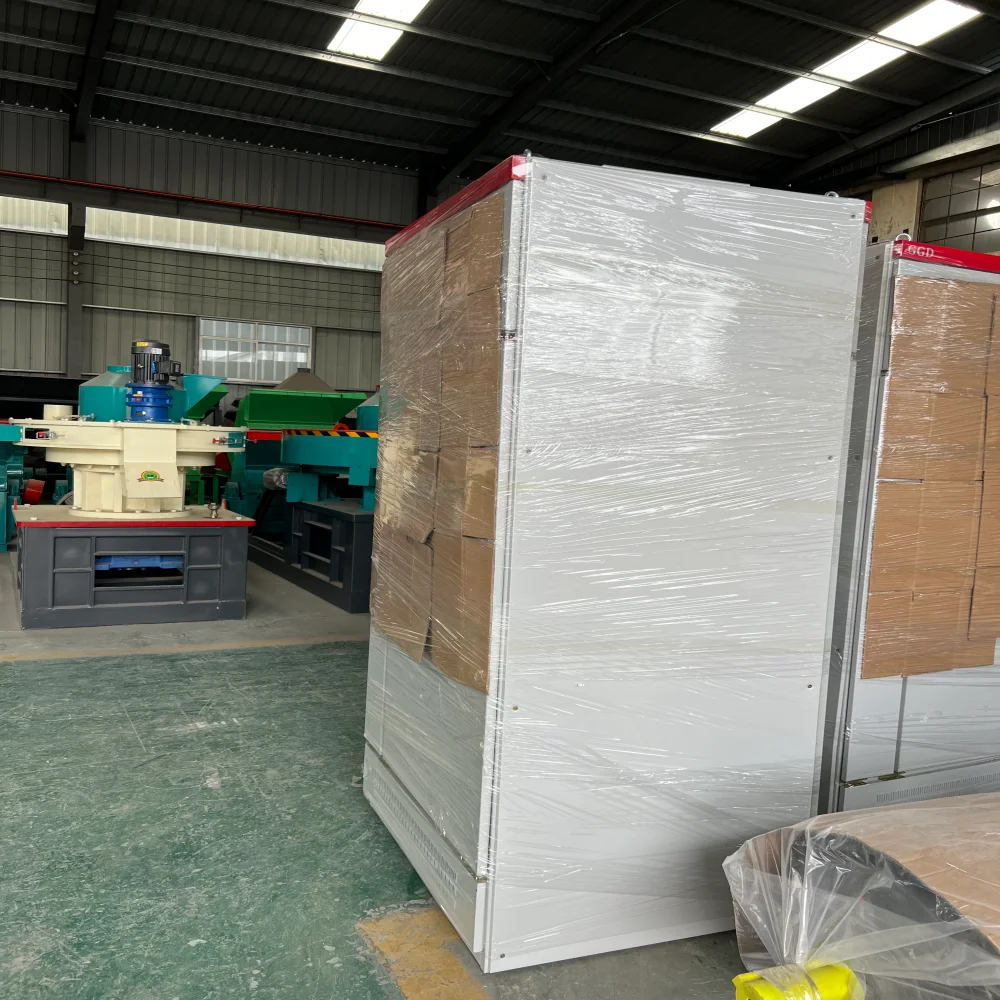

Package
*For the small machine,they will packaged into standard wooden case*For the large quantity and large machine,we will load it into 20ft container or 40ft container
Delivery
*Delivery by sea
*Delivery by express
*Delivery to your agents' warehouse in China,then will offer you tracking number
*Delivery by sea
*Delivery by express
*Delivery to your agents' warehouse in China,then will offer you tracking number

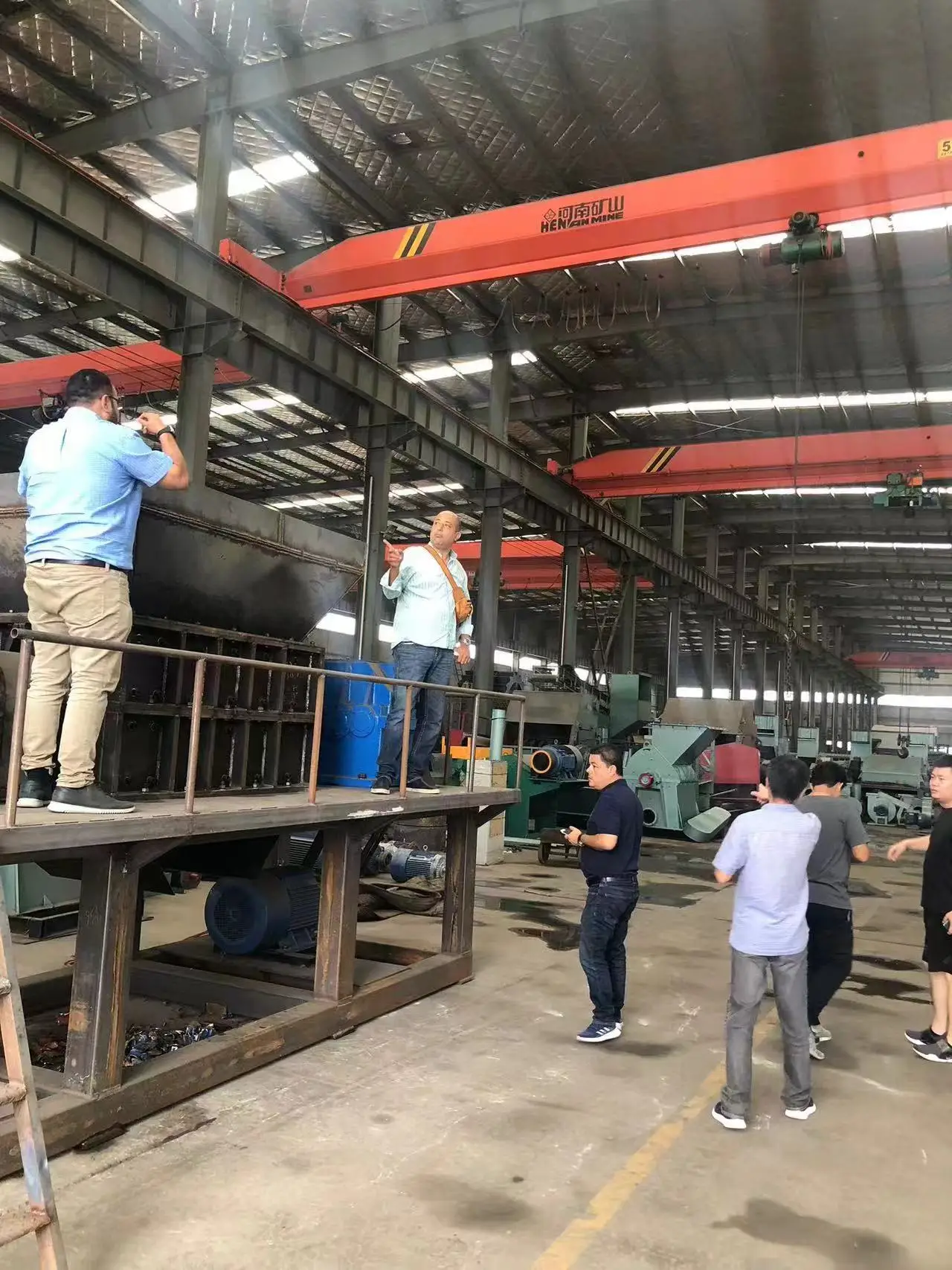

Customers visit
We attend exhibitions all over the country
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
We are a factory, established in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
