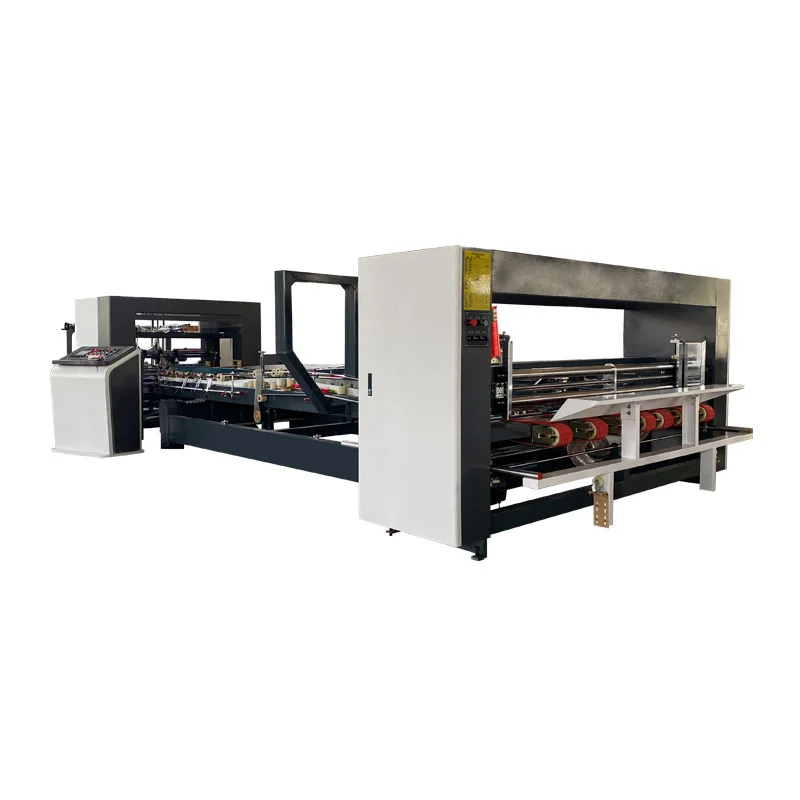

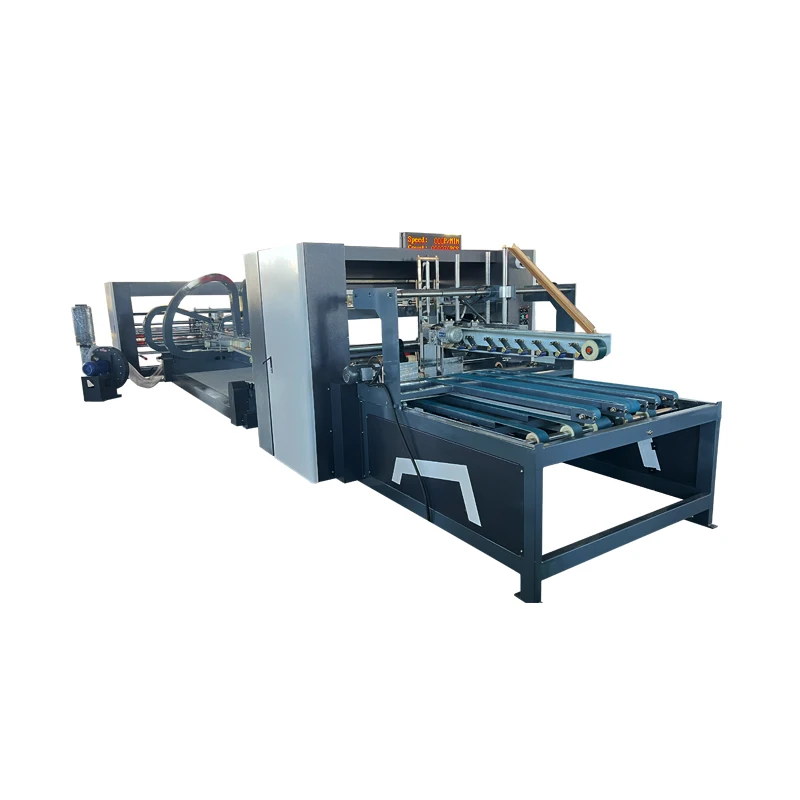

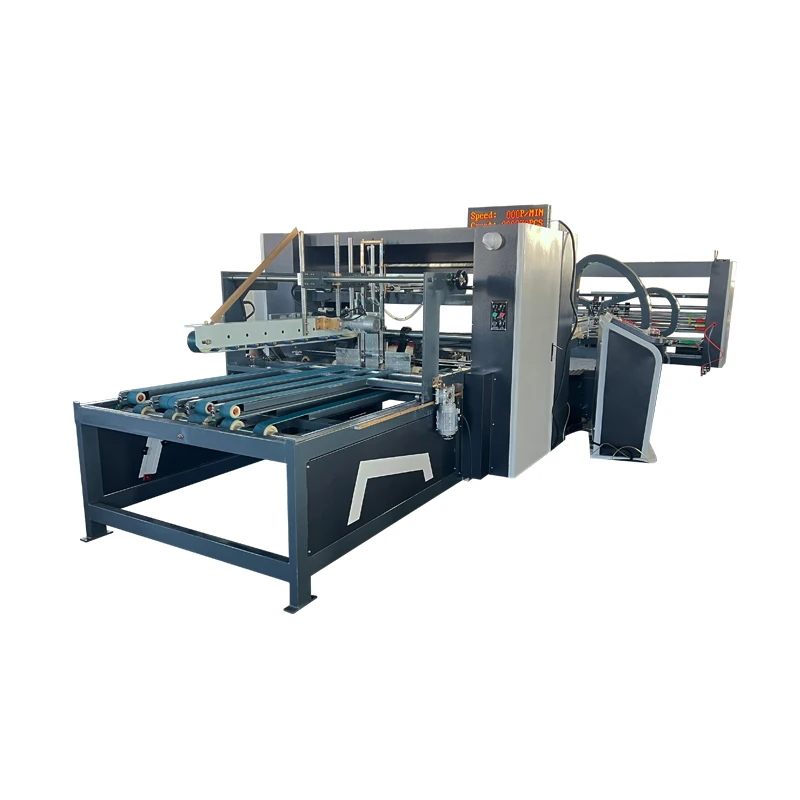

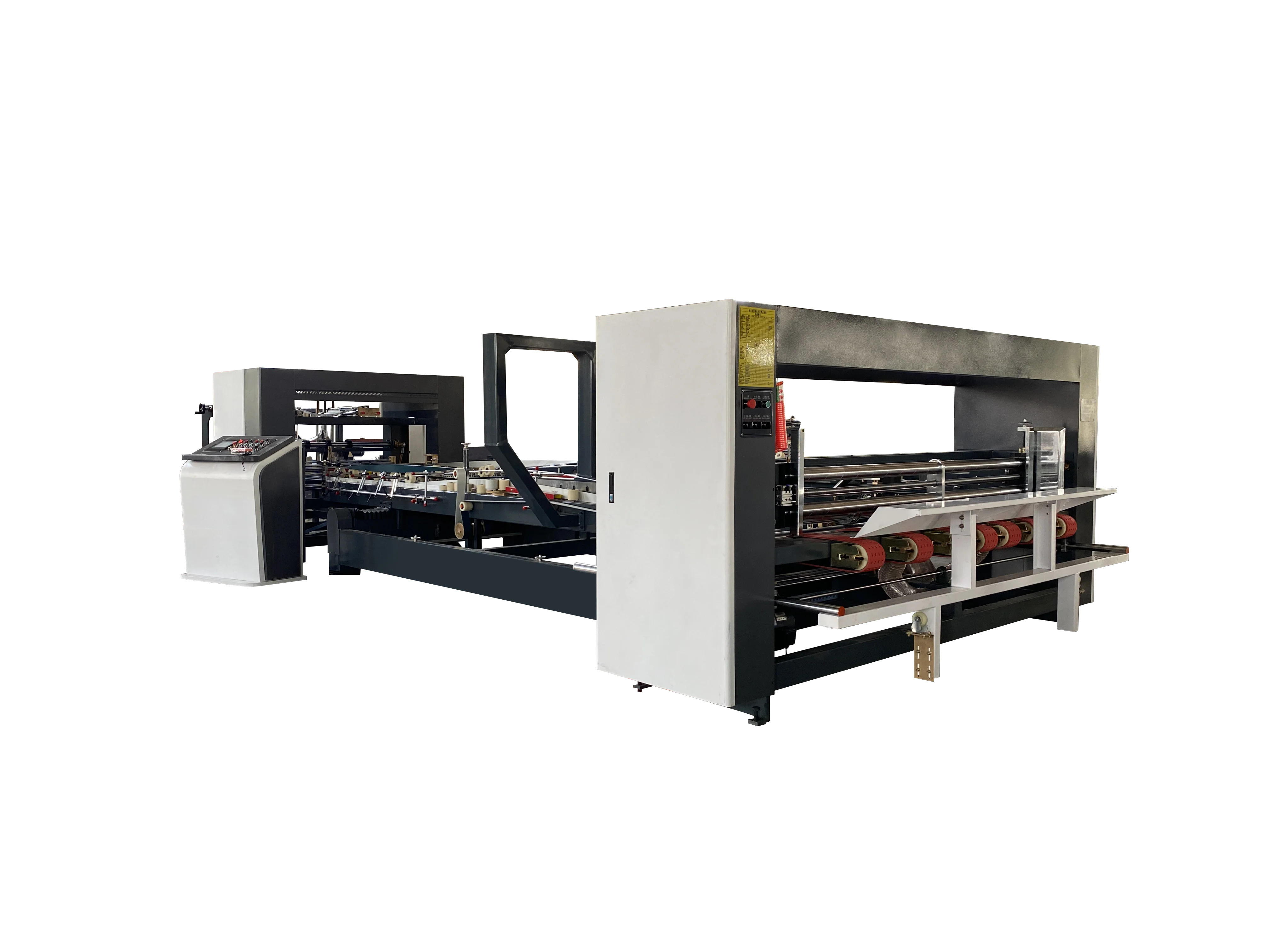

Good Price Folder Gluer For Cardboard Boxes
- Category: >>>
- Supplier: Dongguang A-Pack Machinery Manufacturing Co. Ltd.
Share on (1601270009014):
Product Overview
Description
Product Description

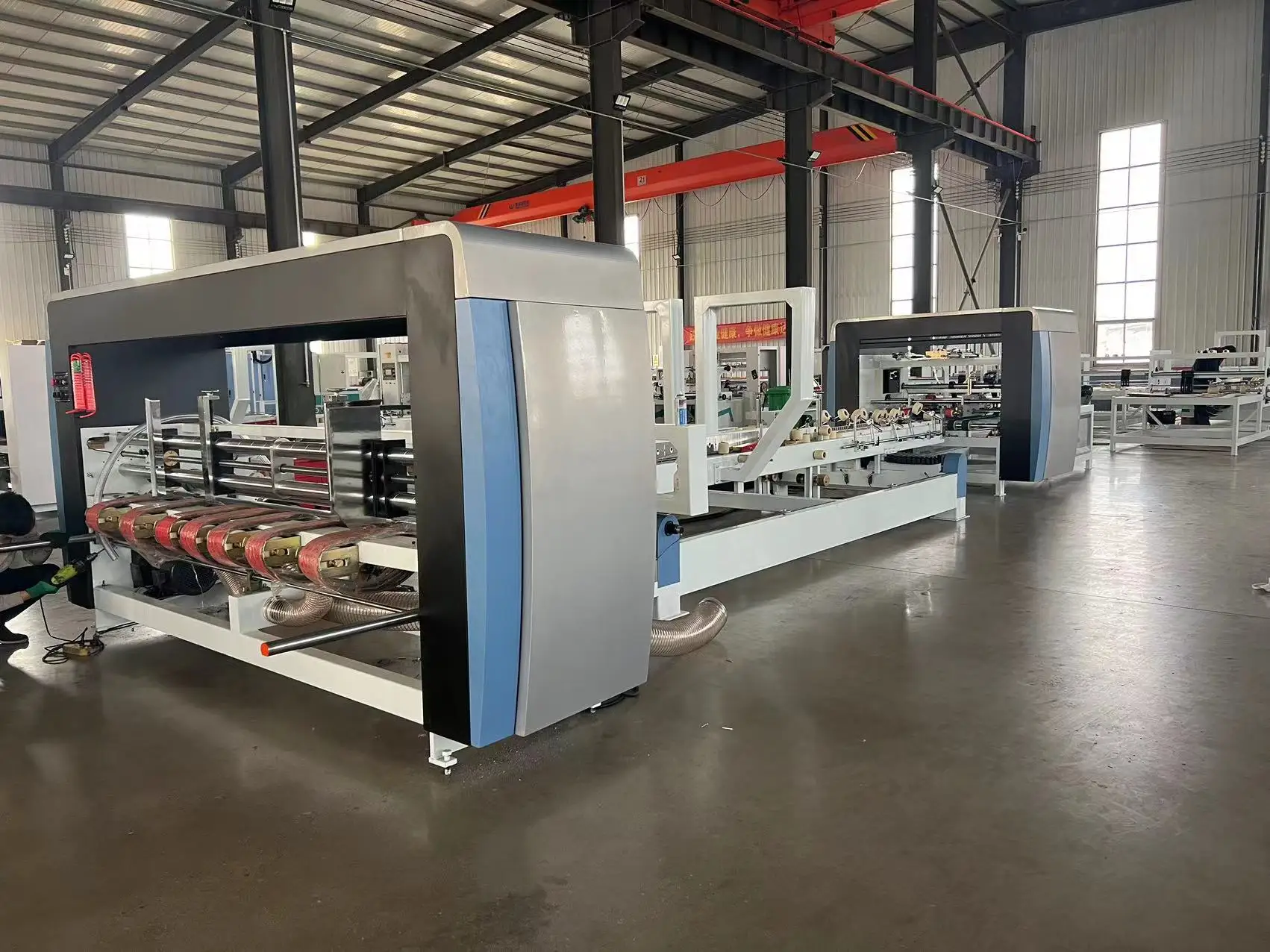

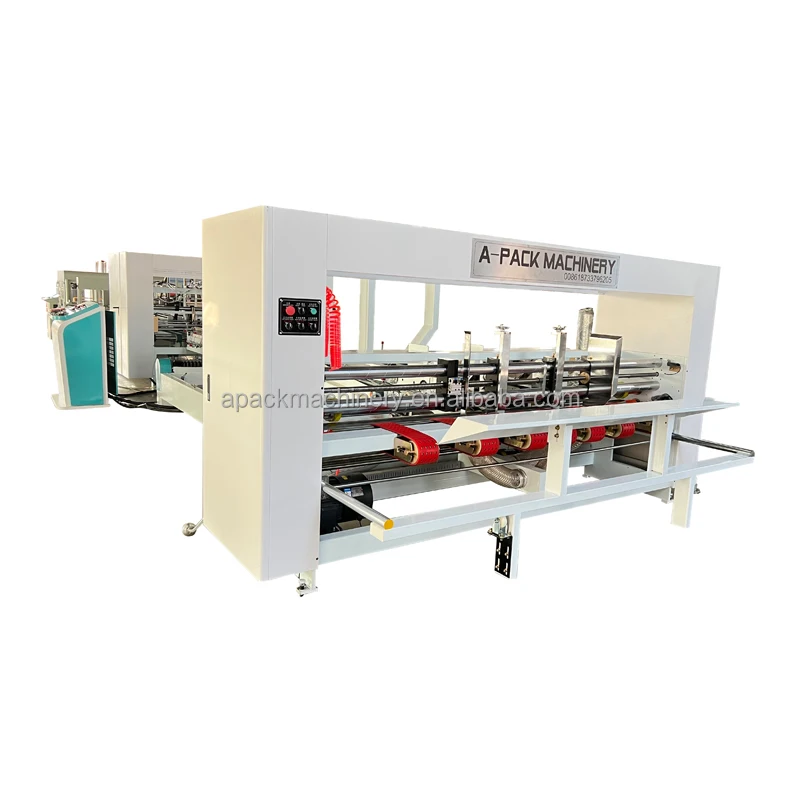

Automatic folder gluer
The full automatic box gluing machine is composed of vacuum paper feeding department, gluing and folding department and counting and stacking output department, digital display control, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode. Automatic paper supply, automatic gluing and folding, automatic counting, automatic stacking and output, average speed of gluing box is 200pcs/min, high speed, energy saving and labor cost saving.
The paper feeding department
1) belt leading edge suction paper feeding method is adopted, which is accurate and reliable.
2) the use of high-grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be independently controlled, simple and reliable operation.
3) the height of the line pressing wheel is adjustable, suitable for the cardboard thickness of 2-8mm.
4) linkage with folding part, frequency conversion speed control, paper supply speed 0-200pcs/min.
5) the front baffle of the paper feeding department and the paper belt are adjustable.
Gluing and folding section
1) the main motor adopts frequency conversion speed regulation system with no noise and stable speed regulation.
2) adopt imported high friction belt conveying paperboard, automatic folding.
3) stainless steel wheel coating, uniform amount of glue, no fault and save glue.
4) the folding part is equipped with a cardboard correction device and an indentation correction device.
5) the folding part has two rows of adjustable inner positioning regulating wheel system, with higher molding accuracy.
6) folding speed 0-200pcs/min.
Counting and stacking department
1) automatic stacking and patting output.
2) the main motor of the counting department is variable frequency and speed adjustable, stable and reliable when started up.
3) conveyor carton with belt, stacked neatly, speed 0-200m/min.
4) beat the carton with flapping board, which has the function of rectifying deviation and small deviation.
5) counting and pushing adopts pneumatic method, PLC electric control, reliable, accurate and fast action.
6) adopt PLC programming controller and touch screen digital control, simple operation, reliable action, non-stop input data, automatic counting.
7) the output part adopts the synchronous compression mode of conveying belt at the bottom and pressing belt at the top, so that the finished carton is bonded firmly and neatly without dislocation and output.
Details Images
Control panel
Automatic feeding belt
Synchronous belt
Side baffle
Photoelectricity camera
Delta inverter

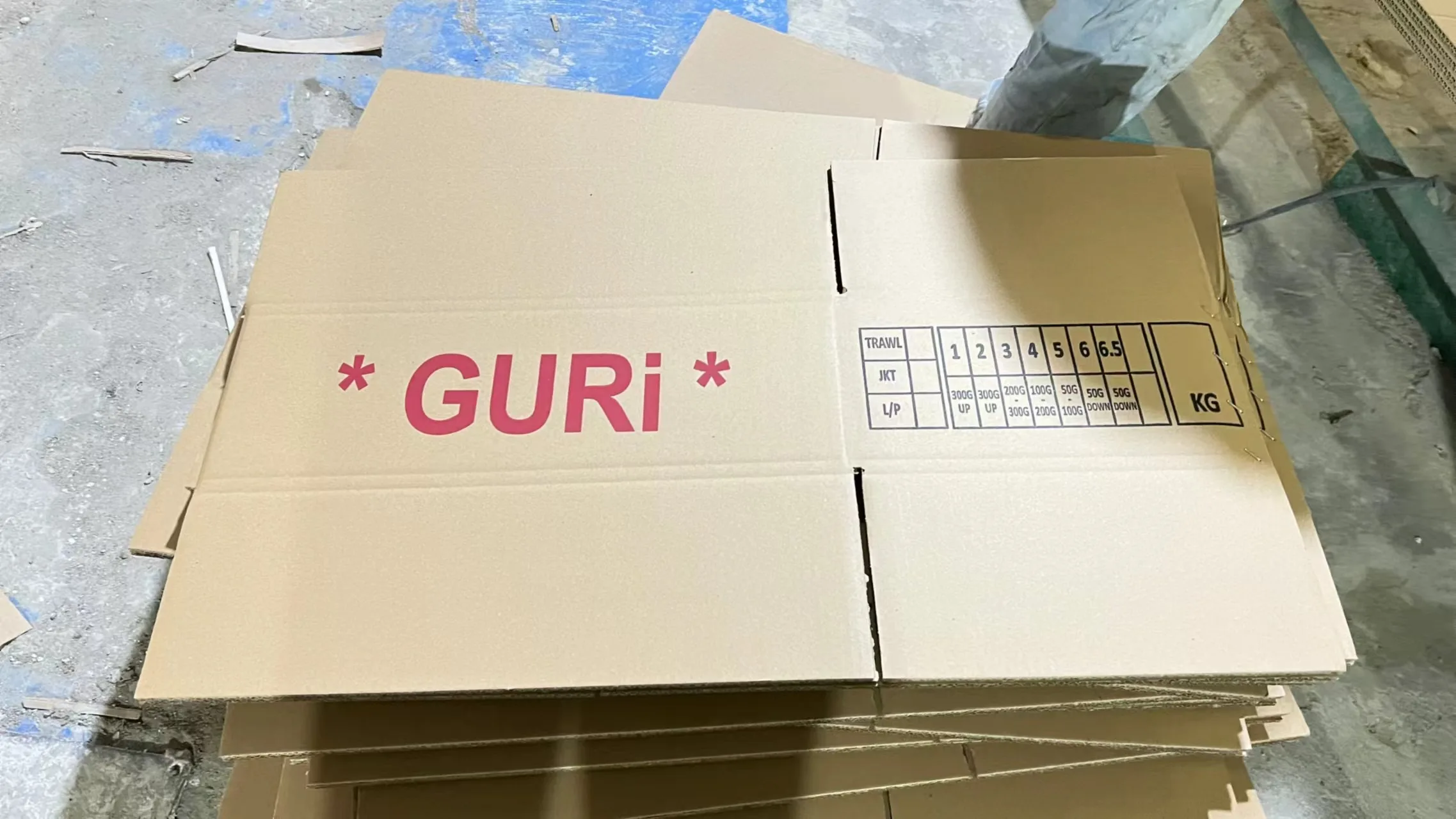

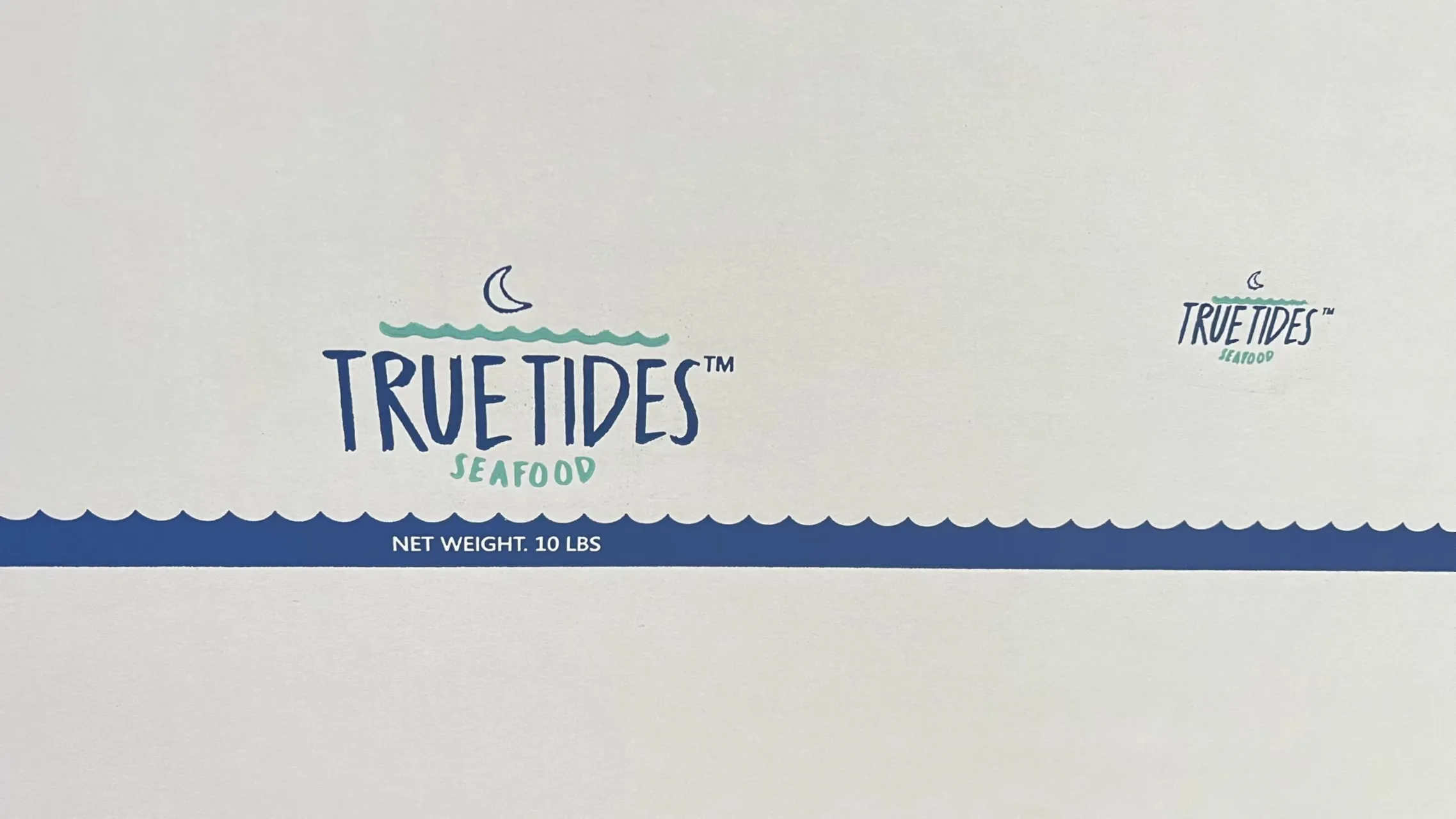

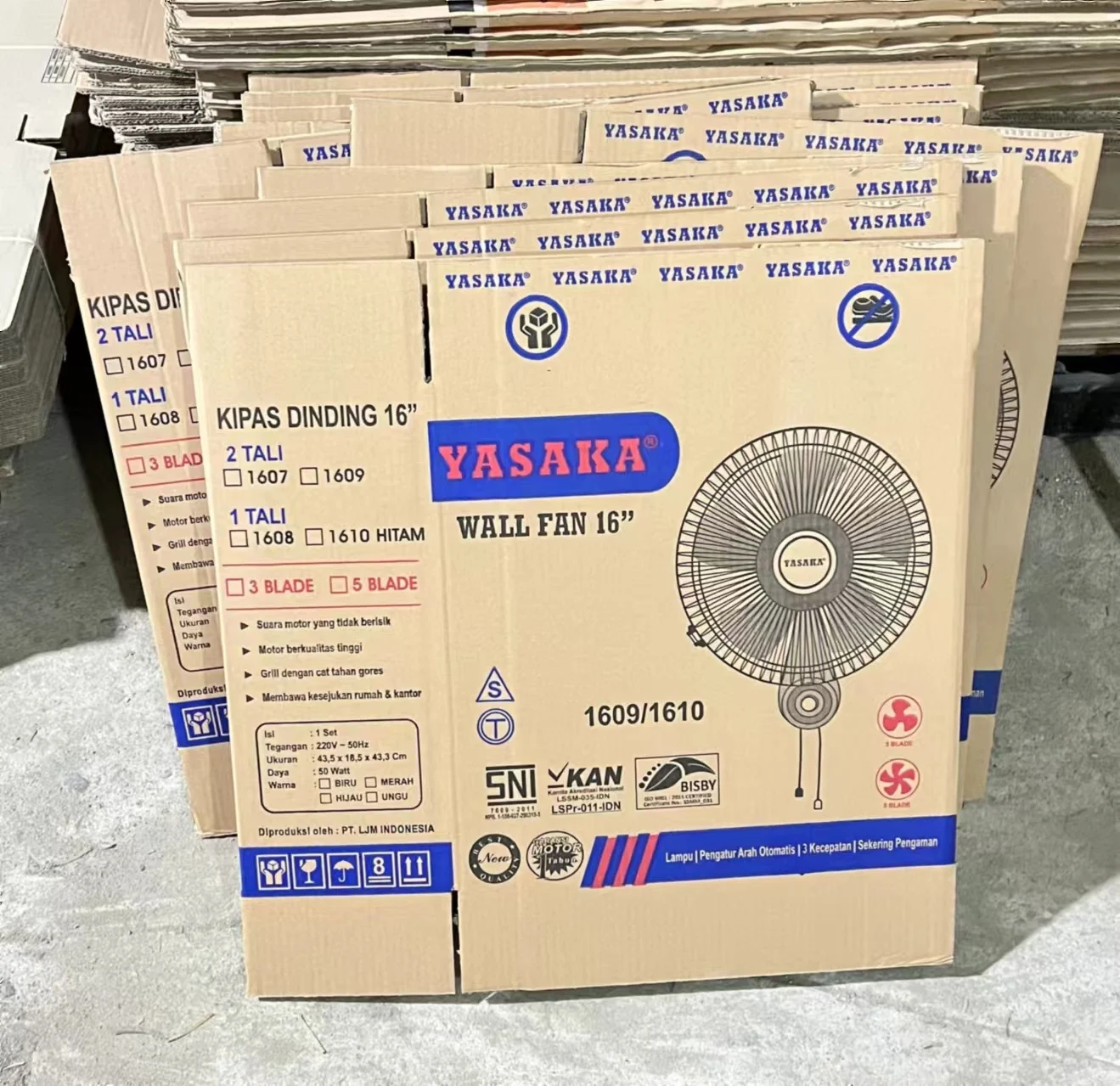

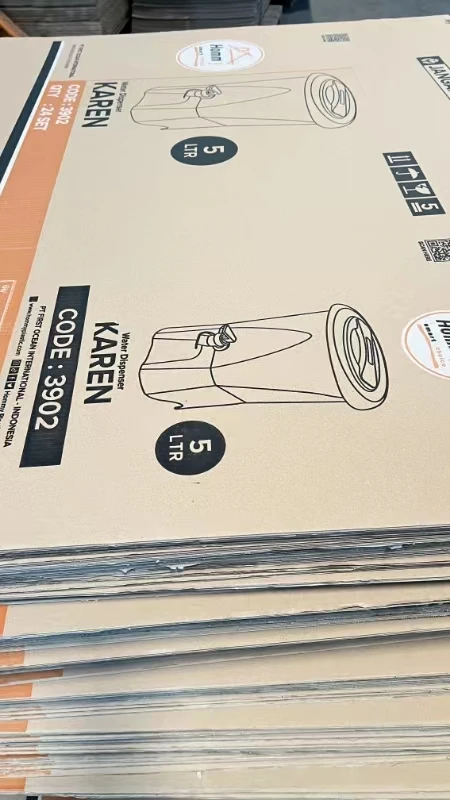

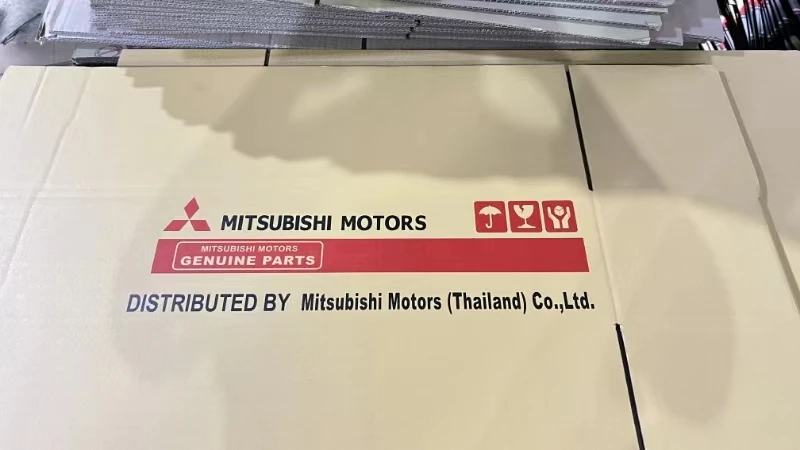

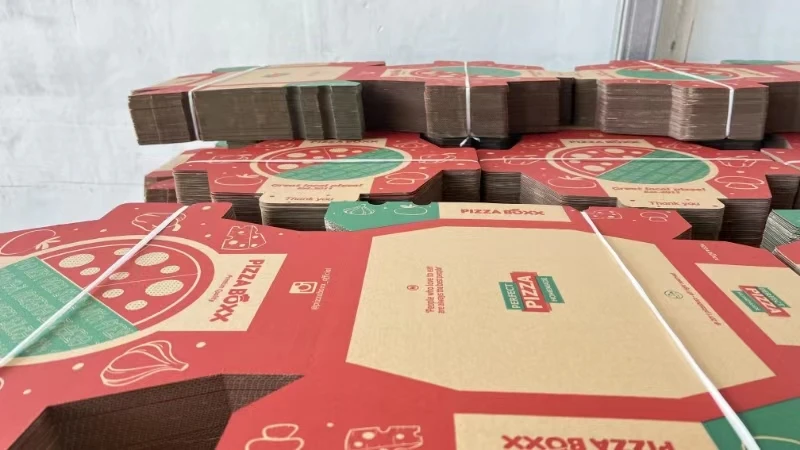

Sample
Specification
Model number | 2900 |
Maximum paperboard size(mm) | 1200*2600 |
Minimum paperboard size (mm) | 160*450 |
Overall size (mm) | 12000*3200*1900 |
Power (kw) | 12 |
Weight (kg) | 5000 |
1 Bearings | Harbin |
2 Electric appliance | Siemens |
3 PLC | Delta |
4 Encoder | Delta |
5 Touch screen | MCGS |
6 Main motor | Hengshui |
7 Draught fan | Shanghai |
8 Conveyor motor | Taiwan |
9 Conveyor belt | Shanghai |
Packing & Delivery
Careful Wrapping
During packaging, the product undergoes careful wrapping to ensure that it is not damaged during transportation. We will use appropriate packaging materials, such as foam, bubble film, carton, etc., to protect the goods in an all-round way.
Secure Sealing
After the packaging is completed, we will use tape, seals, and other items to firmly seal the packaging to prevent the goods from slipping or being damaged during transportation.
Reliable Carriers
We will choose reputable and experienced logistics or courier companies for delivery to ensure that the goods can be safely and timely delivered to customers.
Company Profile
DONGGUANG A-PACK MACHINERY MANUFACTURING CO.,LTD is a professional manufacturer of the corrugated paperboard production line , corrugated carton box printing machine , corrugated carton box folder gluer . Our company is located in Cangzhou city , Hebei province , China . Our company consists of Technical Development Department, Manufacturing Department, Domestic and International Sales Department and After-Sales Service Department.
We have professional engineers support, high efficiency sales team and competitive price superiority , and attract customers from all over the world, our machines have been exported to many foreign countries , including Europe , such as Russia , Bosnia and Herzegovina , Hungary , Slovenia , Aisa such as Vietnam , Philippines , America such as USA , Colombia , Mexico , Chile , and so on .
We did many Alibaba trade assurance orders online , and we provided our customers high quality machines and good after service , so our customers actively give our company 5 stars good reviews .We have special pre-sale and after-sale service, 24 hours online reply to customer inquiries, and solve customer problems.
We work with clients
FAQ
How long is your warranty?
Warranty for 12 months from the date of completion of the transaction.
Is this the final price?
The price showed in the title is not the final price, only for alibaba ranking rules. You can negotiate with us based on your own needs to determine the final price.
Will you help with installation and stuff training?
For simple machines, users can learn how to operate them through online operation guidance. For complex equipment, you can ask us questions and have our professional technicians answer them. We also welcome users to come to the factory to learn how to operate it.
